DELEX RADIANT HEATER
Model: DEL-R1-2000
INSTALATION MANUAL
DELEX radiant heater it’s an innovative and efficient heating system
for living spaces.
Using a radiant panel heating element made from a natural mineral
(Mica) this heater combines the power and versatility of electrical convectors
with increased efficiency and comfort offered by infrared radiant panels. Due
to its embedded thermostat, used for room temperature regulation, and two
power settings, it offers low energy consumption. It can be installed on the
wall or on wheels, being ideal solution for living spaces, workplaces and
offices.

www.delex.eu
v1.0/2014
2
This owner’s manual will provide you with valuable information necessary
for the proper care and maintenance of your new product. Please take a
few moments to thoroughly read the instructions and familiarize yourself
with all the operational aspects of the heater.
Model No.
DEL-R1-2000
Power
2000W
Power settings
1000 / 2000W
Voltage
220-240V~, 50/60Hz

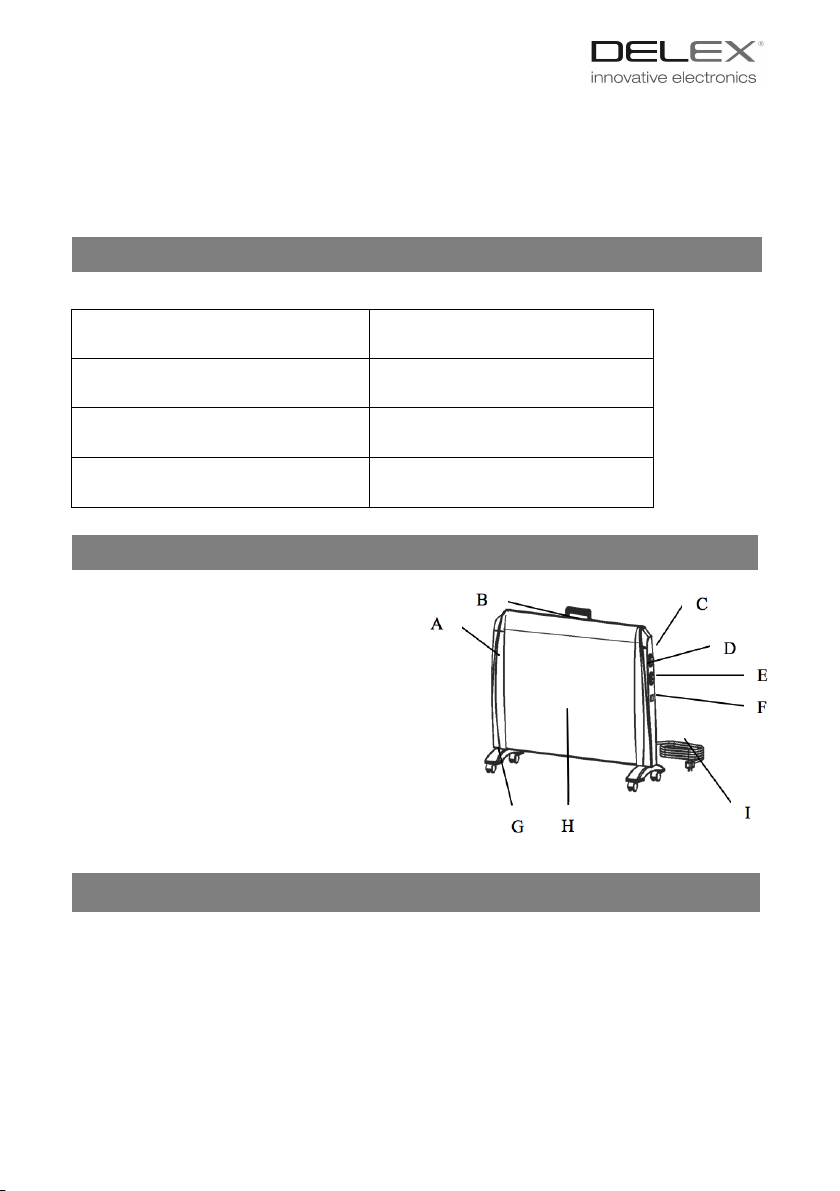

A. Left End Cap
B. Right End Cap
C. Power indicator light
D. Power switch
E. Thermostat switch
F. Foot Base
G. Front mesh
H. Power cable & plug
!Power On/Off Switch or Power Setting Switch (1000W/2000W)
!Adjustable Thermostat, Rotary Switch
!Free Standing with Casters or wheels, or Wall-Mounting
!Tip Over Switch
!Automatic temperature control
!Wall-Mounting
!IP24 (for bathroom use)
SPECIFICATIONS
COMPONENTE
FUNCTIONS

www.delex.eu
v1.0/2014
3
A. Mobile (casters or wheels):
Please ensure that both sets of wheels are correctly fixed to each end of the
unit by using the screws, alternatively you can wall mount the unit following
the below instructions:
B. Wall mounted (fixed):
Important: Before drilling into any wall ensure no electric cables
are present in the area.
1.Remove the feet from the unit
2.Drill holes on the wall according size
3.Insert plastic wall nails to holes
4.Insert screws through holes of wall brackets then lighten.
5.Hang on main body with wall brackets
INSTALLATION

www.delex.eu
v1.0/2014
4
Setting the temperature level
Use the thermostat to set the desired temperature level. The thermostat will
maintain the desired temperature lever by switching on and off at intervals.
Put this product to the desired places, turn the switch on, and turn the
thermostat knob to 2/3 or maximum to make the heater quick heat. When
feeling a little heating, turn the thermostat knob to your favourable
temperature range.
Built-in Tip-over switch
The heater is equipped with a built-in tip over switch, when it is tipped over,
power will be cut off. Allow some time for the heater to cool down before
standing it back up, it will resume power.
Auto Resettable Safety Cutout
When overheating, it will be cut off automatically, and power will be
temporarily cutout. Then it will resume working automatically after heater cool
down for a few minutes.
Important Notice
There may be an odor coming from the heater the first time you use it, this is
normal. Make sure the heater is in a well ventilated area and continue running
it until the smell goes away.
OPERATION INSTRUCTIONS

www.delex.eu
v1.0/2014
5
Read these instructions carefully before using this heater, don't cover anything
on surface of the heater.
•Before connecting the heater, check that the voltage indicated on the
rating plate corresponds to the main voltage in your home/office.
•If the power cord is damaged, it must be replaced by the manufacturer
or its service agent or a similar qualified person in order to avoid a
hazard.
•Don't use this heater in the immediate surrounding of bath, shower or
a swimming pool.
•Avoid the use of an extension cord because it may cause the heater
to overheat.
•Warning: Risk of Fire. Discontinue use if the outlet or the plug
becomes hot to the touch.
Only touch the heater with dry hands.
•Don't position where it can be touched by children, especially the very
young.
•Don't use this heater outdoor.
•Allow a safe area around the heater away from the furniture or other
objects, at least 50 cm from the top and sides and 200cm at the front.
•Don't use this heater when it is lying on its side.
•If the heater is tipped over, unplug it and allow it to cool before putting
it upright.
•Don't use the heater in rooms with explosive gas(e.g.petrol ) or while
inflammable glue or solvent (when gluing or varnishing parquet floors,
PVC etc.)
•Warning: In order to avoid overheating, Don't cover the heater.
•Don't locate the heater directly under a socket outlet.
•Don't allow children to use this heater.
.
•Extreme caution is necessary when near children .
•Don't allow foreign objects to enter the heater.
•Keep the power cord away from heater body in a safe distance.
•Avoid overheating, never put objects on the heater top or the front.
SAFETY WARNINGS
SAFETY POSITIONING
SAFETY OPERATION

www.delex.eu
v1.0/2014
6
•Don't use the heater in places with explosive or inflammable gas and
petrol, to prevent a great fire.
•Turn the switch to the OFF position
•Remove the plug from the wall socket
•Wait for the heater to cool down sufficiently
•You may clean the outside of the heater with a damp cloth. Don't allow
water to come into the appliance. Don't use soap or chemicals which
may damage the housing. Allow sufficient time to dry before plugging the
unit back in the socket.
•Clean the air inlet and outlet openings regularly (with normal use at least
twice a year ) with a vacuum cleaner
Storage:
If you do not plan to use the heater for an extended period of time(i.e. during
the summer months), we recommend you to re-pack the unit in its original
packaging or any other dust-free packaging and store in a dry and cool place.
CLEANING AND MAINTENANCE

www.delex.eu
v1.0/2014
7
WARRANTY CERTIFICATE
This product is entitled with 2 years (24 months) warranty. If the
product under warranty fails due to manufacturing defect, it will be repaired or
replaced (if it can not be repaired) within 15 days from the return date.
Warranty will be granted only with present certificate completed and
copy of purchasing invoice.
The warranty will not cover the defects and damages caused by:
misusage or negligence, defects caused by mechanical shock or pressure,
electrical power issues, transportation by client or products incorrectly
installed or misinterpretation of current instruction manual or country’s
regulations.
Model/Type: ___________________________________________________
CLIENT NAME: ________________________________________________
ADDRESS: ____________________________________________________
______________________________________________________________
DEFECT DESCRIPTION: ________________________________________
______________________________________________________________
______________________________________________________________
Imported by: Delphi Electric SRL , Cuza 15, 510193, Alba Iulia, Romania
Tel: [phone] , http://www.delex.eu
Made in: R.P.C.
Products labelled with this symbol should be recycled when end their
life.
Collection and recycling of end of life products should be done in accordance
with local authorities laws (DEE/2002/96/CE)
Copyright © 2005-2014, Delphi Electric SRL, Alba Iulia, Romania
