Heat Storm Signature Series Manual

SIGNATURE
Series
INSTRUCTION GUIDE
ank you and congratulations on your purchase of your Heat Storm TM
Signature Series Radiant Glass Heater.
is heater has been designed with care for you.
1

Contents
I. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
II. Heater Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Wall Mounting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operations Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting Smart Phone to Heater (Wi-Fi) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
III. Technical Specications . . . . . . . . . . . . . . . . . . . . . . . . 15
IV. Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2

I. Safety Instructions
PLEASE READ THIS MANUAL BEFORE OPERATING.
WARNING:
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED, AN ELECTRIC SHOCK OR FIRE MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
- Use extreme caution when operating heater near children.
- Use extreme caution when leaving the heater unattended.
- Do not operate if the heater malfunctions. Disconnect power and have heater
inspected by a reputable electrician before re-using.
- Do not use outdoors unless proper coverings and precautions are used. Do not
mount in a location where it could get wet. (i.e. in a covered patio).
- Switch heater switch to the «OFF» position before unplugging the cord from the
wall.
- Do not use heaters in areas where gas, paint, and other ammable vapors or
liquids are used or stored.
- Any other use not recommended by the manufacturer may cause re, electric
shock, or injury to persons.
TO REDUCE THE RISK OF FIRE, DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THE HEATER
- The installation must be protected by a 25 or 30 mA differential circuit-
breaker (NFC15-100 electrical safety standard). The power supply outage must be
of omnipolar type (phase and neutral cut-off).
- The SIGNATURE heater must be connected to the power supply (120V AC 60Hz)
by an electrical circuit protected by an overcurrent circuit breaker 10A placed in an
electrical distribution board.
If the power cable is damaged, it must be replaced by a qualied electrician
(cable type SJOOW 14/2).
- The system complies with current standards (see technical data).
The SIGNATURE heater is suitable for indoor use and can be suitable for outside
use if all precautions are taken to prevent the heater from getting wet.
3

The heater should not be placed directly below a power outlet.
Test the control unit before installation and ensure that no hot spots develop.
Only use the SIGNATURE Series heater for the recommended applications and with
the SIGNATURE Series accessories offered (towel bars).
Do not attempt to disassemble the unit as this will void the warranty.
IPPROTECTION
ACCESSORIES
MATERIAL
Plug supplied by safety transformer
Plug protected by 30mA RCD
Class II and RCD 30mA or Low voltage
Plug protected by 30mA RCD
No Plug
Low voltage (12 to 30V)
Bath (Volume 0) Shower with receiver (Volume 0) Shower without receiver (Volume 0)
Your SIGNATURE Series glass heater is IP 44 rated. This means that for a
bathroom installation, your heater can be located in the following area: Volume 2.
protection index IP44: zones 2 and more
4

This device is not intended for use by persons (including children) with reduced
physical, sensory or mental capacities, unless they have been helped by a person
responsible for their safety. The SIGNATURE Series heater is a certied device for its
performance and safety.
PRECAUTIONS FOR USE
The SIGNATURE Series is made of glass, handle it with care.
The SIGNATURE Series heater must not be used if the glass panels are damaged
or the radiator has impact marks.
The SIGNATURE Series is a radiant heater: do not install any obstacle within 20in
of its emitting surface.
The SIGNATURE Series provides directional heat, and needs to be installed where
you would like supplemental heat.
Do not cover the heating facade to ensure radiation efciency and avoid accidental
overheating.
Turn off the SIGNATURE Series heater and wait for it to cool down prior to cleaning
it with a soft, damp cloth.
The radiant surface can reach 80°C (176°F). Respect a minimum distance of 8’’
between the SIGNATURE Series heater and any object.
The SIGNATURE Series is hot when in use. Do not touch.
5

III. Installation
The SIGNATURE Series heater is composed of:
• A tempered glass decorative surface,
• An aluminum heating lm (patented),
• A mounting system for vertical or horizontal, position
• Towel bars can be added before xing to the wall.
This will turn your SIGNATURE Series heater
into a towel dryer, ideal for your bathroom.
(Accessories sold separately)
Suggested Tools for
Assembly
Included Hardware
BEFORE MOUNTING - Determine desired heater location on wall. Allow 3’’ space
between heater edges and other obstacles. Use level to ensure heater will be level when
installed. 6

OPERATING INSTRUCTIONS
Electrical connection
A 15 AMP, 120 Volt, 60 Hz circuit with a properly
grounded outlet is required.
Preferably, the heater will be on a dedicated circuit
as other appliances on the same circuit may cause
the circuit breaker to trip or the fuse to blow when
the heater is in operation.
CAUTION: Do not exceed the current rating of the
current tap. Always plug heaters directly into a wall
outlet/receptacle.
Clean the SIGNATURE Series glass heater with a
soft, damp cloth before heating.
Switch on using the switch located on the side of the
radiator.
7

8

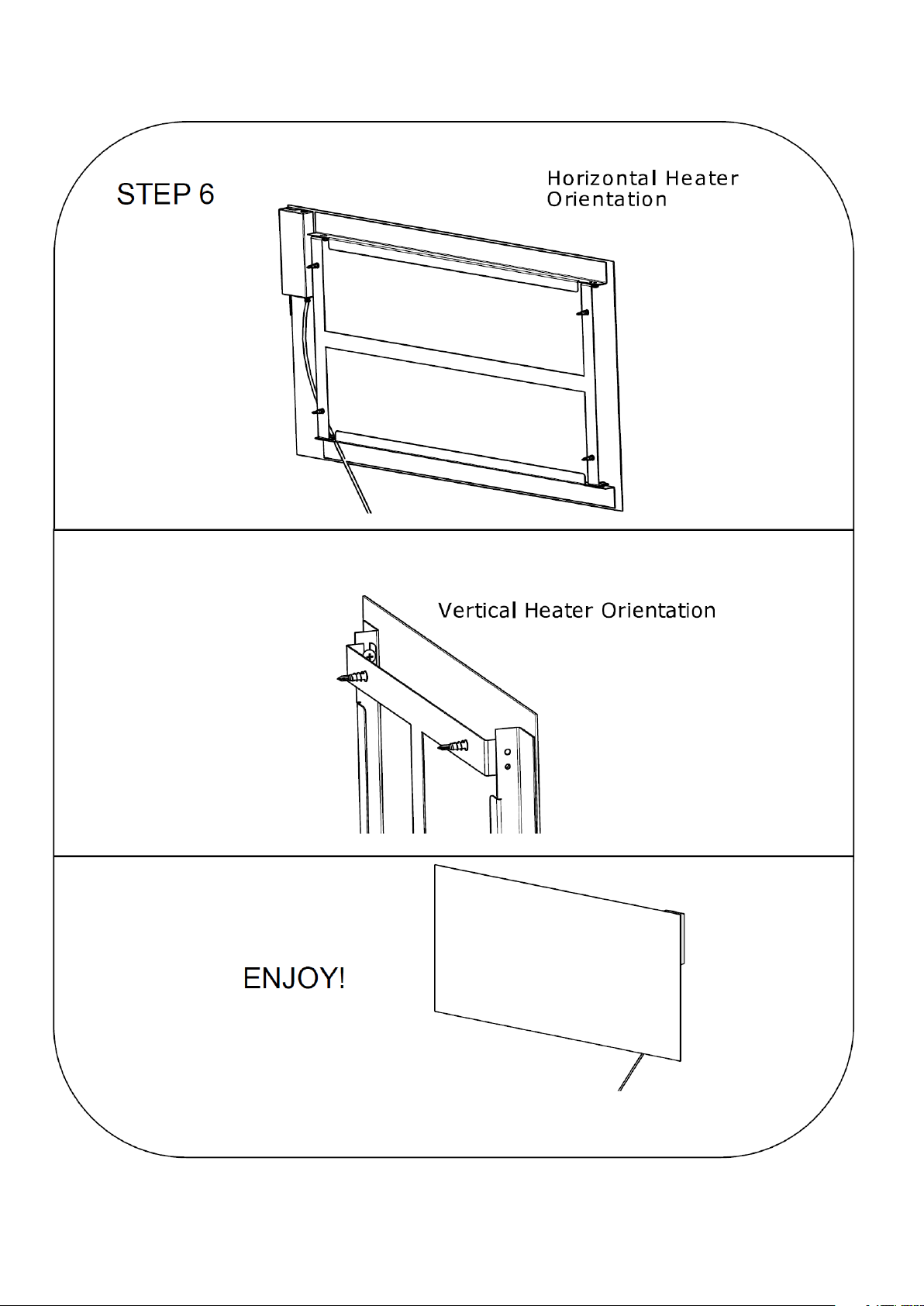

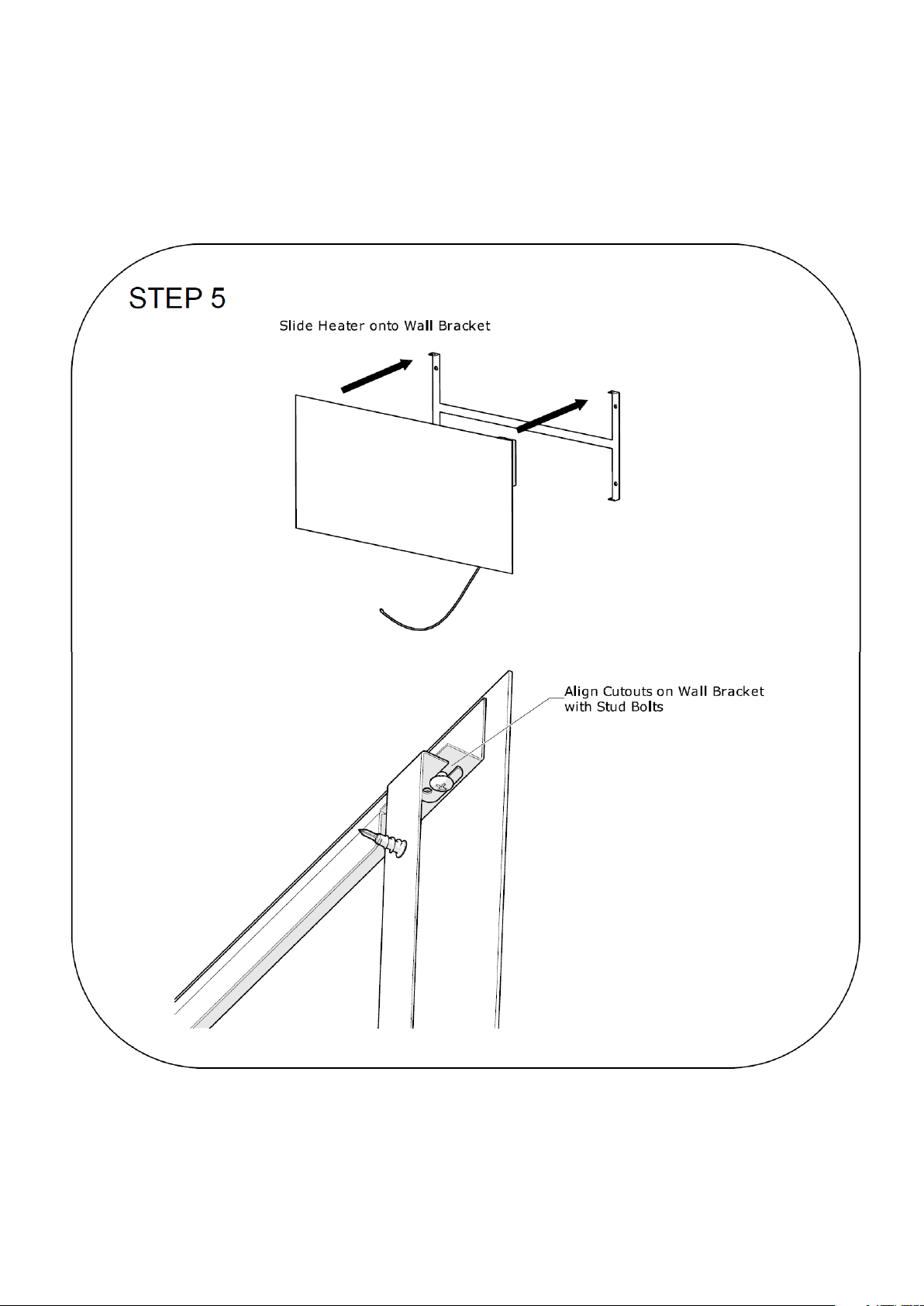

WALL MOUNTING INSTRUCTIONS

9

10

11

CONNECTING SMART PHONE TO SIGNATURE SERIES HEATER (Wi-Fi)
STEP 1 - Download the Smart Life - Smart Living App
STEP 2 - Plug in your heater.
A red light should appear, meaning
the heater has power.
STEP 3 - Switch on your heater.
STEP 4 - In the app, select Add Device, then select Heater (Wi-Fi) in Small Appliances.
12

STEP 5 - Enter your Wi-Fi Network /
password then hit Next.
STEP 6 - Hit Next again without
doing anything on the heater
STEP 7 - Hit Blink quickly without
doing anything on the heater
STEP 8 - Your heater is now
pairing.
13

Once pairing is done, the Wi-Fi symbol will turn blue and you can access your heater management.
If you lower the temperature setting, the right light will turn green.
If you raise the temperature setting, the right light will turn red.
If you have some trouble pairing your heater, follow these steps:
• Shut down the app completely
• Make sure your phone allows Wi-Fi access to Smart Life app
• Switch off the heater
• Unplug the heater
• Re-plug the heater
• Switch on the heater
• Open the app and repeat pairing process
Blue Green Blue Red
14

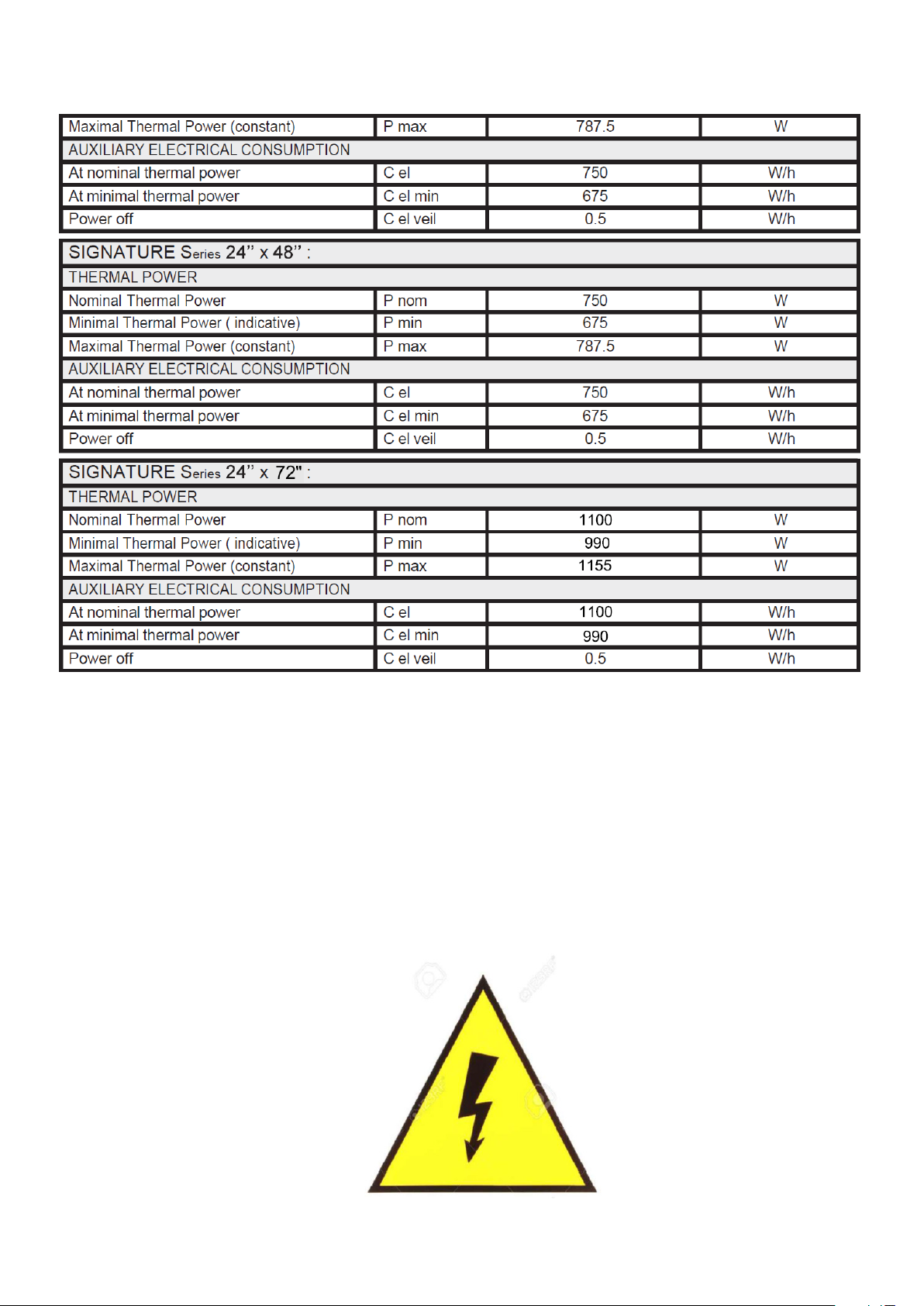

III. Technical Specications
Voltage: ~120V/AC (60Hz)
Maximal Intensity per radiator: 5A
Protection Class: II
Potection Index: IP44
Indicated power per room: 54W/10 sq ft
Conformity: UL499 & UL2021
SIGNATURE SERIES GLASS HEATERS RANGE:
PowerPower WidthWidth LengthLength WeightWeight Square footage estimateSquare footage estimate
500W 16’’ 48’’ 23,3lb 110 sq ft
750W 16’’ 72’’ 39,7lb 160 sq ft
750W 24’’ 48’’ 34,4lb 160 sq ft
110 0 W 24’’ 72’’ 50,7lb 215 sq ft
Please read and be sure your electrical installation can support the
heater
15

WARNING
If your heater is damaged, do not attempt to repait it yourself.
Contact EnergyWise Solutions for assistance at 435-752-6611, or
[e-mail]
16

IV. Limited Warranty
• 1 year limited warranty.
• The warranty period starts from the date of purchase on the invoice or receipt.
• This warranty applies in addition to all standard laws.
LIMITED WARRANTY CONDITIONS
Any request for warranty is subject to compliance with the following terms and
conditions:
• Warranty is valid only for domestic use in a dry location.
• Warranty covers manufacturing defects.
Warranty does not extend to:
• Damage resulting from abuse, misuse, accidents or natural disasters, damages
resulting from other unusual circumstances in connection with residential applications.
• Damage resulting from improper maintenance and cleaning, overload, or due to
moisture.
• Incorrect installation.
• Damage caused by third parties. (transport or assembly)
• EnergyWise Solutions reserves the right to inspect damage on site in order to
verify the conformity of the warranty terms and conditions.
• This warranty supersedes all other warranties.
• If a defect covered by this warranty is found, the manufacturer will repair or replace
the product. Customers are responsible for shipping on warranty returns after 30
days.
