Delfield CV5E User manual

Part Number: 9291000 06/22
Installation, Operation and Maintenance Manual
Original Document
,Caution
Read this instruction before operating this equipment.
Fresh Soluons, Fit For You
Blast Chillers
CV5E, CV10E, CV15E, CV15E-2

Safety Notices
nWarning
Read this manual thoroughly before operating, installing
or performing maintenance on the equipment. Failure
to follow instructions in this manual can cause property
damage, injury or death.
DANGER
Failure to disconnect the power at the main power
supply disconnect could result in serious injury or death.
The power switch DOES NOT disconnect all incoming
power.
DANGER
Do not install or operate equipment that has been
misused, abused, neglected, damaged, or altered/
modified from that of original manufactured
specifications.
DANGER
All utility connections and fixtures must be maintained
in accordance with local and national codes.
nWarning
Use caution when handling metal surface edges of all
equipment.
nWarning
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
concerning use of the appliance by a person responsible
for their safety. Do not allow children to play with this
appliance.
nWarning
Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
Never use flammable oil soaked cloths or combustible
cleaning solutions, for cleaning.
nWarning
Authorized Service Representatives are obligated to
follow industry standard safety procedures, including,
but not limited to, local/national regulations for
disconnection / lock out / tag out procedures for all
utilities including electric, gas, water and steam.
,Caution
Maintenance and servicing work, other than cleaning as
described in this manual, must be done by an authorized
service personnel.
Notice
Proper installation, care and maintenance are
essential for maximum performance and trouble-free
operation of your equipment. Visit our website www.
mtwkitchencare.com for manual updates, translations,
or contact information for service agents in your area.
Notice
The operating reliability of the induction unit can only
be guaranteed with appropriate use of the induction
unit. The limit values may be exceeded on no account.
Notice
Reconstruction of the induction unit or changes
to the induction unit is not allowed. Contact the
manufacturer if you intend to do any changes to the
unit. To guarantee safety, use genuine spare parts and
accessories authorized by the manufacturer. The use
of other components will cancel any liability for the
resulting consequences.

THIS PAGE INTENTIONALLY LEFT BLANK
Part Number: 9291000 06/22 3

4 Part Number: 9291000 06/22
Section 1
General Information
Model Numbers..................................................................................................................6
Serial Number Location .....................................................................................................6
Warranty Information ........................................................................................................6
Regulatory Certifications ..................................................................................................6
Section 2
Specifications
General Specifications .......................................................................................................7
Dimensions .........................................................................................................................8
Maximum Load.................................................................................................................10
Section 3
Installation
Location ............................................................................................................................12
Leveling.............................................................................................................................13
Stabilizing.........................................................................................................................13
Leg & Caster Installation..................................................................................................13
Air Flow .............................................................................................................................13
Installation Procedure .....................................................................................................13
Section 4
Operation
Display Layout..................................................................................................................19
On/OFF ..............................................................................................................................20
Compressor Preheating ...................................................................................................20
Date and Time...................................................................................................................20
Blast Chilling Cycles .........................................................................................................20
General Operation Principles.......................................................................................................... 20
Chilling Time ......................................................................................................................................... 20
Temerature Chilling............................................................................................................................ 20
Chilling and Storage Status Symbols ........................................................................................... 20
Chilling Phases ..................................................................................................................................... 20
Selecting and Starting the Positive Chilling Cycle .................................................................. 21
Selecting and Starting the Negative Chilling Cycle................................................................ 21
Defrost Mode ...................................................................................................................22
Drying with Machine at Standstill ..................................................................................22
Door Opening...................................................................................................................22
Ozonator (Optional) .........................................................................................................23
Ice-Cream Cycle ................................................................................................................23
Thawing Cycle...................................................................................................................23
Chilling Program Storage ................................................................................................23
Chilling Program Execution.............................................................................................24
Maintenance
Schedule ...........................................................................................................................26
Exterior Cleaning..............................................................................................................26
Ordinary Maintenance.....................................................................................................26
Operations Only for Authorized Installer.......................................................................26
Table of Contents

Part Number: 9291000 06/22 5
Condensor Cleaning........................................................................................................................... 26
Condensor Filter Cleaning ............................................................................................................... 26
Evaporator Cleaning........................................................................................................................... 26
Ozonator Maintenance ..................................................................................................................... 26
Tips for Smooth Operation..............................................................................................28
Operating Instructions ...................................................................................................................... 28
Pre-Cooling............................................................................................................................................ 28
Maximum Load Capacity for Chilling/Freezing Cycles .......................................................... 28
How to Load the Machine................................................................................................................ 28
Section 6
Troubleshooting
Alarms ...............................................................................................................................29
Evaporator Probe Alarm.................................................................................................................... 29
Product Probe Alarm.......................................................................................................................... 29
Cell Probe Alarm.................................................................................................................................. 29
Door Mirco-Switch Alarm................................................................................................................. 29
Differential Thermal Breaker - Oil Pressure................................................................................. 29
Automatic Reset Minimum Pressure Switch Alarm ................................................................ 30
Automatic Reset Kriwan Alarm ...................................................................................................... 30
Input Alarm HT1................................................................................................................................... 30
Overtemperature Alarm ................................................................................................................... 30
Black-Out Alarm................................................................................................................................... 30
Compressor Preventative Maintenance Alarm......................................................................... 30
Temperature Not Reached in the Time Set Alarm................................................................... 30
Power Keypad-card Connected Alarm ........................................................................................ 31
Maximum Pressure Switch Alarm.................................................................................................. 31
Alarm Summary................................................................................................................................... 32
HACCP ...............................................................................................................................33
HACCP Alarm Memories Reset ....................................................................................................... 33
HACCP Data Reading ......................................................................................................................... 33
HACCP Data Export............................................................................................................................. 33
Accessing Parameters ......................................................................................................34
User Parameters................................................................................................................................... 34
Service Parameters ............................................................................................................................. 34
Resetting Factory Parameters......................................................................................................... 34
Wiring Diagram ................................................................................................................39

6 Part Number: 9291000 06/22
Model Numbers
This manual covers the following standard counters.
Blast Chiller
CV5E
CV10E
CV15E
CV15E-2
Serial Number Location
Always have the serial number of your unit available
when calling for parts or service. Serial numbers are
printed on serial tags.
• Heated counter serial tags are located above the
louvered panel near the on/off switch.
• All purpose counters, utility equipment or delivery carts
do not require serial numbers but a serial tag is placed
at the top of the pylon on the back of the unit.
Warranty Information
• Register your product for warranty,
• Verify warranty information,
• View and download a copy of your warranty,
at www.delfield.com/warranty
Regulatory Certifications
All models are certified by:
• National Sanitation Foundation (NSF)
All models with electrical are certified by:
• Underwriters Laboratories (UL)
• Underwriters Laboratories of Canada (cUL)
Section 1
General Information

Part Number: 9291000 06/22 7
Section 2
Specifications
Technical Data
Data Plate
The plate bearing the equipment specifications should
be applied on the outside rear part of the machine and/
or on the electrical panels. Any preparation of machines
only for relocation of the condensing units must follow
the regulations enforced in the country of installation
regarding fire safety (refer to the command of the local
fire department for the relevant indications). It should
also be considered that the possible intervention of safety
valves or fusible plugs, located in the refrigerant circuit,
entail the immediate discharge of all the refrigerant into
the environment.
The appliance’s climate class is stated on the serial plate.
Environmental climatic classes (ISO 23953-2)
Climate class Temperature Humidity
1 60°F 16°C 80%
2 72°F 22°C 65%
3 77°F 25°C 60%
4 86°F 30°C 55%
5 104°F 40°C 40%
6 80°F 27°C 70%
Refrigerant
The appliance contains fluorinated greenhouse gases
covered by the Kyoto Protocol in the quantities indicated
on the serial plate. The type of refrigerant gas present in
the refrigerant circuit of the appliance is shown on the
serial plate. The GWP (global warming potential) of the
HFC R134a gas is 1430 and the HFCR404A gas is at 3922.
The CO2 equivalent data is shown on the serial plate.
,
,According to regulation (EC) 1272/2008,
R134a and R404A gases are non-flammable
and non-toxic. in high concentrations they
cause burns and frostbite. in the system the
gas is pressurized; it may explode if heated.

Specifications Section 2
8 Part Number: 9291000 06/22

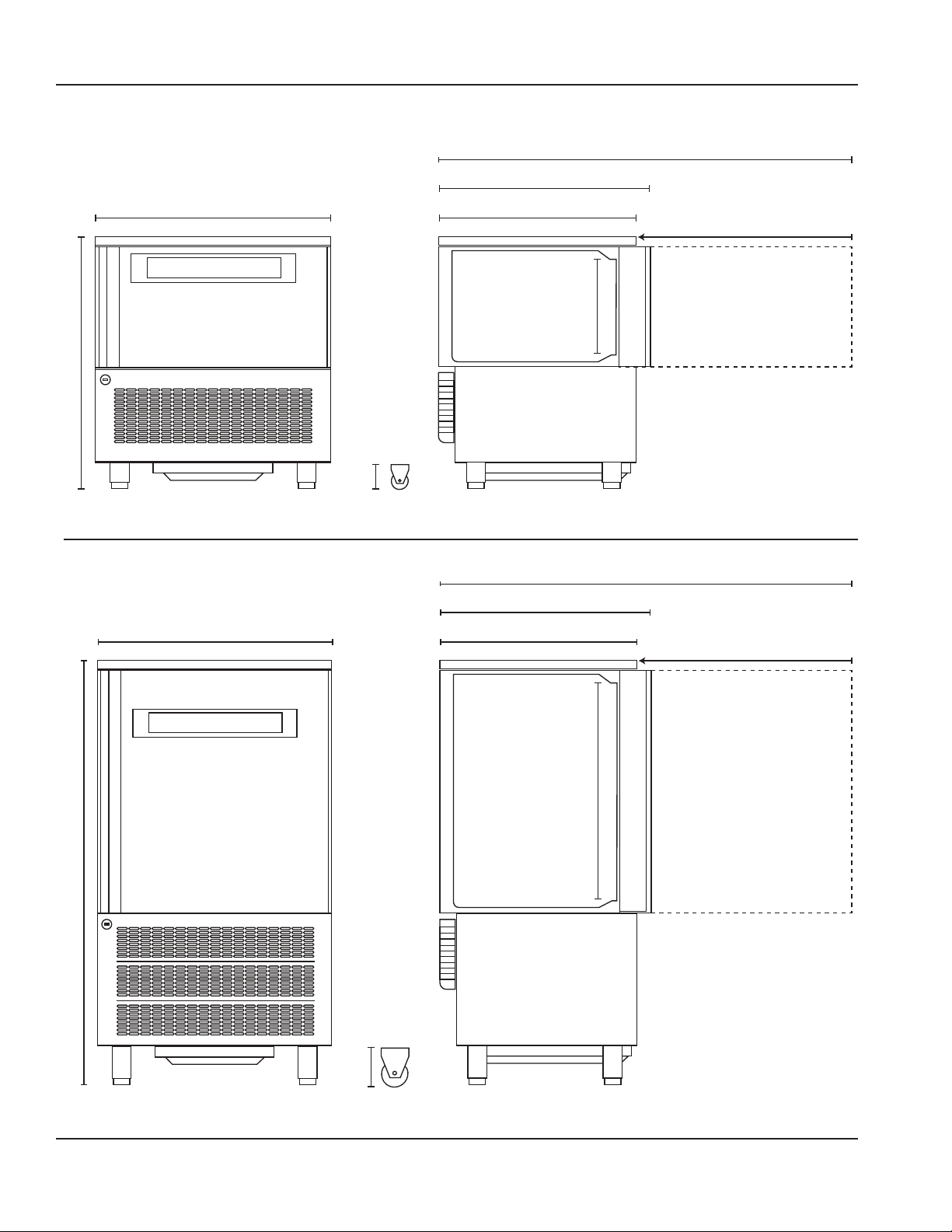

Dimensions
33”
35.4”
28.25”
30.3”
13.6”
3.5”
Door open
31”
59.25”
Front Side
CV5
33”
59”
30.7”
32.7”
29.6”
5.3”
Door open
31”
61.6”
Front Side
CV10

Section 2 Specifications
Part Number: 9291000 06/22 9
33”
76.85”
34.6”
36.6”
42.4”
5.3”
Door open
31”
65.5”
Front Side
CV15
33”
76.85”
49.2”
51”
42.4”
5.3”
Door open
31”
80”
Front Side
CV15-2

Specifications Section 2
10 Part Number: 9291000 06/22
Maximum load
Maximum load for internal structure capacity
Maximum Capacity
Model Internal structure load per shelf
CV5E 66lbs (30kg) 45lbs (20kg)
CV10E 100lbs (45kg) 45lbs (20kg)
CV15E 175lbs (80kg) 45lbs (20kg)
CV15E-2 190lbs (85kg) 45lbs (20kg)
Maximum trays capacity
(trays not supplied with the appliance)
Standard internal support structure
Model
Size Trays CV5E CV10E CV15E CV15E-2
15¾”x 23⁄”(600x400mm) 5 10 15 30
12¾”x 20¾”(530x325mm) 5 10 15 30
23⁄” x31½” (600x800mm) n/a n/a n/a 15
12¾”x 41½”(530x650mm) n/a n/a n/a 15
Optional internal support structure
Model
Size Trays CV5E CV10E CV15E CV15E-2
18” x 26” (655x453mm) n/a n/a n/a 15
12¾” x 20¾” (530x325mm) n/a n/a n/a 28
12¾” x41½” (530x650mm) n/a n/a n/a 14

THIS PAGE INTENTIONALLY LEFT BLANK
Section 2 Specifications
Part Number: 929100 06/22 11

12 Part Number: 9291000 06/22
DANGER
Installation must comply with all applicable fire and
health codes in your jurisdiction.
DANGER
Use appropriate safety equipment during installation
and servicing
nWarning
Remove all removable panels before lifting and
installing.
Location
nWarning
This equipment must be positioned so that the plug is
accessible unless other means for disconnection from
the power supply (e.g., circuit breaker or disconnect
switch) is provided.
nWarning
Adequate means must be provided to limit the
movement of this appliance without depending on or
transmitting stress to the electrical conduit or gas lines.
nWarning
To avoid instability the installation area must be capable
of supporting the combined weight of the equipment
and product. Additionally the equipment must be level
side to side and front to back.
nWarning
This equipment is intended for indoor use only. Do not
install or operate this equipment in outdoor areas.
,Caution
Do not position the air intake vent near steam or heat
exhaust of another appliance.
Section 3
Installation
The location selected for the equipment must meet the
following criteria. If any of these criteria are not met, select
another location.
• Units are intended for indoor use only.
• The location MUST be level, stable and capable of
supporting the weight of the equipment.
• The location MUST be free from and clear of
combustible materials.
• Equipment MUST be level both front to back and side to
side.
• Position the equipment so it will not tip or slide.
• Front casters MUST be locked once positioned.
• Recommended air temperature is 60° - 100°F
(16° - 38°C).
• Proper air supply for ventilation is REQUIRED AND
CRITICAL for safe and efficient operation. Refer to
Clearance Requirements chart on page 13.
• Do not obstruct the flow of ventilation air. Make sure the
air vents of the equipment are not blocked.
• Do not install the equipment directly over a drain.
Steam rising up out of the drain will adversely affect
operation, air circulation, and damage electrical /
electronic components.

Section 3 Installation
Part Number: 9291000 06/22 13
Leveling
After the unit has been placed in the desired location, units
with legs must be leveled. Level units from front to back
and from side to side. Leveling will insure proper door
operation and removal of condensate. Units with casters
must have the caster brake set so the unit cannot move.
Stabilizing
It is very important that all legs are properly adjusted to
keep the unit level, evenly distribute the weight and to
make sure the unit will not rock, lean or be unstable.
Leg & Caster Installation
nWarning
The unit must be installed in a stable condition with
the front wheels locked. Locking the front casters after
installation is the owner’s and operator’s responsibility.
nWarning
Use a jack to lift the refrigeration unit off the ground
just far enough to remove the leg/caster. Place blocking
underneath the unit. Do not work underneath a raised
unit without proper blocking. Do not lift the unit more
than necessary to remove the leg/caster. Lifting the unit
too far can make the unit unstable.
Air Flow
Blast Chiller Units
Units on castors or legs need a minimum of 2 inches
underneath the generator for proper airflow.
Clearance Minimums
Sides 0”
Back 5”
Bottom 2”
Installation
,
,All stages of installation must be carried out in
compliance with the national standards in force
according to the manufacturer’s instructions and
by professionally qualified personnel.
Installation of the appliance and of the refrigerating
unit must only be carried out by technicians of the
manufacturer or by skilled personnel.
If the machine was supplied with a remote condensing
unit, it is the installer’s responsibility to check all the
connections in accordance with the instructions provided
for the installation of the systems and machinery.
The installer is advised to use the appropriate personal
protective equipment necessary for processing and in
compliance with the regulations in force.
Transportation and handling
The net and gross weight of this appliance can be found
on the external packaging.
Loading and unloading of the appliance and/or of the sub-
systems from the means of transport can be performed
using a forklift truck or fork pallet truck, the length of
which is more than half that of the unit or using cranes
where the appliance/sub-system is fitted with eyebolts.
The lifting equipment must be chosen according to the
size of the packaged machine/components and with
sufficient capacity. For handling of the appliance/sub-
systems, every precaution must be taken not to damage
them, respecting the indications on the packaging.
Unpacking and disposal
Remove all cardboard or the wooden crate from the base
on which the machine is placed. Then lift the machine/
sub-assemblies with a suitable means (forklift truck);
remove the wooden base and position the machine/sub-
assemblies in the place provided.
After removing the packaging, verify the integrity of the
machine/sub-assemblies in case of uncertainty do not use
it and contact the distributor.
Remove the protective PVC film on the stainless steel
panels from all sides both internally and externally.

Installation Section 3
14 Part Number: 9291000 06/22
NOTE: All the various components of the packaging must
be disposed of according to the regulations in force in the
country where the appliance is being used. In any case
nothing must be disposed of into the environment.
Positioning
The appliance:
• must be installed in places where it can be checked by
qualified personnel
• it must not be installed outdoors.
• it must not be installed in dusty environments.
• it must not be placed in locations with the presence of
water jets.
• it must not be washed with water jets.
• it must be installed and tested in full compliance with
safety laws, traditional systems and with the regulations
in force.
• it must be positioned at a minimum distance of 120mm
from the rear wall.
The installer must verify any requirements for fire safety
(refer to the command of the local fire department for the
relevant indications.)
Level the appliance through adjustment of the feet. For
the setting up of heavier machines, use dedicated hoists
(fig. A - chap. 3.1).
If the appliances are not leveled their functioning and the
flow of condensates could be impaired.
Avoid:
• direct exposure to sunlight;
• closed sites with high temperatures and poor air
circulation;
• indoor environments at high temperatures and poor air
circulation, and avoid installing the machine near any
heat sources
Ambient temperature and air exchange (if applicable)
For air cooled liquid chillers, the ambient operating
temperature must not exceed 90°F (32°C). Above this
temperature the declared performance is not guaranteed.
The machine can operate safely up to a temperature that
is referred to by the climate class indicated on the serial
plate. Remote condensing units must be installed in special
rooms or, if outdoors, in a place protected from direct
sunlight, from adverse weather conditions and from heavy
wind (above 5m/sec). Where circumstances so require, it
is the responsibility of the installer to evaluate the use of a
cover or canopy (costs to be borne by the purchaser). In any
case sufficient air circulation must be guaranteed.
Hydraulic connection for water cooled condensing units
(if applicable)
It is advisable to install a valve between the mains and
the appliance’s inlet hose in order to be able to stop the
passage of water if necessary.
For appliances with water cooled units the water supply
temperature must be between 50°F (10°C) and 86°F (30°C)
and the operating pressure must be between 0.1 MPa (1 bar
- 14psi) and 0.5 MPa (5 bar - 72 psi).
Electrical connection
,No responsibility is accepted for damage to
persons, animals or property cause by failure
to earth the appliance and the creating of an
electrical installation that does not comply with
current standards.
The mains connection must be made according to
existing national rules and by experienced, qualified
personnel. Before connecting the appliance to the mains
make sure that the mains voltage corresponds to the
voltage indicated on the data plate.
Verify that the electrical installation is adequate to the
maximum power of the appliance, as indicated on the
plate. Upstream of each device it is mandatory to install
a differential thermal breaker according to current
regulations in the country of installation.

Section 3 Installation
Part Number: 9291000 06/22 15
The electric connecting cables must be dimensioned
in accordance with the rules in force in the country
of installation. In cases where the power cord of the
appliance is damaged, it must be replaced with another
with characteristics that comply with the rules in force in
the country of installation and performed by a qualified
personnel in order to prevent any risk to persons.
The earthing conductor must be correctly connected to
an efficient earthing system.
The manufacturer declines any responsibility and any
warranty obligation in the event of damage to the
equipment, to persons and property caused by incorrect
installation and/or failure to respect the applicable laws.
Remote group refrigerator connection (if applicable)
The diameters of the supply lines of the equipment
are sized for distances of up to 10 meters. Contact the
manufacturer for longer distances.
Condensate drainage connection (if applicable)
It is necessary to provide a drainage pipe for the
condensation and washing water of a minimum diameter
of 1”. It is advisable to dispose of the condensate through an
open drain at ground level and fitter with a siphon with a
minimum diameter of 1/2”.
Notes for the installer
• Verify the correct installation and system testing before
starting up the machine (test report).
• Check for any gas leaks from the welds or joints made
during the installation phase.
• Check the efficient insulation of the connecting pipes
between the condenser and the remote condensing
unit.
• Check the electrical connection
• Check the electrical input
• Verify the standard pressures of the refrigerating system
• Check the water connections with adjustment of the
pressure valve during operation and good circulation of
the condensation water (water cooled groups).
Commissioning
,Commissioning must be carried out by
authorized and qualified personnel.
Perform at least one complete cycle of rapid storage
freezing (to reach the SET temperature), and a manual
defrost cycle. If the equipment or the remote condensing
units were not delivered in an upright position (e.g. on
their back) or were overturned during installation, do not
turn on immediately but wait at least 4 hours before use.
Inform the customer of the exact use of the equipment
with specific reference to the use and to customer
requirements.
Safety and control systems
• Door micro switch: this locks operation of the fans in the
cell when the door is opened.
• General protection fuses: they protect the entire power
circuit against short circuits and possible overloads.
• Compressor thermal relay: this intervenes in case of
overloads or malfunction.
• Safety pressure switch: this operates in the case of
excess pressure in the refrigerant circuit.
• Fusible plug: this intervenes in the case of overpressure
and failure of the afore-mentioned safety pressure
switch.
• Chamber temperature control: this is operated by the
electronic card via the probe positioned inside the cell.
• Defrost termination temperature control: this is
managed by the electronic card via the probe located
on the evaporator.
Stop modes
In an emergency, to stop the machine remove power from
the main panel using the earthing switch or by removing
the plug from the socket making sure hands are not wet or
damp.

Installation Section 3
16 Part Number: 9291000 06/22
Signaling/reports of malfunctioning
In cases of malfunction of the machine and for report
signaling concerning the blast chillers supplied.
Assembled
You are requested to communicate to the retailer/service
center the machine model, code and the serial number
shown on the registration plate located on the rear of the
machine and inside the door.
Dismantled (with condensing units/remote condensers)
You are requested to communicate to the retailer/service
center the machine model and the code shown on the
registration plate located above the control panel.
Appliance disposal
After the useful life of the appliance has been realized be
sure to demolish and dispose of the machine in compliance
with the regulations applied in the country of installation,
particularly in regards to refrigerant gas and compressor
lubricant oil.

Section 3 Installation
Part Number: 9291000 06/22 17
THIS PAGE INTENTIONALLY LEFT BLANK

18 Part Number: 9291000 06/22
DANGER
The on-site supervisor is responsible for ensuring that
operators are made aware of the inherent dangers of
operating this equipment.
DANGER
Do not operate any appliance with a damaged cord
or plug. All repairs must be performed by a qualified
service company.
DANGER
Never stand on the unit! They are not designed to
hold the weight of an adult, and may collapse or tip if
misused in this manner.
nWarning
Do not contact moving parts.
nWarning
All covers and access panels must be in place and
properly secured, before operating this equipment.
nWarning
Do not block the supply and return air grills or the air
space around the air grills. Keep plastic wrappings,
paper, labels, etc. from being airborne and lodging in
the grills. Failure to keep the air grills clear will result in
unsatisfactory operation of the system.
Section 4
Operation

Section 4 Operation
Part Number: 9291000 06/22 19
START
STOP
ICE CREAM HACCP
PROGRAM THAW
OZONE DRY
ACTIVE CONTROL
BLAST
1 2 3 5 7 8 9 10 11 12 13
17181921222324 20 16 15 14
4 6
1 - Stand-by button - Standby button, if pressed for more
than 3 seconds it takes the card into standby or switches
it on again.
2 - Positive chilling button - Used to select the mode of
positive chilling.
3 - Negative chilling button - Used to select the mode of
negative chilling.
4 - Chill. LED Temperature - LED on means that the chilling
is via temperature mode (insert probe)
5 - Chilling mode button - A button that selects the mode
of chilling with Time or Temperature (insert probe use);
the selected mode is represented by ignition of one of
the two LEDs located on the right and left of the button
and the are marked with the temperature or time symbol.
6 - Chill. LED Time - LED on means that the chilling is via
Time mode
7 - Decrease button - Parameter or setting value decrease
buttons (the “-” button allows silencing of the beeper if
active.)
8 - Chilling phase LED - Symbol representing the chilling
phase (it flashes when at that phase.)
9 - Storage phase LED - Symbol representing the chilling
phase (it flashes when at that phase.)
10 - Ice-cream button - The ice-cream button which starts
the ice-cream cycle. (see section 12).
11- HACCP button - The HACCP button which starts the
data reversal cycle onto USB.
12 - Ozone button - Button that starts the ozone sanitizing
cycle (if any).
13 - Dry button - Button that when pressed once starts
drying with door open. If pressed for at least 3 seconds it
starts the hot gas defrost cycle. If pressed for 3-5 seconds
in stand-by it will access parameters menu.
14 - Status LED - RGB on mark lettering. The lettering
assumes the following colors depending on the following
relative connected states:
BLUE - Phase of chilling, deep-freezing or storage
ORANGE - Thawing
GREEN/BLUE - Machine on stand by
WHITE - Machine at standstill
RED FLASHING - Serious alarm
FLASHING YELLOW - Non-serious alarm (door opening -
maintenance)
15 - Thawing button - Button that when pressed starts the
defrost cycle
16 - Program button - Programs recall or storage button
17 - Temperature symbol - The symbol lights up when a
cycle is active and the cell temperature (time chilling) or
product temperature (temperature chilling) is detected.
In the second case the product probe is shown with the
highest value. With the cycle in progress press the button
(12) to display in sequence the values of the insert probe
1 and 2 and the evaporator sensor probe in flashing mode
and the display (19) will show the letters in sequence SP1+
“probe value”, SP2+”probe value” and SE+”value”.
18 - Displaytemperature- Second part of the alphanumeric
display (last 4 digits) for representation of the T° cell or T°
product and evaporator value.
19 - Display time - First part of the alphanumeric display
(first 4 digits) for representation of the time value
remaining of chilling.
20 - Time symbol - The symbol lights up when the cycle
is running; the time remaining will be displayed. If the
button (5) is pressed the elapsed time will flash for 5
seconds (both for Time and Temperature chilling).
21 - Increase button - Parameter or setting value increase
buttons.
22 - Cycles start/stop button - start/stop the chilling cycle
set; with a cycle started, the button remains lit.
23 - Negative chilling LED - The number of LEDs lit indicates
the intensity of the negative chilling.
24 - Positive chilling LED - The number of LEDs lit indicates
the intensity of the positive chilling.

Operation Section 4
20 Part Number: 9291000 06/22
Machine on/off
When the equipment is powered, it will appear in
STANDBY conditions (scrolling text on the display). To start
the machine press the button (1) for at least 3”. Similar to
machine without cycles in progress, to switch it off simply
press the button (1) for at least 3”.
Where a cycle was in progress, and the situation is returning
from a blackout the appliance, once reconnected, will
resume from the interrupted cycle.
Compressor preheating management
Upon ignition of the equipment a compressor preheating
time of 120 minutes must be respected where the blast
chiller is not available.
The scrolling text will appear “Compressor Heating-
Riscaldamento Compressore” and then the fixed lettering
“XXX min” to represent the time remaining. These two
messages will alternate until the end of heating. This phase
can be bypassed by pressing the “HACCP” (11) button for
approximately 5 seconds.
Date and time setting
Upon initial ignition, it is advisable to check the date and
time set; their accuracy is beneficial in relation to HACCP
management.
To access the clock setting, press for more than 5 seconds
the Temperature/Time button (5) with the machine in
Stop mode. The labels shown below will appear on the
left display; the right display will show the 2-digit numeric
value to be set:
Hour / Minute / Day / Month / Year
The Temperature/Time button (5) can be used to scroll
through the labels, while with the +/- buttons (21/7) it is
possible to change the values.
After the year value the change will be automatically
saved.
Blast chilling cycles
General operating principles
Pre-cooling of the machine should always be performed
upon initial running of a blast chilling or deep freezing
operation. This optimizes the subsequent work cycle,
reducing the time.
Blast chillers are refrigeration systems that work with a two-
phase cycle:
• Chilling phase (limited duration)
• Storage phase (unlimited period)
The chilling phase starts upon pressing of the “Start/Stop”
button (22) and continues until the end of the chilling
phase that is used to achieve the time set (Time chilling) or
for reaching of the product temperature set (Temperature
chilling); changing to the unlimited duration storage cycle
takes place automatically (except for the HARD+HARD
negative chilling cycle). It is possible to stop the chilling or
storage at any time by pressing the“Start/Stop” button (22).
Chilling time
During this type of chilling, the display (18) shows the cell
probe temperature while the other display (19) shows the
time remaining at the end of the chilling phase. The Time
chilling LED (6) is lit as is the time symbol (20).
Temperature chilling
If Temperature chilling is selected, at the start of a cycle a
check is performed of the correct insertion of the product
probe (if enabled). If the test provides a negative result
an alert appears on the display “PROBE NOT INSERTED”
and the beeper sounds for 60 seconds (parameter c9);
that symbol disappears when the beeper is silenced by
pressing the button (7). If instead the button is pressed
again (5) switching to Temperature cycle, the cycle
continues based on the data read by the product probe.
If nothing is pressed, the temperature cycle automatically
switches into a Time cycle for the remaining duration of
the countdown.
During this type of chilling, a display (18) will show the
temperature of the probe (the highest value of the two)
and the other (19) will show a countdown. The countdown
only starts when the insert temperature is less than 149°F
(65°C). The temperature chilling LED (4) is on as is the
probe insert symbol (17).
Chilling and storage status symbols
During chilling the LED that lights the symbol will be
lit and flashing. Upon completion of chilling, this LED
flashes alternately with the LED located beneath the
storage symbol (8) while the beeper sounds for 60 sec,
and the scrolling text appears “End Cycle”. After this time,
the chilling LED (9) switches off, the storage one starts
flashing (8) and the scrolling text disappears (even when
the beeper silencer button (7) is pressed.
The LED (8) will flash when the compressor is on while if
the set value has been reached, they will only remain lit
until transition to storage. Similarly with storage, the LED
(9) will flash when the compressor is active and will remain
lit for the rest of the storage.
Chilling phases
Pressing the positive chilling button (2) or negative chilling
button (3) allows selection of a different chilling mode.
The number of LEDs lit (23) or (24) define the “intensity”
of chilling. The “Time” or “Temperature” chilling mode
