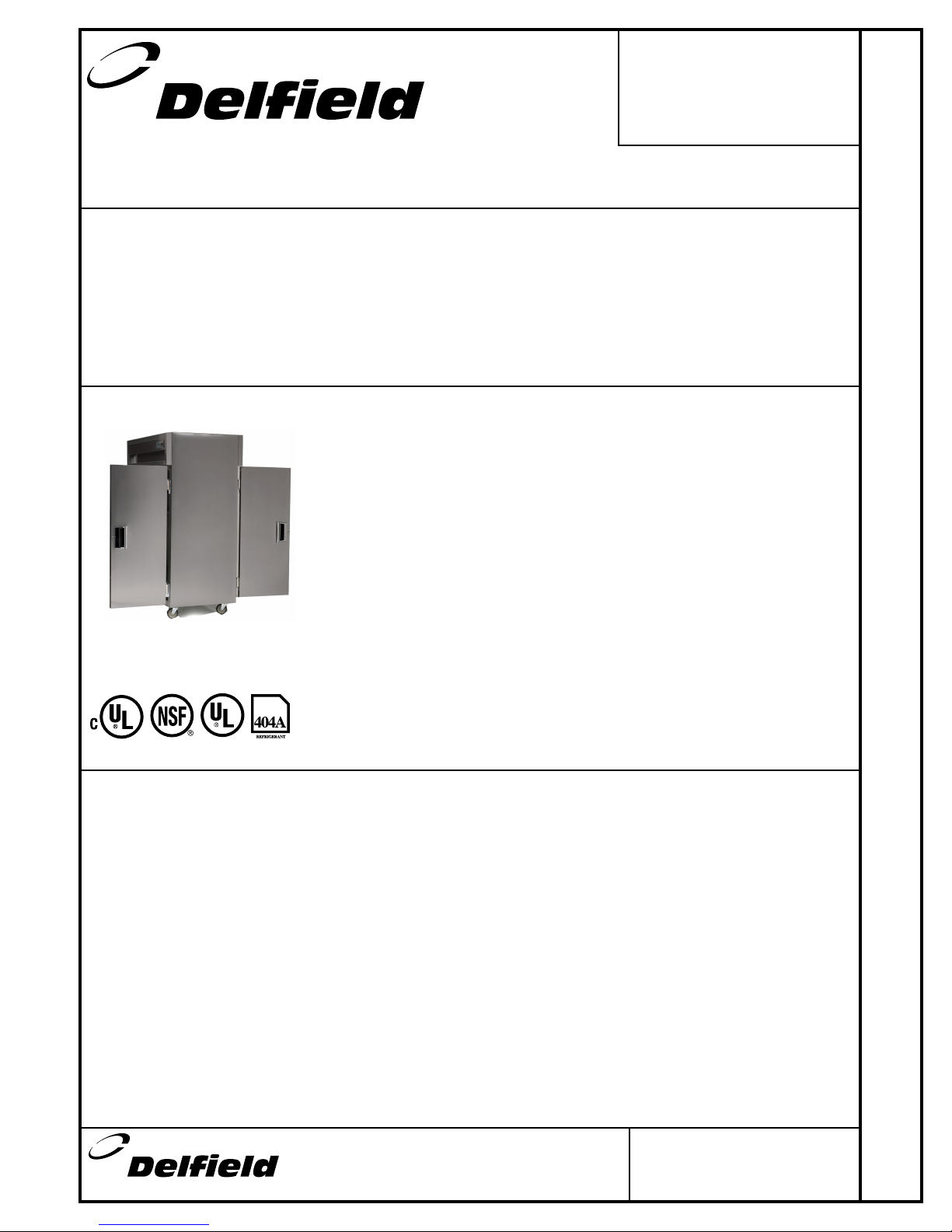

SPECIFICATION LINE: SELF-CONTAINED SHALLOW SOLID DOOR PASS-THRU REFRIGERATOR
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
Specification Line
Self-Contained Shallow Solid Door Pass-Thru Refrigerator
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
Approval _________________
Date ____________________
SSRPT2S-S
SPECIFICATIONS
Exterior: Cabinet exterior sides, front and shroud
shall be 22-gauge, corrosion resistant stainless steel.
Upper shroud shall be hinged, with stay-open feature
to provide easy access to refrigeration system.
Interior: Cabinet interior shall be 22-gauge, corrosion
resistant stainless steel (SS models) or heavy gauge
aluminum (SA models). Bottom and top surfaces are
die stamped to provide radius corners and recessed
floor. Three chrome plated wire shelves are provided
per section. Shelves rest on clips which are adjustable
in 1” increments on stainless steel pilasters affixed to
the cabinet interior. Pilasters are removable without
tools for cleaning. Interior light, mounted to the
interior ceiling is controlled automatically through
a switch mounted in the hinge assembly to protect
against breakage. Door openings are protected with
heavy gauge stainless steel breaker strips. An air duct
is mounted to the ceiling assuring low velocity, even air
movement throughout the cabinet interior.
Doors: Exterior shall be 22-gauge, corrosion resistant
stainless steel. Interior liner shall be resilient high impact
ABS material, formed to protrude beyond the door gasket
to protect the gasket from tearing. Each door has two
edge mount, self closing, cam lift style hinges. Doors can
be removed from cabinet without the use of tools. Metal
door handle is recessed into the door for easy grip without
impacting aisle space. Keyed door lock is mounted in the
door next to the handle. Lock engages into a heavy duty
strike mounted to the cabinet face. Door gaskets are
magnetic and mount to the door snapping in place and are
removable without tools.
Refrigeration system: All components are mounted
to the exterior cabinet ceiling, outside the food zone and
are assembled as one piece and can be removed as one
piece. Environmentally friendly R404A refrigerant is
used. System has the capability of maintaining between
27˚F and 40˚F in heavy use food service operations.
Refrigerant is metered using a highly responsive
thermostatic expansion valve. System is controlled using
Delfield’s ACT-Advanced Control Technology electronic
temperature control, which provides improved pull
down times, reducing compressor cycling and longer
compressor life with lower energy consumption.
Control system uses adaptive defrost to assure
evaporator coil is free of ice and operating at optimum
efficiency. Evaporator condensate is eliminated using an
energy efficient hot gas system.
Electrical: Standard electrical connections shall be 115V,
60Hz, single phase. A 10’ cord and plug is supplied
attached to a junction box mounted on the exterior top
of the cabinet.
MODELS
❑ SSRPT1S-S 1 section stainless interior
full door
❑ SSRPT1S-SH 1 section stainless interior
half door
❑ SARPT1S-S 1 section aluminum interior
full door
❑ SARPT1S-SH 1 section aluminum interior
half door
❑ SSRPT2S-S 2 section stainless interior
full door
❑ SSRPT2S-SH 2 section stainless interior
half door
❑ SARPT2S-S 2 section aluminum interior
full door
❑ SARPT2S-SH 2 section aluminum interior
half door
STANDARD FEATURES
• Stainless steel interior and exterior (SS)
• Stainless steel exterior, aluminum interior (SA)
• Built in door locks with heavy duty strikes
• Recessed metal door handle
• Exterior digital thermometer
• Easy to use electronic control
• Three chrome plated wire shelves per section
• Tough ABS interior door liners
• 10’ attached cord and plug standard on 115V units
• 6” adjustable stainless steel legs
• Stainless steel breaker strips
• Energy savings door heater switch
• Two year parts & labor warranty
OPTIONS AND ACCESSORIES
❑ Security package
❑ 6” polyurethane casters
❑ Door field rehingability
❑ Stainless steel interior door liner
❑ Additional shelves
❑ Tray slides
❑ Stainless steel back
❑ Laminate on front, sides and back
❑ Bottom mount electrical
❑ Stainless steel banking strip
❑ Heat shield end
❑ Stainless steel kick plate
❑ Laminate kick plate
❑ 4” stainless steel utility base
❑ Alarm control display
❑ 220-50-1 electrical
❑ 220-60-1 electrical

Specification Line: Self-contained shallow solid door pass-thru refrigerator
Model #__________
CSI Section 11400
Printed in the USA.
09/05
DSSSRPTS
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice.
Mechanical Data
MODEL
NUMBER VOLTAGE AMPS STORAGE SHELVES SQ.FT. NO. OF SHELVES
UNIT
H.P.
BTU/HR CAB
LOAD
BTU/HR
SYSTEM CAP SHIP WEIGHT NEMA PLUG
SSRPT1S-S, SARPT1S-S
SSRPT1S-SH, SARPT1S-SH 115 12.8 18.25 8.98 3 1/3 968 2354 455 5-20P
SSRPT2S-S, SARPT2S-S
SSRPT2S-SH, SARPT2S-SH 115 11.2 37.96 19.04 6 1/2 1843 3637 700 5-15P
END SECTION VIEW
1 & 2 SECTION UNITS










  
  
ELEVATION VIEW
SSRPT1S-S, SARPT1S-S
ELEVATION VIEW
SSRPT1S-SH, SARPT1S-SH
ELEVATION VIEW
SSRPT2S-S, SARPT2S-S
ELEVATION VIEW
SSRPT2S-SH, SARPT2S-SH
PLAN VIEW
SSRPT1S-S, SARPT1S-S
PLAN VIEW
SSRPT1S-SH, SARPT1S-SH PLAN VIEW
SSRPT2S-S, SARPT2S-S
PLAN VIEW
SSRPT2S-SH, SARPT2S-SH










  
  










  
  










  
  










  
  










  
  










  










  
  










  
END SECTION VIEW
3 SECTION UNITS
 




 
  































































