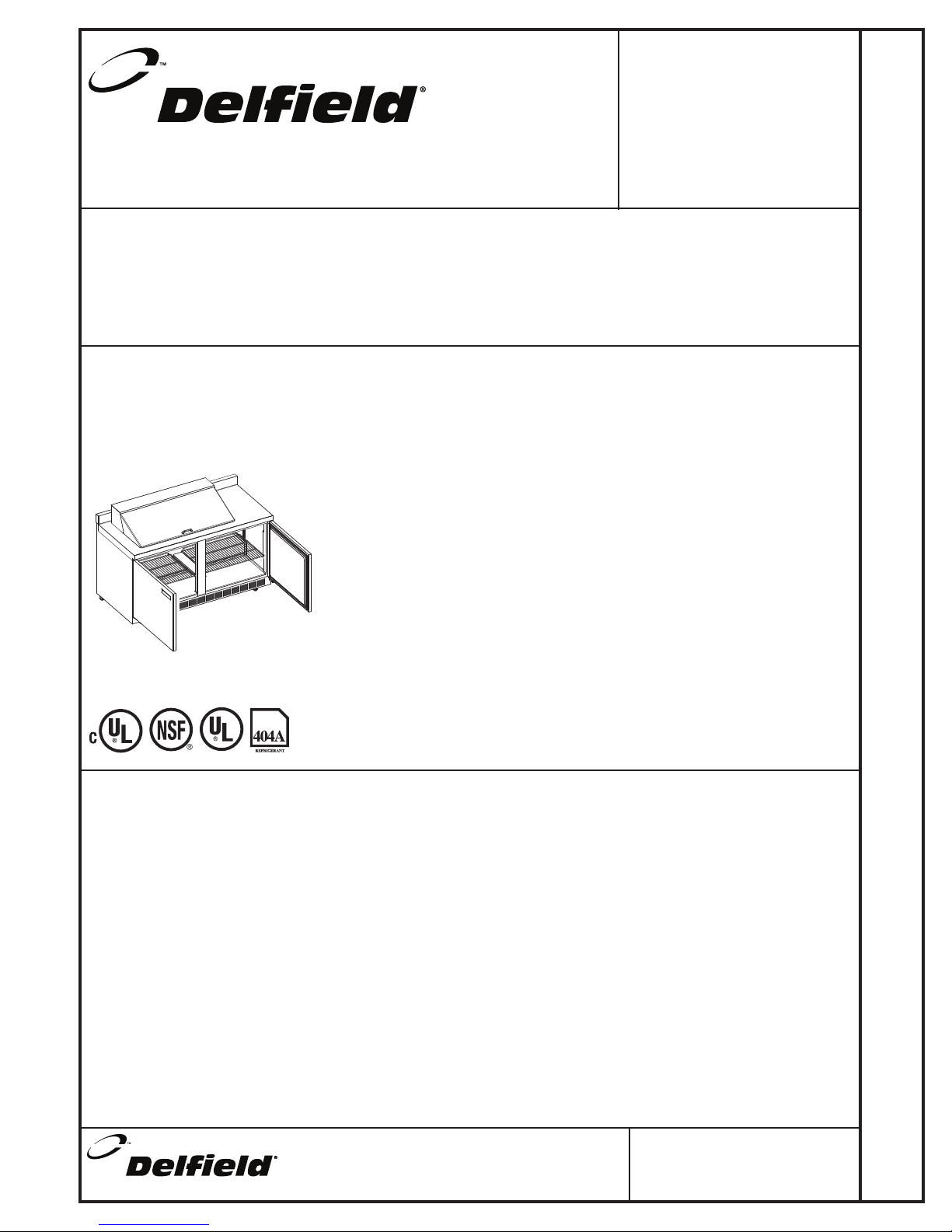

Delfield ST4460N-12M User manual
Model ST4460N-18M
ST4460N MEGATOP FRONT-BREATHING SELF-CONTAINED COMPACT MEGA TOP REFRIGERATORS
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
ST4460N MEGA TOP
Front-Breathing Self-Contained Compact Mega Top Refrigerators
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfield.com
Approval _________________
Date ____________________
SPECIFICATIONS
Exterior top is one-piece 22-gauge stainless steel
with integral 2.12” (5.1cm) square nosing on the front.
Telescoping lid is constructed of 20-gauge stainless steel.
Top opening can accept 12, 18 or 24 1/6 size plastic pans
4”-6” (10.1cm-15.2cm) deep. Adapter bars and 1/6
size pans are supplied by Delfield. Temperature in top
openings maintains 33°F (1°C) to 41°F (5°C), with pans
recessed 2.5” (6.4cm) at 86°F ambient room tempera-
ture, meeting NSF 7 requirements. One 60” x 8” x .5”
(152.4cm x 20.3cm x 1.3cm) polyethylene cutting board
treated with antimicrobial agent is mounted on the top
at the front edge.
Exterior back and bottom are two-piece 24-gauge
galvanized steel. Exterior ends are stainless steel.
Interior sides are thermoformed ABS plastic with
shelf supports. Base is fully insulated with high-density
foamed in place polyurethane.
Refrigeration system uses HFC-404A refrigerant.
Compressor is 1/2 H.P., with condenser coil and hot gas
condensate evaporator mounted on rear of the cabinet.
Evaporator coils and temperature control are located on
the interior rear wall of the cabinet. Refrigerant flow is
controlled by a capillary tube. Cabinet maintains an interior
cabinet temperature of 36°F to 40°F (2°C to 4°C).
ACT control. ACT electronic, solid state control, mounted
on the exterior rear of the cabinet, allows unit to maintain
precise temperatures in heavy duty conditions.
Electrical connections are 115 volt, 60 Hertz, single
phase. Unit has a 7’ (2.1m) long electrical cord and NEMA
5-15P plug.
Casters: Equipment is mounted on 2” (5.08cm) diameter
plate casters with front two locking. Equipment clearance
above the floor is 2.5” (6.35cm).
Doors have a 24-gauge stainless steel exterior, with
thermoformed ABS plastic interior liner. Cabinet has
one adjustable epoxy-coated wire shelf per door
opening.
Drawers have 24-gauge stainless steel exterior
with thermoformed ABS plastic interior liner. Drawer
frames are 12-gauge stainless steel. Drawer slides are
11-gauge stainless steel with Delrin bearings. Each top
drawer holds one 12” x 20” (30.5cm x 50.8cm) pan,
three 1/6 size and three 1/9 size 4”-6” (10.1cm-
15.2cm) deep pans. Each bottom drawer holds one
12” x 20” (30.5cm x 50.8cm) pan, three 1/6 size
and three 1/9 size 4” (10.1cm) deep pans. Pans are
supplied by others.
MODELS:
❑ ST4460N-12M Two section with doors ❑ STD4460N-12M Two section with drawers
Twelve pan capacity Twelve pan capacity
❑ ST4460N-18M Two section with doors ❑ STD4460N-18M Two section with drawers
Eighteen pan capacity Eighteen pan capacity
STANDARD FEATURES
• Patented air screen ensures product stays cold without drying it out
• All 4400 Series units are 100% front breathing, which allows the
unit to be pushed against a wall or built into a cabinet or an existing
line up
• Durable, rugged stainless steel sides, top and front
• Features Delfield’s exclusive ABS interior (on sides). ABS is
extremely durable - it won’t dent, chip or corrode and is backed by
a limited lifetime warranty
• Delfield supplies 1/6 size pans and adapter bars for top opening
• Mega top refrigerators are standard with 8” wide, dishwasher safe
polyethylene cutting board treated with anitmicrobial agent
• “D” prefix models feature Delfield’s new drawer system. Drawers
are backed by a 10-year warranty on the track assembly
• Environmentally friendly R404A refrigerant
• High density foamed in place polyurethane keeps energy costs low
• Black recessed quick grip handle
• Standard on 2” casters for easy cleaning and installation
• 7’ cord and plug supplied
• Cord spring relief - prevents cord rollover
• One epoxy coated wire shelf standard, installed per door section
• ACT solid state electronic control
• "ST" models have a 4" stainless steel backsplash
• One year parts and 90 day labor standard warranty.
OPTIONS AND ACCESSORIES
❑ Flat lift off cover
❑ 18” wide single tier overshelf
❑ Stainless steel finish on back
❑ Plastic laminate on front
❑ Additional wire shelves
❑ Door lock
❑ Exterior thermometer
❑ Interior lights
❑ Glass door(s)
❑ *220V/50 Hertz electrical system
* Inclusion of this option will alter electrical
specifications of the unit.
ST4460N Front-Breathing Self-Contained Compact Mega Top Refrigerators
Model #__________
CSI Section
Printed in the USA.
07/06
DSST4460NM
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfield.com
Pan Cutout Configurations INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor area
and out the front of the unit. Any restriction to
this air flow path will void the warranties.
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however, any
air which passes through the louver is beneficial.
ST4460N-12M ELEVATION VIEW ST4460N-12M RIGHT SIDE VIEW
STD4460N-12M ISO VIEW
STD4460N-12M ELEVATION VIEW STD4460N-12M RIGHT SIDE VIEW
ST4460N-12M ISO VIEW
ST4460N-12M/STD4460N-12M
Pan Cutout Configurations INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor area
and out the front of the unit. Any restriction to
this air flow path will void the warranties.
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however, any
air which passes through the louver is beneficial.
ST4460N-18M ELEVATION VIEW ST4460N-18M RIGHT SIDE VIEW
STD4460N-18M ISO VIEW
STD4460N-18M ELEVATION VIEW STD4460N-18M RIGHT SIDE VIEW
ST4460N-18M ISO VIEW
ST4460N Front-Breathing Self-Contained Compact Mega Top Refrigerators
Model #__________
CSI Section
Printed in the USA.
07/06
DSST4460NM
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfield.com
Mechanical Data–Standard Unit
MODEL 1/6 SIZE PAN #OF SHELF STORAGE VOLTS/HERTZ/ NEMA SHIP
NUMBER CAPACITY SHELVES AREA. SQ. FT. CAP. CU. FT. H.P. PHASE AMPS PLUG WEIGHT
ST4460N-12M
12 2 7.36 15.7 1/2 115/60/1 12.0 5-15P 430 lbs/ 195 kg
STD4460N-12M
12 N/A N/A 2.7 1/2 115/60/1 12.0 5-15P 465 lbs/ 210 kg
ST4460N-18M
18 2 7.36 15.7 1/2 115/60/1 12.0 5-15P 430 lbs/ 195 kg
STD4460N-18M
18 N/A N/A 2.7 1/2 115/60/1 12.0 5-15P 465 lbs/ 210 kg
ST4460N-18M/STD4460N-18M
Printed in the USA.
07/06
DSST4460NM
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfield.com
