Deliberant APC 2Mi User manual

APC 2Mi
Quick Installation Guide
Revision 1.2
19 February 2011
Copyright © 2011 Deliberant www.deliberant.com

deliberant Page 2
Copyright
© 2011 Deliberant
This user’s guide and the software described in it are copyrighted with all rights reserved. No part of
this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form by any means without the written permission of Deliberant.
Notice
Deliberant reserves the right to change specifications without prior notice.
While the information in this manual has been compiled with great care, it may not be deemed an
assurance of product characteristics. Deliberant shall be liable only to the degree specified in the
terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and
the use of its contents is subject to written authorization from Deliberant.
Trademarks
Deliberant logo is trademark of Deliberant LLC.
All other registered and unregistered trademarks in this document are the sole property of their
respective owners.

Quick Installation Guide Contents
deliberant Page 3
Contents
Copyright .............................................................................................................................................2
Notice ..................................................................................................................................................2
Trademarks .........................................................................................................................................2
CONTENTS ...........................................................................................................................................3
INTRODUCTION....................................................................................................................................4
FCC Warning.......................................................................................................................................4
FCC Caution ....................................................................................................................................4
FCC Radiation Exposure Statement ...............................................................................................4
Antenna Installation .........................................................................................................................4
CE Mark Warning................................................................................................................................5
R&TTE Compliance Statement ...........................................................................................................5
Safety...............................................................................................................................................5
EU Countries Intended for Use........................................................................................................5
EU Countries Not Intended for Use .................................................................................................5
ABOUT THIS GUIDE.............................................................................................................................6
Prerequisite Skills and Knowledge......................................................................................................6
Definitions, Acronyms and Abbreviations............................................................................................6
Technical Support ...............................................................................................................................6
Contact us ...........................................................................................................................................6
INSTALLATION.....................................................................................................................................7
Package Contents...............................................................................................................................7
Hardware Introduction.........................................................................................................................7
LEDs ................................................................................................................................................8
Mounting the APC 2Mi on the Wall .....................................................................................................9
ACCESS THE APC 2MI ......................................................................................................................10
Connection via WEB Browser ...........................................................................................................10
Resettingto Factory Defaults............................................................................................................11
Resetting Device via Ping..............................................................................................................11

Quick Installation Guide Introduction
deliberant Page 4
Introduction
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution
To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
FCC Radiation Exposure Statement
To comply with FCC RF exposure requirements in section 1.1307, a minimum separation
distance of 20 cm is required between the antenna and all public persons.

Quick Installation Guide Introduction
deliberant Page 5
CE Mark Warning
Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
R&TTE Compliance Statement
This equipment complies with all the requirements of the Directive 1999/5/EC of the European
Parliament and the Council of 9 March 1999 on Radio Equipment and Telecommunication Terminal
Equipment and the Mutual Recognition of their Conformity (R&TTE).
The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal
Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity when
working with electrical equipment. All guidelines of this manual and of the computer manufacturer
must therefore be allowed at all times to ensure the safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark,
Finland, France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg,
The Netherlands, Portugal, Spain, Sweden and United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member states Iceland,
Liechtenstein, Norway and Switzerland.
EU Countries Not Intended for Use
None
product. In a domestic environment this product may cause radio interference in
In a domestic environment this product may cause radio interference in

Quick Installation Guide About this Guide
deliberant Page 6
About this Guide
Prerequisite Skills and Knowledge
To use this document effectively, you should have a working knowledge of Local Area Networking
(LAN) concepts and wireless Internet access infrastructures.
Definitions, Acronyms and Abbreviations
The following typographic conventions and symbols are used throughout this document:
Additional information that may be helpful but which is not required.
Important information that should be observed.
bold
Menu commands, buttons, input fields, links, and configuration keys are displayed in bold
italic
References to sections inside the document are displayed in italic.
code
File names, directory names, form names, system-generated output, and user typed
entries are displayed in constant-width type
Technical Support
If you encounter problems when installing or using this product, please consult the Deliberant website
at www.deliberant.com for:
Direct contact to the Deliberant support centers.
Frequently Asked Questions (FAQ).
Download area for the latest software, user documentation and product updates.
Contact us
EU office:
UAB WILIBOX Veiveriu 150 - IIIa. Kaunas,
LT-46391
Lithuania
[email protected]
US office:
Deliberant
138 Mountain Brook Drive
Canton, GA 30115
United States of America
For support: supp[email protected]
For sales enquiries: [e-mail]

Quick Installation Guide Installation
deliberant Page 7
Installation
This chapter provides installation instructions for the hardware components of the APC 2Mi.
Package Contents
The figure below displays APC 2Mi package contents.
Figure 1 –APC 2Mi Package Contents
Item
Component Name
Quantity
A
APC 2Mi Quick Installation Guide
1
B
APC 2Mi enclosure
1
C
Omni antenna
2
D
PoE injector
1
E
Power adapter
1
If any of these items are missing or damaged, please contact your reseller.
Hardware Introduction

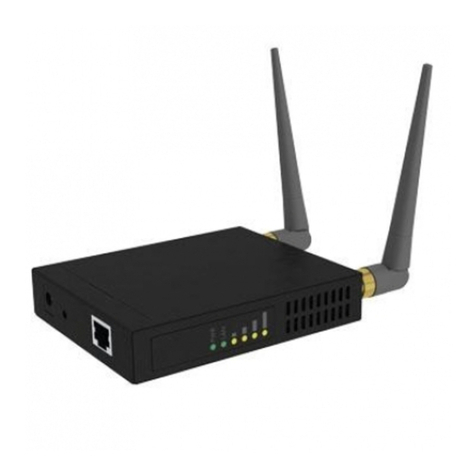

APC 2Mi is housed in a rugged metal enclosure and has two omni antennas:
Figure 2 –APC 2Mi Overview
The APC 2Mi contains:
Power connector
Ethernet port
Reset button enables to reboot and reset the device configuration to the factory defaults.
6 LEDs: power LED, LAN activity LED and 4 LEDs for device RSSI level indication
2 omni antennas

Quick Installation Guide Installation
deliberant Page 8
The APC 2Mi has label with following information:
Figure 3 –APC 2Mi Label
The label of the APC 2Mi contains:
Model name. The official model name is APC 2Mi.
Serial Number
Radio MAC address
LAN MAC address
FCC ID: UB8-APC2Mi
IC ID: 6607-APC2Mi
LEDs
The APC 2Mi has 6 LEDs located on the side panel: power, LAN and 4 RSSI LEDs (refer at the
Figure 2 –APC 2Mi Overview for details). The various states of the LEDs indicate different connection
operations as follows:
LED
Color
Status Indication
Power
Green
On APC 2Mi is active/working
Off No power on APC 2Mi
LAN
Green
On LAN connection exists.
Blinking
Indicates the traffic on LAN interface.
Off
No LAN connection.
RSSI (1, 2, 3, 4)
Yellow
On
The RSSI level has reached the appropriate threshold
level (default RSSI threshold levels: 10, 25, 35, 50)
Off
The RSSI level has not reached the appropriate
threshold level

Quick Installation Guide Installation
deliberant Page 9
Mounting the APC 2Mi on the Wall
The indoor unit APC 2Mi unit can be mounted on a wall easy. Follow the steps for APC 2Mi
installation on a wall:
Step 1. Attach the unit by a two screws on a wall and push it downwards until it clicks into
position:
Step 2. Connect omni antennas (item C in the Figure 1 –APC 2Mi Package Contents),
Ethernet cable and power adapter (item D and E in the Figure 1 –APC 2Mi Package
Contents), to the APC 2Mi:
Step 3. After the power adapter was connected to the APC 2Mi, the green power LED and LAN
LED must be on (refer at the respective section LEDs). Dependently on link quality, up
to four yellow LEDs will switch on indicating that the link between two units was
established successfully.
Step 4. After the link between two devices was established, align antennas for the maximal
performance. Run the Antenna Alignment tool in the Web management interface and
move omni antennas in the horizontal and vertical planes until the maximum RSSI
visible on the Antenna Alignment graph is achieved.

Quick Installation Guide Access the APC 2Mi
deliberant Page 10
Access the APC 2Mi
The first connection to the APC 2Mi can be made using a standard Ethernet cable connected directly
to your PC. See next sections for the instructions on how to access the APC 2Mi management
interfaces.
Connection via WEB Browser
The default IP address of the APC 2Mi is 192.168.2.66 with a subnet mask of 255.255.255.0.
Step 1. Configure your PC with a static IP address on the 192.168.2.0 subnet with mask
255.255.255.0. Connect the APC 2Mi Ethernet interface in to the same physical
network as your PC. Open the Web browser and type the default IP address of the
APC 2Mi: https://192.168.2.66/
Step 2. Enter the APC 2Mi administrator login details to access the Web management:
The default administrator login settings for all APC 2Mi are:
Login: admin
Password: admin01
Step 3. After successful administrator log on you will see the main page of the APC 2Mi Web
management interface. The APC 2Mi now is ready for configuration. For further
instructions on Web management refer to the respective document APC 2Mi User
Guide.

Quick Installation Guide Access the APC 2Mi
deliberant Page 11
Resetting to Factory Defaults
The APC 2Mi device has 2 options how to reset device to factory defaults:
Reset button (refer at the Figure 2 –APC 2Mi Overview). Press and hold the Reset button for 1
second to reboot the controller; press and hold the Reset button for more than 5 seconds to set
the controller to factory defaults.
Resetting to defaults via Ping.
Resetting Device via Ping
APC 2Mi has the capability of being reset to defaults by pinging the device with a certain packet size
when the device is booting. During the startup of the device, when the drivers of the ethernet
interfaces are loaded, the reset daemon is started. The daemon suspends startup process for 3
seconds and waits for ICMP "echo request" packet of length 369 bytes. If the packet received, the
reset daemon sets the device to default configuration.
It is recommended to connect PC to the device via switch, as depending on PC OS
settings, the ARP table might be flushed during wired link status change (connecting the
device that will be reset).
Steps to reset to default settings:
Step 1. Power off the APC 2Mi device.
Step 2. Obtain the device MAC address.
Step 3. Connect a PC to the same physical subnet as the device.
Step 4. Execute 'arp -s' command to assign the IP address (IP address should be from the
same subnet as PC) to the device MAC address:
arp -s <IP address to assign> <device MAC address>
Note that syntax of MAC address differs depending on OS:
Linux OS: AA:BB:CC:DD:EE:FF
Windows OS: AA-BB-CC-DD-EE-FF
Step 5. Start pinging the APC 2Mi device:
For Linux users: ping <IP address> -s 369
For Windows users: ping <IP address> -l 369 -t -w 200
Step 6. Power up device and wait about 30sec or more (depending on device hardware).
Step 7. Stop pinging the APC 2Mi, and let the device boot as usual. The device should start up
with factory default settings.
