delight FUSION WASH Z-740 User manual

PROFESSIONL LED MOVING HEAD LIGHT
User Manuals Version.1.0
⚫Be sure to read the USER MANUAL carefully before using this product.
⚫Be sure to keep the USER MANUAL properly for future needs.
⚫Use this product correctly when you can fully understand the User Manual

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 1 -
1.SAFETY INSTRUCTIONS
Thank you for choosing our FUSION WASH Z-740. FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOU INITIAL START UP!
CAUTION!
Be careful with your operations!
With a high voltage you can suffer dangerous electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
Important:
1) The manufacturer will not accept liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modification to the device.
2) Please consider that damages caused by manual modifications to the device are not subject to warranty.
3) During the operation the housing becomes hot). Allow the fixture to cool approximately 20 minutes prior to
manipulate with it.
4) Make sure that the available voltage is not higher than stated on the rear panel.
5) WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to completely
remove power from unit when not in use or before cleaning or servicing the fixture.
6) Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the
power-cord from time to time.
7) Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-
cord by the plug. Never pull out the plug by tugging the power cord.
8) This device falls under protection class I. Therefore, it is essential to connect the yellow /green conductor to
earth.
9) The electric connection, repairs and servicing must be carried out by a qualified employee. Do not connect this
device to a dimmer pack.
10) Do not switch the fixture on and off in short intervals as this would reduce the lamp's life.
11) During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily
mean that the device is defective.
12) Do not touch the device's housing bare hands during its operation (housing becomes hot)! For replacement
use lamps and fuses of same type and rating only.
CAUTION! EYE DAMAGES!
Avoid looking directly into the light source!
(Mean especially for epileptics)!

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 2 -
2.UNPACKING
The FUSION WASH Z-740 adopts 7x40W RGBW LEDs which features high brightness and stability. Please carefully
unpack it when you receive the fixture and check whether it is damaged during the transportation. And please check
whether the following items are included inside the box:
The FUSION WASH Z-740 is made of a new type of high temperature strength of engineering plastics and cast
aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE standards,
complying with international standard DMX512 protocol. It's available independently controlled and linkable with
each other for operation. And it is applicable for large-scale live performances, theater, studio, nightclubs and
discos.
This manual covers the important information on installation and applications. Meanwhile, please keep this manual
well for future needs.

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 3 -
3. TECHNICAL INFORMATION
SPECIFICATIONS:
➢LED Quantities: 7x40W 4IN1 RGBW LEDs
➢Input Voltage:AC90-260V 50/60Hz
➢Power Consumption: 350W
➢Control Signal: DMX512, master-slave and sound activated or auto operation
➢Control Channel: 13/15 DMX channels USITT DMX-512.
➢Dimensions: 307(D)*224(W)*397(H)mm
➢Packing Dimensions:410(D)*315(W)*480(H)mm
➢Net Weight: 10.8kgs
➢Gross Weight: 12.5kgs
FEATURES:
➢6°-60°smooth electronic linear zoom
➢Full Pixel controlled
➢0-100% smooth linear LED dimmer
➢1-25T/sec high speed LED shutter/strobe effect with variable speed
➢Preset variable/random strobe and dimming
➢Built-in running programs
➢Built-in color and graphic effect macros
➢CTO and CTB, linear color temperature 2700K-8000K changeable
➢2.4" TFT LCD touch display (320*240pix) with 4 control buttons
➢Powercon IN/OUT
➢3-Pin XLR connectors IN/OUT
➢IP20 protection rating
➢@1M=55dB at 3’dB rating
➢2*1/4 turn fastening Omega clamps
➢1*Safety attachment point
MOVEMENT:
8/16 Bit Smooth and precise resolution for PAN/TILT movement. 360° /540° /630° PAN and 90°/180° /270° TILT
movement optional. Scan position memory, auto reposition after unexpected movement

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 4 -
4. PHOTOMETRICS DIAGRAM
5. OPERATION INSTRUCTIONS
1) The FUSION WASH Z-740 is for beam effect for on-site decoration purpose.
2) Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it
might damage the light due to the environment changes. So, make sure to operate the fixture until it is in
normal temperature.
3) This light should be keep away from strong shaking during any transportation or movement.
4) Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
5) Don’t expose the fixture in overheat, moisture or environment with too much dust when installing it. And don’t
lay any power cables on the floor. Or it might cause electronic shock to the people.
6) Make sure the installation place is in good safety condition before installing the fixture.
7) Make sure to put the safety chain and check whether the screws are screwed properly when installing the
fixture.
8) Make sure the lens is in good condition. It’s recommended to replace the units if there are any damages
9) or severe scratch.
10) Make sure the fixture is operated by qualified personnel who knows the fixture before using.
11) Keep the original packages if any second shipment is needed.
12) Don’t try to change the fixtures without any instruction by the manufacturer or the appointed repairing
agencies.
13) It is not in warranty range if there are any malfunctions from not following the user manual to operate or any
illegal operation, like shock short circuit, electronic shock, lamp broke, etc.

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 5 -
6. INSTALLATIONS
Cautions:
For added protection mount the fixtures in areas outside
walking paths, seating areas, or in areas where the fixture might
be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the
installation area can hold a minimum point load of 10 times the
device's weight.
Fixture installation must always be secured with a secondary
safety attachment, such as an appropriate safety cable.
Never stand directly below the device when mounting,
removing, or servicing the fixture.
from a ceiling, or set on a flat level surface (see illustration
below). Be sure this fixture is kept at least 0.5m (1.5 ft) away
from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety
measure to prevent accidental damage and/or injury in the
event the clamp fails.
Mounting points:
Overhead mounting requires extensive experience, including
amongst others calculating working load limits, a fine
knowledge of the installation material being used, and periodic
safety inspection of all installation material and the fixture. If
you lack these qualifications, do not attempt the installation
yourself. Improper installation can result in bodily injury.
Be sure to complete all rigging and installation procedures
before connecting the main power cord to the appropriate wall
outlet.
Clamp Mounting:
FUSION WASH Z-740 provides a unique mounting bracket
assembly that integrates the bottom of the base, and the safety
cable rigging point in one unit (see the illustration below).
When mounting this fixture to truss be sure to secure an
appropriately rated clamp to the included omega bracket using
a M10 screw fitted through the center hole of the "Hanging Kit
". As an added safety measure, be sure to attached at least one
properly rated safety cable to the fixture using one of the safety
cable rigging point integrated in the base assembly.

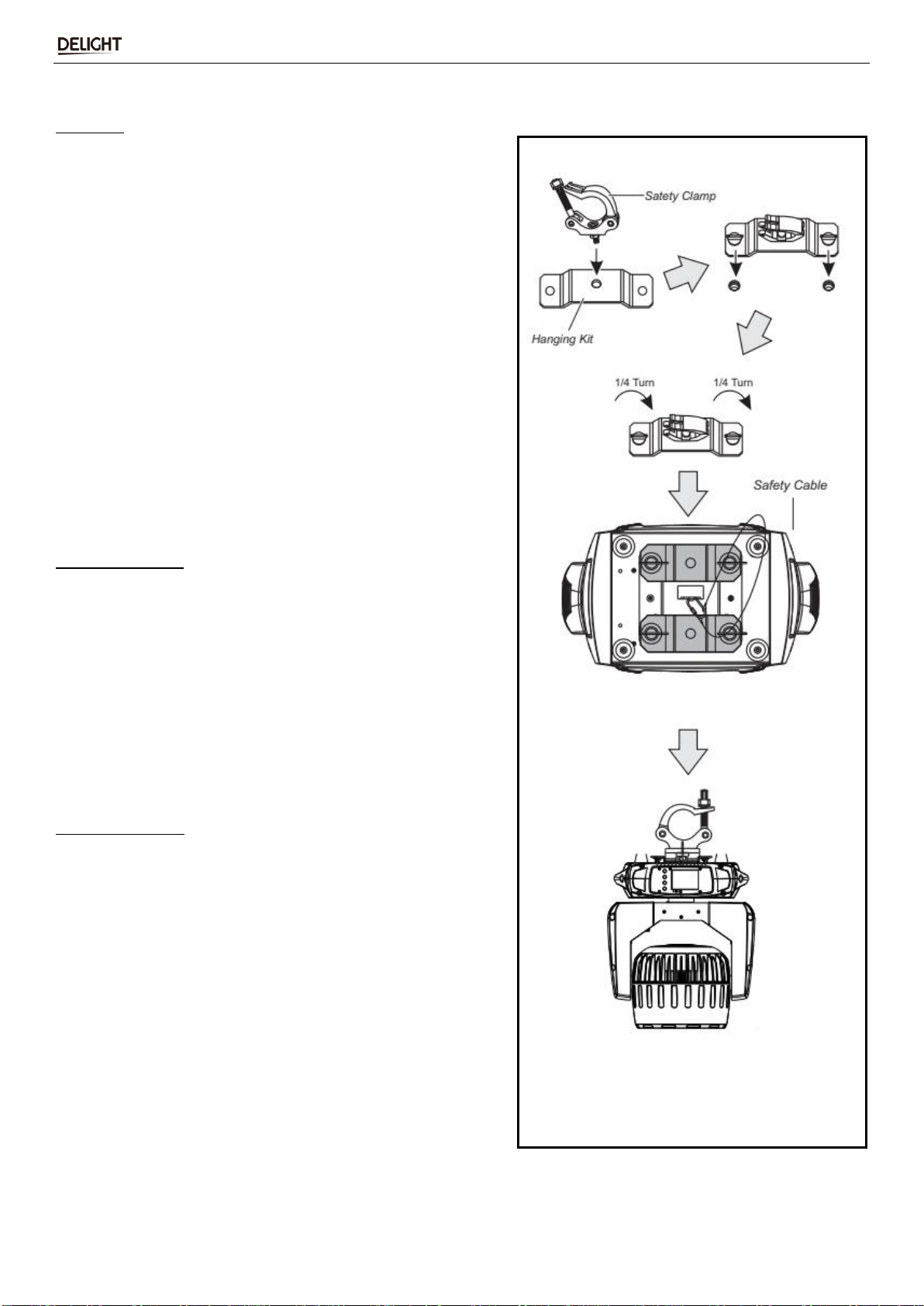

INSTALLATION DIAGRAM
Safety Cable
1/4 Turn 1/4 Turn
Hanging Kit
Safety Clamp

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 6 -
7. CONTROL CONNECTION
1) Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the
male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking.
The cable needed should be two cores, screened cable with XLR input and output connectors.
2) Please refer to the diagram below. DMX-512 connection with DMX terminator.
3) For installations where the OMX cable has to run a long distance or is in an electrically noisy environment, such
as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the
digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a3 resistor connected
between pins 2 and 3, which is then plugged into the output XLR socket of the last fixture in the chain. Please
see illustrations below.
POWER SWITCH
DMX IN
POWER OUT
DMX OUT
POWER IN
FUSE

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 7 -

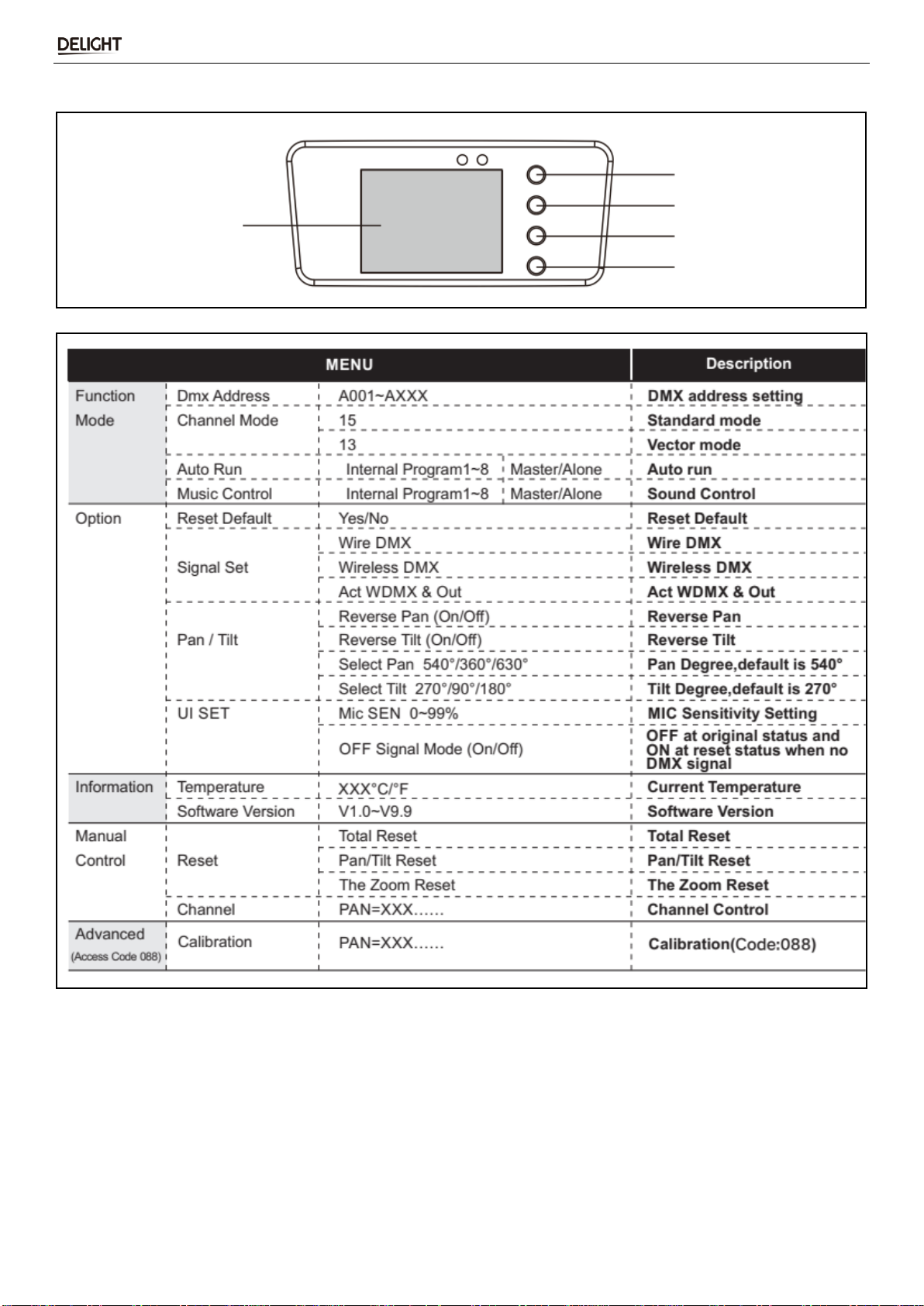

8. MENU OPERATIONS
Tips: Press the UP & DOWN buttons at the same time and hold for 3 seconds, LCD display reversed
ENTER
LCD DISPLAY
MENU
UP
DOWN

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 8 -
9. DMX PROTOCAL
Mode/Channel
Value
Function
15CH
13CH
1
1
Dimmer
0..255
Dimmer 0%...100%
2
2
Shutter
0..31
Shutter closed
32..63
shutter open
64..95
Strobe effect slow to fast
96..127
shutter open
128..159
Pulse-effect in sequences slow to fast
160..191
shutter open
192..223
Random strobe effect slow to fast
224..255
shutter open
3
3
Pan
0..255
PAN Movement
4
Pan-fine
0..255
Fine control of Pan movement
5
4
Tilt
0..255
Tilt Movement
6
Tile-fine
0..255
Fine control of Tilt movement
7
5
Zoom
0..255
In(near) to out(far)
8
6
Speed pan/tile
0..225
max to min speed
226..235
blackout by movement
236..255
no function
9
7
Red
0..255
0-100% Red dimmer from dark to bright
10
8
Green
0..255
0-100% Green dimmer from dark to bright
11
9
Blue
0..255
0-100% Blue dimmer from dark to bright
12
10
White
0..255
0-100% White dimmer from dark to bright
13
11
Macro
0..15
No Function
16..31
Red
32..47
Green
48..63
Blue
64..79
White
80..95
Red+Green
96..111
Red+Blue
112..127
Red+White

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 9 -
128..143
Green+Blue
144..159
Green+White
160..175
Blue+Wtihe
176..191
R+G+B
192..207
R+G+B+W
208..223
Jump effect
224..239
Fading effect
240..255
Pulse-effect
14
12
Macro Speed
0..255
Macro Speed from Slow To Fast
15
13
Special function
0..19
No function
20..29
No function
30..39
No function
40..79
No function
80..89
All Motor reset
90..94
SCAN Motor Reset
95..99
Zoom Motor Reset
100..119
Internal program 1
120..139
Internal program 2
140..159
Internal program 3
160..179
Internal program 4
180..199
Internal program 5
200..219
Internal program 6
220..239
Internal program 7
240..255
Internal Sound program 1

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 10 -
10. MAINTENANCE AND CLEANING
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up
on or within the fixture. Otherwise, the fixture 's light-output will be significantly reduced. Regular cleaning will not
only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life. A soft
lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should
alcohol or solvents be used!
DANGER!
Disconnect from the mains before starting any
maintenance work!
1) The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the
light-output very quickly. The cooling-fans should be cleaned monthly.
2) The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet. Remove
dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.
3) Important! Check the air filters periodically and clean before they become clogged!
4) Clean two air filters placed in the fixture 's covers and two in the fixture base. Use a vacuum cleaner,
compressed air or you can wash them and put back dry.
5) After replacing the air filters, reset the elapsed time counter in the menu "Information" (information- -->Air
Filters- -->Elapsed Time).
6) Replacing the fuse. Before replacing the fuse, unplug mains lead.
a) Remove the fuse holder on the rear panel of the base with a fitting screwdriver from the housing (anti-
clockwise).
b) Remove the old fuse from the fuse holder.
c) Install the new fuse in the fuse holder (only the same type and rating).
d) Replace the fuse holder in the housing and fix it.

FUSION WASH Z-740
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- 11 -
Imported by Stage Tools
Vennenweg 1, Oostrum , Netherlands
Zip code: 5807EH
Designed & Engineered in Netherlands by DELIGHT
Manufactured in P.R.C.
