Onstate Technologies PCBA Series Manual

Product Technical Information- IR LED LIGHTING
PCBA Series
Onstate
LED
Lighting
PCBA Series
Infrared LED Arra PCB
Panels
Tu rn Ni gh t I nt o L i g h t
TM
Onstate Technologies BC, Canada Tel. 1-604-522-7811 On-tech@OnstateTech.com Page 1 of 5
Specifications subject to change without notice. PCBA-IR-ARRAY-PANELS -2.doc 08/12
35/102/140/224/252/350/560 Infrared 850/ 40nm IR LED Array PCB Panels
IR 35 Array panel
Photo Schematic Data
Wiring: 5 series x 7 parallel
Dimension: 75mm x 34mm
Mounting holes: 71mm x 30mm
4x 2.5mm holes
Model: PCB-AIR358510
850nm, 10 deg., 7.5V@0.70A
IR 102 Array panel
Photo Schematic Data
Wiring: 6 series x 17 parallel
Dimension: 104mm x 41mm
Mounting holes: 46mm x 28mm
4x 2.5mm holes
Model: PCB-AIR1028510
850nm, 10 deg., 9.3V@1.70A
IR 140 Array panel
Photo Schematic Data
Wiring: 7 series x 10 parallel x 2 banks
Dimension: 130mm x 66mm
Mounting holes: 126mm x 66mm
12x2.5mm holes, 4x3
Model: PCB-AIR1408530
850nm, 30 deg., 11.5V@2.0A
Model: PCB-AIR1408560
850nm, 60 deg., 11.1@2.0A
Series LED banks for 24V operation.

Product Technical Information- IR LED LIGHTING
PCBA Series
Onstate
LED
Lighting
PCBA Series
Infrared LED Arra PCB
Panels
Tu rn Ni gh t I nt o L i g h t
TM
Onstate Technologies BC, Canada Tel. 1-604-522-7811 On-tech@OnstateTech.com Page 2 of 5
Specifications subject to change without notice. PCBA-IR-ARRAY-PANELS -2.doc 08/12
IR 224 Array panel
Photo Schematic Data
Wiring: 14 series x 16 parallel
Dimension: 127mm x 118mm
Mounting holes:108 x 92mm (outer)
12x 2.5mm holes
Model: PCB-AIR2248520
850nm, 20 deg., 23.2V@1.60A
IR 252 Array panel
Photo Schematic Data
Wiring: 7series x 18parallel X 2 banks
Dimension: 133mm x 115mm
Mounting holes:43x102, 48x97mm
10x 3.5mm holes
Model: PCB-AIR2528510
850nm, 10 deg, 10.9V@3.60A
Series LED banks for 24V operation.
IR 350 Array panel
Photo Schematic Data
Wiring: 7series x 25parallel x 2banks
Dimension: 191mm x 141mm
Mounting holes:186 x 136mm (outer)
12x 2.0mm holes
Model: PCB-AIR3508530
850nm, 30 deg.,
10.3[email protected], 11.6[email protected]
Model: PCB-AIR3508560
850nm, 60 deg. (3mm LED),
10.5[email protected], 11.2[email protected]
Model: PCB-AIR3508510
850nm, 10 deg.
10.3[email protected], 11.0[email protected]
Series LED banks for 24V operation.

Product Technical Information- IR LED LIGHTING
PCBA Series
Onstate
LED
Lighting
PCBA Series
Infrared LED Arra PCB
Panels
Tu rn Ni gh t I nt o L i g h t
TM
Onstate Technologies BC, Canada Tel. 1-604-522-7811 On-tech@OnstateTech.com Page 3 of 5
Specifications subject to change without notice. PCBA-IR-ARRAY-PANELS -2.doc 08/12

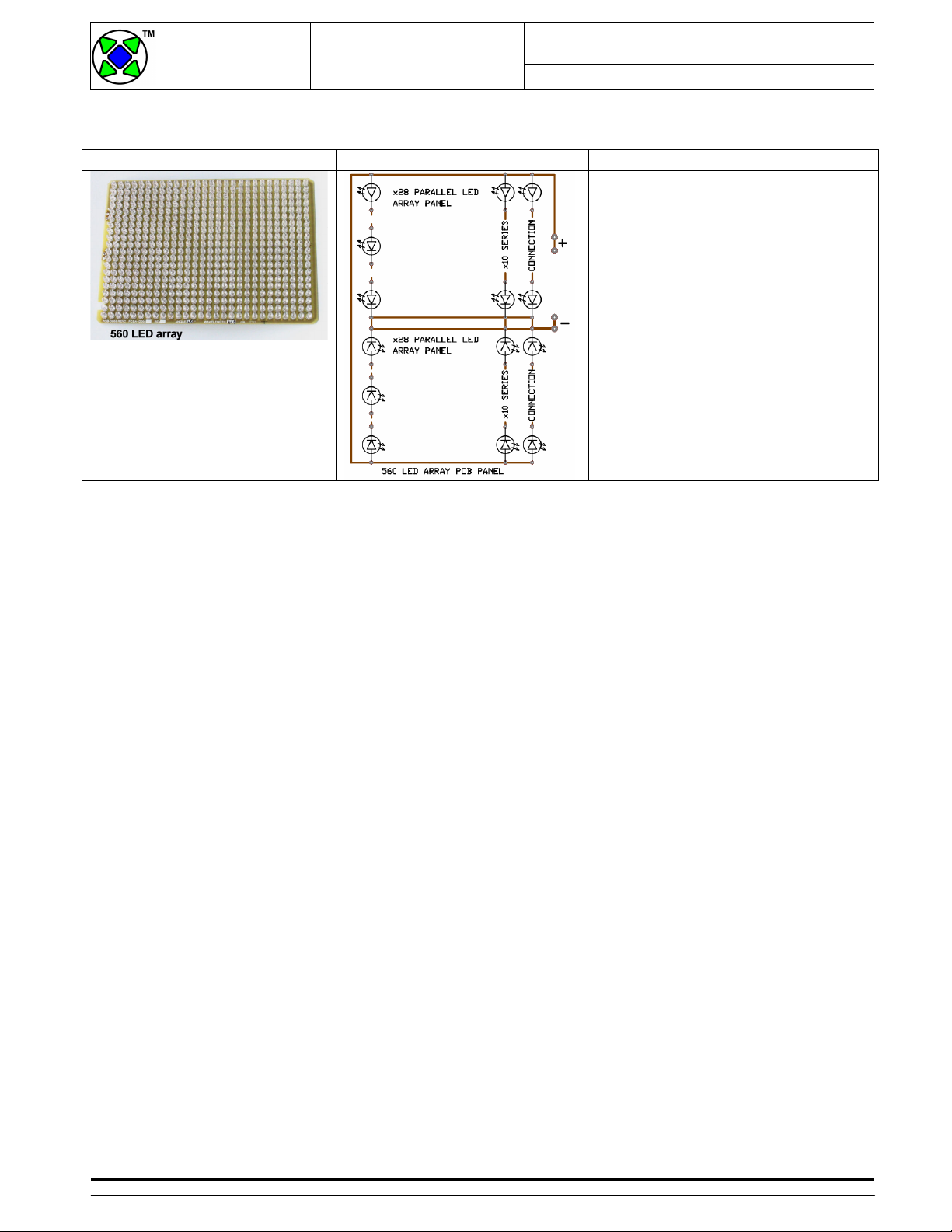

IR 560 Array panel
Photo Schematic Data
Wiring: 10series x 28parallel x 2banks
Dimension: 220mm x 158mm
Mounting holes:195 x 135mm (outer)
16x 3.0mm holes
135 x 90mm (inner)
9x 3.0mm holes
Model: PCB-AIR5608520-R
850nm, 20 deg.,
15.6[email protected], 16.8[email protected]
Model: PCB-AIR5608530
850nm, 30 deg.,
14.8[email protected], 16.4[email protected]
Specifications:
LEDs: 5mm (10/20/30 degrees), 3mm (60 degrees) high-power, high efficienc .
Current: 100mA max. per LED.
PCB: 1/16” FR4, double-sided through hole plated.
Soldering: Through-hole, solder coated pads.
LED T pe: 850nm/10
o
(Osram SFH4550), 850nm/20
o
, 850nm/30
o
(Kodenshi), 850nm/60
o
(Epitex
L850),
Installation:
Please read the appropriate data sheet prior to installation for best results. The installation should
be made b a person knowledgeable in the product and conforms to all appropriate local codes.
Onstate Technologies Inc. will not be responsible for injuries or damages resulting from the improper
installation or use of an products sold b Onstate or its retailers. Install the product within its
specification limits.
The LEDs and components get warm during operation. Do not install in an enclosed area or expose
to high temperatures. LEDs are sensitive to heat and static. If the LED arra is using full power in a
confined location, use the appropriate heatsink and heat transfer method. Use proper care during
soldering and assembl
DO NOT STARE DIRECTLY INTO THE LED LIGHT
LED LIGHT SAFETY:
LEDs ma emit highl concentrated non visible infrared light which can cause damage to the human
e e. Please refer to IEC 62471 for LED safet precautions.
DO NOT USE ONSTATE LED ARRAY PANELS IF YOU ARE NOT KNOWLEDGABLE IN LEDs.
MUST KNOW THE DEFINITIONS OF mW/cm
2
, mW/sr, 940nm, 850nm.

Product Technical Information- IR LED LIGHTING
PCBA Series
Onstate
LED
Lighting
PCBA Series
Infrared LED Arra PCB
Panels
Tu rn Ni gh t I nt o L i g h t
TM
Onstate Technologies BC, Canada Tel. 1-604-522-7811 On-tech@OnstateTech.com Page 4 of 5
Specifications subject to change without notice. PCBA-IR-ARRAY-PANELS -2.doc 08/12

Product Technical Information- IR LED LIGHTING
PCBA Series
Onstate
LED
Lighting
PCBA Series
Infrared LED Arra PCB
Panels
Tu rn Ni gh t I nt o L i g h t
TM
Onstate Technologies BC, Canada Tel. 1-604-522-7811 On-tech@OnstateTech.com Page 5 of 5
Specifications subject to change without notice. PCBA-IR-ARRAY-PANELS -2.doc 08/12
CIR-REGL camera/IR s nc module Low voltage LED driver board.
Universal AC/DC LED power suppl
DO NOT STARE DIRECTLY INTO THE LED LIGHT
Warranty:
Onstate Technologies warranties LED arra panels to be free of defects in materials and workmanship
for a period of ninet (90) da s. All products are sold as-is. Onstate technologies assumes no liabilities
or obligations due to consequential damages caused b the product directl or indirectl with respect to
loss of propert , revenue, or cost of removal, installation or reinstallation. Modifications or improper
use will void warrant .
Thank you for choosing Onstate Technologies
