SETUP GUIDE

Your Studio Hybrid was designed with
the environment in mind.
Learn more at www.dell.com/hybrid.

SETUP GUIDE
Model DCSEA
Studio Hybrid

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
If you purchased a Dell™ n Series computer, any references in this document to Microsoft®Windows®operating systems
are not applicable.
__________________
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text:
Dell , the DELL logo, Inspiron , Dimension , and DellConnect are trademarks of Dell Inc.; Intel ,
Pentium , and Celeron are registered trademarks and Core is a trademark of Intel Corporation in the U.S. and other countries;
Microsoft , Windows , Windows Vista and Windows Vista start button logo are either trademarks or registered trademarks
of Microsoft Corporation in the United States and/or other countries.;
Blu-ray Disc is a trademark of the Blu‑ray Disc
Association;
Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
October 2008 P/N G360C Rev. A01

3
Setting Up Your Studio Hybrid . . . . . . . . . . .5
Before Setting Up Your Computer . . . . . . . . . 5
Install the Stand . . . . . . . . . . . . . . . . . . . . . . . 5
Connect the Display . . . . . . . . . . . . . . . . . . . . 8
Set Up the Keyboard and Mouse . . . . . . . . . 10
Connect the Network Cable (Optional) . . . . 11
Connect the Power Cables for Your
Display and Computer . . . . . . . . . . . . . . . . . . 12
Attach the Cable Clip (Optional). . . . . . . . . . 12
Windows Vista®Setup . . . . . . . . . . . . . . . . . 13
Connect to the Internet (Optional) . . . . . . . . 13
Using Your Studio Hybrid . . . . . . . . . . . . . .16
Front View Features. . . . . . . . . . . . . . . . . . . . 16
Back View Features. . . . . . . . . . . . . . . . . . . . 18
Using the Optical Disc Drive. . . . . . . . . . . . . 20
Changing the Sleeve . . . . . . . . . . . . . . . . . . . 21
Software Features . . . . . . . . . . . . . . . . . . . . . 22
Solving Problems . . . . . . . . . . . . . . . . . . . . .24
Wireless Mouse or Keyboard
Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Network Problems . . . . . . . . . . . . . . . . . . . . . 25
Power Problems. . . . . . . . . . . . . . . . . . . . . . . 26
Memory Problems . . . . . . . . . . . . . . . . . . . . . 27
Lockups and Software Problems . . . . . . . . . 28
Using Support Tools. . . . . . . . . . . . . . . . . . .30
Dell Support Center . . . . . . . . . . . . . . . . . . . . 30
System Messages . . . . . . . . . . . . . . . . . . . . . 30
Hardware Troubleshooter. . . . . . . . . . . . . . . 32
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 33
Contents

4
System Recovery Options . . . . . . . . . . . . . .35
System Restore . . . . . . . . . . . . . . . . . . . . . . . 35
Dell Factory Image Restore . . . . . . . . . . . . . 36
Operating System Reinstallation . . . . . . . . . 38
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .40
Technical Support and Customer
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
DellConnect™. . . . . . . . . . . . . . . . . . . . . . . . . 41
Online Services . . . . . . . . . . . . . . . . . . . . . . . 41
AutoTech Service. . . . . . . . . . . . . . . . . . . . . . 42
Product Information. . . . . . . . . . . . . . . . . . . . 43
Returning Items for Repair Under
Warranty or for Credit . . . . . . . . . . . . . . . . . . 43
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 44
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 45
Finding More Information and
Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Basic Specifications . . . . . . . . . . . . . . . . . .48
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Macrovision Product Notice. . . . . . . . . . . . . 53
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

5
Setting Up Your Studio Hybrid
This section provides information about setting
up your Studio Hybrid 140g and connecting
peripherals.
Before Setting Up Your Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your Studio
Hybrid may cause it to overheat. To prevent
overheating ensure that you leave at least
10.2 cm (4 in) at the back of the computer and a
minimum of 5.1 cm (2 in) on all other sides. You
should never put your computer in an enclosed
space, such as a cabinet or drawer when it is
powered on.
NOTICE: Placing or stacking heavy or sharp
objects on the computer may result in
permanent damage to the computer.
Install the Stand
You have the option of setting up your computer
either in a vertical or horizontal position.
Your computer automatically rotates the
illuminated name and symbols to display
correctly in either orientation. While powered
on, the Dell™ logos on either side of the
computer illuminate when the computer is
vertical, and only on the top surface when it is
horizontal.

6
Setting Up Your Studio Hybrid
Vertical Position
To set up your computer in a vertical position,
align the securing tabs on the stand with the
slots on the computer. Lower the computer onto
the stand until the tabs have fully inserted into
the slots.
Horizontal Position
To set up your computer in a horizontal position:
If the stand has been installed in the vertical1.
position, gently lift the computer away from
the stand while holding the stand down on a
level surface.
Turn the stand over and push the stabilizer2.
bar away from the stand.

7
Setting Up Your Studio Hybrid

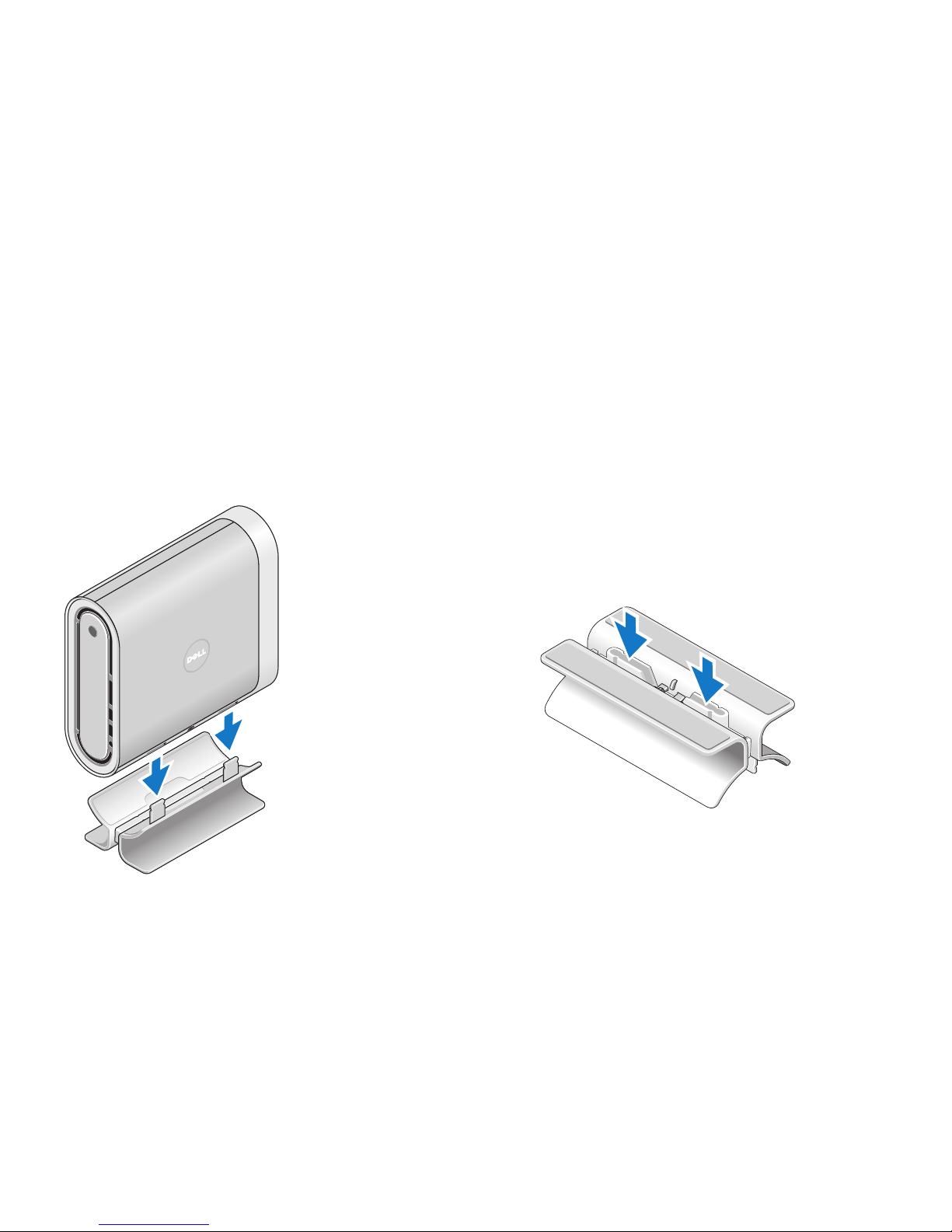

Separate the two ends of the stand.3.
Turn the stand over and align the stabilizer4.
bar with the securing slots on the stand.
Align the securing tabs on the stand with5.
the slots on the computer and lower the
computer onto the stand until the securing
tabs are inserted into the slots.

8
Setting Up Your Studio Hybrid
Connect the Display
Your computer uses one of two different
connectors for the display. The HDMI connector
is a high performance digital connector that
carries both video and audio signals for displays
such as TVs and monitors with integrated
speakers. The DVI connector is also a high
performance digital connector, but it does
not carry an audio signal. This connector can
be used for displays such as monitors and
projectors that do not have speakers.
Check your TV or monitor to see which type of
connectors are available. Refer to the following
table when identifying the connectors on your
display to select the connection type you
will use.
DVI
HDMI
VGA
DVI
Connect the display using ONLY ONE of the
following connectors: the white DVI connector
or the HDMI connector.
NOTE: The HDMI will not have a display
signal if both a DVI and an HDMI cables are
connected because the DVI connector has
priority over the HDMI connector.

9
Setting Up Your Studio Hybrid
Connect Using the DVI Connector
Connect the display using a DVI cable (which
usually has white connectors at both ends).
If your display already has a VGA cable (with
blue connectors at both ends) connected to
your display, disconnect the VGA cable and
use a DVI cable.
If your display only has a VGA connector, use
a VGA cable with the VGA‑to‑DVI adapter
(not included with your computer).
Connect Using an HDMI Connector
Connect the display using an HDMI cable.
NOTE: You can purchase additional VGA‑
to‑DVI adapters, as well as DVI and HDMI
cables from the Dell website at dell.com.

10
Setting Up Your Studio Hybrid
Set Up the Keyboard and Mouse
Wireless Keyboard and Mouse
If your computer was purchased with a wireless
keyboard and mouse:

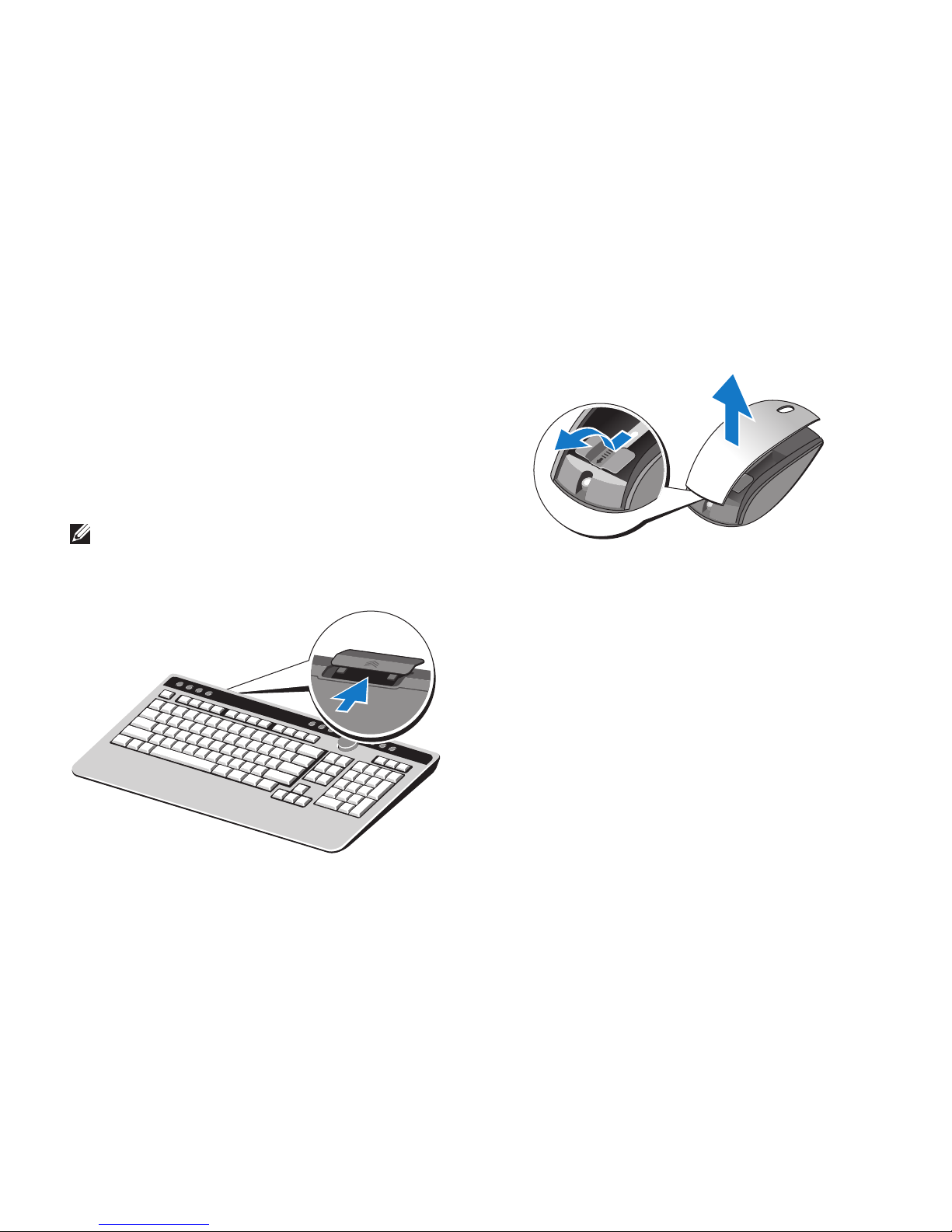

Insert the batteries in the wireless keyboard1.
and mouse.
NOTE: The keyboard and mouse turn
on automatically after the batteries are
inserted. Press any key on the keyboard and click the2.
mouse after your computer starts up.
USB Keyboard and Mouse
If your computer was not purchased with a
wireless keyboard and mouse, use the USB
connections on the back panel of the computer.

11
Setting Up Your Studio Hybrid
Connect the Network Cable
(Optional)
A network connection is not required to
complete this computer setup, but if you have
an existing network or Internet connection that
uses a cable connection (such as a home cable
modem, or Ethernet jack), you can connect
it now.
Use only an Ethernet cable (RJ ‑ 45 connector).
Do not plug a telephone cable (RJ‑11 connector)
into the network connector.
To attach your computer to a network or
broadband device, connect one end of a
network cable to either a network port or a
broadband device. Connect the other end of
the network cable to the network adapter
connector on the back panel of your computer.
A click indicates that the network cable has
been securely attached.

12
Setting Up Your Studio Hybrid

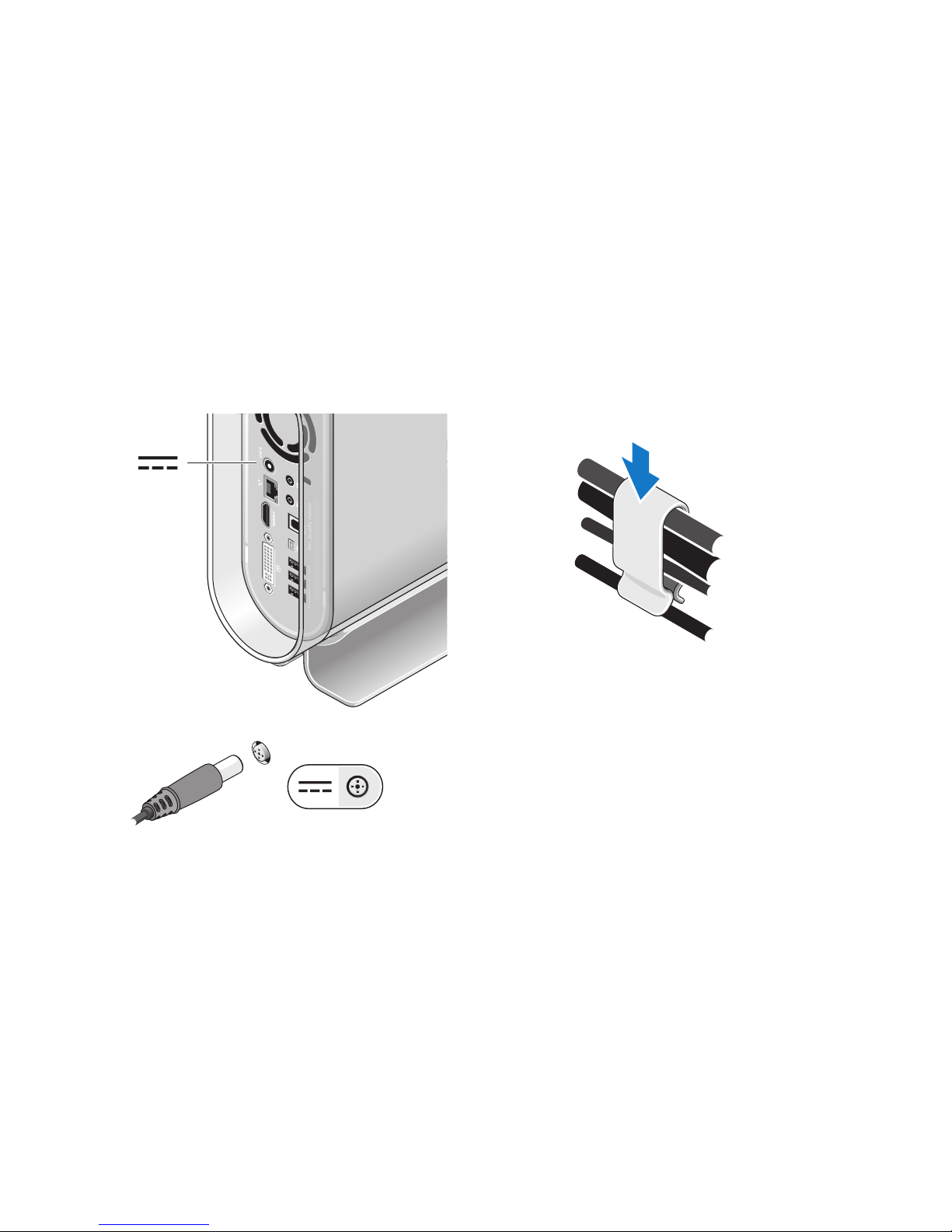

Connect the Power Cables for
Your Display and Computer
Attach the Cable Clip (Optional)
Organize your computer cables by fixing the clip
over the cables.

13
Setting Up Your Studio Hybrid

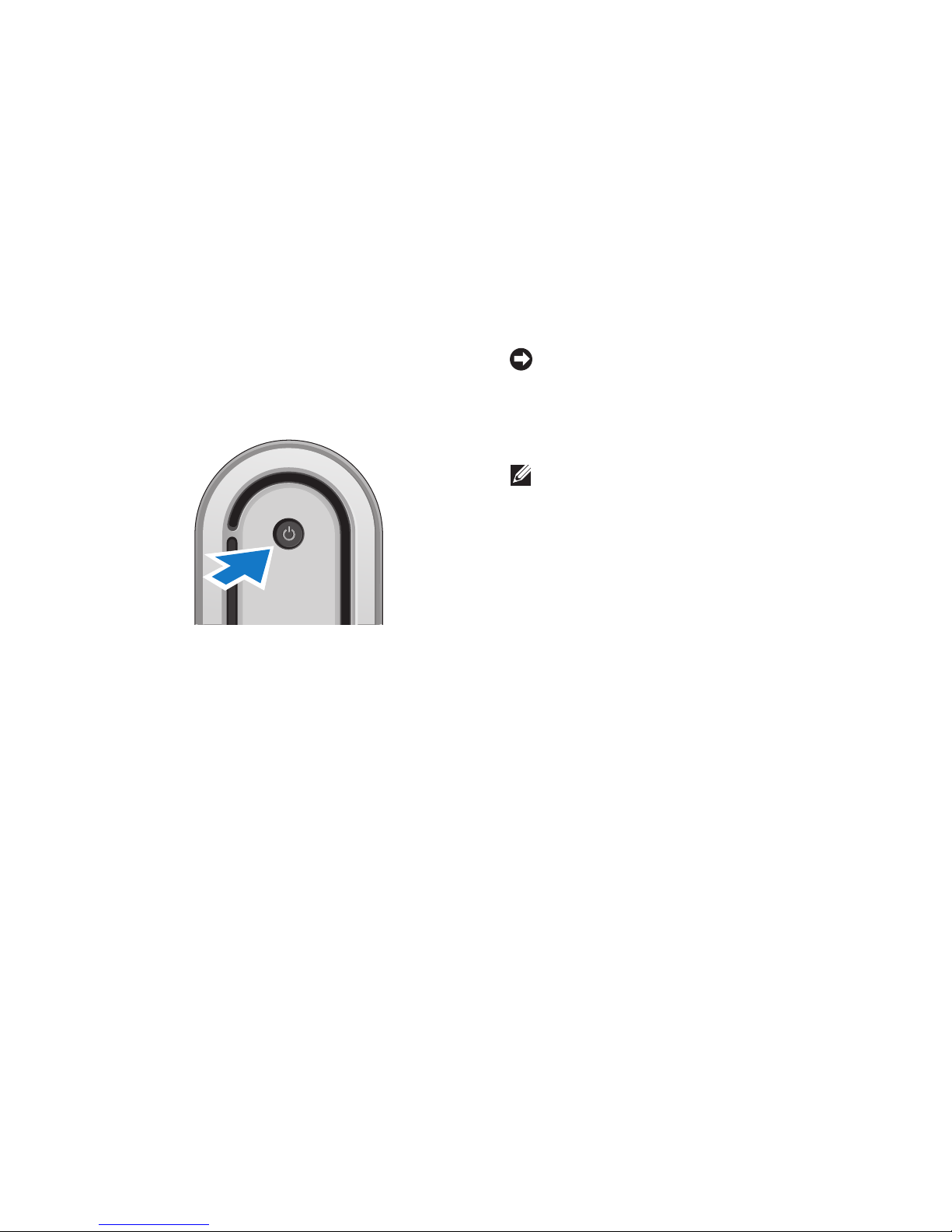

Press the Power Buttons on Your
Computer and Display
Windows Vista®Setup
Your Dell computer is preconfigured with
Windows Vista. To set up Windows Vista for
the first time, follow the instructions on the
screen. These steps are mandatory and may
take up to 15 minutes to complete. The screens
will take you through several procedures
including accepting license agreements,
setting preferences and setting up an Internet
connection.
NOTICE: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable.
Connect to the Internet (Optional)
NOTE: ISPs and ISP offerings vary by
country.
To connect to the Internet, you need an external
modem or network connection and an Internet
service provider (ISP). Your ISP will offer one
or more of the following Internet connection
options:
DSL connections that provide high‑speed•
Internet access through your existing
telephone line or cellular telephone service.
With a DSL connection, you can access the
Internet and use your telephone on the same
line simultaneously.
Cable modem connections that provide•
high‑speed Internet access through your
local cable TV line.

14
Setting Up Your Studio Hybrid
Satellite modem connections that provide•
high‑speed Internet access through a
satellite television system.
Dial‑• up connections that provide Internet
access through a telephone line. Dial‑up
connections are considerably slower
than DSL and cable (or satellite) modem
connections. Your computer does not have
an integrated modem. An optional USB
modem must be used for dialup service with
this computer.
Wireless LAN• connections that provide
Internet access using WiFi 802.11
technology. Wireless LAN support requires
optional internal components that may or
may not be installed in your computer based
on decisions made at the time of purchase.
NOTE: If an external USB modem or
WLAN adapter is not part of your original
order you can purchase one from the Dell
website at dell.com.
Setting Up a Wired Internet Connection
If you are using a dial‑up connection, connect
the telephone line to the external USB modem
(optional) and to the telephone wall jack before
you set up your Internet connection. If you
are using a DSL or cable/satellite modem
connection, contact your ISP or cellular
telephone service for setup instructions.
Setting Up a Wireless Connection
Before you can use your wireless Internet
connection, you need to connect to your
wireless router. To set up your connection to a
wireless router:
Save and close any open files, and exit any1.
open programs.
Click2. Start →Connect To.
Follow the instructions on the screen to3.
complete the setup.

15
Setting Up Your Studio Hybrid
Setting Up Your Internet Connection
To set up an Internet connection with a provided
ISP desktop shortcut:
Save and close any open files, and exit any1.
open programs.
Double‑click the ISP icon on the Microsoft2. ®
Windows®desktop.
Follow the instructions on the screen to3.
complete the setup.
If you do not have an ISP icon on your desktop
or if you want to set up an Internet connection
with a different ISP, perform the steps in the
following section.
NOTE: If you cannot connect to the Internet
but have successfully connected in the
past, the ISP might have a service outage.
Contact your ISP to check the service
status, or try connecting again later.
NOTE: Have your ISP information ready. If
you do not have an ISP, the Connect to the
Internet wizard can help you get one.
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
Under3. Network and Internet, click Connect
to the Internet.
The Connect to the Internet window appears.
Click either4. Broadband (PPPoE) or Dial-up,
depending on how you want to connect:
Choosea. Broadband if you will use a
DSL, satellite modem, cable TV modem,
or Bluetooth®wireless technology
connection.
Choseb. Dial-up if you will use an optional
USB dial‑up modem or ISDN.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and5.
use the setup information provided by your
ISP to complete the setup.

16
Your Studio Hybrid 140g has indicators, buttons,
and features that provide information at‑a‑glance
and time‑saving shortcuts for common tasks.

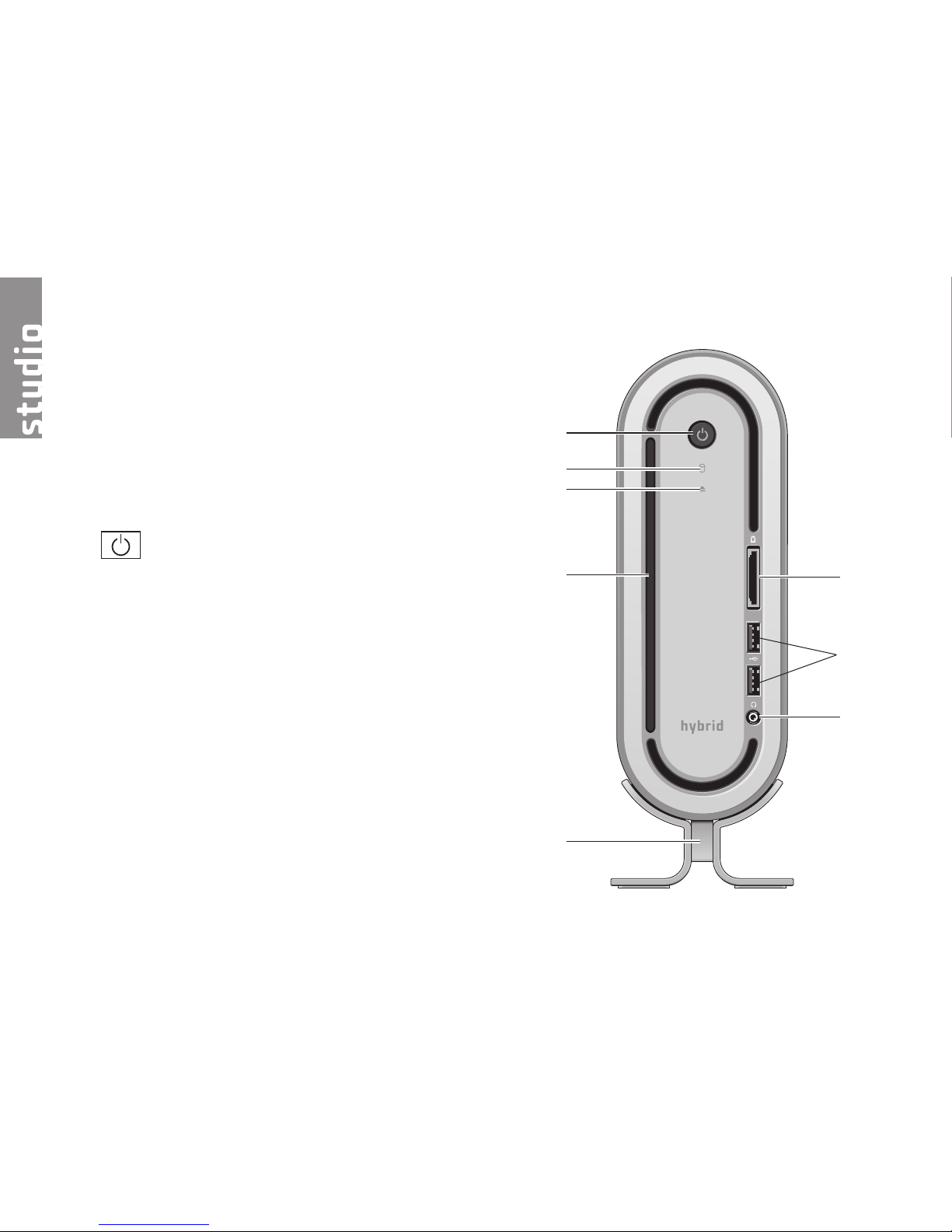

Front View Features
1Power button and light — Turns the
power on or off when pressed. The light
in the center of this button indicates the
power state:
Blinking white — the computer is in•
sleep state.
Solid white — the computer is in•
power‑on state.
Blinking amber — there may be a•
problem with the system board.
Solid amber — the system board•
cannot start initialization. There may be
an issue with either the system board
or power supply.
Using Your Studio Hybrid
1
2
3
4
5
6
7
8

17
Using Your Studio Hybrid
2Hard drive activity light — Turns on
when the computer reads or writes data. A
flashing light indicates hard drive activity.
NOTICE: To avoid loss of data, never
turn off the computer while the hard
drive activity light is flashing.
3Disc drive eject control — Lights up
when the computer starts up and when a
disc is in the drive. To eject a disc gently
touch the button.
4Optical drive — Plays or records only
standard‑size (12 cm) CDs, and DVDs. See
“Using the Optical Disc Drive” on page 20.
5Computer stand — Provides stability for
the computer and can be reconfigured
to hold the computer in a vertical or
a horizontal orientation. For more
information see “Install the Stand” on
page 5.
6Headphone connector — Connects
to headphones. For audio to a powered
speaker or sound system, use the audio
out or S/PDIF connector on the back.
7USB 2.0 connectors (2) — Connects
USB devices that are connected
occasionally, such as memory keys, digital
cameras, and MP3 players.
8Media card reader — Provides a
fast and convenient way to view and
share digital photos, music, videos, and
documents stored on the following digital
memory cards:
Secure digital (• SD) memory card
•SDHC (Secure Digital High Capacity)
card
Multi• Media Card (MMC)
Memory• Stick
Memory Stick PRO•
xD‑• Picture Card (type ‑ M and type ‑ H)

18
Using Your Studio Hybrid
Back View Features
1Wireless sync button — A wireless
connection can be established between
your keyboard and mouse and your
computer. Press the sync button on the
back of your computer, then press the sync
button on the device that you wish to use.
2Power connector — Connects
your computer to the AC adapter.
3Network connector and light —
Connects your computer to a network
or broadband device. The network
activity light flashes when the computer
is transmitting or receiving data. A high
volume of network traffic may make this
light appear to be in a steady “on” state.
1
2
3
4
56
7
8
9
10
11
12
