Set up your computer
CAUTION: Place the computer on a soft and clean surface to avoid
scratching the display.
5

1 Set up the stand.
Pedestal stand
a) Lift the stand riser and attach the base.
b) Tighten the captive screw to secure the base to the stand riser.
Easel stand
Lift the stand.
2 Set up the keyboard and mouse.
See the documentation that shipped with the keyboard and mouse.
6

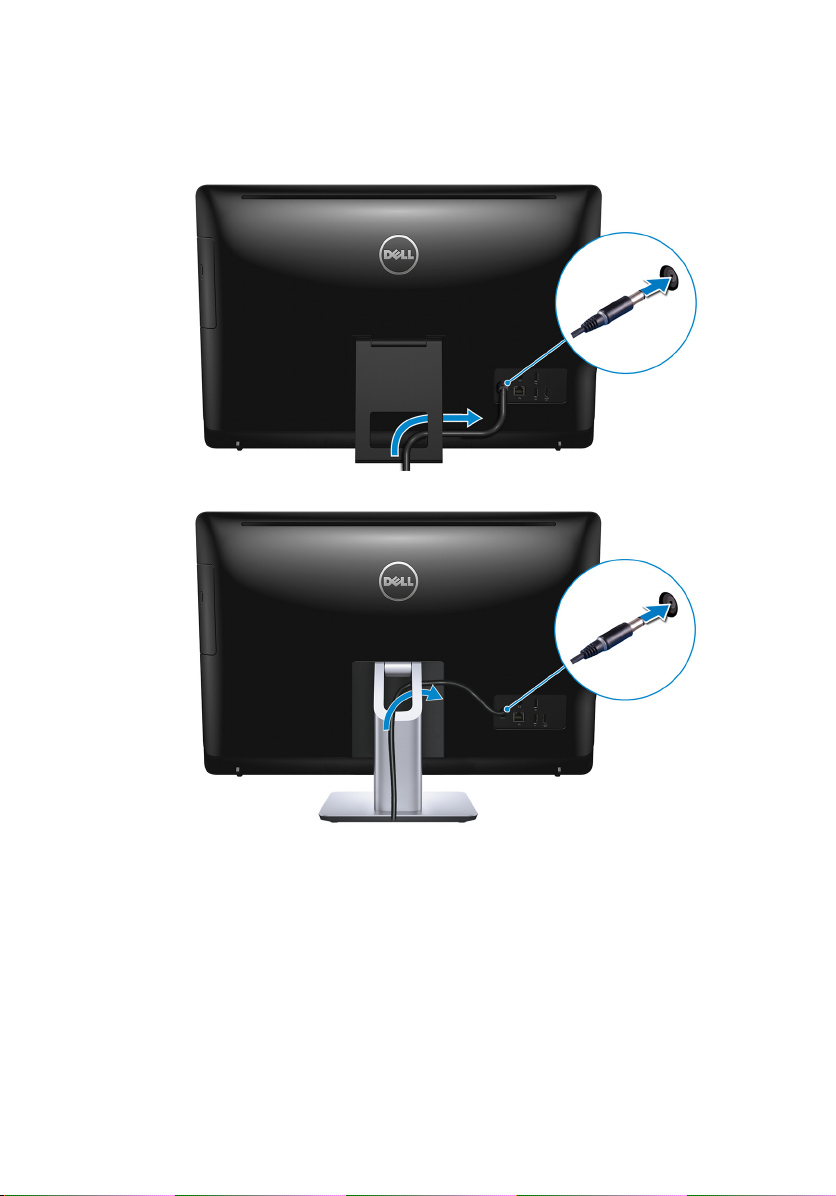

3 Route the power cable through the routing guide on the stand and connect the
power adapter.
Easel stand
Pedestal stand
7

4 Press the power button.
5 Finish operating system setup.
For Ubuntu:
Follow the on-screen instructions to complete the setup. For more information
about installing and conguring Ubuntu, see the knowledge base articles
SLN151664 and SLN151748 at www.dell.com/support.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell
recommends that you:
– Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the
password for the wireless network access when prompted.
– If connected to the internet, sign-in with or create a Microsoft account. If
not connected to the internet, create an oine account.
– On the Support and Protection screen, enter your contact details.
8

6 Locate and use Dell apps from the Windows Start menu—Recommended

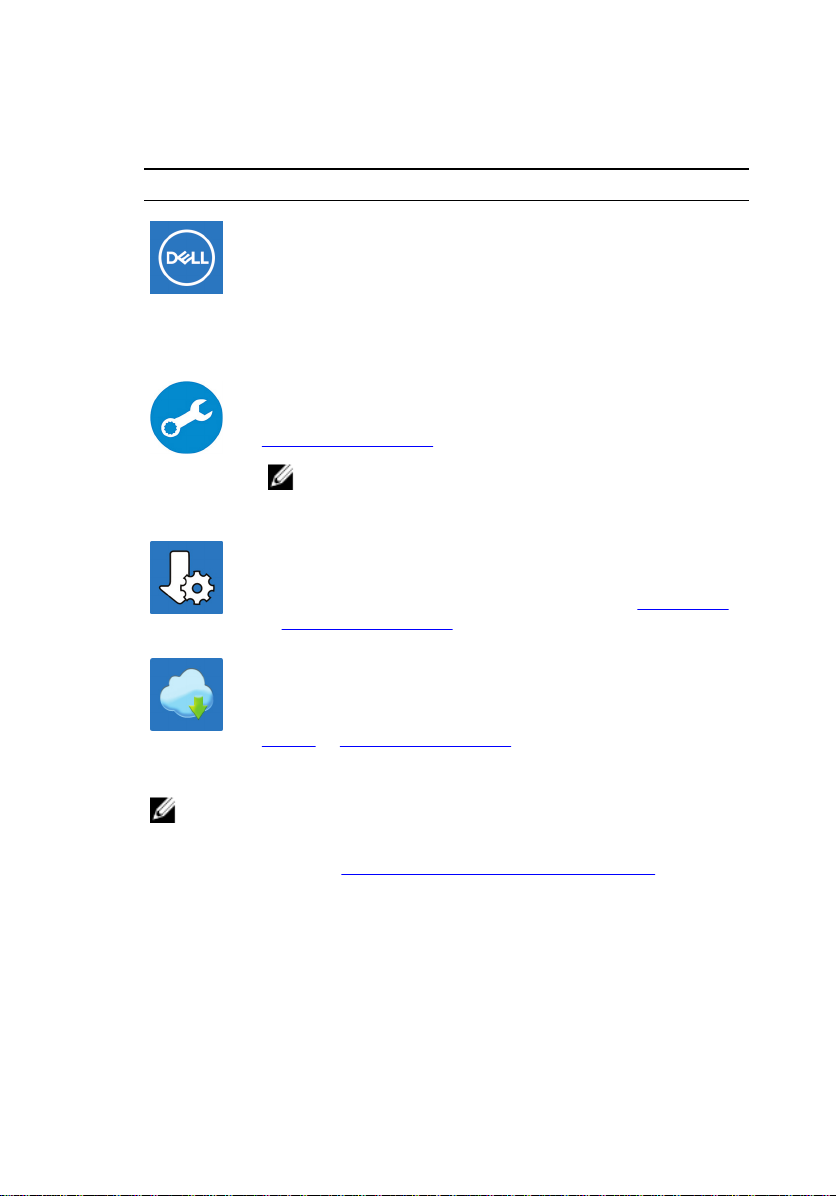

Table 1. Locate Dell apps
Resources Description
My Dell
Centralized location for key Dell applications, help articles, and
other important information about your computer. It also
noties you about the warranty status, recommended
accessories, and software updates if available.
SupportAssist
Pro-actively checks the health of your computer’s hardware
and software. The SupportAssist OS Recovery tool
troubleshoots issues with the operating system. For more
information, see the SupportAssist documentation at
www.dell.com/support.
NOTE: In SupportAssist, click the warranty expiry date
to renew or upgrade your warranty.
Dell Update
Updates your computer with critical xes and latest device
drivers as they become available. For more information about
using Dell Update, see the knowledge base article SLN305843
at www.dell.com/support.
Dell Digital Delivery
Download software applications, which are purchased but not
pre-installed on your computer. For more information about
using Dell Digital Delivery, see the knowledge base article
153764 at www.dell.com/support.
7 Create recovery drive for Windows.
NOTE: It is recommended to create a recovery drive to troubleshoot
and x problems that may occur with Windows.
For more information, see Create a USB recovery drive for Windows.
9

Create a USB recovery drive for
Windows
Create a recovery drive to troubleshoot and x problems that may occur with
Windows. An empty USB ash drive with a minimum capacity of 16 GB is required to
create the recovery drive.
NOTE: This process may take up to an hour to complete.
NOTE: The following steps may vary depending on the version of Windows
installed. Refer to the Microsoft support site for latest instructions.
1 Connect the USB ash drive to your computer.
2 In Windows search, type Recovery.
3 In the search results, click Create a recovery drive.
The User Account Control window is displayed.
4 Click Yes to continue.
The Recovery Drive window is displayed.
5 Select Back up system les to the recovery drive and click Next.
6 Select the USB ash drive and click Next.
A message appears, indicating that all data in the USB ash drive will be deleted.
7 Click Create.
8 Click Finish.
For more information about reinstalling Windows using the USB recovery drive,
see the Troubleshooting section of your product's Service Manual at
www.dell.com/support/manuals.
10

Vistas
Parte frontal
Ilustración 1. Vista frontal
1Camera
Enables you to video chat, capture photos, and record videos.
2Camera-status light
Turns on when the camera is in use.
3Microphone (for non-touchscreen model)
Provides digital sound input for audio recording, voice calls, and so on.
4Microphone (for touchscreen model)
Provides digital sound input for audio recording, voice calls, and so on.
11

Izquierda
Ilustración 2. Vista izquierda
1Media-card reader
Reads from and writes to media cards.
2USB 3.0 ports (2)
Connect peripherals such as external storage devices and printers. Provides
data transfer speeds up to 5 Gbps.
3Headset port
Connect headphones or a headset (headphone and microphone combo).
12

Derecha
Ilustración 3. Vista derecha
1Optical drive (optional)
Reads from and writes to CDs and DVDs.
2Display-brightness control buttons (2)
Press to increase or decrease the display brightness.
3Input-source selection button
Press to select the video-input source.
4Botón de encendido
Enciende el equipo o cambia el estado de la alimentación del equipo.
Presiónelo para poner el equipo en modo de suspensión si está encendido.
Mantenga presionado durante 4 segundos para forzar el apagado el equipo.
NOTA: Puede personalizar el comportamiento del botón de encendido
en Power Options (Opciones de encendido). Para obtener más
información, consulte Yo y mi Dell en support.dell.com/suppor/
manuals.
13

Parte posterior
Ilustración 4. Vista posterior
1Service Tag label
The Service Tag is a unique alphanumeric identier that enables Dell service
technicians to identify the hardware components in your computer and access
warranty information.
2Power-adapter port
Connect a power adapter to provide power to your computer.
3Network port (with lights)
Connect an Ethernet (RJ45) cable from a router or a broadband modem for
network or Internet access.
The two lights next to the connector indicate the connectivity status and
network activity.
4USB 2.0 ports (2)
Connect peripherals such as external storage devices and printers. Provides
data transfer speeds up to 480 Mbps.
5HDMI-in port
14

Connect a gaming console, Blu-ray player, or other HDMI-out enabled devices.
6Audio-out port
Connect audio-output devices such as speakers, ampliers, and so on.

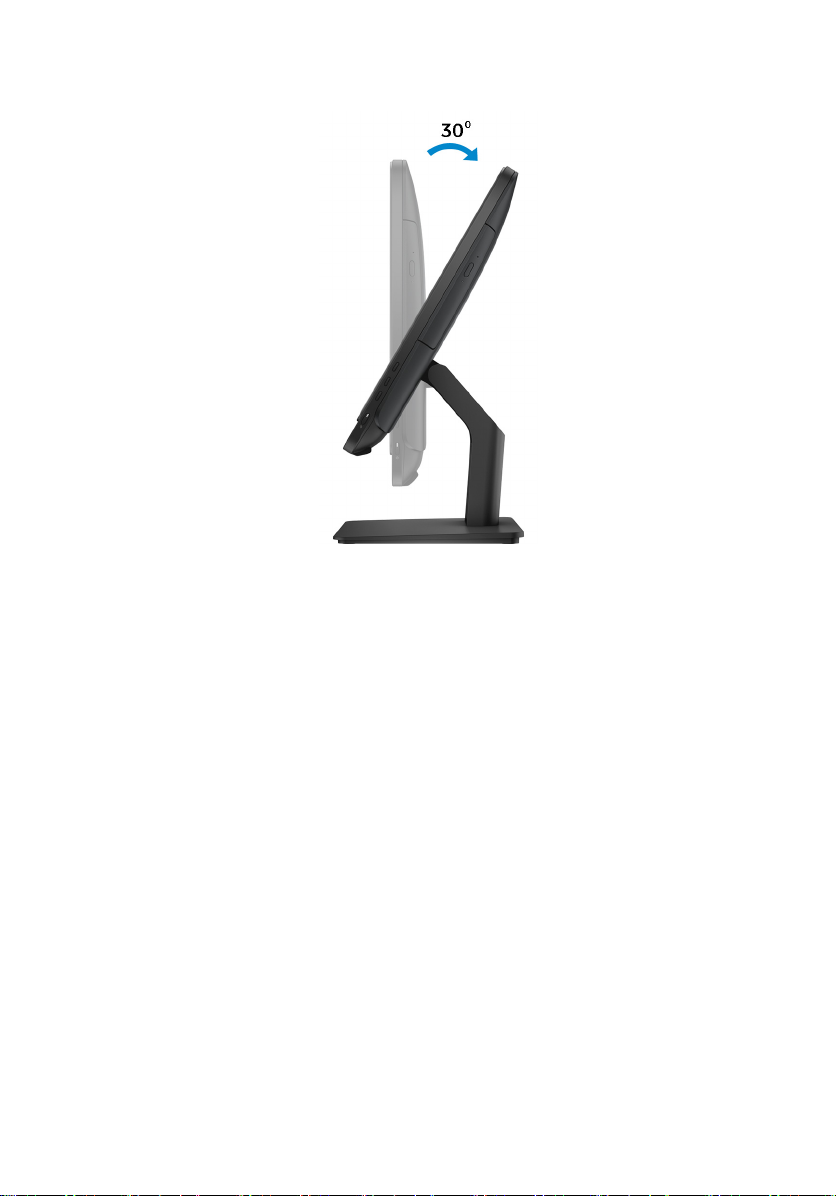

Inclinación
Soporte en caballete
15

Soporte en pedestal
16

17

Specications
Dimensiones y peso
Tabla 2. Dimensiones y peso
Altura • Soporte en caballete: 385,33 mm (15,17 pulg.)
• Soporte en pedestal: 440,33 mm (17,34 pulg.)
Anchura 576,62 Mm (22,70 pulg.)
Profundidad Con soporte en
caballete
Con soporte en
pedestal
Sin soporte
Pantalla táctil 60,7 mm (2,39
pulg.)
205 mm (8,07
pulg.)
38,20 Mm (1,50
pulg.)
Pantalla no táctil 61,80 Mm (2,43
pulg.)
205 mm (8,07
pulg.)
39,30 Mm (1,55
pulg.)
Peso (máximo)
Pantalla táctil 8,36 Kg (18,43 lb)
Pantalla no táctil 6,38 Kg (14,07 lb)
NOTA: El peso del portátil variará en función de la
conguración adquirida y las diferentes
características de fabricación.
Información del sistema
Tabla 3. Información del sistema
Modelo del equipo Inspiron 24-3464
Procesador • Intel Core i3-7100U de 7.ªgeneración
• Intel Core i5-7200U de 7.ªgeneración
• Procesador Intel Pentium
Conjunto de chips Integrado en el procesador
18

Memory
Table 4. Memory
Slots Two SODIMM slots
Type DDR4
Speed Up to 2133 MHz
Congurations supported 2 GB, 4 GB, 6 GB, 8 GB, and 16 GB
Puertos y conectores
Tabla 5. Puertos y conectores
Externos:
Red Un puerto RJ45
USB • Dos puertos USB 2.0
• Dos puertos USB 3.0
Audio/Vídeo • Un puerto HDMI de entrada
• Un puerto de salida de audio
• Un puerto para auriculares
Tabla 6. Puertos y conectores
Internos:
Tarjeta M.2 Una ranura M.2 para WLAN y Bluetooth
Comunicaciones
Tabla 7. Comunicaciones
Ethernet Controladora Ethernet de 10/100 Mb/s integrada en la
placa base
Inalámbrica • Wi-Fi 802.11 ac
19

• Wi-Fi 802.11 b/g/n
• Bluetooth 4.0
Video
Table 8. Video specications
Integrated Discrete
Controller Integrated in processor NVIDIA GeForce 920MX
NOTE: You can
connect a monitor
to each available
port on your
graphics card. You
can connect up to
one monitor on this
computer.
Memory Shared system memory 2 GB GDDR5
Audio
Tabla 9. Audio
Controladora Realtek ALC3661 con Waves MaxxAudio Pro
Altavoces 2
Salida de altavoces • Promedio: 3 W
• Pico: 3,5 W
Micrófono Micrófono digital sencillo
Controles de volumen Menús de programa
20
