Dell™Inspiron™One2205ServiceManual
Notes, Cautions, and Warnings
Information in this document is subject to change without notice.
©2010DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell
under license; Microsoft,Windows,and the Windows start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other
countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Regulatorymodel:W03BseriesRegulatorytype:W03B001
August2010Rev.A00
Technical Overview
Before You Begin
Back Cover
Hard Drive
Optical Drive
Memory Module(s)
Converter Card
Touch Screen Control Card (Optional)
Front Stand
Rear Stand Cover
Rear Stand
System-Board Shield
Antenna-In Connector (Optional)
Infrared Blaster Connector (Optional)
B-CAS Card (Optional)
Coin-Cell Battery
Wireless Mini-Card(s)
MXM-Assembly Fan (Optional)
MXM Assembly (Optional)
Processor Heat-Sink Fan
Processor Heat-Sink
Processor
Middle Frame
Speakers
System Board
Display
Wireless Antenna
Speaker Cover
Camera Module
Infrared Card (Optional)
Internal Card With Bluetooth®Wireless Technology
System Setup Utility
Flashing the BIOS
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Back to Contents Page
Back Cover
Dell™Inspiron™One2205ServiceManual
Removing the Back Cover
Replacing the Back Cover
Removing the Back Cover
1. Follow the instructions in Before You Begin.
2. Place the computer face down on a flat surface.
3. Remove the two screws that secure the back cover to the computer.
4. Slide and lift the back cover.
5. Place the back cover in a secure location.
Replacing the Back Cover
1. Follow the instructions in Before You Begin.
2. Align the tabs on the back cover with the slots on the middle frame and then slide the back cover into place.
3. Replace the two screws that secure the back cover to the computer.
4. Place the computer in an upright position.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: Ensure that sufficient space exists to support the computer with the computer cover removed—at least 30 cm (1 ft.) of desk top space.
CAUTION: Before opening your computer, ensure that you place the computer on a soft cloth or clean surface to avoid any scratches on the
display.
1
middle frame
2
back cover
3
screws (2)
5. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
Back to Contents Page
B-CAS Card (Optional)
Dell™Inspiron™One2205ServiceManual
Removing the B-CAS Card
Replacing the B-CAS Card
Removing the B-CAS Card
1. Follow the instructions in Before You Begin.
2. Remove the back cover (see Removing the Back Cover).
3. Follow the instructions from step 3 to step 7 in Removing the Front Stand.
4. Remove the rear stand cover (see Removing the Rear Stand Cover).
5. Remove the system-board shield (see Removing the System-Board Shield).
6. Disconnect the B-CAS-card cable from the connector on the TV tuner card.
7. Remove the two screws that secure the B-CAS card to the chassis.
8. Carefully slide the B-CAS card out of the B-CAS card location.
9. Lift the B-CAS card along with its cable away from the computer.
Replacing the B-CAS Card
1. Follow the instructions in Before You Begin.
2. Carefully slide the B-CAS card into the B-CAS card location.
3. Align the screw holes on the B-CAS card with the screw holes on the chassis.
4. Connect the B-CAS-card cable to the connector on the TV tuner card.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).

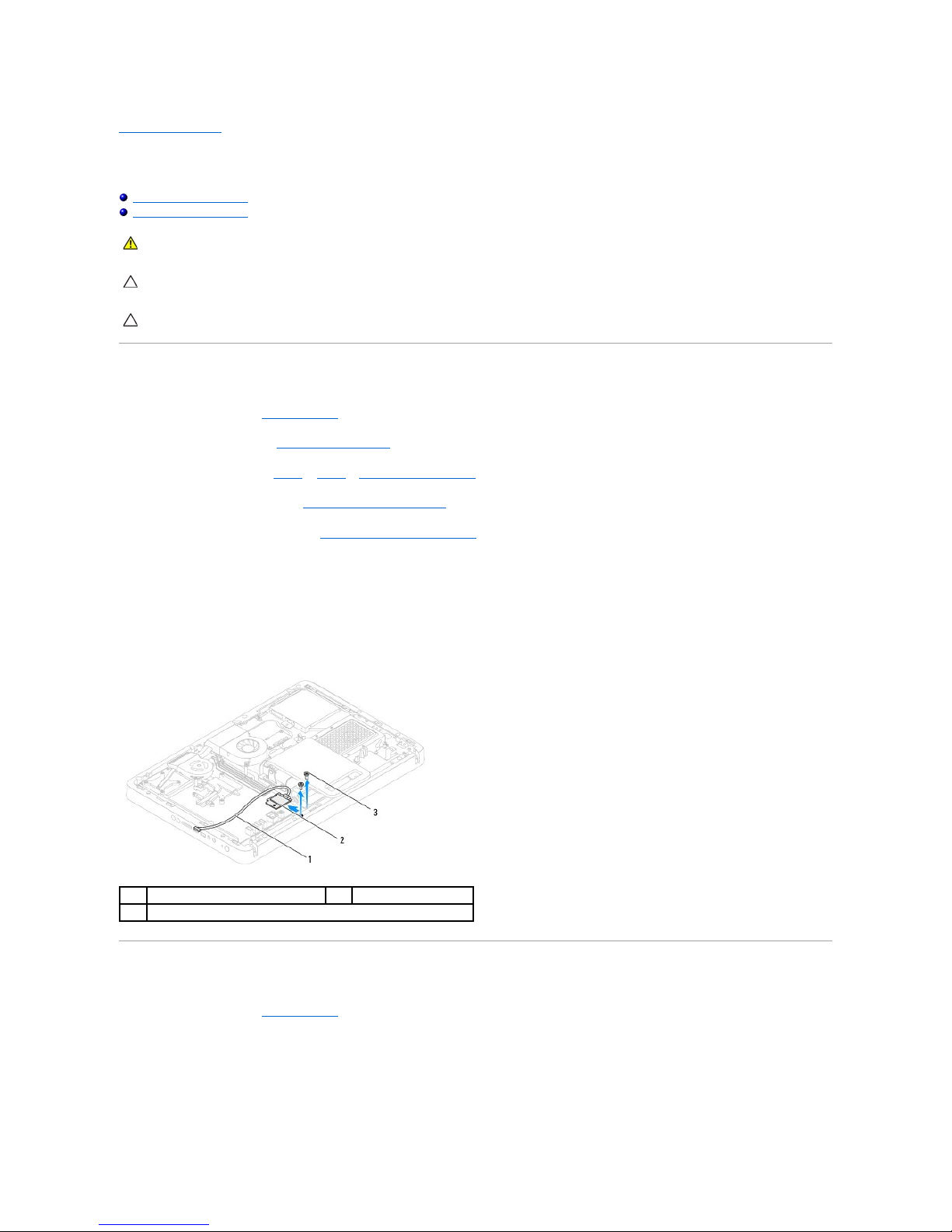

1
B-CAS-card cable
2
B-CAS card
3
screws (2)
5. Replace the two screws that secure the B-CAS card to the chassis.
6. Replace the system-board shield (see Removing the System-Board Shield).
7. Replace the rear stand cover (see Replacing the Rear Stand Cover).
8. Follow the instructions from step 4 to step 7 in Replacing the Front Stand.
9. Replace the back cover (see Replacing the Back Cover).
10. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
Back to Contents Page
Before You Begin
Dell™Inspiron™One2205ServiceManual
Recommended Tools
Turning Off Your Computer
Safety Instructions
This manual provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in Turning Off Your Computer and Safety Instructions.
lYou have read the safety information that shipped with your computer.
lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
lSmall Phillips screwdriver
lHex nut driver
lFlash BIOS executable update program available at support.dell.com
Turning Off Your Computer
1. Save and close all open files and exit all open programs.
2. To shut down the operating system, click Start and then click Shut Down.
3. Ensure that the computer is turned off. If your computer did not automatically turn off when you shut down the operating system, press and hold the
power button until the computer turns off.
Safety Instructions
Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.
1. Ensure that the work surface is flat and clean to prevent the computer display from being scratched.
2. Turn off your computer (see Turning Off Your Computer) and all attached devices.
CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Disconnect all power sources before opening the enclosure to replace, remove, or install accessories. After the installation is
completed, the enclosure must be replaced and all fasteners installed before connecting to the power source.
CAUTION: Only a certified service technician is authorized to remove the computer cover and access any of the components inside the computer.
See the safety instructions for complete information about safety precautions, working inside your computer, and protecting against electrostatic
discharge.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking
tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep
them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented
and aligned.
CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
3. Disconnect all telephone or network cables from the computer.
4. Disconnect your computer and all attached devices from their electrical outlets.
5. Disconnect all attached devices from your computer.
6. Press and hold the power button while the computer is unplugged to ground the system board.
Back to Contents Page
CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.
CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back
of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal
components.
Back to Contents Page
Flashing the BIOS
Dell™Inspiron™One2205ServiceManual
The BIOS may require flashing when an update is available or when replacing the system board. To flash the BIOS:
1. Turn on the computer.
2. Go to support.dell.com/support/downloads.
3. Locate the BIOS update file for your computer:
If you have your computer's Service Tag:
a. Click Enter a Service Tag.
b. Enter your computer's Service Tag in the Enter a service tag: field, click Go, and proceed to step 4.
If you do not have your computer's Service Tag:
a. Click Select Model.
b. Select the type of product in the Select Your Product Family list.
c. Select the product brand in the Select Your Product Line list.
d. Select the product model number in the Select Your Product Model list.
e. Click Confirm.
4. A list of results appear on the screen. Click BIOS.
5. Click Download Now to download the latest BIOS file.
The File Download window appears.
6. Click Save to save the file on your desktop. The file downloads to your desktop.
7. Click Close if the Download Complete window appears.
The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.
8. Double-click the file icon on the desktop and follow the instructions on the screen.
Back to Contents Page
NOTE: The Service Tag for your computer is located on a label at the bottom of your computer.
NOTE: If you have selected a different model and want to start over again, click Start Over on the top right of the menu.
Back to Contents Page
Internal Card With Bluetooth®Wireless Technology
Dell™Inspiron™One2205ServiceManual
Removing the Bluetooth Card
Replacing the Bluetooth Card
If you ordered a card with Bluetooth wireless technology with your computer, it is already installed.
Removing the Bluetooth Card
1. Follow the instructions in Before You Begin.
2. Follow the instructions from step 2 to step 9 in Removing the Display Bezel.
3. Turn the display bezel over.
4. Remove the mylar sleeve from the Bluetooth card.
5. Remove the two screws that secure the Bluetooth card to the display bezel.
6. Disconnect the Bluetooth-card cable form the connector on the Bluetooth card.
7. Lift the Bluetooth card away from the display bezel.
Replacing the Bluetooth Card
1. Follow the instructions in Before You Begin.
2. Connect the Bluetooth-card cable to the connector on the Bluetooth card.
3. Align the screw holes on the Bluetooth card with the screw holes on the display bezel.
4. Replace the two screws that secure the Bluetooth card to the display bezel.
5. Replace the mylar sleeve on the Bluetooth card.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).

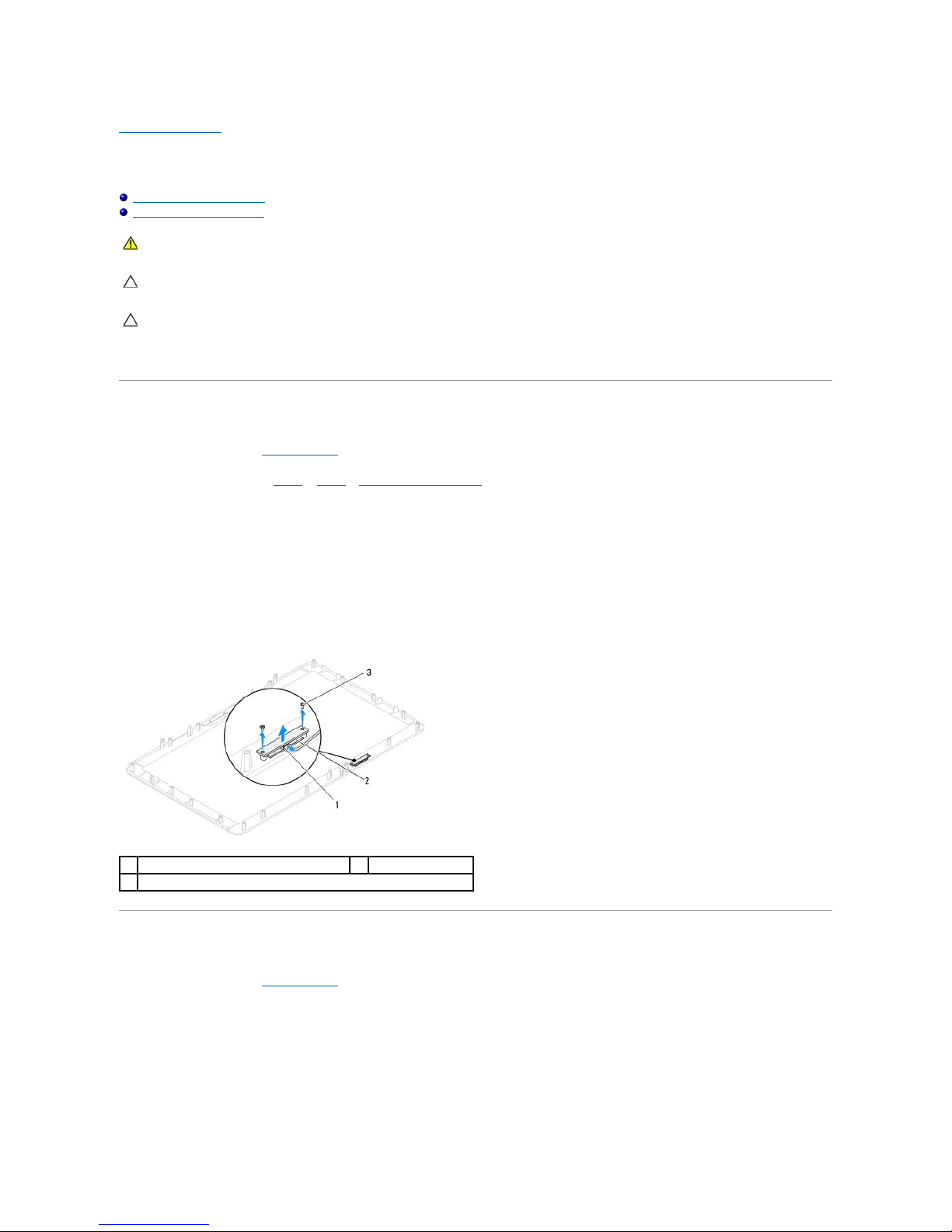

1
Bluetooth-card cable connector
2
Bluetooth card
3
screws (2)
6. Turn the display bezel over.
7. Follow the instructions from step 5 to step 12 in Replacing the Display Bezel.
8. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
Back to Contents Page
Camera Module
Dell™Inspiron™One2205ServiceManual
Removing the Camera Module
Replacing the Camera Module
Removing the Camera Module
1. Follow the instructions in Before You Begin.
2. Follow the instructions from step 2 to step 9 in Removing the Display Bezel.
3. Turn the display bezel over.
4. Remove the two screws that secure the camera module to the display bezel.
5. Disconnect the camera cable from the connector on the camera module.
6. Lift the camera module off the display bezel.
Replacing the Camera Module
1. Follow the instructions in Before You Begin.
2. Connect the camera cable to the connector on the camera module.
3. Align the screw holes on the camera module with the screw holes on the display bezel.
4. Replace the two screws that secure the camera module to the display bezel.
5. Turn the display bezel over.
6. Follow the instructions from step 5 to step 12 in Replacing the Display Bezel.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
1
camera cable connector
2
camera module
3
screws (2)
7. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
Back to Contents Page
Wireless Mini-Card(s)
Dell™Inspiron™One2205ServiceManual
Removing the Mini-Card(s)
Replacing the Mini-Card(s)
If you ordered a wireless Mini-Card with your computer, the card is already installed.
Your computer supports two half Mini-Card slots for Wireless Local Area Network (WLAN) and a TV tuner module.
Removing the Mini-Card(s)
1. Follow the instructions in Before You Begin.
2. Remove the back cover (see Removing the Back Cover).
3. Follow the instructions from step 3 to step 7 in Removing the Front Stand.
4. Remove the rear stand cover (see Removing the Rear Stand Cover).
5. Remove the system-board shield (see Removing the System-Board Shield).
6. Disconnect the antenna cable(s) from the Mini-Card.
7. Remove the two screws that secure the Mini-Card to the system-board connector.
8. Lift the Mini-Card away from the system-board connector.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: When the Mini-Card is not in the computer, store it in protective antistatic packaging (see "Protecting Against Electrostatic Discharge"
in the safety instructions that shipped with your computer).
NOTE: Dell does not guarantee compatibility or provide support for Mini-Cards from sources other than Dell.
1
antenna cables (2)
CAUTION: When the Mini-Card is not in the computer, store it in protective antistatic packaging (see "Protecting Against Electrostatic Discharge"
in the safety instructions that shipped with your computer).
Replacing the Mini-Card(s)
1. Follow the instructions in Before You Begin.
2. Align the notch on the Mini-Card with the tab in the system-board connector.
3. Insert the Mini-Card at a 45-degree angle into the system-board connector.
4. Press the other end of the Mini-Card down and replace the two screws that secure the Mini-Card to the system-board connector.
5. Connect the appropriate antenna cable(s) to the Mini-Card you are installing. The following table provides the antenna cable color scheme for the Mini-
Card(s) supported by your computer.
6. Replace the system-board shield (see Replacing the System-Board Shield).
7. Replace the rear stand cover (see Replacing the Rear Stand Cover).
8. Follow the instructions from step 4 to step 7 in Replacing the Front Stand.
9. Replace the back cover (see Replacing the Back Cover).
10. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page
1
Mini-Card
2
system board connector
3
screws (2)
CAUTION: The connectors are keyed to ensure correct insertion. Use of excessive force may damage the connectors.
CAUTION: To avoid damage to the Mini-Card, ensure that there are no cables or antenna cables under the Mini-Card.
Connectors on the Mini-Card
Antenna Cable Color Scheme
WLAN (2 antenna cables)
Main WLAN (white triangle)
Auxiliary WLAN (black triangle)
white
black
TV tuner (1 antenna cable)
black
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
Back to Contents Page

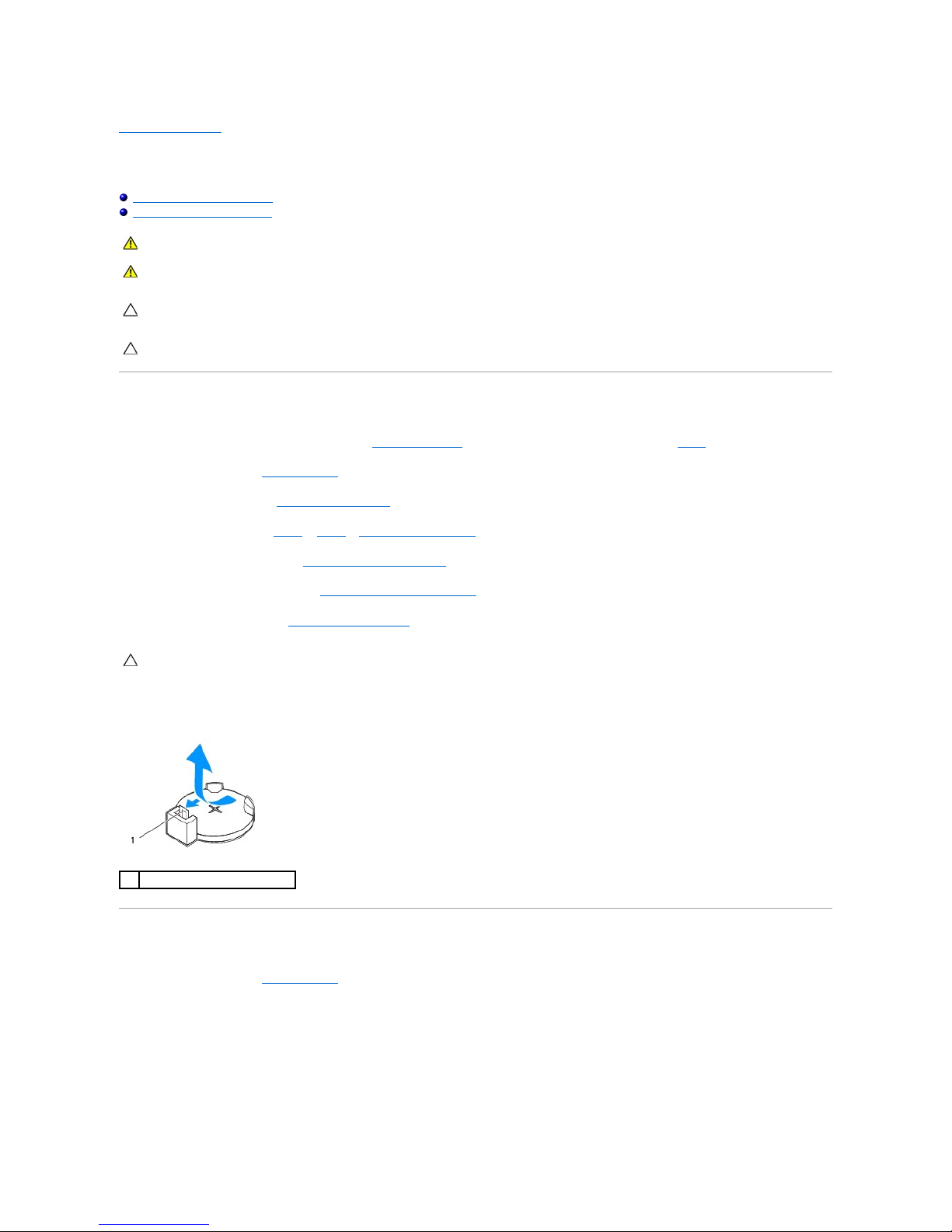

Coin-Cell Battery
Dell™Inspiron™One2205ServiceManual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery
Removing the Coin-Cell Battery
1. Record all the screens in system setup utility (see System Setup Utility) so that you can restore the correct settings in step 8.
2. Follow the instructions in Before You Begin.
3. Remove the back cover (see Removing the Back Cover).
4. Follow the instructions from step 3 to step 7 in Removing the Front Stand.
5. Remove the rear stand cover (see Removing the Rear Stand Cover).
6. Remove the system-board shield (see Removing the System-Board Shield).
7. Locate the battery socket (see System Board Components).
8. Press the battery release lever to remove the battery.
Replacing the Coin-Cell Battery
1. Follow the instructions in Before You Begin.
2. Insert the new battery (CR2032) into the socket with the side labeled "+" facing up, and press the battery into place.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: A new battery can explode if it is incorrectly installed. Replace the battery only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer's instructions.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: If you pry the battery out of its socket with a blunt object, be careful not to touch the system board with the object. Ensure that the
object is inserted between the battery and the socket before you attempt to pry out the battery. Otherwise, you may damage the system board by
prying off the socket or by breaking circuit traces on the system board.
1
battery release lever
3. Replace the system-board shield (see Replacing the System-Board Shield).
4. Replace the rear stand cover (see Replacing the Rear Stand Cover).
5. Follow the instructions from step 4 to step 7 in Replacing the Front Stand.
6. Replace the back cover (see Replacing the Back Cover).
7. Connect your computer and devices to electrical outlets, and then turn them on.
8. Enter the system setup utility (see System Setup Utility) and restore the settings you recorded in step 1.
Back to Contents Page
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
Back to Contents Page
Display
Dell™Inspiron™One2205ServiceManual
Display Bezel
Display Panel
Display Cable
Display Bezel
Removing the Display Bezel
1. Follow the instructions in Before You Begin.
2. Remove the system board (see Removing the System Board).
3. Remove the 19 screws that secure the display bezel to the chassis.
4. Carefully peel the silver foil that adheres the camera module to the chassis from the chassis.
5. Make a note of the camera cable, infrared-card cable, and Bluetooth®-card cable routing and release the cables through the slots on the chassis.
6. Turn the computer over.
7. Release the three tabs that secure the display bezel to the chassis.
8. Using your fingertips, carefully pry up the inside edge of the display bezel.
9. Lift the display bezel away from the computer.
10. Remove the camera module (see Removing the Camera Module).
11. Remove the infrared card (see Removing the Infrared Card).
12. Remove the Bluetooth card (see Removing the Bluetooth Card).
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
Replacing the Display Bezel
1. Follow the instructions in Before You Begin.
2. Replace the Bluetooth card (see Replacing the Bluetooth Card).
3. Replace the infrared card (see Replacing the Infrared Card).
4. Replace the camera module (see Replacing the Camera Module).
5. Slide the camera cable, infrared-card cable, and Bluetooth-card cable through the slots on the chassis.
6. Align the display bezel over the display and gently snap the display bezel into place.
7. Ensure that the three tabs on the display bezel are secured to the slots on the chassis.
8. Turn the computer over.
9. Route the camera cable, infrared-card cable, and Bluetooth-card cable through the routing guides.
10. Secure the silver foil that adheres the camera module to the chassis.
11. Replace the 19 screws that secure the display bezel to the chassis.
12. Replace the system board (see Replacing the System Board).
13. Connect your computer and all attached devices to electrical outlets, and turn them on.
Display Panel
Removing the Display Panel
1. Follow the instructions in Before You Begin.
2. Follow the instructions from step 2 to step 9 in Removing the Display Bezel.
3. Remove the four screws that secure the display panel to the chassis.
4. Remove the display cable from the slot on the chassis.
5. Remove the display panel off the chassis.
1
display bezel
2
screws (19)
3
tabs (3)
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
NOTE: The number of screws that secure the display panel to the chassis may vary.
Replacing the Display Panel
1. Follow the instructions in Before You Begin.
2. Guide the display cable through the slot on the chassis.
3. Align the screw holes on the display panel with the screw holes on the chassis.
4. Replace the four screws that secure the display panel to the chassis.
5. Follow the instructions from step 5 to step 12 in Replacing the Display Bezel.
6. Connect your computer and all attached devices to electrical outlets, and turn them on.
Display Cable
Removing the Display Cable
1. Follow the instructions in Before You Begin.
2. Remove the display panel (see Removing the Display Panel).
3. Turn the display panel over.
4. Pull the pull-tab to disconnect the display cable from the connector on the display panel.
1
screws (4)
2
display panel
NOTE: The number of screws that secure the display panel to the chassis may vary.
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
Replacing the Display Cable
1. Follow the instructions in Before You Begin.
2. Connect the display cable to the connector on the display panel.
3. Turn the display panel over.
4. Replace the display panel (see Replacing the Display Panel).
5. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page
1
display cable
2
display cable connector
3
pull tab
4
back of the display panel
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
Other manuals for Inspiron One 2205
1
Table of contents
Other Dell Desktop manuals
Dell
Dell Alienware Aurora R4 Operation instructions
Dell
Dell Inspiron One 2020 User manual
Dell
Dell Precision 3431 Small Form Factor User guide
Dell
Dell OptiPlex 5055 Small Form Factor User manual
Dell
Dell Dimension 9100 User manual
Dell
Dell OptiPlex GX1 User manual
Dell
Dell Precision 3431 User manual
Dell
Dell OptiPlex 5000 Tower User manual
Dell
Dell Inspiron 620 User manual
Dell
Dell Alienware Area-51 ALX Operation instructions
Dell
Dell Inspiron Zino User manual
Dell
Dell Precision 7920 Rack User manual
Dell
Dell Precision 0G475 User manual
Dell
Dell OptiPlex 3046 User manual
Dell
Dell OptiPlex Mini Tower System User manual
Dell
Dell OptiPlex 780 User manual
Dell
Dell OptiPlex 330 User manual
Dell
Dell Inspiron 600m User manual
Dell
Dell Zino HD - Inspiron - Desktop PC User manual
Dell
Dell OptiPlex 7440 User manual
