TABLE OF CONTENTS
O V E R V IE W
Mini Tower Computer (MT) View 3-4
Desktop Computer (DT) View 5-6
Small Form Factor Computer (SFF) View 7-8
M A R K E TI N G S Y S T E M C O N F I G U R A TI O N S
Operating System, Chipset 9
Processor 10
Memory 11
Hard Drives, Removable Storage, System Expansion Slots 12
Graphics/Video Controller, External Ports/Connectors 13
Communications—Network Adapter (NIC), Wireless 14
Audio and Speakers, Keyboard and Mouse 14
Security, Software, Environmental, All-in-One Stands & Mounts, Service and Support 15
DETAILED ENGINE ERIN G SPECIFICATIONS
System Dimensions (Physical) 16
System Expansion Slots 16
System Level Environmental and Operating Conditions 17
Power 18-19
Audio 20
Communications 20-25
Graphics/Video Controller 26-27
Hard Drives 28-31
Optical Drive 32-33
Media Card Reader 34
BIOS Defaults 35
Chassis Enclosure and Ventilation Requirements 36
Environmental Attributes 37
Acoustic Noise Emission Information 38-40

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
3
MINI TOWER COMPUTER (MT) VIEW
2
3
4
5
6
7
8
9
110
11
12
13
14
15
16
FRONT VIEW
1 Power Button, Power
Light
6 Optical Drive (optional)
2 Optical Drive Bay
(optional)
7 Optical Drive Eject Button
3 Microphone Connector 8 USB 2.0 Connectors (2)
4 Headphone Connector 9 Drive Activity Light
5 Diagnostic Lights (4)
BACK VIEW
10 Power Supply Diagnostic
Light
14 Expansion Card Slots(4)
11 Power Supply Diagnostic
Button
15 Security Cable Slot
12 Power Connectors 16 Padlock Ring
13 Back Panel Connectors
123
456
78
9
BACK PANEL CONNECTORS
1 Link Integrity Light 6 VGA Connector
2 Network Connector 7 Line-in Connector
3 Network Activity Light 8 Line-out Connector
4 USB Connectors (6) 9 Microphone Connector
5 HDMI Connector

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
4
Number Name Number Name
1 Front IO connector (FRONTPANEL)) 14 PCI-e 16x Connector (SLOT1)
2 Internal Speaker Connector (INT_SPKR) 15 System fan Connector (FAN_SYS2)
3 System fan Connector (FAN_SYS1) 16 P2 Power Connector(ATX12V)
4 SATA 1 Connector(SATA1) 17 CPU Socket Connector (U27CPU)
5 SATA 0 Connector(SATA0) 18 CPU fan Connector (FAN_CPU)
6 SATA 2 Connector(SATA2) 19 Memory Connector(DIMM1)
7 SATA 3 Connector(SATA3) 20 P1 power Connector (ATX)
8 Internal USB Connector (USBF1) 21 Power Switch Connector (PWRSW1)
9 Internal USB Connector (USBF1) 22 Memory Connector(DIMM2)
10 Internal Audio Connector (AUDIOF1) 23 Battery Connector (BT1)
11 PCI-e 1x Connector (SLOT4) 24 Intrusion Switch Connector (Intruder)
12 PCI-e 1x Connector (SLOT3) 25 KB/MS COM Connector (KBMSCOM1)
13 PCI-e 1x Connector (SLOT2)

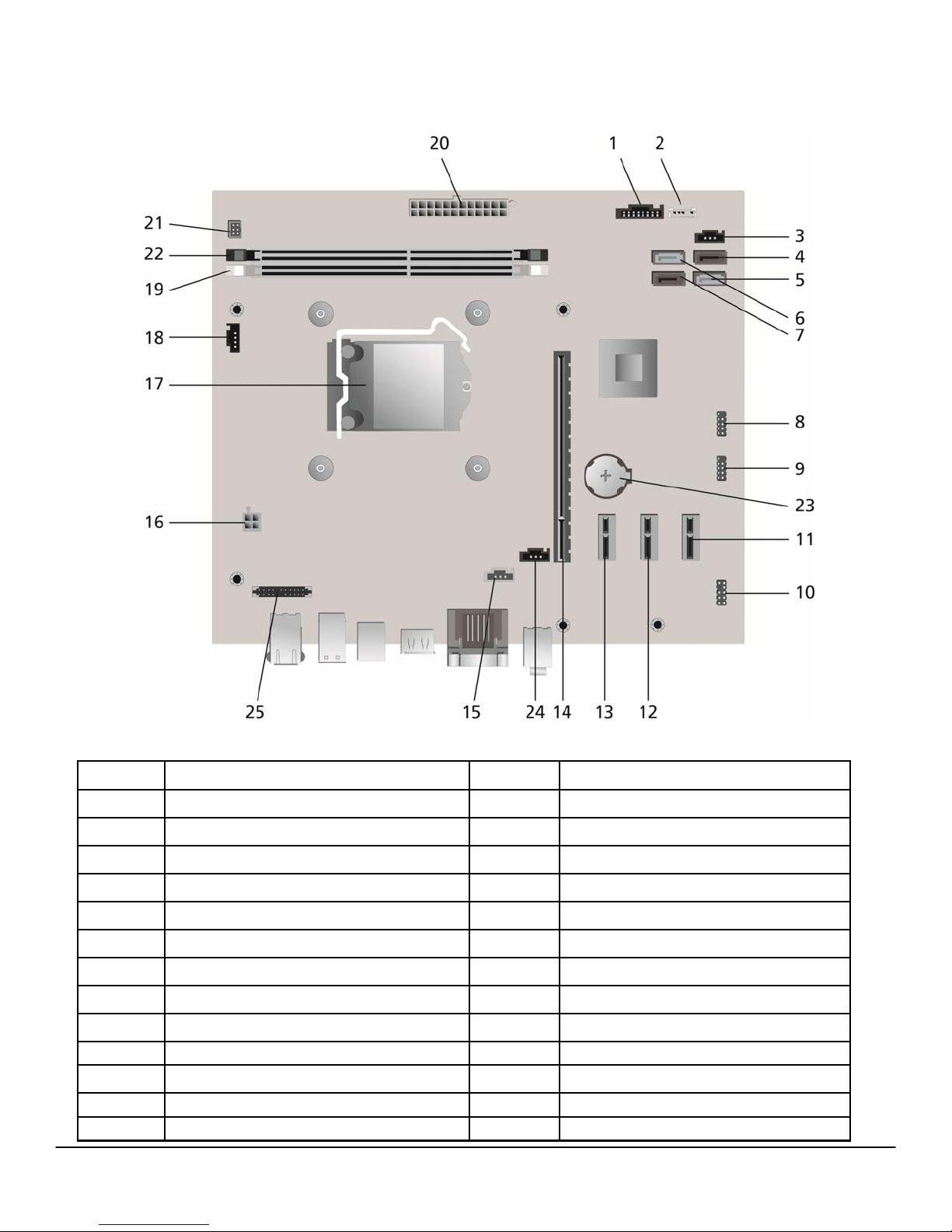

MT System Board Components

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
5

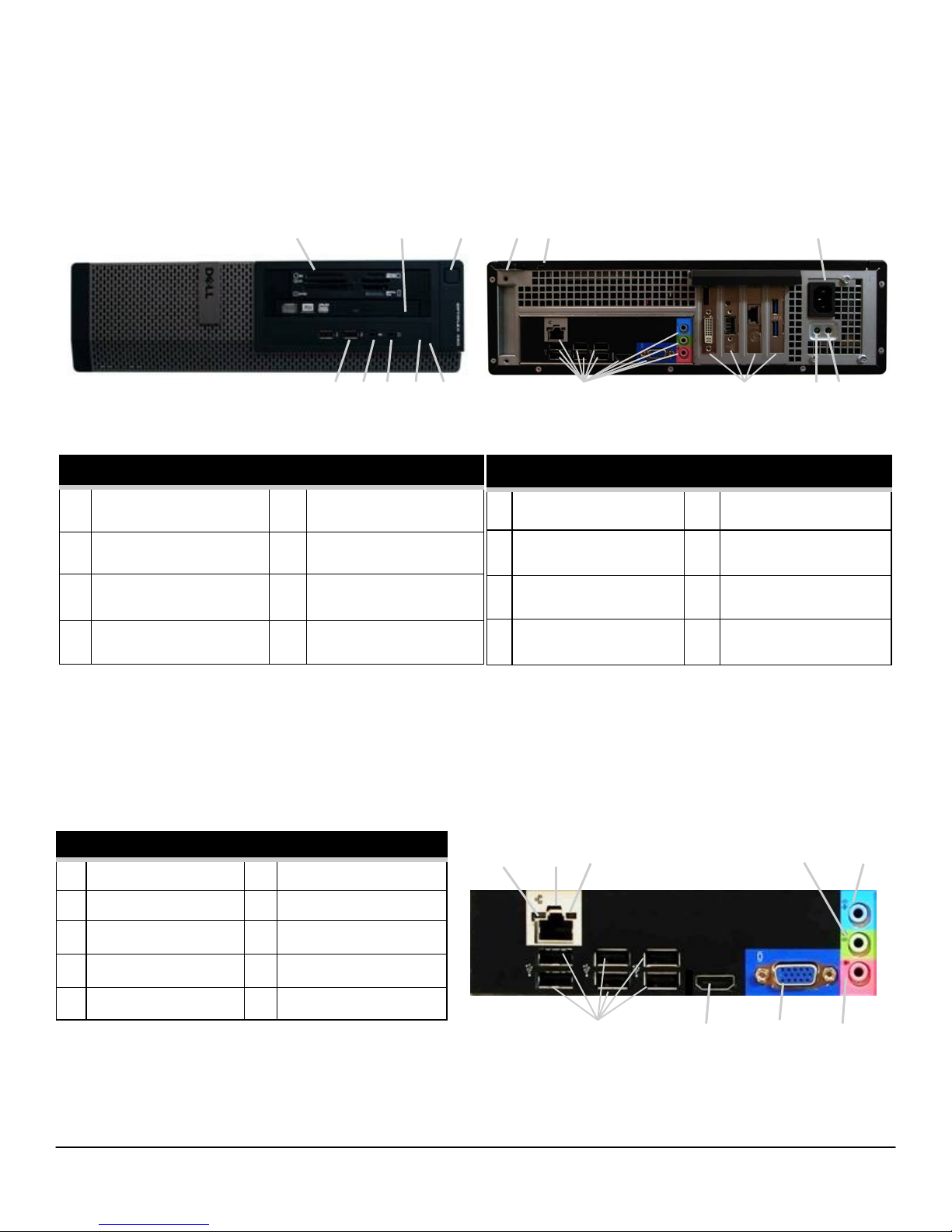

DESKTOP COMPUTER (DT) VIEW
FRONT VIEW
1 Optical Drive 5 Microphone Connector
2 Optical Drive Eject Button 6 Headphone Connector
3 Power Button, Power
Light
7 Drive Activity Light
4 USB Connectors (2) 8 Diagnostic Lights (4)
BACK VIEW
9 Padlock Ring 13 Expansion Card Slots(4)
10 Security Cable Slot 14 Power Supply Diagnostic
Light
11 Power Connectors 15 Power Supply Diagnostic
Button
12 Back Panel Connectors
BACK PANEL CONNECTORS
1 Link Integrity Light 6 VGA Connector
2 Network Connector 7 Line-in Connector
3 Network Activity Light 8 Line-out Connector
4 USB Connectors (6) 9 Microphone Connector
5 HDMI Connector
123
45678
910 11
12 13 14 15
123
456
78
9

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
6
Number Name Number Name
1 Front IO connector (FRONTPANEL)) 14 PCI-e 16x Connector (SLOT1)
2 Internal Speaker Connector (INT_SPKR) 15 System fan Connector (FAN_SYS2)
3 System fan Connector (FAN_SYS1) 16 P2 Power Connector(ATX12V)
4 SATA 1 Connector(SATA1) 17 CPU Socket Connector (U27CPU)
5 SATA 0 Connector(SATA0) 18 CPU fan Connector (FAN_CPU)
6 SATA 2 Connector(SATA2) 19 Memory Connector(DIMM1)
7 SATA 3 Connector(SATA3) 20 P1 power Connector (ATX)
8 Internal USB Connector (USBF1) 21 Power Switch Connector (PWRSW1)
9 Internal USB Connector (USBF1) 22 Memory Connector(DIMM2)
10 Internal Audio Connector (AUDIOF1) 23 Battery Connector (BT1)
11 PCI-e 1x Connector (SLOT4) 24 Intrusion Switch Connector (Intruder)
12 PCI-e 1x Connector (SLOT3) 25 KB/MS COM Connector (KBMSCOM1)
13 PCI-e 1x Connector (SLOT2)
DT System Board Components

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
7

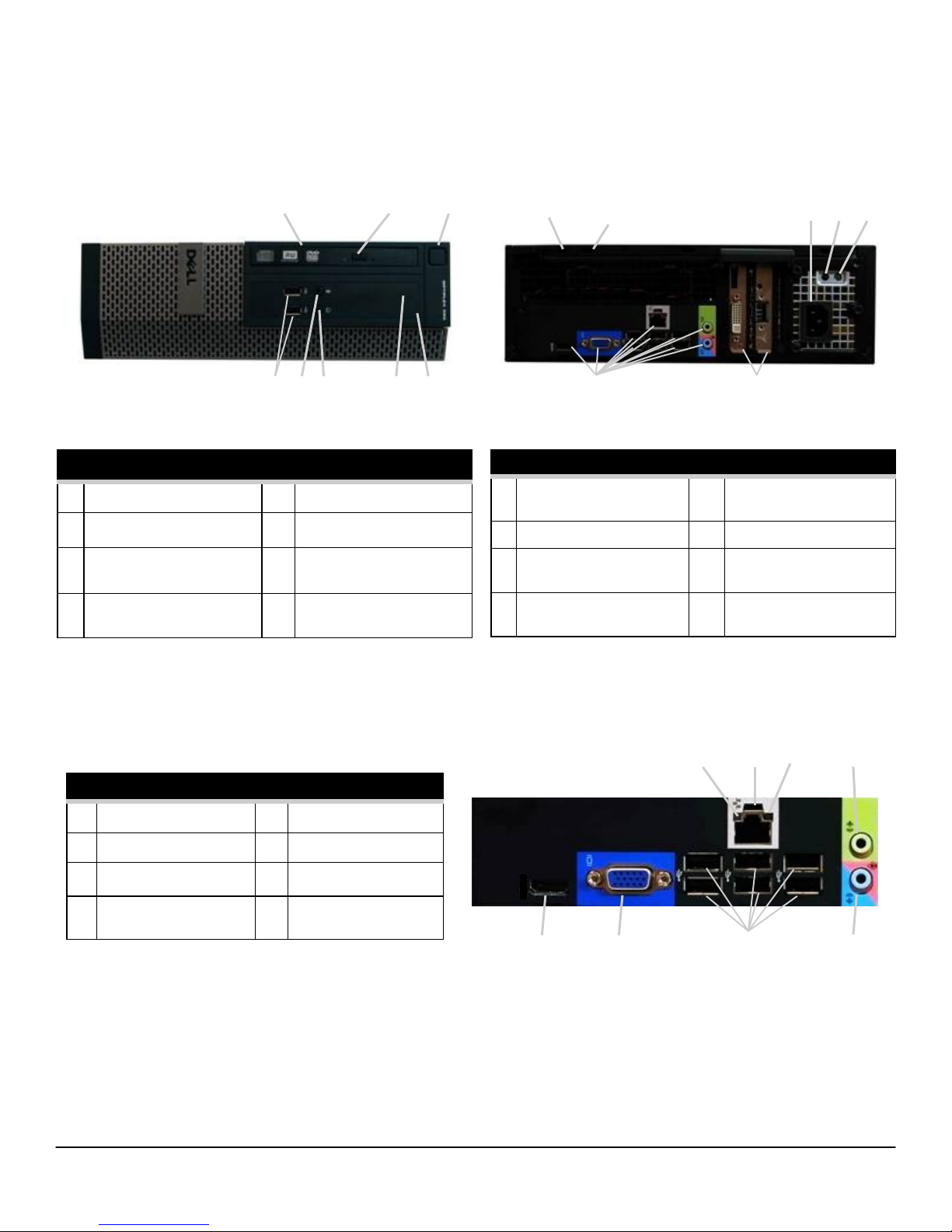

SMALL F ORM FACTOR COMPUTER (SFF) VIEW
FRONT VIEW
1 Optical Drive 5 Microphone Connector
2 Optical Drive Eject Button 6 Headphone Connector
3 Power Button, Power
Light
7 Diagnostic Lights (4)
4 USB 2.0 Connectors (2) 8 Drive Activity Light
BACK VIEW
9 Padlock Ring 13 Power Supply Diagnostic
Light
10 Security Cable Slot 14 Back Panel Connectors
11 Power Connectors 15 Expansion Card Slots(2)
12 Power Supply Diagnostic
Button
BACK PANEL CONNECTORS
1 HDMI Connector 5 Link Integrity Light
2 VGA Connector 6 Network Connector
3 USB Connectors (6) 7 Network Activity Light
4 Line-in/Microphone
Connector
8 Line-out Connector
123
45678
910 11
14 15
12 13
567
3
1
8
24

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
8

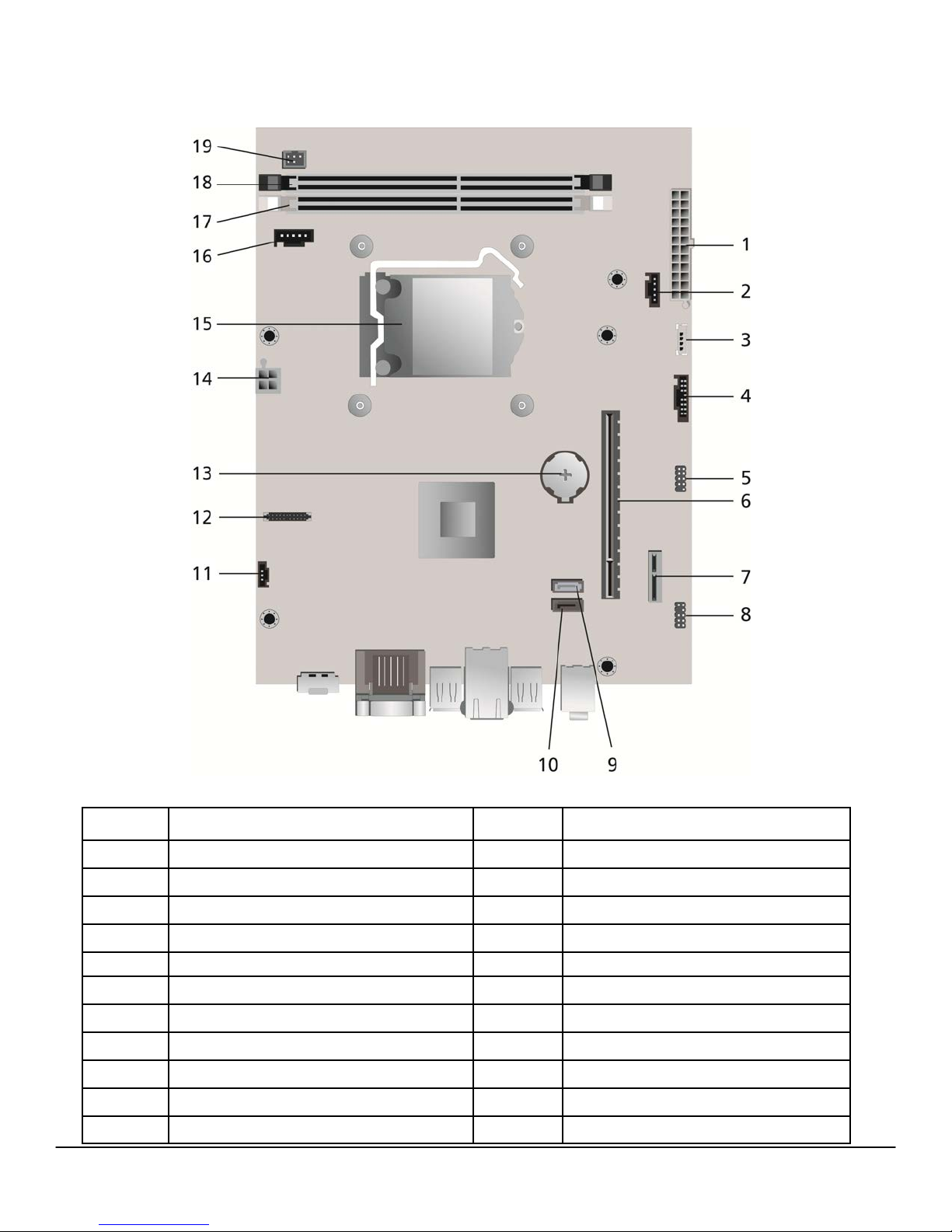

Number Name Number Name
1 P1 power Connector (ATX) 12 KB/MS COM Connector (KBMSCOM1)
2 System fan Connector (FAN_SYS) 13 Battery Connector (BT1)
3 Internal Speaker Connector (INT_SPKR) 14 P2 Power Connector(ATX12V)
4 Front IO connector (FRONTPANEL) 15 CPU Socket Connector (U27CPU)
5 Internal USB Connector (USBF1) 16 CPU fan Connector (FAN_CPU)
6 PCI-e 16x Connector (SLOT1) 17 Memory Connector(DIMM1)
7 PCI-e 1x Connector (SLOT2) 18 Memory Connector(DIMM2)
8 Internal Audio Connector (AUDIOF1) 19 Power Switch Connector (PWRSW1)
9 SATA 0 Connector(SATA0)
10 SATA 1 Connector (SATA1)
11 Intrusion Switch Connector (Intruder)
SFF System Board Components

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
9
MARKETING SYSTEM CONFIGURATIONS
NO TE : Offe rings may v ar y by c ou ntr y. For mor e in fo rmatio n re gardi ng the c on fi gu ratio n of your co mputer , cl ic k
S ta r t> H el p a n d S up p or t a n d s el e ct t h e o p t io n to v i e w i n fo r ma t io n ab o ut y ou r c om pu t er .
OPERATING SYSTEM
MT DT SFF
Windows 7® operating system
Microsoft® Windows 7® Home Basic SP1 (32 and 64 bit),
Microsoft® Windows 7® Home Premium SP1 (32 and 64 bit),
Microsoft® Windows 7® Professional SP1 (32 and 64 bit),
Microsoft® Windows 7® Ultimate SP1 (32 and 64 bit),
Windows Vista® operating system
Windows Vista® Home Basic SP2 (32 bits),
Windows Vista® Business SP2 (32 and 64 bit),
Windows Vista® Ultimate SP2 (32 bit)
Windows XP® operating system Basic Driver support only via Dell.com
Other FreeDOS for N-series
Ubuntu® Linux version 10.10 (China only)
OS Media Support (optional) X X X
CHIPSET
MT DT SFF
Chipset Intel H61 Express Chipset
Non-volatile memory on chipset
BIOS Configuration SPI (Serial Peripheral Interface) 32Mbit (4MB) located at SPI_FLASH on chipset
NIC EEPROM LOM configuration contained within SPI_FLASH –no dedicated
LOM EEPROM

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
10
PROCESSOR
NOTE: Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchro-
nized transitions on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to
reduce the number of configurations managed on a worldwide basis, thereby reducing their costs. They also enable companies
to implement global IT standards by locking in specific product configurations worldwide. The following GSP processors identi-
fied below will be made available to Dell customers.
NOTE: Processor numbers are not a measure of performance. Processor availability subject to change and may vary by region/
country.
MT DT SFF
Intel® Quad Core™ i5 Processors
Intel® Core™ i5 2400 / 3.10GHz, 6M, VT-x, 95W X-GSP X-GSP X-GSP
Intel® Dual Core™ i3 Processors
Intel® Core™ i3 2130 / 3.40GHz, 3M, VT-x, 65W Available in Q4
2011
Available in Q4
2011
Available in Q4
2011
Intel® Core™ i3 2120 / 3.30GHz, 3M, VT-x, 65W XXX
Intel® Core™ i3 2100 / 3.10GHz, 3M, VT-x, 65W XXX
Intel® Pentium® Dual Core Processors
Intel® Pentium Dual Core™ G850 / 2.90GHz, 3M, VT-x, 65W XXX
Intel® Pentium Dual Core™ G840 / 2.80GHz, 3M, VT-x, 65W XXX
Intel® Pentium Dual Core™ G630 / 2.70GHz, 3M, VT-x, 65W Available in Q4
2011
Available in Q4
2011
Available in Q4
2011
Intel® Pentium Dual Core™ G620 / 2.60GHz, 3M, VT-x, 65W XXX
Intel® Celeron® Processors
Intel® Celeron Dual Core™ G530 / 2.40GHz, 2M, VT-x, 65W Available in Q4
2011
Available in Q4
2011
Available in Q4
2011
Intel® Celeron Single Core™ G440 / 1.60GHz, 1M, VT-x, 65W Available in Q4
2011
Available in Q4
2011
Available in Q4
2011

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
11
MEMORY
NOTE: Memory modules should be installed in pairs of matched memory size, speed, and technology. If the memory modules
are not installed in matched pairs, the computer will continue to operate, but with a slight reduction in performance. The entire
8GB memory range is available to 64-bit operating systems.
1 The total amount of available memory will be less than 4GB. The amount less depends on the actual system configuration. To fully utilize 4GB or
more of memory requires a 64-bit enabled processor and 64-bit operating system.
MT DT SFF
Type: DDR3 Synch DRAM Non-ECC Memory 1333MHz
DIMM Slots 2 2 2
DIMM Capacities Up to 4GB Up to 4GB Up to 4GB
Minimum Memory 1GB 1GB 1GB
Maximum System Memory 8GB18GB18GB1
Memory configurations
8GB1DDR3, 1333MHz, (2 DIMM) X X X
4GB1DDR3, 1333MHz, (1 DIMM) X X X
3GB DDR3, 1333MHz, (2 DIMM) X X X
2GB DDR3, 1333MHz, (1 DIMM) X X X
1GB DDR3, 1333MHz, (1 DIMM) X X X

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
12
HARD DRI VES
MT DT SFF
Bays:
5.25-inch Optical Bay Supported (External) 2 1 1
Optical Drives Supported (maximum) 2 1 1 (slim-line)
Hard Drive Bay Supported (Internal) 2 1 1
Hard Drives Supported 3.5”(maximum) 2 1 1
Interface:
SATA 2.0 4 4 2
SATA 3.0 (chipset does not support)
3.5” Hard Drives:
1TB1SATA 7200 RPM HDD X X X
500GB1SATA 7200 RPM HDD X X X
320GB1SATA 7200 RPM HDD X X X
250GB1SATA 7200 RPM HDD X X X
REMOVABLE STORAGE
NOTE: Dell 19 in 1 Media Card Reader (MCR) is supported via a F5 to F3 bay converter on the MT and DT and may require a slim
MT DT SFF
Optical Drive: (SFF require slim-line optical drive)
DVD+/-RW2 SATA 1.5Gbit/s X X X
DVD-ROM3 SATA 1.5Gbit/s X X X
Media Card Reader: (requires slim line optical)
Dell 19 in 1 Media Card Reader X X
SYSTEM EXPANSION SLOTS
NOTE: See Detailed Engineering Specifications for maximum card dimensions.
NOTE: Add in card location and priority: PCIe x16: GFX, USB 3.0, Serial, Parallel/Serial, NIC, Wireless; PCIe x1: USB 3.0, Serial,
MT DT SFF
PCIe x16 Slot 1 1 1
PCIe x1 Slot 3 3 1
Serial ATA (SATA) connectors 4 4 2
1For hard drives, GB means 1 billion bytes; actual capacity varies with preloaded material and operating environment and will be less.
2Discs burned with this drive may not be compatible with some existing drives and players; using DVD+R media provides maximum compatibility.
3DVD-ROM drives may have write-capable hardware that has been disabled via firmware modifications.

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
13
GR AP HI CS/ VI DEO CON TR OL LE R
NOTE: MT supports full height (FH) cards and DT and SFF supports low profile (LP) cards.
EXTERNAL PORTS/CONNECTORS
NOTE: MT supports full height (FH) cards and DT and SFF supports low profile (LP) cards. See chassis diagrams section for port/
connector locations
MT DT SFF
Intel HD Graphics [with Celeron/Pentium class CPU-GPU
combo]
Intel HD Graphics 2000[with iCore Dual/Quad core class CPU-
GPU combo]
Integrated on CPU
Enhanced Graphic/Video Options
1GB AMD RADEON HD 6450 with DP and DVI Optional FH card Optional LP card
512MB AMD RADEON HD 6350 with dual DVI or dual VGA
(adapters convert DMS-59 connector to dual DVI or dual VGA) Optional FH card Optional LP card
MT DT SFF
USB 2.0 (1 internal on MT and DT) 2 Front, 6 Rear
Parallel and Serial port via optional PCIex1 card Optional FH card
Parallel port via optional PCIex1 card Optional LP card
Serial and PS/2 via optional dongle Optional FH card Optional LP card
Network Connector (RJ-45) 1 Rear
USB 3.0 via optional PCIex1 card Optional FH card Optional LP card
Video:
VGA 1 Rear
HDMI 1 Rear
Audio:
Line in for microphone 1 Front, 1 Rear
Line in for stereo 1 Rear
Line out for headphones or speakers 1 Front, 1 Rear

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
14
MT DT SFF
Integrated Realtek LOM Integrated on system board
Broadcom NetXtreme 10/100/1000 PCIe Gigabit Networking Card Optional card
1This term does not connote an actual operating speed of 1 Gb/sec. For high speed transmission, connection to a Gigabit
Ethernet server and network infrastructure is required.
MT DT SFF
Dell Wireless 1520 PCIe WLAN card (802.11n) Optional card
COMMUNICATIONS –WIRELESS
NOTE: MT supports full height (FH) cards and DT and SFF supports low profile (LP) cards.
MT DT SFF
Conexant CX20641 High Definition Audio Codec Integrated on system board
Internal Dell Business Audio Speaker Optional
Dell AX210 2.0 Desktop Speakers Optional
Dell AX510/AX510PA Flat Panel Soundbar Speakers Optional
AUDIO AND SPEAKERS
COMMUNICATIONS - NETWORK ADAPTER (NIC)
NOTE: MT supports full height (FH) cards and DT and SFF supports low profile (LP) cards.
MT DT SFF
Dell USB Entry Keyboard with optional palmrest Optional
Dell Multimedia Pro Keyboard Optional
Dell USB Optical Mouse Optional
Dell Laser Mouse Optional

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
15
SECURITY
SERVICE AND SUPPORT
NOTE: For more detai ls o n De ll S er vice P la ns please to go to : w w w .d el l . co m/ se r vi c e/ se r vi c e_ pl a n s
SOFTWARE
MT DT SFF
Chassis Intrusion Switch Optional
Chassis lock slot and loop support Standard
Dell Data Protection | Hardware Encryption Engine Optional. Available in Q3 2011
MT DT SFF
3 Year Warranty1 Next Business Day On-site2(3-3-3) Standard
ProSupport Optional
1For a copy of our guarantees or limited warranties, please write Dell USA L.P., Attn: Warranties, One Dell Way, Round Rock, TX 78682. For more
information, visit www.dell.com/warranty.
2Service may be provided by third-party. Technician will be dispatched if necessary following phone-based troubleshooting. Subject to parts
availability, geographical restrictions and terms of service contract. Service timing dependent upon time of day call placed to Dell. U.S. only.
MT DT SFF
Dell Client Manager Available via Dell.com
Dell Data Protection | Access (DDPA) Standard
ENVIRONME NTAL
NOTE: For more deta il s o n De ll E nvironmen ta l fe atures , pl ea se to g o to E nvir on me ntal A ttri butes s ec ti o n. See
y ou r s p ec i fi c r e g io n f o r a v a il a bi l it y.
MT DT SFF
Sustainable packaging X X X
MultiPack packaging Optional, US only
Energy Efficient Power Supply Optional
ALL-IN-ONE STANDS AND MOUNTS
MT DT SFF
Small Form Factor AIO Stand Optional

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
16
DETAILED ENGINEERING SPECIFICATIONS
SYSTEM DIMENSIONS (PHYSICAL)
NOTE: System Weight and Shipping Weight is based on a typical configuration and may vary based on PC configuration. A typical configuration
includes: integrated graphics, one hard drive, one optical drive.
SYSTEM EXPANSION SLOTS
* Card length can be longer than standard Half-Length Card but cannot be a Full-Length Card.
MT DT SFF
Chassis Volume (liters) 26.27 15.06 8.38
Chassis Weight (pounds/kilograms) 19.55 / 8.87 16.67 / 7.56 12.57 / 5.70
Chassis Dimensions: (HxWxD)
Height (inches/centimeters) 14.17 / 36 14.17 / 36 11.42 / 29
Width (inches/centimeters) 6.89 / 17.5 4.02 / 10.2 3.65 / 9.26
Depth (inches/centimeters) 16.42 / 41.7 16.14 / 41 12.28/31.2
Shipping Weight (pounds/kilograms - includes packaging materials) 23.45 / 10.64 20.03 / 9.09 15.2 / 6.89
Packaging Parameters (HxWxD)
Height (inches/centimeters) 21.31/54.13 21.31 / 54.13 19.25/48.90
Width (inches/centimeters) 18.75/47.63 18.75/47.63 15.81/40.16
Depth (inches/centimeters) 14.09 / 35.79 10.84/27.53 10.19/25.88
MT DT SFF
PCIe x16 Slots (Voltage supported 3.3V/12V) 1 1 1
Height (inches/centimeters) 4.376 / 11.115 2.731 /6.89 2.731 /6.89
Length (inches/centimeters) 7.4 / 24.13* 6.6 /16.765 6.6/16.765
Maximum Wattage 75W 25W 25W
PCIe x1 Slots (Voltage supported 3.3V/12V) 3 3 1
Height (inches/centimeters) 4.376 / 11.115 2.731 / 6.89 2.731 / 6.89
Length (inches/centimeters) 7.4 / 24.13* 6.6 /16.765 6.6 /16.765
Maximum Wattage 25W 10W 10W

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
17
SYSTEM LEVEL ENVIRONMENTAL AND OPERATING CONDITIONS
MT DT SFF
Temperature
Operating 10° to 35° C (50° to 95° F)
Non-Operating (Storage) -40° to 65° C (-40° to 149° F)
Relative Humidity 20% to 80% (non-condensing)
Maximum vibration
Operating 0.25 G at 3 to 200 Hz at 0.5 octave/min
Non-Operating 0.5 G at 3 to 200 Hz at 1 octave/min
Maximum Shock
Operating Bottom half-sine pulse with a change in
velocity of 50.8 cm/sec (20 inches/sec)
Non-Operating 27-G faired square wave with a velocity
change of 508 cm/sec (200 inches/sec)
Maximum Altitude
Operating –15.2 to 3048 m (–50 to 10,000 ft)
Non-Operating –15.2 to 10,668 m (–50 to 35,000 ft)

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
18
POWER
NOTE: These form factors utilize a more efficient Active Power Factor Correction (APFC) power supply. Dell recommends only Universal Power
Supplies (UPS) based on Sine Wave output for APFC PSUs, not an approximation of a Sine Wave, Square Wave, or quasi-Square Wave. If you
have questions, please contact the manufacture to confirm the output type.
MT
APFC EPA
DT
APFC EPA
SFF
APFC EPA
Power Supply Wattage 265W 265W High
Efficiency 250W 250W High Efficiency 240W 240W High Efficiency
AC input Voltage Range 90 –264Vac 90 –264Vac 90 –264Vac 90 –264Vac 90 –264Vac 90 –264Vac
AC input current (low ac
range/high AC range) 5.0A / 2.5A 5.0A / 2.5A 4.4A / 2.2A 4.4A / 2.2A 4.0A / 2.0A 4.0A / 2.0A
AC input Frequency 47HZ/63HZ 47HZ/63HZ 47HZ/63HZ 47HZ/63HZ 47HZ/63HZ 47HZ/63HZ
AC holdup time (80% load) 16MSEC 16MSEC 16MSEC 16MSEC 16MSEC 16MSEC
Average Efficiency (Energy
Star 5.0 Compliant)
87 –90 –
87% @ 20 –
50 –100%
load
87 –90 –
87% @ 20 –
50 –100%
load
87 –90 –
87% @ 20 –
50 –100%
load
Typical Efficiency (Active
PFC) 65% 65% 65%
DC parameters
+3.3v output 10.0A 10.0A 7.0 A 7.0 A 3.5A 3.5A
+5.0v output 13A 13A 15A 15A 11A 11A
+12.0v output 12VA/17A;
12VB/9A
12VA/17A;
12VB/9A 17.8A 17.8A 17A 17A
+5.0v auxiliary output 4.0A 4.0A 4.0A 4.0A 4.0A 4.0A
-12.0v output 0.5A 0.5A 0.5A 0.5A 0.5A 0.5A
Max total power 265W 265W 255W 255W 235W 235W
Max combined +3.3v /
+5.0v power 90W 90W 90W 90W 60W 60W
Max combined 12.0v
power (note: only if more
than one 12v rail)
240W 240W N/A N/A N/A N/A
BTUs/h (based on PSU
max wattage) 904 BTU 904 BTU 853 BTU 853 BTU 819 BTU 819 BTU
Power Supply Fan 80*25mm 80*25mm 80*20/25mm 80*20/25mm 60*25mm 60*25mm
Compliance:
1watt requirement Yes Yes Yes Yes Yes Yes
Blue Angel Compliant Yes Yes Yes Yes Yes Yes
Climate Savers / 80Plus
Compliant No Yes No Yes No Yes
FEMP (CECP) Standby
Power Compliant Yes Yes Yes Yes Yes Yes

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
19
3.0v CMOS battery (Type and estimated battery life)
Brand Type Voltage Composition Life
JHT CR-2302L/
BE
3V Lithium Continuous Discharge Under 15 kΩ Load to 2.0V End-
Voltage.
20℃±2℃.940Hrs. or Longer.910Hrs.or Longer after 12
months.
MITSUBISHI CR2302 3V Lithium Continuous Discharge Under 15 kΩ Load to 2.0V End-
Voltage.
20℃±2℃.940Hrs. or Longer.910Hrs.or Longer after 12
months.
0℃±2℃. 850Hrs. or Longer.820Hrs.or Longer after 12
months.
POWER
NOTE: These form factors utilize a more efficient Active Power Factor Correction (APFC) power supply. Dell recommends only Universal Power
Supplies (UPS) based on Sine Wave output for APFC PSUs, not an approximation of a Sine Wave, Square Wave, or quasi-Square Wave. If you
have questions, please contact the manufacture to confirm the output type.

DELL™ OPTIPLEX™ 390 TECHNICAL GUIDEBOOK —FINAL
20
AUDIO
COMMUNICATIONS - NETWORK ADAPTER (NIC)
NOTE: MT supports full height (FH) cards and DT and SFF supports low profile (LP) cards.
INTEGRATED CONEXANT CX20641 HIGH DEFINITION AUDIO MT DT SFF
High Definition Stereo support X X X
Number of channels 2
Number of Bits / Audio resolution 16, 20, and 24-bit resolution
Sampling rate (recording/playback) Support 44.1K/48K/96K/192 kHz sample
rates
Signal to Noise Ratio 98 dB DAC outputs, 90 dB for ADC in-
puts
Analog Audio X X X
Dolby Digital
THX
Digital out (S/PDIF)
Audio Jack Impedance
Microphone 40K ohm~60K ohm
Line-In 40K ohm~60K ohm
Line-Out 100~150 ohm
Headphone 1~4 ohm
Internal Speaker Power Rating 2Watt (peak) / 1Watt (average)
INTEGRATED REALTEK® RTL8111E-VL
ETHERNET LAN 10/100/1000 MT DT SFF
External Connector Type RJ45
Data Rates supported 10/100/1000 Mbps
Controller Details
Controller bus architecture PCIe-based interface for S0 state, SMBus for Sx
low power state
Integrated memory N/A
Data transfer mode (example Bus-Master DMA) N/A
Power consumption (full operation per data rate connection speed) 448.8mW (Max.)
Power consumption (standby operation) 389.4mW (Max.)
IEEE standards compliance (example 802.1P) 802.3
Hardware Certifications (example FCC, B, GS mark…) N/A
Boot ROM Support EEPROM (located in SPI)
Network Transfer Mode (example Full Duplex, Half Duplex)
Network Transfer Rate (example 10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
10 Mb (full/half-duplex)
100 Mb (full/half-duplex)
1000 Mb (full-duplex)
