Dell Vostro 20-3052 User manual

Dell Vostro 20–3052
Owner's Manual
Regulatory Model: W15B
Regulatory Type: W15B002

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Copyright ©2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and
intellectual property laws. Dell™and the Dell logo are trademarks of Dell Inc. in the United States and/or other
jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.
2015 - 07
Rev. A00

1
Working on Your Computer
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help to
ensure your personal safety. Unless otherwise noted, each procedure included in this document assumes
that the following conditions exist:
• You have read the safety information that shipped with your computer.
• A component can be replaced or--if purchased separately--installed by performing the removal
procedure in reverse order.
WARNING: Disconnect all power sources before opening the computer cover or panels. After you
finish working inside the computer, replace all covers, panels, and screws before connecting to
the power source.
WARNING: Before working inside your computer, read the safety information that shipped with
your computer. For additional safety best practices information, see the Regulatory Compliance
Homepage at www.dell.com/regulatory_compliance
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or
by periodically touching an unpainted metal surface, such as a connector on the back of the
computer.
CAUTION: Handle components and cards with care. Do not touch the components or contacts
on a card. Hold a card by its edges or by its metal mounting bracket. Hold a component such as a
processor by its edges, not by its pins.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable
itself. Some cables have connectors with locking tabs; if you are disconnecting this type of cable,
press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep
them evenly aligned to avoid bending any connector pins. Also, before you connect a cable,
ensure that both connectors are correctly oriented and aligned.
NOTE: The color of your computer and certain components may appear differently than shown in
this document.
To avoid damaging your computer, perform the following steps before you begin working inside the
computer.
1. Ensure that your work surface is flat and clean to prevent the computer cover from being scratched.
2. Turn off your computer (see Turning Off Your Computer).
3

CAUTION: To disconnect a network cable, first unplug the cable from your computer and
then unplug the cable from the network device.
3. Disconnect all network cables from the computer.
4. Disconnect your computer and all attached devices from their electrical outlets.
5. Press and hold the power button while the computer is unplugged to ground the system board.
6. Remove the cover.
CAUTION: Before touching anything inside your computer, ground yourself by touching an
unpainted metal surface, such as the metal at the back of the computer. While you work,
periodically touch an unpainted metal surface to dissipate static electricity, which could
harm internal components.
Recommended Tools
The procedures in this document may require the following tools:
• Small flat-blade screwdriver
• Phillips screwdriver
• Small plastic scribe
Turning Off Your Computer
CAUTION: To avoid losing data, save and close all open files and exit all open programs before
you turn off your computer.
1. Shut down the operating system:
• In Windows 8:
– Using a touch-enabled device:
a. Swipe in from the right edge of the screen, opening the Charms menu and select
Settings.
b. Select the and then select Shut down
– Using a mouse:
a. Point to upper-right corner of the screen and click Settings.
b. Click the and select Shut down.
• In Windows 7:
1. Click Start .
2. Click Shut Down.
or
1. Click Start .
4

2. Click the arrow in the lower-right corner of the Start menu as shown below, and then click
Shut Down..
2. Ensure that the computer and all attached devices are turned off. If your computer and attached
devices did not automatically turn off when you shut down your operating system, press and hold
the power button for about 6 seconds to turn them off.
After Working Inside Your Computer
After you complete any replacement procedure, ensure you connect any external devices, cards, and
cables before turning on your computer.
1. Replace the cover.
CAUTION: To connect a network cable, first plug the cable into the network device and then
plug it into the computer.
2. Connect any telephone or network cables to your computer.
3. Connect your computer and all attached devices to their electrical outlets.
4. Turn on your computer.
5. If required, verify that the computer works correctly by running the Dell Diagnostics.
5

2
Removing and Installing Components
This section provides detailed information on how to remove or install the components from your
computer.
Removing the Stand
1. Follow the procedures in Before Working Inside Your Computer.
2. Place the computer on a flat surface, display facing downwards.
3. Pry and remove the hinge cover from the computer.
4. Perform the following steps as shown in the illustration:
a. Remove the screws that secure the stand to the computer [1].
b. Slide the stand from the computer [2].
6

5. Remove the stand from the computer.
Installing the Stand
1. Align the stand on the computer, and tighten the screws to secure the stand to the computer.
2. Place and press the hinge cover on the computer until it clicks into place.
3. Follow the procedures in After Working Inside Your Computer.
Removing the Optical-disk Drive
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the stand.
7

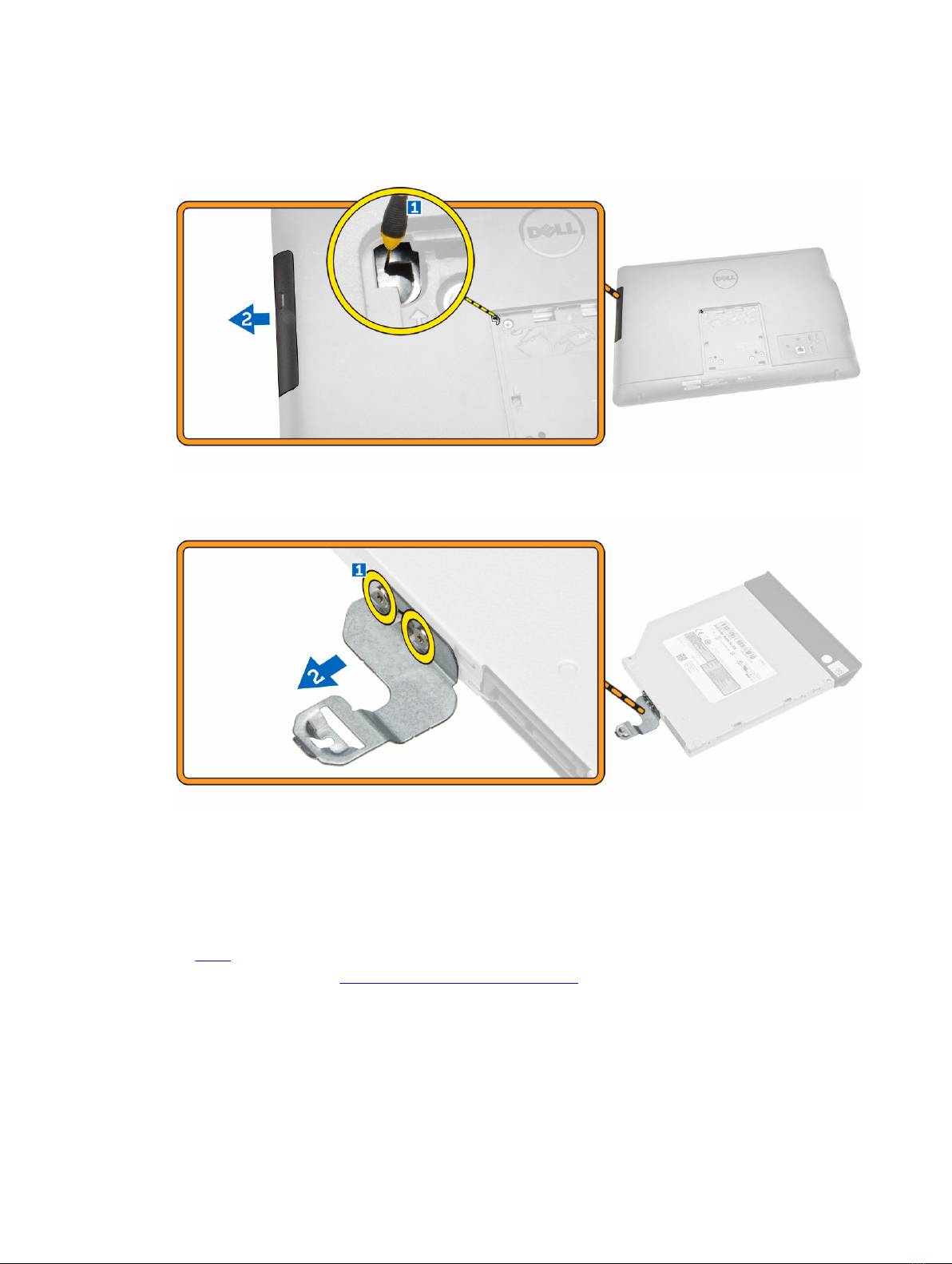

3. Perform the following steps as shown in the illustration:
a. Press on the tab indicated using a scribe [1].
b. Slide the optical-disk drive (ODD) out of the computer [2].
4. Remove the screws that secure the optical-disk drive bracket, and remove it from the optical drive
[1,2].
Installing the Optical-disk Drive
1. Tighten the screws to secure the optical-disk drive bracket to the optical drive.
2. Insert the optical-disk drive into its slot until it clicks into place.
3. Install:
a. stand
4. Follow the procedures in After Working Inside Your Computer.
8

Removing the Back Cover
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. stand
b. optical-disk drive
3. Perform the following steps as shown in the illustration:
a. Pry the edge of the base cover [1].
b. Remove the back cover from the computer [2].
Installing the Back Cover
1. Align and press the back cover, until it clicks into place.
2. Install:
a. optical-disk drive
b. stand
3. Follow the procedures in After Working Inside Your Computer.
Removing the Hard Drive
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. stand
b. optical-disk drive
c. back cover
3. Perform the following steps as shown in the illustration:
a. Disconnect the hard-drive cable from the computer [1].
b. Remove the screw that secures the hard-drive to the computer [2].
c. Slide the hard-drive [3].
9

4. Remove the hard-drive from the computer.

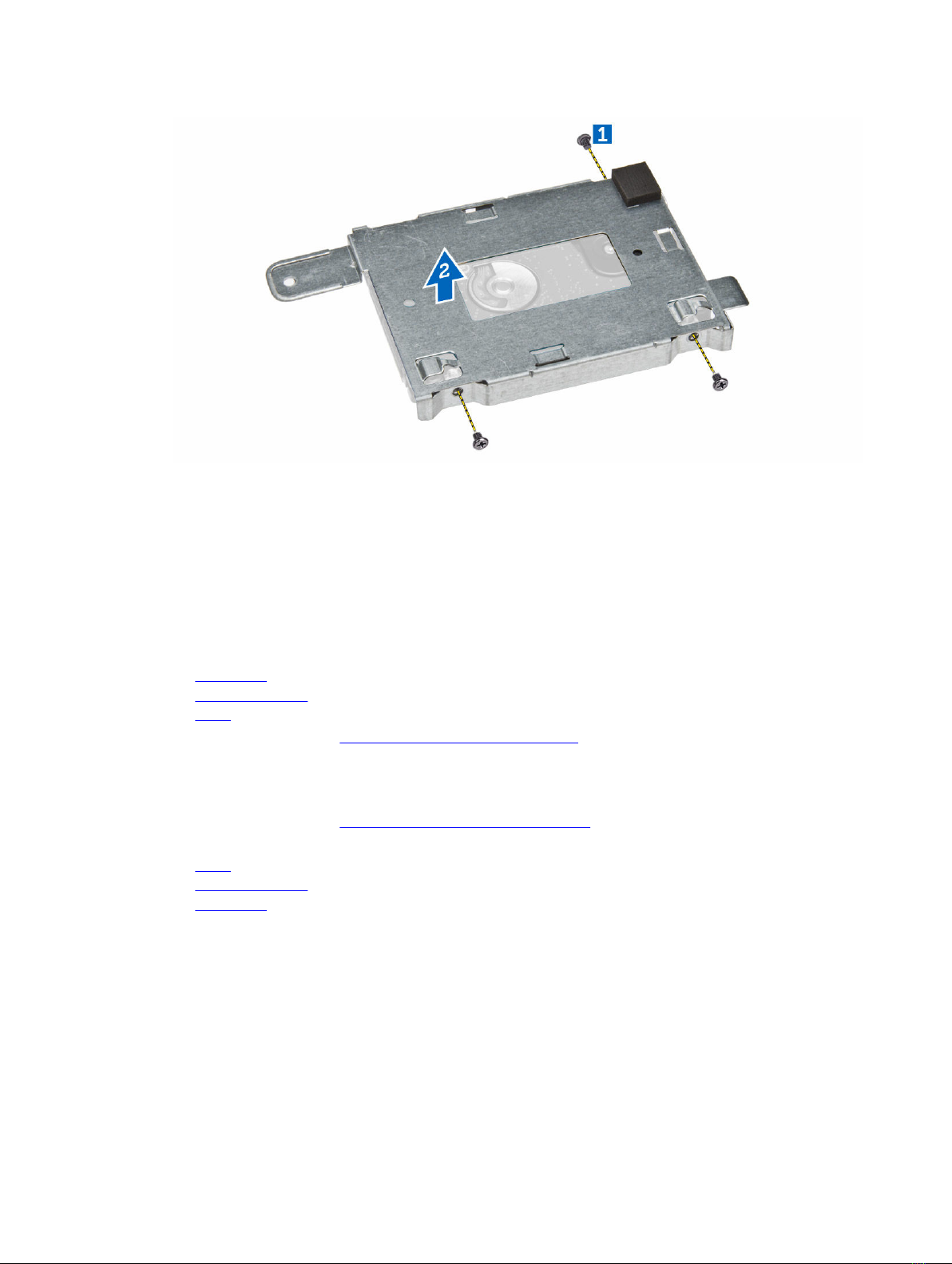

5. Remove the screws that secure the hard-drive to the bracket, lift the hard-drive from bracket [1,2]
10

Installing the Hard Drive
1. Place the hard-drive in the bracket.
2. Tighten the screws that secure the hard-drive to the bracket.
3. Slide the hard-drive into the screw holes of the display bracket.
4. Tighten the screw that secures the hard-drive to the computer.
5. Connect the hard-drive cable.
6. Install:
a. back cover
b. optical-disk drive
c. stand
7. Follow the procedures in After Working Inside Your Computer.
Removing the Power-Switch Board
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. stand
b. optical-disk drive
c. back cover
3. Perform the following steps as shown in the illustration:
a. Press the locking tab that secures the power-switch to the computer [1].
b. Lift the power-switch board [2].
c. Lift the lock tab and disconnect the power switch cable from the computer [3.4].
11

Installing the Power-Switch Board
1. Connect the power-switch cable to the power-switch board. Insert the power-switch board into its
slot on the computer.
2. Install:
a. back cover
b. optical-disk drive
c. stand
3. Follow the procedures in After Working Inside Your Computer.
Removing the System-Board Shield
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. stand
b. optical-disk drive
c. back cover
3. Perform the following steps as shown in the illustration:

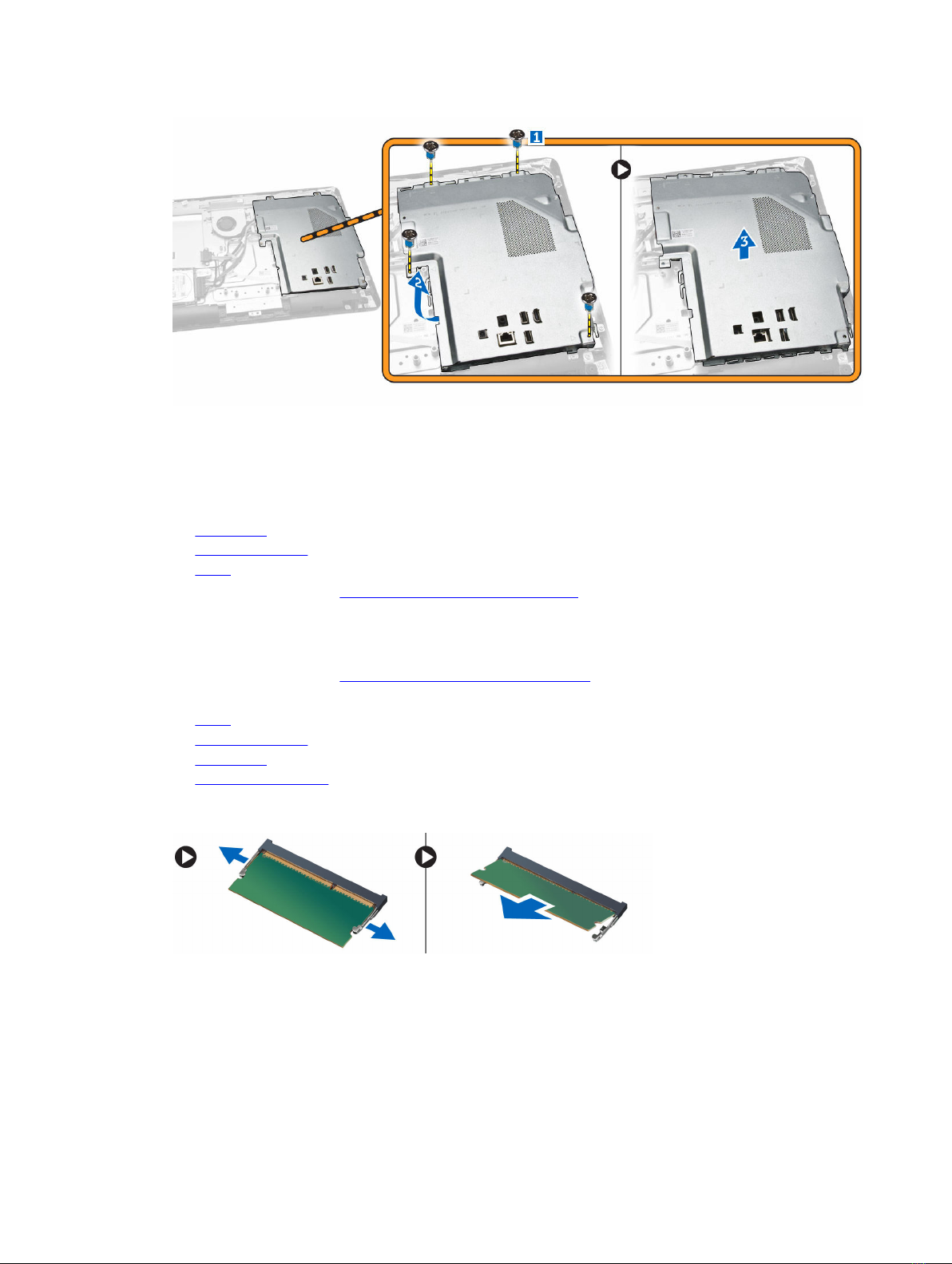

a. Remove the screws that secure the system-board shield to the computer [1].
b. Lift the system-board shield from the computer [2].
c. Remove the system-board shield from the computer [3].
12

Installing the System-Board Shield
1. Align the system-board shield on the system board. Tighten the screws to secure it to the computer.
2. Install:
a. back cover
b. optical-disk drive
c. stand
3. Follow the procedures in After Working Inside Your Computer.
Removing the Memory
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. stand
b. optical-disk drive
c. back cover
d. system-board shield
3. Pry the retention clips away from the memory module until it pops-up. Lift and remove the memory
module from its connector.
13

Installing the Memory
NOTE: Please use DIMM 2 slot if there is only one memory module available.
1. Align the notch on the memory-card with the tab on the system-board connector.
2. Press down on the memory module until the release tabs spring back to secure them in place.
3. Install:
a. system-board shield
b. back cover
c. optical-disk drive
d. stand
4. Follow the procedures in After Working Inside Your Computer.
Removing the System Fan
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. stand
b. optical-disk drive
c. back cover
d. system-board shield
3. Perform the following steps as shown in the illustration:
a. Disconnect the system fan cable from the system board [1].
b. Remove the screws that secure the system fan to the computer [2].

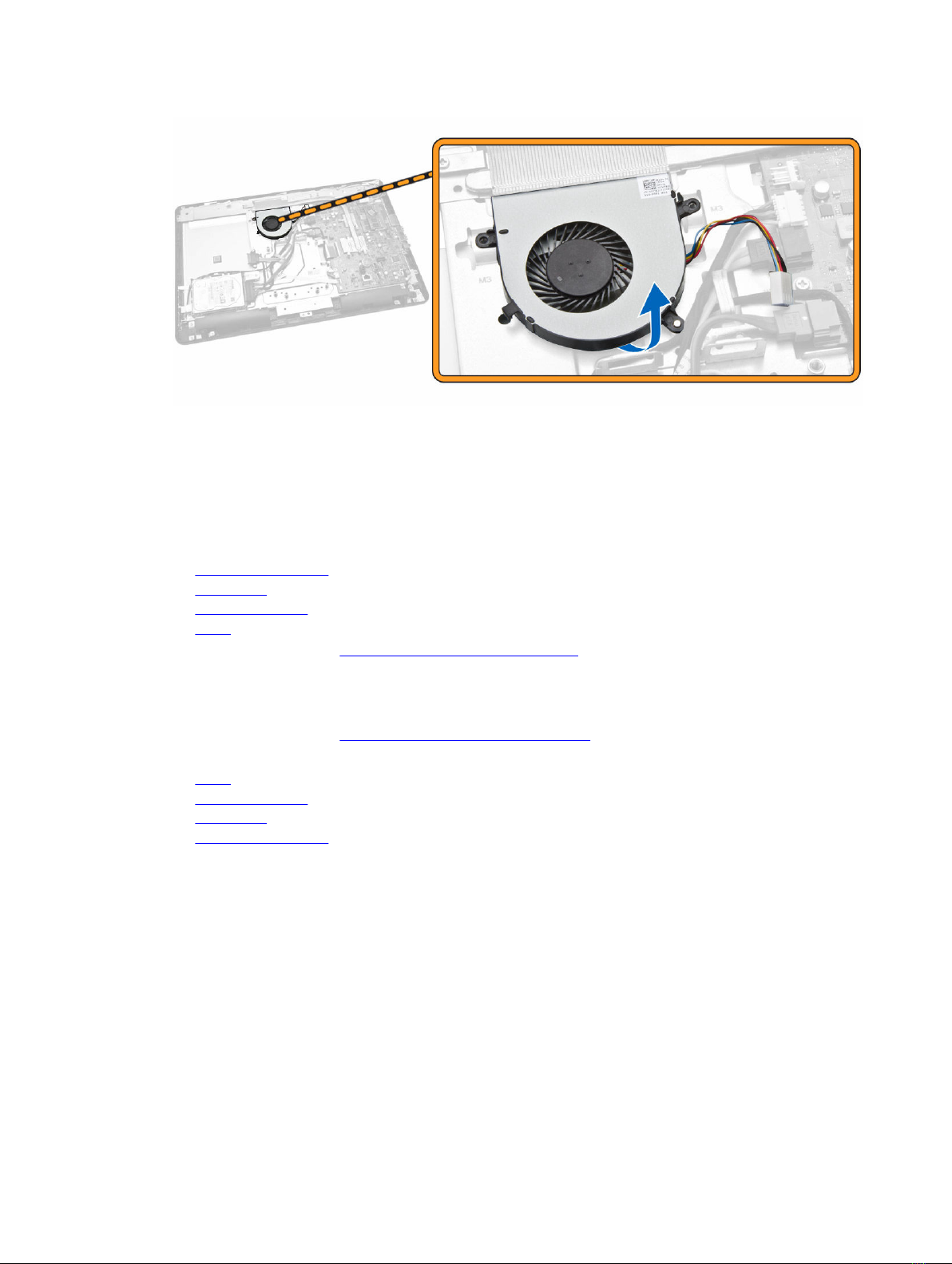

4. Remove the system fan from the computer.
14

Installing the System Fan
1. Align the system fan with the heatsink such that pins of the bracket are in line with the holes of the
system fan and tighten the screws to secure it to the computer.
2. Connect the system-fan cable to the system board.
3. Install:
a. system-board shield
b. back cover
c. optical-disk drive
d. stand
4. Follow the procedures in After Working Inside Your Computer.
Removing the Heatsink Assembly
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. stand
b. optical-disk drive
c. back cover
d. system-board shield

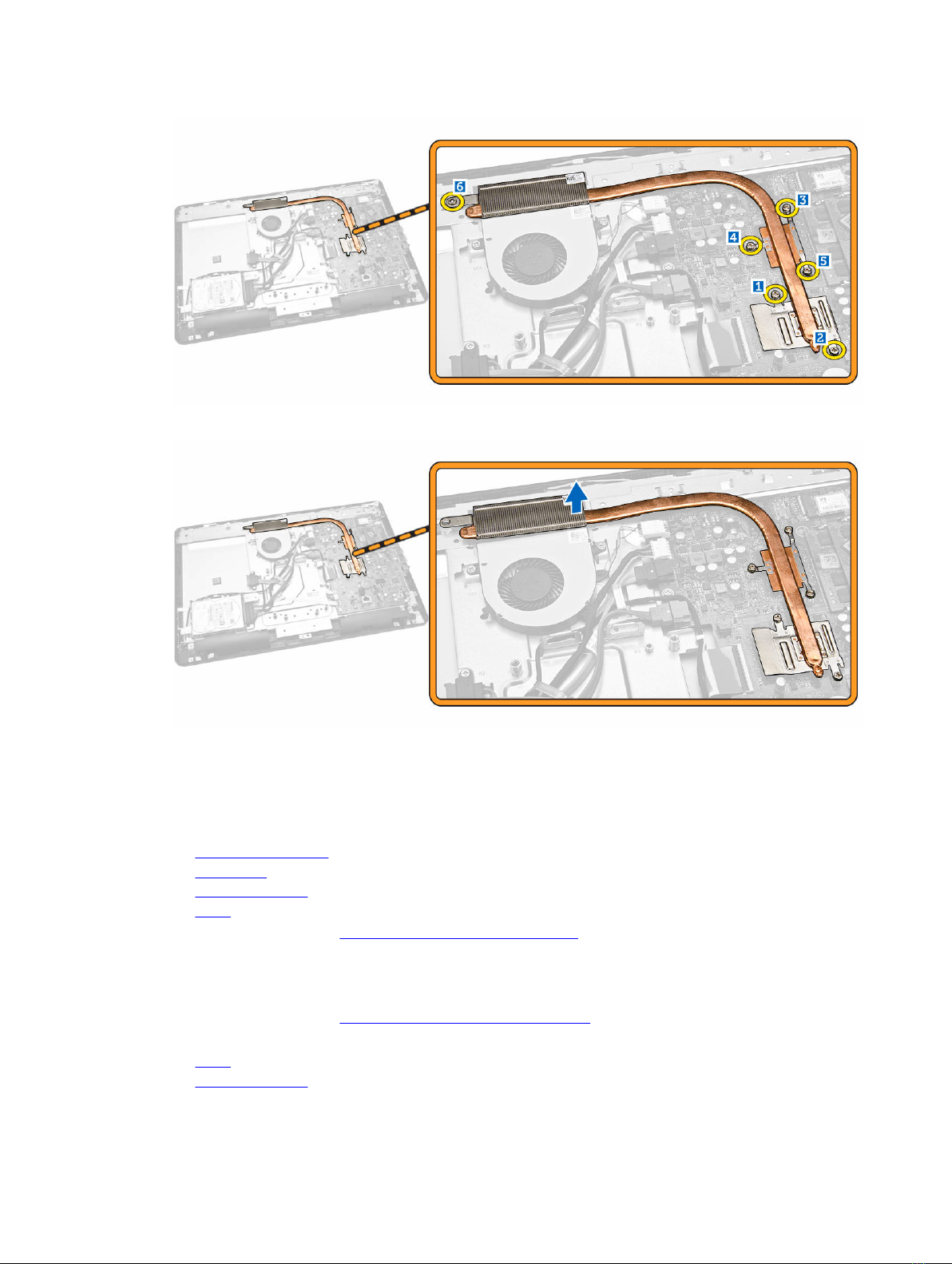

3. Remove the screws that secure the heatsink assembly to the system board [1,2,3,4,5,6].
15

4. Remove the heatsink assembly from the system board.
Installing the Heatsink Assembly
1. Install the heatsink assembly and tighten the screws to secure it to the system board.
2. Install:
a. system-board shield
b. back cover
c. optical-disk drive
d. stand
3. Follow the procedures in After Working Inside Your Computer.
Removing the Coin-Cell Battery
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. stand
b. optical-disk drive
16

c. back cover
d. system-board shield

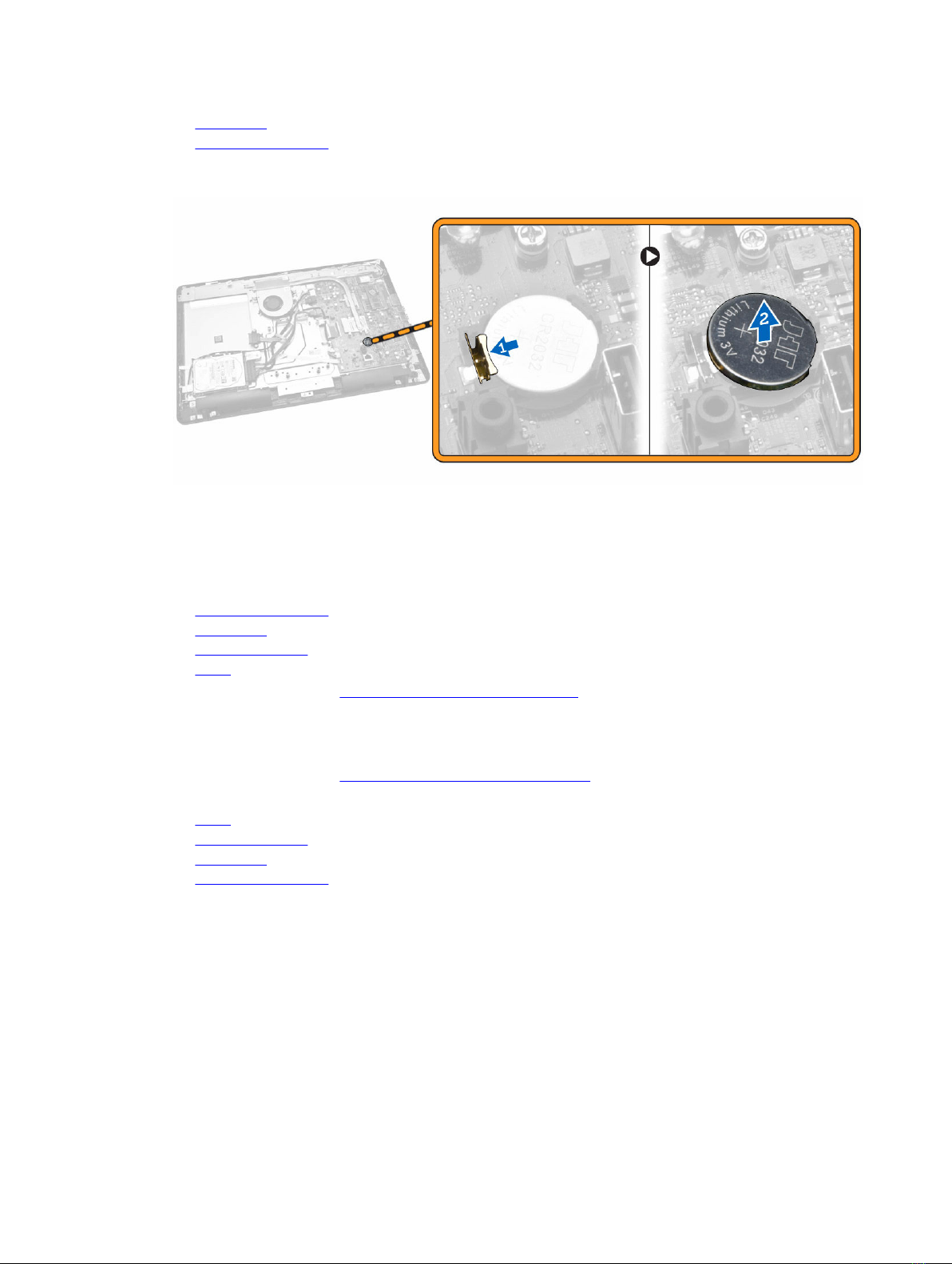

3. Press the release latch away from the battery and remove the coin-cell battery from the computer
[1,2].
Installing the Coin-Cell Battery
1. Insert the coin-cell battery and press to lock it.
2. Install:
a. system-board shield
b. back cover
c. optical-disk drive
d. stand
3. Follow the procedures in After Working Inside Your Computer.
Removing the WLAN Card
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. stand
b. optical-disk drive
c. back cover
d. system-board shield
3. Perform the following steps as shown in the illustration:
a. Remove the screw that secures the WLAN card and slide to remove the WLAN holder from the
system board [1,2].
b. Remove the two connectors that secure the WLAN card to the system board [3].
c. Remove the WLAN card from its socket [4].
17

Installing the WLAN Card
1. Insert the WLAN card into its slot.
2. Connect the two connectors (black cable to the black triangle and white cable to the white triangle).
3. Place the WLAN holder and tightened the screw that secures the WLAN card to the system board.
4. Install:
a. stand
b. optical-disk drive
c. back cover
d. system-board shield
5. Follow the procedures in After Working Inside Your Computer.
Removing the Speakers
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. stand
b. optical-disk drive
c. back cover
d. system-board shield

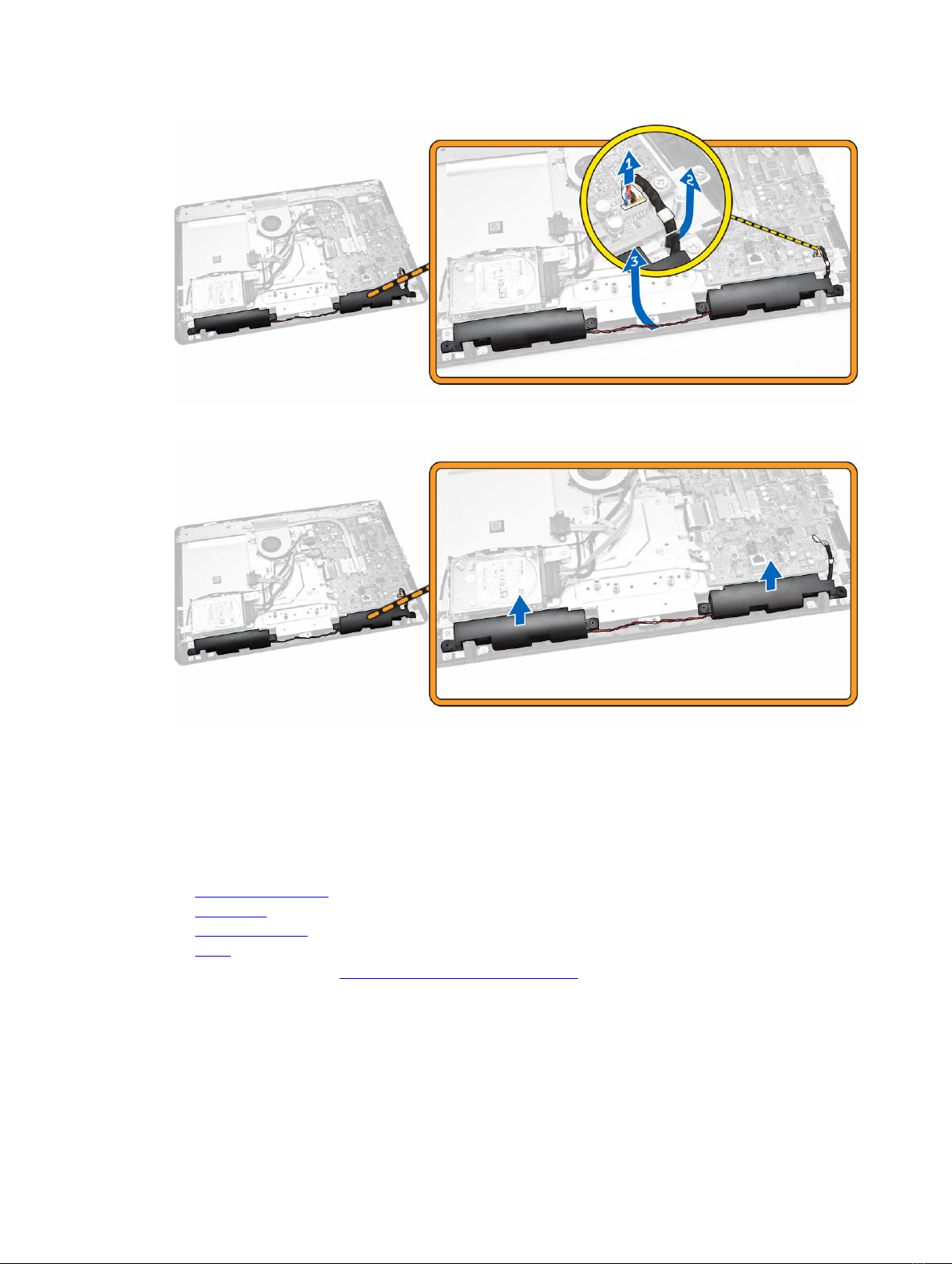

3. Perform the following steps as shown in the illustration:
a. Disconnect the speaker cable [1].
b. Unroute the speaker cable [2].
c. Lift the speaker from the computer chassis [3].
18

4. Remove the speaker from the computer.
Installing the Speakers
1. Align the speakers on the computer.
2. Align the speaker cables through their tabs on the computer and connect the speaker cable to the
system board.
3. Install:
a. system-board shield
b. back cover
c. optical-disk drive
d. stand
4. Follow the procedures in After Working Inside Your Computer.
19

System Board Layout

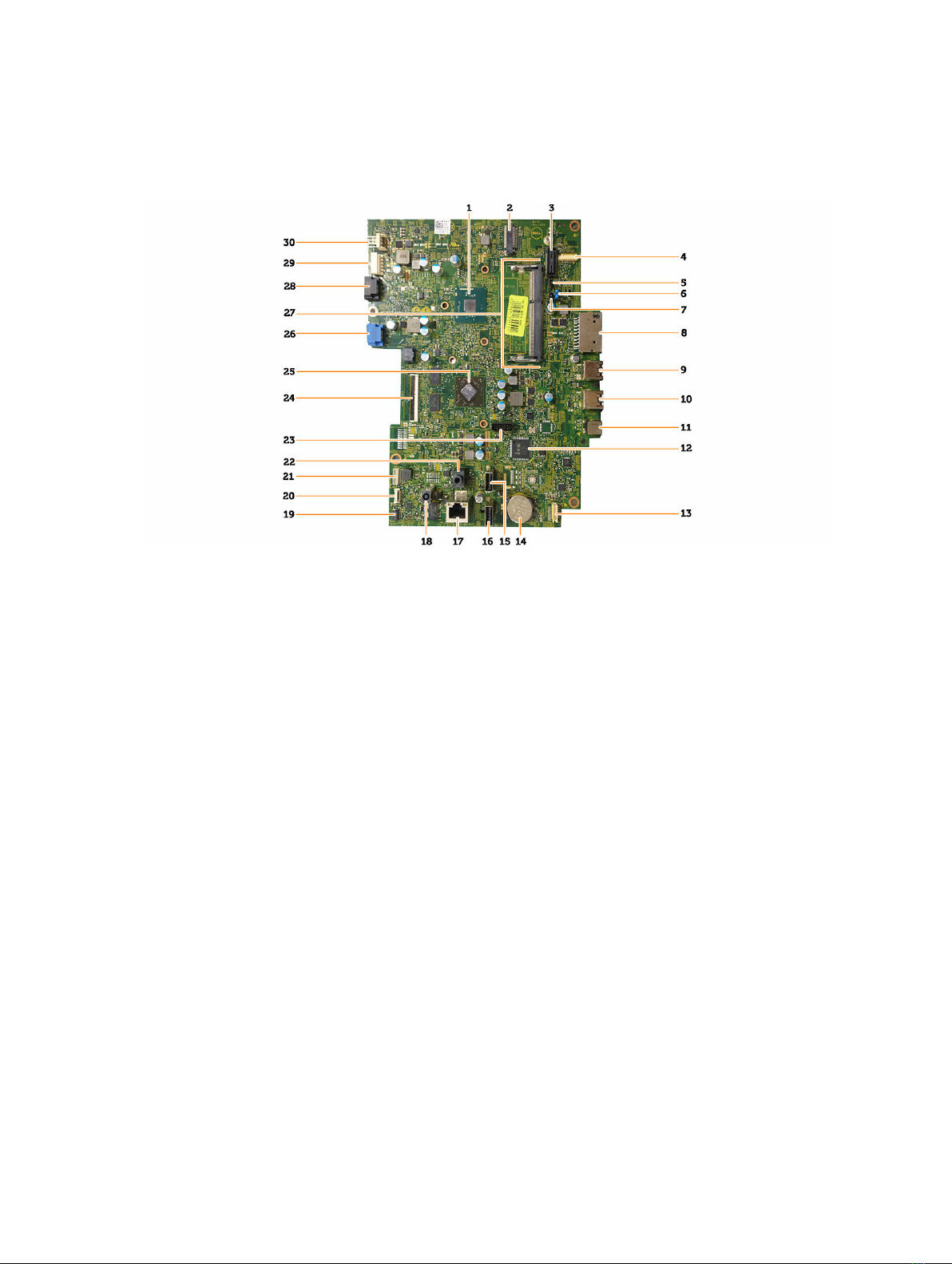

The following image displays the system board layout of the computer.
1. Processor 2. WLAN connector
3. Reserved 4. Webcam connector
5. TXE header 6. Password header
7. CMOS clear header 8. SD Card connector
9. USB 3.0 port 10. USB 3.0 port
11. Universal Jack connector 12. SIO IC
13. Speaker connector 14. Coin Cell Battery
15. Rear USB 2.0 Port 16. Rear USB 2.0 Port
17. Network connector 18. DC IN connector
19. Touch connector 20. Power switch connector
21. Converter connector 22. Audio Jack connector
23. Reserved 24. LVDS connector
25. AMD GPU Mars_LE 26. HDD port
27. Memory socket 28. HDD/ODD port
29. HDD Power connector 30. System fan connector
20
