Dell™ Vostro™ 1510
Service Manual
Model PP36L

FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 – FOR PROOF ONLY
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data
and tells you how to avoid the problem.
CAUTION: A CAUTION indicates potential for property damage, personal injury,
or death.
If you purchased a DELL™ n Series computer, any references in this document
to Microsoft
®
Windows
®
operating systems are not applicable.
____________________
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly
forbidden.
Trademarks used in this text: Dell, the DELL logo, and Vostro are trademarks of Dell Inc.; Microsoft,
Windows,Windows Vista, and the Windows start button logo are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth is a
registered trademark of Bluetooth SIG Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Model PP36L
September 2009 Rev. A01

FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\bookTOC.fm
Contents 3
Contents
1 Troubleshooting . . . . . . . . . . . . . . . . . . . . 9
Troubleshooting Tools . . . . . . . . . . . . . . . . . . . 9
Diagnostic Lights . . . . . . . . . . . . . . . . . . . 9
Hardware Troubleshooter . . . . . . . . . . . . . 11
Dell Diagnostics . . . . . . . . . . . . . . . . . . 12
Error Messages . . . . . . . . . . . . . . . . . . 17
Solving Problems . . . . . . . . . . . . . . . . . . . . 18
Battery Problems . . . . . . . . . . . . . . . . . . 18
Drive Problems . . . . . . . . . . . . . . . . . . . 19
IEEE 1394 Device Problems . . . . . . . . . . . . 20
Lockups and Software Problems . . . . . . . . . 21
Memory Problems . . . . . . . . . . . . . . . . . 23
Power Problems . . . . . . . . . . . . . . . . . . 23
Sound and Speaker Problems . . . . . . . . . . . 24
Video and Display Problems . . . . . . . . . . . . 25
Dell Technical Update Service . . . . . . . . . . . . . 26
Dell Support Utility . . . . . . . . . . . . . . . . . . . 26
Accessing the Dell Support Utility . . . . . . . . . 26
Clicking the Dell Support Icon . . . . . . . . . . . 26
Double-Clicking the Dell Support Icon . . . . . . . 27
2 Before Working on Your Computer . . . . . 29
Recommended Tools . . . . . . . . . . . . . . . . . . 29

FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\bookTOC.fm
4Contents
What You Need to Know for Your Safety . . . . . . . . 29
3 Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . 33
Removing the Hard Drive . . . . . . . . . . . . . . . . 33
Replacing the Hard Drive . . . . . . . . . . . . . . . . 35
4 Wireless Local Area Network (WLAN) Card 37
Removing a WLAN Card . . . . . . . . . . . . . . . . . 37
Replacing a WLAN Card . . . . . . . . . . . . . . . . . 39
5Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Removing the Fan . . . . . . . . . . . . . . . . . . . . 41
Replacing the Fan . . . . . . . . . . . . . . . . . . . . 42
6 Processor Thermal-Cooling Assembly . . 43
Removing the Processor Thermal-Cooling Assembly . 43
Replacing the Processor Thermal-Cooling Assembly . 44
7 Processor Module . . . . . . . . . . . . . . . . . . 45
Removing the Processor Module . . . . . . . . . . . . 45
Replacing the Processor Module . . . . . . . . . . . . 46

FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\bookTOC.fm
Contents 5
8Memory. . . . . . . . . . . . . . . . . . . . . . . . . . 49
Removing a Memory Module . . . . . . . . . . . . . . 49
Replacing a Memory Module . . . . . . . . . . . . . . 51
9 Hinge Cover . . . . . . . . . . . . . . . . . . . . . . . 53
Removing the Hinge Cover . . . . . . . . . . . . . . . 53
Replacing the Hinge Cover . . . . . . . . . . . . . . . 54
10 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . 57
Removing the Keyboard . . . . . . . . . . . . . . . . . 57
Replacing the Keyboard . . . . . . . . . . . . . . . . . 58
11 Power Button and Multimedia Button Pads 61
Removing the Power Button and Multimedia Button Pads 61
Replacing the Power Button and Multimedia Button Pads 62
12 Display . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Display Assembly . . . . . . . . . . . . . . . . . . . . 65
Removing the Display Assembly . . . . . . . . . . 65
Replacing the Display Assembly . . . . . . . . . . 67
Display Bezel . . . . . . . . . . . . . . . . . . . . . . 68
Removing the Display Bezel . . . . . . . . . . . . 68
Replacing the Display Bezel . . . . . . . . . . . . 70

FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\bookTOC.fm
6Contents
Display Inverter . . . . . . . . . . . . . . . . . . . . . 70
Removing the Display Inverter . . . . . . . . . . . 70
Replacing the Display Inverter . . . . . . . . . . . 71
Display Panel . . . . . . . . . . . . . . . . . . . . . . 72
Removing the Display Panel . . . . . . . . . . . . 72
Replacing the Display Panel . . . . . . . . . . . . 73
Display Cable . . . . . . . . . . . . . . . . . . . . . . 74
Removing the Display Cable . . . . . . . . . . . . 74
Replacing the Display Cable . . . . . . . . . . . . 75
Camera and Microphone Assembly . . . . . . . . . . . 76
Removing the Camera and Microphone Assembly 76
Replacing the Camera and Microphone Assembly 77
13 Palm Rest . . . . . . . . . . . . . . . . . . . . . . . . . 79
Removing the Palm Rest . . . . . . . . . . . . . . . . . 79
Replacing the Palm Rest . . . . . . . . . . . . . . . . 81
14 Fingerprint Reader . . . . . . . . . . . . . . . . . 83
Removing the Fingerprint Reader . . . . . . . . . . . . 83
Replacing the Fingerprint Reader . . . . . . . . . . . . 84
15 Internal Card With Bluetooth®Wireless
Technology 87
Removing the Card . . . . . . . . . . . . . . . . . . . . 87
Replacing the Card . . . . . . . . . . . . . . . . . . . 88

FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\bookTOC.fm
Contents 7
16 Optical Drive . . . . . . . . . . . . . . . . . . . . . . 91
Removing the Optical Drive . . . . . . . . . . . . . . . 91
Replacing the Optical Drive . . . . . . . . . . . . . . . 92
17 System Board Assembly . . . . . . . . . . . . . 95
Removing the System Board Assembly . . . . . . . . . 95
Replacing the System Board Assembly . . . . . . . . . 96
18 Speaker Assembly . . . . . . . . . . . . . . . . . 99
Removing the Speaker Assembly . . . . . . . . . . . . 99
Replacing the Speaker Assembly . . . . . . . . . . . . 100
19 USB Daughter Card . . . . . . . . . . . . . . . . 103
Removing the USB Daughter Card . . . . . . . . . . . 103
Replacing the USB Daughter Card . . . . . . . . . . . 104
20 Battery Latch Assembly . . . . . . . . . . . . 107
Removing the Battery Latch Assembly . . . . . . . . . 107
Replacing the Battery Latch Assembly . . . . . . . . . 108
21 Coin-Cell Battery . . . . . . . . . . . . . . . . . . 111
Removing the Coin-Cell Battery . . . . . . . . . . . . . 111

FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\bookTOC.fm
8Contents
Replacing the Coin-Cell Battery . . . . . . . . . . . . 112
22 Flashing the BIOS . . . . . . . . . . . . . . . . . 115
Flashing the BIOS From a CD . . . . . . . . . . . . . . 115
Flashing the BIOS From the Hard Drive . . . . . . . . . 116

Template Last Updated - 2/7/2007 Troubleshooting 9
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
Troubleshooting
Troubleshooting Tools
Diagnostic Lights
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions that shipped with your computer.
Your computer has three keyboard status lights located above the keyboard.
During normal operation, the keyboard status lights display the current status
(on or off) of the Num Lock, Caps Lock, and Scroll Lock features. If the
computer starts without error, the lights flash, and then turn off. If the
computer malfunctions, however, you can use the status of the lights to help
identify the problem.
NOTE: After the computer completes POST, the Num Lock light may remain on,
depending on your BIOS settings. For more information on using the system setup
program, see the Dell™ Technology Guide on your computer or at support.dell.com.
Diagnostic Light Codes During POST
To troubleshoot a problem with your computer, read the sequence of the
keyboard status lights in order from left to right (Num Lock, Caps Lock, and
then Scroll Lock). If the computer malfunctions the individual lights display
a status of either On , Off , or Flashing .

10 Troubleshooting
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY

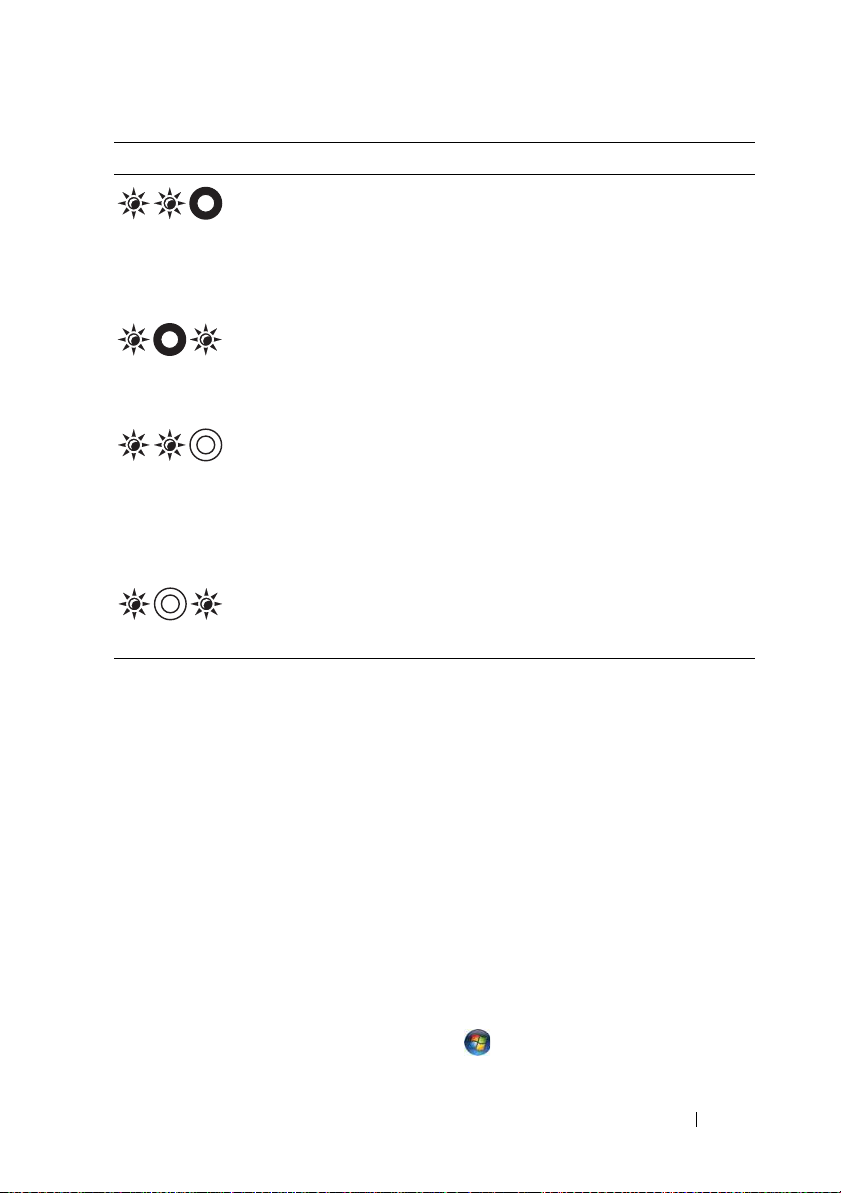

Light Pattern Problem Description Suggested Resolution
No memory modules
are detected.
• If two or more memory modules are
installed, remove the modules (see
"Removing a Memory Module" on
page 49), then reinstall one module
(see "Replacing a Memory Module" on
page 51) and restart the computer. If
the computer starts normally,
continue to install additional memory
modules (one at a time) until you
have identified a faulty module or
reinstalled all modules without error.
• If available, install working memory of
the same type into your computer (see
"Memory" on page 49).
• If the problem persists, contact Dell
Support.
Memory modules are
detected, but a
memory failure has
occurred.
• If two or more memory modules are
installed, remove the modules (see
"Removing a Memory Module" on
page 49), then reinstall one module
(see "Replacing a Memory Module" on
page 51) and restart the computer. If
the computer starts normally,
continue to install additional memory
modules (one at a time) until you
have identified a faulty module or
reinstalled all modules without error.
• If available, install working memory of
the same type into your computer (see
"Memory" on page 49).
• If the problem persists, contact Dell
Support.
A possible processor
failure has occurred.
• Reseat the processor (see "Removing
the Processor Module" on page 45).
• If the problem persists, contact Dell
Support.

Troubleshooting 11
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
Hardware Troubleshooter
If a device is either not detected during the operating system setup or is
detected, but incorrectly configured, you can use the Hardware
Troubleshooter to resolve the incompatibility.
Windows XP:
1
Click Start → Help and Support .
2 Ty p e hardware troubleshooter in the search field and press
<Enter> to start the search.
3 In the Fix a Problem section, click Hardware Troubleshooter .
4 In the Hardware Troubleshooter list, select the option that best describes
the problem, and click
Next to follow the remaining troubleshooting steps.
Windows Vista®:
1
Click the Windows Vista start button , and click Help and Support.
A possible graphics
card/video failure has
occurred.
• Reseat any installed graphics cards.
• If available, install a working graphics
card into your computer.
• If the problem persists, contact Dell
Support.
A possible LCD
failure has occurred.
• Reseat the LCD cable (see "Removing
the Display Assembly" on page 65).
• If the problem persists, contact Dell
Support.
A possible keyboard
failure has occurred.
• Reseat the keyboard (see "Removing
the Keyboard" on page 57).
• If available, connect an external
keyboard.
• If the problem persists, contact Dell
Support.
A possible USB
controller failure has
occurred.
• Remove any USB devices.
• If the problem persists, contact
contact Dell Support.
Light Pattern Problem Description Suggested Resolution

12 Troubleshooting
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
2 Ty p e hardware troubleshooter in the search field and press
<Enter> to start the search.
3 In the search results, select the option that best describes the problem and
follow the remaining troubleshooting steps.
Dell Diagnostics
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions that shipped with your computer.
When to Use the Dell Diagnostics
If you experience a problem with your computer, perform the checks in
"Solving Problems" on page 18, and then run the Dell Diagnostics before
contacting Dell for assistance.
Start the Dell Diagnostics from your hard drive or from the Drivers and
Utilities media provided with your computer.
NOTE: The Drivers and Utilities media is optional and may not ship with your
computer.
NOTE: The Dell Diagnostics only operate on Dell computers.
Starting the Dell Diagnostics From Your Hard Drive
Before running the Dell Diagnostics, enter system setup to review your
computer’s configuration information, and ensure that the device you want
to test is displayed in system setup and is active. For more information on
using the system setup program, see the Dell™ Technology Guide on your
computer or at support.dell.com.
The Dell Diagnostics is located on a separate diagnostic utility partition on
your hard drive.
NOTE: If the computer is connected to a docking device (docked), undock it. See
the documentation that came with your docking device for instructions.
NOTE: If your computer does not display a screen image, contact Dell Support.
1 Ensure that the computer is connected to an electrical outlet that is
known to be working properly.
2 Press and hold the <Fn> key or the mute button then turn on your
computer.

Troubleshooting 13
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
NOTE: Alternatively, you can select Diagnostics from the one-time boot menu
at startup to boot to the diagnostic utility partition and run the Dell
Diagnostics.
The computer runs the Pre-boot System Assessment (PSA), a series of
initial tests of your system board, keyboard, display, memory, hard drive,
etc.
• During the assessment, answer any questions that appear.
• If failures are detected during the Pre-boot System Assessment,
write down the error code(s) and contact Dell Support.
• If the Pre-boot System Assessment completes successfully, the
following message appears: "
Booting Dell Diagnostic
Utility Partition. Press any key to
continue
."
NOTE: If you see a message stating that no diagnostics utility partition has
been found, run the Dell Diagnostics from your Drivers and Utilities media (see
"Starting the Dell Diagnostics From the Drivers and Utilities Media" on
page 14).
3 Press any key to start the Dell Diagnostics from the diagnostics utility
partition on your hard drive.
4 Press <Tab> to select Tes t System and then press <Enter>.
NOTE: It is recommended that you select Test System to run a complete test
on your computer. Selecting Test Memory initiates the extended memory test,
which can take up to thirty minutes or more to complete. When the test
completes, record the test results and then press any key to return to the
previous menu.
5 At the Dell Diagnostics Main Menu, left-click with the touch pad/mouse,
or press <Tab> and then <Enter>, to select the test you want to run (see
"Dell Diagnostics Main Menu" on page 15).
NOTE: Write down any error codes and problem descriptions exactly as they
appear and follow the instructions on the screen.
6 After all tests have completed, close the test window to return to the Dell
Diagnostics Main Menu.
7 Close the Main Menu window to exit the Dell Diagnostics and restart the
computer.

14 Troubleshooting
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
NOTE: If you see a message stating that no diagnostics utility partition has
been found, run the Dell Diagnostics from your Drivers and Utilities media (see
"Starting the Dell Diagnostics From the Drivers and Utilities Media" on
page 14).
Starting the Dell Diagnostics From the Drivers and Utilities Media
Before running the Dell Diagnostics, enter system setup to review your
computer’s configuration information, and ensure that the device you want
to test is displayed in system setup and is active. For more information on
using the system setup program, see the Dell™ Technology Guide on your
computer or at support.dell.com.
1
Insert the Drivers and Utilities media into the optical drive .
2 Restart your computer.
3 When the DELL logo appears, press <F12> immediately.
NOTE: Keyboard failure may result when a key is held down for extended
periods of time. To avoid possible keyboard failure, press and release <F12> in
even intervals to open the Boot Device Menu.
If you wait too long and the operating system logo appears, continue to
wait until you see the Microsoft Windows desktop, then shut down your
computer and try again.
4 When the boot device list appears, use the up- or down- arrow keys to
highlight
CD/DVD/CD-RW Drive then press <Enter>.
NOTE: Using the one-time boot menu changes the boot sequence for the
current boot only. Upon restart, the computer boots according to the boot
sequence specified in system setup.
5 Press any key to confirm that you want to start from the CD/DVD.
If you wait too long and the operating system logo appears, continue to
wait until you see the Microsoft Windows desktop, then shut down your
computer and try again.
6 Ty p e 1 to Run the 32 Bit Dell Diagnostics .
7 At the Dell Diagnostics Menu , type 1 to select Dell 32-bit Diagnostics for
Resource CD (graphical user interface)
.
8 Press <Tab> to select Test System and then press <Enter>.

Troubleshooting 15
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
NOTE: It is recommended that you select Test System to run a complete test
on your computer. Selecting Test Memory initiates the extended memory test,
which can take up to thirty minutes or more to complete. When the test
completes, record the test results and then press any key to return to the
previous menu.
9 At the Dell Diagnostics Main Menu, left-click with the mouse, or press
<Tab> and then <Enter>, to select the test you want to run (see "Dell
Diagnostics Main Menu" on page 15).
NOTE: Write down any error codes and problem descriptions exactly as they
appear and follow the instructions on the screen.
10 After all tests have completed, close the test window to return to the Dell
Diagnostics Main Menu.
11 Close the Main Menu window to exit the Dell Diagnostics and restart the
computer.
12 Remove the Drivers and Utilities media from the optical drive.
Dell Diagnostics Main Menu
After the Dell Diagnostics loads the following menu appears:
Press <Tab> to select the test you want to run and then press <Enter>.
NOTE: It is recommended that you select Test System to run a complete test on
your computer. Selecting Test Memory initiates the extended memory test, which
can take up to thirty minutes or more to complete. When the test completes, record
the test results and then press any key to return to this menu.
After Test System is selected, the following menu appears:
Option Function
Test Memory Run the stand-alone memory test
Test System Run system diagnostics
Exit Exit the diagnostics

16 Troubleshooting
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
NOTE: It is recommended that you select Extended Test to perform a more
thorough check of devices in the computer.
For any problem encountered during a test, a message appears with an error
code and a description of the problem. Write down the error code and
problem description exactly as it appears and follow the instructions on the
screen. If you cannot resolve the problem, contact Dell Support.
NOTE: When contacting Dell Support, have your Service Tag ready. The Service
Tag for your computer is located at the top of each test screen.
The following tabs provide additional information for tests run from the
Custom Test or Symptom Tree option:
Option Function
Express Test Performs a quick test of devices in the
system. This typically can take 10 to 20
minutes.
NOTE: The Express Test requires no interaction on your
part. Run Express Test first to increase the possibility of
tracing a problem quickly.
Extended Test Performs a thorough check of devices in
the system. This typically can take an
hour or more.
NOTE: The Extended Test periodically requires your input
to answer specific questions.
Custom Test Use to test a specific device or
customize the tests to be run.
Symptom Tree This option allows you to select tests
based on a symptom of the problem you
are having. This option lists the most
common symptoms.
Tab Function
Results Displays the results of the test
and any error conditions
encountered.

Troubleshooting 17
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
Error Messages
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions that shipped with your computer.
If the error message is not listed, see the documentation for the operating
system or the program that was running when the message appeared.
A FILENAME CANNOT CONTAIN ANY OF THE FOLLOWING CHARACTERS:
\ / : * ? “ < > | — Do not use these characters in filenames.
A REQUIRED .DLL FILE WAS NOT FOUND —The program that you are trying to open
is missing an essential file. To remove and then reinstall the program:
Windows XP:
1 Click Start → Control Panel → Add or Remove Programs → Programs and Features .
2 Select the program you want to remove.
3 Click Uninstall .
4 See the program documentation for installation instructions.
Windows Vista:
Errors Displays error conditions encountered,
error codes, and the problem
description.
Help Describes the test and any requirements
for running the test.
Configuration Displays the hardware configuration for
the selected device.
The Dell Diagnostics obtains
configuration information for all
devices from System Setup, memory, and
various internal tests, and displays
the information in the device list in
the left pane of the screen.
NOTE: The device list may not display the names of all
components installed on your computer or all devices
attached to your computer.
Parameters Allows you to customize the test, if
applicable, by changing the test
settings.
Tab Function (continued)

18 Troubleshooting
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
1
Click Start → Control Panel → Programs → Programs and Features .
2 Select the program you want to remove.
3 Click Uninstall .
4 See the program documentation for installation instructions.
drive letter :\ IS NOT ACCESSIBLE. THE DEVICE IS NOT READY —The drive
cannot read the disk. Insert a disk into the drive and try again.
INSERT BOOTABLE MEDIA —Insert a bootable floppy disk, CD, or DVD.
NON-SYSTEM DISK ERROR —Remove the floppy disk from the floppy drive and
restart your computer.
NOT ENOUGH MEMORY OR RESOURCES. CLOSE SOME PROGRAMS AND TRY
AGAIN —Close all windows and open the program that you want to use. In some
cases, you may have to restart your computer to restore computer resources. If so, run
the program that you want to use first.
OPERATING SYSTEM NOT FOUND —Contact Dell Support.
Solving Problems
Follow these tips when troubleshooting your computer:
• If you added or removed a part before the problem started, review the
installation procedures and ensure that the part is correctly installed.
• If a peripheral device does not work, ensure that the device is properly
connected.
• If an error message appears on the screen, write down the exact message.
This message may help support personnel diagnose and fix the problem(s).
• If an error message occurs in a program, see the program’s documentation.
NOTE: The procedures in this document were written for the Windows default
view, so they may not apply if you set your Dell computer to the Windows Classic
view.
Battery Problems
CAUTION: There is a danger of a new battery exploding if it is incorrectly
installed. Replace the battery only with the same or equivalent type recommended
by the manufacturer. Discard used batteries according to the manufacturer's
instructions.

Troubleshooting 19
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions that shipped with your computer.
Drive Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions that shipped with your computer.
ENSURE THAT MICROSOFT®WINDOWS®RECOGNIZES THE DRIVE —
Windows XP:
• Click Start and click My Computer .
Windows Vista:
• Click Start and click Computer .
If the drive is not listed, perform a full scan with your antivirus software to check for
and remove viruses. Viruses can sometimes prevent Windows from recognizing the
drive.
TEST THE DRIVE —
• Insert another disc to eliminate the possibility that the original drive is defective.
• Insert a bootable floppy disk and restart the computer.
CLEAN THE DRIVE OR DISK —For information on cleaning your computer, see the
Dell™ Technology Guide on your computer or at support.dell.com.
CHECK THE CABLE CONNECTIONS
RUN THE HARDWARE TROUBLESHOOTER —See "Hardware Troubleshooter" on
page 11.
RUN THE DELL DIAGNOSTICS —See "Dell Diagnostics" on page 12.
Optical drive problems
NOTE: High-speed optical drive vibration is normal and may cause noise, which
does not indicate a defect in the drive or the media.
NOTE: Because of different regions worldwide and different disc formats, not all
DVD titles work in all DVD drives.
ADJUST THE WINDOWS VOLUME CONTROL —
• Click the speaker icon in the lower-right corner of your screen.
• Ensure that the volume is turned up by clicking the slidebar and dragging it up.
• Ensure that the sound is not muted by clicking any boxes that are checked.

20 Troubleshooting
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\trouble.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
CHECK THE SPEAKERS AND SUBWOOFER —See "Sound and Speaker Problems" on
page 24.
Problems writing to an optical drive
CLOSE OTHER PROGRAMS —The optical drive must receive a steady stream of data
during the writing process. If the stream is interrupted, an error occurs. Try closing all
programs before you write to the optical.
TURN OFF STANDBY MODE IN WINDOWS BEFORE WRITING TO ADISC —For
information about setting power options, see the Dell™ Technology Guide on your
computer or at support.dell.com. You can also search for the keyword standby in
Windows Help and Support for information on power management modes.
Hard drive problems
RUN CHECK DISK —
Windows XP:
1 Click Start and click My Computer .
2 Right-click Local Disk C: .
3 Click Properties → Tools → Check Now .
4 Click Scan for and attempt recovery of bad sectors and click Start .
Windows Vista:
1 Click Start and click Computer .
2 Right-click Local Disk C: .
3 Click Properties → Tools → Check Now .
The
User Account Control window may appear. If you are an administrator on the
computer, click
Continue ; otherwise, contact your administrator to continue the
desired action.
4 Follow the instructions on the screen.
IEEE 1394 Device Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions that shipped with your computer.
NOTE: Your computer supports only IEEE 1394a standard.
ENSURE THAT THE CABLE FOR THE IEEE 1394 DEVICE IS PROPERLY INSERTED INTO
THE DEVICE AND INTO THE CONNECTOR ON THE COMPUTER
ENSURE THAT THE IEEE 1394 DEVICE IS ENABLED IN SYSTEM SETUP —For more
information on using the system setup program, see the Dell™ Technology Guide on your
