DellStudio™1555ServiceManual
Notes, Cautions, and Warnings
Information in this document is subject to change without notice.
©2008DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under
license; Microsoft, Windows, Windows Vista, and Windows Vista start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or
other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP39L
December 2008 Rev. A00
Before You Begin
Base Cover
Hard Drive
Memory
Communication Cards
Coin-Cell Battery
Center Control Cover
Keyboard
Display
Power Button Board
Camera (Optional)
Palm Rest
Speaker Assembly
Optical Drive
ExpressCard Board
AC Adapter Connector
USB Connector
System Board Assembly
Processor Heat Sink
Processor Module
Fan
Subwoofer Assembly
Battery Latch Assembly
Flashing the BIOS
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Great user manuals database on UserManuals.info
Back to Contents Page
Base Cover
DellStudio™1555ServiceManual
Removing the Base Cover
Replacing the Base Cover





Removing the Base Cover

1. Ensure that the computer is turned off.

2. Remove the battery (see Before Working Inside Your Computer).

3. Loosen the three captive screws on the base cover and lift the cover off the computer at an angle as shown in the figure.
Replacing the Base Cover

1. Align the tabs on the base cover to the bottom of the computer.

2. Tighten the three captive screws on the base cover.

3. Slide the battery into the battery bay until it clicks into place.
Back to Contents Page

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Before performing these procedures, turn off the computer, disconnect the AC adapter from the electrical outlet and the computer,
disconnect the modem from the wall connector and the computer, and remove any other external cables from the computer.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on the back of the computer).
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see "Before Working Inside Your Computer" on page 10)
before working inside the computer.
1
base cover
2
tabs
3
captive screws (3)



Great user manuals database on UserManuals.info
Back to Contents Page
Before You Begin
DellStudio™1555ServiceManual
Recommended Tools
Turning Off Your Computer
Before Working Inside Your Computer
This document provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that:
lYou have performed the steps in Before Working Inside Your Computer.
lYou have read the safety information that shipped with your computer.
lWhen replacing a component, you have already removed the original component, if installed.
Recommended Tools
The procedures in this document may require the following tools:
lSmall flat-blade screwdriver
lPhillips screwdriver
lSmall plastic scribe
lBIOS upgrade CD (see the Dell Support website at support.dell.com)
Turning Off Your Computer


1. Save and close all open files and exit all open programs.

2. In Microsoft®Windows Vista®, click Start , click the arrow , and then click Shut Down.
The computer turns off after the operating system shutdown process finishes.

3. Ensure that the computer and any attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut
down your operating system, press and hold the power button for at least 8 to 10 seconds until the computer turns off.
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own personal safety.






1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.

2. Turn off your computer (see Turning Off Your Computer).

CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface, such as a connector on the back of the computer.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges. Hold a
component such as a processor by its edges, not by its pins.
CAUTION: When disconnecting a cable, pull on the cable's connector or on its pull-tab, not on the cable itself. For cable connectors with locking
tabs, press inward on the locking tabs to release the connector. When connecting a cable, ensure that the connectors are correctly oriented and
aligned to avoid damage to the connector and/or the connector's pins.

Great user manuals database on UserManuals.info

3. Disconnect any telephone or network cables from the computer.

4. Press and eject any installed cards from the ExpressCard slot and the 8-in-1 Memory Card Reader.



5. Turn the computer over.

6. Slide the battery release latch until it clicks into place.

7. Slide the battery out of the battery bay.

8. Turn the computer top side up, open the display, and press the power button to ground the system board.
Back to Contents Page

CAUTION: To disconnect a network cable, first unplug the cable from your computer, and then unplug it from the network device.
CAUTION: To help prevent damage to the system board, you must remove the battery from the battery bay before you service the computer.
CAUTION: To avoid damage to the computer, use only the battery designed for this particular Dell computer. Do not use batteries designed for
other Dell computers.
1
battery
2
battery release latch

Great user manuals database on UserManuals.info
Back to Contents Page
Flashing the BIOS
DellStudio™1555ServiceManual
Flashing the BIOS From a CD
Flashing the BIOS From the Hard Drive
If a BIOS upgrade CD is provided with the new processor or new system board, flash the BIOS from the CD. If you do not have a BIOS upgrade CD, flash the
BIOS from the hard drive.
Flashing the BIOS From a CD


1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.

2. Insert the BIOS-update program CD and turn on the computer.

Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the
computer will automatically reboot.

3. Press <F2> during POST to enter the system setup program.

4. Press <Alt> and <f> to reset the computer defaults.

5. Press <Esc>, select Save/Exit, and press <Enter> to save configuration changes.

6. Remove the flash BIOS-update program CD from the drive and restart the computer.
Flashing the BIOS From the Hard Drive


1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.

2. Turn on the computer.

3. Locate the latest BIOS update file for your computer at support.dell.com.

4. Click Download Now to download the file.

5. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.
The File Download window appears.

6. Click Save this program to disk, and then click OK.
The Save In window appears.

7. Click the down arrow to view the Save In menu, select Desktop, and then click Save.
The file downloads to your desktop.

8. Click Close if the Download Complete window appears.
The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.
CAUTION: Plug the AC adapter into a known, good power source to prevent loss of power. Failure to do so may cause system damage.
NOTE: If you use the BIOS-update program CD to flash the BIOS, press <F12> before inserting the CD so that you can set up the computer to boot from
a CD for one time only. Otherwise, you must enter the system setup program to change the default boot order.
CAUTION: Do not interrupt this process once it begins. Doing so may cause damage to the computer.
CAUTION: Plug the AC adapter into a known, good power source to prevent loss of power. Failure to do so may cause damage to the computer.

Great user manuals database on UserManuals.info


9. Double-click the file icon on the desktop and follow the instructions on the screen.
Back to Contents Page

CAUTION: Do not interrupt this process once it begins. Doing so may cause system damage.

Great user manuals database on UserManuals.info
Back to Contents Page

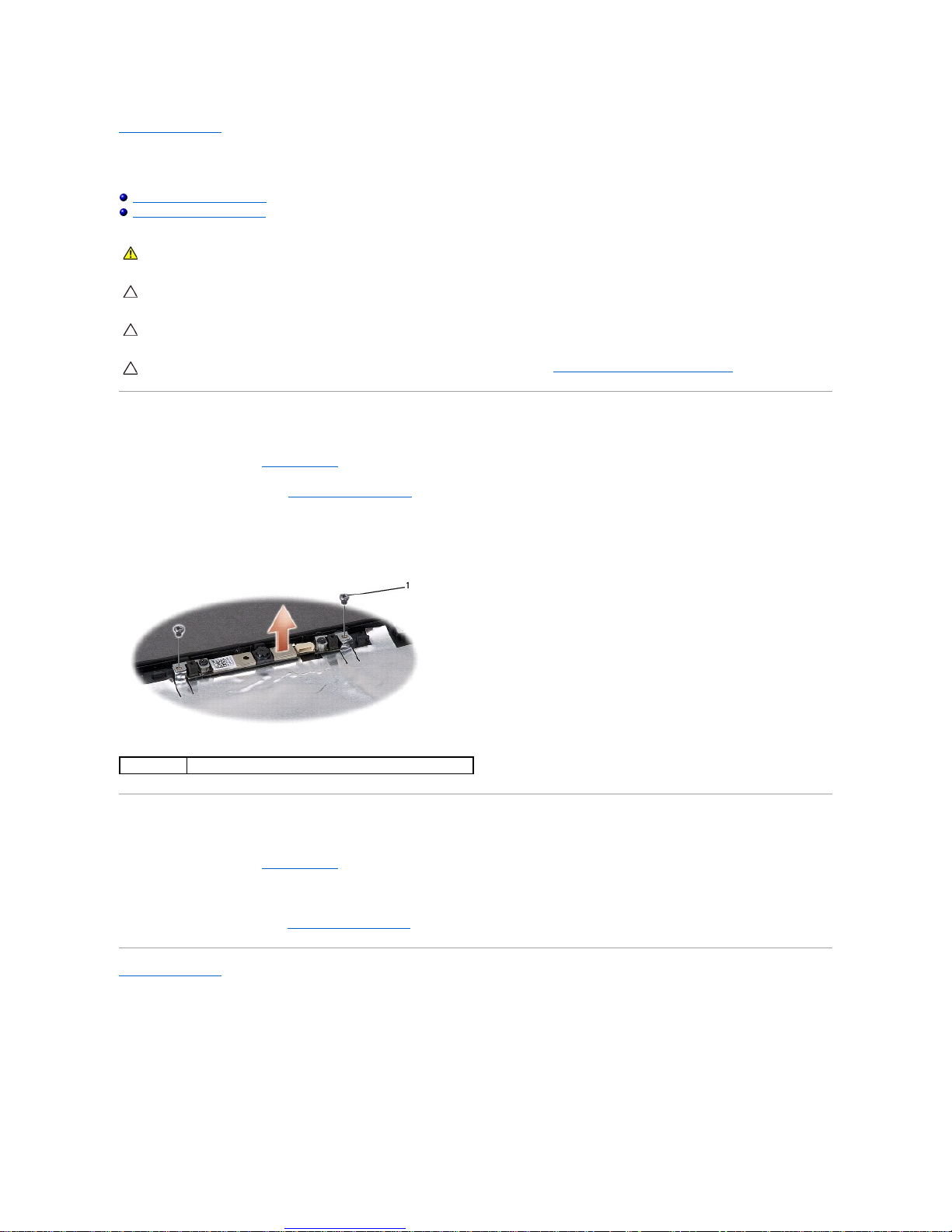

Camera (Optional)
DellStudio™1555ServiceManual
Removing the Camera Module
Replacing the Camera Module




Removing the Camera Module

1. Follow the instructions in Before You Begin.

2. Remove the display panel (see Removing the Display Panel).

3. Remove the two screws that secure the camera to the display cover.

4. Lift the camera board from the display cover.
Replacing the Camera Module

1. Follow the instructions in Before You Begin.

2. Replace and tighten the two screws securing the camera to the display cover.

3. Replace the display panel (see Replacing the Display Panel).
Back to Contents Page

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on the back of the computer).
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working
inside the computer.

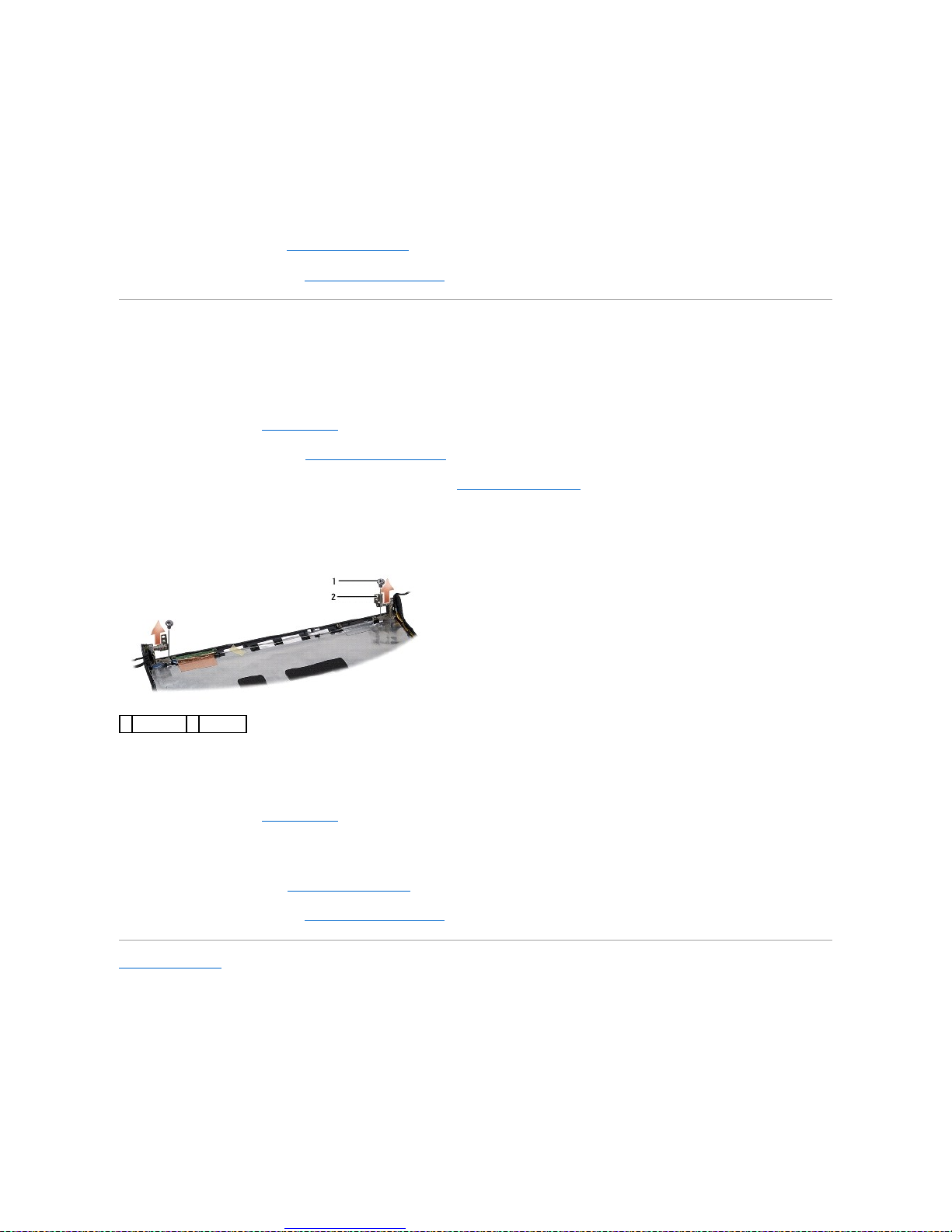

1
screws (2)

Great user manuals database on UserManuals.info
Back to Contents Page
Center Control Cover
DellStudio™1555ServiceManual
Removing the Center Control Cover
Replacing the Center Control Cover




Removing the Center Control Cover

1. Follow the procedures in Before You Begin.

2. Remove the screw securing the center control cover from the battery bay.

3. Turn the computer over and open the display as far as possible.

4. Pry out the center control cover with a plastic scribe starting from the battery bay location at the back of the computer.

5. Ease the center control cover up.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist= grounding strap or by periodically touching an unpainted metal
surface (such as a connector on the back of the computer).
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working
inside the computer.
1
center control cover

Great user manuals database on UserManuals.info
Replacing the Center Control Cover

1. Follow the procedures in Before You Begin.

2. Align the hooks beneath the center control cover to the slots on the palm rest and snap the cover in place.

3. Close the display and turn over the computer.

4. In the battery bay, replace the screw that secures the center control cover.

5. Slide the battery into the battery bay until it clicks into place.
Back to Contents Page


Great user manuals database on UserManuals.info
Back to Contents Page
Coin-Cell Battery
DellStudio™1555ServiceManual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery




Removing the Coin-Cell Battery

1. Follow the instructions in Before You Begin.

2. Remove the base cover (see Removing the Base Cover).

3. Use a plastic scribe to pry up the coin-cell battery from the slot.
Replacing the Coin-Cell Battery

1. Follow the instructions in Before You Begin.

2. Hold the coin-cell battery with the positive side up.

3. Slide the coin-cell battery into the slot and gently press until it snaps to the slot.

4. Replace the base cover (see Replacing the Base Cover).
Back to Contents Page

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist= grounding strap or by periodically touching an unpainted metal
surface (such as a connector on the back of the computer).
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working
inside the computer.
1
coin-cell battery
2
plastic scribe

Great user manuals database on UserManuals.info
Back to Contents Page

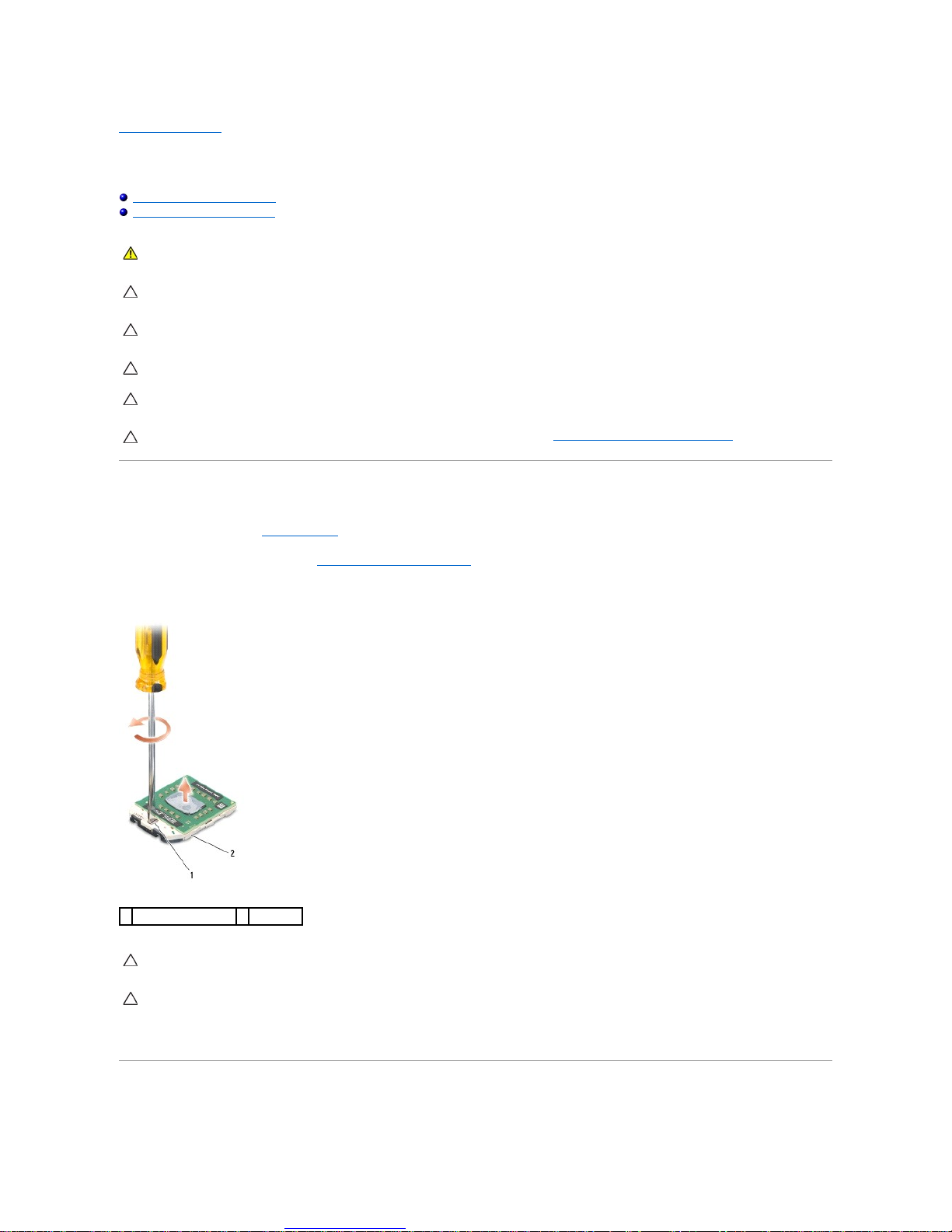

Processor Module
DellStudio™1555ServiceManual
Removing the Processor Module
Replacing the Processor Module






Removing the Processor Module

1. Follow the instructions in Before You Begin.

2. Remove the processor heat sink (see Removing the Processor Heat Sink).

3. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.



4. Lift the processor module from the ZIF socket.
Replacing the Processor Module
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as the back panel) on the computer.
CAUTION: To prevent intermittent contact between the ZIF-socket cam screw and the processor when removing or replacing the processor, press
to apply slight pressure to the center of the processor while turning the cam screw.
CAUTION: To avoid damage to the processor, hold the screwdriver so that it is perpendicular to the processor when turning the cam screw.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working
inside the computer.
1
ZIF-socket cam screw
2
ZIF socket
CAUTION: To ensure maximum cooling for the processor, do not touch the heat transfer areas on the processor thermal-cooling assembly. The
oils in your skin can reduce the heat transfer capability of the thermal pads.
CAUTION: When removing the processor module, pull the module straight up. Be careful not to bend the pins on the processor module.

Great user manuals database on UserManuals.info

1. Follow the instructions in Before You Begin.

2. Align the pin-1 corner of the processor module with the pin-1 corner of the ZIF socket, then insert the processor module.
When the processor module is properly seated, all four corners are aligned at the same height. If one or more corners of the module are higher than the
others, the module is not seated properly.


3. Tighten the ZIF socket by turning the cam screw clockwise to secure the processor module to the system board.

4. Replace the processor heat sink (see Replacing the Processor Heat Sink).
Back to Contents Page

NOTE: If a new processor is installed, you will receive a new thermal-cooling assembly, which will include an affixed thermal pad, or you will receive a
new thermal pad along with documentation to illustrate proper installation.
NOTE: The pin-1 corner of the processor module has a triangle that aligns with the triangle on the pin-1 corner of the ZIF socket.
1
ZIF-socket cam screw
2
ZIF socket
3
pin-1 corner


CAUTION: To avoid damage to the processor, hold the screwdriver so that it is perpendicular to the processor when turning the cam screw.

Great user manuals database on UserManuals.info
Back to Contents Page
Processor Heat Sink
DellStudio™1555ServiceManual
Removing the Processor Heat Sink
Replacing the Processor Heat Sink





Removing the Processor Heat Sink

1. Follow the instructions in Before You Begin.

2. Remove the optical drive (see Removing the Optical Drive).

3. Disconnect the ExpressCard cables from the respective connectors on the system board (see Removing the ExpressCard Board).

4. Disconnect the AC adapter connector cable, USB cable, fan cable, and the subwoofer cable from the system board (see Removing the System Board
Assembly).

5. Remove the six screws that secure the system board to the computer base.

6. Turn the system board over.

7. In sequential order (indicated on the processor heat sink), loosen the four captive screws on the thermal-cooling assembly processor cover.

8. Lift the processor heat sink off the computer.
Replacing the Processor Heat Sink
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: If you remove the processor heat sink from the computer when the heat sink is hot, do not touch the metal housing of the processor
heat sink.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as the back panel) on the computer.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working
inside the computer.
1
captive screws (4)
2
processor heat sink

Great user manuals database on UserManuals.info

1. Align the four captive screws on the processor thermal-cooling assembly processor cover with the screw holes on the system board and tighten the
screws in sequential order.

2. Replace the system board to the computer base.

3. Replace the six screws that secure the system board to the computer base.

4. Connect the AC adapter connector cable, USB cable, fan cable, and the subwoofer cable to the system board (see Replacing the System Board
Assembly).

5. Connect the ExpressCard cables back to their respective connectors on the system board (see Replacing the ExpressCard Board).

6. Replace the optical drive (see Replacing the Optical Drive).

7. Slide the battery into the bay until it clicks into place.
Back to Contents Page

NOTE: The original thermal pad can be reused if the original processor and heat sink are reinstalled together. If either the processor or heat sink is
replaced, use the thermal pad provided in the kit to ensure that thermal conductivity is achieved.
NOTE: This procedure assumes that you have already removed the processor heat sink and are ready to replace it.

Great user manuals database on UserManuals.info
Back to Contents Page
Display
DellStudio™1555ServiceManual
Display Assembly
Display Bezel
Display Panel
Display Hinges
Display Assembly





Removing the Display Assembly

1. Follow the instructions in Before You Begin.

2. Remove the base cover (see Removing the Base Cover).

3. Disconnect the antenna cables from the Mini-Card(s).

4. Lift the antenna cables from the securing tabs and release them from the routing channel.

5. Remove the two screws securing the display assembly from the bottom of the computer.

6. Remove the center control cover (see Removing the Center Control Cover).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on the back of the computer).
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working
inside the computer.
1
securing tabs
2
antenna cables

Great user manuals database on UserManuals.info
7. Remove the keyboard (see Removing the Keyboard).

8. Disconnect the camera cable, display cable, and power button cable from their connectors on the system board and release it from the routing guides.

9. Pull the antenna cables through the routing hole and release them from the routing channel.

10. Remove the two screws that secure the display assembly to the computer base.

11. Lift the display assembly out of the computer.

Replacing the Display Assembly

1. Follow the instructions in Before You Begin.

2. Align the display hinges with the holes in the base of the computer and then lower the display into place.

3. Replace the two screws that secure the display assembly to the computer base.

4. Slide the antenna cables through the routing hole to the base of the computer.

5. Secure the camera cable, display cable, and power button cable to their routing guides.

6. Connect the camera cable, display cable, and power button cable to their connectors on the system board.

7. Replace the keyboard (see Replacing the Keyboard).

8. Replace the center control cover (see Replacing the Center Control Cover).

9. Close the display and turn the computer over.

10. Replace and tighten the two that secure the display assembly to the bottom of the computer.

11. Replace the Mini-Card and connect the antenna cables to it (see Replacing the Mini-Card).

12. Replace the base cover (see Replacing the Base Cover).
Display Bezel

Removing the Display Bezel

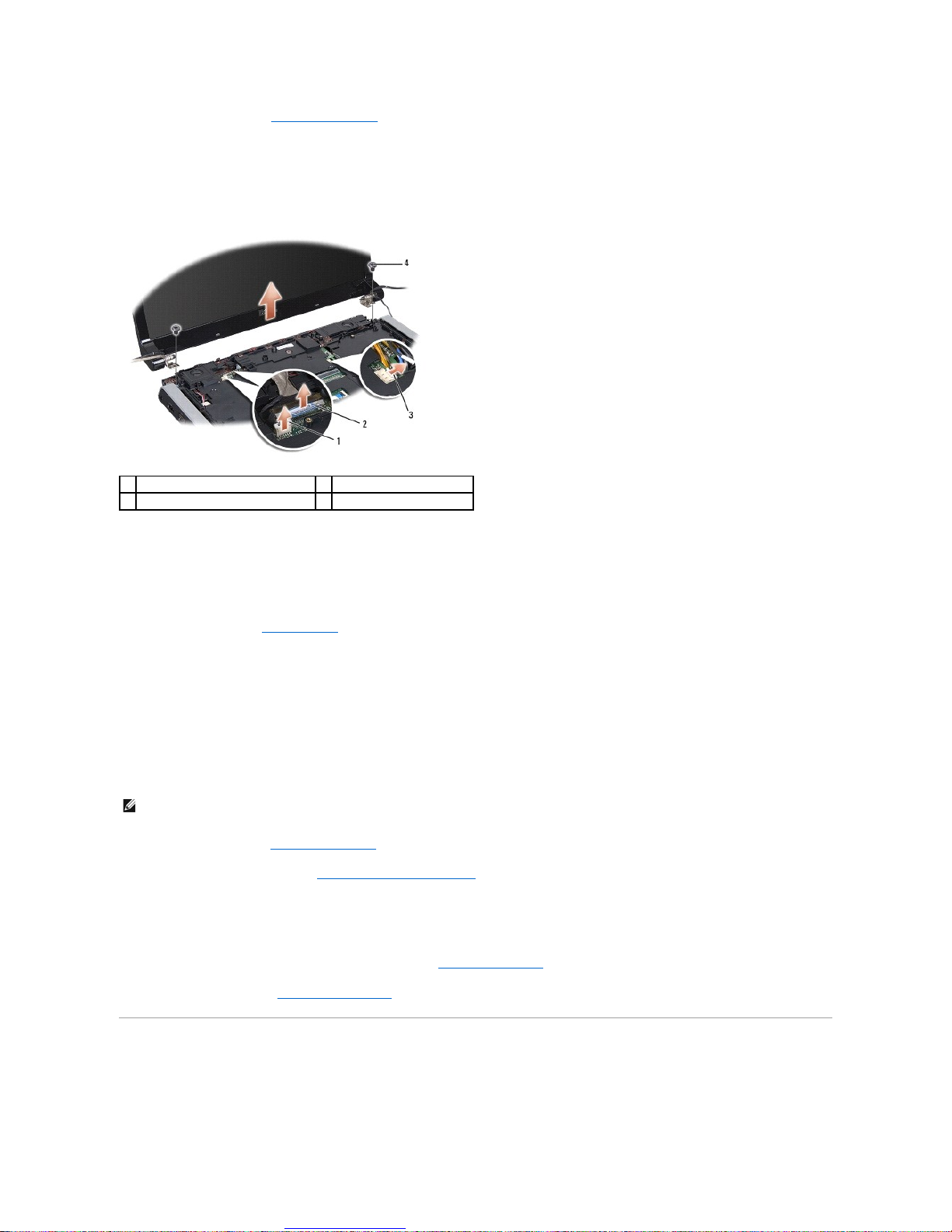

1
camera cable connector
2
display cable connector
3
power button cable connector
4
hinge screws (2)
NOTE: Ensure that the display and camera cables are properly routed and secured beneath the routing guides.

Great user manuals database on UserManuals.info


1. Follow the instructions in Before You Begin.

2. Remove the display assembly (see Removing the Display Assembly).


3. Gently push the display bezel outwards on each of the four sides to release the bezel from the display panel.

Replacing the Display Bezel

1. Follow the instructions in Before You Begin.

2. Starting at any corner, use your fingers to gently snap the bezel into place to secure it to the display panel.

3. Replace the display assembly (see Replacing the Display Assembly).
Display Panel

Removing the Display Panel

1. Follow the instructions in Before You Begin.

2. Remove the display assembly (see Removing the Display Assembly).

3. Remove the display bezel (see Removing the Display Bezel).

4. Remove the four screws securing the display panel to the display cover.

5. Using the camera cable pull-tab, disconnect the camera cable from the connector on the camera.
WARNING: The following instructions are not applicable to Edge-to-Edge display panels, which should not be disassembled.
CAUTION: Removal of the bezel from the display bottom cover requires extreme care to avoid damage to the bezel and the display panel.

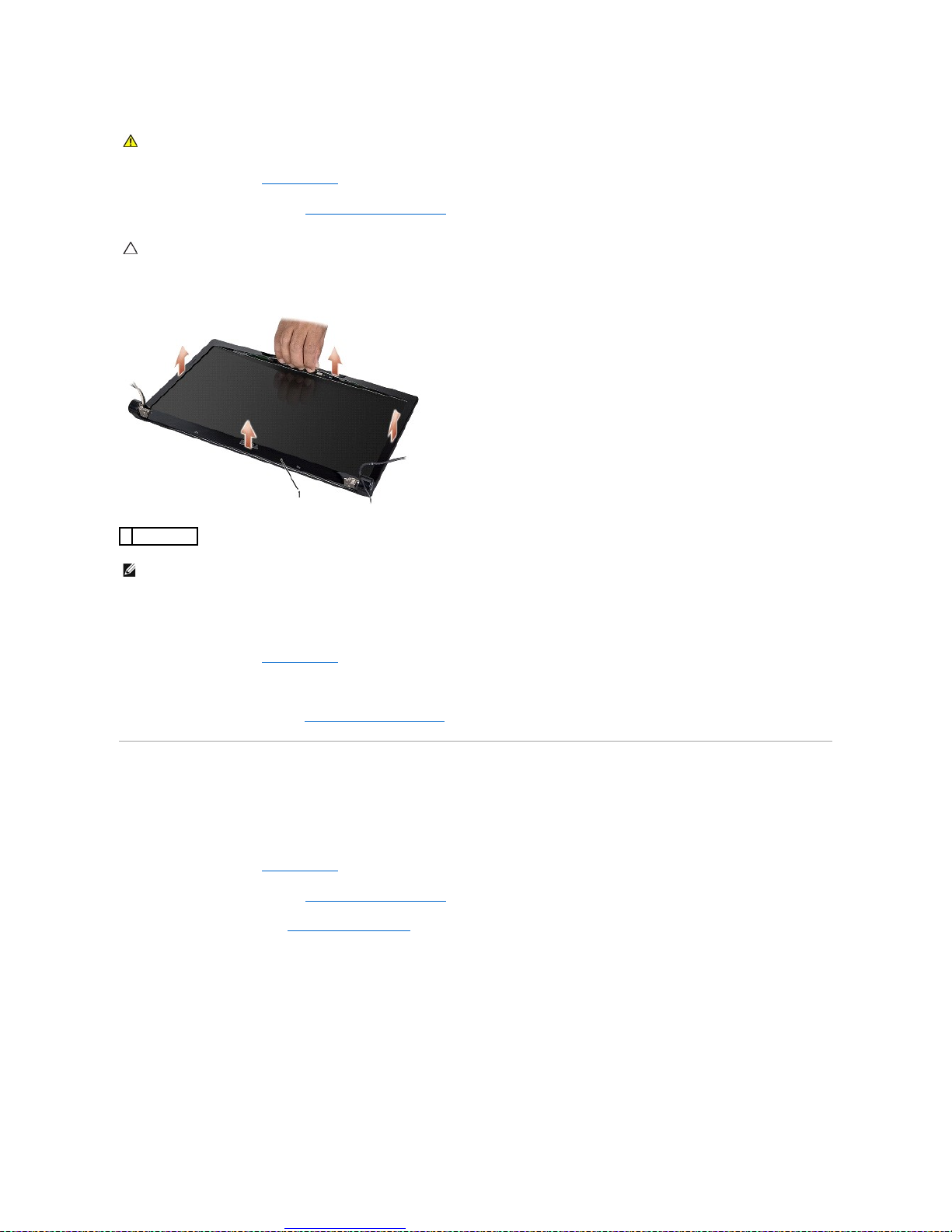

1
display bezel
NOTE: In some computers, the display bezel has a double-sided tape on both ends. To avoid damage to the display bezel, remove the display bezel
carefully to free it from the double-sided tape.

Great user manuals database on UserManuals.info

6. Lift the display panel out of the display cover.

7. Remove the four screws (two on each side of the display panel) securing the brackets to the display panel and remove the brackets.

8. Turn over the display panel.

9. Using the display cable pull-tab disconnect the display cable from the display board.

Replacing the Display Panel

1. Follow the instructions in Before You Begin.

2. Connect the display cable to the board at the back of the display panel.


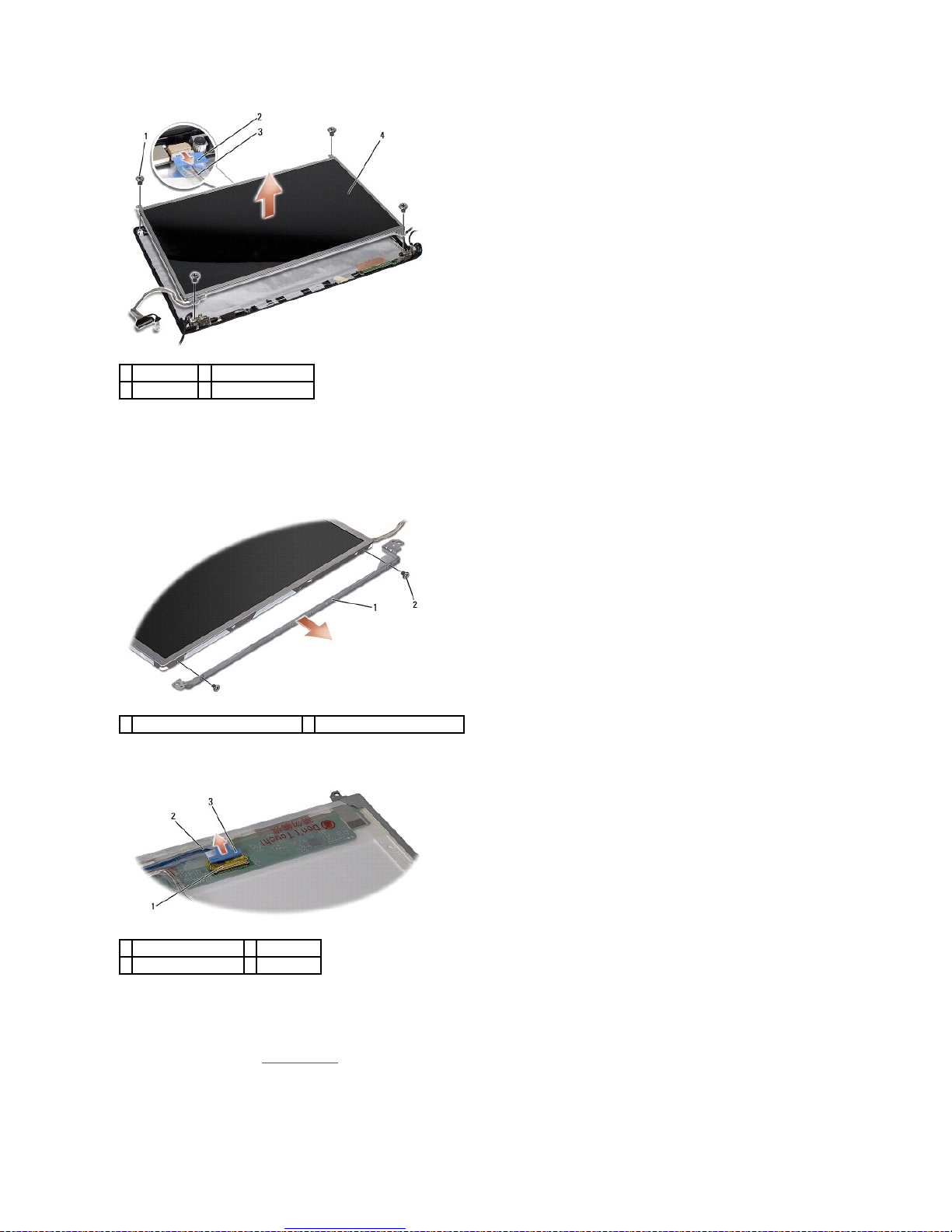

1
screws (4)
2
camera cable pull-tab
3
camera cable
4
display panel
1
display panel bracket (1 left, 1 right)
2
screws (4 total; 2 on each side)
1
display cable connector
2
display cable
3
display cable pull-tab



Great user manuals database on UserManuals.info
3. Replace the four screws (two on each side of the display panel) to secure the display brackets to the display panel.

4. Connect the camera cable to the connector on the camera.

5. Align the screw holes on the display bracket with the corresponding screw holes and guide pins on the display cover and gently lower the display panel
into place.

6. Replace the four screws that secure the display panel to the cover.

7. Replace the display bezel (see Replacing the Display Bezel).

8. Replace the display assembly (see Replacing the Display Assembly).
Display Hinges

Removing the Display Hinges

1. Follow the instructions in Before You Begin.

2. Remove the display assembly (see Removing the Display Assembly).

3. Remove the display panel without removing the display bracket (see Removing the Display Panel).

4. Remove the two screws (one on each side) securing the display hinges to the display cover.

5. Remove the display hinges.

Replacing the Display Hinges

1. Follow the instructions in Before You Begin.

2. Align the holes on the hinges with the holes on the display cover and replace the two screws (one on each side) that secure the display hinges to the
display cover.

3. Replace the display panel (see Replacing the Display Panel).

4. Replace the display assembly (see Replacing the Display Assembly).
Back to Contents Page

1
screws (2)
2
hinge (2)

Great user manuals database on UserManuals.info
Back to Contents Page
ExpressCard Board
DellStudio™1555ServiceManual
Removing the ExpressCard Board
Replacing the ExpressCard Board




Removing the ExpressCard Board

1. Follow the procedures in Before You Begin.

2. Remove the palm rest (see Removing the Palm Rest).

3. Disconnect the ExpressCard cables from the connectors on the system board.

4. Remove the four screws securing the ExpressCard board to the computer base cover and remove the board.
Replacing the ExpressCard Board

1. Connect the ExpressCard board cables to the system board connectors.

2. Place the ExpressCard board in position and replace the four screws to secure the board.


3. Replace the palm rest (see Replacing the Palm Rest).
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as the back panel) on the computer.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working
inside the computer.
1
ExpressCard board
2
screws (4)
3
ExpressCard cables


CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
