Dell™Inspiron™1100,5100,and5150ServiceManual
Before You Begin
System Components
Memory, CD or DVD Drive, Modem, and Mini PCI Card
Hard Drive
Keyboard
Display
EMI Shield, Video Card, and Palm Rest
Microprocessor Thermal-Cooling Assembly
Microprocessor Module
Speakers
System Board
Flashing the BIOS
Base Plastics
Pinout Assignments for I/O Connectors
Notes, Notices, and Cautions
Model PP07L and PP08L
June2003Rev.A01
Information in this document is subject to change without notice.
©2003DellComputerCorporation.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Computer Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Computer Corporation
disclaims any proprietary interest in trademarks and trade names other than its own.
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Great user manuals database on UserManuals.info
Back to Contents Page
Base Plastics
Dell™Inspiron™1100,5100,and5150ServiceManual
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the hard drive.
3. Remove the CD or DVD drive.
4. Remove the memory module(s).
5. Remove the modem.
6. Remove the Mini PCI card.
7. Remove the keyboard.
8. Remove the display assembly.
9. Remove the EMI shield.
10. Remove the video card.
11. Remove the palm rest.
12. Remove the microprocessor thermal-cooling assembly.
13. Remove the microprocessor.
14. Remove the speakers.
15. Remove the system board.
Back to Contents Page
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
Great user manuals database on UserManuals.info
Back to Contents Page
Before You Begin
Dell™Inspiron™1100,5100,and5150ServiceManual
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
Preparing to Work Inside the Computer
1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.
2. Save any work in progress and exit all open programs.
3. Turn off the computer and all attached devices.
4. Disconnect the computer from the electrical outlet.
5. Close the display and turn the computer upside down on a flat work surface.
6. Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay.
7. To avoid possible damage to the system board, wait 10 to 20 seconds and then disconnect any attached devices.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty. Read and follow the safety instructions in the Owner's Manual that came with the computer.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a microprocessor by its edges, not by its pins.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
NOTE: Ensure that the computer is off and not in a power management mode. If you cannot shut down the computer using the computer operating
system, press and hold the power button for 4 seconds.
NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.
1
battery
2
battery-bay latch release
Great user manuals database on UserManuals.info
8. Disconnect all other external cables from the computer.
9. Remove any installed PC Cards from the PC Card slot.
Recommended Tools
The procedures in this manual require the following tools:
l#1 Phillips screwdriver
l¼-inch flat-blade screwdriver
lSmall plastic scribe
lHex nut driver
lFlash BIOS update program CD
Computer Orientation

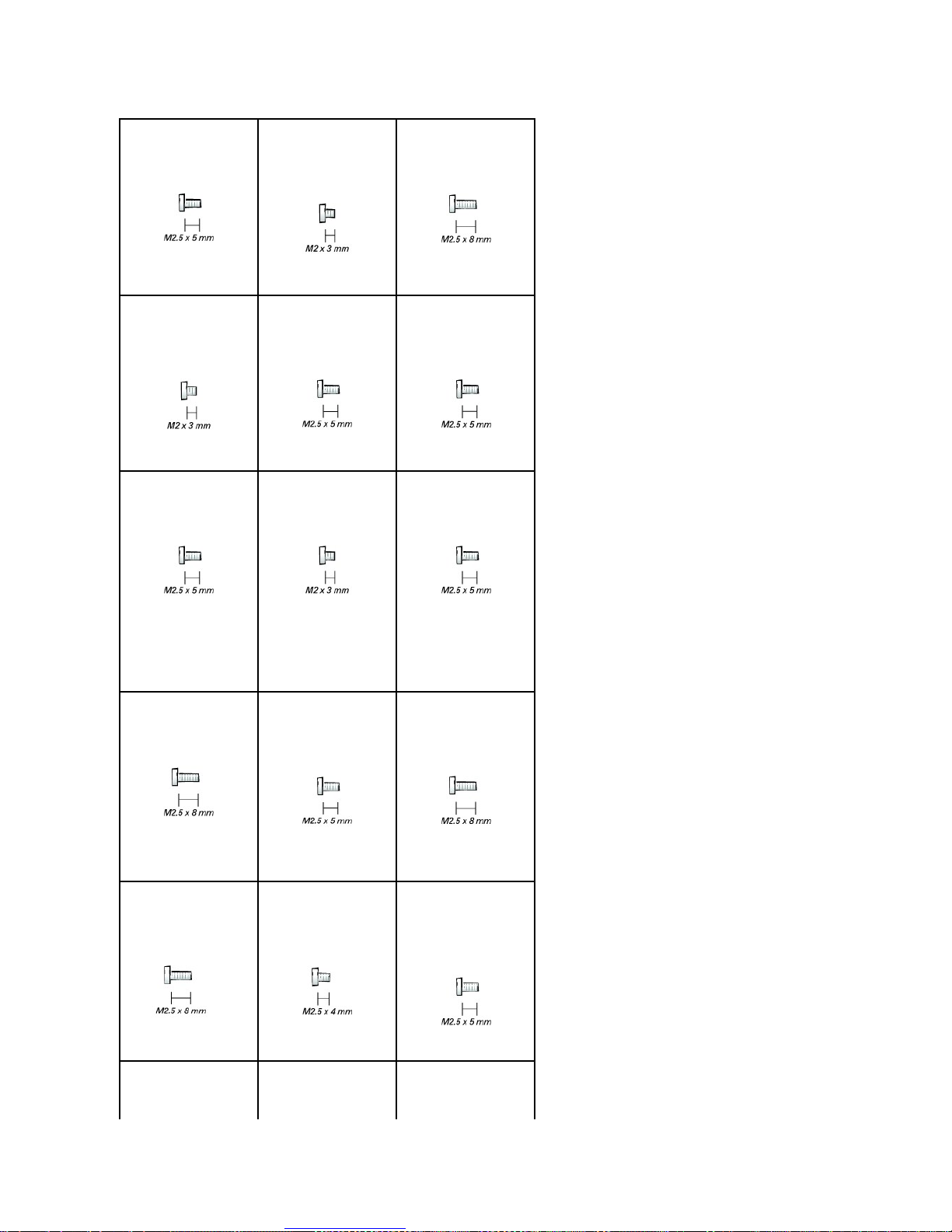

Screw Identification
When you are removing and replacing components, photocopy "Screw Identification" as a tool to lay out and keep track of the screws. The placemat provides
the number of screws and their sizes.
1
back
2
right
3
front
4
left
Great user manuals database on UserManuals.info
Hard Drive Door:
(2 each)
Modem to
System Board:
(2 each)
Optical Drive:
(1 each)
Keyboard
to Computer Base:
(4 each)
Display Assembly
to Back Panel:
(2 each)
Hinge Bracket
to Computer Base:
(4 each)
Display Bezel:
(5 each)
Screw Covers (2 each)
Display Bumpers (3 each)
Display Panel:
(8 each)
Display Latch:
(2 each)
EMI Shield:
(1 each)
Top of Palm Rest to
Computer Base:
(2 each)
Palm Rest to
Base Plastics:
(12 each)
Video Card
to System Board:
(2 each)
Palm Rest to
Battery Bay:
(1 each)
System Board to
Base Plastics:
(3 each, hard drive cage)
(2 each, optical drive cage)
Battery Bay Shield
to System Board:
(2 each)
Left Antenna
to Hard Drive and
Optical Drive Cages
(Inspiron™5100and5150
only):
Great user manuals database on UserManuals.info
Back to Contents Page
Flashing the BIOS
Dell™Inspiron™1100,5100,and5150ServiceManual
1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.
2. Insert the BIOS update program CD and turn on the computer.
Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the update is complete, the
computer will automatically reboot.
3. Press during POST to enter the system setup program.
4. Press to reset the computer defaults.
5. Press and press to save configuration changes.
6. Remove the flash BIOS update program CD from the drive and restart the computer.
Back to Contents Page
Great user manuals database on UserManuals.info
Back to Contents Page
Microprocessor Module
Dell™Inspiron™1100,5100,and5150ServiceManual
Removing the Microprocessor Module
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the EMI shield.
4. For the Inspiron 5150, remove the display panel and then remove the palm rest.
5. Remove the microprocessor thermal-cooling assembly.
6. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.
The ZIF-socket cam screw secures the microprocessor to the system board. Take note of the arrow on the ZIF-socket cam screw.
7. Use a microprocessor extraction tool to remove the microprocessor module.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
NOTICE: Press and hold the microprocessor down by applying slight pressure to the center of the microprocessor while turning the cam screw to
prevent intermittent contact between the cam screw and microprocessor.
NOTICE: To avoid damage to the microprocessor, hold the screwdriver so that it is perpendicular to the microprocessor when turning the cam screw.
NOTICE: When removing the microprocessor module, pull the module straight up. Be careful not to bend the pins on the microprocessor module.
1
ZIF-socket cam screw
2
ZIF socket
3
microprocessor module
4
pin-1 corner of
microprocessor
5
triangle on system board
Great user manuals database on UserManuals.info
Installing the Microprocessor Module
1. Align the pin-1 corner of the microprocessor module so that it points to the triangle on the system board, and insert the microprocessor module into the
ZIF socket.
When the microprocessor module is correctly seated, all four corners are aligned at the same height. If one or more corners of the module are higher
than the others, the module is not seated correctly.
2. Tighten the ZIF socket by turning the cam screw clockwise to secure the microprocessor module to the system board.
3. Wipe the thermal grease off of the microprocessor thermal-cooling assembly with a clean paper towel.
4. Squeeze all of the contents of the thermal grease packet (provided with the kit) on to the microprocessor thermal-cooling assembly.
5. Replace the microprocessor thermal-cooling assembly.
6. For the Inspiron 5150, replace the palm rest and then replace the display panel.
7. Replace the EMI shield.
8. Replace the keyboard.
9. Update the BIOS using a flash BIOS update program CD.
Back to Contents Page
NOTICE: Ensure that the cam lock is in the fully open position before seating the microprocessor module. Seating the microprocessor module properly in
the ZIF socket does not require force.
NOTICE: A microprocessor module that is not properly seated can result in an intermittent connection or permanent damage to the microprocessor and
ZIF socket.
NOTICE: Hold the microprocessor down while turning the cam screw to prevent intermittent contact between the cam screw and microprocessor.
Great user manuals database on UserManuals.info
Back to Contents Page
Display
Dell™Inspiron™1100,5100,and5150ServiceManual
Display Assembly
Display Bezel
Display Panel
Display Latch Assembly
Display Assembly
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the hard drive.
3. Remove the CD or DVD drive.
4. Remove the keyboard.
5. Close the display.
6. From the back of the computer, remove the two M2.5 x 5-mm screws labeled "circle D."
7. Open the display assembly approximately 180 degrees, and support the display assembly so that it does not open past this position.
8. Remove the two M2.5 x 5-mm screws from each hinge bracket.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
display assembly
Great user manuals database on UserManuals.info
9. Pull straight up on the pull-tab that is attached to the display-feed flex cable to disconnect the cable from the system board.
10. Lift the display assembly up and out of the computer base.
Display Bezel
2
M2.5 x 5-mm screws (4)
3
hinge brackets (2)
4
computer base
1
screw covers (2)
display bumpers (3)
2
M2.5 x 5-mm screws (5)
3
display bezel
4
display panel
5
M2 x 3-mm screws (8)
6
top cover
7
display-feed flex cable
Great user manuals database on UserManuals.info
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the display assembly.
4. Use a plastic scribe to pry the five screw covers out of the screw holes located on the front of the bezel.
5. Remove the five M2.5 x 5-mm screws located on the front of the bezel.
6. Starting at the bottom of the display panel, use your fingers to separate the bezel from the top cover and lift the inside edge of the bezel away from
the top cover.
Display Panel
Removing the Display Panel
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the display assembly.
4. Remove the display bezel.
5. Remove the four M2 x 3-mm screws on the each side of the display panel.
6. Lift the display panel out of the top cover.
7. Disconnect the top flex-cable connector from the display panel connector by peeling up the pull-tab and pulling the tab down and away from the display
panel connector.
8. Disconnect the bottom flex-cable connector from the inverter connector on the system board by peeling up the pull-tab and pulling the tab down and
away from the inverter connector.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
NOTICE: Carefully separate the bezel from the top cover to avoid damage to the bezel.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
display panel connector
2
pull-tab
3
top flex-cable connector
Great user manuals database on UserManuals.info
Installing the Display Panel
1. Connect the top flex-cable connector to the display panel connector.
2. Connect the bottom flex-cable connector to the inverter connector.
3. Lay the display panel in the top cover.
4. Route the display-feed flex cable so that it rests in the notch located in the bottom edge of the top cover.
5. Replace the eight M2 x 3-mm screws that secure the display panel to the top cover.
6. Replace the display bezel.
Display Latch Assembly
Removing the Display Latch Assembly
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the display assembly.
4. Remove the display bezel.
5. Remove the two M2.5 x 5-mm screws that secure the display latch assembly to the top cover.
6. Lift the display latch assembly up and out of the top cover.
1
inverter connector
2
bottom flex-cable
connector
3
pull-tab
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
Great user manuals database on UserManuals.info
Installing the Display Latch Assembly
1. Attach one end of the spring to the spring hook on the left edge of the display latch, and attach the other end of the spring to the spring hook in the
top cover.
2. Align the screw holes in the display latch assembly with the screw holes in the top cover.
3. Replace the two M2.5 x 5-mm screws that secure the display latch assembly to the top cover.
Back to Contents Page
1
spring
2
spring hook (display latch)
3
display latch assembly
4
M2.5 x 5-mm screws (2)
5
top cover
6
spring hook (top cover)
Great user manuals database on UserManuals.info
Back to Contents Page
Hard Drive
Dell™Inspiron™1100,5100,and5150ServiceManual
Removing the Hard Drive
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Turn the computer over, and remove the two M2.5 x 5-mm hard drive screws.
3. Slide the hard drive out of the computer.
Installing the Hard Drive
1. Remove the new drive from its packaging.
Save the original packaging for storing or shipping the hard drive.
2. Insert the drive into the bay, and push the hard drive until it is fully seated in the bay.
CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.
CAUTION: Before working inside your computer, read the safety instructions in your Owner's Manual.
NOTICE: To prevent data loss, shut down your computer before removing the hard drive. Do not remove the hard drive while the computer is on, in
standby mode, or in hibernate mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
1
M2.5 x 5-mm screws (2)
2
hard drive
NOTICE: When the hard drive is not in the computer, store it in protective antistatic packaging. See "Protecting Against Electrostatic Discharge" in your
Owner's Manual.
NOTICE: Use firm and even pressure to slide the drive into place. If you use excessive force, you may damage the connector.
Great user manuals database on UserManuals.info
Back to Contents Page
Keyboard
Dell™Inspiron™1100,5100,and5150ServiceManual
Removing the Keyboard
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Use a small flat-blade screwdriver or plastic scribe to lift the notched right edge of the hinge cover, and pry the cover loose from the hinges and
computer base.
3. Lift the hinge cover up and away from the hinges and computer base.
4. Remove the four M2 x 3-mm keyboard screws.
CAUTION: BeforeworkinginsideyourDell™computer,readthesafetyinstructionsinyourOwner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
notched edge
2
hinge cover
1
M2 x 3-mm screws (4)
2
keyboard
Great user manuals database on UserManuals.info
5. Lift the top of the keyboard out of the computer base, and pull the keyboard out at an angle (towards the display). Rest the keyboard face down on
the palm rest.
6. Grasp the keyboard flex cable near the connector, and pull up on the flex cable to disconnect it from the interface connector on the system board.
7. Remove the keyboard from the computer base.
Installing the Keyboard
1. Connect the keyboard connector of the replacement keyboard to the interface connector on the system board.
2. Insert the four securing tabs on the keyboard into their respective slots in the palm rest, and lower the keyboard into the computer base.
NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the
keyboard.
1
keyboard connector
2
interface connector
NOTICE: To avoid damage to the connector pins, press the keyboard connector evenly into the interface connector on the system board, and do not
reverse the keyboard connector.
1
securing tabs (4)
2
keyboard connector
3
interface connector
4
M2 x 3-mm screws (4)
Great user manuals database on UserManuals.info
Ensure that all four securing tabs are engaged before trying to completely seat the keyboard.
3. Replace the four M2 x 3-mm keyboard screws.
4. To replace the hinge cover, first insert the left side of the hinge cover into the notches. Snap down the hinge cover, and ensure that it is flush with the
palm rest.
Back to Contents Page
Great user manuals database on UserManuals.info
Back to Contents Page
EMI Shield, Video Card, and Palm Rest
Dell™Inspiron™1100,5100,and5150ServiceManual
EMI Shield
Video Card
Palm Rest
EMI Shield
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Pull up on the pull-tab that is attached to the display-feed flex cable connector to remove the connector from the system board.
4. Remove the one M2.5 x 8-mm screw that secures the EMI shield to the system board, and pull the EMI shield out of the computer base.
Video Card
Removing the Video Card
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the EMI shield.
4. Remove the two M2.5 x 8-mm screws that secure the video card to the system board.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
This manual suits for next models
4
Other Dell Laptop manuals
Dell
Dell Precision 7530 User manual
Dell
Dell Inspiron 1545 Service manual User manual
Dell
Dell Inspiron 20 User manual
Dell
Dell Alienware M15x - GAMING NOTEBOOK - COSMIC User manual
Dell
Dell Inspiron X200 User manual
Dell
Dell Inspiron 13 7353 User manual
Dell
Dell Inspiron 600m User manual
Dell
Dell Inspiron 2600 User manual
Dell
Dell Inspiron 17 7000 2-in-1 Series Manual
Dell
Dell Lattitude D600 User guide
Dell
Dell Latitude 100L User manual
Dell
Dell Alienware x14 R2 Operation and maintenance manual
Dell
Dell Inspiron 7500 User manual
Dell
Dell 1525 - Inspiron - Pentium Dual Core 1.86 GHz User manual
Dell
Dell Alienware 18 User manual
Dell
Dell Vostro 15 3578 User manual
Dell
Dell Latitude E5440 Owner's manual
Dell
Dell Inspiron 7500 Operation and maintenance manual
Dell
Dell Latitude 7210 2-in-1 User manual
Dell
Dell LATITUDE XT2 XFR User manual
