CHAPTER 1: SETTING UP YOUR LAPTOP
CHAPTER 1:
SETTINGUPYOURLAPTOP

CHAPTER 1: SETTING UP YOUR LAPTOP
10
Before Setting Up Your Laptop
Congratulations on the purchase of your Alienware M11x!
Read all safety and setup instructions before connecting your new laptop. Begin by carefully
opening the box and removing all components that were shipped to you.
Before setting up your laptop or components, see the included invoice to verify that all items
ordered are present and be sure to inspect all items for any physical damage that may have
occurred during shipment. Report any missing components or damaged items to customer
service within 5 days of receiving the shipment. Anything reported missing or damaged after
the rst 5 days of receiving a shipment will not be honored. Some of the most common items
to check for include:
•Laptop and AC adapter with power cable
•Microsoft CD‑key located at the bottom of the laptop
•Monitor with power cable and video cable (if ordered)
•Keyboard (if ordered)
•Mouse (if ordered)
•Multimedia speakers and sub‑woofer (if ordered)
•Joystick controllers (if ordered)
You may also need a small athead and/or a Phillips head screwdriver for connecting peripheral
cables to the laptop.

CHAPTER 1: SETTING UP YOUR LAPTOP
11
Product Documentation and Media
e documentation that ships with your Alienware laptop is designed to provide answers to
many of the questions that may arise as you explore your new laptop’s capabilities. You may see
the documentation for technical information or general use as needed to answer questions in
the future, or aid you in nding answers and solutions. e media included with your laptop
is referenced in some sections of the documentation and may be needed to complete certain
tasks. As always, our technical support staff is available to assist you.
Placing Your Laptop
WARNING: Do not place the laptop near or over a radiator or heating vent. If your laptop
is placed in a cabinet, ensure that adequate ventilation is provided. Do not place the
laptop in a humid location or in any area where the laptop may be exposed to rain or
water. Be careful not to spill liquid of any kind on or into the laptop.
When placing your laptop, ensure that:
•It is placed on a surface that is both level and stable.
•e power and other cable connectors are not jammed between the laptop and a wall –
or any other object.
•Nothing obstructs airow in front of, behind, or below the laptop.
•e laptop has enough room so that optical drives and other external storage drives can
be easily accessed.

CHAPTER 1: SETTING UP YOUR LAPTOP
12
Connect the AC Adapter
WARNING: e AC adapter works with electrical outlets worldwide. However, power
connectors and power strips vary among countries. Using an incompatible cable or
improperly connecting the cable to a power strip or electrical outlet may cause re or
equipment damage.

CHAPTER 1: SETTING UP YOUR LAPTOP
13

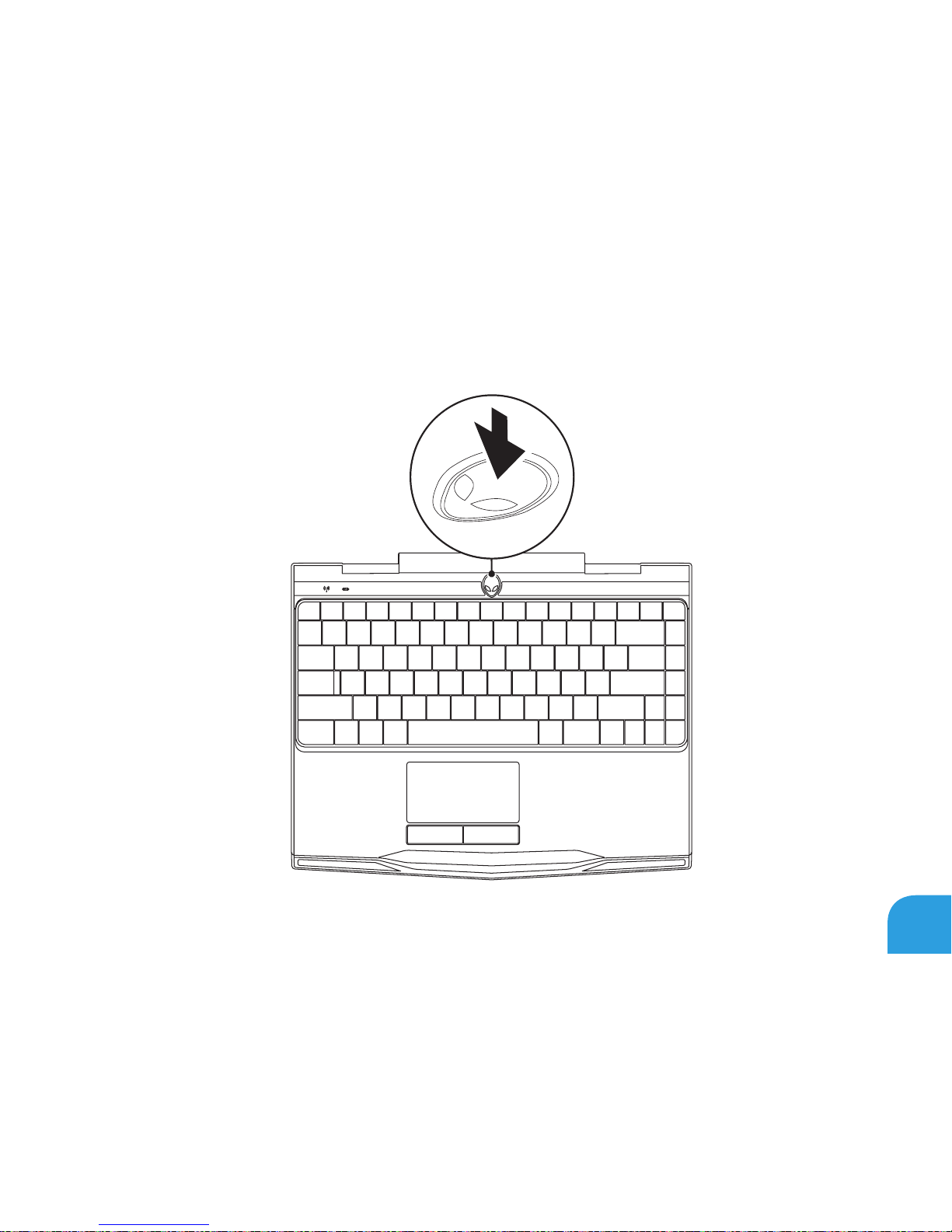

Press the Power Button

CHAPTER 1: SETTING UP YOUR LAPTOP
14

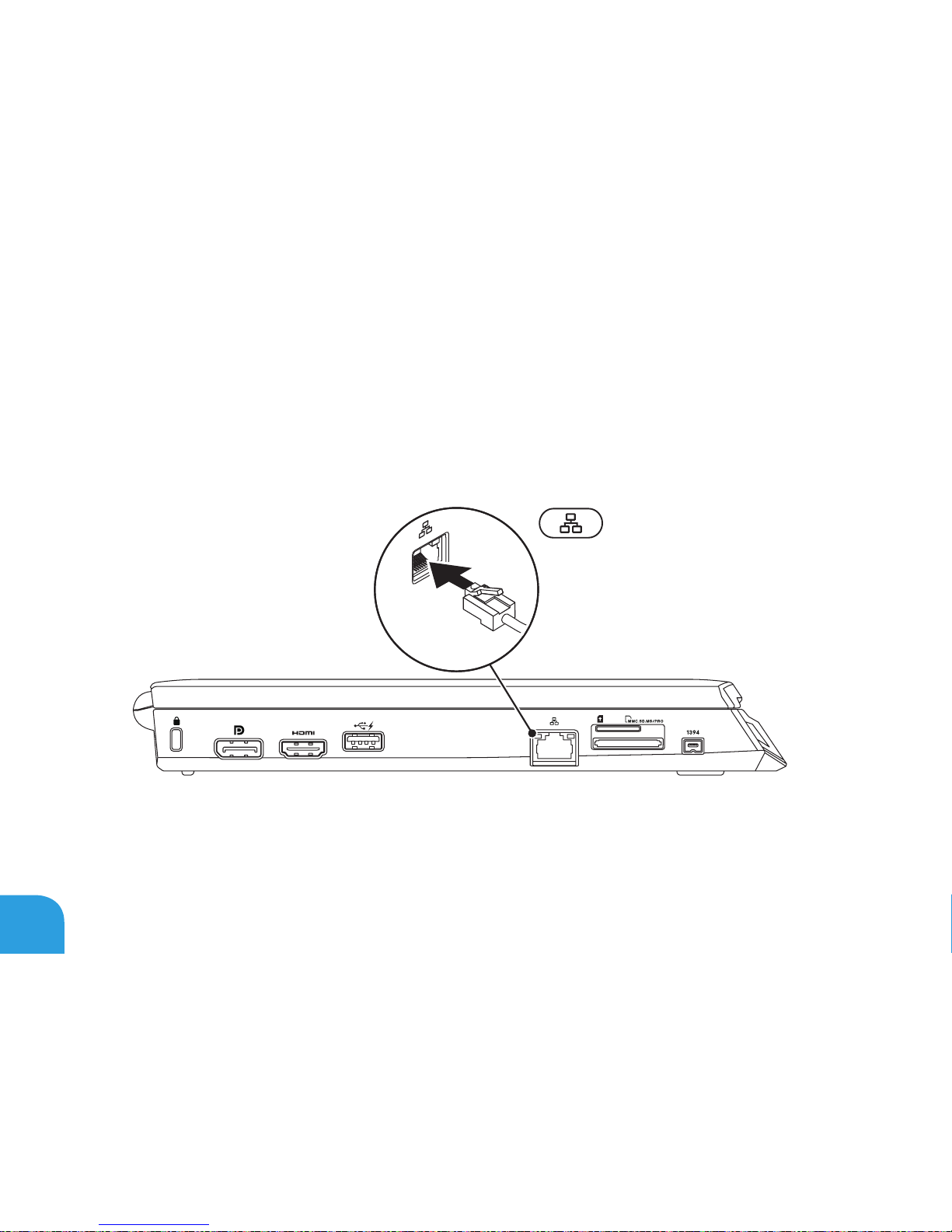

Connect the Network Cable (Optional)

CHAPTER 1: SETTING UP YOUR LAPTOP
15
Set Up Microsoft Windows
Your computer is precongured with the Microsoft Windows operating system. To set up
Windows for the rst time, follow the instructions on the screen. ese steps are mandatory
and may take some time to complete. e Windows setup screens will take you through
several procedures including accepting license agreements, setting preferences, and setting
up an Internet connection.
CAUTION: Do not interrupt the operating system’s setup process. Doing so may render
your computer unusable and you will need to reinstall the operating system.
NOTE: For optimal performance of your computer, it is recommended that you download
and install the latest BIOS and drivers for your computer available at support.dell.com.
NOTE: For more information on the operating system and features, see
support.dell.com/MyNewDell.
NOTE: It is recommended that you create a full system backup as soon as you set up
Microsoft Windows.

CHAPTER 1: SETTING UP YOUR LAPTOP
16
Set Up Wireless Display (Optional)
e Intel wireless display feature allows you to share your computer display to a TV without
the use of cables. You must connect a wireless display adapter to your TV before setting up
wireless display.
You will require the following to set up wireless display on your computer:
Transmitter Intel Centrino wireless WLAN card
Receiver Push2TV adapter for Intel Wireless Display
NOTE: If your computer supports the wireless display feature, the Intel Wireless Display
icon will be available on your Windows desktop.

CHAPTER 1: SETTING UP YOUR LAPTOP
17
To set up wireless display:
1. Turn on your computer.
2. Ensure that wireless is enabled. For more information, see “Using the Wireless Control“ on
page 44.
3. Connect the wireless display adapter to theTV.
4. Turn on the TV and the wireless display adapter.
5. Select the appropriate video source for your TV, such as HDMI1, HDMI2, or S-Video.
6. Click the Intel Wireless Display icon on the desktop.
e Intel Wireless Display window appears.
7. Select Scan for available displays.
8. Select your wireless display adapter from the Detected wireless displays list.
9. Enter the security code that appears on yourTV.

CHAPTER 1: SETTING UP YOUR LAPTOP
18
Connect to the Internet (Optional)
Setting Up a Wired Connection
•If you are using a dial‑up connection, connect the telephone line to the optional external
USB modem and to the telephone wall jack before you set up your Internet connection.
•If you are using a DSL or cable/satellite modem connection, contact your ISP or cellular
telephone service provider for setup instructions.
To complete setting up your wired Internet connection, follow the instructions in “SettingUp
Your Internet Connection” onpage20.
