Dell Inspiron 14 7000 Series User manual

Inspiron 14
7000 Series
Service Manual
Computer Model: Inspiron 7447
Regulatory Model: P55G
Regulatory Type: P55G001

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better
use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss
of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
Copyright ©2014 Dell Inc. All rights reserved. This product is protected by U.S. and
international copyright and intellectual property laws. Dell™and the Dell logo are trademarks
of Dell Inc. in the United States and/or other jurisdictions. All other marks and names
mentioned herein may be trademarks of their respective companies.
2014 - 07
Rev. A00

Contents
Before Working Inside Your Computer...................................9
Before You Begin .............................................................................................. 9
Safety Instructions............................................................................................. 9
Recommended Tools................................................................ 11
After Working Inside Your Computer.................................... 12

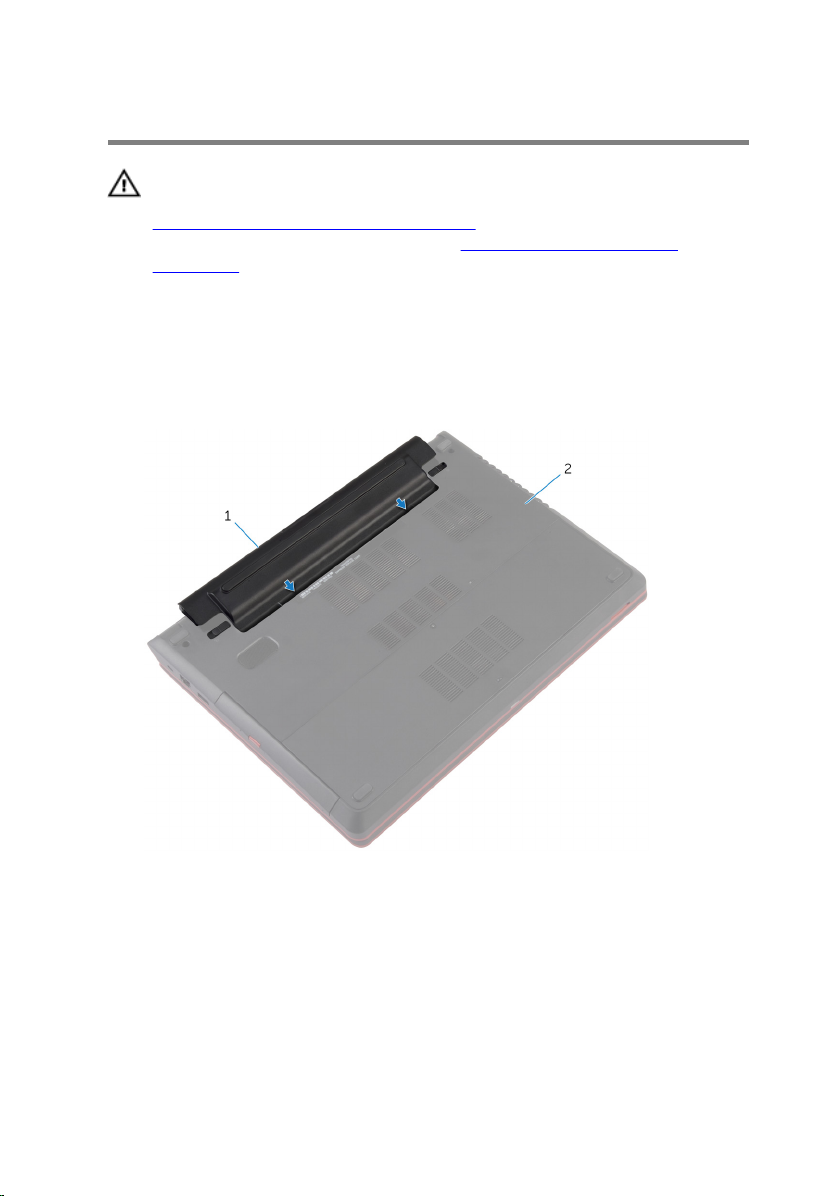

Removing the Battery............................................................... 13
Procedure.........................................................................................................13
Replacing the Battery............................................................... 14
Procedure.........................................................................................................14
Removing the Base Cover........................................................16
Prerequisites.....................................................................................................16
Procedure.........................................................................................................16
Replacing the Base Cover........................................................ 17
Procedure......................................................................................................... 17
Post-requisites..................................................................................................17

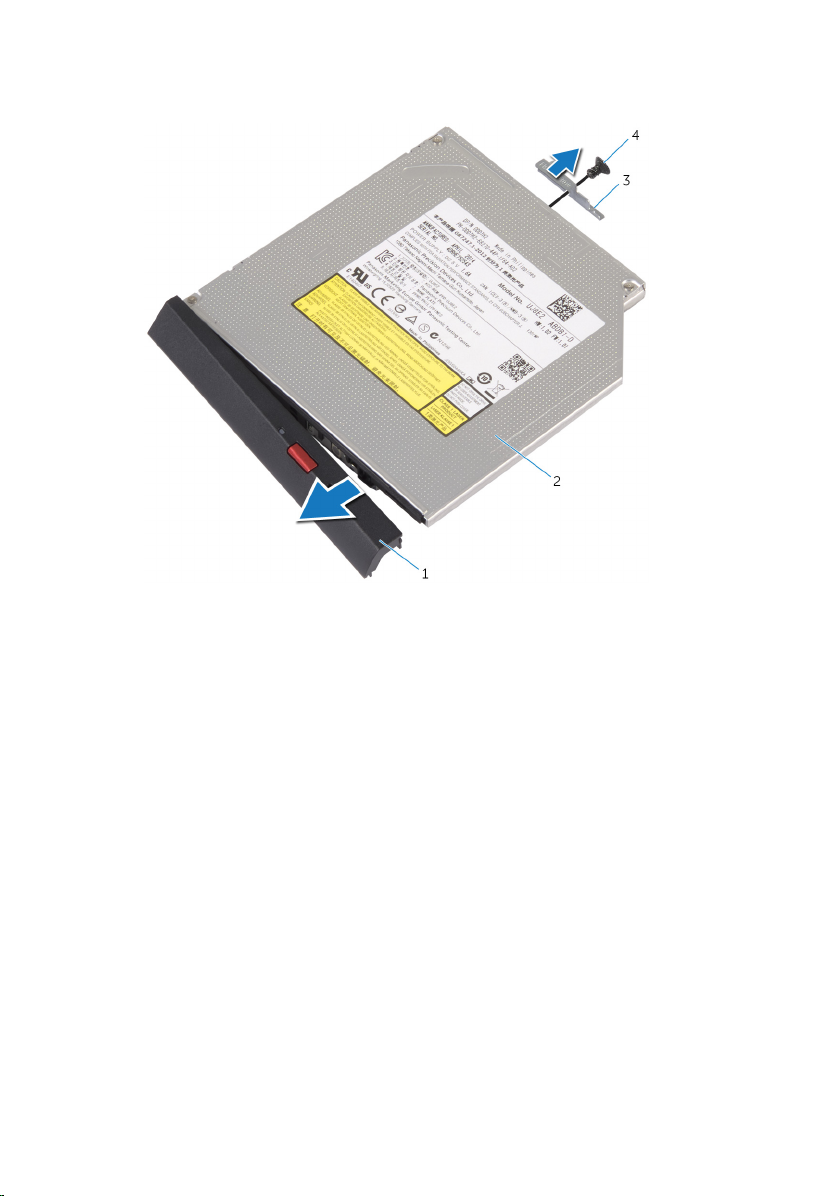

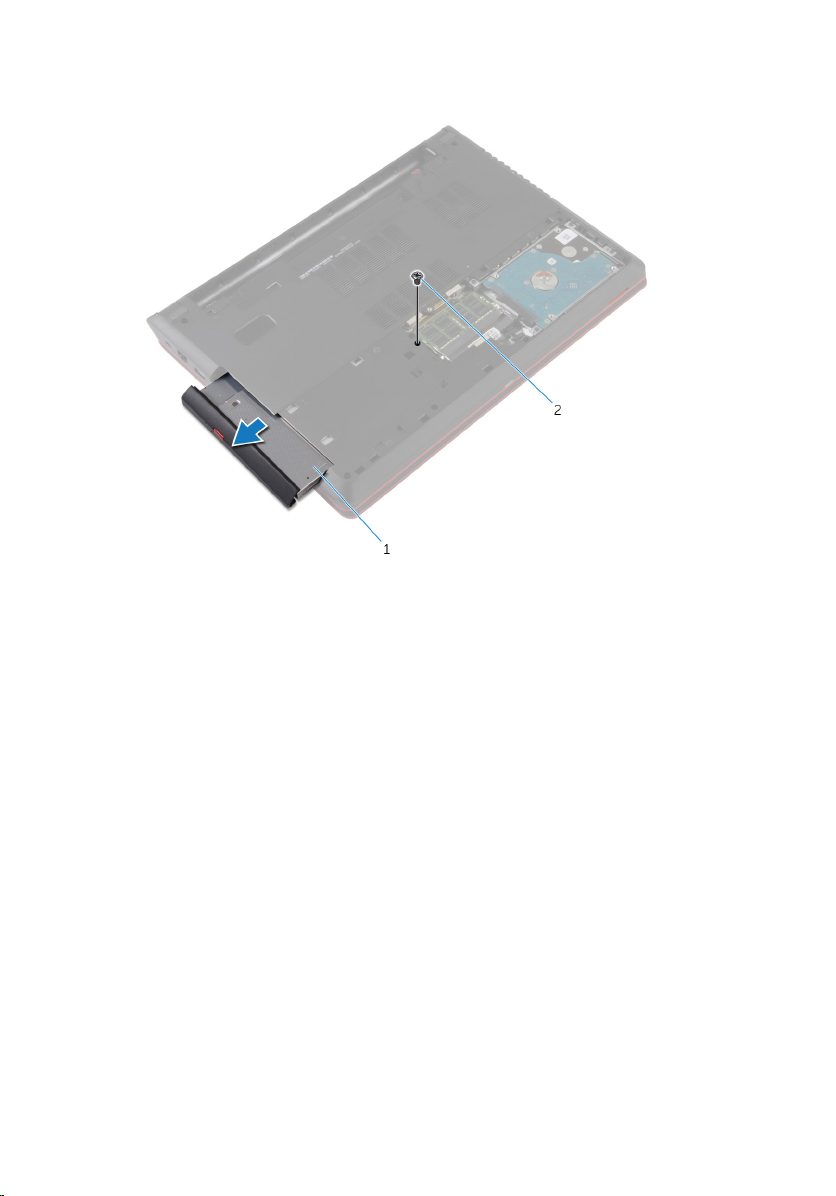

Removing the Optical Drive.................................................... 18
Prerequisites.....................................................................................................18
Procedure.........................................................................................................18
Replacing the Optical Drive.....................................................21
Procedure.........................................................................................................21
Post-requisites................................................................................................. 21

Removing the Memory Module(s)..........................................22
Prerequisites.....................................................................................................22
Procedure.........................................................................................................22
Replacing the Memory Module(s).......................................... 24
Procedure........................................................................................................ 24
Post-requisites................................................................................................. 25
Removing the Hard Drive.........................................................26
Prerequisites.....................................................................................................26
Procedure........................................................................................................ 26
Replacing the Hard Drive.........................................................29
Procedure........................................................................................................ 29
Post-requisites.................................................................................................29
Removing the Keyboard.......................................................... 30
Prerequisites.................................................................................................... 30
Procedure........................................................................................................ 30
Replacing the Keyboard...........................................................33
Procedure.........................................................................................................33
Post-requisites................................................................................................. 33
Folding the Keyboard Cables.......................................................................... 33
Removing the Wireless Card................................................... 37
Prerequisites.....................................................................................................37
Procedure.........................................................................................................37
Replacing the Wireless Card................................................... 39
Procedure........................................................................................................ 39
Post-requisites.................................................................................................39

Removing the Palm Rest..........................................................40
Prerequisites.................................................................................................... 40
Procedure........................................................................................................ 40
Replacing the Palm Rest.......................................................... 45
Procedure........................................................................................................ 45
Post-requisites.................................................................................................45
Removing the Coin-Cell Battery............................................ 46
Prerequisites.................................................................................................... 46
Procedure........................................................................................................ 46
Replacing the Coin-Cell Battery............................................ 48
Procedure........................................................................................................ 48
Post-requisites.................................................................................................48
Removing the I/O Board..........................................................49
Prerequisites.................................................................................................... 49
Procedure........................................................................................................ 49
Replacing the I/O Board...........................................................51
Procedure.........................................................................................................51
Post-requisites................................................................................................. 51
Removing the Fan......................................................................52
Prerequisites.....................................................................................................52
Procedure.........................................................................................................52
Replacing the Fan......................................................................54
Procedure........................................................................................................ 54
Post-requisites.................................................................................................54

Removing the System Board................................................... 55
Prerequisites.....................................................................................................55
Procedure.........................................................................................................55
Replacing the System Board................................................... 59
Procedure........................................................................................................ 59
Post-requisites.................................................................................................59
Entering the Service Tag in the BIOS..............................................................60
Removing the Heat Sink...........................................................61
Prerequisites.....................................................................................................61
Procedure.........................................................................................................61
Replacing the Heat Sink...........................................................63
Procedure........................................................................................................ 63
Post-requisites.................................................................................................63
Removing the Power-Adapter Port....................................... 64
Prerequisites.................................................................................................... 64
Procedure........................................................................................................ 64
Replacing the Power-Adapter Port........................................66
Procedure........................................................................................................ 66
Post-requisites.................................................................................................66
Removing the Display Assembly.............................................67
Prerequisites.....................................................................................................67
Procedure.........................................................................................................67
Replacing the Display Assembly.............................................70
Procedure........................................................................................................ 70
Post-requisites.................................................................................................70

Removing the Display Bezel.................................................... 71
Prerequisites..................................................................................................... 71
Procedure......................................................................................................... 71
Replacing the Display Bezel.................................................... 73
Procedure.........................................................................................................73
Post-requisites................................................................................................. 73
Removing the Display Panel....................................................74
Prerequisites.....................................................................................................74
Procedure.........................................................................................................75
Replacing the Display Panel.................................................... 78
Procedure.........................................................................................................78
Post-requisites................................................................................................. 78
Removing the Display Hinge and Bracket Assembly.......... 79
Prerequisites.....................................................................................................79
Procedure.........................................................................................................79
Replacing the Display Hinge and Bracket Assembly...........81
Procedure.........................................................................................................81
Post-requisites................................................................................................. 81
Removing the Camera..............................................................82
Prerequisites.................................................................................................... 82
Procedure........................................................................................................ 82
Replacing the Camera..............................................................84
Procedure........................................................................................................ 84
Post-requisites.................................................................................................84

Removing the Speakers............................................................85
Prerequisites.....................................................................................................85
Procedure........................................................................................................ 85
Replacing the Speakers............................................................ 87
Procedure.........................................................................................................87
Post-requisites................................................................................................. 87
Flashing the BIOS...................................................................... 88
Getting Help and Contacting Dell......................................... 89
Self-Help Resources........................................................................................89
Contacting Dell................................................................................................89

Before Working Inside Your
Computer
CAUTION: To avoid damaging the components and cards, handle
them by their edges and avoid touching pins and contacts.
NOTE: The images in this document may differ from your computer
depending on the configuration you ordered.
Before You Begin
1 Save and close all open files and exit all open applications.
2 Shut down your computer.
– Windows 8.1: On the Start screen, click or tap the power icon →
Shut down.
– Windows 7: Click or tap Start → Shut down .
NOTE: If you are using a different operating system, see the
documentation of your operating system for shut-down
instructions.
3 Disconnect your computer and all attached devices from their electrical
outlets.
4 Disconnect all cables such as telephone cables, network cables and so
on, from your computer.
5 Disconnect all attached devices and peripherals, such as keyboard,
mouse, monitor, and so on, from your computer.
6 Remove any media card and optical disc from your computer, if
applicable.
Safety Instructions
Use the following safety guidelines to protect your computer from potential
damage and ensure your personal safety.
WARNING: Before working inside your computer, read the safety
information that shipped with your computer. For more safety best
practices, see the Regulatory Compliance home page at dell.com/
regulatory_compliance.
9

WARNING: Disconnect all power sources before opening the
computer cover or panels. After you finish working inside the
computer, replace all covers, panels, and screws before connecting to
the power source.
CAUTION: To avoid damaging the computer, make sure that the work
surface is flat and clean.
CAUTION: To avoid damaging the components and cards, handle
them by their edges and avoid touching pins and contacts.
CAUTION: Only a certified service technician is authorized to remove
the computer cover and access any of the components inside the
computer. See the safety instructions for complete information about
safety precautions, working inside your computer, and protecting
against electrostatic discharge.
CAUTION: Before touching anything inside your computer, ground
yourself by touching an unpainted metal surface, such as the metal at
the back of the computer. While you work, periodically touch an
unpainted metal surface to dissipate static electricity, which could
harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on
its pull-tab, not on the cable itself. Some cables have connectors with
locking tabs or thumb-screws that you must disengage before
disconnecting the cable. When disconnecting cables, keep them
evenly aligned to avoid bending any connector pins. When connecting
cables, make sure that the ports and connectors are correctly oriented
and aligned.
CAUTION: To disconnect a network cable, first unplug the cable from
your computer and then unplug the cable from the network device.
CAUTION: Press and eject any installed card from the media-card
reader.
10

Recommended Tools
The procedures in this document may require the following tools:
• Philips screwdriver
• Plastic scribe
11

After Working Inside Your
Computer
CAUTION: Leaving stray or loose screws inside your computer may
severely damage your computer.
1 Replace all screws and make sure that no stray screws remain inside your
computer.
2 Connect any external devices, peripherals, and cables you removed
before working on your computer.
3 Replace any media cards, discs, and any other part(s) that you removed
before working on your computer.
4 Connect your computer and all attached devices to their electrical
outlets.
5 Turn on your computer.
12

Removing the Battery
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before Working Inside Your Computer. After working inside your
computer, follow the instructions in After Working Inside Your
Computer. For more safety best practices, see the Regulatory
Compliance home page at dell.com/regulatory_compliance.
Procedure
1 Close the display and turn the computer over.
2 Slide the battery-release latches to the unlock position.
3 Using your fingertips, lift the battery at an angle and remove the battery
off the computer base.
1 battery 2 battery-release latches (2)
3 computer base
4 Turn the computer over, open the display, and press the power button
for five seconds to ground the system board.
13

Replacing the Battery
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before Working Inside Your Computer. After working inside your
computer, follow the instructions in After Working Inside Your
Computer. For more safety best practices, see the Regulatory
Compliance home page at dell.com/regulatory_compliance.
Procedure
1 Insert the battery at an angle into the battery bay and align the tabs on
the battery with the slots on the battery bay.
1 battery 2 computer base
14

2 Press the battery down until it snaps into place.
1 battery 2 computer base
3 Turn the computer over and open the display as far as possible.
15

Removing the Base Cover
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before Working Inside Your Computer. After working inside your
computer, follow the instructions in After Working Inside Your
Computer. For more safety best practices, see the Regulatory
Compliance home page at dell.com/regulatory_compliance.
Prerequisites
Remove the battery.
Procedure
1 Loosen the captive screw that secures the base cover to the computer
base.
2 Pry and lift the base cover off the computer base.
1 captive screw 2 base cover
16

Replacing the Base Cover
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before Working Inside Your Computer. After working inside your
computer, follow the instructions in After Working Inside Your
Computer. For more safety best practices, see the Regulatory
Compliance home page at dell.com/regulatory_compliance.
Procedure
1 Slide the tabs on the base cover into the slots on the computer base and
snap the base cover into place.
2 Tighten the captive screw that secures the base cover to the computer
base.
Post-requisites
Replace the battery.
17

Removing the Optical Drive
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before Working Inside Your Computer. After working inside your
computer, follow the instructions in After Working Inside Your
Computer. For more safety best practices, see the Regulatory
Compliance home page at dell.com/regulatory_compliance.
Prerequisites
1 Remove the battery.
2 Remove the base cover.
Procedure
1 Remove the screw that secures the optical-drive assembly to the
computer base.
18

2 Using your fingertips, slide the optical-drive assembly out of the optical-
drive bay.
1 optical-drive assembly 2 screw
3 Carefully pull the optical-drive bezel and remove it from the optical drive.
19

4 Remove the screw that secures the optical-drive bracket to the optical-
drive assembly and remove the optical-drive bracket.
1 optical-drive bezel 2 optical drive
3 optical-drive bracket 4 screw
