Dell™ Inspiron™ 1428 Service
Manual

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Microsoft
and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United
States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Regulatory Model FT01
October 2009 Rev. A00

Contents 3
Contents
1 Before You Begin. . . . . . . . . . . . . . . . . . . . 9
Recommended Tools. . . . . . . . . . . . . . . . . . . . 9
Turning Off Your Computer. . . . . . . . . . . . . . . . . 9
Before Working Inside Your Computer . . . . . . . . . 10
2Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Removing the Battery . . . . . . . . . . . . . . . . . . 13
Replacing the Battery . . . . . . . . . . . . . . . . . . 14
3 Hinge Cover . . . . . . . . . . . . . . . . . . . . . . . 15
Removing the Hinge Cover . . . . . . . . . . . . . . . 15
Replacing the Hinge Cover . . . . . . . . . . . . . . . 16
4 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . 17
Removing the Keyboard . . . . . . . . . . . . . . . . . 17
Replacing the Keyboard . . . . . . . . . . . . . . . . . 19
5 Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . 21
Removing the Hard Drive . . . . . . . . . . . . . . . . 22

4Contents
Replacing the Hard Drive . . . . . . . . . . . . . . . . 24
6 Optical Drive . . . . . . . . . . . . . . . . . . . . . 25
Removing the Optical Drive . . . . . . . . . . . . . . . 25
Replacing the Optical Drive . . . . . . . . . . . . . . . 26
7 Memory Module(s). . . . . . . . . . . . . . . . . 29
Removing the Memory Module(s) . . . . . . . . . . . . 29
Replacing the Memory Module(s) . . . . . . . . . . . . 31
8 Base Cover. . . . . . . . . . . . . . . . . . . . . . . 33
Removing the Base Cover . . . . . . . . . . . . . . . . 33
Replacing the Base Cover . . . . . . . . . . . . . . . . 34
9 Wireless Mini-Card . . . . . . . . . . . . . . . . 35
Removing the Mini-Card . . . . . . . . . . . . . . . . . 35
Replacing the Mini-Card. . . . . . . . . . . . . . . . . 37
10 Processor Fan and Heat Sink Assembly 39
Removing the Processor Fan and Heat Sink Assembly . 39
Replacing the Processor Fan and Heat Sink Assembly. 41

Contents 5
11 Processor Module . . . . . . . . . . . . . . . . . . 43
Removing the Processor Module . . . . . . . . . . . . 43
Replacing the Processor Module . . . . . . . . . . . . 44
12 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Display Assembly . . . . . . . . . . . . . . . . . . . . 47
Removing the Display Assembly . . . . . . . . . . 47
Replacing the Display Assembly . . . . . . . . . . 50
Display Bezel . . . . . . . . . . . . . . . . . . . . . . 51
Removing the Display Bezel . . . . . . . . . . . . 51
Replacing the Display Bezel . . . . . . . . . . . . 52
Display Panel . . . . . . . . . . . . . . . . . . . . . . 53
Removing the Display Panel . . . . . . . . . . . . 53
Replacing the Display Panel . . . . . . . . . . . . 54
Display-Panel Bracket. . . . . . . . . . . . . . . . . . 54
Removing the Display-Panel Bracket . . . . . . . 54
Replacing the Display-Panel Bracket . . . . . . . 55
Display-Panel Cable . . . . . . . . . . . . . . . . . . . 56
Removing the Display-Panel Cable. . . . . . . . . 56
Replacing the Display-Panel Cable. . . . . . . . . 57
13 Inverter Board . . . . . . . . . . . . . . . . . . . . . 59
Removing the Inverter Board . . . . . . . . . . . . . . 59
Replacing the Inverter Board . . . . . . . . . . . . . . 60

6Contents
14 Camera Module . . . . . . . . . . . . . . . . . . . 63
Removing the Camera Module. . . . . . . . . . . . . . 63
Replacing the Camera Module . . . . . . . . . . . . . 64
15 Palm Rest Assembly . . . . . . . . . . . . . . . 67
Removing the Palm Rest Assembly . . . . . . . . . . . 67
Replacing the Palm Rest Assembly . . . . . . . . . . . 70
16 System Board. . . . . . . . . . . . . . . . . . . . . 73
Removing the System Board . . . . . . . . . . . . . . . 73
Replacing the System Board. . . . . . . . . . . . . . . 76
Entering the Service Tag in the BIOS . . . . . . . . . . 77
17 Coin-Cell Battery . . . . . . . . . . . . . . . . . . 79
Removing the Coin-Cell Battery . . . . . . . . . . . . . 79
Replacing the Coin-Cell Battery . . . . . . . . . . . . . 80
18 Flashing the BIOS . . . . . . . . . . . . . . . . . 81

Contents 7

8Contents

Before You Begin 9
2
Before You Begin
This manual provides procedures for removing and installing the components
in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
• You have performed the steps in "Turning Off Your Computer" on page 9
and "Before Working Inside Your Computer" on page 10.
• You have read the safety information that shipped with your computer
.
• A component can be replaced or—if purchased separately—installed by
performing the removal procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
• Small flat-blade screwdriver
•Phillipsscrewdriver
•Plasticscribe
• BIOS executable update program available at
support.dell.com
Turning Off Your Computer
CAUTION: To avoid losing data, save and close all open files and exit all open
programs before you turn off your computer.
1 Save and close all open files and exit all open programs.
2 In Microsoft
®
Windows
®
7, click Start , click the arrow , and then
click
Shut Down .
The computer turns off after the operating system shutdown process
finishes.
3 Ensure that the computer and any attached devices are turned off. If your
computer and attached devices did not automatically turn off when you
shut down your operating system, press and hold the power button for at
least 8 to 10 seconds until the computer turns off.

10 Before You Begin
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from
potential damage and to help to ensure your own personal safety.
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on your computer).
CAUTION: Handle components and cards with care. Do not touch the components
or contacts on a card. Hold a card by its edges or by its metal mounting bracket.
Hold a component such as a processor module by its edges, not by its pins.
CAUTION: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell™ is not covered
by your warranty.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab,
not on the cable itself. Some cables have connectors with locking tabs; if you are
disconnecting this type of cable, press in on the locking tabs before you
disconnect the cable. As you pull connectors apart, keep them evenly aligned to
avoid bending any connector pins. Also, before you connect a cable, ensure that
both connectors are correctly oriented and aligned.
CAUTION: To avoid damaging the computer, perform the following steps before
you begin working inside the computer.
1 Ensure that the work surface is flat and clean to prevent the computer
cover from being scratched.
2 Turn off your computer (see "Turning Off Your Computer" on page 9).
3 If the computer is connected to a docking device (docked), undock it. See
the documentation that came with your docking device for instructions.
CAUTION: To disconnect a network cable, first unplug the cable from your
computer and then unplug the cable from the network device.
4 Disconnect all telephone or network cables from the computer.
5 Press and eject any installed cards from the ExpressCard slot or the 3-in-1
Media Card Reader.

Before You Begin 11
6 Disconnect your computer and all attached devices from their electrical
outlets.
CAUTION: To help prevent damage to the system board, remove the main battery
(see "Removing the Battery" on page 13) before working inside the computer.
7 Remove the battery (see "Removing the Battery" on page 13).
8 Turn the computer top-side up, open the display, and press the power
button to ground the system board.

12 Before You Begin

Battery 13
3
Battery
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on your computer).
CAUTION: To help prevent damage to the system board, you must remove the
battery from the battery bay before you begin working inside the computer.
CAUTION: To avoid damage to the computer, use only the battery designed for
this particular Dell computer. Do not use batteries designed for other Dell
computers.
Removing the Battery
1 Follow the procedures in "Before You Begin" on page 9.
2 Turn the computer over.
3 Slide the battery lock latch to the unlock position.
4 Slide the battery release latch to the side.
5 Slide the battery out of the battery bay.

14 Battery
Replacing the Battery
1 Follow the procedures in "Before You Begin" on page 9.
2 Slide the battery into the battery bay until it clicks into place.
3 Slide the battery lock latch to the lock position.

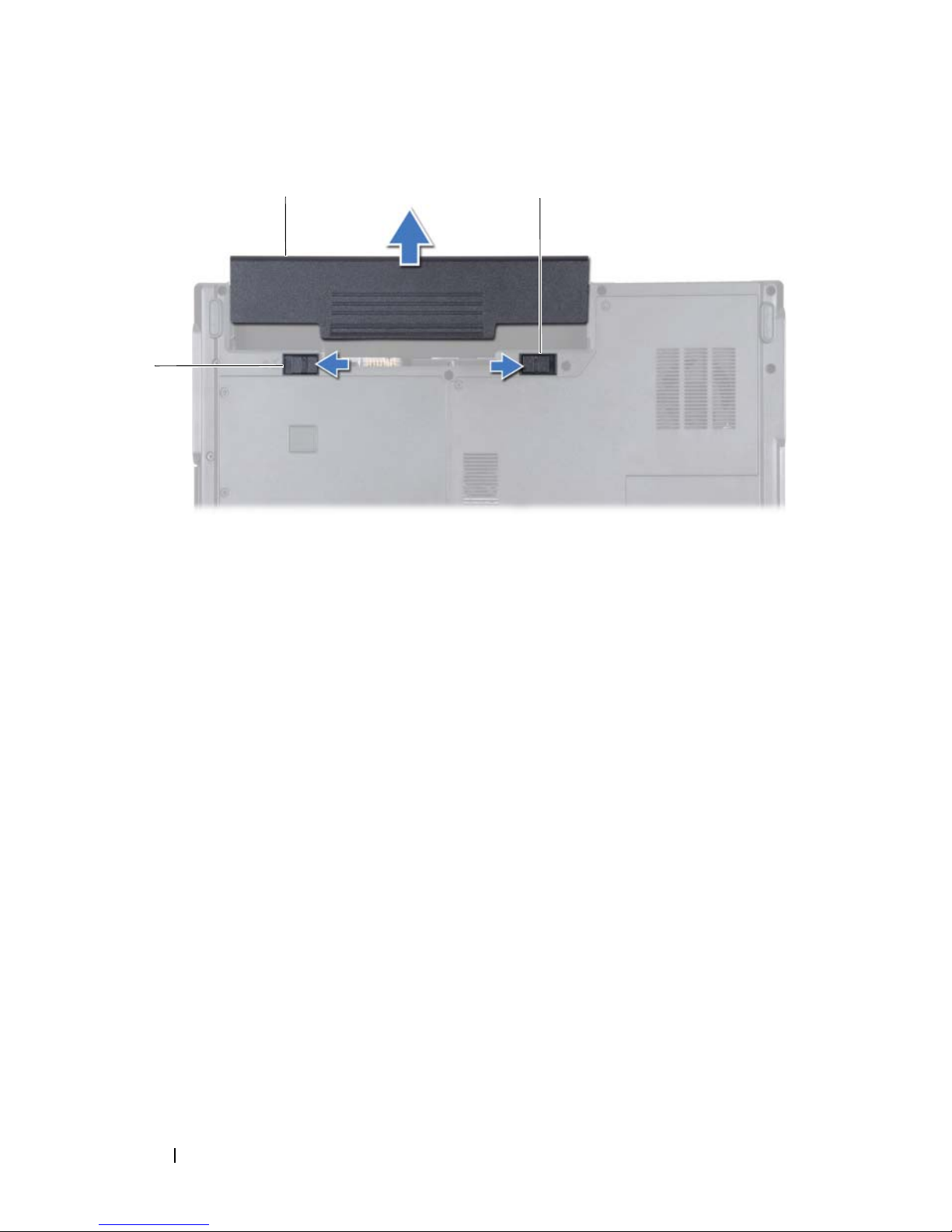

1 battery release latch 2 battery
3 battery lock latch
23
1

AC Adapter Connector Cable 15
4
Hinge Cover
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on your computer).
CAUTION: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell™ is not covered
by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery
(see "Removing the Battery" on page 13) before working inside the computer.
CAUTION: The hinge cover is fragile and can be damaged if extreme force is
used. Be careful when removing the hinge cover.
Removing the Hinge Cover
1 Follow the procedures in "Before You Begin" on page 9.
2 Remove the battery (see "Removing the Battery" on page 13).
CAUTION: To help avoid damage to the hinge cover, ensure that it is snapped
securely into place before you rotate the display open to 180 degrees.
3 Turn the computer over and open the display as far as possible.
CAUTION: Be extremely careful when removing the hinge cover. The cover is
very fragile.
4 Insert a plastic scribe and gently pry the hinge cover up. Ease the hinge
cover out moving from right to left, and remove the cover.

16 AC Adapter Connector Cable
Replacing the Hinge Cover
1 Follow the procedures in "Before You Begin" on page 9.
2 Align the tabs on the hinge cover with the slots on the palm rest and snap
the cover in place.
3 Replace the battery (see "Replacing the Battery" on page 14).
1 hinge cover
1

Keyboard 17
5
Keyboard
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on your computer).
CAUTION: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell™ is not covered
by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery
(see "Removing the Battery" on page 13) before working inside the computer.
Removing the Keyboard
1 Follow the procedures in "Before You Begin" on page 9.
2 Remove the battery (see "Removing the Battery" on page 13).
3 Remove the hinge cover (see "Removing the Hinge Cover" on page 15).
4 Remove the two screws that secure the keyboard to the palm rest.

18 Keyboard
CAUTION: The keycaps on the keyboard are fragile, easily dislodged, and time-
consuming to replace. Be careful when removing and handling the keyboard.
CAUTION: Be extremely careful when removing and handling the keyboard.
Failure to do so could result in scratching the display panel.
5 Carefully lift the keyboard and slide the keyboard tabs out of the slots on
the computer. Turn the keyboard over as indicated in the following
illustration.
1 screws (2) 2 keyboard
3 keyboard tabs (4)
1
2
3

Keyboard 19
6 Lift the keyboard connector latch and disconnect the keyboard cable from
the system board connector.
7 Lift the keyboard off the palm rest.
Replacing the Keyboard
1 Follow the procedures in "Before You Begin" on page 9.
2 Slide the keyboard cable into the connector on the system board and press
down on the keyboard cable connector latch to secure the keyboard cable.
3 Align the six tabs on the keyboard with the slots on the palm rest.
4 Place the keyboard on the palm rest.
5 Replace the two screws that secure the keyboard to the palm rest.
6 Replace the hinge cover (see "Replacing the Hinge Cover" on page 16).
7 Replace the battery (see "Replacing the Battery" on page 14).
1 keyboard connector latch 2 keyboard cable
1
2

20 Keyboard
