Dell Inspiron 15 7000 Series Operation and maintenance manual

Inspiron 15 7000
Setup and Specications
Computer Model: Inspiron 15-7570
Regulatory Model: P70F
Regulatory Type: P70F001

Note, atenţionări şi
avertismente
NOTIFICARE: O NOTĂ indică informaţii importante care vă ajută să
optimizaţi utilizarea produsului.
AVERTIZARE: O ATENŢIONARE indică un pericol potenţial de deteriorare
a hardware-ului sau de pierdere de date şi vă arată cum să evitaţi
problema.
AVERTISMENT: Un AVERTISMENT indică un pericol potenţial de
deteriorare a bunurilor, de vătămare corporală sau de deces.
Copyright ©2017 Dell Inc. sau lialele sale. Toate drepturile rezervate. Dell, EMC şi alte
mărci comerciale sunt mărci comerciale ale Dell Inc. sau ale lialelor sale. Alte mărci comerciale
pot mărci comerciale deţinute de proprietarii respectivi.
2017-08
Rev. A00

Contents
Set up your computer.................................................... 5
Create a USB recovery drive for Windows..................... 8
Reinstall Windows using a USB recovery drive.......................................... 8
Views............................................................................10
Front........................................................................................................10
Left...........................................................................................................11
Right........................................................................................................ 12
Base.........................................................................................................13
Display (touchscreen).............................................................................. 14
Display (non-touchscreen)....................................................................... 15
Bottom.....................................................................................................16
Specications...............................................................17
System information.................................................................................. 17
Computer model...................................................................................... 17
Dimensions and weight............................................................................ 17
Operating system.....................................................................................18
Memory................................................................................................... 18
Ports and connectors...............................................................................18
Communications...................................................................................... 19
3

Wireless............................................................................................. 19
Intel Optane memory...............................................................................20
Audio.......................................................................................................20
Storage................................................................................................... 20
Media-card reader....................................................................................21
Keyboard..................................................................................................21
Camera....................................................................................................22
Touchpad................................................................................................ 22
Power adapter.........................................................................................23
Battery.................................................................................................... 23
Display.....................................................................................................24
Video.......................................................................................................25
Computer environment........................................................................... 25
Keyboard shortcuts......................................................26
Getting help and contacting Dell.................................. 28
Self-help resources..................................................................................28
Contacting Dell........................................................................................29
4

Set up your computer

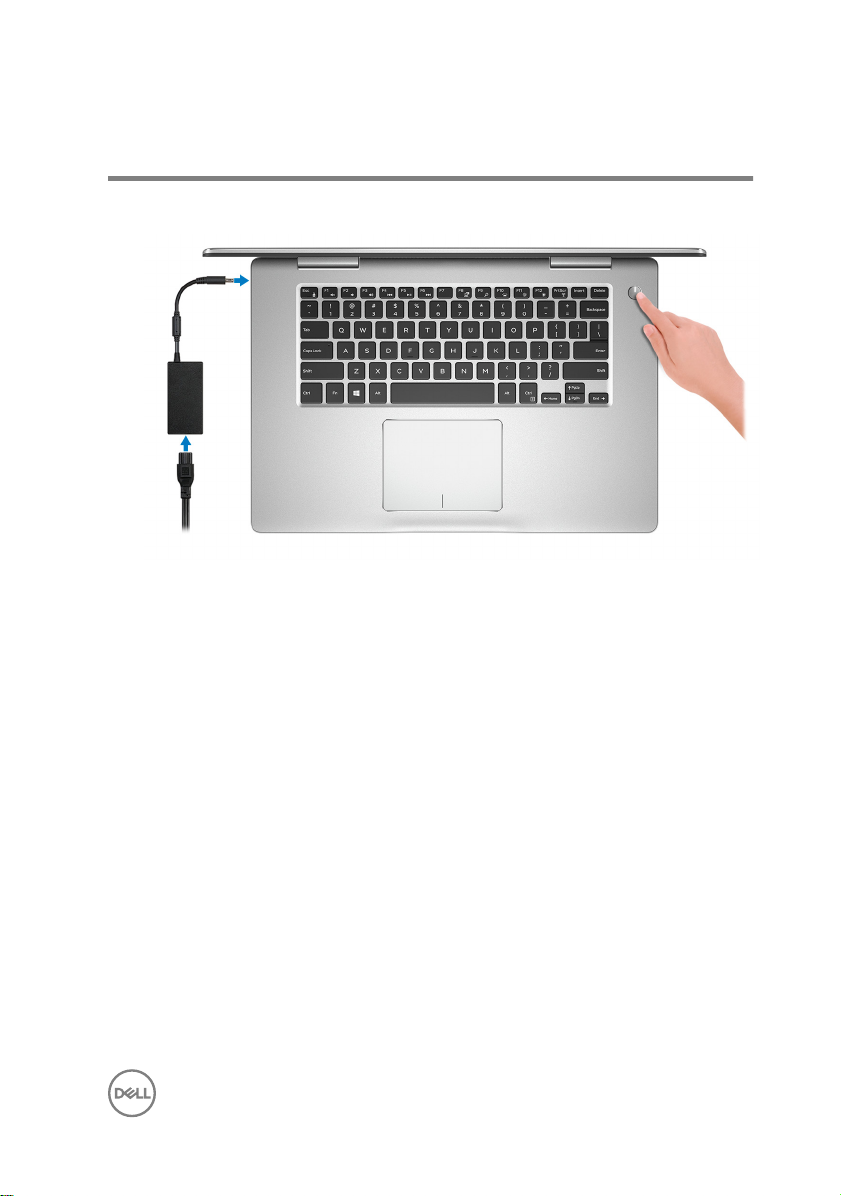

1 Connect the power adapter and press the power button.
5

2 Finish operating system setup.
For Windows:
a) Connect to a network.
NOTE: If you are connecting to a secured wireless network, enter
the password for the wireless network access when prompted.
b) Sign in to your Microsoft account or create a new account.
For Ubuntu:
Follow the instructions on the screen to nish setup.
6

3 Locate Dell apps in Windows.
Table 1. Locate Dell apps
Register your computer
Dell Help & Support
SupportAssist—Check and update your computer
4 Create recovery drive for Windows. It is recommended to create a recovery drive
to troubleshoot and x problems that may occur with Windows.
For more information, see Create a USB recovery drive for Windows.
7

Create a USB recovery drive for
Windows
Dell recommends that you create a recovery drive to troubleshoot and x problems
that may occur with Windows. An empty USB ash drive with a minimum capacity of
16 GB is required to create the recovery drive.
NOTE: The following steps may vary depending on the version of Windows
installed. Refer to the Microsoft support site for latest instructions.
1 Connect the USB ash drive to your computer.
2 In Windows search, type Recovery.
3 In the search results, click Create a recovery drive.
The User Account Control window is displayed.
4 Click Yes to continue.
The Recovery Drive window is displayed.
5 Select Back up system les to the recovery drive and click Next.
6 Select the USB ash drive and click Next.
A message appears, indicating that all data in the USB ash drive will be deleted.
7 Click Create.
NOTE: This process may take several minutes to complete.
8 Click Finish.
Reinstall Windows using a USB recovery drive
CAUTION: This process formats the hard drive and removes all data on your
computer. Ensure that you back up data on your computer before beginning
this task.
NOTE: Before reinstalling Windows, ensure your computer has more than 2
GB of memory and more than 32 GB of storage space.
1 Connect the USB recovery drive to your computer.
2 Restart your computer.
8

3 Press F12 after the Dell logo is displayed on the screen to access the boot menu.
A Preparing one-time boot menu message appears.
4 After the boot menu loads, select the USB recovery device under UEFI BOOT.
The system reboots and a screen to Choose the keyboard layout is displayed.
5 Choose your keyboard layout.
6 In the Choose an option screen, click Troubleshoot.
7 Click Recover from a drive.
8 Choose one of the following options:
–Just remove my les to do a quick format.
–Fully clean the drive to do a complete format.
9 Click Recover to start the recovery process.
This will take several minutes to complete and your computer will restart during
this process.
9

Views
Front

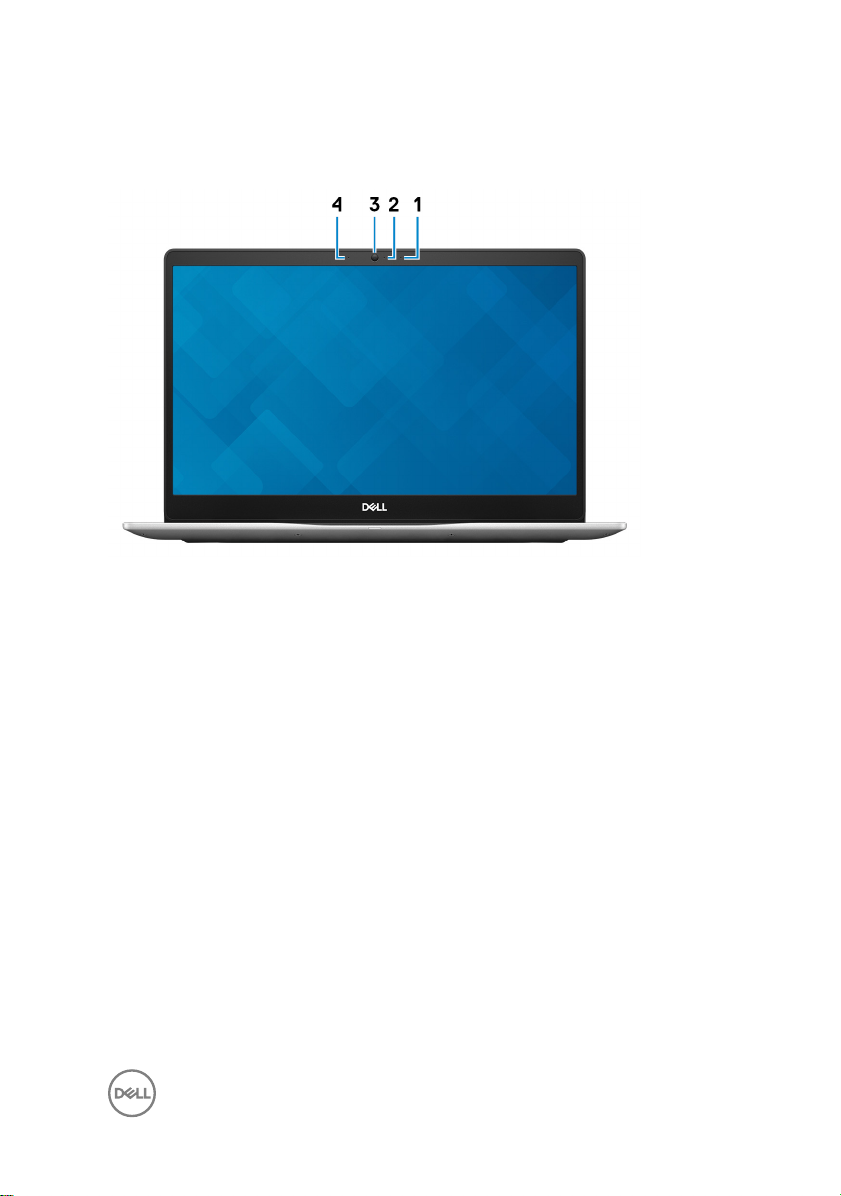

1Indicator luminos de stare a alimentării şi a bateriei/indicator luminos de
activitate a hard diskului
Indică starea de încărcare a bateriei sau activitatea hard diskului.
NOTE: Apăsaţi pe Fn+H pentru a comuta acest indicator luminos între
indicatorul luminos de stare a alimentării şi a bateriei şi indicatorul
luminos de activitate a hard diskului.
Indicator luminos de activitate a hard diskului
Se aprinde atunci când computerul citeşte de pe sau scrie pe hard disk.
Indicator luminos de stare a alimentării şi a bateriei
Indică starea de alimentare şi de încărcare a bateriei.
Alb constant - adaptorul de alimentare este conectat şi bateria are un nivel de
încărcare de peste 5 %.
Portocaliu - computerul funcţionează pe baterie şi bateria are un nivel de
încărcare de sub 5 %.
O (Dezactivat)
– Adaptorul de alimentare este conectat şi bateria este complet încărcată.
– Computerul funcţionează pe baterie şi bateria are un nivel de încărcare de
sub 5 %.
– Computerul este în stare de repaus, de hibernare sau este oprit.
