Dell Inspiron 15-7570 Operation and maintenance manual

Inspiron 15 7000
Setup and Specications
Computer Model: Inspiron 15-7570
Regulatory Model: P70F
Regulatory Type: P70F001

Notas, avisos e advertências
NOTA: Uma NOTA indica informações importantes que ajudam você a
usar melhor o seu produto.
CUIDADO: Um AVISO indica possíveis danos ao hardware ou perda de
dados e ensina como evitar o problema.
ATENÇÃO: Uma ADVERTÊNCIA indica possíveis danos à propriedade,
risco de lesões corporais ou mesmo risco de vida.
Direitos autorais ©2017 Dell Inc. ou suas subsidiárias. Todos os direitos reservados.A Dell,
a EMC, e outras marcas são marcas comerciais da Dell Inc. ou suas subsidiárias. Outras
marcas podem ser marcas comerciais de seus respectivos proprietários.
2017-08
Rev. A00

Contents
Set up your computer.................................................... 5
Create a USB recovery drive for Windows..................... 8
Reinstall Windows using a USB recovery drive.......................................... 8
Exibições......................................................................10
Front........................................................................................................10
Left...........................................................................................................11
Right........................................................................................................ 12
Base.........................................................................................................13
Display (touchscreen).............................................................................. 14
Display (non-touchscreen)....................................................................... 15
Bottom.....................................................................................................16
Especicações..............................................................17
System information.................................................................................. 17
Computer model...................................................................................... 17
Dimensions and weight............................................................................ 17
Operating system.....................................................................................18
Memory................................................................................................... 18
Ports and connectors...............................................................................18
Communications...................................................................................... 19
3

Wireless............................................................................................. 19
Intel Optane memory...............................................................................20
Audio.......................................................................................................20
Storage................................................................................................... 20
Media-card reader....................................................................................21
Keyboard..................................................................................................21
Camera....................................................................................................22
Touchpad................................................................................................ 22
Power adapter.........................................................................................23
Battery.................................................................................................... 23
Display.....................................................................................................24
Video.......................................................................................................25
Computer environment........................................................................... 25
Keyboard shortcuts......................................................26
Getting help and contacting Dell.................................. 28
Self-help resources..................................................................................28
Contacting Dell........................................................................................29
4

Set up your computer
1 Connect the power adapter and press the power button.
5

2 Finish operating system setup.
For Windows:
a) Connect to a network.
NOTE: If you are connecting to a secured wireless network, enter
the password for the wireless network access when prompted.
b) Sign in to your Microsoft account or create a new account.
For Ubuntu:
Follow the instructions on the screen to nish setup.
6

3 Locate Dell apps in Windows.
Table 1. Locate Dell apps
Register your computer
Dell Help & Support
SupportAssist—Check and update your computer
4 Create recovery drive for Windows. It is recommended to create a recovery drive
to troubleshoot and x problems that may occur with Windows.
For more information, see Create a USB recovery drive for Windows.
7

Create a USB recovery drive for
Windows
Dell recommends that you create a recovery drive to troubleshoot and x problems
that may occur with Windows. An empty USB ash drive with a minimum capacity of
16 GB is required to create the recovery drive.
NOTA: The following steps may vary depending on the version of Windows
installed. Refer to the Microsoft support site for latest instructions.
1 Connect the USB ash drive to your computer.
2 In Windows search, type Recovery.
3 In the search results, click Create a recovery drive.
The User Account Control window is displayed.
4 Click Yes to continue.
The Recovery Drive window is displayed.
5 Select Back up system les to the recovery drive and click Next.
6 Select the USB ash drive and click Next.
A message appears, indicating that all data in the USB ash drive will be deleted.
7 Click Create.
NOTA: This process may take several minutes to complete.
8 Click Finish.
Reinstall Windows using a USB recovery drive
CUIDADO: This process formats the hard drive and removes all data on your
computer. Ensure that you back up data on your computer before beginning
this task.
NOTA: Before reinstalling Windows, ensure your computer has more than 2
GB of memory and more than 32 GB of storage space.
1 Connect the USB recovery drive to your computer.
2 Restart your computer.
8

3 Press F12 after the Dell logo is displayed on the screen to access the boot menu.
A Preparing one-time boot menu message appears.
4 After the boot menu loads, select the USB recovery device under UEFI BOOT.
The system reboots and a screen to Choose the keyboard layout is displayed.
5 Choose your keyboard layout.
6 In the Choose an option screen, click Troubleshoot.
7 Click Recover from a drive.
8 Choose one of the following options:
–Just remove my les to do a quick format.
–Fully clean the drive to do a complete format.
9 Click Recover to start the recovery process.
This will take several minutes to complete and your computer will restart during
this process.
9

Exibições

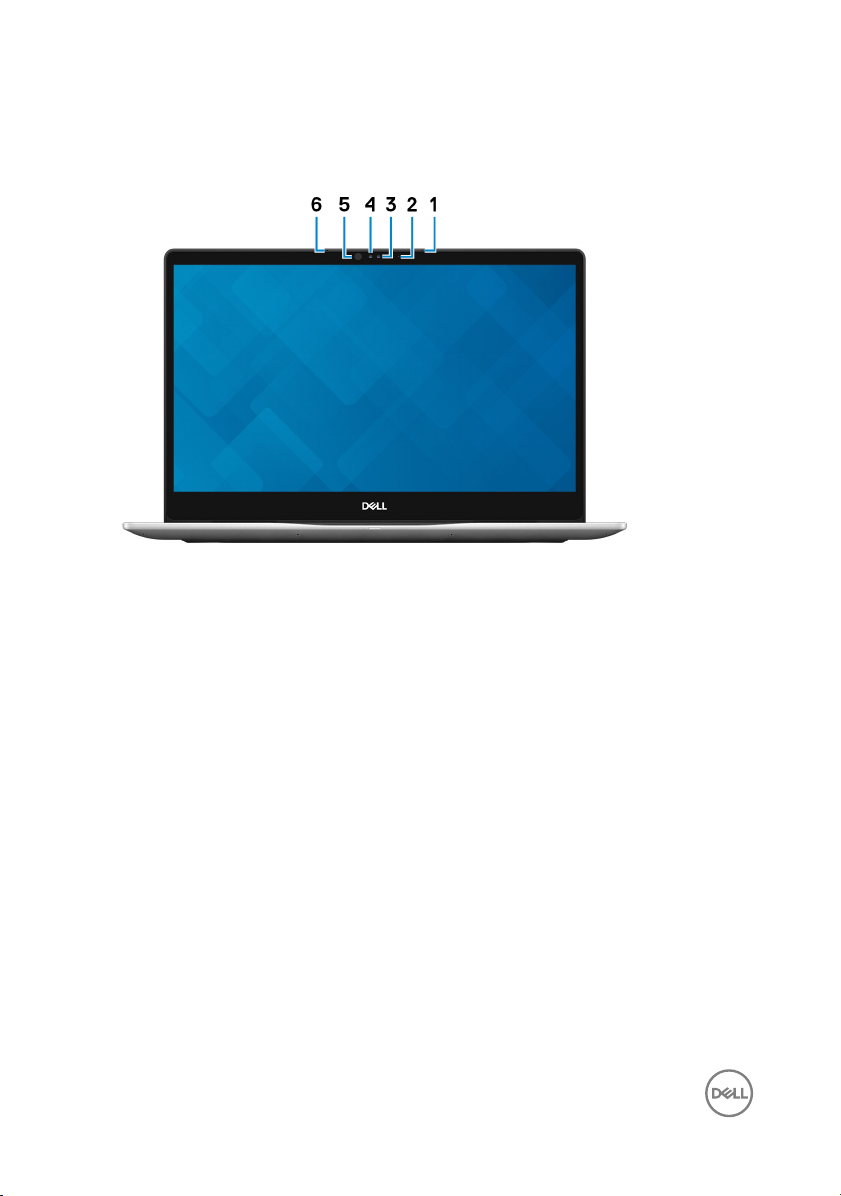

Front
1Luz de energia e status da bateria/luz de atividade do disco rígido
Indica o status de carga da bateria ou a atividade do disco rígido.
NOTE: Pressione Fn+H para alternar esta luz entre luz de energia e
status da bateria/luz de atividade do disco rígido.
Luz de atividade do disco rígido
Acende quando o computador lê ou grava no disco rígido.
Luz de energia e status da bateria
Luz de energia e status da carga da bateria
Branco contínuo – O adaptador de energia está conectado e a bateria tem mais
de 5% de carga.
Âmbar – O computador está funcionando com bateria e a bateria tem menos de
5% de carga.
Apagado
– O adaptador de energia está conectado e a bateria está completamente
carregada.
– O computador está funcionando com bateria e a bateria tem mais de 5% de
carga.
– O computador encontra-se no estado de suspensão, hibernação ou
desligado.
10
