Dell Inspiron 22-3264 User manual

Inspiron 22 3000
Service Manual
Computer Model: Inspiron 22–3264
Regulatory Model: W17B
Regulatory Type: W17B003

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better
use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss
of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
©2016 Dell Inc. All rights reserved. This product is protected by U.S. and international
copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in
the United States and/or other jurisdictions. All other marks and names mentioned herein may
be trademarks of their respective companies.
2016 - 08
Rev. A00

Contents
Before working inside your computer.....................................9
Before you begin ...............................................................................................9
Safety instructions............................................................................................10
Recommended tools........................................................................................11
Screw list...........................................................................................................11
After working inside your computer......................................12
Technical overview....................................................................13
Inside view of your computer..........................................................................13
System-board components............................................................................ 14
Removing the stand.................................................................. 16
Easel stand........................................................................................................16
Pedestal stand.................................................................................................. 18
Procedure to remove stand riser from stand base................................... 19
Replacing the stand.................................................................. 22
Easel stand....................................................................................................... 22
Pedestal stand..................................................................................................22
Procedure to replace stand riser to stand base........................................22
Removing the back cover........................................................ 23
Prerequisites.....................................................................................................23
Procedure.........................................................................................................23
Replacing the back cover.........................................................25
Procedure.........................................................................................................25
Post-requisites................................................................................................. 25
3

Replacing the optical drive......................................................26
Prerequisites.....................................................................................................26
Procedure........................................................................................................ 26
Removing the optical drive..................................................... 29
Procedure........................................................................................................ 29
Post-requisites.................................................................................................29
Removing the hard drive..........................................................30
Prerequisites.................................................................................................... 30
Procedure........................................................................................................ 30
Replacing the hard drive.......................................................... 33
Procedure.........................................................................................................33
Post-requisites................................................................................................. 33
Removing the system-board shield.......................................34
Prerequisites.....................................................................................................34
Procedure........................................................................................................ 34
Replacing the system-board shield....................................... 36
Procedure........................................................................................................ 36
Post-requisites.................................................................................................36
Removing the memory module.............................................. 37
Prerequisites.....................................................................................................37
Procedure.........................................................................................................37
Replacing the memory module.............................................. 39
Procedure........................................................................................................ 39
Post-requisites.................................................................................................40
4

Removing the wireless card.................................................... 42
Prerequisites.....................................................................................................42
Procedure........................................................................................................ 42
Replacing the wireless card.................................................... 44
Procedure........................................................................................................ 44
Post-requisites.................................................................................................45
Removing the control-buttons board...................................47
Prerequisites.....................................................................................................47
Procedure.........................................................................................................47
Replacing the control-buttons board...................................49
Procedure........................................................................................................ 49
Post-requisites.................................................................................................49
Removing the microphone......................................................50
Prerequisites.................................................................................................... 50
Procedure........................................................................................................ 50
Replacing the microphone...................................................... 52
Procedure.........................................................................................................52
Post-requisites................................................................................................. 52
Removing the camera...............................................................53
Prerequisites.....................................................................................................53
Procedure.........................................................................................................53
Replacing the camera............................................................... 57
Procedure.........................................................................................................57
Post-requisites................................................................................................. 57
5

Removing the coin-cell battery..............................................58
Prerequisites.....................................................................................................58
Procedure........................................................................................................ 58
Replacing the coin-cell battery..............................................60
Procedure........................................................................................................ 60
Post-requisites.................................................................................................60
Removing the fan...................................................................... 61
Prerequisites.....................................................................................................61
Procedure.........................................................................................................61
Replacing the fan.......................................................................63
Procedure........................................................................................................ 63
Post-requisites.................................................................................................63
Removing the heat sink............................................................64
Prerequisites.................................................................................................... 64
Procedure........................................................................................................ 64
Replacing the heat sink............................................................66
Procedure........................................................................................................ 66
Post-requisites.................................................................................................66
Removing the speakers............................................................ 67
Prerequisites.....................................................................................................67
Procedure.........................................................................................................67
Replacing the speakers............................................................ 69
Procedure........................................................................................................ 69
Post-requisites.................................................................................................69
6

Removing the system board....................................................70
Prerequisites.....................................................................................................70
Procedure........................................................................................................ 70
Replacing the system board.................................................... 73
Procedure.........................................................................................................73
Post-requisites................................................................................................. 73
Removing the display assembly..............................................74
Prerequisites.....................................................................................................74
Procedure.........................................................................................................74
Replacing the display assembly..............................................79
Procedure.........................................................................................................79
Post-requisites................................................................................................. 79
Removing the display cable.....................................................81
Prerequisites.....................................................................................................81
Procedure.........................................................................................................81
Replacing the display cable.....................................................83
Procedure........................................................................................................ 83
Post-requisites.................................................................................................83
Removing the rubber feet....................................................... 84
Prerequisites.................................................................................................... 84
Procedure........................................................................................................ 84
Replacing the rubber feet........................................................86
Procedure........................................................................................................ 86
Post-requisites.................................................................................................86
7

BIOS setup program..................................................................87
BIOS Overview................................................................................................. 87
Entering BIOS setup program......................................................................... 87
Clearing forgotten passwords.........................................................................87
Prerequisites...............................................................................................88
Procedure.................................................................................................. 88
Post-requisites...........................................................................................88
Clearing CMOS Settings..................................................................................89
Prerequisites...............................................................................................89
Procedure.................................................................................................. 89
Post-requisites...........................................................................................90
Flashing the BIOS.......................................................................91
System diagnostic lights.......................................................... 92
Getting help and contacting Dell...........................................94
Self-help resources......................................................................................... 94
Contacting Dell................................................................................................95
8

Before working inside your
computer
NOTE: The images in this document may differ from your computer
depending on the configuration you ordered.
Before you begin
1 Save and close all open files and exit all open applications.
2 Shut down your computer.
The shut-down instruction varies depending on the operating system
installed on your computer.
– Windows 10: Click Start → Power → Shut down.
– Windows 8.1: On the Start screen, click the power icon → Shut
down.
– Windows 7: Click Start → Shut down.
NOTE: If you are using a different operating system, see the
documentation of your operating system for shut-down
instructions.
3 Disconnect your computer and all attached devices from their electrical
outlets.
4 Disconnect all cables such as telephone cables, network cables, and so
on, from your computer.
5 Disconnect all attached devices and peripherals, such as keyboard,
mouse, monitor, and so on, from your computer.
6 Remove any media card and optical disc from your computer, if
applicable.
7 After the computer is unplugged, press and hold the power button for 5
seconds to ground the system board.
CAUTION: Place the computer on a flat, soft, and clean surface to
avoid scratches on the display.
8 Place the computer face down.
9

Safety instructions
Use the following safety guidelines to protect your computer from potential
damage and ensure your personal safety.
WARNING: Before working inside your computer, read the safety
information that shipped with your computer. For more safety best
practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
WARNING: Disconnect all power sources before opening the
computer cover or panels. After you finish working inside the
computer, replace all covers, panels, and screws before connecting to
the electrical outlet.
CAUTION: To avoid damaging the computer, ensure that the work
surface is flat and clean.
CAUTION: To avoid damaging the components and cards, handle
them by their edges, and avoid touching pins and contacts.
CAUTION: You should only perform troubleshooting and repairs as
authorized or directed by the Dell technical assistance team. Damage
due to servicing that is not authorized by Dell is not covered by your
warranty. See the safety instructions that shipped with the product or
at www.dell.com/regulatory_compliance.
CAUTION: Before touching anything inside your computer, ground
yourself by touching an unpainted metal surface, such as the metal at
the back of the computer. While you work, periodically touch an
unpainted metal surface to dissipate static electricity, which could
harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on
its pull tab, not on the cable itself. Some cables have connectors with
locking tabs or thumb-screws that you must disengage before
disconnecting the cable. When disconnecting cables, keep them
evenly aligned to avoid bending any connector pins. When connecting
cables, ensure that the ports and connectors are correctly oriented
and aligned.
CAUTION: Press and eject any installed card from the media-card
reader.
10

Recommended tools
The procedures in this document may require the following tools:
• Phillips screwdriver
• Plastic scribe
Screw list
Component Secured to Screw type Quantity
Easel Stand Back cover M4X8 2
Pedestal Stand Back cover M4X8 4
Optical-drive bracket Display-assembly base M3X5 1
Optical-drive bracket Optical drive M2X2.5 2
Hard-drive assembly Display-assembly base M3X5 1
Hard-drive bracket Hard drive M3X5 3
System-board shield Display-assembly base M3X5 4
Wireless-card bracket System board M2X2.5 1
Fan Display-assembly base M3X5 2
Heat sink Display-assembly base M3X5 1
Speaker tape Display-assembly base M2X2.5 1
System board Display-assembly base M3X5 4
VESA-mount bracket Display-assembly base M4X8 4
Display-assembly base Display assembly M3X5 19
Rubber feet Display bezel M3X5 4
11

After working inside your
computer
CAUTION: Leaving stray or loose screws inside your computer may
severely damage your computer.
1 Replace all screws and ensure that no stray screws remain inside your
computer.
2 Connect any external devices, peripherals, or cables you removed before
working on your computer.
3 Replace any media cards, discs, or any other parts that you removed
before working on your computer.
4 Connect your computer and all attached devices to their electrical
outlets.
5 Turn on your computer.
12

Technical overview
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
Inside view of your computer
1 control-buttons board 2 hard-drive assembly
3 optical-drive assembly 4 display-assembly base
5 fan 6 camera module
7 microphone board 8 heat sink
9 wireless card 10 memory module
13

11 system board 12 coin-cell battery
13 speakers (2) 14 VESA-mount bracket
System-board components
1 wireless-card slot (NGFF_WI-FI) 2 memory-module slots (2)
3 camera-cable connector
(WEBCAM) 4 CMOS clear jumper (RTCRST)
14

5 Password clear jumper (PSWD) 6 speaker-cable connector
(SPEAKER)
7 coin-cell battery 8 touch-screen board cable
connector (TOUCH)
9 control-buttons board cable
connector 10 display-panel power cable connector (PWRCN1)
11 display-cable connector 12 hard-drive data cable
connector (SATA HDD)
13 optical-drive cable connector
(SATA ODD) 14 hard-drive and optical-drive power cable connector
(SATAP1)
15 fan-cable connector (FAN_CPU)
15

Removing the stand
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
Easel stand

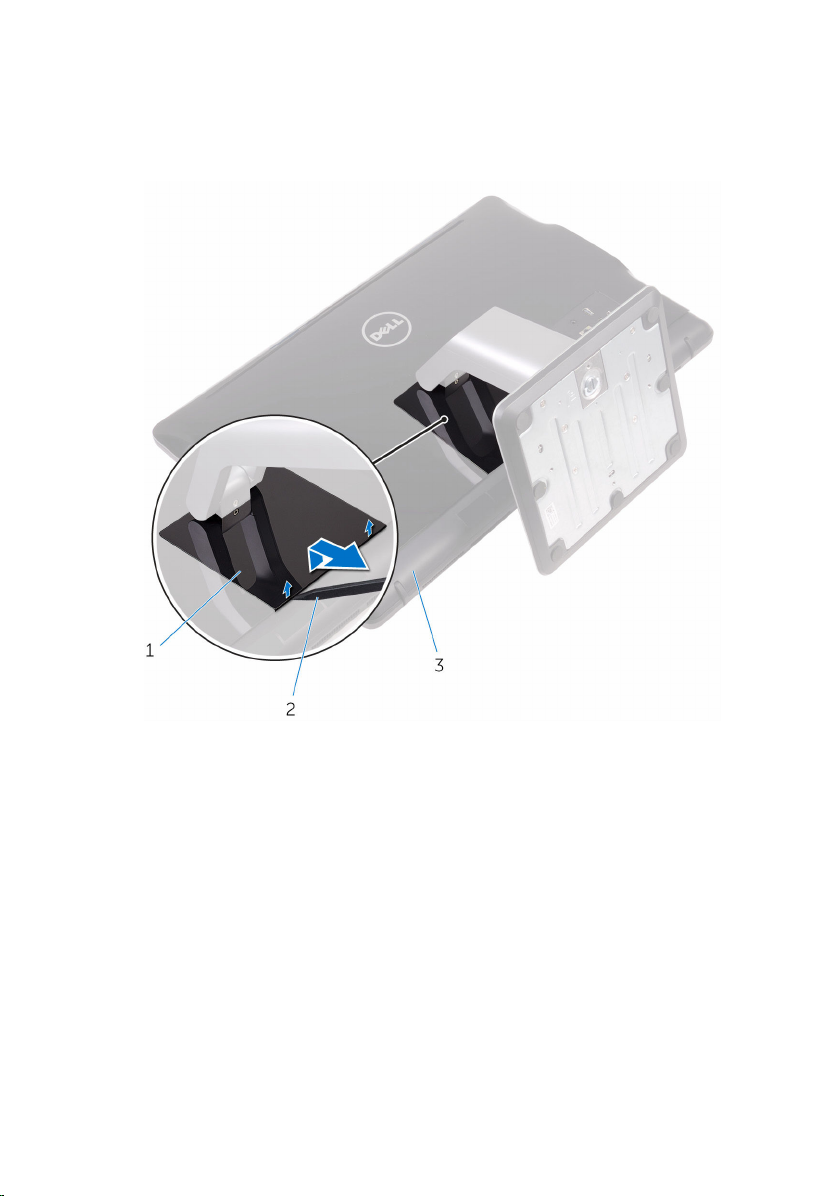

1 Using a plastic scribe, pry the stand cover off the back cover.
2 Slide and remove the stand cover from the back cover.
1 back cover 2 plastic scribe
3 stand cover
3 Close the stand and remove the screws that secure the stand to the back
cover.
16

4 Slide and remove the stand from the back cover.
1 screws (2) 2 easel stand
3 back cover
17

Pedestal stand
1 Using a plastic scribe, pry the stand cover off the back cover.
1 stand cover 2 plastic scribe
3 back cover
2 Remove the screws that secure the stand bracket to the back cover.
18

3 Lift the handle and slide it out from the back cover.
1 screws (4) 2 stand bracket
3 back cover 4 pedestal stand
Procedure to remove stand riser from stand base
1 Lift the screw handle on the stand base.
19

2 Using the screw handle, loosen the captive thumbscrew that secures the
stand base to the stand riser.
1 screw handle 2 captive thumbscrew
3 stand base
20
