Dell™ Inspiron™ 1100, 5100, and 5150
Service Manual
Before You Begin
System Components
Memory, CD or DVD Drive, Modem, and Mini PCI Card
Hard Drive
Keyboard
Display
EMI Shield, Video Card, and Palm Rest
Microprocessor Thermal-Cooling Assembly
Microprocessor Module
Speakers
System Board
Flashing the BIOS
Base Plastics
Pinout Assignments for I/O Connectors
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data
and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal
injury, or death.
Model PP07L and PP08L
June 2003 Rev. A01
Information in this document is subject to change without notice.
© 2003 Dell Computer Corporation. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Computer Corporationis
strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Computer
Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Computer Corporation disclaims any proprietary interest in
trademarks and trade names other than its own.
You are here: Dell USA > Support Home Page
© 2008 Dell | About Dell | Terms of Sale | Unresolved Issues | Privacy | Contact | Site Map | Feedback Top
Large Text
sn EB14
Keyword Search
Technical Support Customer Service Warranty Information Dell Forums Contact Us
Cart Sign In

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/systemb...
1 of 2 2008-03-11 10:22
Contact Us; 1-800-915-3355 or Live Chat
My Account My Order Status
Products Services Support Purchase Help Su
pp
ort & Hel
p
Su
pp
ort & Hel
p
You are here: Dell USA > Support Home Page
Back to Contents Page
System Components
Dell™ Inspiron™ 1100, 5100, and 5150 Service Manual
CAUTION: Only a certified service technician should perform repairs on
your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that a
part can be replaced by performing the removal procedure in reverse order.

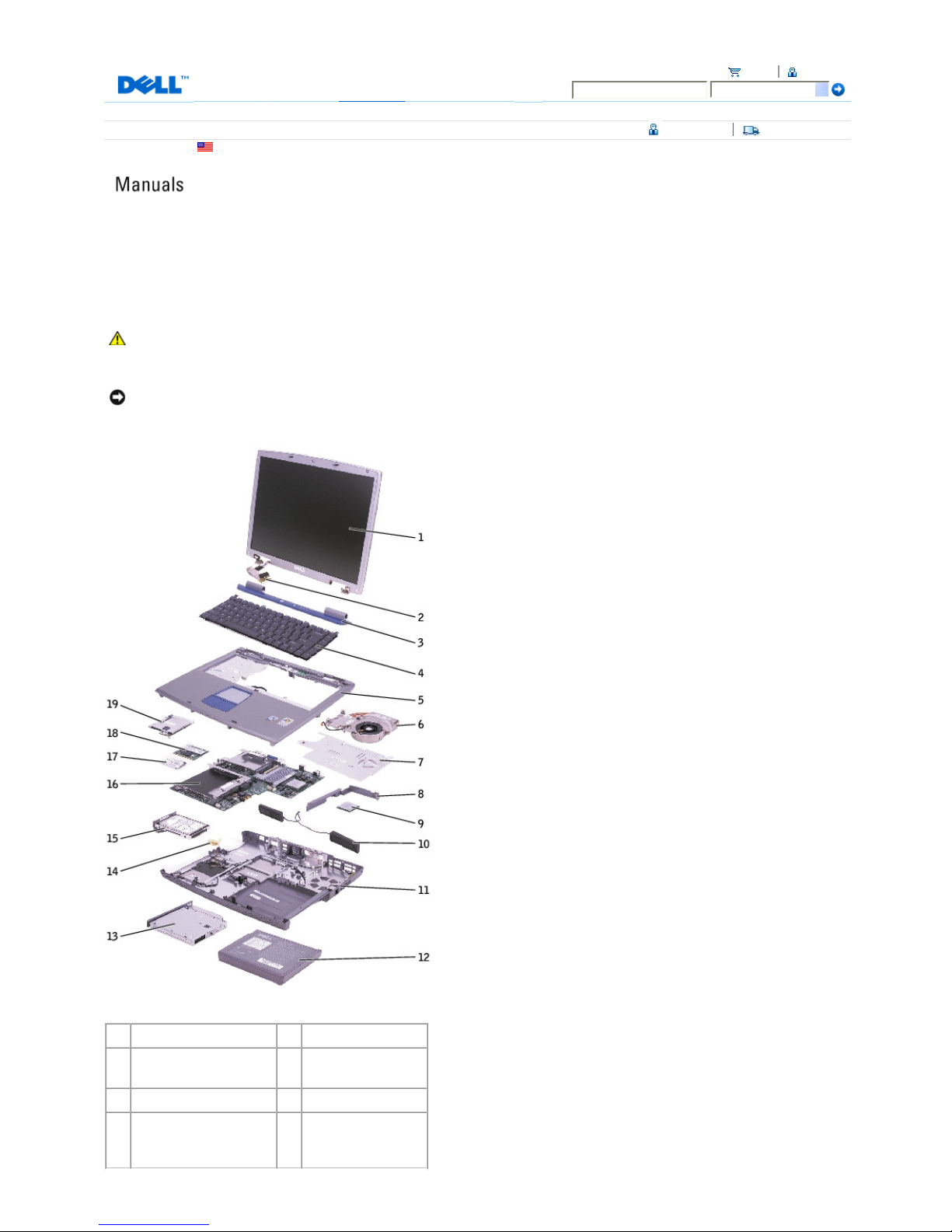

1 display 11 base plastics
2 display-feed flex
cable 12 battery
3 hinge cover 13 CD or DVD drive
4 keyboard 14 left antenna
(Inspiron™ 5100
and 5150 only)
Keyword Search
Technical Support Customer Service Warranty Information Dell Forums Contact Us
Cart Sign In

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/systemb...
2 of 2 2008-03-11 10:22
5 palm rest 15 hard drive
6 microprocessor
thermal-cooling
assembly
16 system board
7 EMI shield 17 modem
8 battery bay shield 18 Mini PCI card
(Inspiron 5100
and 5150 only)
9 microprocessor 19 video card
(Inspiron 5100
and 5150 only)
10 speakers
Back to Contents Page
You are here: Dell USA > Support Home Page
© 2008 Dell | About Dell | Terms of Sale | Unresolved Issues | Privacy | Contact | Site Map | Feedback Top
Large Text
sn EB14

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
1 of 13 2008-03-11 10:12
Contact Us; 1-800-915-3355 or Live Chat
My Account My Order Status
Products Services Support Purchase Help Support & HelpSupport & Help
You are here: Dell USA > Support Home Page
Back to Contents Page
Memory, CD or DVD Drive, Modem, and Mini PCI Card
Dell™ Inspiron™ 1100, 5100, and 5150 Service Manual
Memory
CD or DVD Drive
Modem
Mini PCI Card (Inspiron™ 5100 and 5150 Only)
Memory
Removing the Memory Modules
CAUTION: Before working inside your Dell™ computer, read the safety instructions in your Owner's
Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity
from your body before you touch any of your computer's electronic components. You can do so by
touching an unpainted metal surface.
NOTE: Memory modules purchased from Dell are covered under your computer warranty.
Follow the instructions in "Preparing to Work Inside the Computer."1.
Turn the computer over, loosen the captive screw (labeled "circle M") in the memory module cover, and lift the2.
Keyword Search
Technical Support Customer Service Warranty Information Dell Forums Contact Us
Cart Sign In

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
2 of 13 2008-03-11 10:12
cover away from the computer.

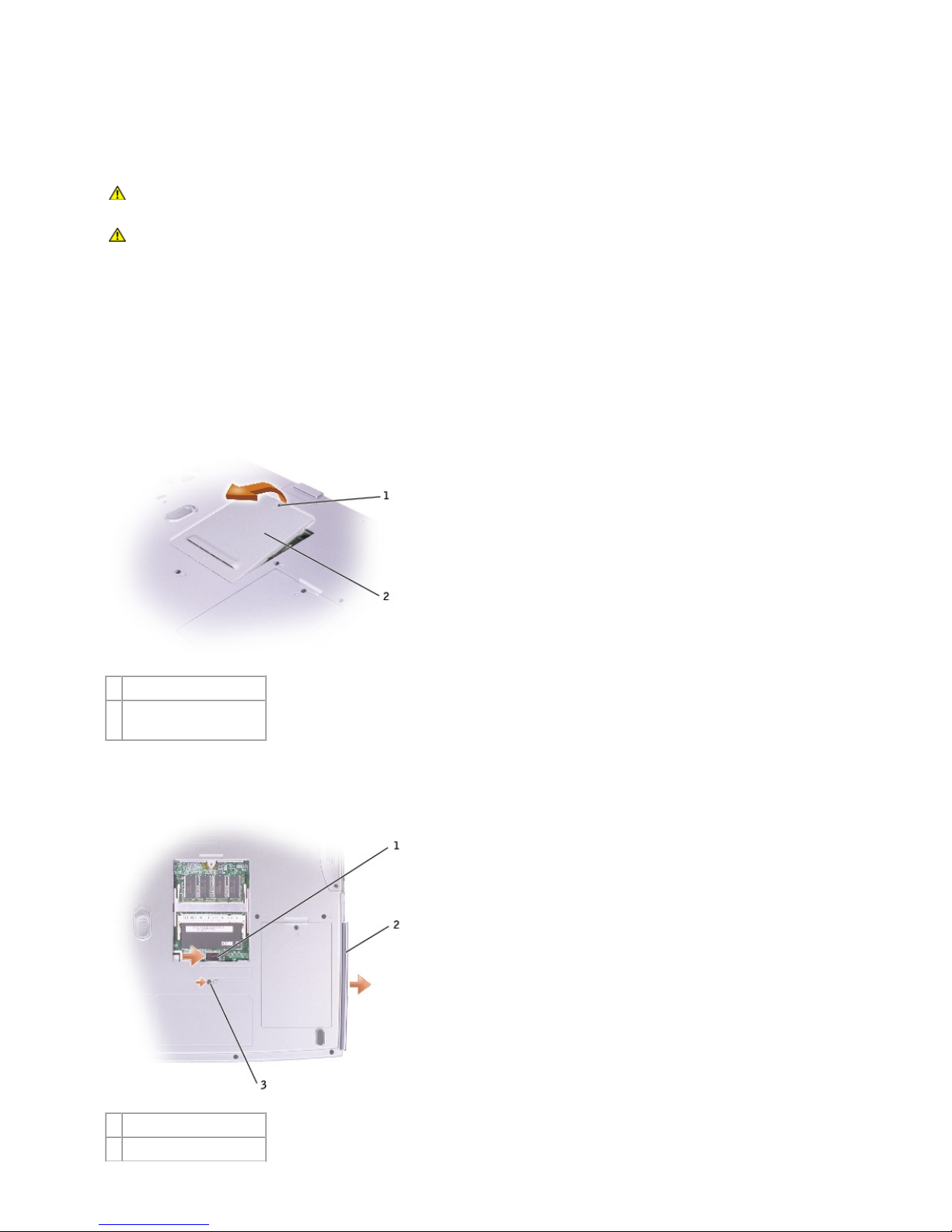

1 captive screw
2 memory module cover
Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector
until the module pops up.
3.
Remove the module from the connector.4.

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
3 of 13 2008-03-11 10:12

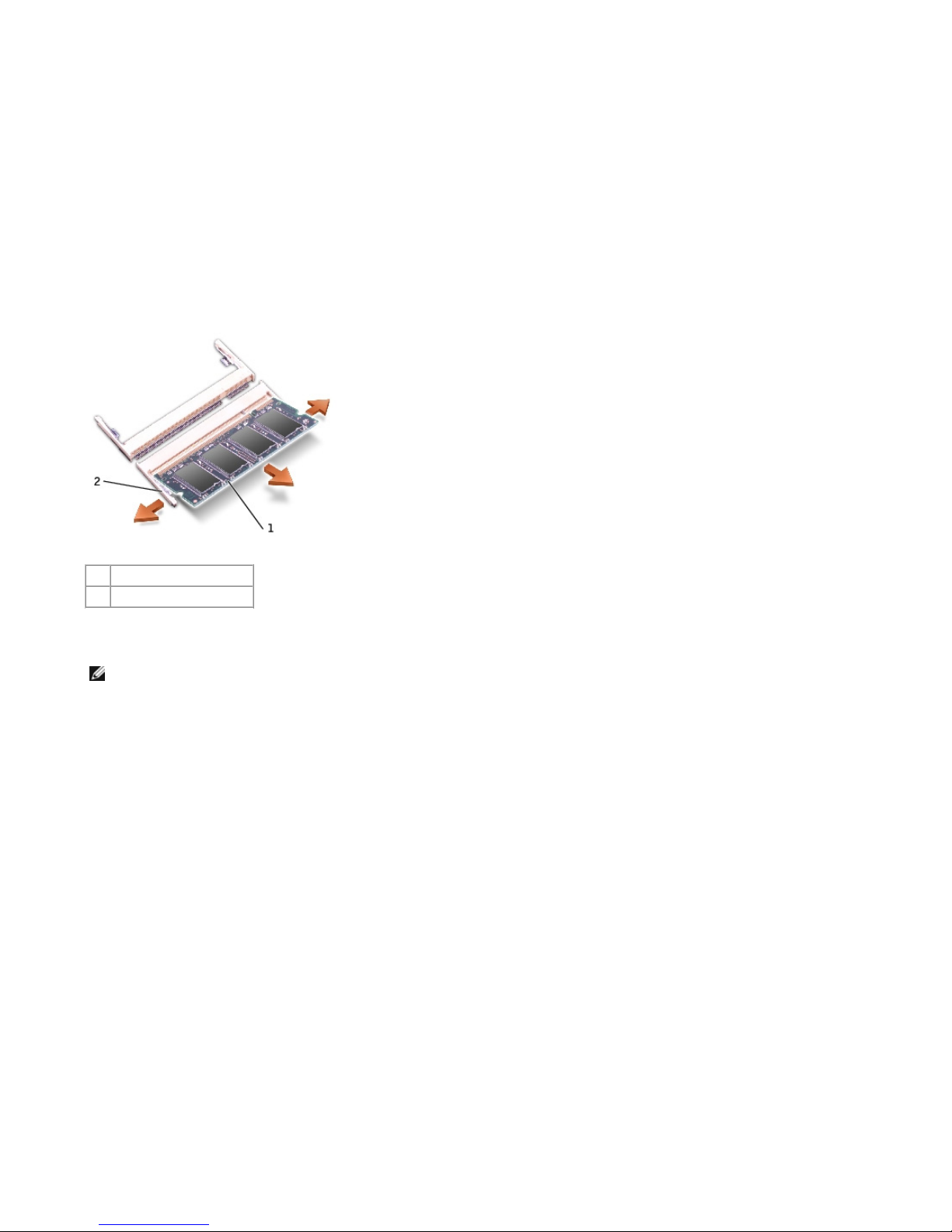

1 memory module
2 securing clips
Installing the Memory Modules
NOTE: If the memory module is not installed properly, the computer may not boot properly. No error message
indicates this failure.
Align the notch in the module edge connector with the tab in the connector slot.1.
Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place.
If you do not feel the click, remove the module and reinstall it.
2.

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
4 of 13 2008-03-11 10:12
Replace the cover and tighten the captive screw.3.
NOTICE: If the memory module cover is difficult to close, remove the module and reinstall it. Forcing the cover
to close may damage your computer.
Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical outlet.4.
Turn on the computer.5.
As the computer boots, it detects the additional memory and automatically updates the system configuration
information.
To confirm the amount of memory installed in the computer, click the Start button, click Help and Support, and then
click Computer Information.
CD or DVD Drive
Removing the CD or DVD Drive
CAUTION: Before working inside your Dell™ computer, read the safety instructions in your Owner's
Manual.

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
5 of 13 2008-03-11 10:12
CAUTION: To prevent static damage to components inside your computer, discharge static electricity
from your body before you touch any of your computer's electronic components. You can do so by
touching an unpainted metal surface.
Follow the instructions in "Preparing to Work Inside the Computer."1.
Turn the computer over, and remove the M2.5 x 8-mm screw labeled "O" next to the memory module cover.2.
Loosen the captive screw (labeled "circle M") in the memory module cover, and lift the cover away from the
computer.
3.
1 captive screw
2 memory module cover
Press the lever next to the memory module connectors in the direction of the arrow on the lever (towards the
drive) to release the drive.
4.

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
6 of 13 2008-03-11 10:12
1 lever
2 CD or DVD drive
3 M2.5 x 8-mm screw labeled
"O"
Pull the drive out of the bay.5.
Installing the CD or DVD Drive
Slide the new drive into the bay until the drive is fully seated.1.
Replace the memory module cover and tighten the captive screw.2.
Replace the M2.5 x 8-mm screw next to the memory module cover.3.

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
7 of 13 2008-03-11 10:12
Modem
Removing the Modem
CAUTION: Before working inside your Dell™ computer, read the safety instructions in your Owner's
Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity
from your body before you touch any of your computer's electronic components. You can do so by
touching an unpainted metal surface.
Follow the instructions in "Preparing to Work Inside the Computer."1.
Turn the computer over, loosen the captive screw (labeled "circle C") in the modem/Mini PCI card cover, and lift
the cover away from the computer.
2.

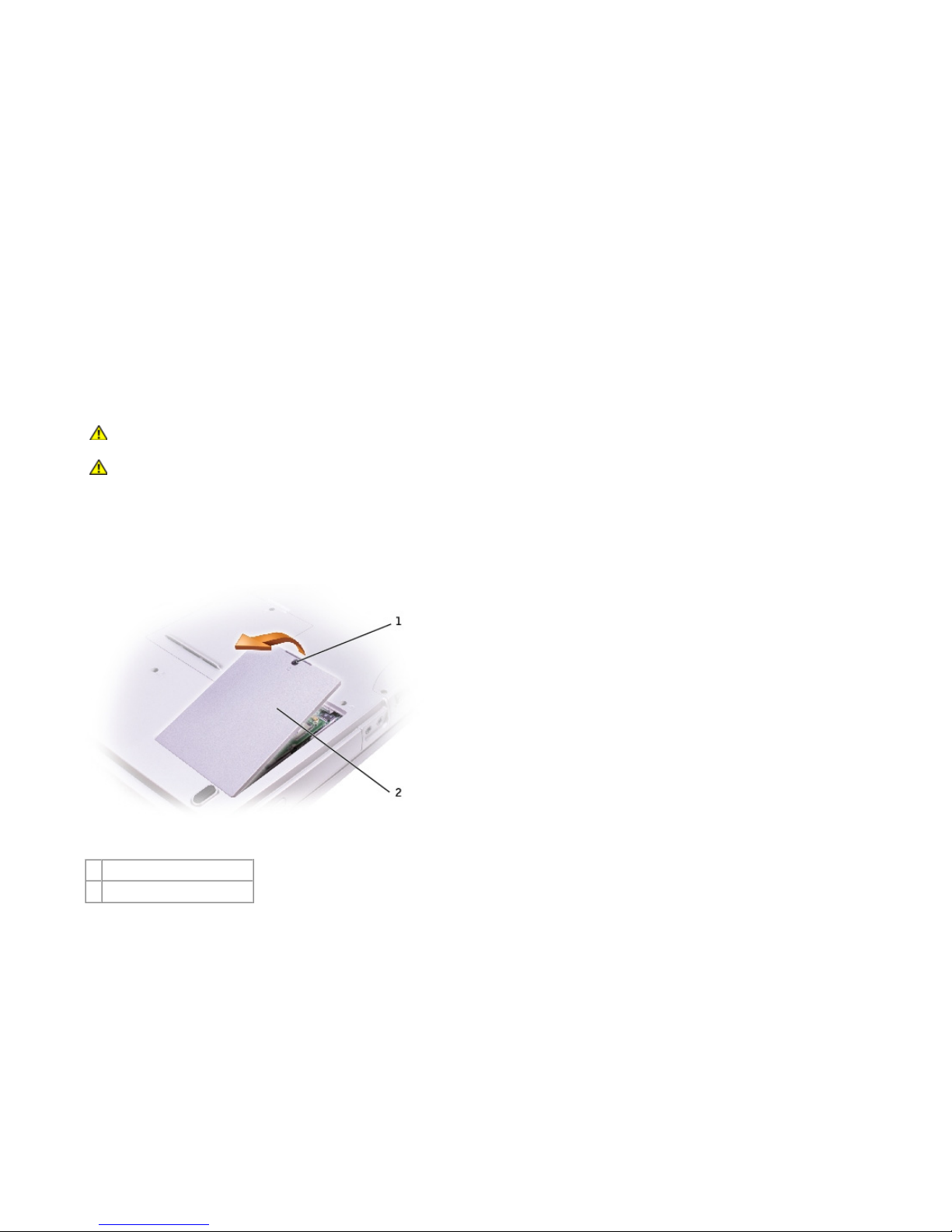

1 captive screw
2 modem/Mini PCI card cover

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
8 of 13 2008-03-11 10:12
Remove the two M2 x 3-mm screws securing the modem to the system board, and set them aside.3.
Pull straight up on the attached pull-tab to lift the modem out of its connector on the system board and
disconnect the modem cable.
4.
1 modem cable connector
2 pull-tab
3 modem cable
4 M2 x 3-mm screws (2)
Installing the Modem
Connect the modem cable to the modem.1.
NOTICE: The cable connectors are keyed for correct insertion; do not force the connections.
Align the modem with the screw holes, and press the modem into the connector on the system board.2.

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
9 of 13 2008-03-11 10:12
Install the two M2 x 3-mm screws to secure the modem to the system board.3.
Replace the cover and tighten the captive screw.4.
Mini PCI Card (Inspiron™ 5100 and 5150 Only)
Removing the Mini PCI Card
CAUTION: Before working inside your Dell™ computer, read the safety instructions in your Owner's
Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity
from your body before you touch any of your computer's electronic components. You can do so by
touching an unpainted metal surface.
Follow the instructions in "Preparing to Work Inside the Computer."1.
Turn the computer over, loosen the captive screw (labeled "circle C") in the modem/Mini PCI card cover, and lift
the cover away from the computer.
2.

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
10 of 13 2008-03-11 10:12
1 captive screw
2 modem/Mini PCI card cover
Disconnect the Mini PCI card from the attached cables.3.

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
11 of 13 2008-03-11 10:12

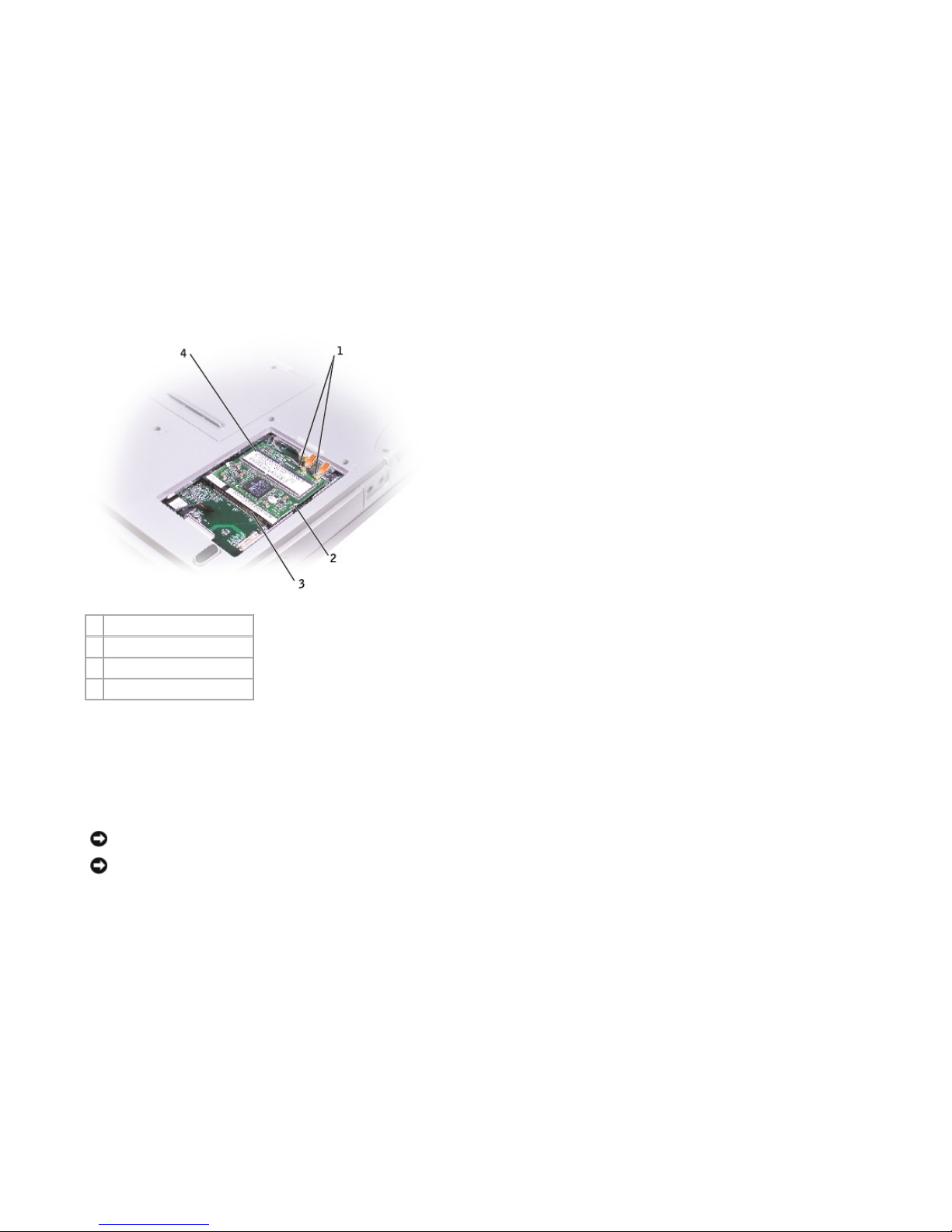

1 antenna cables
2 metal securing tabs (2)
3 Mini PCI card connector
4 Mini PCI card
Use your fingertips to carefully spread apart the securing taps on each end of the Mini PCI card connector until
the card pops up.
4.
Lift the Mini PCI card out of its connector.5.
Installing the Mini PCI Card
NOTICE: To avoid damaging the Mini PCI card, never place cables on top of or under the card.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and
realign the card.

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades.htm#1107249
12 of 13 2008-03-11 10:12
Align the Mini PCI card with the connector at a 45-degree angle, and press the Mini PCI card into the connector
until it clicks.
1.
1 antenna cables
2 Mini PCI card connector
3 Mini PCI card
Connect the antenna cables to the Mini PCI card.2.
NOTE: To prevent damage to the antenna cables, carefully fold the cables under the Mini PCI card before
replacing the cover.
Replace the cover and tighten the captive screw.3.
Back to Contents Page

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/hdd.htm...
1 of 2 2008-03-11 10:23
Contact Us; 1-800-915-3355 or Live Chat
My Account My Order Status
Products Services Support Purchase Help Su
pp
ort & Hel
p
Su
pp
ort & Hel
p
You are here: Dell USA > Support Home Page
Back to Contents Page
Hard Drive
Dell™ Inspiron™ 1100, 5100, and 5150 Service Manual
Removing the Hard Drive
CAUTION: If you remove the hard drive from the computer when the drive
is hot, do not touch the metal housing of the hard drive.
CAUTION: Before working inside your computer, read the safety
instructions in your Owner's Manual.
NOTICE: To prevent data loss, shut down your computer before removing the
hard drive. Do not remove the hard drive while the computer is on, in standby
mode, or in hibernate mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the
drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives
from sources other than Dell.
Follow the instructions in "Preparing to Work Inside the Computer."1.
Turn the computer over, and remove the two M2.5 x 5-mm hard drive screws.2.
1 M2.5 x 5-mm
screws (2)
2 hard drive
NOTICE: When the hard drive is not in the computer, store it in protective
antistatic packaging. See "Protecting Against Electrostatic Discharge" in your
Owner's Manual.
Slide the hard drive out of the computer.3.
Keyword Search
Technical Support Customer Service Warranty Information Dell Forums Contact Us
Cart Sign In

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/hdd.htm...
2 of 2 2008-03-11 10:23
Installing the Hard Drive
Remove the new drive from its packaging.1.
Save the original packaging for storing or shipping the hard drive.
NOTICE: Use firm and even pressure to slide the drive into place. If you use
excessive force, you may damage the connector.
Insert the drive into the bay, and push the hard drive until it is fully seated in the
bay.
2.
Replace and tighten the two M2.5 x 5-mm screws.3.
Use the Operating System CD to install the operating system for your computer.4.
Use the Drivers and Utilities CD to install the drivers and utilities for your
computer.
5.
Back to Contents Page
You are here: Dell USA > Support Home Page
© 2008 Dell | About Dell | Terms of Sale | Unresolved Issues | Privacy | Contact | Site Map | Feedback Top
Large Text
sn EB14

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades...
2 of 7 2008-03-11 10:22
memory module connector until the module pops up.
Remove the module from the connector.4.
1 memory module
2 securing clips
Installing the Memory Modules
NOTE: If the memory module is not installed properly, the computer may not boot
properly. No error message indicates this failure.
Align the notch in the module edge connector with the tab in the connector slot.1.
Slide the module firmly into the slot at a 45-degree angle, and rotate the module
down until it clicks into place. If you do not feel the click, remove the module and
reinstall it.
2.
Replace the cover and tighten the captive screw.3.
NOTICE: If the memory module cover is difficult to close, remove the module and
reinstall it. Forcing the cover to close may damage your computer.
Insert the battery into the battery bay, or connect the AC adapter to your
computer and an electrical outlet.
4.
Turn on the computer.5.
As the computer boots, it detects the additional memory and automatically updates the
system configuration information.
To confirm the amount of memory installed in the computer, click the Start button,
click Help and Support, and then click Computer Information.

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades...
3 of 7 2008-03-11 10:22
CD or DVD Drive
Removing the CD or DVD Drive
CAUTION: Before working inside your Dell™ computer, read the safety
instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer,
discharge static electricity from your body before you touch any of your
computer's electronic components. You can do so by touching an
unpainted metal surface.
Follow the instructions in "Preparing to Work Inside the Computer."1.
Turn the computer over, and remove the M2.5 x 8-mm screw labeled "O" next to
the memory module cover.
2.
Loosen the captive screw (labeled "circle M") in the memory module cover, and lift
the cover away from the computer.
3.
1 captive screw
2 memory module
cover
Press the lever next to the memory module connectors in the direction of the arrow
on the lever (towards the drive) to release the drive.
4.
1 lever
2 CD or DVD drive

Documentation http://support.dell.com/support/edocs/systems/ins5100/en/sm/upgrades...
1 of 7 2008-03-11 10:22
Contact Us; 1-800-915-3355 or Live Chat
My Account My Order Status
Products Services Support Purchase Help Su
pp
ort & Hel
p
Su
pp
ort & Hel
p
You are here: Dell USA > Support Home Page
Back to Contents Page
Memory, CD or DVD Drive, Modem, and
Mini PCI Card
Dell™ Inspiron™ 1100, 5100, and 5150 Service Manual
Memory
CD or DVD Drive
Modem
Mini PCI Card (Inspiron™ 5100 and 5150 Only)
Memory
Removing the Memory Modules
CAUTION: Before working inside your Dell™ computer, read the safety
instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer,
discharge static electricity from your body before you touch any of your
computer's electronic components. You can do so by touching an
unpainted metal surface.
NOTE: Memory modules purchased from Dell are covered under your computer
warranty.
Follow the instructions in "Preparing to Work Inside the Computer."1.
Turn the computer over, loosen the captive screw (labeled "circle M") in the
memory module cover, and lift the cover away from the computer.
2.
1 captive screw
2 memory module
cover
Use your fingertips to carefully spread apart the securing clips on each end of the3.
Keyword Search
Technical Support Customer Service Warranty Information Dell Forums Contact Us
Cart Sign In
