Dell Latitude X200 Service Manual
Dell™ Latitude™ X200 Service Manual
Before You Begin
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
System Components
Battery
Memory Module and Mini PCI Card
Memory Module
Mini PCI Card
Keyboard
Palm Rest
Hard Drive
Hinge Covers and Display Assembly
Hinge Covers
Display Assembly
Keyboard Tray
Reserve Battery
Speakers
Cooling Fan
System Board
Modem Daughter Card
Battery Latches
Flashing the BIOS
Pin Assignments for I/O Connectors
Pin Assignments for the Computer
Pin Assignments for the Media Base
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/index.htm (1 of 2)6/21/2004 3:03:07 AM

Dell Latitude X200 Service Manual
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or
death.
Information in this document is subject to change without notice.
© 2002 Dell Computer Corporation. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, AccessDirect, and Latitude are trademarks of Dell Computer Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names other
than its own.
April 2002 Rev. A00
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/index.htm (2 of 2)6/21/2004 3:03:07 AM

Before You Begin: Dell Latitude X200 Service Manual
Back to Contents Page
Before You Begin
Dell™ Latitude™ X200 Service Manual
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
Preparing to Work Inside the Computer
CAUTION: Before working inside your computer, read "Safety and EMC Instructions:
Portable Computers" in your System Information Guide.
NOTICE: Only a certified service technician should perform repairs on your computer. Damage
due to servicing that is not authorized by Dell is not covered by your warranty.
NOTICE: To avoid damaging the computer, perform the following steps before you begin
working inside the computer.
1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.
2. Save any work in progress and exit all open programs.
3. Turn off the computer and all attached devices.
NOTE: Ensure that the computer is turned off and not in suspend or hibernate mode. If you
cannot shut down the computer using the computer operating system, press and hold the power
button for 4 seconds.
4. Ensure that the computer is undocked.
5. Disconnect the computer from the electrical outlet.
6. To avoid possible damage to the system board, wait 10 to 20 seconds and then disconnect any
attached devices.
7. Disconnect all other external cables from the computer.
8. Remove any installed PC Cards or plastic blanks from the PC Card slot.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (1 of 6)6/21/2004 3:03:08 AM

Before You Begin: Dell Latitude X200 Service Manual
9. Close the display and turn the computer upside down on a flat work surface.
NOTICE: To avoid damaging the system board, you must remove the battery before you
service the computer.
10. Remove the battery from the battery bay.
11. To dissipate any static electricity while you work, use a wrist grounding strap or periodically
touch an unpainted metal surface.
12. Handle components and cards with care. Do not touch the components or contacts on a card.
Hold a card by it edges or by its metal mounting bracket. Hold a component such as a
microprocessor by its edges, not by its pins.
Recommended Tools
The procedures in this manual require the following tools:
●#1 magnetized Phillips screwdriver
●¼-inch flat-blade screwdriver
●Small plastic scribe

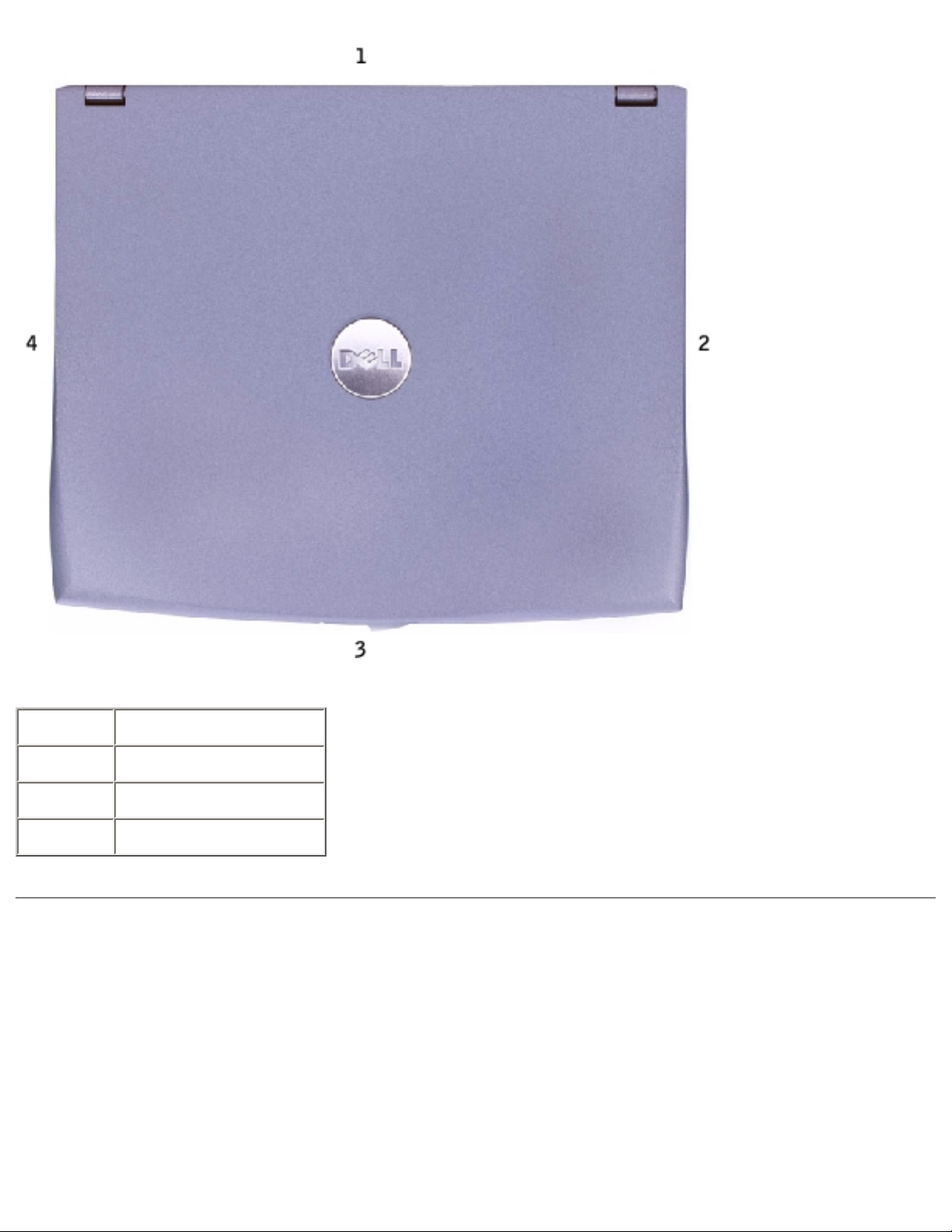

Computer Orientation
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (2 of 6)6/21/2004 3:03:08 AM

Before You Begin: Dell Latitude X200 Service Manual
1 back
2 right
3 front
4 left
Screw Identification
When you are removing and replacing components, photocopy the placemat as a tool to lay out and
keep track of the screws. The placemat provides the number of screws and their sizes.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (3 of 6)6/21/2004 3:03:08 AM

Before You Begin: Dell Latitude X200 Service Manual
NOTICE: When reinstalling a screw, you must use a screw of the correct diameter and length.
Ensure that the screw is properly aligned with its corresponding hole, and avoid overtightening.
Keyboard:
(6 each)
Palm Rest:
(4 each)
Display Assembly:
(2 each)
Keyboard Tray:
(7 each)
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (4 of 6)6/21/2004 3:03:08 AM

Before You Begin: Dell Latitude X200 Service Manual
Hard Drive:
(3 each)
System Board:
(4 each)
Modem Daughter Card:
(1 each)
Cooling Fan:
(4 each)
Speaker:
(1 each)
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (5 of 6)6/21/2004 3:03:08 AM

Before You Begin: Dell Latitude X200 Service Manual
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...ok/Latitude/X200/X200_SERVICE_MANUAL/begin.htm (6 of 6)6/21/2004 3:03:08 AM

System Components: Dell Latitude X200 Service Manual
Back to Contents Page
System Components
Dell™ Latitude™ X200 Service Manual
NOTICE: Only a certified service technician should perform repairs on your computer. Damage
due to servicing that is not authorized by Dell is not covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this manual assumes that a part can be
replaced by performing the removal procedure in reverse order.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...k/Latitude/X200/X200_SERVICE_MANUAL/system.htm (1 of 2)6/21/2004 3:03:09 AM

System Components: Dell Latitude X200 Service Manual

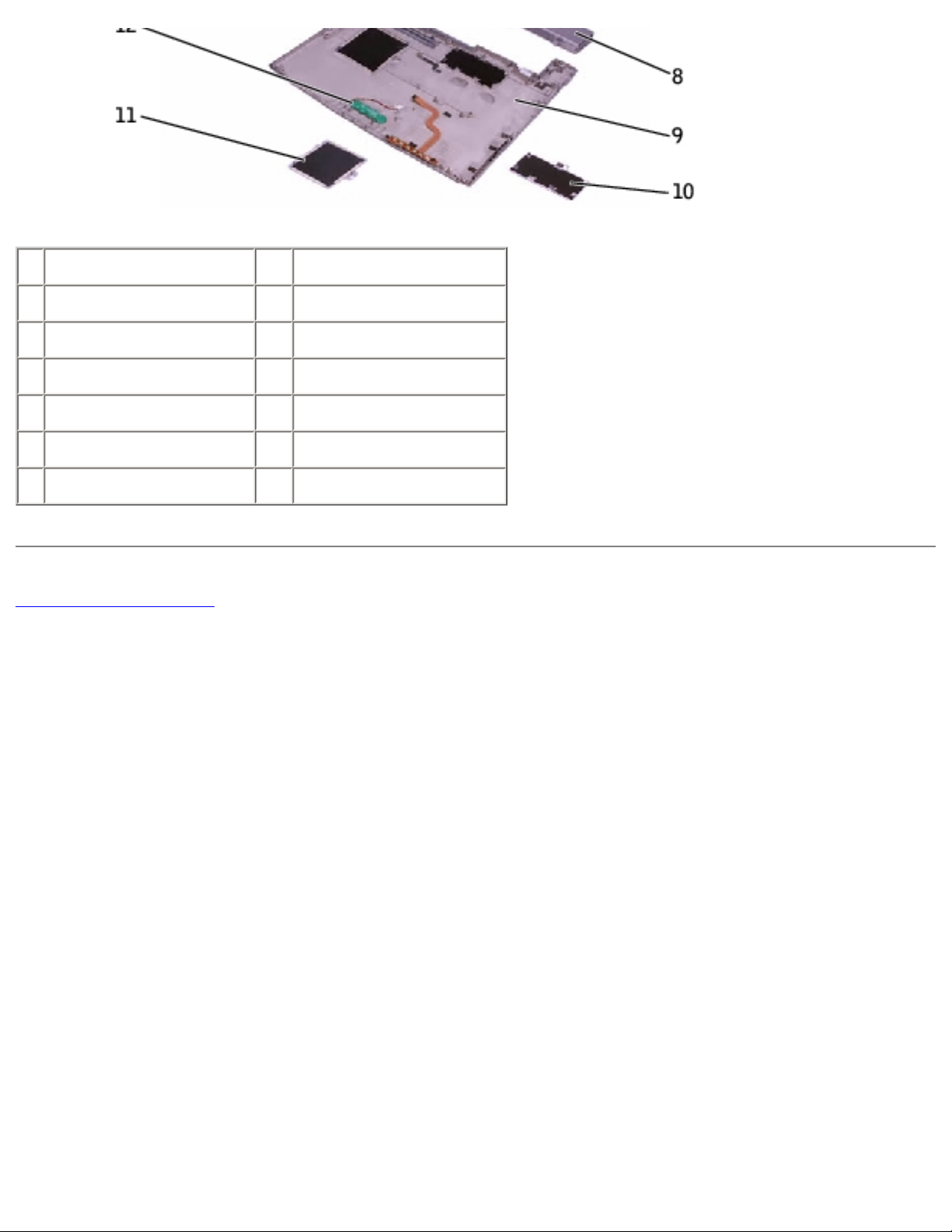

1 display 8 battery
2 keyboard 9 bottom case
3 keyboard tray 10 memory module cover
4 cooling fan 11 Mini PCI card cover
5 system board 12 reserve battery
6 modem daughter card 13 speakers (2)
7 hard drive 14 palm rest
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...k/Latitude/X200/X200_SERVICE_MANUAL/system.htm (2 of 2)6/21/2004 3:03:09 AM

Battery: Dell Latitude X200 Service Manual
Back to Contents Page
Battery
Dell™ Latitude™ X200 Service Manual
Removing the Battery
NOTICE: If you choose to replace the battery with the computer in standby mode, you have up
to 1 minute to complete the battery replacement before the computer shuts down and loses
any unsaved data.
1. Ensure that the computer is turned off, suspended in a power management mode, or connected
to an electrical outlet.
2. If the computer is docked, undock it.

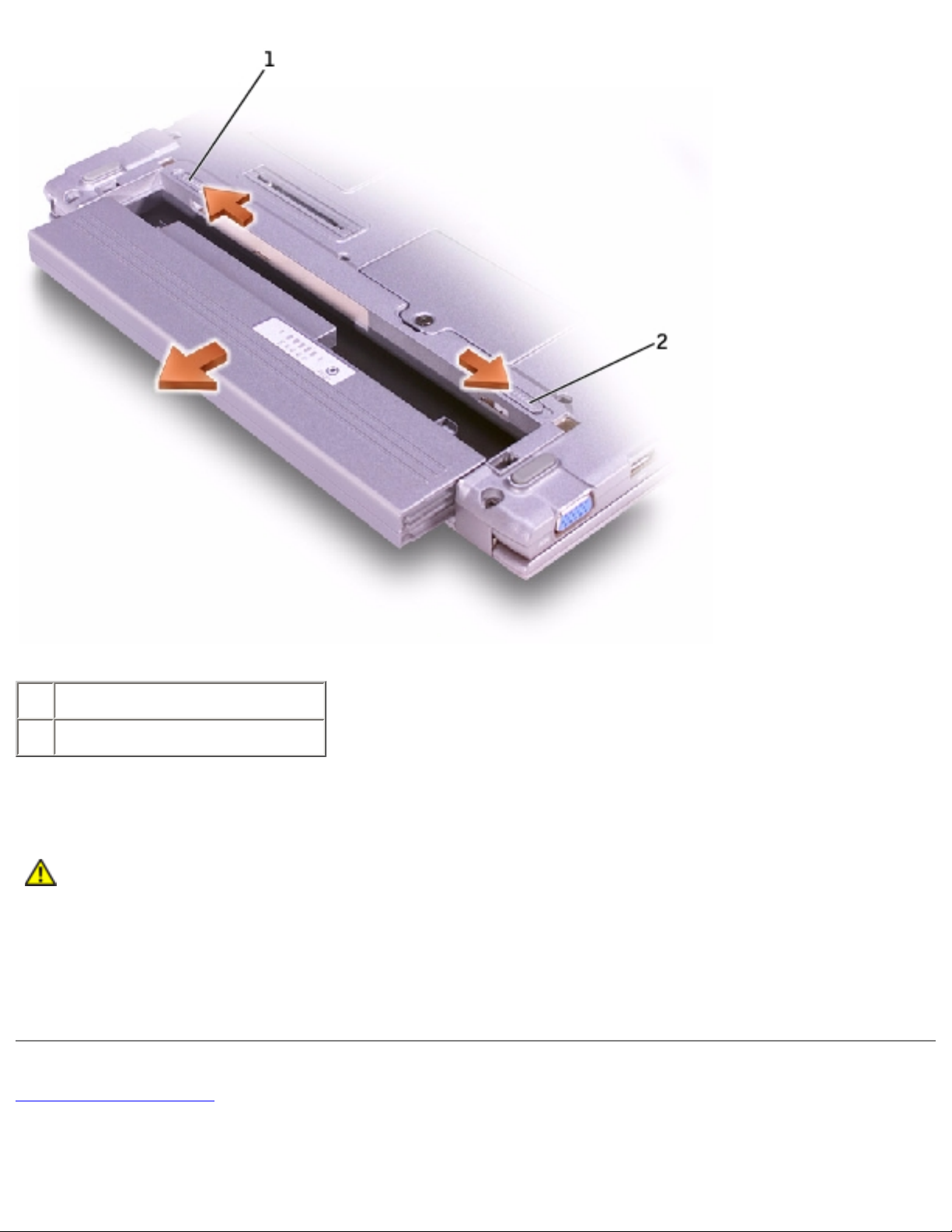

3. Slide the battery lock latch on the bottom of the computer to the unlock position.
4. Slide and hold the battery latch release on the bottom of the computer, and then remove the
battery from the bay.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA.../Latitude/X200/X200_SERVICE_MANUAL/battery.htm (1 of 3)6/21/2004 3:03:10 AM

Battery: Dell Latitude X200 Service Manual
1 battery lock latch
2 battery latch release
Replacing the Battery
CAUTION: Use only Dell™ battery modules that are approved for use with this
computer. Use of other types may increase the risk of fire or explosion.
1. Slide the battery into the bay until the latch release clicks.
2. Slide the battery lock latch into the lock position.
Back to Contents Page
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA.../Latitude/X200/X200_SERVICE_MANUAL/battery.htm (2 of 3)6/21/2004 3:03:10 AM

Battery: Dell Latitude X200 Service Manual
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA.../Latitude/X200/X200_SERVICE_MANUAL/battery.htm (3 of 3)6/21/2004 3:03:10 AM

Memory Module and Mini PCI Card: Dell Latitude X200 Service Manual
Back to Contents Page
Memory Module and Mini PCI Card
Dell™ Latitude™ X200 Service Manual
Memory Module
Mini PCI Card
Memory Module
Removing the Memory Module Cover
NOTICE: Disconnect the computer and any attached devices from electrical outlets, and
remove any installed batteries.
NOTICE: To avoid ESD, ground yourself by using a wrist grounding strap or by touching an
unpainted metal surface on the computer.
NOTICE: Read "Preparing to Work Inside the Computer" before performing the following
procedure.
1. If the computer is docked, undock it.

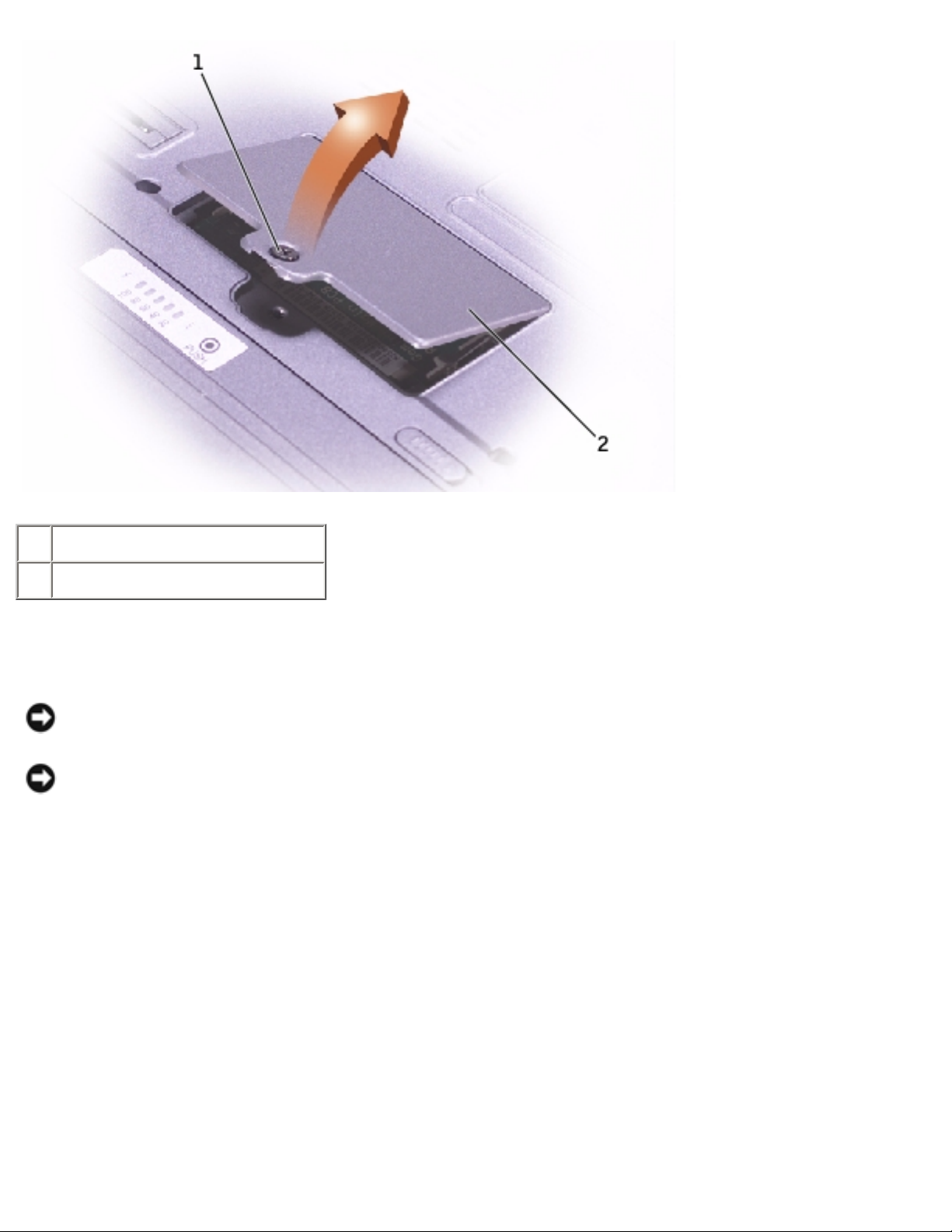

2. Turn the computer over, loosen the captive screw from the memory module cover, and lift the
cover.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/X200/X200_SERVICE_MANUAL/upgrades.htm (1 of 8)6/21/2004 3:03:11 AM

Memory Module and Mini PCI Card: Dell Latitude X200 Service Manual
1 captive screw
2 memory module cover
Removing the Memory Module
NOTICE: To prevent damage to the memory module connector, do not use tools to spread the
inner metal tabs that secure the memory module.
NOTICE: Handle memory modules by their edges, and do not touch the components on a
module.
1. Use your fingertips to spread apart the securing clips on each end of the memory module
connector.
The module should pop up.
2. Remove the module from the connector.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/X200/X200_SERVICE_MANUAL/upgrades.htm (2 of 8)6/21/2004 3:03:11 AM

Memory Module and Mini PCI Card: Dell Latitude X200 Service Manual
1 memory module
2 securing clips (2)
Replacing the Memory Module

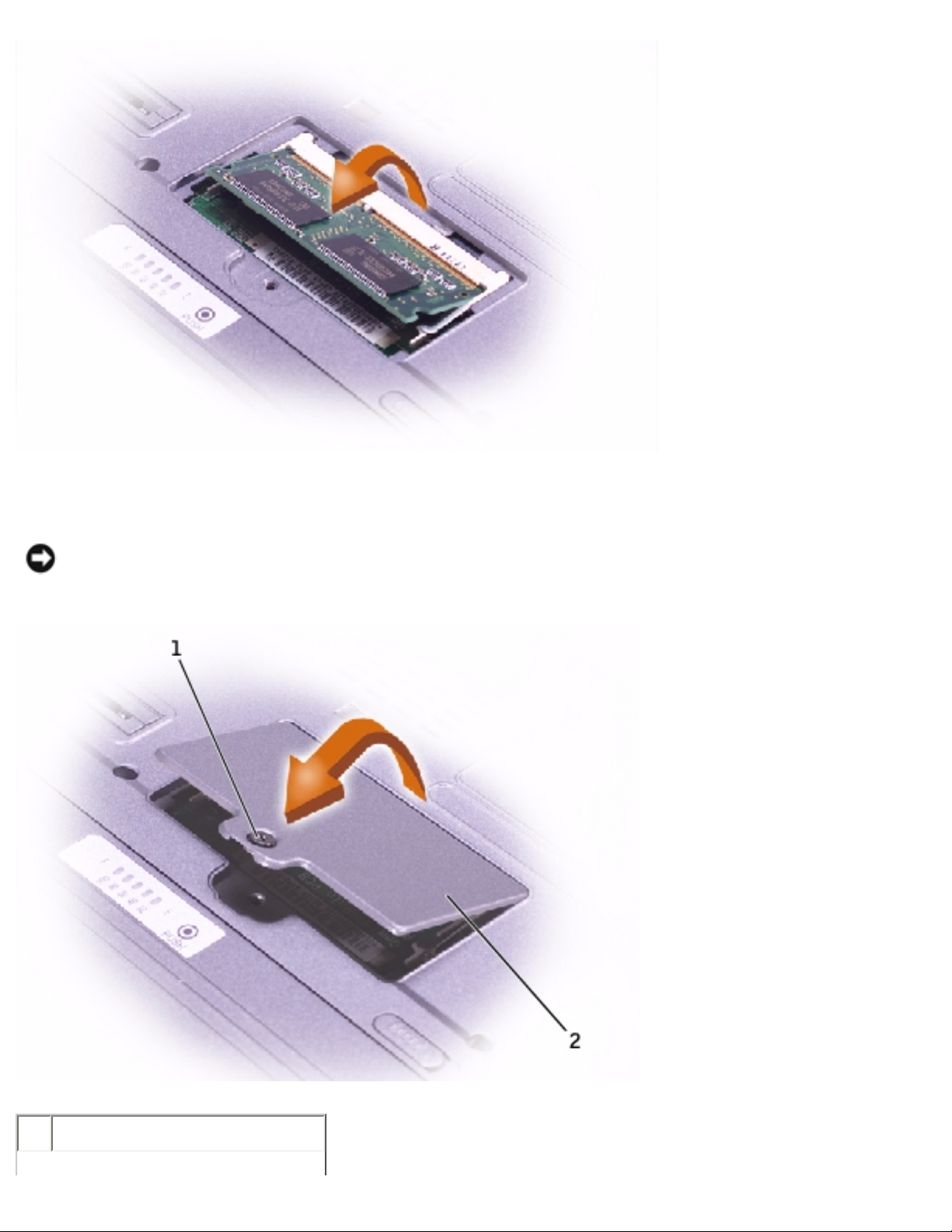

1. Ground yourself and install the new memory module:
a. Align the notch in the module with the slot in the center of the connector.
b. Slide the edge of the module firmly into the connector, and rotate the module down until
you hear a click. If you do not hear the click, remove the module and reinstall it.
NOTE: If the memory module is not installed properly, the computer does not boot. No error
message indicates this failure.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/X200/X200_SERVICE_MANUAL/upgrades.htm (3 of 8)6/21/2004 3:03:11 AM

Memory Module and Mini PCI Card: Dell Latitude X200 Service Manual
2. Replace the memory module cover and tighten the captive screw.
NOTICE: If the memory module cover is difficult to close, remove the module and reinstall it.
Forcing the cover to close may damage your computer.
1 captive screw
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/X200/X200_SERVICE_MANUAL/upgrades.htm (4 of 8)6/21/2004 3:03:11 AM

Memory Module and Mini PCI Card: Dell Latitude X200 Service Manual
2 memory module cover
3. Insert the battery into the battery bay, or connect the AC adapter to your computer and an
electrical outlet.
4. Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates the system
configuration information.
Mini PCI Card
Removing the Mini PCI Card Cover
NOTICE: Disconnect the computer and any attached devices from electrical outlets, and
remove any installed batteries.
NOTICE: To avoid ESD, ground yourself by using a wrist grounding strap or by touching an
unpainted metal surface on the computer.
NOTICE: Read "Preparing to Work Inside the Computer" before performing the following
procedure.
1. If the computer is docked, undock it.
2. Turn the computer over, loosen the captive screw from the Mini PCI card cover, and lift the
cover.
file:///I|/SERVICE%20MANUALS/DELL%20MANUALS/LA...Latitude/X200/X200_SERVICE_MANUAL/upgrades.htm (5 of 8)6/21/2004 3:03:11 AM

Memory Module and Mini PCI Card: Dell Latitude X200 Service Manual
1 captive screw
2 Mini PCI card cover
Removing the Mini PCI Card
1. Disconnect the antenna cable from the Mini PCI card.
2. Release the Mini PCI card by spreading the metal securing tabs until the card pops up slightly.
3. Lift the Mini PCI card out of its connector.
