Dell™Latitude™D610ServiceManual

Notes, Notices, and Cautions
____________________
Information in this document is subject to change without notice.
©2004–2005DellInc.Allrightsreserved.
ReproductioninanymannerwhatsoeverwithoutthewrittenpermissionofDellInc.isstrictlyforbidden.
Trademarks used in this text: Dell, the DELL logo, and Latitude are trademarks of DellInc.; Intel is a registered trademark of Intel Corporation; Bluetooth is a registered trademark
owned by Bluetooth SIG, Inc. and is used by Dell Inc. under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP11L
November 2005 Rev. A01
Before You Begin
Palm Rest
System Components
Fan
Internal Card With Bluetooth®Wireless Technology
Microprocessor Thermal-Cooling Assembly
Hard Drive
Microprocessor Module
Center Control Cover
Speaker Assembly
Keyboard
Base Latch
Memory Module, Modem, and Devices
System Board
Coin-Cell Battery
Flashing the BIOS
Mini PCI Card
Pin Assignments for I/O Connectors
Display Assembly and Display Latch

NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Great user manuals database on UserManuals.info
Back to Contents Page

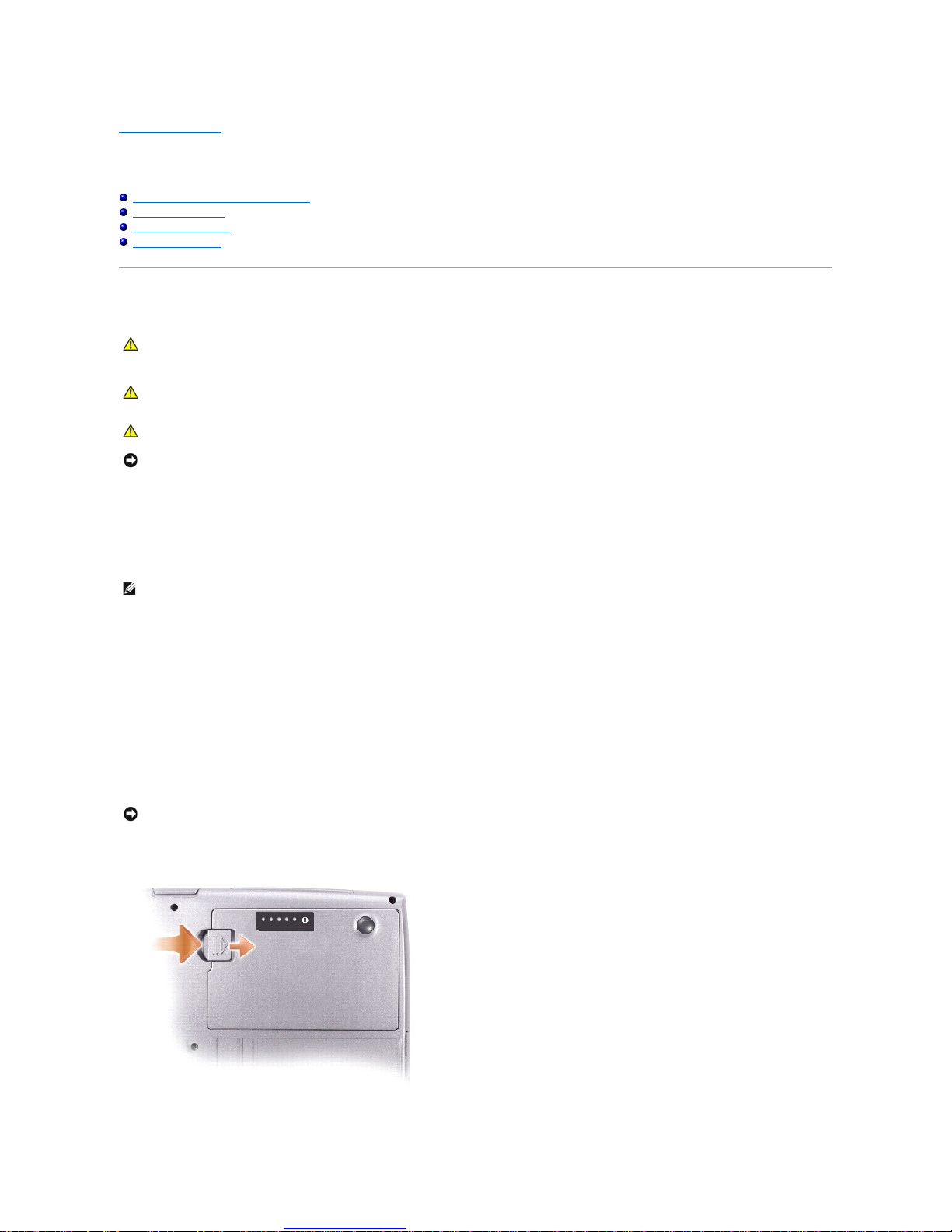

Before You Begin
Dell™Latitude™D610ServiceManual
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
Preparing to Work Inside the Computer




1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.

2. Save any work in progress and exit all open programs.

3. Turn off the computer and all attached devices.

4. If the computer is connected to a docking device, undock it.

5. Disconnect the computer from the electrical outlet.

6. To avoid possible damage to the system board, wait 10 to 20 seconds and then disconnect any attached devices.

7. Disconnect all other external cables from the computer.

8. Remove any installed PC Cards from the PC Card slot.

9. Close the display and turn the computer upside down on a flat work surface.

10. Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay.

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty. Read and follow applicable instructions in the safety instructions in the Product Information Guide that came with
the computer.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a microprocessor by its edges, not by its pins.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
NOTE: Ensure that the computer is off and not in a power management mode. If you cannot shut down the computer using the computer operating
system, press and hold the power button for 4 seconds.
NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.

Great user manuals database on UserManuals.info

11. Remove any installed memory modules, Mini PCI cards, and devices, including a second battery if one is installed.

12. Remove the hard drive (see "Removing the Hard Drive").
Recommended Tools
The procedures in this manual require the following tools:
l#1 Phillips screwdriver
l¼-inch flat-blade screwdriver
lSmall plastic scribe
lFlash BIOS update program floppy or CD
Computer Orientation

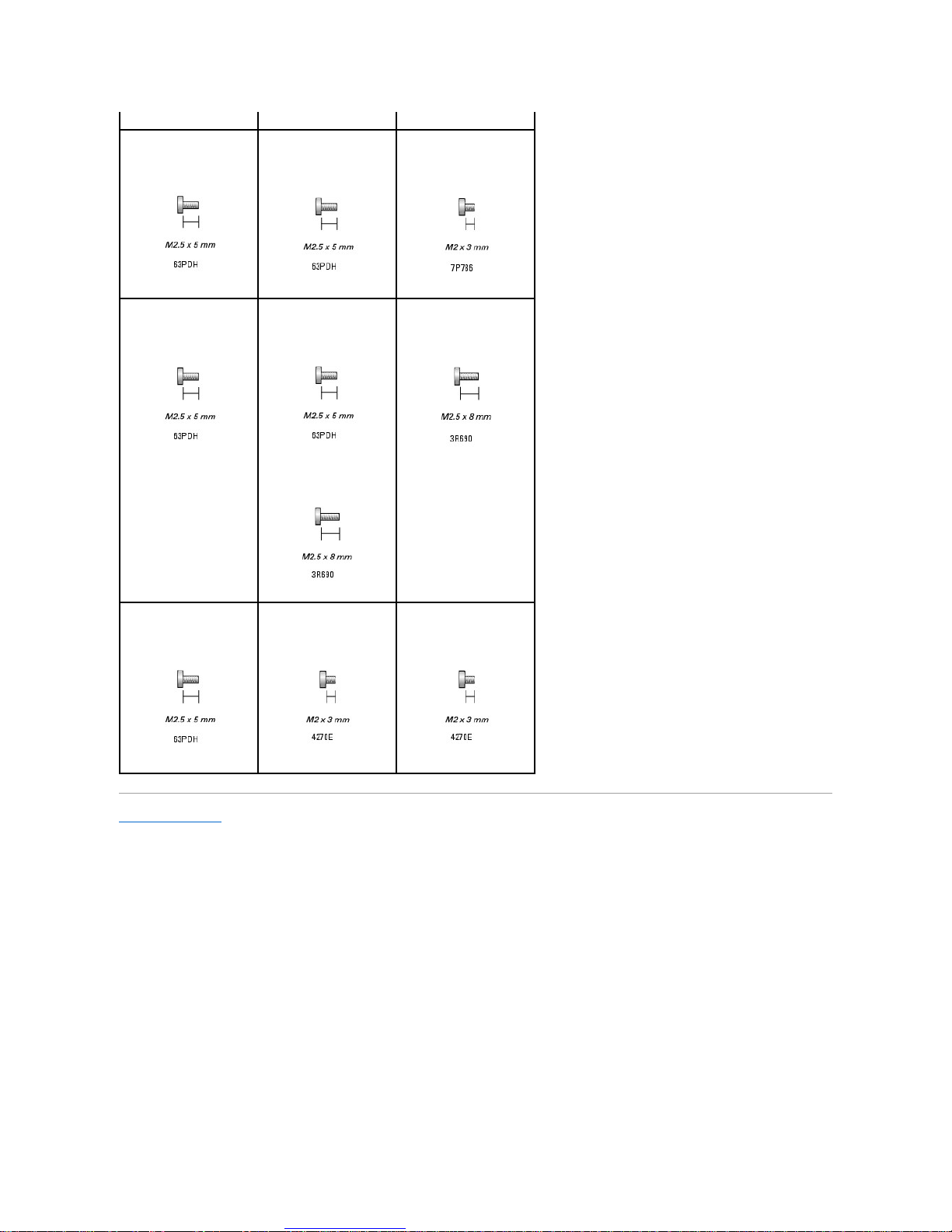

Screw Identification
When you are removing and replacing components, photocopy "Screw Identification" as a tool to lay out and keep track of the screws. The placemat provides
the number of screws and their sizes.
1
back
2
right
3
front
4
left
Optional Device:
(1 each)
Hard Drive:
(2 each)
Keyboard:
(2 each)

Great user manuals database on UserManuals.info
Back to Contents Page

Display Assembly:
(4 each)
Display Bezel:
(6 each)
Display Panel:
(4 each)
Display Latch:
(1 each)
Palm Rest:
(2 each at top)
(13 each at bottom)
Fan:
(2 each)

Speakers:
(2 each—1 on each side)
Modem:
(1 each)

System Board:
(5 each)

Great user manuals database on UserManuals.info
Back to Contents Page
Flashing the BIOS
Dell™Latitude™D610ServiceManual

1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.

2. Insert the BIOS update program floppy or CD, and turn on the computer.
Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the
computer will automatically reboot.

3. Press <F2> during POST to enter the system setup program.

4. Press <Alt> and <F> to reset the computer defaults.

5. Press <Esc Suspend>, select Save changes and reboot, and press <Enter> to save configuration changes.

6. Remove the flash BIOS update program floppy or CD from the drive and restart the computer.
Back to Contents Page

NOTE: If you use a BIOS update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.

Great user manuals database on UserManuals.info
Back to Contents Page
Internal Card With Bluetooth®Wireless Technology
Dell™Latitude™D610ServiceManual
Removing the Internal Card With Bluetooth®Wireless Technology
Installing the Internal Card With Bluetooth®Wireless Technology

Removing the Internal Card With Bluetooth®Wireless Technology

1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the battery.

3. Press down and pull on the tab to open the card door.

4. Disconnect the card cable connector from the card, and remove the door with the card from the computer.

5. Holding the card by the card connector, press down the lever, and lift the card off the plastic knob.

6. Slide the card out of the plastic brackets.
Installing the Internal Card With Bluetooth®Wireless Technology

1. Slide the card into the plastic brackets on the door, and press the card onto the plastic knob.

CAUTION: Before performing the following procedures, read the safety instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Press down the lever gently to avoid damaging it.
1
card cable connector
2
card connector
3
plastic brackets (2)
4
internal card with Bluetooth wireless technology
5
lever
6
plastic knob
7
tab on card door
NOTICE: Be careful not to break the plastic when closing the door.

Great user manuals database on UserManuals.info
2. Connect the card to the card cable connector, slide the door with the card into the card compartment, and gently press the door into position.

3. Replace the battery.
Back to Contents Page


Great user manuals database on UserManuals.info
Back to Contents Page
Coin-Cell Battery
Dell™Latitude™D610ServiceManual
Removing the Coin-Cell Battery
Installing the Coin-Cell Battery


Removing the Coin-Cell Battery

1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Turn over the computer, loosen the captive screw from the modem cover, and lift the cover away from the computer.

3. Disconnect the coin-cell battery cable connector from the battery connector on the system board, and slide the coin-cell battery out of the securing
sleeve.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
captive screw
2
modem cover
1
coin-cell battery
2
battery connector on
system board

Great user manuals database on UserManuals.info
Installing the Coin-Cell Battery

1. Connect the coin-cell battery cable connector to the battery connector on the system board.

2. Slide the battery into the securing sleeve.

3. Replace the modem cover.
Back to Contents Page

3
coin-cell battery cable
connector
4
securing sleeve

Great user manuals database on UserManuals.info
Back to Contents Page
Microprocessor Module
Dell™Latitude™D610ServiceManual
Removing the Microprocessor Module
Installing the Microprocessor Module
Removing the Microprocessor Module


1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the center control cover (see "Removing the Center Control Cover").

3. Remove the keyboard (see "Removing the Keyboard").

4. Remove the display assembly (see "Removing the Display Assembly").

5. Remove the palm rest (see "Removing the Palm Rest").

6. Remove the microprocessor thermal-cooling assembly.

7. To loosen the ZIF socket, use a small flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until you cannot turn the screw any
further.

8. Lift the microprocessor module from the system board.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Do not touch the processor die. Press and hold the microprocessor down on the substrate on which the die is mounted while turning the cam
screw to prevent intermittent contact between the cam screw and microprocessor.
NOTICE: To avoid damage to the microprocessor, hold the screwdriver so that it is perpendicular to the microprocessor when turning the cam screw.
NOTICE: To ensure maximum cooling for the microprocessor, do not touch the heat transfer areas on the microprocessor thermal-cooling assembly. The
oils in your skin reduce the heat transfer capability of the thermal pads.
NOTICE: When removing the microprocessor module, pull the module straight up. Be careful not to bend the pins on the microprocessor module.
1
microprocessor
2
ZIF-socket cam screw
3
ZIF socket
4
pin-1 corner
NOTE: The ZIF-socket cam screw secures the microprocessor to the system board. Take note of the arrow on the ZIF-socket cam screw.
NOTE: See Mini RSL for microprocessor part numbers.

Great user manuals database on UserManuals.info
Installing the Microprocessor Module

1. Align the pin-1 corner of the microprocessor module with the pin-1 corner of the ZIF socket, and insert the microprocessor module.
When the microprocessor module is correctly seated, all four corners are aligned at the same height. If one or more corners of the module are higher
than the others, the module is not seated correctly.

2. Tighten the ZIF socket by turning the cam screw clockwise until you cannot turn the screw any further to secure the microprocessor module to the
system board.

3. Replace the other computer parts you removed earlier in this procedure.

4. Update the BIOS using a flash BIOS update program CD. For instructions on how to flash the BIOS, see "Flashing the BIOS."
Back to Contents Page

NOTICE: Ensure that the cam lock is in the fully open position before seating the microprocessor module. Seating the microprocessor module properly in
the ZIF socket does not require force.
NOTICE: A microprocessor module that is not properly seated can result in an intermittent connection or permanent damage to the microprocessor and
ZIF socket.
NOTE: The pin-1 corner of the microprocessor module has a triangle that aligns with the triangle on the pin-1 corner of the ZIF socket.
NOTICE: You must position the microprocessor module correctly in the ZIF socket to avoid permanent damage to the module and the socket.

Great user manuals database on UserManuals.info
Back to Contents Page
Display Assembly and Display Latch
Dell™Latitude™D610ServiceManual
Display Assembly

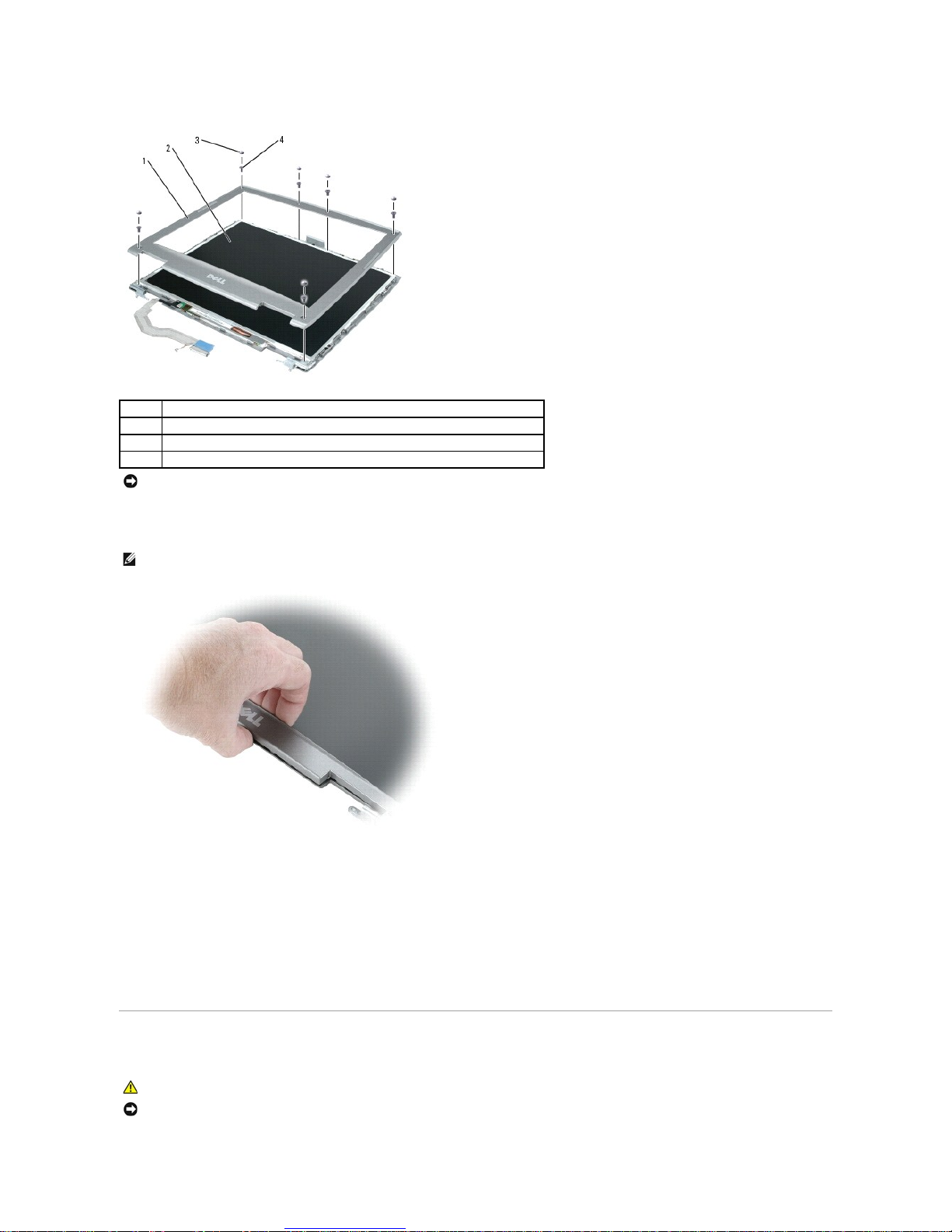

Display Bezel

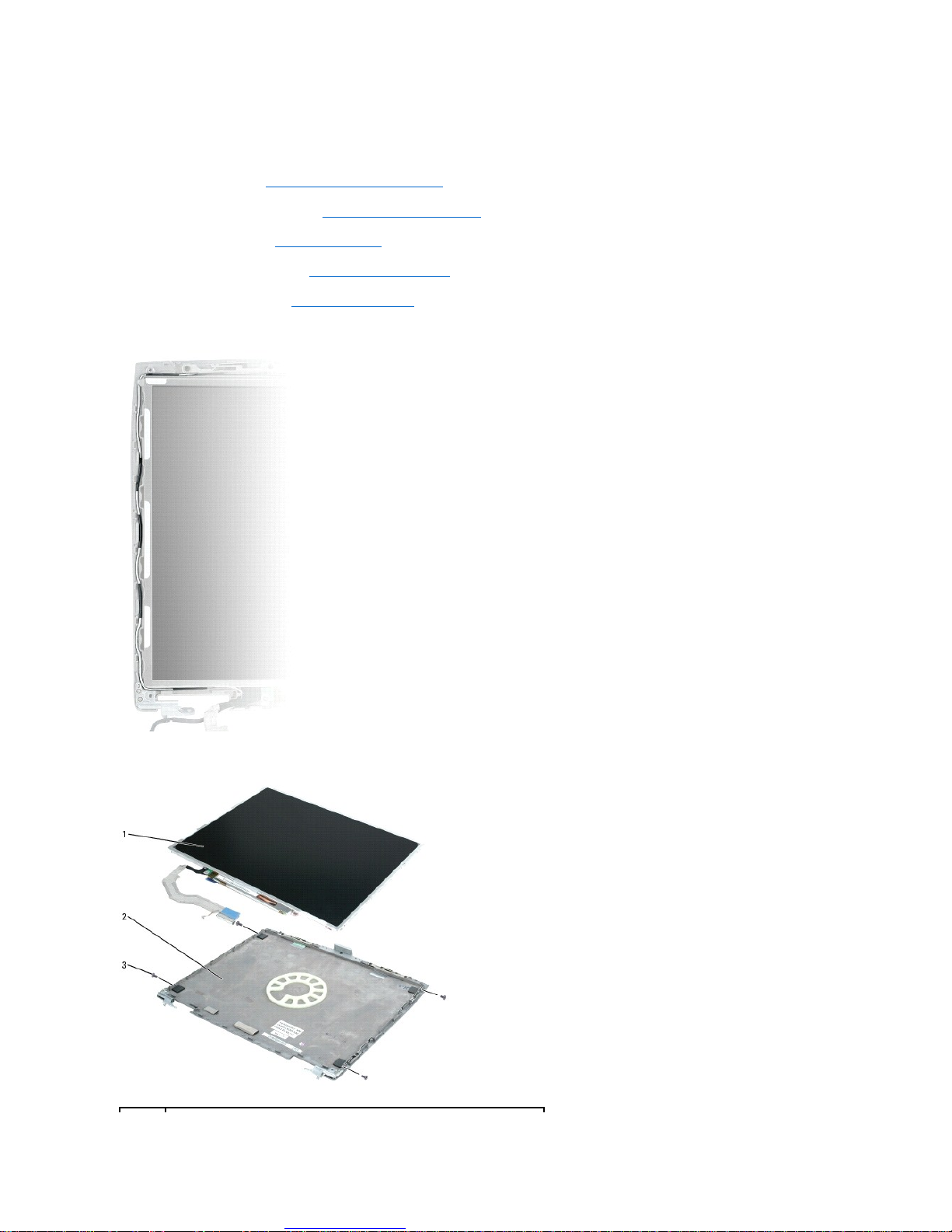

Display Panel
Display Latch
Display Assembly


Removing the Display Assembly

1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the center control cover (see "Removing the Center Control Cover").

3. Remove the keyboard (see "Removing the Keyboard").

4. Open the display approximately 180 degrees so that it lies flat against your work surface.

5. Loosen the captive screw that secures the display cable to the heat sink on the system board.

6. Use the pull-tab to remove the display cable from the display connector on the system board.

7. Remove the four M2.5 x 5-mm screws.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: You must remove the display assembly before you remove the palm rest.
NOTE: If a Mini PCI card is installed, remove the two antenna cables from the card and from the routing clips.
1
antenna cables (2)
2
M2.5 x 5-mm screws (4)
3
display
4
captive screw on heat sink
5
display connector on system board
6
pull-tab on display-cable connector

Great user manuals database on UserManuals.info

8. Lift the display assembly up and out of the computer base.

Installing the Display Assembly

1. Align the display assembly over the screw holes in the base of the computer.

2. Tighten the four M2.5 x 5-mm screws.

3. Route the two antenna cables under the routing clips.

4. Replace the keyboard (see "Installing the Keyboard").

5. Replace the center control cover (see "Installing the Center Control Cover").
Display Bezel


Removing the Display Bezel

1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the center control cover (see "Removing the Center Control Cover").

3. Remove the keyboard (see "Removing the Keyboard").

4. Remove the display assembly (see "Removing the Display Assembly").

5. Use a plastic scribe tool to pry the six display bumpers out of the screw holes located on the front of the bezel.

NOTE: Ensure that you route the antenna cables under the routing clips. Failure to do so could result in your keyboard not seating properly.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.

Great user manuals database on UserManuals.info
6. Remove the six M2.5 x 5-mm screws located on the front of the bezel.

7. Startingatthebottomofthedisplaypanel(bytheDell™logo),useyourfingerstoseparatethebezelfromthetopcoverbyliftingtheinsideedgeofthe
bezel and rotating away from the top cover.

Installing the Display Bezel

1. Starting at any corner, use your fingers to gently snap the bezel in place securing the display panel.

2. Tighten the six M2.5 x 5-mm screws on the front of the bezel.

3. Replace the six display bumpers around the display assembly.
Display Panel

1
display bezel
2
display panel
3
display bumpers (6)
4
M2.5 x 5-mm screws (6)
NOTICE: Carefully separate the bezel from the top cover to avoid damage to the bezel.
NOTE: Follow the same procedure on all four sides of the display bezel until it snaps completely off.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.

Great user manuals database on UserManuals.info

Removing the Display Panel

1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the center control cover (see "Removing the Center Control Cover").

3. Remove the keyboard (see "Removing the Keyboard").

4. Remove the display assembly (see "Removing the Display Assembly").

5. Remove the display bezel (see "Removing the Display Bezel").

6. Remove the antenna cables from the routing clips on the side of the display panel.

7. Remove the four M2 x 3-mm screws (two on each side) from the display panel.

Great user manuals database on UserManuals.info

8. Remove the display panel from the top cover.

9. Use the pull-tab to disconnect the bottom flex-cable connector from the inverter connector.

10. Press in both sides of the top display cable connector, and pull the display cable connector away from the top flex-cable connector.

Installing the Display Panel

1. Connect the top display cable connector to the top flex-cable connector.

2. Connect the bottom flex-cable connector to the inverter connector.

3. Replace the display panel inside the top cover.

4. Tighten the four M2 x 3-mm screws (two on each side) around the display panel.

5. Replace the display bezel (see "Installing the Display Bezel").
Display Latch

Removing the Display Latch

1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the center control cover (see "Removing the Center Control Cover").

3. Remove the keyboard (see "Removing the Keyboard").

4. Remove the display assembly (see "Removing the Display Assembly").

5. Remove the display bezel (see "Removing the Display Bezel").

6. Remove the M2.5 x 5-mm screw that secures the display latch to the top cover.
1
display panel
2
top cover
3
M2 x 3-mm screws (4)
1
top flex-cable connector
2
top display-cable connector
3
pull-tab on bottom flex-cable connector
NOTICE: Disconnect the computer and any attached devices from electrical outlets, and remove any installed batteries.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.

Great user manuals database on UserManuals.info

7. Remove the display latch (see "Removing the Display Latch").

Installing the Display Latch

1. Align the latch on the guide pins located on the top cover.

2. Insert and tighten the M2.5 x 5-mm screw that secures the display latch to the top cover.
Back to Contents Page

1
M2.5 x 5-mm screw
2
display latch
3
guide pins (2)
4
top cover

Great user manuals database on UserManuals.info
Back to Contents Page
Fan
Dell™Latitude™D610ServiceManual
Removing the Fan
Installing the Fan

Removing the Fan

1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the center control cover (see "Removing the Center Control Cover").

3. Remove the keyboard (see "Removing the Keyboard").

4. Remove the display assembly (see "Removing the Display Assembly").

5. Remove the palm rest (see "Removing the Palm Rest").

6. Remove the fan cable from the fan connector on the system board.

7. Remove the two M2.5 x 8-mm screws from the fan, and pull the fan off the system board.
Installing the Fan

1. Connect the fan cable connector to the fan connector on the system board.

2. Secure the two M2.5 x 8-mm screws on the fan, and slide the fan back onto the system board.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
1
M2.5 x 8-mm screws (2)
2
fan
3
fan cable connector
4
fan connector on system board

Great user manuals database on UserManuals.info
Back to Contents Page


Great user manuals database on UserManuals.info
Back to Contents Page
Hard Drive
Dell™Latitude™D610ServiceManual
Removing the Hard Drive
Installing the Hard Drive


Removing the Hard Drive

1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Turn the computer over. Use a standard #1 Phillips screwdriver to remove the two M3 x 3-mm screws.


3. Slide the hard drive out of the computer.
Installing the Hard Drive

1. Slide the drive into the bay until it is fully seated.

2. Replace and tighten the screws.

3. Install the operating system for your computer. For instructions, see "Reinstalling Microsoft Windows XP" in your User's Guide.

4. Install the drivers and utilities for your computer. For instructions, see "Reinstalling Drivers and Utilities" in your User's Guide.

CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE: To prevent data loss, shut down your computer before removing the hard drive. Do not remove the hard drive while the computer is on, in
standby mode, or in hibernate mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
1
M3 x 3-mm screws (2)
2
hard drive
NOTICE: When the hard drive is not in the computer, store it in protective antistatic packaging.
NOTICE: Use firm and even pressure to slide the drive into place. If you force the hard drive into place using excessive force, you may damage the
connector.
