Dell Latitude D600 Service Manual
Dell™ Latitude™ D600 Service Manual
Before You Begin
System Components
Memory Module, Mini PCI Card, and Modules
Reserve Battery
Hard Drive
Keyboard
Display Assembly and Display Latch
Palm Rest
Docking Doors
Fan
Bluetooth™ Card
Microprocessor Thermal-Cooling Assembly
Microprocessor Module
Flashing the BIOS
Speakers
Base Latch
Modem
System Board
Pin Assignments for I/O Connectors
Mini Recommended Spares List
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of
data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage,
personal injury, or death.
file:///F|/Service%20Manuals/Dell/Latitude/d600/index.htm (1 of 2) [2/28/2004 8:15:34 AM]

Before You Begin: Dell Latitude D600 Service Manual
Back to Contents Page
Before You Begin
Dell™ Latitude™ D600 Service Manual
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
Preparing to Work Inside the Computer
CAUTION: Only a certified service technician should perform repairs on
your computer. Damage due to servicing that is not authorized by Dell
is not covered by your warranty. Read and follow applicable
instructions in the safety instructions in the System Information Guide
that came with the computer.
CAUTION: To prevent static damage to components inside your
computer, discharge static electricity from your body before you touch
any of your computer's electronic components. You can do so by
touching an unpainted metal surface.
CAUTION: Handle components and cards with care. Do not touch the
components or contacts on a card. Hold a card by its edges or by its
metal mounting bracket. Hold a component such as a microprocessor by
its edges, not by its pins.
NOTICE: To avoid damaging the computer, perform the following steps before
you begin working inside the computer.
1. Ensure that the work surface is flat and clean to prevent scratching the
computer cover.
2. Save any work in progress and exit all open programs.
3. Turn off the computer and all attached devices.
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (1 of 7) [2/28/2004 8:15:41 AM]

Before You Begin: Dell Latitude D600 Service Manual
NOTE: Ensure that the computer is off and not in a power management mode.
If you cannot shut down the computer using the computer operating system,
press and hold the power button for 4 seconds.
4. If the computer is connected to a docking station, undock it.
5. Disconnect the computer from the electrical outlet.
6. To avoid possible damage to the system board, wait 10 to 20 seconds and then
disconnect any attached devices.
7. Disconnect all other external cables from the computer.
8. Remove any installed PC Cards from the PC Card slot.
9. Close the display and turn the computer upside down on a flat work surface.
NOTICE: To avoid damaging the system board, you must remove the main
battery before you service the computer.
10. Slide and hold the battery-bay latch release on the bottom of the computer, and
then remove the battery from the bay.
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (2 of 7) [2/28/2004 8:15:41 AM]

Before You Begin: Dell Latitude D600 Service Manual
11. Remove any installed memory modules, Mini PCI cards, and modules, including
a second battery if one is installed.
12. Remove the hard drive.
Recommended Tools
The procedures in this manual require the following tools:
●#1 Phillips screwdriver
●¼-inch flat-blade screwdriver
●Small plastic scribe
●Flash BIOS update program floppy disk or CD
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (3 of 7) [2/28/2004 8:15:41 AM]

Before You Begin: Dell Latitude D600 Service Manual

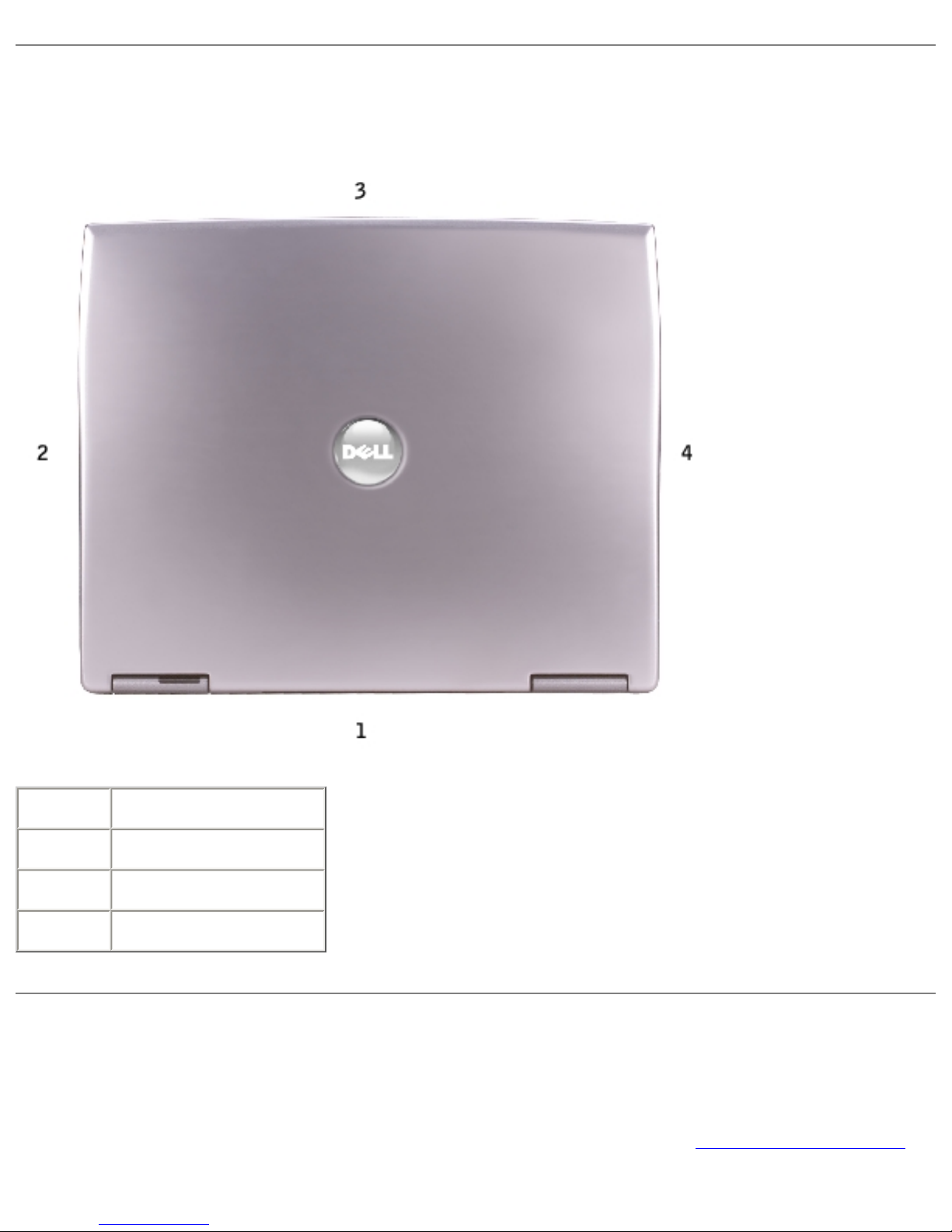

Computer Orientation
1 back
2 right
3 front
4 left
Screw Identification
When you are removing and replacing components, photocopy "Screw Identification"
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (4 of 7) [2/28/2004 8:15:41 AM]

Before You Begin: Dell Latitude D600 Service Manual
as a tool to lay out and keep track of the screws. The placemat provides the number
of screws and their sizes.
Optional Module:
(1 each)
Hard Drive:
(1 each)
Keyboard:
(2 each)
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (5 of 7) [2/28/2004 8:15:41 AM]

Before You Begin: Dell Latitude D600 Service Manual
Display Assembly:
(3 each)
Display Bezel:
(6 each)
Display Panel:
(4 each)
Display Latch:
(2 each)
Palm Rest:
(3 each)
(9 each)
Fan:
(2 each)
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (6 of 7) [2/28/2004 8:15:41 AM]

Before You Begin: Dell Latitude D600 Service Manual
Speakers:
(1 each)
(1 each)
Modem:
(1 each)
System Board:
(1 each)
(1 each)
(4 each)
Back to Contents Page
file:///F|/Service%20Manuals/Dell/Latitude/d600/begin.htm (7 of 7) [2/28/2004 8:15:41 AM]

System Components: Dell Latitude D600 Service Manual
Back to Contents Page
System Components
Dell™ Latitude™ D600 Service Manual
NOTICE: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell is not covered
by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that
a part can be replaced by performing the removal procedure in reverse order.
file:///F|/Service%20Manuals/Dell/Latitude/d600/system.htm (1 of 2) [2/28/2004 8:15:42 AM]

System Components: Dell Latitude D600 Service Manual

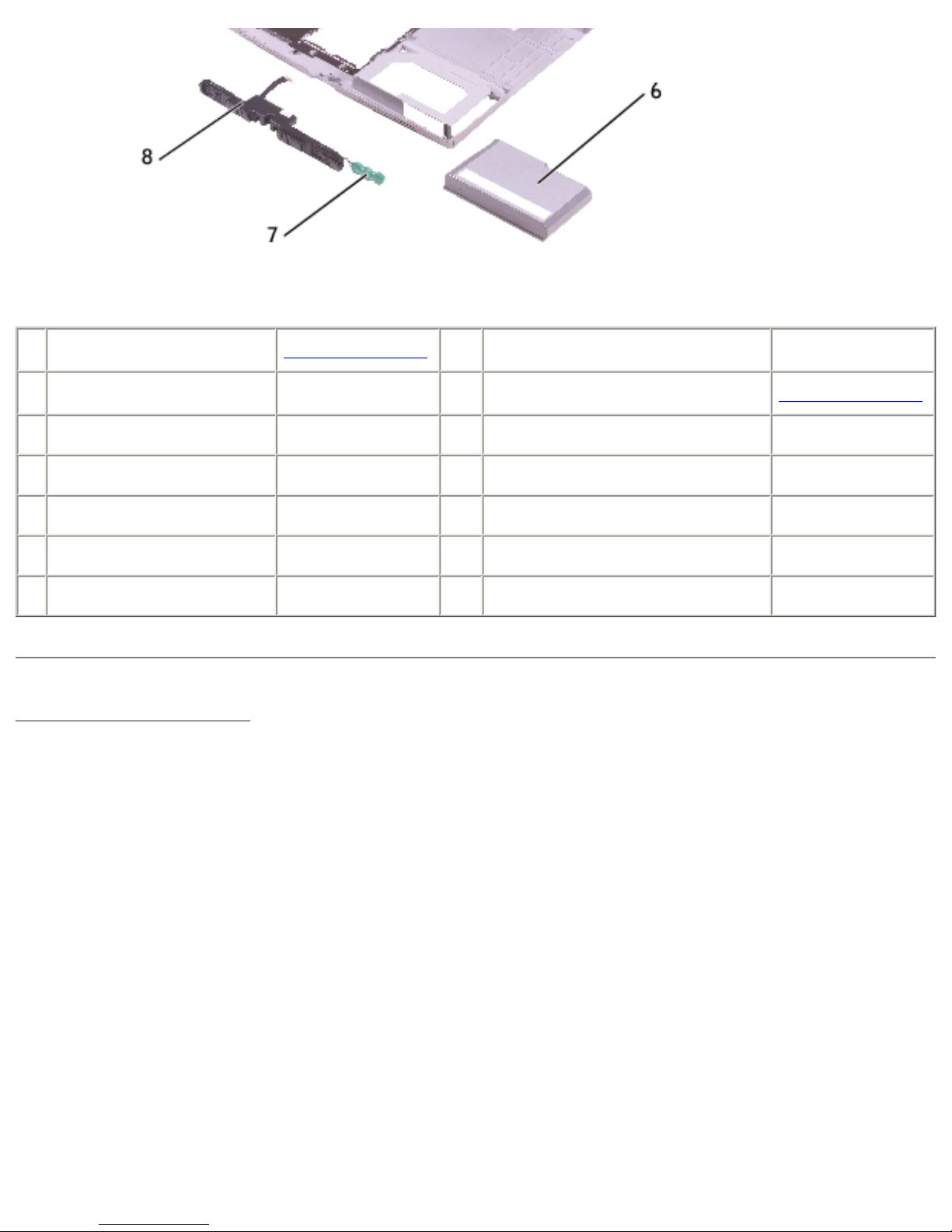

1 display assembly See MINI RSL 8 speakers 2N406
2 center control cover 8M659 9 hard drive See MINI RSL
3 palm rest 6M859 10 modem Y0231
4 system board U0996 11 thermal cooling assembly 2N403
5 computer base F1727 12 fan 4R197
6 battery 0R160 13 keyboard D1005
7 reserve battery D1004 14 display cable 6M871
Back to Contents Page
file:///F|/Service%20Manuals/Dell/Latitude/d600/system.htm (2 of 2) [2/28/2004 8:15:42 AM]

Memory Module, Mini PCI Card, and Modules: Dell Latitude D600 Service Manual
Back to Contents Page
Memory Module, Mini PCI Card, and
Modules
Dell™ Latitude™ D600 Service Manual
Memory Module
Mini PCI Card
Modules
Memory Module
CAUTION: Before working inside your Dell™ computer, read the safety
instructions in your System Information Guide.
CAUTION: To prevent static damage to components inside your
computer, discharge static electricity from your body before you touch
any of your computer's electronic components. You can do so by
touching an unpainted metal surface.
NOTE: Memory modules purchased from Dell are covered under your computer
warranty.
1. Follow the instructions in "Preparing to Work Inside the Computer."

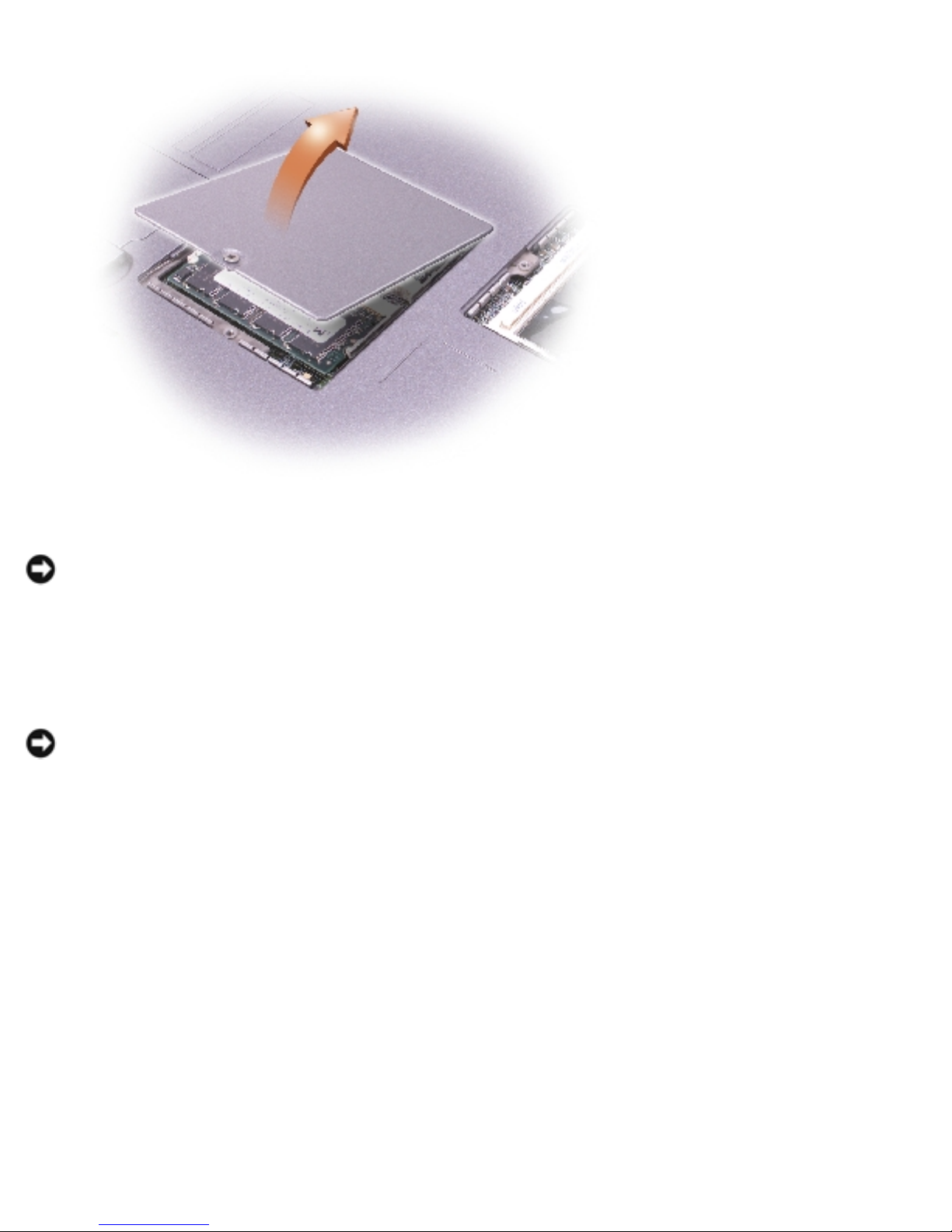

2. Turn the computer over, loosen the captive screw from the memory module
cover, and lift the cover.
file:///F|/Service%20Manuals/Dell/Latitude/d600/upgrades.htm (1 of 10) [2/28/2004 8:15:43 AM]

Memory Module, Mini PCI Card, and Modules: Dell Latitude D600 Service Manual
NOTICE: To prevent damage to the memory module connector, do not use
tools to spread the inner metal tabs that secure the memory module.
3. If you are replacing a memory module, remove the existing module.
NOTICE: Handle memory modules by their edges, and do not touch the
components on a module.
a. Use your fingertips to carefully spread apart the securing clips on each end
of the memory module connector until the module pops up.
b. Remove the module from the connector.
file:///F|/Service%20Manuals/Dell/Latitude/d600/upgrades.htm (2 of 10) [2/28/2004 8:15:43 AM]

Memory Module, Mini PCI Card, and Modules: Dell Latitude D600 Service Manual
NOTICE: If you need to install memory modules in two connectors, install a
memory module in the connector labeled "JDIM (Slot 1)" before you install a
module in the connector labeled "JDIM2."
4. Ground yourself and install the new memory module:
a. Align the notch in the module with the slot in the center of the connector.
b. Slide the edge of the module firmly into the connector, and rotate the
module down until you feel a click. If you do not feel the click, remove the
module and reinstall it.
NOTE: If the memory module is not installed properly, the computer does not
boot. No error message indicates this failure.
5. Replace the cover and screw.
NOTICE: If the memory module cover is difficult to close, remove the module
and reinstall it. Forcing the cover to close may damage your computer.
file:///F|/Service%20Manuals/Dell/Latitude/d600/upgrades.htm (3 of 10) [2/28/2004 8:15:43 AM]

Memory Module, Mini PCI Card, and Modules: Dell Latitude D600 Service Manual
6. Insert the battery into the battery bay, or connect the AC adapter to your
computer and an electrical outlet.
7. Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates
the system configuration information.
Mini PCI Card
If you ordered a Mini PCI card at the same time that you ordered your computer, Dell
has already installed the card for you.
CAUTION: Before working inside your computer, read the safety
instructions in your System Information Guide.
CAUTION: To prevent static damage to components inside your
computer, discharge static electricity from your body before you touch
any of your computer's electronic components. You can do so by
touching an unpainted metal surface.
NOTICE: Handle components and cards by their edges, and avoid touching pins
and contacts.
1. Follow the instructions in "Preparing to Work Inside the Computer."

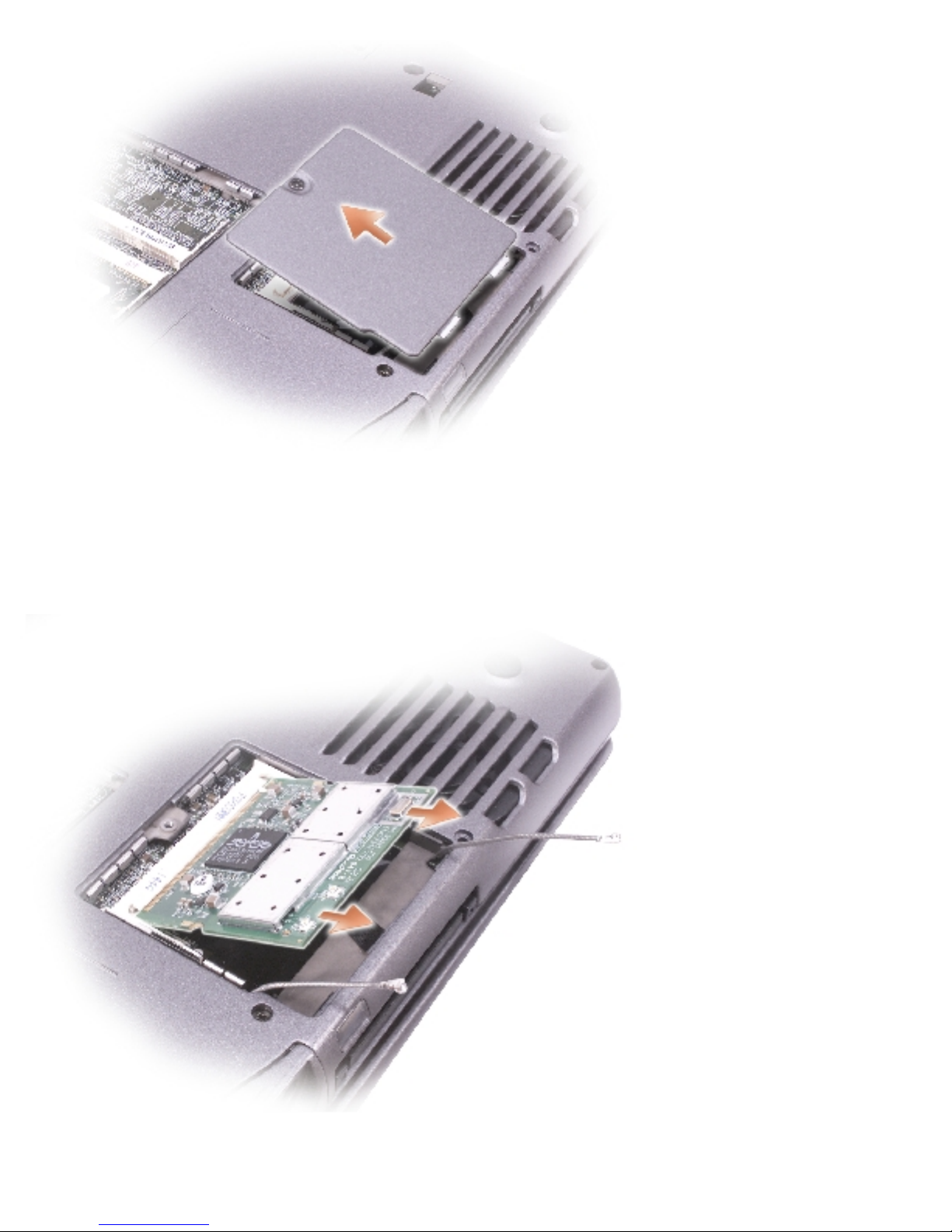

2. Turn the computer over, and loosen the captive screw on the Mini PCI card
cover.
file:///F|/Service%20Manuals/Dell/Latitude/d600/upgrades.htm (4 of 10) [2/28/2004 8:15:43 AM]

Memory Module, Mini PCI Card, and Modules: Dell Latitude D600 Service Manual
3. Place your finger under the cover at the indentation, and lift and slide the cover
open.
file:///F|/Service%20Manuals/Dell/Latitude/d600/upgrades.htm (5 of 10) [2/28/2004 8:15:43 AM]

Memory Module, Mini PCI Card, and Modules: Dell Latitude D600 Service Manual
4. If a Mini PCI card is not already installed, go to step 5. If you are replacing a
Mini PCI card, remove the existing card:
a. Disconnect the Mini PCI card from any attached cables.
b. Release the Mini PCI card by spreading the metal securing tabs until the
card pops up slightly.
c. Lift the Mini PCI card out of its connector.
5. Align the new Mini PCI card with the connector at a 45-degree angle, and press
the Mini PCI card into the connector.

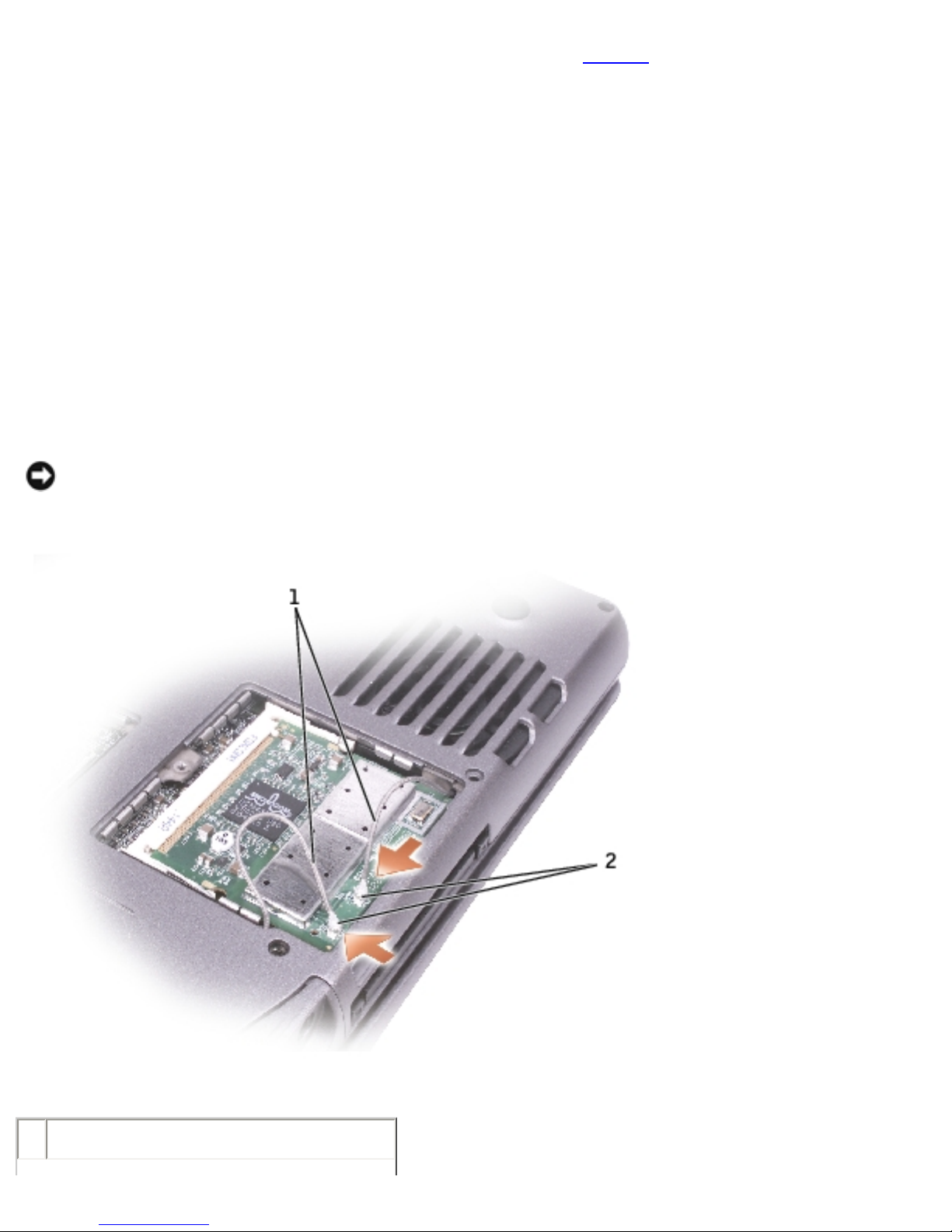

6. Connect the antenna cables from the Mini PCI card to the antenna connectors on
the computer.
NOTICE: The connectors are keyed for correct insertion; do not force the
connections.
1 antenna cables
file:///F|/Service%20Manuals/Dell/Latitude/d600/upgrades.htm (6 of 10) [2/28/2004 8:15:43 AM]

Memory Module, Mini PCI Card, and Modules: Dell Latitude D600 Service Manual
2 antenna connectors on card (2)
7. Lower the Mini PCI card toward the inner tabs to approximately a 20-degree
angle.
8. Continue lowering the Mini PCI card until it snaps into the inner tabs of the
connector.
9. Replace the cover.
Modules

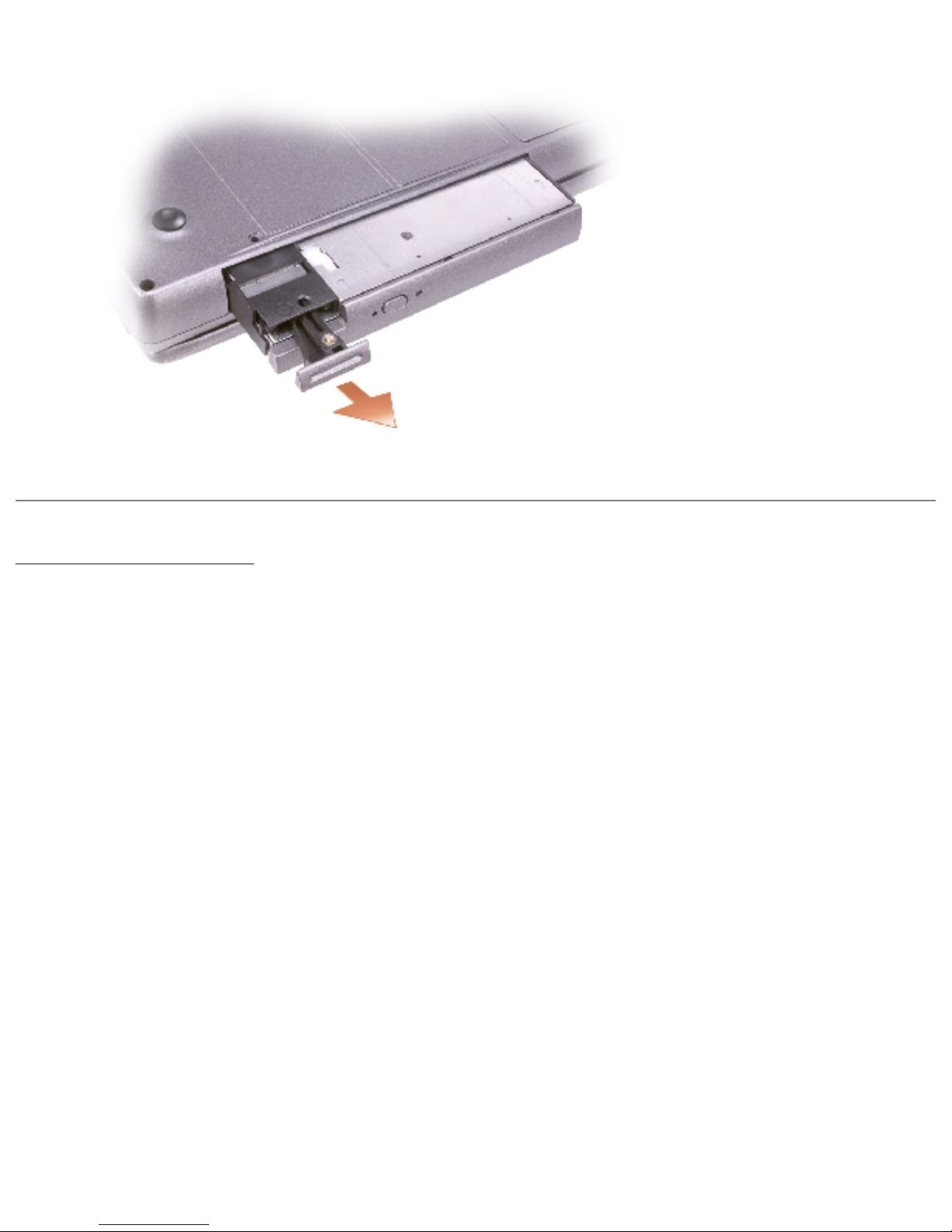

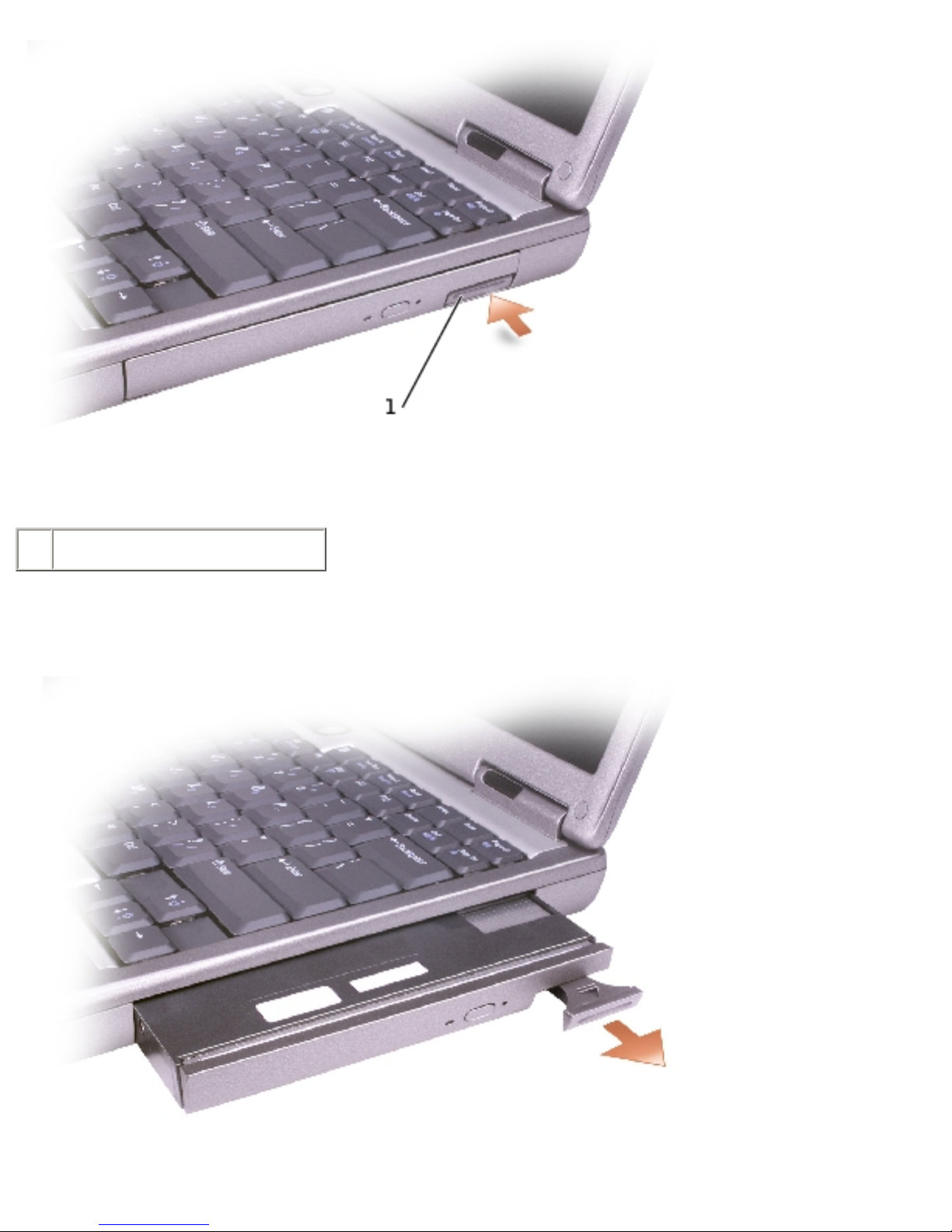

Your computer ships with an optical drive installed in the module bay. However, the
device security screw is not installed in the optical drive but packaged separately.
When you install your device in the module bay, you can install the device security
screw.
NOTICE: Insert devices into the module bay before you dock and turn on the
computer.
NOTE: You do not need to install the device security screw unless you want to
secure the module inside the computer for security purposes.
If the Device Security Screw Is Not Installed
NOTICE: To prevent damage to devices, place them in a safe, dry place when
they are not installed in the computer. Avoid pressing down on them or placing
heavy objects on top of them.
1. Press the device latch release so that the latch release pops out.
file:///F|/Service%20Manuals/Dell/Latitude/d600/upgrades.htm (7 of 10) [2/28/2004 8:15:43 AM]

Memory Module, Mini PCI Card, and Modules: Dell Latitude D600 Service Manual
1 device latch release
2. Pull the device by the latch release to remove the device from the module bay.
file:///F|/Service%20Manuals/Dell/Latitude/d600/upgrades.htm (8 of 10) [2/28/2004 8:15:43 AM]

Memory Module, Mini PCI Card, and Modules: Dell Latitude D600 Service Manual
If the Device Security Screw Is Installed
1. If the computer is connected to a docking device (docked), undock it. See the
documentation that came with your docking device for instructions.
NOTICE: To prevent damage to devices, place them in a safe, dry place when
they are not installed in the computer. Avoid pressing down on them or placing
heavy objects on top of them.
2. Close the display and turn the computer over.
3. Use a #1 Phillips screwdriver to remove the M2 x 3-mm screw from the bottom
of the computer.
1 M2 x 3-mm screw 7P786
4. Press the device latch release so that the latch release pops out.
5. Pull the device by the latch release to remove the device from the module bay.
file:///F|/Service%20Manuals/Dell/Latitude/d600/upgrades.htm (9 of 10) [2/28/2004 8:15:43 AM]

Memory Module, Mini PCI Card, and Modules: Dell Latitude D600 Service Manual
Back to Contents Page
file:///F|/Service%20Manuals/Dell/Latitude/d600/upgrades.htm (10 of 10) [2/28/2004 8:15:43 AM]
