Precautions for Rack-Mountable Products
Observe the following precautions for rack stability and safety. Also refer to the rack
installation documentation accompanying the system and the rack for specific warn-
ing and/or caution statements and procedures.
Servers, storage systems, and appliances are considered to be components in a rack.
Thus, “component” refers to any server, storage system, or appliance, as well as to
various peripherals or supporting hardware.
WARNING: Installing Dell system components in a Dell rack without the
front and side stabilizers installed could cause the rack to tip over, poten-
tially resulting in bodily injury under certain circumstances. Therefore,
always install the stabilizers before installing components in the rack.

iv
After installing system/components in a rack, never pull more than one
component out of the rack on its slide assemblies at one time. The weight
of more than one extended component could cause the rack to tip over and
injure someone.
NOTE: Dell’s servers, storage systems, and appliances are certified as components
for use in Dell’s rack cabinet using the Dell customer rack kit. The final installation of
Dell systems and rack kits in any other brand of rack cabinet has not been approved by
any safety agencies. It is the customer’s responsibility to have the final combination of
Dell systems and rack kits for use in other brands of rack cabinets evaluated for suit-
ability by a certified safety agency.
•System rack kits are intended to be installed in a Dell rack by trained service
technicians. If you install the kit in any other rack, be sure that the rack meets the
specifications of a Dell rack.
•Do not move large racks by yourself. Due to the height and weight of the rack,
Dell recommends a minimum of two people to accomplish this task.
•Before working on the rack, make sure that the stabilizers are secure to the rack,
extend to the floor, and that the full weight of the rack rests on the floor. Install
front and side stabilizers on a single rack or front stabilizers for joined multiple
racks before working on the rack.
•Always load the rack from the bottom up, and load the heaviest item in the rack
first.
•Make sure that the rack is level and stable before extending a component from
the rack.
•Use caution when pressing the component rail release latches and sliding a com-
ponent into or out of a rack; the slide rails can pinch your fingers.
•After a component is inserted into the rack, carefully extend the rail into a locking
position, and then slide the component into the rack.
•Do not overload the AC supply branch circuit that provides power to the rack. The
total rack load should not exceed 80 percent of the branch circuit rating.
•Ensure that proper airflow is provided to components in the rack.
•Do not step on or stand on any system/component when servicing other
systems/components in a rack.

v
Contents
Rack Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Recommended Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Installing the Rack Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Removing the Doors From a 24-U or 42-U Rack . . . . . . . . . . . . . . . . . . . . . . . 1-3
Installing the Slide Assemblies in the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Installing the Systems in the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Installing the Cable-Management Arm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Replacing the Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Index
Figures Figure 1-1. Rack Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Figure 1-2. Opening the 24-U Rack Cabinet Front Door Latch. . . . . . . . . . . . . . . 1-4
Figure 1-3. Opening the 42-U Rack Cabinet Front Door Latch. . . . . . . . . . . . . . . 1-5
Figure 1-4. Removing the 24-U Rack Cabinet Doors . . . . . . . . . . . . . . . . . . . . . . 1-6
Figure 1-5. Removing the 42-U Rack Cabinet Doors . . . . . . . . . . . . . . . . . . . . . . 1-7
Figure 1-6. One Rack Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Figure 1-7. Using Template to Mark Vertical Rails . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Figure 1-8. Installing the Slide Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Figure 1-9. Removing the System Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Figure 1-10. Installing the System in the Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Figure 1-11. Installing the Cable-Management Arm . . . . . . . . . . . . . . . . . . . . . . 1-13
Figure 1-12. Attaching the Strain-Relief Bracket . . . . . . . . . . . . . . . . . . . . . . . . . 1-14

vi

support.dell.com Rack Installation Guide 1-1
Dell™ PowerEdge™ 2x50,
PowerApp™ 2xx, and
PowerVault™ 735N Systems
Rack Installation Guide
This installation guide provides instructions for trained service technicians to install
one or more Dell PowerEdge 2x50, PowerApp 2xx, and PowerVault 735N systems in a
Dell rack. One rack kit is required for each system to be installed in the rack.
Rack Kit Contents
The rack kit includes the following items (see Figure 1-1):
•One pair of RapidRails™slide assemblies
•One cable-management arm
•One strain-relief bracket
•One template
NOTE: If you purchased a Dell rack along with your system, the slide assemblies may
be preinstalled in the rack.

1-2 Rack Installation Guide
Figure 1-1. Rack Kit Contents
Before You Begin
Before you begin installing your system in the rack, carefully read the safety instruc-
tions found earlier in this guide.
Recommended Tools
Although no tools are required to install the rack kit, you might find the following
items make the installation easier:
•An installation template, helpful in slide assembly placement and alignment
•Masking tape or a felt-tip pen, for use in marking the mounting holes to be used
RapidRails slide assemblies (2) cable-management arm
strain-relief bracket template

support.dell.com Rack Installation Guide 1-3
Installing the Rack Kit
NOTE: For instructions on installing the system itself, see “Installing the System in
the Rack”found later in this guide.
To install the rack kit in the rack, perform the following steps:
1. Remove the rack’s front and back doors.
2. Install the slide assemblies in the rack.
The subsections that follow include instructions for performing these tasks.
Removing the Doors From a 24-U or 42-U Rack
You must remove the doors from the rack to provide access to the interior of the rack
and to prevent damage to the doors while installing the system.
This procedure provides instructions for removing doors from Dell 24-U and 42-U
racks. If you have a Dell PowerEdge 4210 rack, see the procedures contained in the
Dell PowerEdge 4210 Rack Installation Guide.
To remove the doors, perform the following steps.
CAUTION: To prevent personal injury due to the size and weight of the
doors, never attempt to remove the doors by yourself.
1. Open the latch on the front door.
If you have a 24-U (1 U=1.75 inches) rack cabinet, unlock and twist the handle
clockwise and open the door (see Figure 1-2).

1-4 Rack Installation Guide

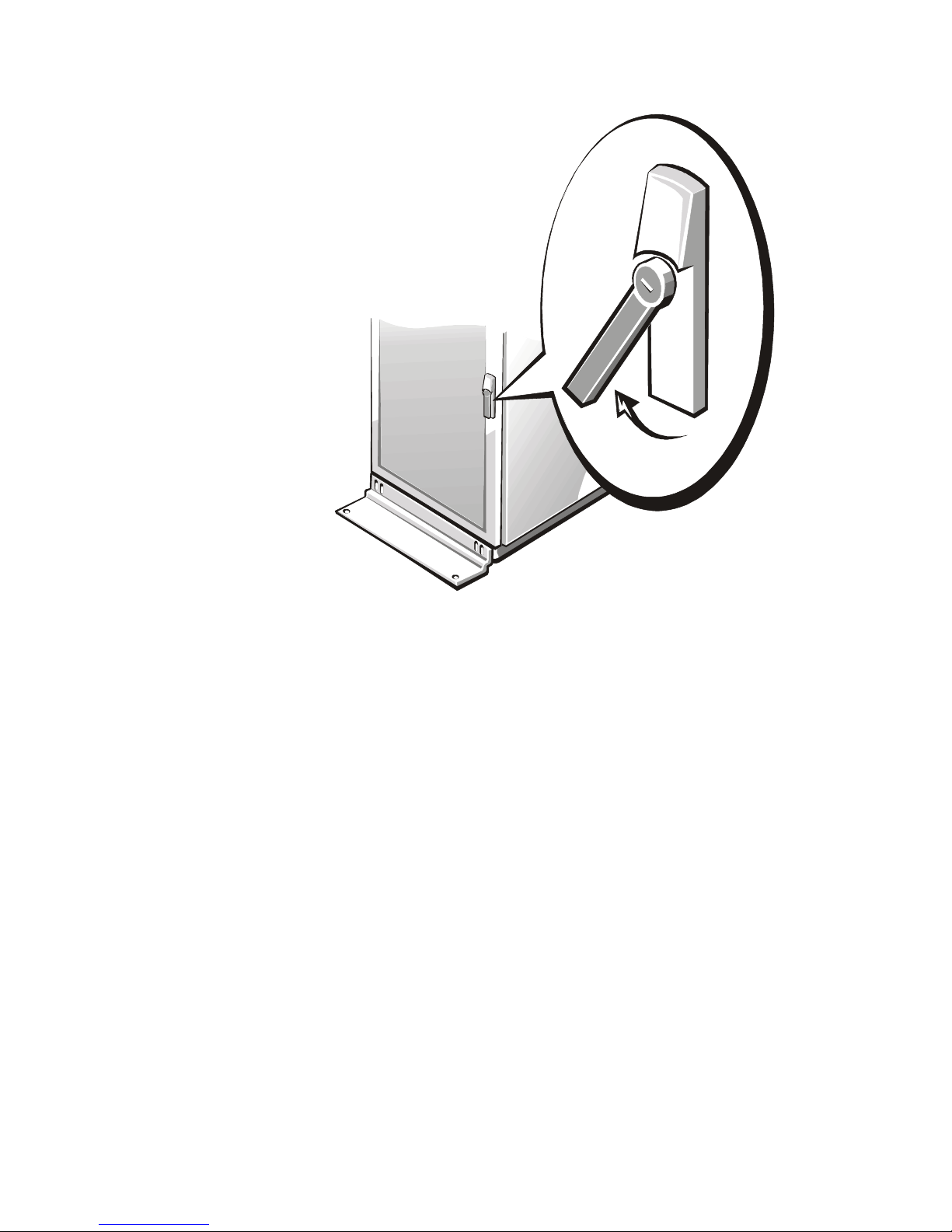

Figure 1-2. Opening the 24-U Rack Cabinet Front Door Latch

support.dell.com Rack Installation Guide 1-5
If you have a 42-U rack cabinet, slide the latch's push-button cover up as far as it
will go, press the push button, rotate the handle clockwise until the latch
releases, and then pull the door open (see Figure 1-3).

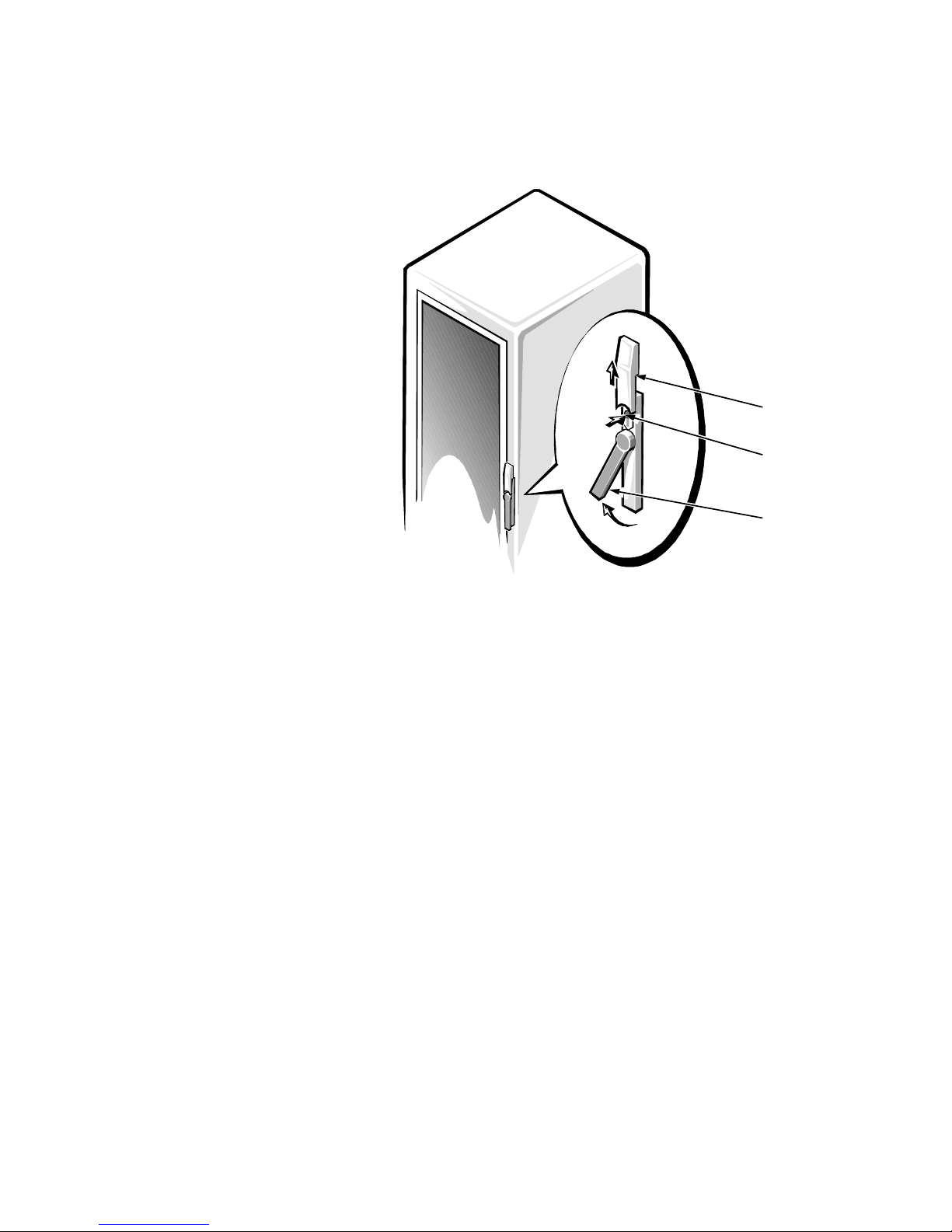

Figure 1-3. Opening the 42-U Rack Cabinet Front Door Latch
push button
push-button
cover
handle

1-6 Rack Installation Guide
2. Remove the front door of the rack.
If you have a 24-U rack cabinet, perform the following steps (see Figure 1-4):
a. With the door open, lift out and fully retract all hinge pins.
b. Lift the door out carefully.
Figure 1-4. Removing the 24-U Rack Cabinet Doors
hinge insert
hinge pin
hinge

support.dell.com Rack Installation Guide 1-7
If you have a 42-U rack cabinet, perform the following steps (see Figure 1-5):
a. One person should grasp the top of the door to stabilize it. The other person
should grasp the bottom of the door.
b. The person holding the bottom of the door should press the release lever on
the bottom hinge and then pull the bottom of the door away from the rack
cabinet a few inches.
c. The person holding the top of the door should press the release lever on the
top hinge and then pull the door away from the rack.
Figure 1-5. Removing the 42-U Rack Cabinet Doors
3. Repeat steps 1 and 2 to remove the back door from the rack.
4. Store the doors in an area where they cannot fall over while you install the kit.
hinge
release
lever

1-8 Rack Installation Guide
Installing the Slide Assemblies in the Rack
NOTE: If the slide assemblies were preinstalled by Dell, you can skip this section.
You must allow 2 U (3.5 inches) of vertical space for each system you install in the
rack.
NOTE: The vertical rails of the rack are marked by small indentations in 1-U
increments (see Figure 1-6).

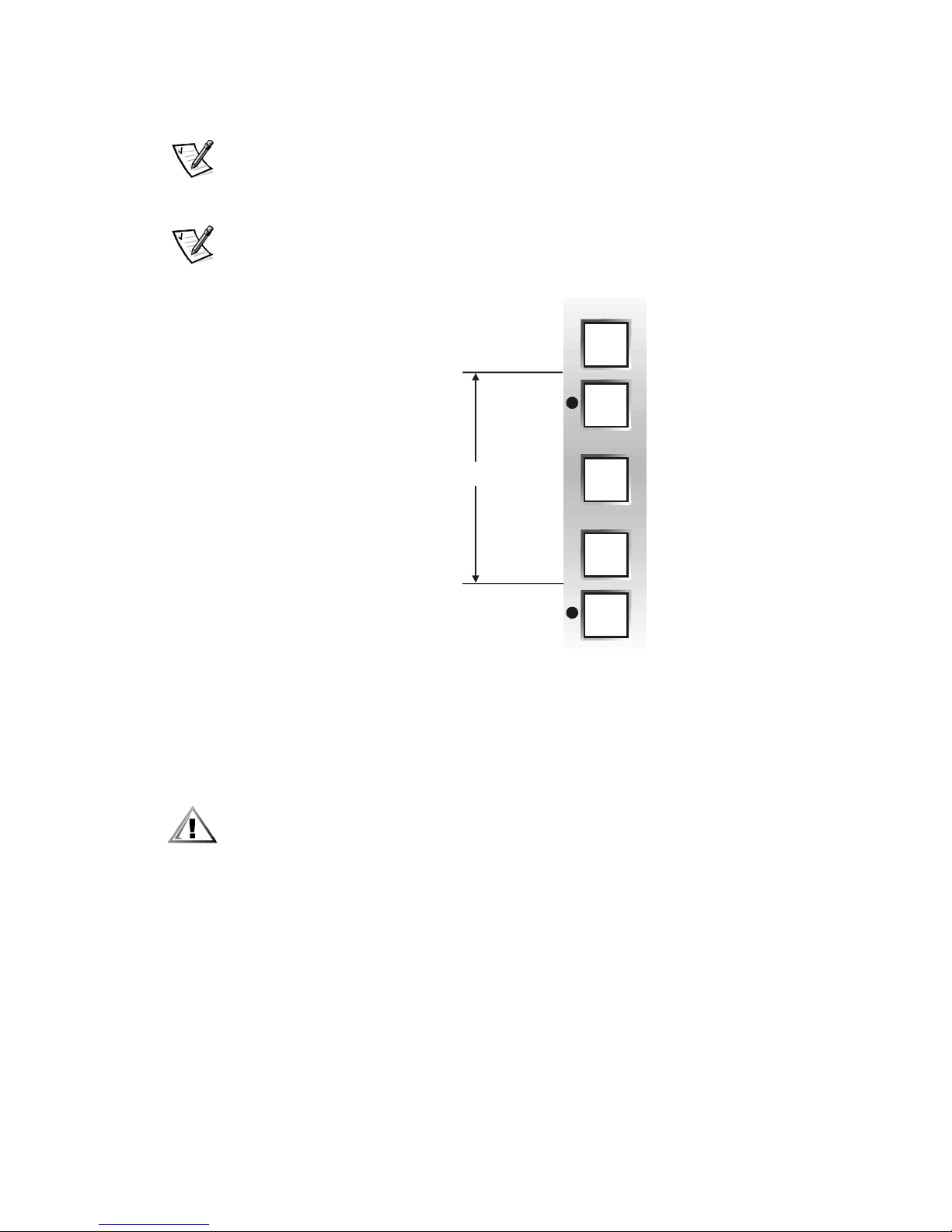

Figure 1-6. One Rack Unit
For more information about requirements for installing components in a Dell rack, see
the Dell Rack Advisor software available on the Dell Web site at
http://support.dell.com.
CAUTION: If you are installing more than one system, install the slide
assemblies so that the first system is installed in the lowest available posi-
tion in the rack.
To install the slide assemblies in the rack, perform the following steps:
1. Place the front of the template on the vertical rails at the front of the rack where
you want to install the system.
Ensure that the printing on the template identifies the side facing outward as the
template front.
1 U (1.75 inches)

support.dell.com Rack Installation Guide 1-9
2. Mark the rack’s front vertical rails with a felt-tipped marker or place self-adhesive
masking tape where the system’s upper and lower edges will be located (see
Figure 1-7).
3. Make a mark or place tape on the vertical rails next to the template’s V-shaped
notches.
Figure 1-7. Using Template to Mark Vertical Rails
4. At the front of the rack cabinet, position one of the slide assemblies so that its
mounting bracket flange fits between the marks or tape you placed on the rack,
marking the upper and lower edges of the template (see Figure 1-8).
The hooks on the mounting bracket should align with the marks you made from
the V-shaped notches in the template.
5. Align the slide-assembly mounting-bracket flange (on the front of the slide
assembly) with the square holes in the front vertical rail (see Figure 1-8).
6. Push forward until the mounting tabs are secure in the square holes on the
vertical rail and the push-button clicks and pops out.
7. Push back on the back slide assembly mounting bracket flange until the mounting
tabs lock into the square holes on the back vertical rail.
template
2 U (3.5 inches) between
slide assemblies
(drawing is not to scale)

1-10 Rack Installation Guide
8. Repeat steps 1 through 7 for the remaining slide assembly on the other side of
the rack.
Figure 1-8. Installing the Slide Assemblies
slide-assembly
mounting-bracket
flange
push-button
front of rack
slide
assemblies
(2)
mounting
tabs

support.dell.com Rack Installation Guide 1-11
Installing the Systems in the Rack
The subsections that follow include instructions for installing the systems in the rack.
CAUTION: If you are installing more than one system, install the first sys-
tem in the lowest available position in the rack. Never pull more than one
component out of the rack at a time.
1. Pull the two interior slide assemblies out of the rack until they lock in the
extended position.
CAUTION: Because of the size and weight of the system, never attempt to
install the system in the slide assemblies by yourself.
NOTE: Skip to step 3 if your system does not have the optional bezel installed.
2. Remove the optional bezel from the system front panel (see Figure 1-9):
a. Unlock and open the system doors.
b. Pivot the two locking levers toward the back of the chassis (see Figure 1-9).
c. Press the tab on each end of the bezel and remove the bezel from the
chassis.
d. Close the system doors.
Figure 1-9. Removing the System Bezel
3. Lift the system into position.
Place one hand on the front-bottom of the system and the other hand on the
back-bottom of the system.
4. Tilt the system while aligning the back shoulder nuts on the sides of the system
with the back slots on the slide assemblies (see Figure 1-10).
tabs (2)
locking levers (2)

1-12 Rack Installation Guide
5. Engage the back shoulder nuts in the slot just behind the back (green) latch first,
followed by the middle shoulder nut in the slot near the middle (yellow) latch.
Finally, engage the front shoulder nut in the front slot.
6. Push the system inward on the slide assemblies until the middle (yellow) latch
clicks into place, locking the slide to the middle shoulder nut (see Figure 1-10).
Figure 1-10. Installing the System in the Rack
7. Press up on the green latches and push the chassis into the rack.
8. Tighten the captive thumbscrews on each side of the front chassis panel.
9. If present, install the optional front bezel.
back latch
(green)
middle latch
(yellow)
