Setting Up Your Studio XPS Laptop
This section provides information about setting
up your Studio XPS 1340 and connecting
peripherals.
Before Setting Up Your Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your Studio XPS
computer may cause it to overheat. To prevent
overheating ensure that you leave at least
10.2 cm (4 in) at the back of the computer and a
minimum of 5.1 cm (2 in) on all other sides. You
should never put your computer in an enclosed
space, such as a cabinet or drawer when it is
powered on.
NOTICE: Placing or stacking heavy or sharp
objects on the computer may result in
permanent damage to the computer.
Connect the AC Adapter
Connect the AC adapter to the computer and
then plug it into a wall outlet or surge protector.
CAUTION: The AC adapter works with
electrical outlets worldwide. However,
power connectors and power strips vary
among countries. Using an incompatible
cable or improperly connecting the cable
to a power strip or electrical outlet may
cause fire or equipment damage.

6
Setting Up Your Studio XPS Laptop
Check the Wireless Button
If you plan to use wireless connections, make
sure the wireless button is turned on.
Using The Wireless Button

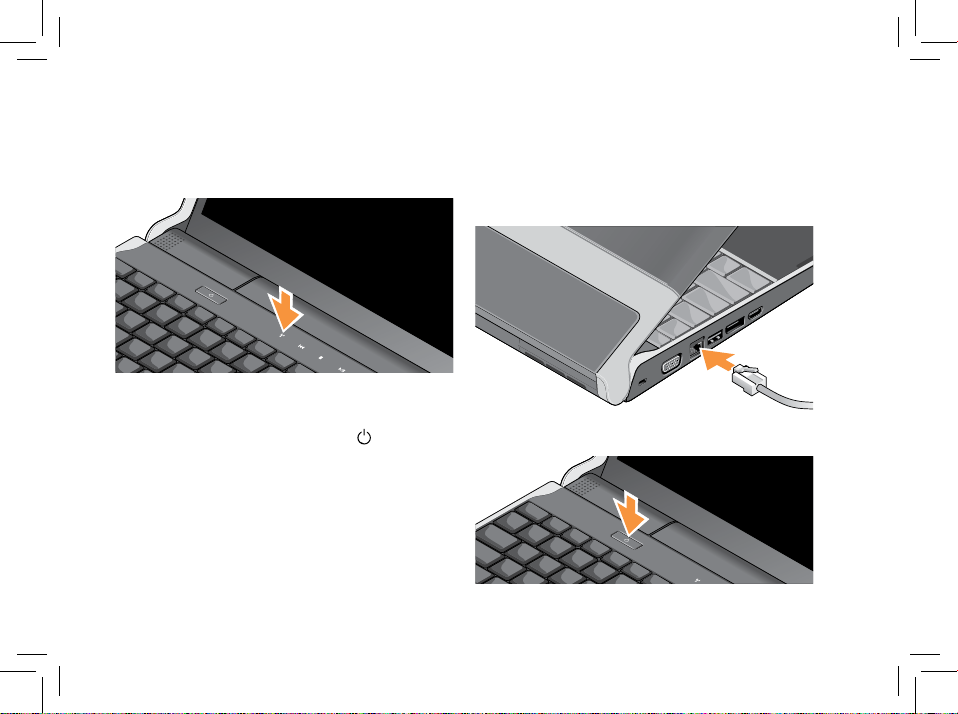

To turn on wireless, with the system turned on,
lightly touch the wireless symbol on the
center control cover and then release.
Connect the Network Cable
(optional)
If you plan to use a wired network connection,
plug in the network cable.
Press the Power Button

7
Setting Up Your Studio XPS Laptop
Windows Vista®Setup
Your Dell computer is preconfigured with
Windows Vista. To set up Windows Vista for
the first time, follow the instructions on the
screen. These steps are mandatory and may
take up to 15 minutes to complete. The screens
will take you through several procedures
including accepting license agreements,
setting preferences and setting up an Internet
connection.
NOTICE: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable.
Connect to the Internet (Optional)
NOTE: ISPs and ISP offerings vary by
country.
To connect to the Internet, you need an external
modem or network connection and an Internet
service provider (ISP).
NOTE: If an external USB modem or
WLAN adapter is not part of your original
order you can purchase one from the Dell
website at dell.com.
Setting Up a Wired Internet Connection
If you are using a dial-up connection, connect
the telephone line to the external USB modem
(optional) and to the telephone wall jack
before you set up your Internet connection. If
you are using a DSL or cable/satellite modem
connection, contact your ISP or cellular
telephone service for setup instructions.
Setting Up a Wireless Connection
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.

8
Setting Up Your Studio XPS Laptop
To set up your connection to a wireless router:
Save and close any open files, and exit any1.
open programs.
Click2. Start →Connect To.
Follow the instructions on the screen to3.
complete the setup.
Setting Up Your Internet Connection
To set up an Internet connection with a provided
ISP desktop shortcut:
Save and close any open files, and exit any1.
open programs.
Double-click the ISP icon on the Microsoft2. ®
Windows®desktop.
Follow the instructions on the screen to3.
complete the setup.
If you do not have an ISP icon on your desktop
or if you want to set up an Internet connection
with a different ISP, perform the steps in the
following section.
NOTE: If you cannot connect to the Internet
but have successfully connected in the
past, the ISP might have a service outage.
Contact your ISP to check the service
status, or try connecting again later.
NOTE: Have your ISP information ready. If
you do not have an ISP, the Connect to the
Internet wizard can help you get one.
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
Under3. Network and Internet, click Connect
to the Internet.
The Connect to the Internet window appears.
Click either4. Broadband (PPPoE) or Dial-up,
depending on how you want to connect:
Choosea. Broadband if you will use a
DSL, satellite modem, cable TV modem,
or Bluetooth®wireless technology
connection.

9
Setting Up Your Studio XPS Laptop
Choseb. Dial-up if you will use an optional
USB dial-up modem or ISDN.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and5.
use the setup information provided by your
ISP to complete the setup.

Your computer has several indicators, buttons,
and features that provide information at-a-
glance and time-saving shortcuts for common
tasks.
Device Status Lights
1234
1Hard drive activity light – Turns on
when the computer reads or writes data. A
flashing light indicates hard drive activity.
NOTE: To avoid loss of data, never
turn off the computer while the hard
drive activity light is flashing.
2Bluetooth®status light (optional)
– Turns on when a card with Bluetooth
wireless technology is enabled.
NOTE: The card with Bluetooth
wireless technology is an optional
feature.
To turn off Bluetooth wireless, right-click
the bluetooth icon in the notification
area of your desktop, and click Disable
Bluetooth Radio or use the wireless
switch.
Using Your Dell™Laptop

11
Using Your Dell™ Laptop
3WiFi status light – Turns on when
wireless networking is enabled.
Use the wireless button to quickly turn all
wireless communication On and Off:
Using The Wireless Button
To turn on wireless, with the system turned
on, lightly touch the wireless symbol
on the center control cover and then
release.
4WWAN status light - Turns on when
WWAN is enabled.
To turn on wireless, with the system turned
on, lightly touch the wireless symbol
on the center control cover and then
release.

12
Using Your Dell™ Laptop
Right Side Features
12
3
456
7

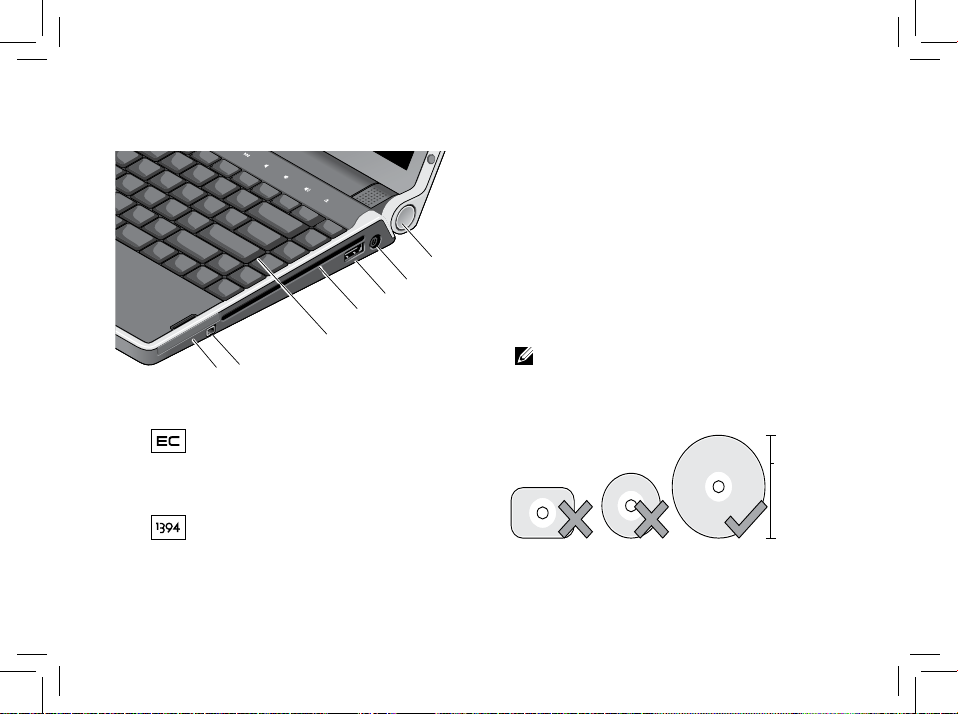

1ExpressCard slot – Supports one
ExpressCard. The computer ships with a
plastic blank installed in the slot.
2IEEE 1394 connector – Connects to
high-speed serial multimedia devices,
such as digital video cameras
3Backlit Keyboard – The backlit keyboard
provides visibility in dark environments
by illuminating all symbols on the keys.
For more information see
Dell Technology
Guide.
4Optical Drive – Plays or burns only
standard-size and shape (12 cm) CDs, and
DVDs. Ensure that the side with print or
writing is facing upward when inserting
discs
NOTE: Do not use non-standard-size
or shape discs (including mini-CDs
and mini-DVDs) or you will damage
the drive.
12 cm

13
Using Your Dell™ Laptop
5eSATA/USB combo connector –
Connect eSATA compatible storage
devices, such as external hard disk drives
or optical drives. Also, supports USB
devices, such as a mouse, keyboard,
printer, external drive, or MP3 player
This connector can also be used for
charging USB devices when the computer
is turned off.
6AC adapter connector – Connects to
the AC adapter to power the computer and
charge the battery when the computer is
not in use.
7Power light – Turns on when the
system is powered on. The different lights
indicate the following:
Light Battery AC adapter
Solid amber Battery low
Flashing
amber
Battery
critically
low
Solid white System
running on
battery
System
is on and
battery
is getting
charged
Blinking
White
System is
in standby
state

14
Using Your Dell™ Laptop
Left Side Features
7
6
5
4
3
2
1
1Power light – Turns on when the
system is powered on.
2Security cable slot – Used to attach a
commercially available antitheft device to
the computer.
NOTE: Before you buy an antitheft
device, ensure that it works with the
security cable slot on your computer.
3VGA connector – Connects to a
monitor or projector.

15
Using Your Dell™ Laptop
4Network connector – If you are
using a cabled network signal, this
connects your computer to a network or
broadband device.
5USB connector – Connects USB
devices, such as a mouse, keyboard,
printer, external drive, or MP3 player.
6DisplayPort connector - Digital
interface standard connector that supports
external DisplayPort monitor.
7HDMI connector – Connects to a TV
for both audio and video signals.
NOTE: For a monitor, only the video
signal will be read.

16
Using Your Dell™ Laptop
Display Features
The display panel holds a camera and
accompanying dual microphones.
3
124
5
1Display – Your display can vary based on
selections you made when purchasing
your computer. For more information about
displays, see the Dell Technology Guide.
2Left digital array microphone – Combines
with the right digital array microphone
to provide high quality sound for video
chatting and voice recording.
3Camera activity indicator – Light that
indicates when the camera is on an off.
4Camera – Built-in camera for video
capture, conferencing, and chat.
5Right digital array microphone – Combines
with the left digital array microphone
to provide high quality sound for video
chatting and voice recording.

17
Using Your Dell™ Laptop
To use the media, wireless, and power controls, lightly touch the symbol and then release. The
control’s symbol will shine for 2 seconds to confirm your selection then fade away.
Turn on power, or wake up from sleep
state
Turn on wireless
Play the previous track or chapter
Stop
Play or pause
Play the next track or chapter
Turn down the volume
Turn up the volume
Mute the sound
Eject the disc
Media, Wireless, and Power Controls

18
Using Your Dell™ Laptop
Computer Base and Keyboard
Features
1Touch pad – Provides the functionality of
a mouse to move the cursor, drag or move
selected items, and left-click by tapping
the surface. It supports circular scrolling
and zoom.
2Touch pad buttons – Provide left- and
right-click functions like those on a mouse.
6
5
4
3
2
1
