Dell Vostro 1220 User manual

Dell™Vostro™1220ServiceManual
Notes, Cautions, and Warnings
IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.
Information in this document is subject to change without notice.
©2009DellInc.Allrightsreserved.
Reproduction of this material in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, Vostro,ExpressCard, and ExpressCharge are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG,
Inc. and is used by Dell under license; Microsoft, Windows, Windows Server, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United
States and/or other countries; Intel and Celeron are registered trademarks, and Core and Core2Duo are trademarks of Intel Corporation in the U.S. and other countries; Adobe, the
Adobe logo, and Adobe Flash Player are trademarks of Adobe Systems Incorporated.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
September2009Rev.A00

Working on Your Computer
Adding and Replacing Parts
Specifications
Diagnostics
System Setup




NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page
System Setup
Dell™Vostro™1220ServiceManual
Entering System Setup
<F12> Boot Menu
Entering System Setup
Press <F2> to enter System Setup and change the user-definable settings. If you have difficulty entering System Setup using this key, press <F2> when the
keyboard LEDs first flash.
Navigation
Use the following keystrokes to navigate the BIOS screens.

<F12> Boot Menu
Press <F12>, when the Dell logo appears, to initiate a one-time boot menu with a list of the valid boot devices for the computer. Diagnostics and Enter Setup
options are also included in this menu. The devices listed on the boot menu depend on the bootable devices in the system. This menu is useful when you are
attempting to boot to a particular device or to bring up the diagnostics for the system. Using the boot menu does not make any changes to the boot order
stored in the BIOS.
Back to Contents Page
Navigation Keystrokes
Action
Keystroke
Expand and collapse field
<Enter>, left-or right-arrow key
Exit BIOS
<Esc> or <Alt + F4> —Remain in Setup, Save/Exit, Discard/Exit
Change a setting
Arrow key And <Enter>, or Arrow key and <Space>
Select field to change
<Tab>
Reset defaults
Load Defaults menu option

Back to Contents Page

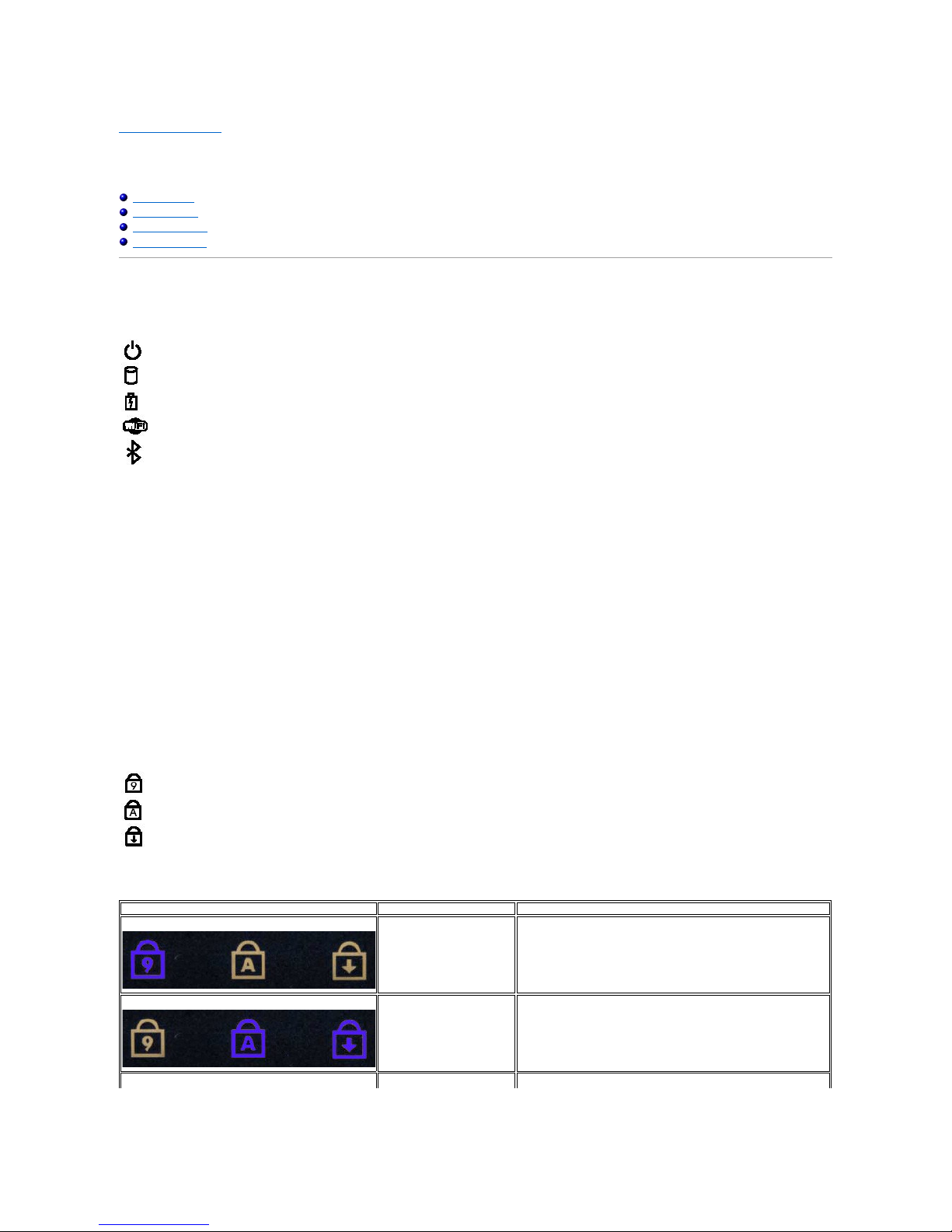

Diagnostics
Dell™Vostro™1220ServiceManual
Device Status
Battery Status
Keyboard Status
LED Error Codes
Device Status LEDs
Device status LEDs are a good source for diagnosing common problems that may occur on your computer.
Battery Status
If the computer is connected to an electrical outlet, the battery light operates as follows:
lAlternately blinking amber light and blue light —An unauthenticated or unsupported, non-Dell AC adapter is attached to your computer.
lAlternately blinking amber light with steady blue light —Temporary battery failure with AC adapter present.
lConstantly blinking amber light —Fatal battery failure with AC adapter present.
lLight off —Battery in full charge mode with AC adapter present.
lBlue light on —Battery in charge mode with AC adapter present.
Battery Charge and Health
To check the battery charge, press and release the status button on the battery charge gauge to illuminate the charge-level lights. Each light represents
approximately 20 percent of the total battery charge. For example, if four lights are on, the battery has 80 percent of its charge remaining. If no lights appear,
the battery has no charge.
To check the battery health using the charge gauge, press and hold the status button on the battery charge gauge for at least three seconds. If no lights
appear, the battery is in good condition and more than 80 percent of its original charge capacity remains. Each light represents incremental degradation. If five
lights appear, less than 60 percent of the charge capacity remains, and you should consider replacing the battery.
Keyboard Status LEDs
The green lights located above the keyboard indicate the following:
LED Error Codes
Turns on when you turn on the computer and blinks when the computer is in a power management mode.
Turns on when the computer reads or writes data.
Turns on steadily or blinks to indicate battery charge status.
Turns on when wireless networking is enabled.
Turns on when a card with Bluetooth®wireless technology is enabled. To turn off only the Bluetooth
wireless technology function, right-click the icon in the system tray and select Disable Bluetooth Radio.
Turns on when the numeric keypad is enabled.
Turns on when the Caps Lock function is enabled.
Turns on when the Scroll Lock function is enabled.
Appearance
Description
Next Step
ON-FLASH-FLASH
No SODIMMs Installed
1. Install supported memory modules.
2. If memory is already present, reseat the module(s) one at
time in each slot.
3.
Try known good memory from another computer or replace the
memory.
4. Replace the system board.
FLASH-ON-ON
System Board Error
1. Reseat the processor.
2. Replace the system board.
3. Replace the processor.
FLASH-ON-FLASH


Back to Contents Page
LCD Panel Error
1. Reseat the LCD cable.
2. Replace the LCD panel.
3. Replace the video card/system board.
OFF-FLASH-OFF
Memory Compatibility Error
1. Install compatible memory modules.
2. If two modules are installed, remove one and test.
3. Try the second module in the same slot and test.
4. Test the other slot with both modules.
5. Replace the memory.
6. Replace the system board.
ON-FLASH-ON
Memory Detected But Has
Errors
1. Reseat the memory.
2. If two modules are installed, remove one and test.
3. Try the second module in the same slot and test.
4. Test the other slot with both modules.
5. Replace the memory
6. Replace the system board.
OFF-FLASH-FLASH
Modem Error
1. Reseat the modem.
2. Replace the modem.
3. Replace the system board.
FLASH-FLASH-FLASH
System Board Error
1. Replace the system board.
FLASH-FLASH-OFF
Option ROM Error
1. Reseat the device.
2. Replace the device.
3. Replace the system board.
OFF-ON-OFF
Storage Device Error
1. Reseat the hard drive and optical drive.
2. Test the computer with just the hard drive and just the optical
drive.
3. Replace the device that is causing the failure.
4. Replace the system board.
FLASH-FLASH-ON
Video Card Error
1. Replace the system board.

Back to Contents Page
Adding and Replacing Parts
Dell™Vostro™1220ServiceManual


Back to Contents Page
Battery
Memory
Coin-Cell Battery
Keyboard

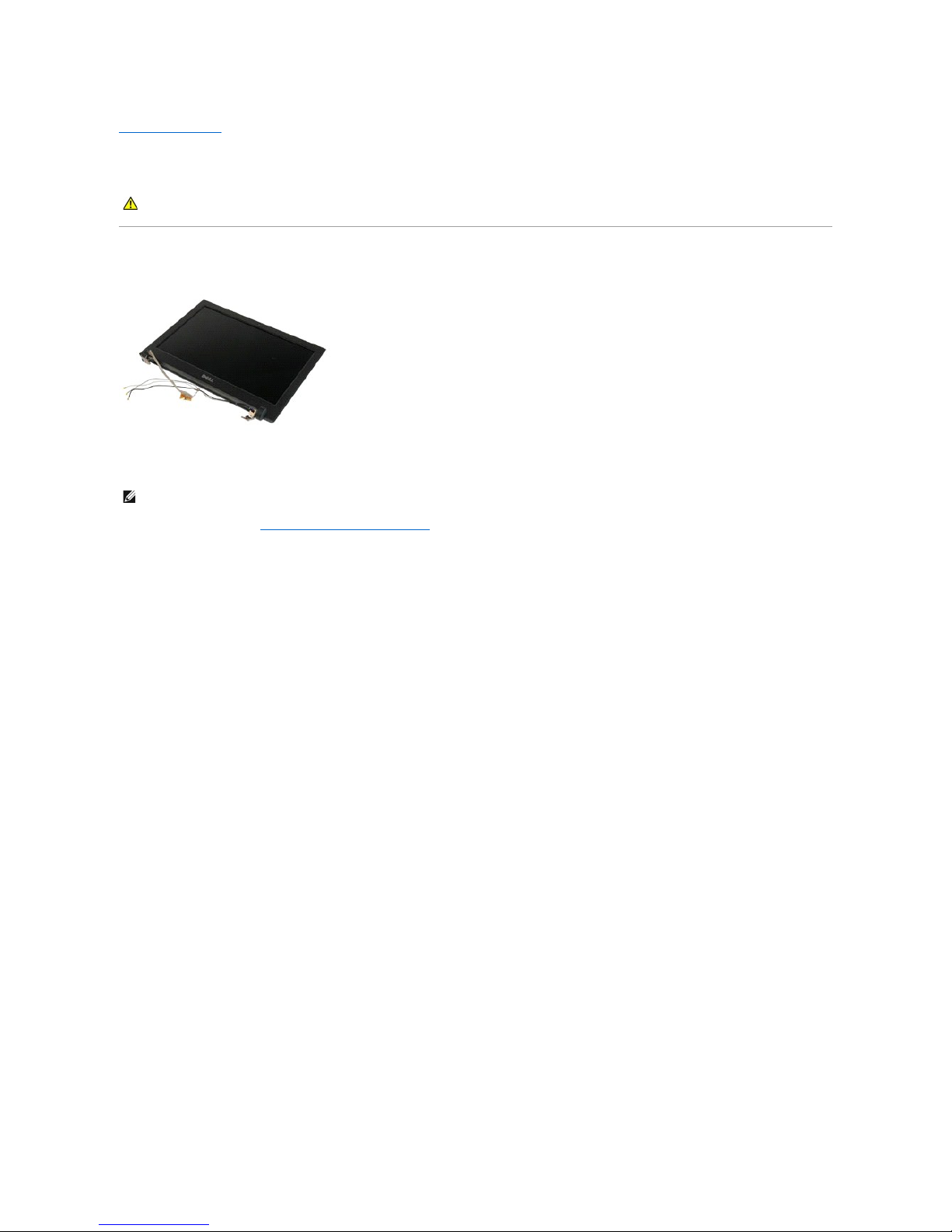

LCD Assembly
Bluetooth Module
Hard Drive
Fan
Heat Sink and Processor
Speaker
LCD Inverter
LCD Panel
LCD Hinges

Access Panel

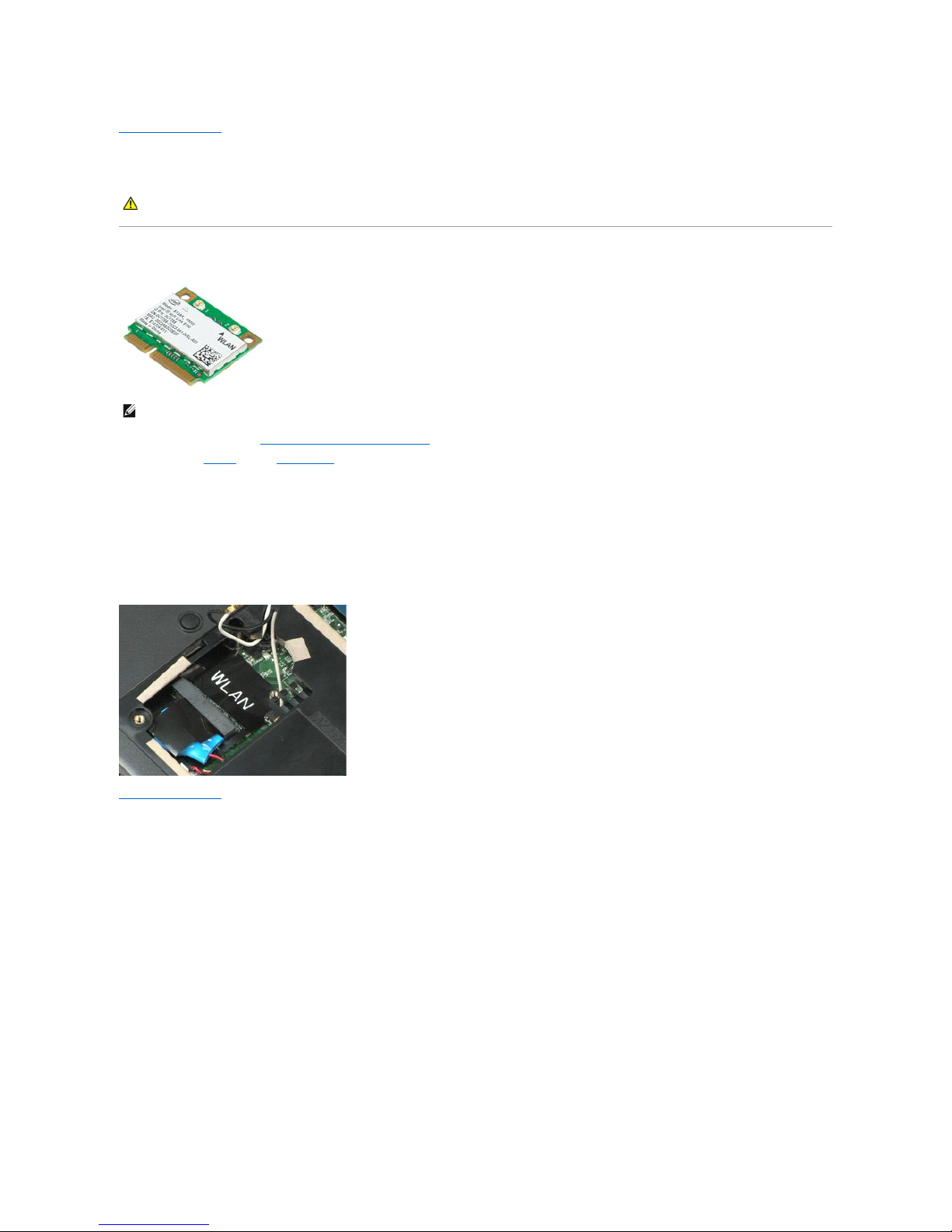

WLAN Card

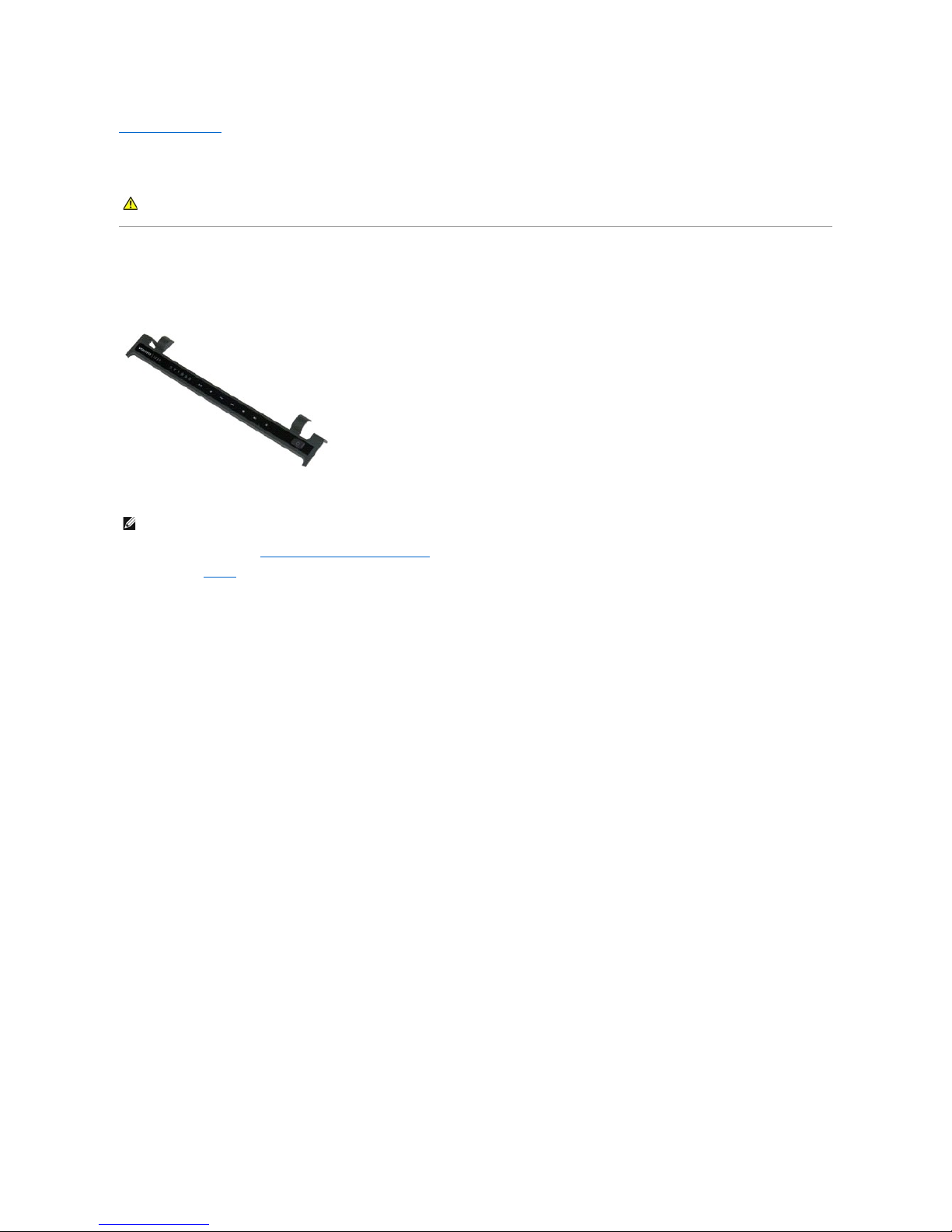

Hinge Cover

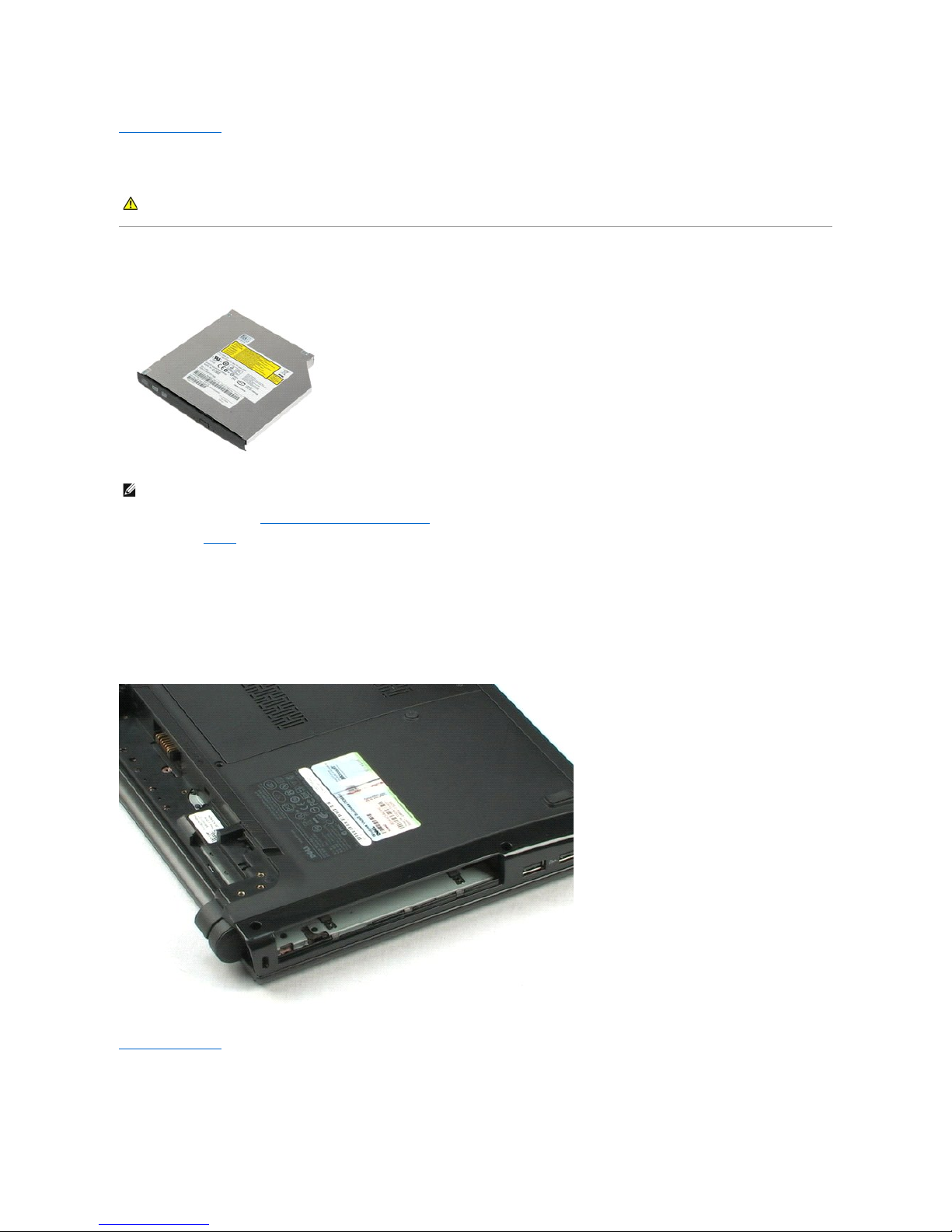

Media Bay Device
Palm Rest
TPM Module
I/O Panel
System Board
Modem
LCD Bezel
LCD Camera
LCD Rails

Back to Contents Page
Specifications
Dell™Vostro™1220ServiceManual







Processors
ExpressCard
Memory
Connectors
Graphics
Display
Touch Pad
AC Adapter
Physical

System Information
SD Card
Communications
Audio
Keyboard
Battery
Fingerprint Reader
Environmental
Video

NOTE: Offerings may vary by region. For more information regarding the configuration of
your computer, click Start (or Start in Windows®XP)®Help and Support, and then
select the option to view information about your computer.
Processors
Processor type
Intel®Celeron®, Intel Celeron Dual Core, or Intel
Core™2Duo
SystemInformation
Chipset
Intel GM45
ExpressCard™ The ExpressCard slot is designed only for ExpressCards. It does NOT support PC Cards.
ExpressCard connector
ExpressCard slot (supports both USB and PCIe based
interfaces)
Cards supported
34 mm ExpressCards
Secure Digital (SD) Memory Card Reader
Cards supported
34 mm ExpressCards
Memory
Memory module connector
2 DIMM slots
Memory module capacity
1 GB, 2 GB, or 4 GB
Memory type
DDR2 800 MHz
Minimum memory
1 GB
Maximum memory
8 GB
Communications
Network adapter
10/100/1000 Ethernet LAN on system board
Wireless
WLAN half Mini-Card, Bluetooth®wireless technology
Connectors
Audio
Microphone connector, mono headphones/speakers
connector
Mini-Card
One dedicated half Mini-Card slot for WLAN
Network adapter
RJ-45 connector
USB
two 4-pin USB 2.0-compliant connectors






Video
15-hole VGA connector
Audio
Audio type
Two-channel high-definition audio codec
Audio controller
CONEXANT CX20583
Stereo conversion
24-bit (analog-to-digital and digital-to-analog)
Interfaces:

Internal
Internal high definition audio
External
Microphone-in connector, stereo headphones/speakers
mini-connector
Speakers
2 two-watt, 4-ohm speakers
Internal speaker amplifier
2-W channel, 4 ohms
Internal microphone
Single digital microphone
Volume controls
Volume control buttons
Graphics
Integrated
Videocontroller
Mobile Intel GMA X4500 Graphics Controller
Databus
Integrated video
Video memory
Up to 256 MB of shared memory
Video output
Video connector and multimode DisplayPort
Keyboard
Number of keys
84 (U.S. and U.K.); 84 (Europe); 87 (Japan)
Layout
QWERTY/AZERTY/Kanji
Display
Type (active-matrix TFT)
WXGA
Active area X/Y
261.12 x 163.2
Dimensions
Height
178.8 mm (7.039 inches)
Width
289.7 mm (11.41 inches)
Diagonal
337.8 mm (13.3 inches)
Maximum Resolution
1280 x 800 at 262 K colors
Operating angle
0°(closed)to160°
Refresh rate
60 Hz (40 Hz in All Day Battery Life (ADBL) mode)
Viewing angles
Horizontal
40/40°
Vertical
15/30°
Pixel pitch
0.2235 mm (0.008799 inch)
Power Consumption
(panel with backlight, typical)
4.3 W (max)
Battery
Type
4-cell and 6-cell
Dimensions:
Depth
4-cell
46.50 mm (1.83 inches)
6-cell
46.50 mm (1.83 inches)
Height
4-cell
35.85 mm (1.41 inches)
6-cell
40.64 mm (1.60 inches)
Voltage







4-cell
12 V (minimum), 17.7 V (maximum)
6-cell
9 V (minimum), 13.3 V (maximum)
Temperature range:
Operating
0°to50°C(32°to122°F)
Storage
–20°to65°C(14°to149°F)
Coin-cell battery
CR2032
Touch Pad
X/Y position resolution
(graphics table mode)
240 CPI
Size
Width
68-mm (2.677-inch) sensor-active area
Height
37.63-mm (1.481-inch) rectangle
FingerprintReader(optional)
Type
Authentec
AC Adapter
Type
65 Watt
Input voltage
100–240 VAC
Input current (maximum)
1.5 A
Input Frequency
50–60 Hz
Output Current:
65W
43.34 A (maximum at 4 seconds pulse),
3.34 A (continuous)
Rated Output Voltage
19.5 VDC
Temperature range:
Operating
0°to40°C(32°to104°F)
Storage
–40°to70°C(–40°to158°F)
Physical
Height:
withaCCFLpanel
23.5–37.6 mm (0.93–1.48 inches)
withaWLEDpanel
23.5–36.6 mm (0.93–1.44 inches)
Width
294.0 mm (11.57 inches)
Depth
228.7 mm (9.00 inches)
Weight:
with a 4-cell battery,
128 GB SSD, WLED
panel, and no optical
drive
152 kg (3.36 lbs)
Environmental
Temperature range:
Operating
0°to35°C(32°to95°F)
Storage
-40°to65°C(-40°to149°F)
Relative humidity (maximum):
Operating
10% to 90% (noncondensing)
Storage
5% to 95% (noncondensing)
Video
Video type
integrated on system board
Data bus
integrated video



Back to Contents Page
Video controller
Intel Extreme Graphics
Video memory
up to 256 MB (shared)

Back to Contents Page

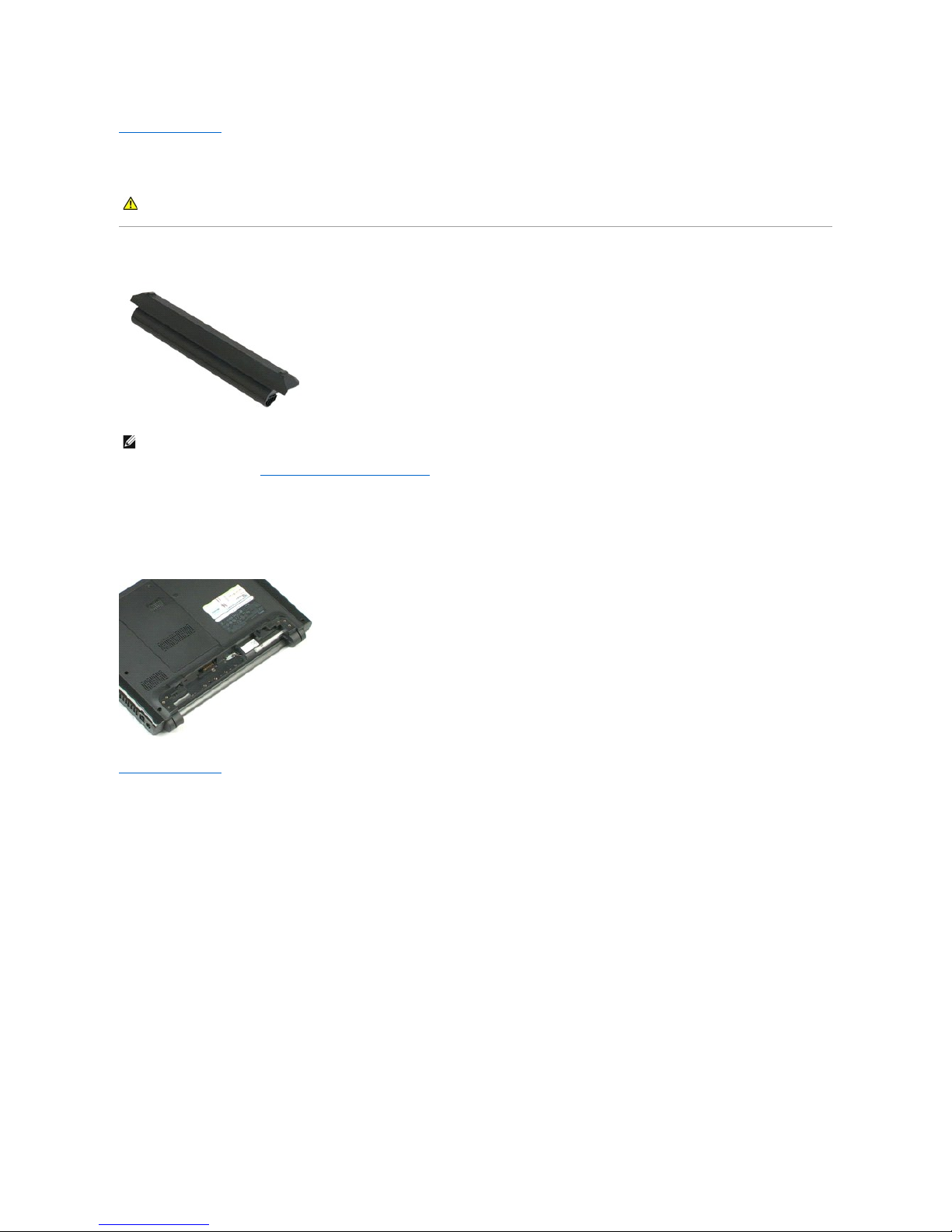

Battery
Dell™Vostro™1220ServiceManual
Removing the Battery
1. Follow the procedures in Before Working Inside Your Computer.
2. During installation or removal of ANY hardware, always ensure that all data is backed up properly.
3. Slide the battery release latches into the unlock position.
4. Remove the battery from the computer.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.

Back to Contents Page
Access Panel
Dell™Vostro™1220ServiceManual
Removing the Access Panel
1. Follow the procedures in Before Working Inside Your Computer.
2. During installation or removal of ANY hardware, always ensure that all data is backed up properly.
3. Remove the battery from the computer.
4. Loosen the two captive screws securing the access panel.
5. Remove the access panel.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.

Back to Contents Page
Memory
Dell™Vostro™1220ServiceManual
Removing the Memory
1. Follow the procedures in Before Working Inside Your Computer.
2. During installation or removal of ANY hardware, always ensure all data is backed up properly.
3. Remove the battery and the access panel from the computer.
4. Gently pry the memory retention clips away from the memory.
5. Remove the memory.
6. Repeat the previous steps for any additional memory needing servicing.

Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.

Back to Contents Page
WLAN Card
Dell™Vostro™1220ServiceManual
Removing the WLAN Card
1. Follow the procedures in Before Working Inside Your Computer.
2. During installation or removal of ANY hardware, always ensure all data is backed up properly.
3. Remove the battery and the access panel from the computer.
4. Disconnect the antennas from the WLAN card.
5. Remove the screw that secures the WLAN card to the computer.
6. Remove the WLAN card from the computer.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.

Back to Contents Page
Coin-Cell Battery
Dell™Vostro™1220ServiceManual
Removing the Coin-Cell Battery
1. Follow the procedures in Before Working Inside Your Computer.
2. During installation or removal of ANY hardware, always ensure all data is backed up properly.
3. Remove the battery and the access panel from the computer.
4. Disconnect the battery cable.
5. Remove the coin-cell battery.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.

Back to Contents Page
Hinge Cover
Dell™Vostro™1220ServiceManual
Removing the Hinge Cover
1. Follow the procedures in Before Working Inside Your Computer.
2. During installation or removal of ANY hardware, always ensure all data is backed up properly.
3. Remove the battery from the computer.

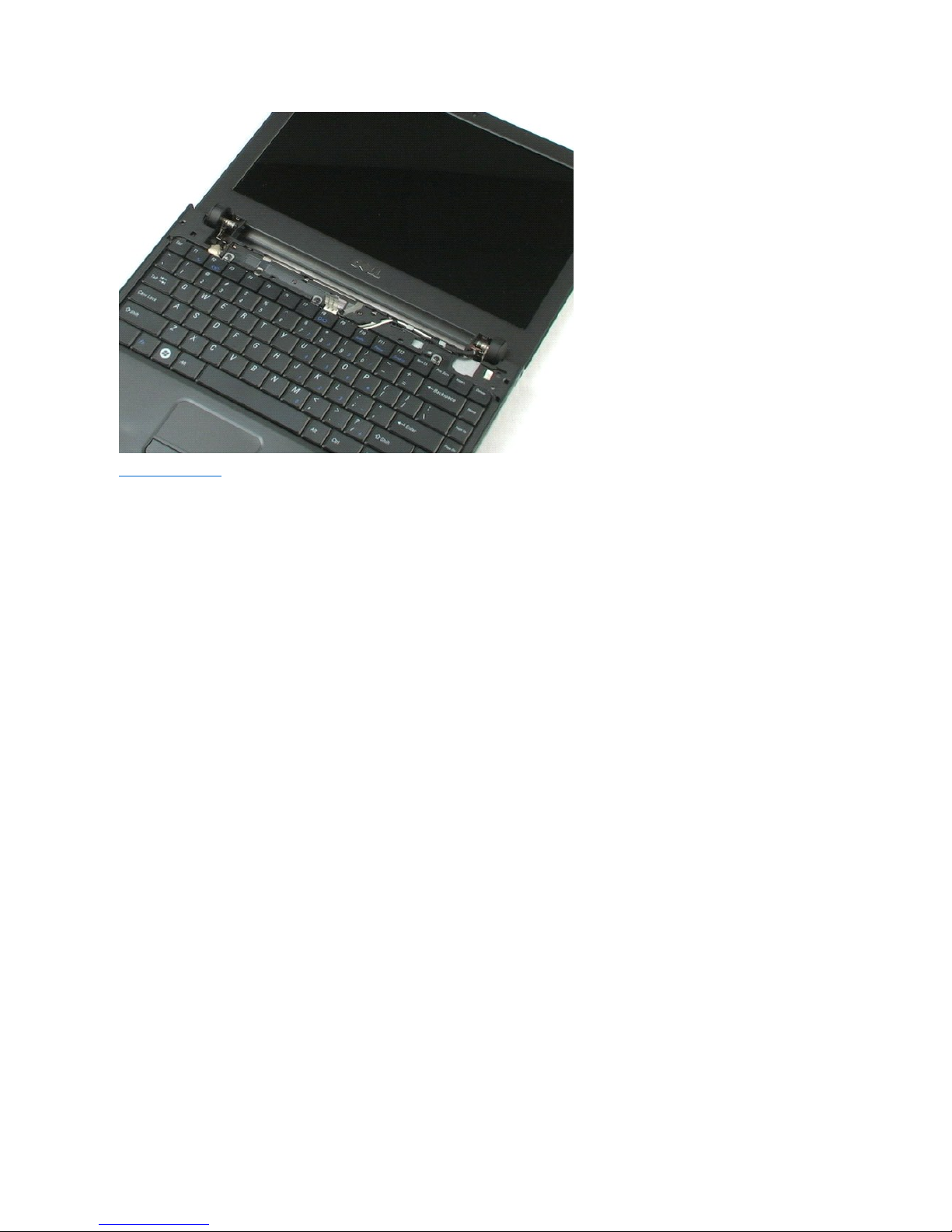

4. Gently pry up the hinge cover.
5. Flip over the hinge cover toward the keyboard.
6. Disconnect the multimedia board cable.
7. Remove the hinge cover.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.

Back to Contents Page

Back to Contents Page
Keyboard
Dell™Vostro™1220ServiceManual
Removing the Keyboard
1. Follow the procedures in Before Working Inside Your Computer.
2. During installation or removal of ANY hardware, always ensure all data is backed up properly.
3. Remove the battery and the hinge cover from the system.
4. Remove the three screws securing the keyboard.

5. Flip over the keyboard.

6. Disconnect the keyboard cable.

7. Lift the keyboard away from the system.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.

Back to Contents Page

Back to Contents Page
Media Bay Device
Dell™Vostro™1220ServiceManual
Removing the Media Bay Device
1. Follow the procedures in Before Working Inside Your Computer.
2. During installation or removal of ANY hardware, always ensure all data is backed up properly.
3. Remove the battery from the computer.
4. Remove the one screw securing the media bay device in place.

5. Slide the media bay device out of the system.

Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.

Back to Contents Page
LCD Assembly
Dell™Vostro™1220ServiceManual
Removing the LCD Assembly

1. Follow the procedures in Before Working Inside Your Computer.
2. During installation or removal of ANY hardware, always ensure all data is backed up properly.
3. Remove the battery, hinge cover, keyboard, and optical drive from the system.
4. Disconnect the antennas from the WLAN card (if installed).


5. Unroute the antenna cables.


6. Flip the system over and open the LCD.
7. Remove the screw securing the grounding cable.

8. Disconnect the LCD cable from the system board.


9. Finish unrouting the antenna cables.

10. Remove the six screws securing the LCD assembly.


WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
