About Your Computer
5
About Your Computer
Front View
2
6
7
5
4
3
1
1 power light 2 battery light
3 camera activity light 4 camera
5 display 6 touch pad
7 integrated single
analog microphone
book.book Page 5 Tuesday, August 26, 2008 11:02 AM

About Your Computer
6
CAMERA ACTIVITY LIGHT —Indicates when
the camera is on or off.
CAMERA —Built-in camera for video capture,
conferencing, and chat.
DISPLAY —For more information on the display,
see Dell Technology Guide.
TOUCH PAD —Provides the functionality of a
mouse.
Power light – Turns on when you turn on
the computer.
The light operates as follows:
On AC adapter -
• Solid white:
– The computer is on.
– The computer is off or in hibernate
mode with less than 90 per cent
battery charge and the battery is
charging.
• Flashing white: The computer is in
standby mode.
• Off: The computer is off or in
hibernate mode and the battery is
adequately charged.
On battery -
• Solid white: The computer is on.
• Flashing white: The computer is in
standby mode.
• Off: The computer is off or in
hibernate mode.
Battery status light – Blinks amber to
indicate that the battery charge is low.
Connect to an AC adapter to charge the
battery.
book.book Page 6 Tuesday, August 26, 2008 11:02 AM

About Your Computer
7
INTEGRATED SINGLE ANALOG
MICROPHONE —Used for chatting and voice
recording.

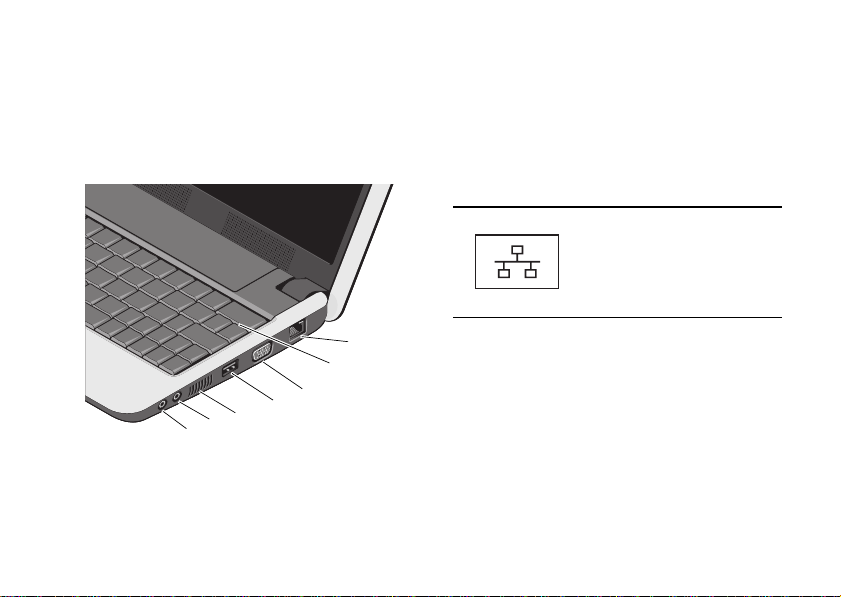

Right View
NETWORK CONNECTOR (RJ-45)
KEYBOARD —For more information on the
keyboard, see Dell Technology Guide. Wireless and
volume control keys are also located on the
keyboard.
1 network connector 2 keyboard
3 VGA connector 4 USB connector
1
3
654
7
2
5 air vents 6 audio-in/microphone
connector
7 audio out/headphone
connector
Connects the computer to a
network. The two lights next to
the connector indicate status
and activity for wired network
connections.
book.book Page 7 Tuesday, August 26, 2008 11:02 AM

About Your Computer
8
USING WIRELESS —To turn on/off wireless,
press the wireless key combination (<Fn><2>) on
the keyboard. A confirmation of your selection
appears on the screen. This key allows you to
quickly turn all of your wireless radios (Bluetooth
and WiFi) off, such as when you are asked to
disable all wireless radios on an airplane flight.
Pressing <Fn><2> one time turns all your radios off
and pressing the key combination again returns
your wireless radios to their respective states they
were in before you pressed the key the first time.
VGA CONNECTOR
USB CONNECTOR
Press <Fn><2> to turn on/off
your wireless devices
Press <Fn><3> to view details
of your battery status, battery
health, and to get battery tips
Press <Fn><4> to mute the
sound
Press <Fn><5> to turn down
the volume
Press <Fn><6> to turn up the
volume
Connects video devices, such
as a monitor.
Connects USB devices, such
as a mouse, keyboard, or
printer.
book.book Page 8 Tuesday, August 26, 2008 11:02 AM

About Your Computer
9
AIR VENTS —The computer creates airflow
through the vents, which prevents the computer
from overheating.
CAUTION: Do not block, push objects into,
or allow dust to accumulate in the air vents.
Do not store your Dell™ computer in a low-
airflow environment, such as a closed
briefcase, while it is running. Restricting the
airflow can damage the computer or cause
a fire.
AUDIO CONNECTORS
Left View
Attach headphones to the connector
Attach a microphone to the connector
1 3-in-1 media card
reader slot
2 USB connectors (2)
3 AC adapter
connector
4 security cable slot
1
2
43
book.book Page 9 Tuesday, August 26, 2008 11:02 AM

About Your Computer
10
3-IN-1 MEDIA CARD READER —Provides a
fast and convenient way to view and share digital
photos, music, videos, and documents stored on the
following digital memory cards:
•Secure digital (SD) memory card
•Secure Digital High Capacity (SDHC) card
•Multi Media card (MMC)
•Memory Stick
NOTE: Your computer ships with a plastic
blank installed in the media card slot. Blanks
protect unused slots from dust and other
particles. Save the blank for use when no
media card is installed in the slot. Blanks
from other computers may not fit your
computer.
USB CONNECTORS
AC ADAPTER CONNECTOR —Attaches an AC
adapter to the computer. The AC adapter converts
AC power to the DC power required by the
computer. You can connect the AC adapter with
your computer turned on or off.
CAUTION: The AC adapter works with
electrical outlets worldwide. However,
power connectors and power strips vary
among countries. Using an incompatible
cable or improperly connecting the cable to
the power strip or electrical outlet may
cause fire or equipment damage.
NOTICE: When you disconnect the AC adapter
cable from the computer, grasp the connector,
not the cable itself, and pull firmly, but gently to
help prevent damage to the cable.
NOTE: Plug the power cord and the adapter
firmly in, and ensure that the light is on.
SECURITY CABLE SLOT —Lets you attach a
commercially available antitheft device to the
computer.
Connect USB devices, such as
a mouse, keyboard, or printer.
book.book Page 10 Tuesday, August 26, 2008 11:02 AM

About Your Computer
11
Battery Removal
CAUTION: Before you begin any of the
procedures in this section, follow the safety
instructions that shipped with your computer.
CAUTION: Using an incompatible battery
may increase the risk of fire or explosion.
Replace the battery only with a compatible
battery purchased from Dell. The battery is
designed to work with your Dell™ computer.
Do not use a battery from other computers
with your computer.
CAUTION: Before removing or replacing the
battery, turn off the computer, disconnect the
AC adapter from the electrical outlet and the
computer, disconnect the modem from the
wall connector and computer, and remove
any other external cables from the computer.
1 battery 2 battery release
latch (2)
12
book.book Page 11 Tuesday, August 26, 2008 11:02 AM

About Your Computer
12
To remove the battery:
1Ensure that the computer is turned off.
2Slide the two battery release latches to the
unlock position.
3Slide the battery out.
To replace the battery, slide the battery into the bay
until it clicks into place.
book.book Page 12 Tuesday, August 26, 2008 11:02 AM

Quick Setup
13
Quick Setup
CAUTION: Before working inside your
computer, read the safety information that
shipped with your computer. For additional
safety best practices information, see the
Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Do not block, push objects into,
or allow dust to accumulate in the air vents.
Do not store your computer in a low-airflow
environment, such as a closed briefcase, while
it is running. Restricting the airflow can
damage the computer or cause a fire.
CAUTION: The AC adapter works with
electrical outlets worldwide. However, power
connectors and power strips vary among
countries. Using an incompatible cable or
improperly connecting the cable to the power
strip or electrical outlet may cause fire or
equipment damage.
NOTICE: When you disconnect the
AC adapter cable from the computer, grasp
the connector, not the cable itself, and pull
firmly but gently to avoid damaging the cable.
When you wrap the AC adapter cable, ensure
that you follow the angle of the connector on
the AC adapter to avoid damaging the cable.
NOTE: Some devices may not be included if
you did not order them.
1Connect the AC adapter to the AC adapter
connector on the computer and to the
electrical outlet.
book.book Page 13 Tuesday, August 26, 2008 11:02 AM

Quick Setup
14
2Connect the network cable.
3Connect USB devices, such as a mouse or
keyboard.
4Open the computer display and press the
power button to turn on the computer.
NOTE: It is recommended that you turn on
and shut down your computer at least once
before you install any cards or connect the
computer to a docking device or other
external device, such as a printer.
5Connect to the Internet. See "Connecting to
the Internet" on page 16 for more information.
book.book Page 14 Tuesday, August 26, 2008 11:02 AM

Quick Setup
15
1 Internet service 2 cable or DSL modem
3 wireless router 4 laptop with wired connection
5 laptop with wireless connection
1
2
3
1
2
3
4
5
book.book Page 15 Tuesday, August 26, 2008 11:02 AM

Quick Setup
16
Connecting to the Internet
NOTE: ISPs (Internet Service Providers) and
ISP offerings vary by country.
To connect to the Internet, you need a modem or
network connection and an Internet service
provider (ISP). If you are using a dial-up connection,
connect a telephone line to the modem connector
on your computer and to the telephone wall
connector before you set up your Internet
connection. If you are using a DSL or cable/satellite
modem connection, contact your ISP or cellular
phone service for setup instructions.
Setting Up Your Internet Connection
NOTE: The instructions in this section are for
computers with Windows XP operating
system only.
To set up an Internet connection with a desktop
shortcut provided by your ISP:
1Save and close any open files, and exit any
open programs.
2Double-click the ISP icon on the Microsoft®
Windows®desktop.
3Follow the instructions on the screen to
complete the setup.
If you do not have an ISP icon on your desktop or if
you want to set up an Internet connection with a
different ISP, perform the steps in the appropriate
section below.
NOTE: If you cannot connect to the Internet,
see the Dell Technology Guide. If you have
successfully connected in the past, the ISP
might have a service outage. Contact your
ISP to check the service status, or try
connecting again later.
NOTE: Have your ISP information ready. If
you do not have an ISP, consult the Connect
to the Internet wizard.
book.book Page 16 Tuesday, August 26, 2008 11:02 AM

Quick Setup
17
Microsoft®Windows®XP Operating
System
1Save and close any open files, and exit any
open programs.
2Click Start→Internet Explorer→Connect to
the Internet.
3In the next window, click the appropriate
option:
•If you do not have an ISP, click Choose
from a list of Internet service providers
(ISPs).
•If you have already obtained setup
information from your ISP but you did
not receive a setup CD, click Set up my
connection manually.
•If you have a setup CD, click Use the CD
I got from an ISP.
4Click Next.
If you selected Set up my connection
manually in step 3, continue to step 5.
Otherwise, follow the instructions on the
screen to complete the setup.
NOTE: If you do not know which type
of connection to select, contact
your ISP.
5Click the appropriate option under How do
you want to connect to the Internet?, and
click Next.
6Use the setup information provided by your
ISP to complete the setup.
book.book Page 17 Tuesday, August 26, 2008 11:02 AM

Quick Setup
18
Transferring Information to a New
Computer
Windows XP provides the Files and Settings
Transfer Wizard to move data from a source
computer to a new computer.
You can transfer the data to the new computer over
a network or serial connection, or you can store it
on removable media, such as a writable CD, for
transfer to the new computer.
NOTE: You can transfer information from
an old computer to a new computer by
directly connecting a serial cable to the
input/output (I/O) ports of the two computers.
For instructions on setting up a direct cable
connection between two computers, see
Microsoft Knowledge Base Article #305621,
titled How to Set Up a Direct Cable
Connection Between Two Computers in
Windows XP. This information may not be
available in certain countries.
For transferring information to a new computer, you
must run the Files and Settings Transfer Wizard.
Running the Files and Settings Transfer
Wizard With the Operating System Media
NOTE: This procedure requires the
Operating System media. This media is
optional and may not be included with
certain computers.
NOTE: Your computer may or may not have
an optical drive. Use an external optical drive
or any external storage device for the
procedures that involve media.
To prepare a new computer for the file transfer:
1Open the Files and Settings Transfer Wizard:
click Start→All Programs→Accessories→
System Tools→Files and Settings Transfer
Wizard.
2When the Files and Settings Transfer Wizard
welcome screen appears, click Next.
3On the Which computer is this? screen,
click New Computer→Next.
book.book Page 18 Tuesday, August 26, 2008 11:02 AM

Quick Setup
19
4On the Do you have a Windows XP CD?
screen, click I will use the wizard from the
Windows XP CD→Next.
5When the Now go to your old computer
screen appears, go to your old or source
computer. Do not click Next at this time.
To copy data from the old computer:
1On the old computer, insert the Windows XP
Operating System media.
2On the Welcome to Microsoft Windows XP
screen, click Perform additional tasks.
3Under What do you want to do?, click
Transfer files and settings→Next.
4On the Which computer is this? screen, click
Old Computer→Next.
5On the Select a transfer method screen, click
the transfer method you prefer.
6On the What do you want to transfer?
screen, select the items you want to transfer
and click Next.
7After the information has been copied, the
Completing the Collection Phase screen
appears.
8Click Finish.
To transfer data to the new computer:
1On the Now go to your old computer screen
on the new computer, click Next.
2On the Where are the files and settings?
screen, select the method you chose for
transferring your settings and files and click
Next.
3The wizard applies the collected files and
settings to your new computer.
4On the Finished screen, click Finished, and
restart the new computer.
book.book Page 19 Tuesday, August 26, 2008 11:02 AM

Quick Setup
20
Running the Files and Settings Transfer
Wizard Without the Operating System
Media
NOTE: Your computer may or may not have
an optical drive. Use an external optical drive
or any external storage device for the
procedures that involve media.
To run the Files and Settings Transfer Wizard
without the Operating System media, you must
create a wizard disk that will allow you to create a
backup image file to removable media.
To create a wizard disk, use your new computer
with Windows XP and perform the following steps:
1Open the Files and Settings Transfer Wizard:
click Start→All Programs→Accessories→
System Tools→Files and Settings Transfer
Wizard.
2When the Files and Settings Transfer Wizard
welcome screen appears, click Next.
3On the Which computer is this? screen, click
New Computer→Next.
4On the Do you have a Windows XP CD?
screen, click I want to create a Wizard Disk
in the following drive→Next.
5Insert the removable media, such as a
writable CD, and click OK.
6When the disk creation completes and the
Now go to your old computer
message appears, do not click Next.
7Go to the old computer.
To copy data from the old computer:
1On the old computer, insert the wizard disk,
and click Start→Run.
2In the Open field on the Run window, browse
to the path for fastwiz (on the appropriate
removable media) and click OK.
3On the Files and Settings Transfer Wizard
welcome screen, click Next.
4On the Which computer is this? screen, click
Old Computer→Next.
5On the Select a transfer method screen, click
the transfer method you prefer.
book.book Page 20 Tuesday, August 26, 2008 11:02 AM
