Dell XPS 13-9350 User manual

XPS 13
Service Manual
Computer Model: XPS 13–9350
Regulatory Model: P54G
Regulatory Type: P54G002

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better
use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss
of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
Copyright ©2015 Dell Inc. All rights reserved. This product is protected by U.S. and
international copyright and intellectual property laws. Dell™and the Dell logo are trademarks
of Dell Inc. in the United States and/or other jurisdictions. All other marks and names
mentioned herein may be trademarks of their respective companies.
2015 -10
Rev. A00

Contents
Before working inside your computer.....................................8
Before you begin ...............................................................................................8
Safety instructions..............................................................................................8
Recommended tools......................................................................................... 9
After working inside your computer......................................10

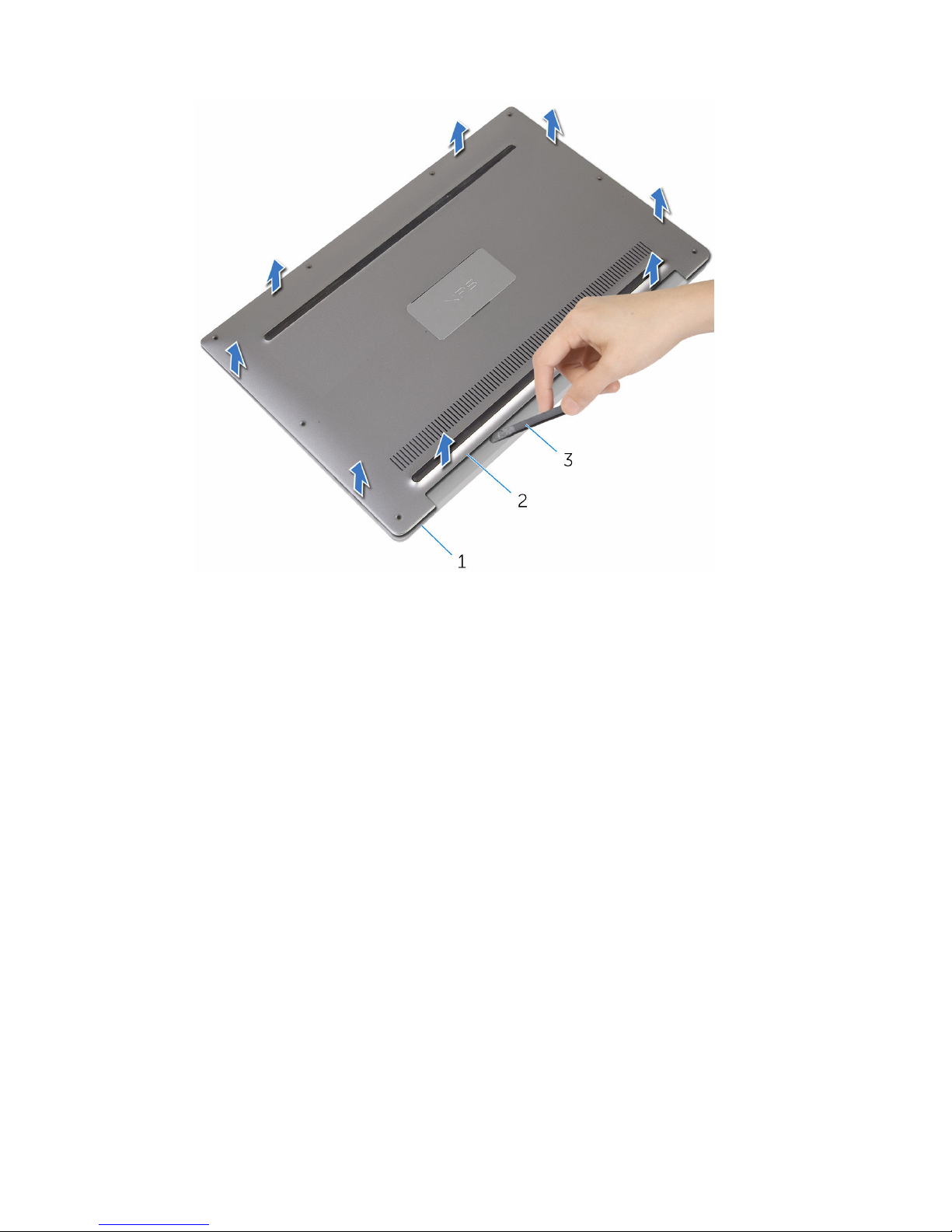

Removing the base cover......................................................... 11
Procedure......................................................................................................... 11
Replacing the base cover.........................................................14
Procedure.........................................................................................................14

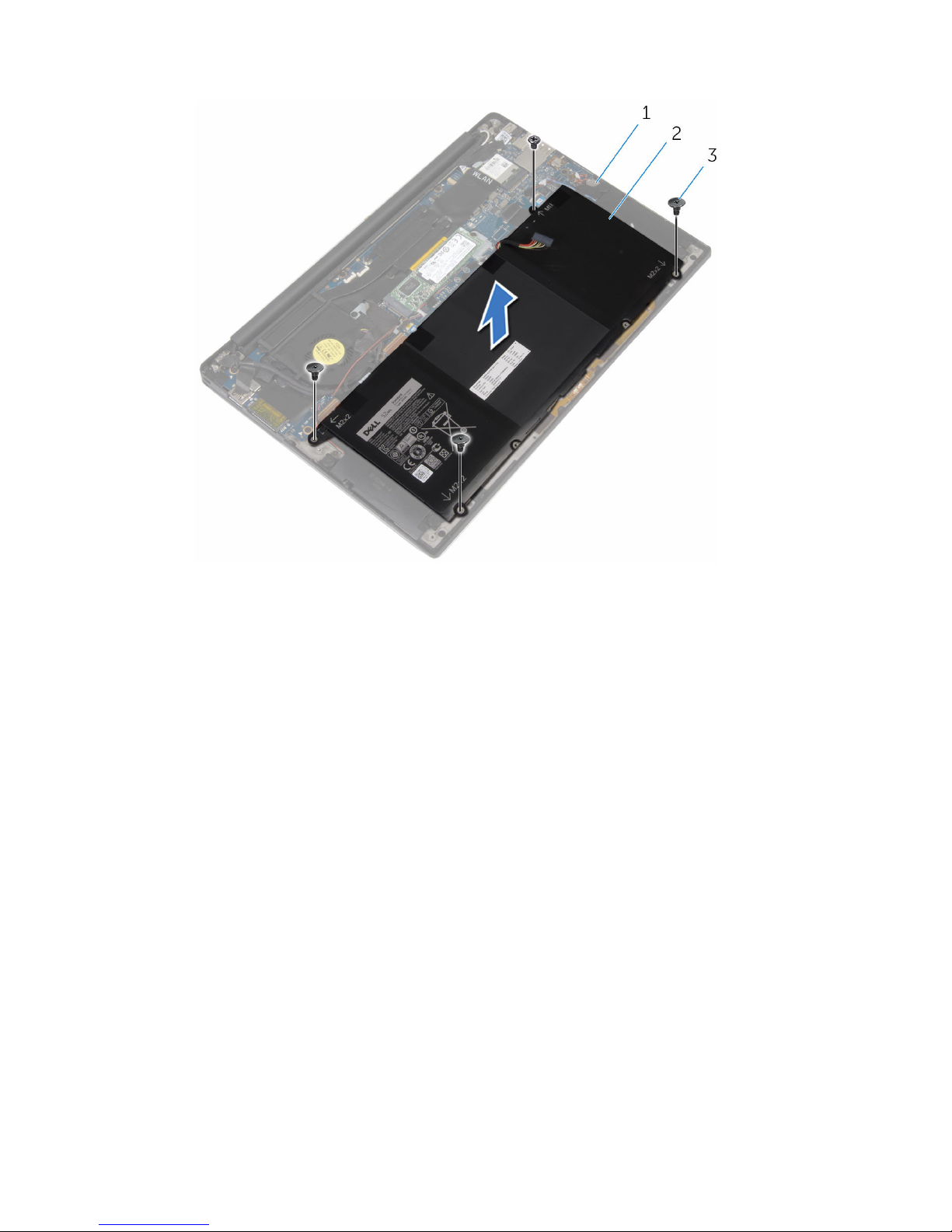

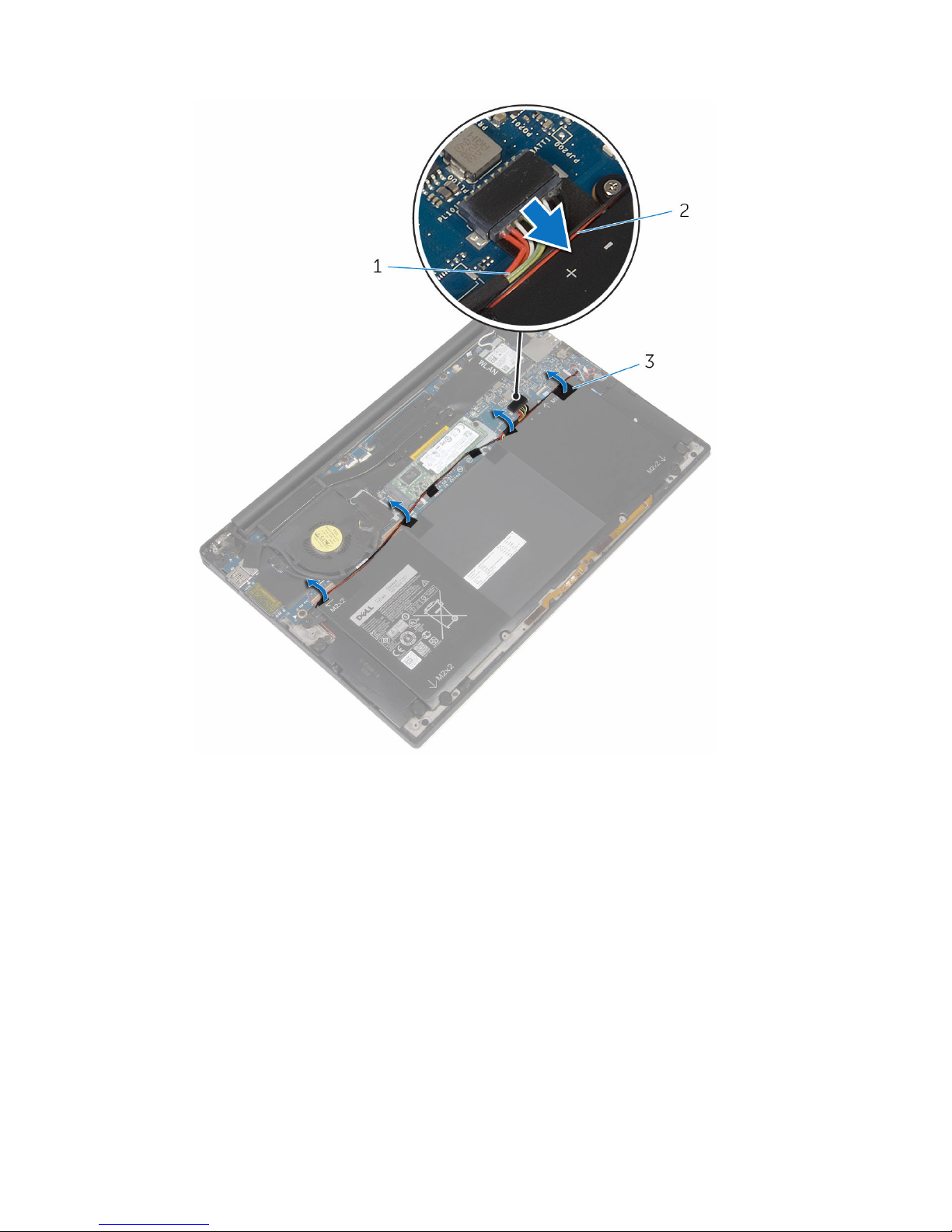

Removing the battery............................................................... 15
Prerequisites..................................................................................................... 15
Procedure.........................................................................................................15
Replacing the battery............................................................... 18
Procedure.........................................................................................................18
Post-requisites................................................................................................. 18
Removing the solid-state drive...............................................19
Prerequisites.....................................................................................................19
Procedure.........................................................................................................19
Replacing the solid-state drive............................................... 21
Procedure.........................................................................................................21
Post-requisites................................................................................................. 22
3

Removing the wireless card.................................................... 23
Prerequisites.....................................................................................................23
Procedure.........................................................................................................23
Replacing the wireless card.....................................................25
Procedure.........................................................................................................25
Post-requisites.................................................................................................26
Removing the speakers............................................................ 27
Prerequisites.....................................................................................................27
Procedure.........................................................................................................27
Replacing the speakers............................................................ 29
Procedure........................................................................................................ 29
Post-requisites.................................................................................................29
Removing the coin-cell battery..............................................30
Prerequisites.................................................................................................... 30
Procedure........................................................................................................ 30
Replacing the coin-cell battery.............................................. 32
Procedure.........................................................................................................32
Post-requisites................................................................................................. 32
Removing the heat sink............................................................33
Prerequisites.....................................................................................................33
Procedure.........................................................................................................33
Replacing the heat sink............................................................ 35
Procedure.........................................................................................................35
Post-requisites................................................................................................. 35
4

Removing the battery-status light cable.............................. 36
Prerequisites.....................................................................................................36
Procedure........................................................................................................ 36
Replacing the battery-status light cable.............................. 38
Procedure........................................................................................................ 38
Post-requisites.................................................................................................38
Removing the touch pad......................................................... 39
Prerequisites.....................................................................................................39
Procedure........................................................................................................ 40
Replacing the touch pad..........................................................42
Procedure........................................................................................................ 42
Post-requisites.................................................................................................42
Removing the I/O-board cable ..............................................43
Prerequisites.....................................................................................................43
Procedure........................................................................................................ 43
Replacing the I/O-board cable .............................................. 45
Procedure........................................................................................................ 45
Post-requisites.................................................................................................45
Removing the I/O board.......................................................... 46
Prerequisites.................................................................................................... 46
Procedure........................................................................................................ 46
Replacing the I/O board.......................................................... 49
Procedure........................................................................................................ 49
Post-requisites.................................................................................................49
5

Removing the keyboard-controls board.............................. 50
Prerequisites.................................................................................................... 50
Procedure........................................................................................................ 50
Replacing the keyboard-controls board...............................53
Procedure.........................................................................................................53
Post-requisites................................................................................................. 53
Removing the display assembly............................................. 54
Prerequisites.....................................................................................................54
Procedure........................................................................................................ 54
Replacing the display assembly..............................................60
Procedure........................................................................................................ 60
Post-requisites................................................................................................. 61
Removing the system board....................................................62
Prerequisites.....................................................................................................62
Procedure........................................................................................................ 62
Replacing the system board....................................................67
Procedure.........................................................................................................67
Post-requisites.................................................................................................68
Removing the power-adapter port........................................69
Prerequisites.................................................................................................... 69
Procedure........................................................................................................ 69
Replacing the power-adapter port.........................................71
Procedure......................................................................................................... 71
Post-requisites..................................................................................................71
6

Removing the fan...................................................................... 72
Prerequisites.....................................................................................................72
Procedure.........................................................................................................72
Replacing the fan.......................................................................75
Procedure.........................................................................................................75
Post-requisites................................................................................................. 75
Removing the keyboard...........................................................76
Prerequisites.....................................................................................................76
Procedure.........................................................................................................77
Replacing the keyboard...........................................................80
Procedure........................................................................................................ 80
Post-requisites.................................................................................................80
Removing the palm rest........................................................... 81
Prerequisites.....................................................................................................81
Procedure........................................................................................................ 82
Replacing the palm rest........................................................... 84
Procedure........................................................................................................ 84
Post-requisites.................................................................................................84
Flashing the BIOS...................................................................... 85
Getting help and contacting Dell...........................................86
Self-help resources......................................................................................... 86
Contacting Dell................................................................................................87
7

Before working inside your
computer
NOTE: The images in this document may differ from your computer
depending on the configuration you ordered.
Before you begin
1 Save and close all open files and exit all open applications.
2 Shut down your computer.
– Windows 10: Click or tap Start → Power → Shut down.
– Windows 8.1: On the Start screen, click or tap the power icon →
Shut down.
– Windows 7: Click or tap Start → Shut down.
NOTE: If you are using a different operating system, see the
documentation of your operating system for shut-down
instructions.
3 Disconnect your computer and all attached devices from their electrical
outlets.
4 Disconnect all cables such as telephone cables, network cables and so
on, from your computer.
5 Disconnect all attached devices and peripherals, such as keyboard,
mouse, monitor, and so on, from your computer.
6 Remove any media card and optical disc from your computer, if
applicable.
Safety instructions
Use the following safety guidelines to protect your computer from potential
damage and ensure your personal safety.
WARNING: Before working inside your computer, read the safety
information that shipped with your computer. For more safety best
practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
8

WARNING: Disconnect all power sources before opening the
computer cover or panels. After you finish working inside the
computer, replace all covers, panels, and screws before connecting to
the power source.
CAUTION: To avoid damaging the computer, ensure that the work
surface is flat and clean.
CAUTION: To avoid damaging the components and cards, handle
them by their edges and avoid touching pins and contacts.
CAUTION: You should only perform troubleshooting and repairs as
authorized or directed by the Dell technical assistance team. Damage
due to servicing that is not authorized by Dell is not covered by your
warranty. See the safety instructions that shipped with the product or
at www.dell.com/regulatory_compliance.
CAUTION: Before touching anything inside your computer, ground
yourself by touching an unpainted metal surface, such as the metal at
the back of the computer. While you work, periodically touch an
unpainted metal surface to dissipate static electricity, which could
harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on
its pull tab, not on the cable itself. Some cables have connectors with
locking tabs or thumb-screws that you must disengage before
disconnecting the cable. When disconnecting cables, keep them
evenly aligned to avoid bending any connector pins. When connecting
cables, ensure that the ports and connectors are correctly oriented
and aligned.
CAUTION: Press and eject any installed card from the media-card
reader.
Recommended tools
The procedures in this document may require the following tools:
• Philips screwdriver
• Flat-head screwdriver
• Torx #5 (T5) screwdriver
• Plastic scribe
9

After working inside your
computer
CAUTION: Leaving stray or loose screws inside your computer may
severely damage your computer.
1 Replace all screws and ensure that no stray screws remain inside your
computer.
2 Connect any external devices, peripherals, and cables you removed
before working on your computer.
3 Replace any media cards, discs, and any other parts that you removed
before working on your computer.
4 Connect your computer and all attached devices to their electrical
outlets.
5 Turn on your computer.
10

Removing the base cover
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
Procedure
1 Close the display and turn the computer over.
2 Using your fingertips, open the system badge.
11

3 Remove the screws that secure the base cover to the palm-rest
assembly.
1 screws (9) 2 system badge
3 base cover
4 Starting from the back of the computer, pry up the base cover using a
plastic scribe.
12

5 Lift the base cover off the palm-rest assembly.
1 palm-rest assembly 2 base cover
3 plastic scribe
13

Replacing the base cover
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the base cover with the screw holes on the
palm-rest assembly and snap the base cover into place.
2 Using your fingertips, turn the system badge over.
3 Replace the screws that secure the base cover to the palm-rest assembly.
4 Turn the system badge over and keep it in place.
14

Removing the battery
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Disconnect the battery cable from the system board.
15

2 Peel off the tapes that secure the speaker cable to the battery.
1 battery cable 2 speaker cable
3 tapes (6)
3 Remove the screws that secure the battery to the palm-rest assembly.
16

4 Lift the battery off the palm-rest assembly.
1 palm-rest assembly 2 battery
3 screws (4)
5 Turn the computer over, open the display, and press the power button
for about 5 seconds to ground the computer.
17

Replacing the battery
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the battery with the screw holes on the palm-
rest assembly.
2 Adhere the tapes that secure the speaker cable to the battery.
3 Replace the screws that secure the battery to the palm-rest assembly.
4 Connect the battery cable to the system board.
Post-requisites
Replace the base cover.
18

Removing the solid-state drive
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
CAUTION: Solid-state drives are fragile. Exercise care when handling
the hard drive.
CAUTION: To avoid data loss, do not remove the solid-state drive
while the computer is in sleep or on state.
Prerequisites
1 Remove the base cover.
2 Remove the battery.
Procedure
1 Remove the screw that secures the solid-state drive to the system board.
19

2 Slide and remove the solid-state drive from the solid-state drive slot.
1 solid-state drive slot 2 screw
3 solid-state drive
