Setting Up Your Computer
Complete the following steps to start using your computer:

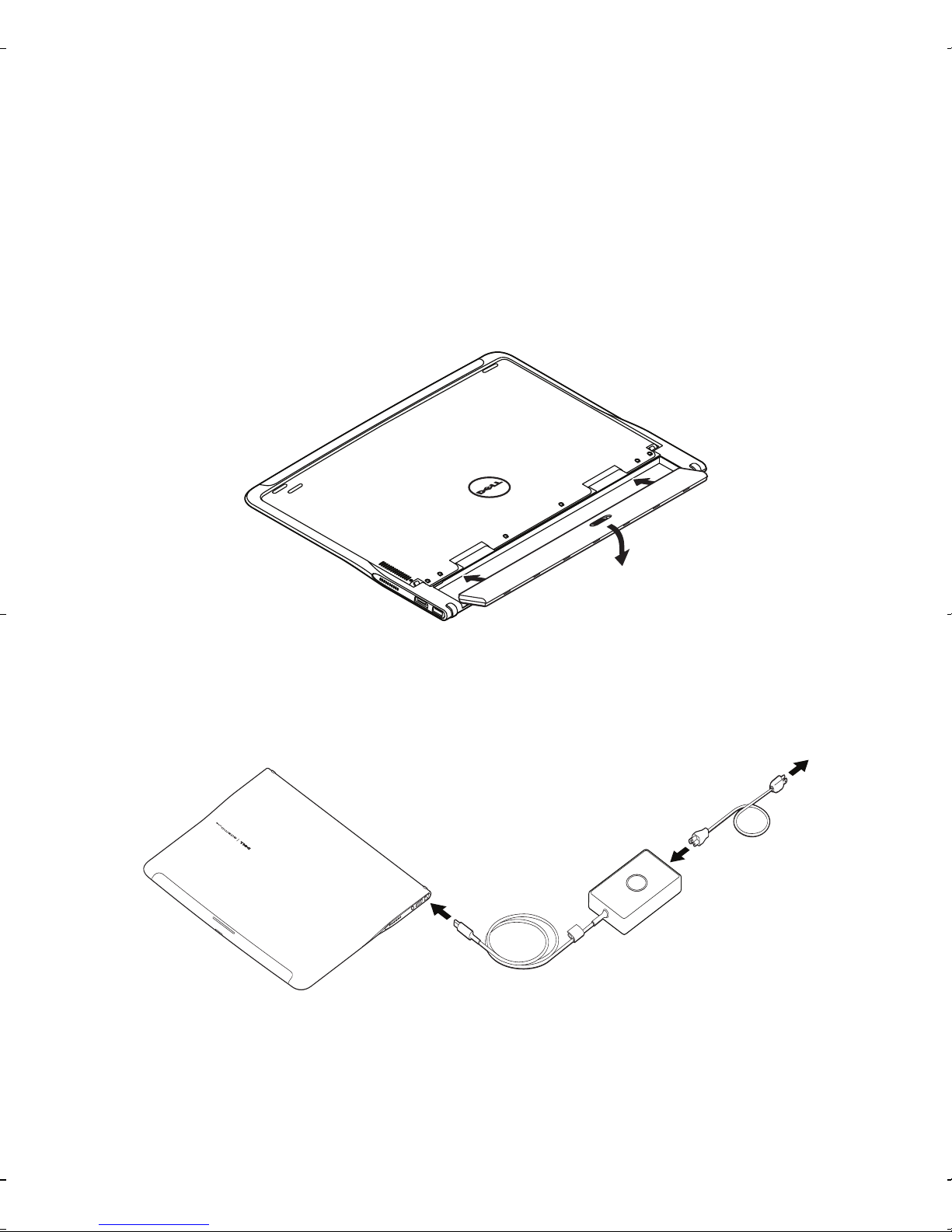

1 Slide the battery into the battery bay on the bottom of the
computer and gently snap it into place.

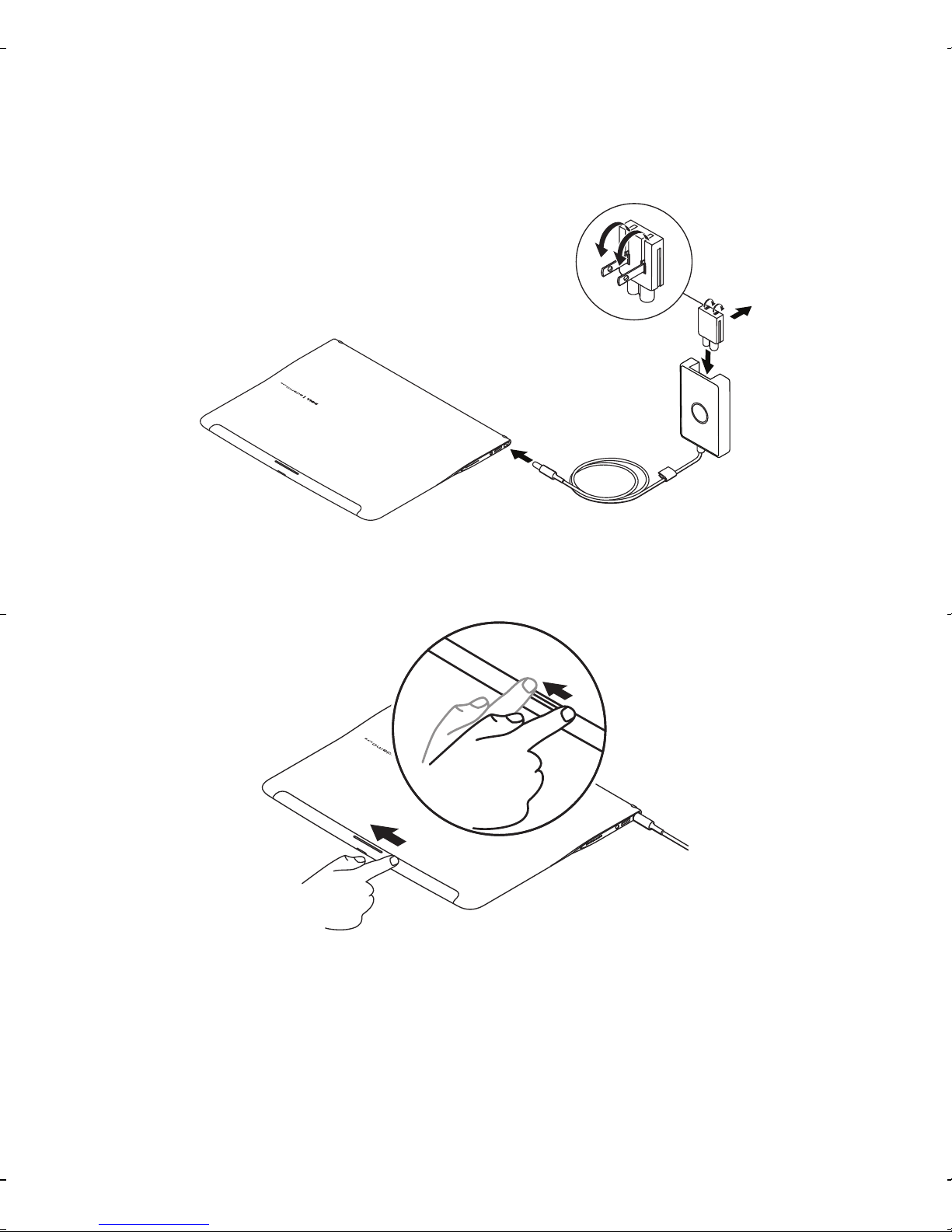

2 Connect the AC adapter to the computer. Connect the other end
of the AC adapter to a power outlet.
2
1
G676R_A01_bk0.book Page 7 Friday, November 13, 2009 3:46 PM

8
In the U.S., Mexico, and Canada, you can directly connect the
duckhead adapter into a power outlet as shown in the illustration.
3 Swipe the latch release and lift to open the display.
1
G676R_A01_bk0.book Page 8 Friday, November 13, 2009 3:46 PM

9
4 Press the power button.
2
G676R_A01_bk0.book Page 9 Friday, November 13, 2009 3:46 PM

10
Basic Specifications
This section provides basic information that you may need when
setting up, updating drivers for, or upgrading your computer. For
more detailed specifications see the Service Manual at
support.dell.com/manuals.
System Model
Dell™ Adamo XPS™
Processor
Type Intel®Core™2 Duo SU9400
L2 cache 3 MB shared
External bus
frequency
800 MHz
Memory
Type dual channel 800 MHz DDR3 SDRAM
Configuration 4 GB
G676R_A01_bk0.book Page 10 Friday, November 13, 2009 3:46 PM

11
Computer Information
Chipset Mobile Intel 4 Series Express
PCI bus 32 bits
Data bus width 64 bits
DRAM bus
width
128 bits dual channel
Communications
Network
adapter
External USB 10/100
802.11n
Wireless LAN
Intel Centrino®WLAN
Bluetooth Bluetooth 2.1 + Enhanced Data Rate (EDR)
Video
Type Intel Graphics Media Accelerator
Data bus Internal PCI-E
Controller GMA X4500HD
Memory 256 MB shared frame buffer
Camera 2.0 megapixel
G676R_A01_bk0.book Page 11 Friday, November 13, 2009 3:46 PM

12
Audio
Type Intel High Definition Audio 2.0
Controller Realtek ALC269
Speaker one mono speaker
Microphone one digital microphone
Headphone one stereo 3.5-mm headphone connector
Storage
Internal 128-GB Solid State Drive
External optional 250-GB/500-GB USB SATA hard drive
Ports and Connectors
USB two 4-pin USB 2.0-compliant connectors
DisplayPort one 20-pin connector
NOTE: A DisplayPort to DVI adapter is shipped with the
computer.
G676R_A01_bk0.book Page 12 Friday, November 13, 2009 3:46 PM

13
Display
Type Active-matrix TFT LCD
Dimensions
(viewable area)
Height
Width
Diagonal
296.4 mm (11.67 inches)
166.6 mm (6.56 inches)
340.4 mm (13.4 inches)
Power
consumption
(maximum)
4.3 W
Resolution 1366 x 768
Battery
Type Li-Ion battery pack - 20 Whr standard pack
Li-Ion battery pack - 40 Whr extended pack
Dimensions 296 x 39.5 x 8.9 mm (standard pack)
296 x 39.5 x 16.7 mm (extended pack)
G676R_A01_bk0.book Page 13 Friday, November 13, 2009 3:46 PM

14
NOTE: Your computer has an internal bridge battery that
allows you to replace the depleted main battery with a new
one while the computer is in sleep mode. You do not have to
turn off the computer to replace the battery.
Weight
20 Whr 164 g to 175 g
40 Whr 290 g to 298 g
Voltage 11.1 V (nominal)
AC Adapter
U.S./Mexico/Canada
Type DA45NM102-00
Input voltage
(nominal)
100 V – 240 V (nominal)
Input current
(maximum)
1.5 A (continuous)
Input
frequency
50 Hz – 60 Hz (single phase nominal)
Output power
(maximum)
14 VDC
Output current
(maximum)
3.21 A
Battery (continued)
G676R_A01_bk0.book Page 14 Friday, November 13, 2009 3:46 PM

15
Rest of the World
Type DA45NM103-00
Input voltage
(nominal)
100 V – 240 V (nominal)
Input current
(maximum)
1.5 A (continuous)
Input
frequency
50 Hz – 60 Hz (single phase nominal)
Output power
(maximum)
14 VDC
Output current
(maximum)
3.21 A
AC Adapter (continued)
G676R_A01_bk0.book Page 15 Friday, November 13, 2009 3:46 PM

16
Dimensions
U.S./Mexico/
Canada
Length
Width
Height
Rest of the
world
Length
Width
Height
117.6 mm (4.63 inches)
68.6 mm (2.7 inches)
16.8 mm (0.66 inches)
114.4 mm (4.5 inches)
68.6 mm (2.7 inches)
16.8 mm (0.66 inches) to 23.3mm (0.91 inches)
Weight (maximum)
U.S./Mexico/
Canada
195 g (without AC adapter cable)
Rest of the
world
201 g (without AC adapter cable)
AC Adapter (continued)
G676R_A01_bk0.book Page 16 Friday, November 13, 2009 3:46 PM

17
Physical Characteristics
Dimensions
Depth
Width
Height
273.9 mm (10.78 inches)
339.9 mm (13.38 inches)
9.99 mm (0.39 inches)
Weight
(approximate)
1.44 Kg (3.17 lb)
Environment
Temperature
range
Operating: 0° to 35°C (32° to 95°F)
Storage: –40° to 65°C (–40° to 149°F)
Maximum
relative
humidity
Operating: 10% to 90% (noncondensing)
Storage: 5% to 95% (noncondensing)
Maximum
vibration
Operating: 0.66 GRMS
Storage: 1.3 GRMS
Maximum
shock
Operating: 110 G
Storage: 163 G
G676R_A01_bk0.book Page 17 Friday, November 13, 2009 3:46 PM

18
Getting Help
If you experience a problem with your computer, you can complete
the following steps to diagnose and troubleshoot the problem:
NOTE: Call Dell support from a telephone near or at the
computer so that the support staff can assist you with any
necessary procedures.
NOTE: Dell’s Express Service Code system may not be
available in all countries.
When prompted by Dell’s automated telephone system, enter your
Express Service Code to route the call directly to the proper support
personnel.
NOTE: Some of the services mentioned below are not always
available in all locations outside the continental U.S. Call
your local Dell representative for information on availability.
Technical Support and Customer
Service
Dell’s support service is available to answer your questions about
Dell hardware. Our support staff use computer-based diagnostics to
provide fast and accurate answers.
To contact Dell’s support service, see “Before You Call” on page 20
and then see the contact information for your region or go to
support.dell.com.
G676R_A01_bk0.book Page 18 Friday, November 13, 2009 3:46 PM

19
Online Services
You can learn about Dell products and services on the following
websites:
•www.dell.com
•www.dell.com/ap (Asian/Pacific countries only)
•www.dell.com/jp (Japan only)
•www.euro.dell.com (Europe only)
•www.dell.com/la (Latin American and Caribbean countries)
•www.dell.ca (Canada only)
You can access Dell Support through the following websites and
e-mail addresses:
Dell Support websites
•support.dell.com
•support.jp.dell.com (Japan only)
•support.euro.dell.com (Europe only)
•supportapj.dell.com (Asia Pacific only)
Dell Support e-mail addresses
•[e-mail]
•[email protected].com
•la-techsup[email protected] (Latin America and Caribbean
countries only)
•[email protected] (Asian/Pacific countries only)
G676R_A01_bk0.book Page 19 Friday, November 13, 2009 3:46 PM

20
Dell Marketing and Sales e-mail
addresses
•apmarketi[email protected] (Asian/Pacific countries only)
•sales_[email protected] (Canada only)
Anonymous file transfer protocol (FTP)
•ftp.dell.com
Log in as user: anonymous, and use your e-mail address as
your password.
Product Information
If you need information about additional products available from Dell,
or if you would like to place an order, visit the Dell website at
www.dell.com. For the telephone number to call for your region or to
speak to a sales specialist, see “Contacting Dell” on page 22.
Before You Call
NOTE: Have your Express Service Code ready when you call.
The code helps Dell’s automated-support telephone system
direct your call more efficiently. You may also be asked for
your Service Tag.
The Service Tag and Express Service Code are etched on the bottom
of your computer.
Remember to fill out the following Diagnostic Checklist. If possible,
turn on your computer before you call Dell for assistance and call
from a telephone at or near the computer. You may be asked to type
some commands at the keyboard, relay detailed information during
G676R_A01_bk0.book Page 20 Friday, November 13, 2009 3:46 PM
