Setting Up Your Monitor
Dell™ P2212H/P2312H Monitor
Setting the display resolution to 1920 x 1080 (maximum)
For maximum display performance with Microsoft®Windows®operating systems, set the display resolution to 1920 x
1080 pixels by performing the following steps:
In Windows XP:
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Move the slider-bar to the right by pressing and holding the left-mouse button and adjust the screen resolution to
1920 x 1080.
4. Click OK.
In Windows Vista®or Windows®7:
1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Move the slider-bar to the right by pressing and holding the left-mouse button and adjust the screen resolution to
1920 x 1080.
4. Click OK.
If you do not see 1920 x 1080 as an option, you may need to update your graphics driver. Please choose the scenario
below that best describes the computer system you are using, and follow the given steps.
1: If you have a Dell™ desktop or a Dell™ portable computer with internet access.
2: If you have a non Dell™ desktop, portable computer, or graphics card.
Back to Contents Page

Back to Contents Page
About Your Monitor
Dell™ P2212H/P2312H Monitor User's Guide
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
Universal Serial Bus (USB) Interface
LCD Monitor Quality and Pixel Policy
Maintenance Guidelines
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.
NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.
NOTE: To set up with anyother stand, please refer to the respective stand setup guide for setup instructions.
NOTE: P2212H/P2312H monitor is BFR/PVC-free (Halogen-free) excluding external cables.
Monitor
Stand

Power Cable
VGA Cable (Attached to the monitor)
DVI Cable
USB upstream cable (enables the USB ports on the monitor)
Drivers and Documentation media
Quick Setup Guide
Product and Safety Information Guide

Product Features
The Dell Professional P2212H/P2312H flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD) and LED backlight. The monitor features
include:
■P2212H: 54.68 cm (21.5-inch) viewable area display (measured diagonally). 1920 x 1080 resolution, plus full-screen support for lower resolutions.
■P2312H: 58.42 cm (23-inch) viewable area display (measured diagonally). 1920 x 1080 resolution, plus full-screen support for lower resolutions.
■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■Tilt, swivel, vertical extension and rotate adjustment capability.
■Removable stand and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media includes an Information File (INF), Image Color Matching File (ICM), PowerNap software application and product documentation.
■Energy Saver feature for Energy Star compliance.
■Security lock slot.
■Stand lock.
■Asset Management Capability.
■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.
■EPEAT Gold Rating.
■P2212H/P2312H monitor is BFR/PVC-free (Halogen-free) excluding external cables.
■TCO-Certified Displays.
■PowerNap Software included (comes in the CD shipped with the monitor).
■Arsenic-Free glass and Mercury-Free for the panel only.
■High Dynamic Contrast Ratio (2,000,000:1).
■0.1 W standby power when in the sleep mode.
■Energy Gauge shows the energy level being consumed by the monitor in real time.

Identifying Parts and Controls
Front View
Front view Front panel controls
Label Description
1Preset Modes (default, but configurable)
2Brightness & Contrast (default, but configurable)
3Menu
4Exit
5Power (with power light indicator)
Back View

Back view Back view with monitor stand
Label Description Use
1VESA mounting holes (100 mm x 100 mm
- behind attached VESA Plate)Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm).
2Regulatory label Lists the regulatory approvals.
3Stand release button Release stand from monitor.
4Barcode serial number label Refer to this label if you need to contact Dell for technical support.
5Security lock slot Secures monitor with security cable lock.
6Dell Soundbar mounting brackets Attaches the optional Dell Soundbar.
7USB downstream ports Connect your USB devices.
8Cable management slot Use to organize cables by placing them through the slot.
Side View

Left view Right view

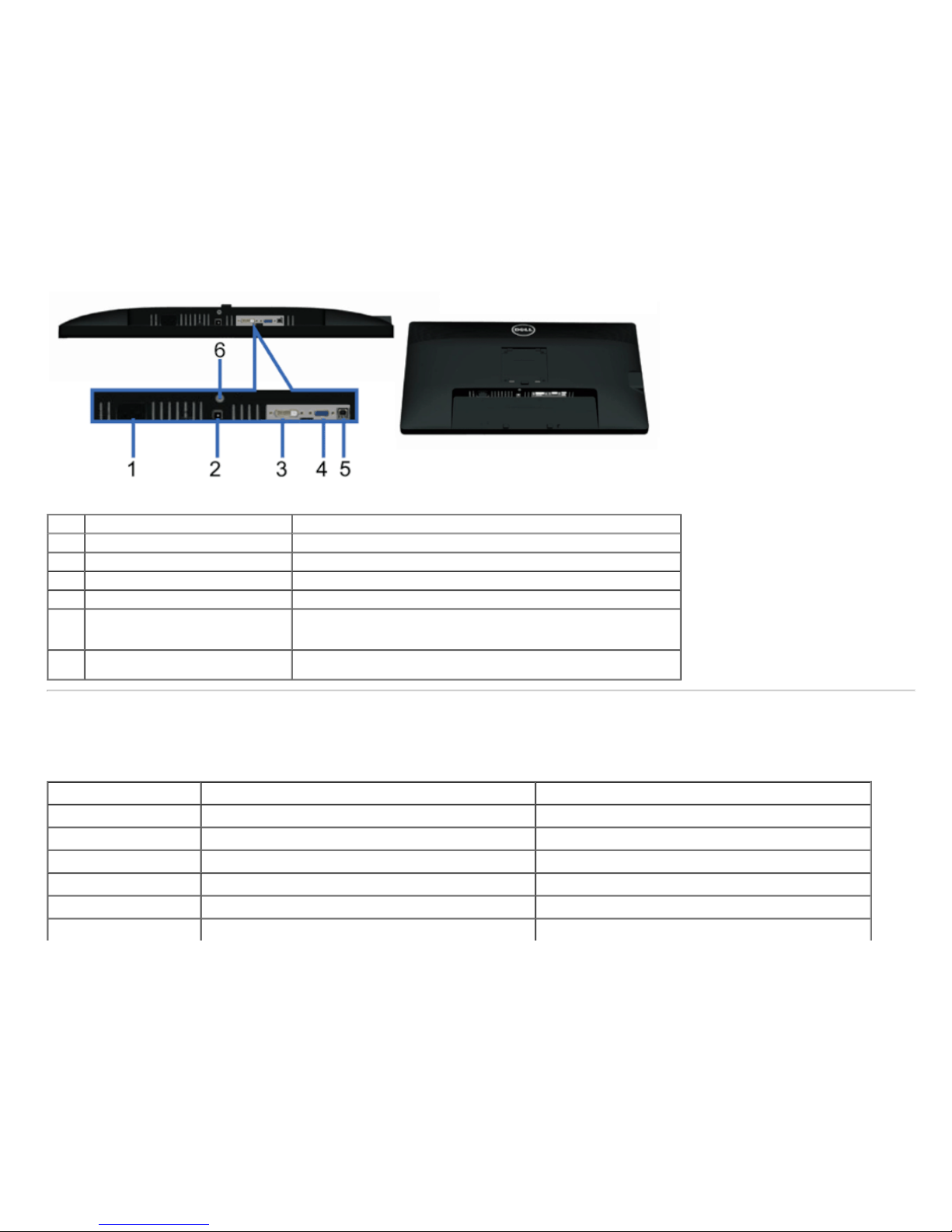

Bottom View

Bottom view Bottom view with monitor stand
Label Description Use
1AC power cord connector Connect the power cable.
2DC power connector for Dell Soundbar Connect the power cord for the soundbar (optional).
3DVI connector Connect your computer DVI cable.
4VGA connector Connect your computer VGA cable.
5USB upstream port Connect the USB cable that came with your monitor to the monitor and the computer. Once this cable is connected,you can use the USB connectors on
the side of the monitor.
6Stand lock feature To lock the stand to the monitor using M3 x 6 mm screw (screw is not
provided).
Monitor Specifications
Flat Panel Specifications
Model P2212H P2312H
Screen type Active matrix - TFT LCD Active matrix - TFT LCD
Panel type TN TN
Screen dimensions 546.8 mm (21.5-inches diagonal viewable image size) 584.2 mm (23-inches diagonal viewable image size)
Preset display area 476.64 (H) X 268.11 (V) mm 509.76 (H) X 286.74 (V) mm
Horizontal 476.64 mm (18.77 inches) 509.76 mm (20.07 inches)
Vertical 268.11 mm (10.56 inches) 286.74 mm (11.29 inches)

Pixel pitch 0.248 mm 0.265 mm
Viewing angle 160° (vertical) typical
170° (horizontal) typical
160° (vertical) typical
170° (horizontal) typical
Luminance output 250 cd/m² (typical) 250 cd/m² (typical)
Contrast ratio 1000 to 1 (typical)
2M to 1 (typical Dynamic Contrast On)
1000 to 1 (typical)
2M to 1 (typical Dynamic Contrast On)
Faceplate coating Antiglare with hard-coating 3H Antiglare with hard-coating 3H
Backlight LED edgelight system LED edgelight system
Response time 5 ms black to white (typical) 5 ms black to white (typical)
Color depth 16.7 million colors 16.7 million colors
Color gamut 82%* 84%*
*[P2212H] color gamut (typical) is based on CIE1976 (82%) and CIE1931 (72%) test standards.
*[P2312H] color gamut (typical) is based on CIE1976 (84%) and CIE1931 (72%) test standards.
Resolution Specifications
Model P2212H/P2312H
Horizontal scan range 30 kHz to 83 kHz (automatic)
Vertical scan range 56 Hz to 76 Hz (automatic)
Maximum preset resolution 1920 x 1080 at 60 Hz
Supported Video Modes
Model P2212H/P2312H
Video display capabilities (DVI playback) 480p, 480i, 576p, 720p, 1080p, 576i, 1080i
Preset Display Modes
P2212H/P2312H
Display Mode Horizontal Frequency
(kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (Horizontal/Vertical)

VESA, 720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.0 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1920 x 1080 67.5 60.0 148.5 +/+
Electrical Specifications
Model P2212H and P2312H
Video input signals Analog RGB, 0.7 Volts +/- 5%, positive polarity at 75 ohm input impedance
Digital DVI-D TMDS, 600 mV for each differential line, positive polarity at 50 ohm input
impedance
Synchronization input signals Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite
SYNC on green)
AC input voltage/frequency/current P2212H - 100 VAC to 240 VAC / 50 Hz or 60 Hz +3 Hz / 1.2 A (typical)
P2312H - 100 VAC to 240 VAC / 50 Hz or 60 Hz +3 Hz / 1.5 A (typical)
Inrush current 120 V : 30 A (Max)
240 V : 60 A (Max)
Physical Characteristics
Model P2212H P2312H
Connector type 15-pin D-subminiature, blue connector; DVI-D,
white connector 15-pin D-subminiature, blue connector; DVI-D, white connector
Signal cable type
Digital: detachable, DVI-D, solid pins,
shipped detached from the monitor
Analog: attachable, D-Sub, 15 pins, shipped
attached to the monitor
Digital: detachable, DVI-D, solid pins,
shipped detached from the monitor
Analog: attachable, D-Sub, 15 pins, shipped
attached to the monitor

Dimensions (with stand)
Height (extended) 484.5 mm (19.07 inches) 493.9 mm (19.44 inches)
Height (compressed) 355.6 mm (14.00 inches) 365.0 mm (14.37 inches)
Width 513.0 mm (20.20 inches) 546.4 mm (21.51 inches)
Depth 183.3 mm (7.22 inches) 185.4 mm (7.3 inches)
Dimensions (without stand)
Height 304.5 mm (11.99 inches) 323.3 mm (12.73 inches)
Width 513.0 mm (20.20 inches) 546.4 mm (21.51 inches)
Depth 59.5 mm (2.34 inches) 59.5 mm (2.34 inches)
Stand dimensions
Height (extended) 401.2 mm (15.80 inches) 401.2 mm (15.80 inches)
Height (compressed) 358.1 mm (14.10 inches) 358.1 mm (14.10 inches)
Width 265.8 mm (10.46 inches) 279.8 mm (11.02 inches)
Depth 183.3 mm (7.22 inches) 185.4 mm (7.30 inches)
Weight
Weight with packaging 7.45 kg (16.42 lbs) 7.24 kg (15.96 lbs)
Weight with stand
assembly and cables 5.88 kg (12.96 lbs) 5.70 kg (12.57 lbs)
Weight without stand
assembly
(For wall mount or VESA
mount considerations -
no cables)
3.29 kg (7.24 lbs) 3.44 kg (7.58 lbs)
Weight of stand
assembly 2.02 kg (4.45 lbs) 1.76 kg (3.87 lbs)
Front frame gloss Black Frame - 5.0 gloss unit (max.)
Silver Frame - 20.0 gloss unit (max.) Black Frame - 5.0 gloss unit (max.) Silver Frame - 20.0 gloss unit (max.)
Environmental Characteristics
Model P2212H and P2312H
Temperature

Operating 0 °C to 40 °C
Non-operating Storage: -20 °C to 60 °C (-4 °F to 140 °F)
Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90% (non-condensing)
Altitude
Operating 3,048 m (10,000 ft) max
Non-operating 10,688 m (35,000 ft) max
Thermal dissipation
P2212H:
153.55 BTU/hour (maximum)
71.65 BTU/hour (typical)
P2312H
170.61 BTU/hour (maximum)
85.30 BTU/hour (typical)
Power Management Modes
If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to
as Power Save Mode*. If the computer detects input from the keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows
the power consumption and signaling of this automatic power saving feature:
P2212H
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
Normal operation Active Active Active Blue 50 W (maximum) **
21 W (typical)
Active-off mode Inactive Inactive Blanked Amber Less than 0.1 W
Switch off - - - Off Less than 0.1 W
P2312H
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
Normal operation Active Active Active Blue 50 W (maximum) **
25 W (typical)
Active-off mode Inactive Inactive Blanked Amber Less than 0.1 W
Switch off - - - Off Less than 0.1 W
The OSD functions only in the normal operation mode. When any button is pressed in the Active-off mode, one of the following messages will be displayed:

Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR®-compliant.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance, Dell Soundbar, and USB active.
Pin Assignments
VGA Connector
Pin
Number 15-pin Side of the Connected Signal Cable
1Video-Red
2 Video-Green
3 Video-Blue

4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9Computer 5 V/3.3 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
DVI Connector
Pin
Number 24-pin Side of the Connected Signal Cable
1TMDS RX2-
2TMDS RX2+
3TMDS Ground
4 Floating
5 Floating
6DDC Clock
7DDC Data

8 Floating
9TMDS RX1-
10 TMDS RX1+
11 TMDS Ground
12 Floating
13 Floating
14 +5 V/+3.3 V power
15 Self test
16 Hot Plug Detect
17 TMDS RX0-
18 TMDS RX0+
19 TMDS Ground
20 Floating
21 Floating
22 TMDS Ground
23 TMDS Clock+
24 TMDS Clock-
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID)
using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can select different
settings if desired. For more information about changing the monitor settings, see Operating the Monitor.
Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on the left side of your monitor.
NOTE: This monitor supports High-Speed Certified USB 2.0 interface.
Transfer Speed Data
Rate Power Consumption
High speed 480 Mbps 2.5 W (Max, each port)
Full speed 12 Mbps 2.5 W (Max, each port)
Low speed 1.5 Mbps 2.5 W (Max, each port)

USB Upstream Connector
Pin Number 4-pin Side of the Connector
1DMU
2 VCC
3DPU
4GND
USB Downstream Connector
Pin Number 4-Pin Side of the Signal Cable
1VCC
2DMD
3DPD
4GND
USB Ports
1 upstream - back
2 downstream - 2 on the left side
NOTE: USB 2.0 functionality requires a USB 2.0-capable computer.
NOTE: The monitor's USB interface works only when the monitor is On or in the power save mode. If you turn Off the monitor and then turn it On, the attached peripherals may

take a few seconds to resume normal functionality.
LCD Monitor Quality and Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the
display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: support.dell.com.
Maintenance Guidelines
Cleaning Your Monitor
CAUTION: Read and follow the safety instructions before cleaning the monitor.
WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.
For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:
To clean your anti-static screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating.
Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
Use a lightly-dampened, warm cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
If you notice white powder when you unpack your monitor, wipe it off with a cloth.
Handle your monitor with care as a darker-colored monitor may get scratched and show white scuff marks more than a lighter-colored monitor.
To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.
Back to Contents Page

Back to Contents Page
Setting Up the Monitor
Dell™ P2212H/P2312H Monitor User's Guide
Attaching the Stand
Connecting the Monitor
Organizing Your Cables
Attaching the Soundbar (Optional)
Removing the Stand
Wall Mounting (Optional)
Attaching the Stand
NOTE: The stand is detached when the monitor is shipped from the factory.
NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for the set up instructions.

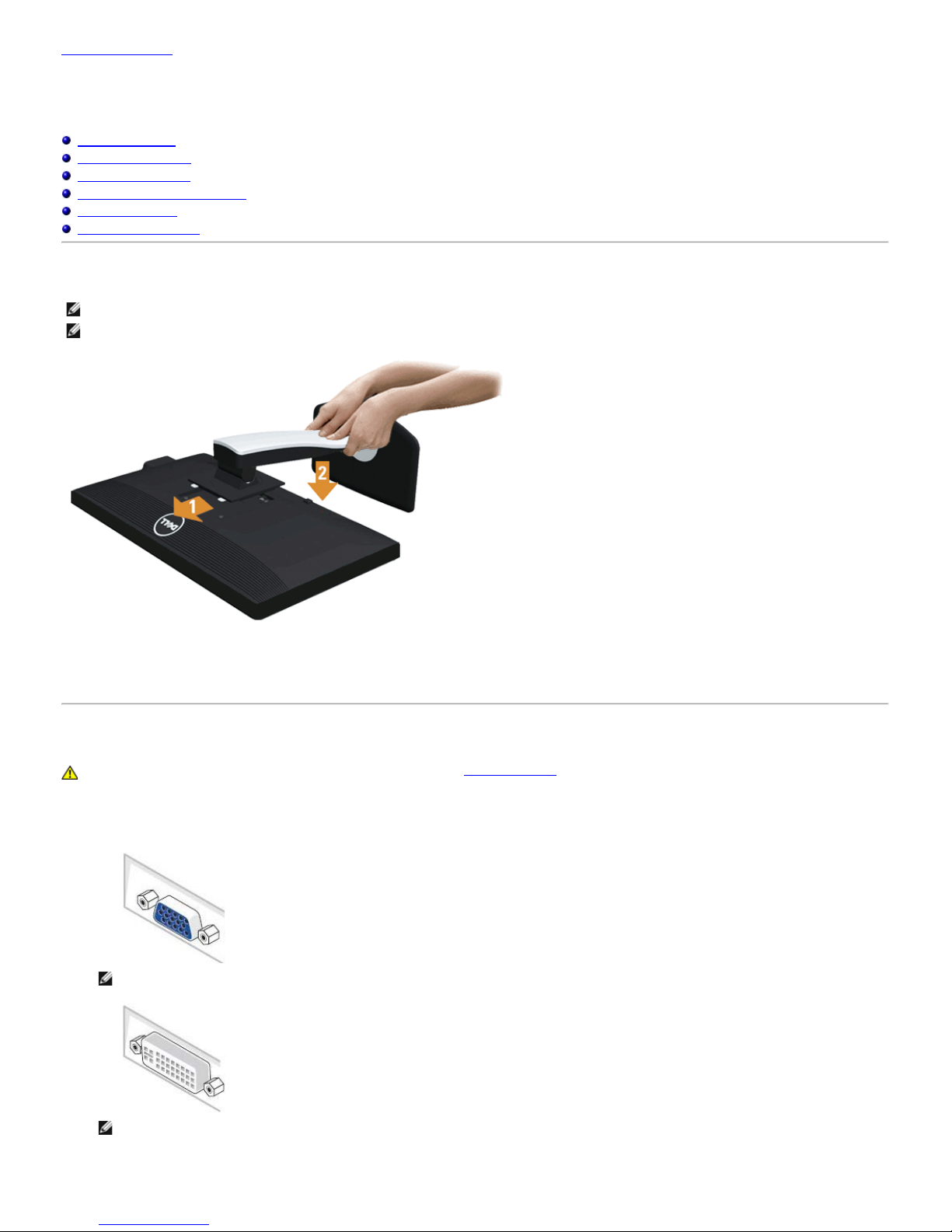

To attach the monitor stand:
1. Remove the cover and place the monitor on it.
2. Fit the two tabs on the upper part of the stand to the groove on the back of the monitor.
3. Press the stand till it snaps into place.
Connecting Your Monitor
WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.
To connect your monitor to the computer:
1. Turn off your computer and disconnect the power cable.
Connect the blue (VGA) cable from your monitor to the computer.
NOTE: If your computer supports a white DVI connector, connect the white DVI cable to the monitor and the white DVI connector to
your computer.
NOTE: Do not connect the blue VGA or the white DVI cable to the computer at the same time.
2. Connect either the white (digital DVI-D) or the blue (analog VGA) display connector cable to the corresponding video port on the back of your computer. Do not
connect both cables on the same computer. Use both the cables only when they are connected to two different computers with appropriate video systems.
