Dell P2418HTE User manual

Model: P2418HT
Regulatory model: P2418HTt
Dell P2418HT
User’s Guide

NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
Copyright © 2017-2020 Dell Inc. All rights reserved. This product is protected by U.S. and
international copyright and intellectual property laws.
Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions.
All other marks and names mentioned herein may be trademarks of their respective companies.
2020 – 11 Rev. A04

Contents
About Your Monitor ..................................... 5
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Monitor Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Plug-and-Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
LCD Monitor Quality and Pixel Policy. . . . . . . . . . . . . . . . . . . . . . 19
Setting Up the Monitor..................................20
Routing the Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Attaching the Cable Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Using the Tilt and Swivel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting Your Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Removing the Monitor Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Operating the Monitor ..................................30
Turning on the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the On-Screen Display (OSD) Menu . . . . . . . . . . . . . . . . . . . 33
Contents | 3

4| Contents
Troubleshooting ....................................... 47
Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Touchscreen Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Universal Serial Bus (USB) Specific Problems . . . . . . . . . . . . . . . . . 52
Appendix ..............................................54
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
FCC Notices (U.S. only) and Other Regulatory Information . . . . . . . . 54
Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
EU product database for energy label and product information sheet . . 55
Setting Up Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

About Your Monitor | 5
About Your Monitor
Package Contents
Your monitor ships with the components shown below. Make sure that you have
received all the components and contact Dell if something is missing.
NOTE: Some items may be optional and may not ship with your monitor.
Somefeatures or media may not be available in certain countries.
Monitor
Stand riser
Stand base
Cable cover
Power cable (varies by country)

6| About Your Monitor
USB 3.0 upstream cable (enables
the USB ports on the monitor)
DP cable (DP to DP)
VGA cable
Cable sleeve
• Quick Setup Guide
• Safety,Environmental,and
Regulatory Information
Product Features
The Dell P2418HT monitor has an active matrix, thin film transistor (TFT), liquid crystal
display (LCD), and LED backlight. The monitor features include:
• 60.47 cm (23.8-inch) active area display (Measured diagonally) 1920 x 1080 (16:9
aspect ratio) resolution, plus full-screen support for lower resolutions.
• Tilt and swivel adjustment capability.
• Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm
mounting holes for flexible mounting solutions.
• Extensive digital connectivity with DP, VGA, HDMI, and USB 3.0 helps future-proof
your monitor.
• Plug and play capability if supported by your system.
• Optimize eye comfort with a flicker-free screen and ComfortView feature which
minimizes blue light emission.
• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
• Security lock slot.
• Supports Asset Management Capability.
• Arsenic-Free glass and Mercury-Free for Panel only.
• Energy Gauge shows the energy level being consumed by the monitor in real time.
• ≤ 0.3 W in Standby Mode.

About Your Monitor | 7
Identifying Parts and Controls
Front view
Label Description
1Function buttons (For more information, see Operating the Monitor)
2Power on/off button (with LED indicator)

8| About Your Monitor
Back View
Label Description Use
1VESA mounting holes (100 mm x
100 mm-behind attached VESA
cover)
Wall mount monitor using VESA-
compatible wall mount kit (100 mm x 100
mm).
2Regulatory label Lists the regulatory approvals.
3Security lock slot Secures monitor with security cable lock
(sold separately).
4Stand release button Release stand from monitor.
5Barcode, serial number, and Service
Tag label
Refer to this label if you need to contact
Dell for technical support.
6Cable hook Use to route cables.
7Cable routing label Shows how to route cables.
8Cable management slot Use to organize cables by placing them
through the slot.
Side View
USB 3.0 downstream port
Port with battery icon supports BC 1.2.

About Your Monitor | 9
Bottom View
Label Description Use
1AC power connector To connect the monitor power cable.
2HDMI connector Connect your computer with HDMI cable (optional
purchase).
3DP connector Connect your computer with DP cable.
4VGA connector Connect your computer with VGA cable.
5Audio line-out port Connect speakers to playback audio coming through
HDMI or DP audio channels.
Only supports 2-channel audio.
NOTE: The audio line-out port does not support
headphones.
WARNING: Excessive sound pressure from
earphones or headphones can cause hearing
damage or loss.
6USB 3.0 upstream port Connect the USB cable that comes with your monitor
to the computer. Once this cable is connected,
you can use the USB downstream connectors on
the monitor and the touch screen function on the
monitor.
7USB 2.0 downstream
ports
Connect your USB device.
You can only use this connector after you have
connected the USB cable to the computer and USB
upstream connector on the monitor.
8Stand lock Lock the stand to the monitor using a M3 x 6 mm
screw (screw not included).

10 | About Your Monitor
Monitor Specifications
Screen type Active matrix - TFT LCD
Panel Type In-plane switching Technology
Aspect ratio 16:9
Viewable image dimensions
Diagonal 60.47 cm (23.8 inches)
Active Area
Horizontal 527.04 mm (20.75 inches)
Vertical 296.46 mm (11.67 inches)
Area 156246.2 mm2(242.15 inches2)
Pixel pitch 0.2745 mm x 0.2745 mm
Pixel per inch (PPI) 93
Viewing angle
Horizontal 178° (typical)
Vertical 178° (typical)
Brightness 250 cd/m² (typical)
Contrast ratio 1000 to 1 (typical)
Dynamic contrast ratio 8,000,000:1
Display screen coating Anti-glare treatment of the front polarizer (3H) hard
coating
Backlight White LED, EDGELIGHT system
Response Time 6 ms typical (G to G)
Color depth 16.7 million colors
Color gamut CIE 1976 (84%), CIE 1931 (72%)
NOTE: Color gamut is based on CIE 1976 (84%) and
CIE 1931 (72%) test standards.
Connectivity • 1 x DP 1.2 (HDCP 1.4)
• 1 x VGA
• 1 x HDMI 1.4 (HDCP 1.4)
• 2 x USB 2.0 downstream port
• 1 x USB 3.0 downstream port
• 1 x USB 3.0 with BC 1.2 charging capability at 2A (max)
• 1 x USB 3.0 upstream port
• 1 x Analog 2.0 audio line out (3.5 mm jack)
Border width (edge of monitor
to active area)
5.4 mm (Top)
5.4 mm (Left/Right)
19.51 mm (Bottom)
Adjustability

About Your Monitor | 11
Height adjustable stand 0 to 90 mm
Tilt -5° to 60°
Swivel -30° to 30°
Pivot NA
Cable management Yes
Dell Display Manager (DDM)
Compatibility
Easy Arrange
and other key features
Security Security lock slot (cable lock sold separately) Anti-theft
stand lock slot (to panel)
Touch
Type Projected Capacitive System
Panel Diagonal 23.8 inch
Active Area
Horizontal 527.04 mm (20.75 inches)
Vertical 296.46 mm (11.67 inches)
Area 156246.2 mm2(242.15 inches2)
Input Method Bare finger
Touch point 10 touch-points
Touch response time 35 ms
Touch resolution 4096 x 4096
Touch method Fingers
Operating system Windows 10 Certified
Resolution Specifications
Horizontal scan range 30 kHz to 83 kHz (DP/HDMI/VGA)
Vertical scan range 50 Hz to 76 Hz (DP/HDMI/VGA)
Maximum preset resolution 1920 x 1080 at 60 Hz
Video display capabilities
(DP & HDMI & VGA playback)
480i, 480p, 576i, 576p, 720p, 1080i, 1080p

12 | About Your Monitor
Preset Display Modes
Display Mode Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal/
Vertical)
720 x 400 31.5 70.0 28.3 -/+
640 x 480 31.5 60.0 25.2 -/-
640 x 480 37.5 75.0 31.5 -/-
800 x 600 37.9 60.0 40.0 +/+
800 x 600 46.9 75.0 49.5 +/+
1024 x 768 48.4 60.0 65.0 -/-
1024 x 768 60.0 75.0 78.8 +/+
1152 x 864 67.5 75.0 108.0 +/+
1280 x 1024 64.0 60.0 108.0 +/+
1280 x 1024 80.0 75.0 135.0 +/+
1600 x 900 60.0 60.0 108.0 +/-
1920 x 1080 67.5 60.0 148.5 +/+
Electrical Specifications
Video input signals • Digital video signal for each dierential line
Per dierential line at 100 ohm impedance
• DP/HDMI/VGA signal input support
Input voltage/ frequency/current 100-240 VAC / 50 or 60 Hz ± 3 Hz / 1.5 A
(maximum)
Inrush current 120 V: 40 A (Max.) at 0 °C (cold start)
240 V: 80 A (Max.) at 0 °C (cold start)
Power Consumption 0.2 W (Off Mode)1
0.2 W (Standby Mode)1
13.4 W (On Mode)1
51 W (Max)2
13.9 W (Pon)3
50.8 kWh (TEC)3
1As defined in EU 2019/2021 and EU 2019/2013.
2Max brightness and contrast setting with maximum power loading on all USB ports.
3Pon: Power consumption of On Mode as defined in Energy Star 8.0 version.
TEC: Total energy consumption in kWh as defined in Energy Star 8.0 version.

About Your Monitor | 13
This document is informational only and reflects laboratory performance. Your product
may perform differently, depending on the software, components and peripherals you
ordered and shall have no obligation to update such information. Accordingly, the
customer should not rely upon this information in making decisions about electrical
tolerances or otherwise. No warranty as to accuracy or completeness is expressed or
implied.
NOTE: This monitor is ENERGY STAR -certified.
This product qualifies for ENERGY STAR in the factory default settings which can be
restored by “Factory Reset” function in the OSD menu. Changing the factory default
settings or enabling other features may increase power consumption that could
exceed the ENERGY STAR specified limit.
Physical Characteristics
Connector type • DP connector
• VGA connector
• HDMI connector
• Audio line-out
• USB 3.0 connector
(Port with battery icon supports BC 1.2.)
• USB 2.0 connector
Signal cable type (in-box) DP to DP, 1.8 M cable
VGA, 1.8 M cable
USB 3.0, 1.8 M cable
Dimensions (with stand)
Height (extended) 419.6 mm (16.52 inches)
Height (compressed) 323.2 mm (12.72 inches)
Width 537.8 mm (21.17 inches)
Depth 234.8 mm (9.24 inches)
Dimensions (without stand)
Height 321.4 mm (12.65 inches)
Width 537.8 mm (21.17 inches)
Depth 54.1 mm (2.13 inches)
Stand dimensions
Height (extended) 335.0 mm (13.19 inches)
Height (compressed) 242.7 mm (9.56 inches)
Width 292.0 mm (11.50 inches)
Depth 234.8 mm (9.24 inches)
Weight
Weight with packaging 9.50 kg (20.94 lb)

14 | About Your Monitor
Weight with stand assembly
and cables 7.42 kg (16.35 lb)
Weight without stand assembly
(For wall mount or VESA mount
considerations - no cables) 3.12 kg (6.88 lb)
Weight of stand assembly 3.78 kg (8.33 lb)
Front frame gloss 2~4 GU
Environmental Characteristics
Compliant Standards
ENERGY STAR certified Monitor yes
EPEAT EPEAT registered where applicable. EPEAT
registration varies by country. See www.epeat.net
for registration status by country.
TCO Certified Display yes
RoHS Compliant yes
BFR/PVC Free monitor
(excluding external cables) yes
Temperature
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-operating –20 °C to 60 °C (–4 °F to 140 °F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation 174.02 BTU/hour (maximum)
45.72 BTU/hour (On Mode)

About Your Monitor | 15
Pin Assignments
DP connector
Pin number 20-pin side of theconnected signal cable
1ML3(n)
2GND
3ML3(p)
4ML2(n)
5GND
6ML2(p)
7ML1(u)
8GND
9ML1(p)
10 ML0(n)
11 GND
12 ML0(p)
13 CONFIG1
14 CONFIG2
15 AUX CH (p)
16 DP_Cable Detect
17 AUX CH (n)
18 Hot Plug Detect
19 GND
20 +3.3V DP_PWR

16 | About Your Monitor

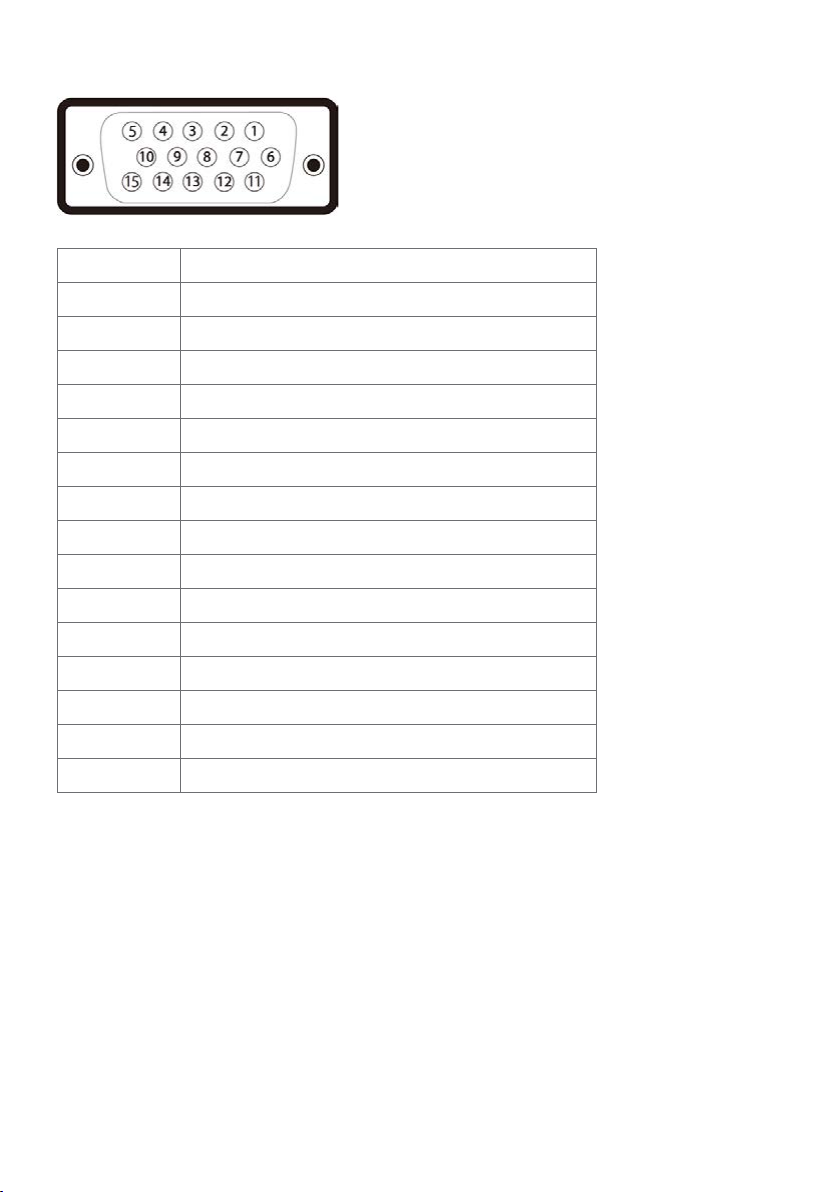

VGA connector
Pin number 15-pin side of theconnected signal cable
1Video-Red
2Video-Green
3Video-Blue
4GND
5Self-test
6GND-R
7GND-G
8GND-B
9Computer 5 V / 3.3 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock

About Your Monitor | 17
HDMI connector
Pin number 19-pin side of theconnected signal cable
1TMDS DATA 2+
2TMDS DATA 2 SHIELD
3TMDS DATA 2-
4TMDS DATA 1+
5TMDS DATA 1 SHIELD
6TMDS DATA 1-
7TMDS DATA 0+
8TMDS DATA 0 SHIELD
9TMDS DATA 0-
10 TMDS CLOCK+
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5 V POWER
19 HOT PLUG DETECT

18 | About Your Monitor
Universal Serial Bus (USB)
This section gives you information about the USB ports available on your monitor.
NOTE: Up to 2 A on USB downstream port (port with battery icon) with BC
1.2 compliance devices; up to 0.9 A on the other 2 USB downstream ports.
Your computer has the following USB ports:
• 1 USB 3.0 upstream - bottom
• 2 USB 2.0 downstream - bottom
• 2 USB 3.0 downstream - left side
Power Charging Port - the ports with battery icon supports fast current
charging capability if the device is BC 1.2 compatible.
NOTE: The monitor’s USB ports work only when the monitor is on or in standby
mode. If you turn off the monitor and then turn it on, the attached peripherals may
take a few seconds to resume normal functionality.
Transfer speed Data rate Power consumption
SuperSpeed 5 Gbps 4.5 W (Max., each port)
Hi-Speed 480 Mbps 2.5 W (Max., each port)
Full speed 12 Mbps 2.5 W (Max., each port)

About Your Monitor | 19
USB 3.0
upstream port
USB 3.0
downstreamport
USB 2.0
downstreamport
Pin
number
Signal
name
Pin
number
Signal
name
Pin
number
Signal
name
1 VBUS 1 VBUS 1VCC
2D- 2D- 2DMD
3D+ 3D+ 3DPD
4GND 4GND 4GND
5StdB_SSTX- 5StdA_SSRX-
6StdB_SSTX+ 6StdA_SSRX+
7GND_DRAIN 7GND_DRAIN
8StdB_SSRX- 8StdA_SSTX-
9StdB_SSRX+ 9StdA_SSTX+
Shell Shield Shell Shield
Plug-and-Play
You can install the monitor in any Plug-and-Play-compatible system. The monitor
automatically provides the computer system with its extended display identification data
(EDID) using display data channel (DDC) protocols so the computer can configure itself
and optimize the monitor settings. Most monitor installations are automatic; you can
select different settings if desired. For more information about changing the monitor
settings, see Operating the Monitor.
LCD Monitor Quality and Pixel Policy
During the LCD monitor manufacturing process, it is not uncommon for one or more
pixels to become fixed in an unchanging state which are hard to see and do not affect
the display quality or usability. For more information on LCD Monitor Pixel Policy, see
Dell support site at: http://www.dell.com/support/monitors.

20 | Setting Up the Monitor
Setting Up the Monitor
Routing the Cables
CAUTION: Place monitor on a flat, clean, and soft surface to avoid scratching the
display panel.
• Remove the monitor protective cover and place the monitor with its front facing
downward on it.
• To routing the cables:
1. Insert DP cable into DP connector (see Connecting Your Monitor), press the
long side of cable hook and push cable to it from top to down.
2. Repeat step 1 to insert VGA/USB cables into corresponding connector and
organize the cables.
3. Finally, insert and organize the power cable and tighten all the cables as shown
above.
