Dell S3422DW User manual

Monitor Model: S3422DW
Regulatory Model: S3422DWc
Dell S3422DW
User’s Guide

2 │
NOTE: A NOTE indicates important information that helps you make
better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Copyright © 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are
trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective
owners.
2021 – 04
Rev. A01

│3
Contents
Safety instructions.......................... 6
About your monitor ..........................7
Package contents . . . . . . . . . . . . . . . . . . . . . . 7
Product features . . . . . . . . . . . . . . . . . . . . . . .8
Identifying parts and controls . . . . . . . . . . . . . . . 10
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Monitor specifications . . . . . . . . . . . . . . . . . . . 14
Resolution specifications . . . . . . . . . . . . . . . . . . . . . . 15
Supported video modes . . . . . . . . . . . . . . . . . . . . . . . 16
Preset display modes . . . . . . . . . . . . . . . . . . . . . . . . 16
Electrical specifications. . . . . . . . . . . . . . . . . . . . . . . 17
Physical characteristics. . . . . . . . . . . . . . . . . . . . . . . 18
Environmental characteristics . . . . . . . . . . . . . . . . . . . 19
Plug and play capability . . . . . . . . . . . . . . . . . . . . . . . 20
LCD monitor quality and pixel policy . . . . . . . . . . . 20
Ergonomics. . . . . . . . . . . . . . . . . . . . . . . . . 21
Handling and moving your display . . . . . . . . . . . . . 23
Maintenance guidelines . . . . . . . . . . . . . . . . . . 24
Cleaning your monitor. . . . . . . . . . . . . . . . . . . . . . . . 24

4 │
Setting up the monitor ...................... 25
Connecting the stand . . . . . . . . . . . . . . . . . . . 25
Connecting your monitor . . . . . . . . . . . . . . . . . 26
Connecting the HDMI and USB 3.0 cable. . . . . . . . . . . . . .26
Organizing cables . . . . . . . . . . . . . . . . . . . . . 27
Securing your monitor using Kensington/Noble lock
(optional) . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Removing the stand . . . . . . . . . . . . . . . . . . . . 28
Wall mounting (optional) . . . . . . . . . . . . . . . . . 29
Operating your monitor ......................31
Power on the monitor . . . . . . . . . . . . . . . . . . . 31
Using the control buttons . . . . . . . . . . . . . . . . . 31
Control buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
OSD controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using the On-Screen Display (OSD) menu . . . . . . . . 34
Accessing the OSD menu . . . . . . . . . . . . . . . . . . . . . . 34
Menu and Power button lock . . . . . . . . . . . . . . . . . . . . 45
OSD warning messages . . . . . . . . . . . . . . . . . . . . . . . 47
Setting up your monitor . . . . . . . . . . . . . . . . . . 50
Setting the maximum resolution . . . . . . . . . . . . . . . . . . 50
If you have a Dell desktop or a Dell portable computer with internet
access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
If you have a non Dell desktop, portable computer, or graphics card
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Using the tilt and vertical extension. . . . . . . . . . . . 52
Tilt Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

│5
Vertical Extension . . . . . . . . . . . . . . . . . . . . . . . . . .52
Troubleshooting ........................... 53
Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Built-in diagnostics . . . . . . . . . . . . . . . . . . . . 55
Common problems . . . . . . . . . . . . . . . . . . . . . 57
Product-specific problems . . . . . . . . . . . . . . . . 60
Appendix..................................61
Safety Instructions. . . . . . . . . . . . . . . . . . . . . 61
FCC notices (U.S. Only) and other regulatory information 61
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . 62
Stability Hazard. . . . . . . . . . . . . . . . . . . . . . . 63

6 │Safety instructions
Safety instructions
CAUTION: Use of controls, adjustments, or procedures other than
those specified in this documentation may result in exposure to shock,
electrical hazards, and/or mechanical hazards.
∞Place the monitor on a solid surface and handle it carefully. The screen is fragile
and can be damaged if dropped or hit sharply.
∞Always be sure that your monitor is electrically rated to operate with the AC
power available in your location.
∞Keep the monitor in room temperature. Excessive cold or hot conditions can have
an adverse effect on the liquid crystal of the display.
∞Do not subject the monitor to severe vibration or high impact conditions. For
example, do not place the monitor inside a car trunk.
∞Unplug the monitor when it is going to be left unused for an extended period of
time.
∞To avoid electric shock, do not attempt to remove any cover or touch the inside
of the monitor.

About your monitor │7
About your monitor

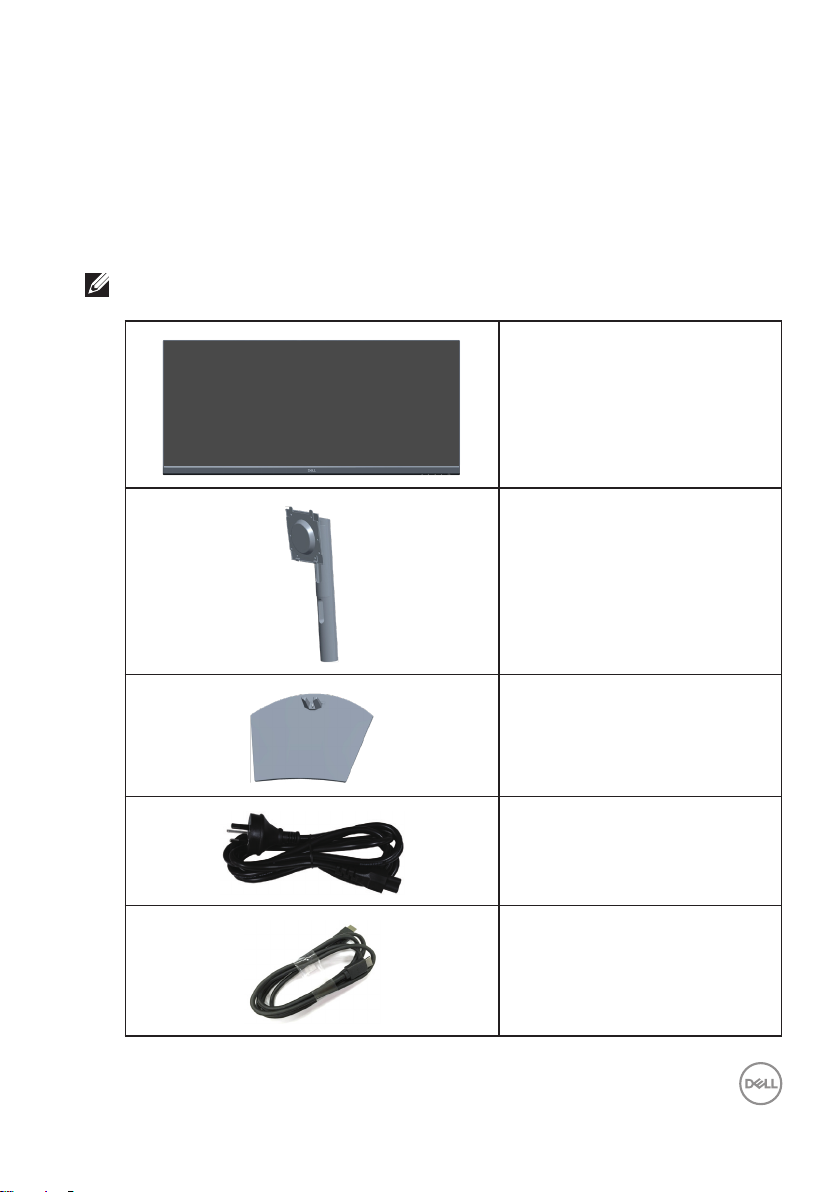

Package contents
Your monitor ships with the components shown below. Ensure that you have
received all the components and see Contacting Dell for more information if
something is missing.
NOTE: Some items may be optional and may not ship with your monitor.
Some features or media may not be available in certain countries.
Monitor
Stand riser
Stand base
Power cable (varies by
countries)
HDMI 2.0 cable

8 │About your monitor

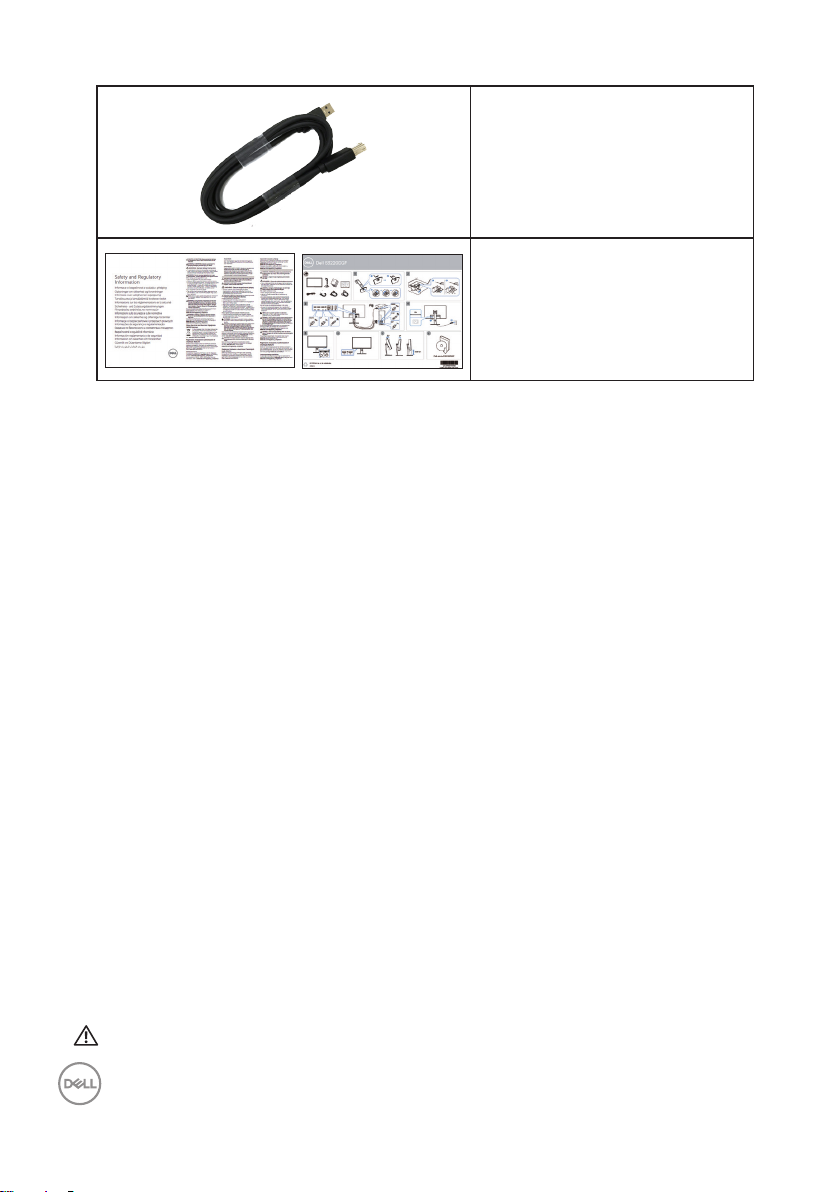

USB 3.0 upstream cable
(enables the USB ports on the
monitor)
∞Quick Setup Guide
∞Safety and Regulatory
Information
Product features
The Dell S3422DW monitor has an active matrix, Thin-Film Transistor (TFT), Liquid
Crystal Display (LCD), anti-static, and LED backlight. The monitor features include:
∞86.42 cm (34.0 in.) viewable area display (measured diagonally). 3440 x 1440
resolution, with full-screen support for lower resolutions.
∞Compatible with (AMD FreeSync™ or No Sync), high refresh rates and a rapid
response time of 4 ms.
∞Supports 48 Hz to 144 Hz (HDMI) and 48 Hz to 164 Hz (DP) in Freesync Mode.
∞Build-in Speaker (5 W) x 2
∞Color gamut of 99% sRGB.
∞Digital connectivity with DP and HDMI.
∞Equipped with 1 USB upstream port and 2 USB downstream ports.
∞Plug and play capability if supported by your computer.
∞On-Screen Display (OSD) adjustments for ease of setup and screen optimization.
∞Removable stand and Video Electronics Standards Association (VESA™) 100 mm
mounting holes for flexible mounting solutions.
∞Tilt and height adjustment capabilities.
∞Security-lock slot.
∞≤0.3 W in the Standby Mode
∞Dell Display Manager Software included.
∞Optimize eye comfort with a flicker-free screen.
WARNING:The possible long-term effects of blue light emission from

About your monitor │9
the monitor may cause damage to the eyes, including eye fatigue, digital
eye strain, and so on. ComfortView feature is designed to reduce the
amount of blue light emitted from the monitor to optimize eye comfort.
WARNING:If provided with a 3-pin attachment plug on the power
cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable
the power cord grounding pin, for example, by attaching a 2-pin adapter.
The grounding pin is an important safety feature.
WARNING:The possible long-term effects of blue light emission from
the monitor may cause damage to the eyes, including eye fatigue, digital
eye strain, and so on. ComfortView feature is designed to reduce the
amount of blue light emitted from the monitor to optimize eye comfort.
WARNING:Please confirm the distribution system in building
installation shall provide the circuit breaker rated 120/240V, 20A
(maximum).

10 │About your monitor
Identifying parts and controls
Front view
1 2
Control buttons
Label Description Use
1Function buttons Press the function buttons to adjust
items in the OSD menu. (For more
information, see Using the control
buttons)
2Power On/Off button Press the power button to turn the
monitor on and off.
Solid white light indicates the monitor
is turned on and functioning normally.
Blinking white light indicates the
monitor is in Standby Mode.

About your monitor │11
Back view
3
5
4
2
1
SVCTag:
1234567
ExpressService
Code:
1234567890
S/N:CN-0M2TMK
-TV100-04F-001V
-A00
DateofMfg/⭕ӝᰛᵕ⭕⭘ᰛᵕ: April. 2020
Q40G034N-700-02A
Flat Panel Monitor /⏨Წᱴ⽰ಞ
ශ:S3421DW
Input Rang /䗉ޛ⭫Ⓠ:
100-240V 50/60Hz,1.6A
Made in China /ѣള࡬䙖
DELL S3421DW
Q40G034N-700-01A
DELL S3421DW
Flat Panel Monitor /Monitor Plano Panel /Moniteur écran plat /⏢Ღ亟⽪ಘ
Model No. /Modelo /N°de modelo /ර㲏: S3421DWc
Input Rang /Entrade /Daya Tegangan:100-240V 50/60Hz,1.6A
䕨ޕ䴫ⓀӔ⍱䴫༃100-240Կ⢩,1.6ᆹษ,50/60䎛㥢
Consumo de energía en operación: XXX Wh
Удельная мощность рабочего режима - XXX Вт/см²
Потребляемая мощность изделием в режиме ожидания - XXX Вт
Потребляемая мощность изделием в выключенном режиме - XXX Вт
Apparatet må lkoples jordet skkontakt.
Apparaten skall anslutas ll jordat uag.
Laite on liiteävä suojakoskemilla varusteuun pistorasiaan.
Apparatets skprop skal lslues en skkontakt med jord,
som giver forbindelse l skproppens jord.
The equipment must be connected to an earthed mains socket-outlet.
L'appareil doit être branché sur une prise de courant munie d'une mise à la terre.
сделанный в Китай /Fabriqué en Chine/ѣു㼳䙖䆜䃔ֵ⭞䚄ᓜᚆۭᇩ㿌࣑Ⱦ
www.dell.com/regulatory_compliance Raheen Business Park Limerick Ireland (for EU Only)
CAN ICES-3 (B)/NMB-3(B)
This device complies with part 15 of the FCC Rules. Operaon is subject to the following two condions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operaon.
XXXXXXX-XXXXX
R-R-TPF-S3421DWc
㥐㦤㣄ڊ㐔㷡㢬ڕTPV Electronics (Fujian) Co., Ltd.
080-200-3800
R33037
RoHS
IS13252(Part1)/
IEC60950-1
R-41018660
www.bis.gov.in
For UK only: Cain Road, Bracknell, RG12 1LF
20
XXXXX
䝕
ޛ࣑100V,1.6A,50/60Hz
XXXXX-XX
MadeinChina
Back View with monitor stand
Label Description Use
1Cable management slot Organizes the cables when the cables
are routed through the slot.
2VESA mounting holes (behind
VESA cover)
VESA mounting holes (100 mm x
100 mm). Use for Wall mounting the
monitor through a VESA-compatible
wall mount kit.
3Regulatory information label Lists the regulatory approvals.
4Stand release button Releases stand from monitor.
5Regulatory label (including
Barcode serial number and
Service Tag label)
Lists the regulatory approvals. Refer
to this label if you need to contact
Dell for technical support.The Service
Tag is a unique alphanumeric identifier
that enables Dell service technicians
to identify the hardware components
in your computer and access warranty
information.

12 │About your monitor
Side view
Bottom view
7 952 1043 8
6
1
Bottom view without monitor stand
Label Description Use
1Security-lock slot Secure your monitor using a security lock (purchased
separately) to prevent unauthorized movement of your
monitor.
2Power connector Connect the power cable (shipped with your monitor).
3HDMI 1 2.0 port Connect to your computer using a HDMI cable.
4HDMI 2 2.0 port Connect to your computer using a HDMI cable.
5Stand lock
feature
Lock the stand to the monitor using a M3 x 6 mm
screw (screw not included).
6DP 1.2 port Connect to your computer using a DP cable.
7Audio line out
port
Connect to an external speaker or a sub-woofer
(purchased separately).*
8USB 3.0
upstream port
Connect the USB cable from this port to your
computer to enable the USB ports on your monitor.

About your monitor │13
9USB 3.0
downstream
ports
Connect your USB peripherals such as storage devices
and printers.
NOTE: To use this port, you must connect
the USB upstream cable (shipped with
your monitor) between the monitor and the
computer.
10 USB 3.0
downstream with
BC1.2 charging
USB 3.0 downstream port with charging capability.
Connect to charge your USB device.
*Audio line out port does not support headphones.

14 │About your monitor
Monitor specifications
Model S3422DW
Screen type Active matrix-TFT LCD
Panel type Vertical Alignment
Viewable image
Diagonal
Horizontal, Active Area
Vertical, Active Area
Area
864.2 mm (34.0 in.)
797.2 mm (31.19 in.)
333.7 mm (13.14 in.)
266048.26 mm2(412.38 in.2)
Native resolution and
refresh rate
3440 x 1440 at 100 Hz (HDMI1 and HDMI2)
3440 x 1440 at 100 Hz (DP)
Pixel pitch 0.23175 mm x 0.23175 mm
Pixel per inch (PPI) 109
Viewing angle
Horizontal
Vertical
178° (typical)
178° (typical)
Luminance output 300 cd/m² (typical)
Contrast ratio 3000 to 1 (typical)
Faceplate coating Anti-glare with 3H hardness, Haze 40%
Backlight LED edgelight system
Response time (Gray to
Gray)
4 ms
Color depth 16.7 million colors
Color gamut sRGB CIE 1931 (99.7%) CIE1976 (98.8%)
DCI P3 CIE 1931 (89.2%) CIE1976 (92.4%)

About your monitor │15
Connectivity 2 x HDMI 2.0 with HDCP 2.2
1 x DP 1.2 port
1 x USB 3.0 upstream
1 x USB 3.0 downstream
1 x USB 3.0 downstream with BC 1.2 charging
1 x Audio line out
Bezel width (edge of monitor to active area)
Top
Left/Right
Bottom
8.64 mm
8.65 mm
22.14 mm
Adjustability
Height adjustable stand
Tilt
Swivel
Slant Adjust
100 mm
-5° to 21°
N/A
-4° to 4°
Dell display manager
compatibility
Easy Arrange and other key features
Security Security-lock slot (cable lock optional purchase)
Resolution specifications
Model S3422DW
Horizontal scan range 30 kHz to 160 kHz
Vertical scan range 48 Hz to 100 Hz (HDMI)
48 Hz to 100 Hz (DP)
Maximum preset
resolution
3440 x 1440 at 100 Hz (DP)
3440 x 1440 at 100 Hz (HDMI)

16 │About your monitor
Supported video modes
Model S3422DW
Video display capabilities
(HDMI/DP)
480p, 480i(HDMI), 576p, 720p, 1080p, 576i(HDMI),
1080i(HDMI)
Preset display modes
Display Mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal /
Vertical)
VESA, 640 x 480 31.47 59.94 25.18 -/-
VESA,640 x 480 37.50 75.00 31.50 -/-
IBM, 720 x 400 31.47 70.08 28.32 -/+
VESA,800 x 600 37.88 60.32 40.00 +/+
VESA,800 x 600 46.88 75.00 49.50 +/+
VESA,1024 x 768 48.36 60.00 65.00 -/-
VESA,1024 x 768 60.02 75.03 78.75 +/+
VESA,1152 x 864 67.50 75.00 108.00 +/+
VESA,1280 x 1024 63.98 60.02 108.00 +/+
VESA,1280 x 1024 79.98 75.02 135.00 +/+
VESA,1600 x 900 60.00 60.00 108.00 +/+
VESA,1600 x 1200 75.00 60.00 162.00 +/+
VESA,1680 x 1050 65.29 59.95 146.25 -/+
VESA,1920 x 1080 67.50 60.00 148.50 +/+
VESA,1920 x 1080 113.22 100.00 235.50 +/-
VESA,1920 x 1200 74.04 59.95 154.00 +/-
VESA,2560 x 1080 66.66 60.00 185.58 +/-
VESA,2560 x 1080 113.24 100.00 308.00 +/-
VESA,3440 x 1440 73.68 49.99 265.25 +/-
VESA,3440 x 1440 88.82 59.97 319.75 +/-
VESA,3440 x 1440 150.97 99.98 543.50 +/-
NOTE: This monitor supports AMD FreeSync.

About your monitor │17
Electrical specifications
Model S3422DW
Video input signals HDMI 2.0 (HDCP), 600 mV for each differential line,
100 ohm input impedance per differential pair
DP 1.2, 600 mV for each differential line, 100 ohm
input impedance per differential pair
AC input voltage/
frequency/current
100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.6A
(max.)
Inrush current 120 V: 30 A (Max.) at 0°C (cold start)
240 V: 60 A (Max.) at 0°C (cold start)
Power Consumption 0.3 W (Off Mode)1
0.3 W (Standby Mode)1
32 W (On Mode)1
95 W (Max)2
39 W (Pon)3
122 kWh (TEC)3
1As dened in EU 2019/2021 and EU 2019/2013.
2Max brightness and contrast setting with maximum power loading on all USB ports.
3Pon: Power consumption of On Mode measured with reference to Energy Star test
method.
TEC: Total energy consumption in kWh measured with reference to Energy Star test
method.
This document is informational only and reects laboratory performance. Your product
may perform dierently, depending on the software, components and peripherals
you ordered and shall have no obligation to update such information. Accordingly, the
customer should not rely upon this information in making decisions about electrical
tolerances or otherwise. No warranty as to accuracy or completeness is expressed or
implied.

18 │About your monitor
Physical characteristics
Model S3422DW
Signal cable type ∞Digital: HDMI, 19 pins
∞Universal Serial Bus: USB, 9 pins
Dimensions (with stand)
Height (extended) 489.36 mm (19.28 in.)
Height (compressed) 389.36 mm (15.33 in.)
Width 808.16 mm (31.82 in.)
Depth 210 mm (8.27 in.)
Dimensions (without stand)
Height 364.50 mm (14.35 in.)
Width 808.16 mm (31.82 in.)
Depth 64.01 mm (2.52 in.)
Stand dimensions
Height 382.20 mm (15.05 in.)
Width 302 mm (11.90 in.)
Depth 210 mm (8.27 in.)
Weight
Weight with packaging 14.92 kg (32.89 lb)
Weight with stand assembly
and cables
10.16 kg (22.40 lb)
Weight without stand
assembly (no cables)
6.70 kg (14.77 lb)
Weight of stand assembly 3.10 kg (6.83 lb)
Front-frame gloss Black frame 2-4 gloss units

About your monitor │19
Environmental characteristics
Model S3422DW
Compliant Standards
∞RoHS-compliant
∞BFR/PVC reduce monitor
∞Arsenic-free glass and Mercury-free for the panel only
∞Energy Gauge shows the energy level being consumed by the monitor in real
time.
Temperature
Operating 0°C to 40°C (32°F to 104°F)
Non-operating ∞Storage: -20°C to 60°C (-4°F to 140°F)
∞Shipping: -20°C to 60°C (-4°F to 140°F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating ∞Storage 10% to 90% (non-condensing)
∞Shipping 10% to 90% (non-condensing)
Altitude
Operating
(maximum)
5,000 m (16,400 ft)
Non-operating
(maximum)
12,192 m (40,000 ft)
Thermal
dissipation
∞324.3699 BTU/hour (maximum)
∞129.74796 BTU/hour (typical)

20 │About your monitor
Plug and play capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identification
Data (EDID) using Display Data Channel (DDC) protocols so the system can
configure itself and optimize the monitor settings. Most monitor installations are
automatic, you can select different settings if desired. For more information about
changing the monitor settings, see Operating your monitor.
LCD monitor quality and pixel policy
During the LCD Monitor manufacturing process, it is not uncommon for one or
more pixels to become fixed in an unchanging state which are hard to see and do
not affect the display quality or usability. For more information on Dell Monitor
Quality and Pixel Policy, see Dell Support site at www.dell.com/support/
monitors
