Dell ERGITD-010 User manual

888-24-371-W-00 rev.B • 07/17
1 / 12
0M67FCA00
ENGLISH
For service, visit www.ergotron.com/Dell
or www.dell.com/support
Models:
ERGITD-010
Custom Solution for Dell™by Ergotron
CUSTOM SOLUTION FOR DELL BY ERGOTRON
Dell Unmanaged Charging Cart - 30 Devices
The Dell Unmanaged Charging Cart transports, secures and charges
30 Notebooks, Chromebooks, Ultrabooks, or tablets.

888-24-371-W-00 rev.B • 07/17
2 / 12
3.0
ENGLISH
Dell Unmanaged Charging Cart - 30 Devices
7Upper Compartment
8Locks
9Power/ Fault Status Indicators
10 Casters
1Sliding Device Compartment Door
2Power Adapter Compartment Door
3Ergonomic Handle
4Auxiliary Outlets
5Power Management Compartment
6 Cord Wrap Bay

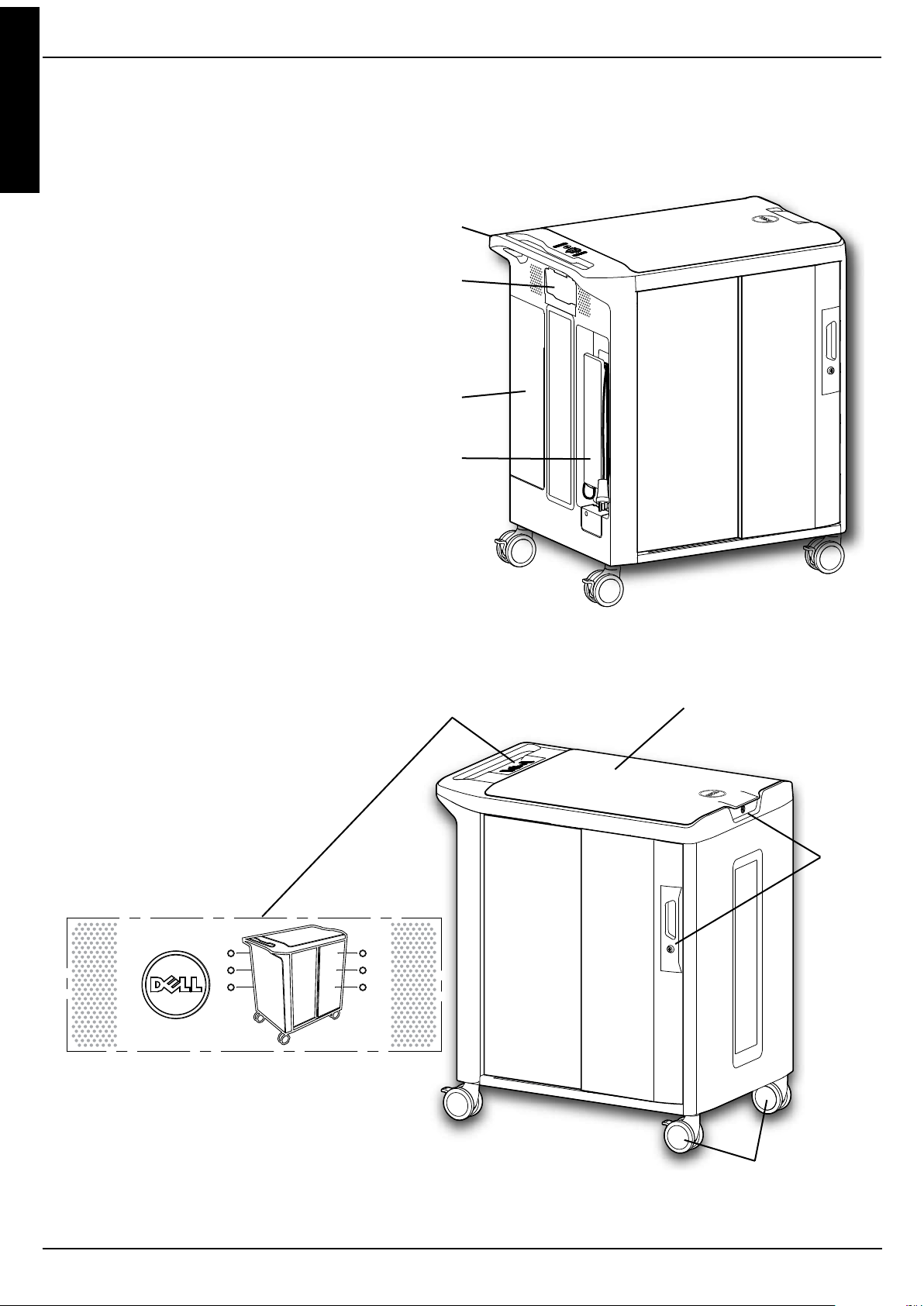

Exterior Features
7
8
9
10
1
2
3
4
5
6

888-24-371-W-00 rev.B • 07/17
3 / 12
ENGLISH
Dell Unmanaged Charging Cart - 30 Devices

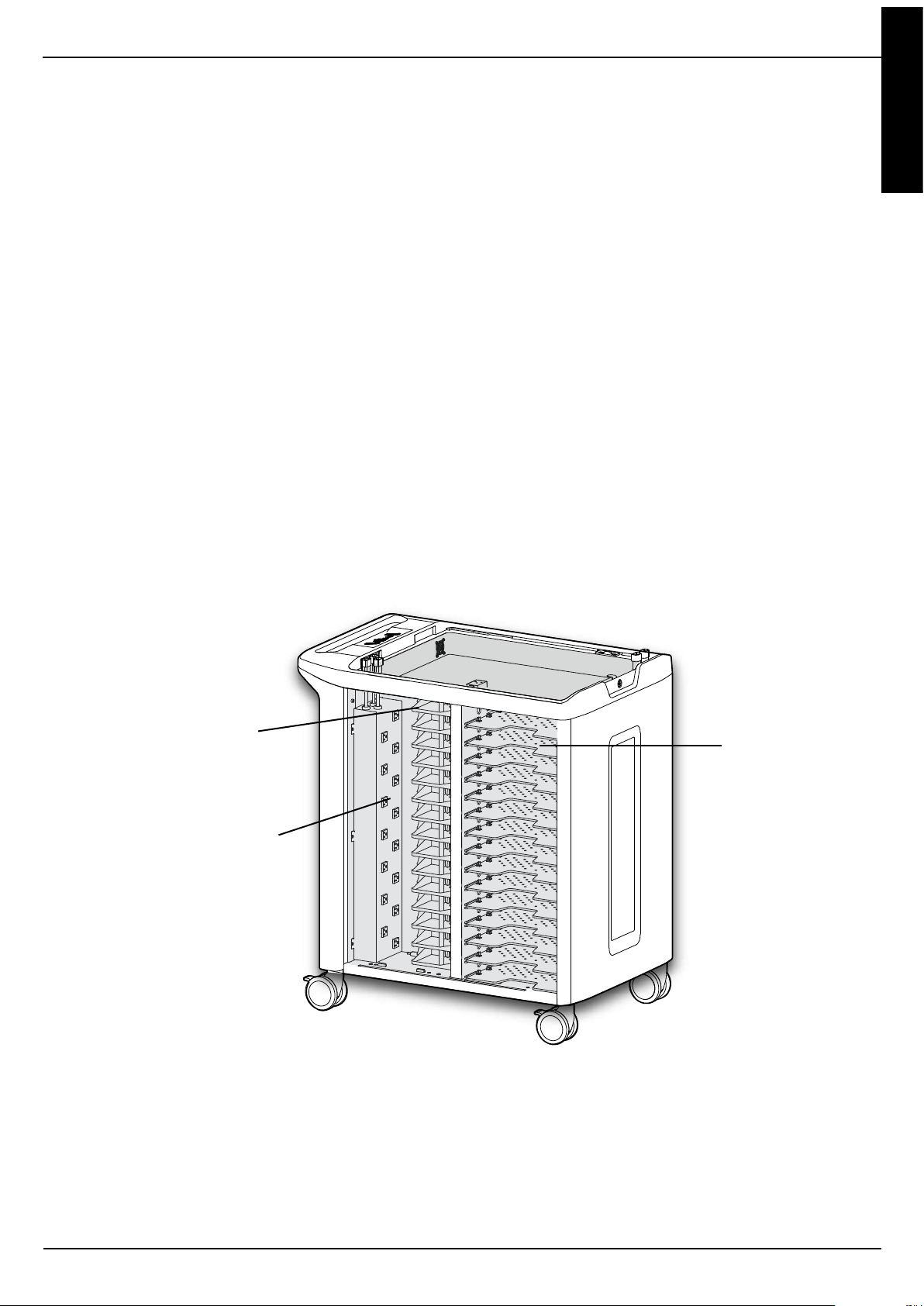

Interior Features
1Device Shelves
2Device Outlets
3Adapter Shelves
1
3
2

888-24-371-W-00 rev.B • 07/17
4 / 12
ENGLISH

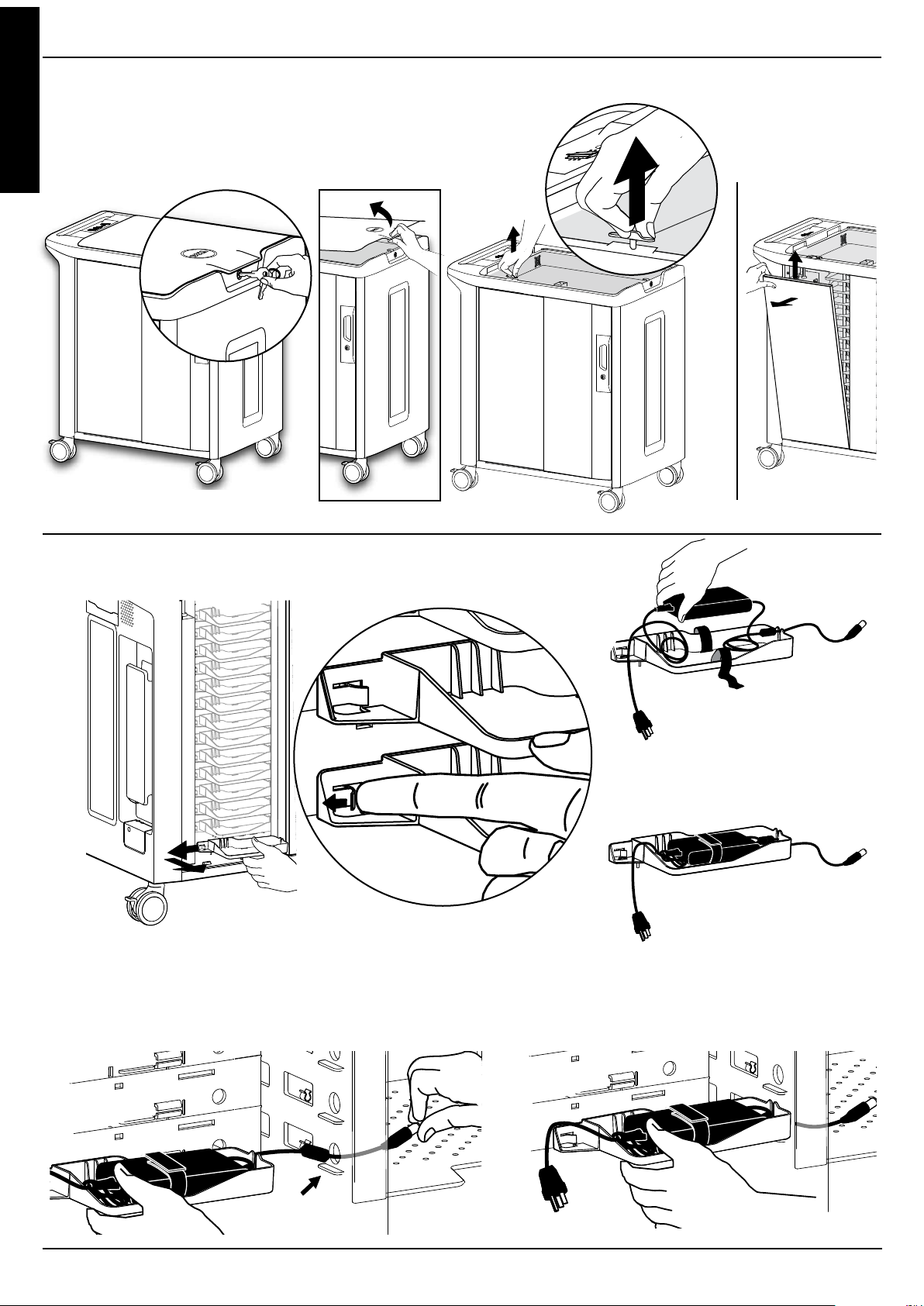

Set-Up and Go
1Open the power adapter compartment.
2
3
Place power adapters into adapter shelves.
Route adapter connector into
device compartment.
a
a b
a b c
b
cx 15

888-24-371-W-00 rev.B • 07/17
5 / 12
ENGLISH

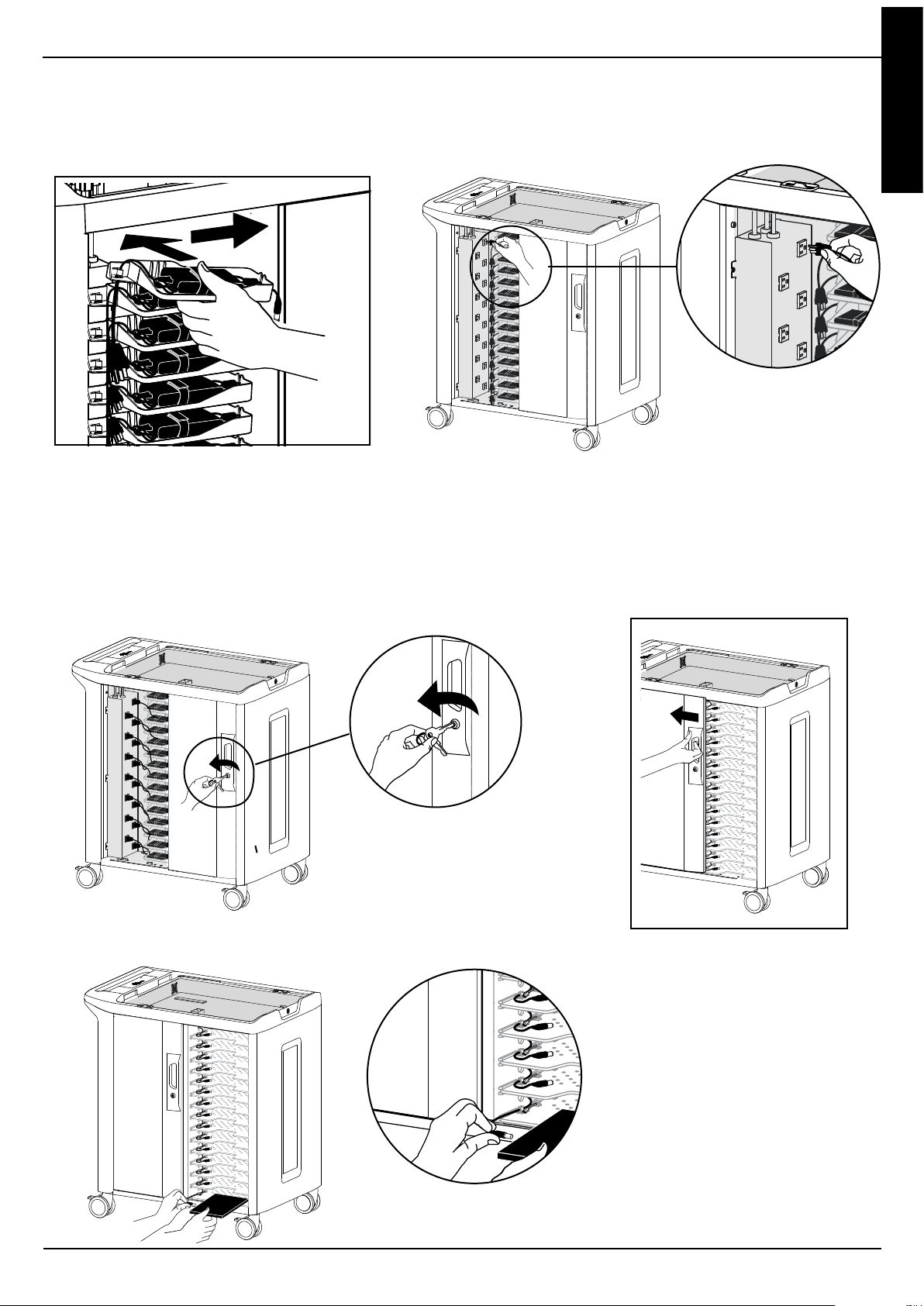

4Plug-in adapters.
5Insert mobile devices and connect cables.
ab
c
ab

888-24-371-W-00 rev.B • 07/17
6 / 12
ENGLISH
6Verify cart operation
Monitoring mobile device power
Connect the cart power cable to a dedicated circuit, (one
that is not being shared with other mobile devices).
Verify that the white light on the Power Indicator near the
cart top surface is lit.
The Power/Fault Status Indicator lights near the cart top surface communicate the following conditions:
NOTE: Charge status of individual mobile devices can be seen directly on mobile devices.
White light, solid Power "ON"
White light, solid Zone is charging
All Fast Flashing Overcurrent. Reset by removing excess devices
on aux outlet. Unplug and re-plug the cart.
Power/Fault Status Indicator Signal Meaning
Zones
First-Time battery charge
NOTE: Before using the mobile devices for the first time
or after they have spent some time in storage, ensure that the
mobile devices have a full (100%) charge.
Prior to first-time use, allow the mobile devices to charge in the cart for at least - hours before removing them for use.
Notebook Shelf Removal
a. Release the shelf by lifting up on the tab.
b. Pull shelf out. ab
3.0
3.0

888-24-371-W-00 rev.B • 07/17
7 / 12
ENGLISH
The Power/Fault Status Indicator lights near the cart top surface communicate the following conditions:
NOTE: Charge status of individual mobile devices can be seen directly on mobile devices.
Power/Fault Status Indicator Signal Meaning
Service and Warranty
NOTE: When contacting customer service reference the serial
number located above the external cable management bay.
For service, visit www.ergotron.com/Dell
or www.dell.com/support

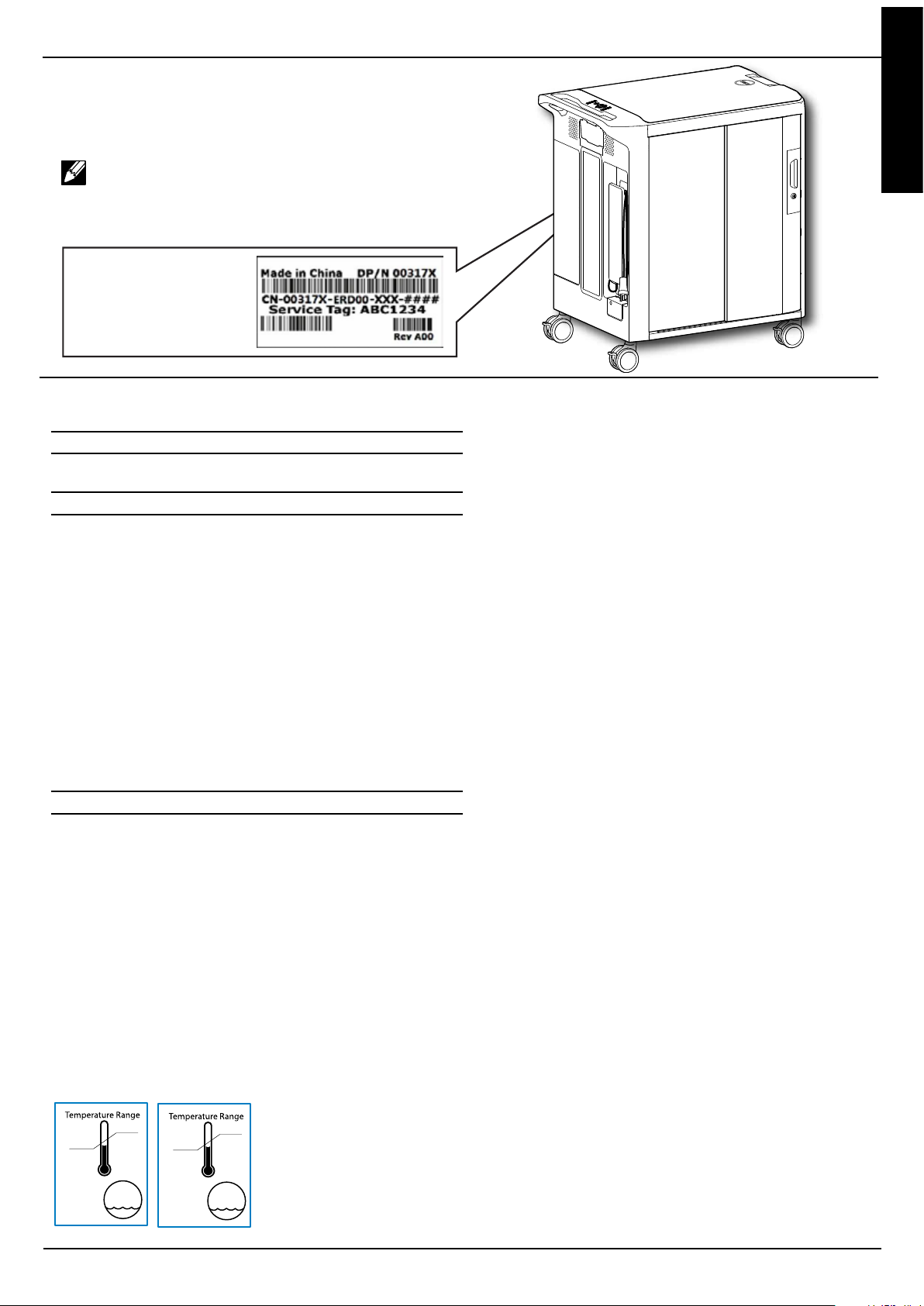

Serial Number is
required for warranty
entitlement.
Power System
-V~, A MAX, / Hz
Cart Physical Dimensions
Height , mm (.-inches)
Length . mm (-inches)
Width  mm (.-inches)
Weight (without Mobile Devices)  kg (. lb)
Weight Capacity:
Top Surface . kg ( lb)
Shelves . kg ( lb)
Tip Test/Angle  degrees
Generally compatible with most " display devices and some
." devices. Compatible Dell ." models: Dell E
(requires Dell Right Angle Adapter Kit, sold separately) and E
Environmental
Temperature range:
Operating ° to °C (° to °F)
Storage -° to °C (-° to °F)
Relative humidity (maximum):
Operating %–% (non condensing)
Storage %–% (non condensing)
Altitude (maximum):  m (, ft)
Operating
-29 °C
-20 °F
60 °C
140 °F
Relative
Humidity
Range
5-95% rH
Storage
0 °C
32 °F
30 °C
86 °F
10-90% rH
Relative
Humidity
Range

888-24-371-W-00 rev.B • 07/17
8 / 12
ENGLISH
Product and Safety Alerts

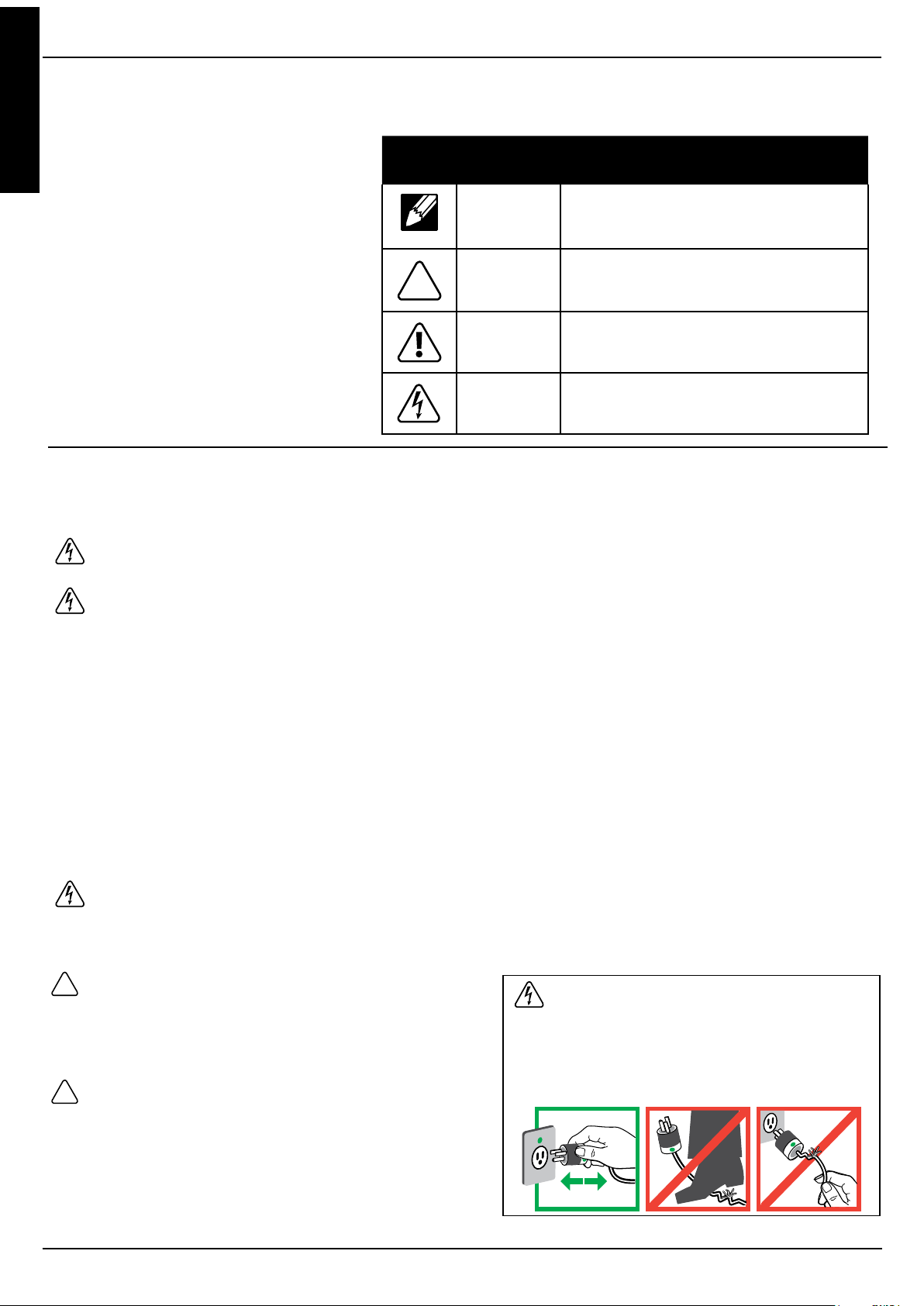

Hazard Symbols Review
Symbol Signal
Word Level of Hazard
NOTE A NOTE indicates important information that helps
you make better use of your cart.
CAUTION A CAUTION indicates either potential damage to
hardware or loss of data and tells you how to avoid
the problem.
WARNING A WARNING indicates either potential for property
damage, personal injury, or death.
Risk of Electric Shock
DANGER!
ELECTRICAL An ELECTRICAL indicates an impending electrical
hazard which, if not avoided, may result in personal
injury, fire and/or death.
These symbols alert users of a safety
condition that demands attention. All
cart users should be able to recognize
and understand the significance of the
following Safety Hazards if encountered
on the cart or within cart documentation.
Children who are not able to recognize
and respond appropriately to Safety Alerts
should not use the cart without adult
supervision!
CAUTION: Observe all the safety precautions related
to the Dell Cart operation and maintenance included in this
reference guide! Failure to follow the safety precautions may
result in injury or damage to equipment.
CAUTION: There is no on/o switch on this equipment;
the only power disconnect is the AC power cable.
Therefore, the socket outlet should be easily accessible and
should be installed near the equipment.
There are specific risks associated with the use of equipment having power cables. You must be aware of, and avoid these risks
when the Cart is located in close proximity to children.
Risk of Electric Shock
DANGER!
WARNING: Failure to observe the following Electrical Safety notices can result in fire or death by electric shock.
Risk of Electric Shock
DANGER!
Electrical: Electrical cables can be hazardous. Misuse can result in fire or death by electrical shock.
• Double Pole / Neutral Fusing
• Inspect power cables thoroughly before each use.
• Do not use cables that are damaged.
• Insert the plug completely into the outlet.
• Grasp the plug to remove from the outlet.
• Do not unplug by pulling on the cable.
• Do not use excessive force to make connections.
• Use only Dell power adapters that come with Dell systems with this cart.
• Do not plug the cable into an extension cable.
• Do not remove, bend or modify any metal prongs or pins of cable.
• Do not drive, drag or place objects over the cable.
• Do not walk on the cable.
• Avoid overheating. Uncoil the cable and do not cover it with any material.
• Do not run cable through doorways, holes in ceilings, walls or floors.
Risk of Electric Shock
DANGER!
Electrical: Keep the Cart away from water.
• Do not use it when wet.
• Do not place the Cart in close proximity to flammable liquids or gases.
Equipment Electrical Safety
Risk of Electric Shock
DANGER!
DANGER!
Risk of Electric Shock
DANGER! Electrical calabes can be hazardous.
Misuse can result in fire or death by electrical shock.
DO NOT REMOVE THIS LABEL!
• Inspect Cord Thoroughly Before Each Use. DO NOT USE IF DAMAGED.
• Do Not Plug More Than SPECIFIED NUMBER OF WATTS Into Power System.
• Do Not Run Cord Through Doorways, Holes in Ceilings, Walls or Floors.
• FULLY INSERT Plug Into Outlet.
• Do Not Remove, Bend or Modify Any Metal Prongs or Pins of Cord.
• Do Not Use Excessive Force to Make Connections.
• Keep Away From Water. DO NOT USE WHEN WET.
• Keep Children Away From Cord.
• Do Not Plug Cord into An Extension Cord.
• AVOID OVERHEATING. Uncoil Cord and Do Not Cover It With Any Material.
• Do Not Drive, Drag or Place Objects Over Cord. Do Not Walk On Cord.
• GRASP PLUG to REMOVE FROM Outlet. Do Not Unplug By Pulling On Cord.
DANGER!
ELECTRICAL CORDS CAN BE HAZARDOUS
Misuse Can Result in FIRE or DEATH by ELECTRICAL SHOCK.
Please Read and Follow Product Manual Instructions.
THIS IS A POLARIZED CORD - HOSPITAL GRADE ONLY
NOTE: Grounding Reliability Can Only Be Achieved When
the Equipment Is Connected To An Equivalent Receptacle Marked
“HOSPITAL ONLY” Or “HOSPITAL GRADE”
820-672

888-24-371-W-00 rev.B • 07/17
9 / 12
ENGLISH
WARNING: Failure to observe the following safety notices may result in serious personal injury or equipment damage.
Inspect for damage, dirt and debris on a regular basis. All paint and plastic components used in the Cart will withstand cleaning
by most commonly used, diluted, non-abrasive solutions such as quaternary ammonia compounds, ammonia enzyme cleaners,
bleach, or alcohol solutions. It is recommended that any cleaning solution be tested on a small, inconspicuous area to ensure it
does not harm the surface of the Cart.
• Marks from permanent marker, dry-erase marker, and pens can be removed with % isopropyl alcohol and a soft cloth.
• Iodine stains can be removed with commonly used cleaners and a soft cloth.
• Do not use steel wool or other abrasive materials that may damage the surface finish.
Risk of Electric Shock
DANGER!
Electrical: To avoid risk of electric shock, do not expose electrical components to water, cleaning solutions or other
potentially corrosive liquids or substances.
Risk of Electric Shock
DANGER!
Electrical: Do not immerse Cart or Cart components in liquid or allow liquids to flow into the Cart. Wipe all cleaners o
surface immediately using a damp cloth. Dry the surface thoroughly after cleaning.
Risk of Electric Shock
DANGER!
Electrical: Do not use flammable cleaners on Cart surfaces.
CAUTION: Adjustment, Service, Replacement - DO NOT attempt to adjust, service or replace any part of the Cart unless
directed to do so through Ergotron-approved documentation (i.e. installation instructions). Only Ergotron, Inc. or an Ergotron-
certified entity may adjust, service or replace Cart components. If any component on the Cart is missing or damaged, the Cart
must not be used. Contact Ergotron immediately to request a replacement part.
CAUTION: Casters - Check casters periodically to make sure they are clean and free of debris that would prevent smooth
travel. Avoid moving Cart across uneven, dirty, or damaged surfaces.
CAUTION: Customer Equipment- Make sure equipment is balanced and installed securely to Cart. Contact Ergotron for
information about moving Cart components.
Cleaning and Maintenance
CAUTION: Changes or Modifications not expressly approved by Ergotron could void the user’s
authority to operate the equipment.

888-24-371-W-00 rev.B • 07/17
10 / 12
ENGLISH
Safe Use Recommendations
There are specific risks associated with the use of Cart when moving or stationary (for charging or storage). You must be aware of,
and avoid these risks when the Cart is located in close proximity to children.
WARNING: Failure to observe the following Cart Use Safety notices may result in serious personal injury or equipment damage.
Only Adults should move this cart.
• Do not allow anyone to sit, stand, or climb on the Cart.
• Do not lift the Cart from the bottom.
• Do not block the fans and vent openings. To prevent overheating, leave at least  mm (-inch) clearance around fans and
vents.
The Cart is designed to be used indoors only.
• Do not use the Cart to transport or store equipment other than what has been noted in this guide.
• Do not use the Cart to store liquids or cleaning supplies.
• Do not place heavy objects on the Cart surface or shelf.
– The maximum weight capacity of the top surface is . kg ( lb).
– The maximum weight capacity of the shelf is . kg (. lb).
Moving the Cart
• Before moving the Cart:
. Disconnect the power cable from the wall.
. Make sure the cable is wrapped and secure.
. Close and lock the doors.
. Remove items from the top work surface.
. Unlock the casters.
• Push (do not pull) the Cart for optimum maneuverability and to prevent muscle strain.
• Do not move the Cart across rough, uneven or irregular surfaces such as gravel.
Parking the Cart
Observe these safety alerts for times when the cart is stationary:
• Do not park the Cart in areas of heavy trac.
• Do not run cables through doorways, holes in ceilings, walls, or floors.
• Do not run cables across hallways, classrooms, or other areas where they will be walked on.
• Do not leave Cart unattended in areas where children have access.
• Keep Cart doors closed and locked whenever it is unattended or parked for charging or storage.
• Keep Cart casters locked whenever it is unattended.
