Dell PowerEdge 1650 User manual

www.dell.com | support.dell.com
Dell™ Systems
Rack Installation Guide
5X860et0.fm Page 1 Monday, October 21, 2002 11:48 AM

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury,
or death.
____________________
Information in this document is subject to change without notice.
© 2002 Dell Computer Corporation. All rights reserved.
Reproductioninanymannerwhatsoever without the written permissionofDellComputerCorporationisstrictlyforbidden.
Trademarks used in this text: Dell, the DELL logo, VersaRails, and RapidRails are trademarks of Dell Computer
Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names
other than its own.
October 2002 P/N 5X860 Rev. A00
5X860et0.fm Page 2 Monday, October 21, 2002 11:48 AM

Contents 3
Contents
CAUTION: Safety Instructions . . . . . . . . . . . . . . . . . . 1-1
Rack Mounting of Systems . . . . . . . . . . . . . . . . . . . 1-1
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . 1-2
Rack Requirements for VersaRails . . . . . . . . . . . . . . . 1-3
Four-Post Rack Installation . . . . . . . . . . . . . . . . . . . . 1-3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Recommended Tools and Supplies. . . . . . . . . . . . . . . . 1-3
RapidRails Rack Kit Contents. . . . . . . . . . . . . . . . . . 1-4
VersaRails Rack Kit Contents . . . . . . . . . . . . . . . . . . 1-4
Installation Tasks. . . . . . . . . . . . . . . . . . . . . . . . 1-5
Removing the Rack Doors. . . . . . . . . . . . . . . . . . . . 1-5
Marking the Rack . . . . . . . . . . . . . . . . . . . . . . . 1-6
Installing the RapidRails Slide Assemblies . . . . . . . . . . . 1-7
Installing the VersaRails Slide Assemblies . . . . . . . . . . . 1-9
Installing the System in the Rack . . . . . . . . . . . . . . . 1-10
Installing the Cable-Management Arm . . . . . . . . . . . . 1-11
Routing Cables . . . . . . . . . . . . . . . . . . . . . . . . 1-14
Replacing the Rack Doors. . . . . . . . . . . . . . . . . . . 1-16
Two-Post Rack Installation. . . . . . . . . . . . . . . . . . . . 1-16
Recommended Tools and Supplies. . . . . . . . . . . . . . . 1-16
Rack Kit Contents . . . . . . . . . . . . . . . . . . . . . . 1-17
Two-Post Rack Installation Tasks . . . . . . . . . . . . . . . 1-17
Marking the Rack . . . . . . . . . . . . . . . . . . . . . . 1-18
Installing the Slide Assemblies in the Rack . . . . . . . . . . 1-19
Installing the System in the Rack . . . . . . . . . . . . . . . 1-25
Installing the Cable-Management Arm . . . . . . . . . . . . 1-26
Routing Cables . . . . . . . . . . . . . . . . . . . . . . . . 1-26
5X860ey0.fm Page 3 Monday, October 21, 2002 11:48 AM

4Contents
Index
Figures
Figure 1-1. RapidRails Rack Kit Contents . . . . . . . . . 1-4
Figure 1-2. VersaRails Rack Kit Contents . . . . . . . . . 1-5
Figure 1-3. One Rack Unit . . . . . . . . . . . . . . . . . 1-6
Figure 1-4. Marking the Vertical Rails . . . . . . . . . . 1-7
Figure 1-5. Installing the RapidRails Slide Assemblies . . . 1-8
Figure 1-6. Installing the VersaRails Slide Assemblies . . . 1-9
Figure 1-7. Installing the System in the Rack
(RapidRails or VersaRails) . . . . . . . . . 1-11
Figure 1-8. Installing the Cable-Management Arm . . . 1-12
Figure 1-9. Opening the Wire Covers . . . . . . . . . . 1-13
Figure 1-10. Installing the Power Cord Strain Relief . . . 1-14
Figure 1-11. Routing Cables . . . . . . . . . . . . . . . 1-15
Figure 1-12. Two-Post Rack Kit Components . . . . . . . 1-17
Figure 1-13. Two-Post, Open-Frame Relay Rack
Universal-Hole Spacing . . . . . . . . . . . 1-18
Figure 1-14. Two-Post, Open-Frame Relay Rack
Wide-Hole Spacing . . . . . . . . . . . . . 1-19
Figure 1-15. Installing the Slide Assemblies for
Center-Mount Configuration . . . . . . . . 1-21
Figure 1-16. Installing the Stiffening Bracket (shown in
3-inch rack position) . . . . . . . . . . . . 1-22
Figure 1-17. Rotating the Front Mounting Bracket for
Flush-Mount Installation . . . . . . . . . . 1-23
Figure 1-18. Installing the Slide Assemblies for
Flush-Mount Configuration . . . . . . . . . 1-24
5X860ey0.fm Page 4 Monday, October 21, 2002 11:48 AM

Rack Installation Guide 1-1
CAUTION: Safety Instructions
Use the following safety guidelines to help ensure your own personal safety and to help
protect your system and working environment from potential damage. For complete safety
information, see the System Information Guide.
Rack Mounting of Systems
Observe the following precautions for rack stability and safety.
Systems are considered to be components in a rack. Thus, "component" refers to any
system as well as to various peripherals or supporting hardware.
CAUTION: Installing systems in a rack without the front and side stabilizers
installed could cause the rack to tip over, potentially resulting in bodily injury
under certain circumstances. Therefore, always install the stabilizers before
installing components in the rack.
After installing system/components in a rack, never pull more than one
component out of the rack on its slide assemblies at one time. The weight of
more than one extended component could cause the rack to tip over and may
result in serious injury.
NOTE: Your system is safety-certified as a free-standing unit and as a component for
use in a Dell™ rack cabinet using the customer rack kit. The installation of your
system and rack kit in any other rack cabinet has not been approved by any safety
agencies. It is your responsibility to ensure that the final combination of system and
rack complies with all applicable safety standards and local electric code
requirements. Dell disclaims all liability and warranties in connection with such
combinations.
• System rack kits are intended to be installed in a rack by trained service technicians. If
you install the kit in any other rack, be sure that the rack meets the specifications of a
Dell rack.
CAUTION: Do not move racks by yourself. Due to the height and weight of the
rack, a minimum of two people should accomplish this task.
• Before working on the rack, make sure that the stabilizers are secured to the rack,
extended to the floor, and that the full weight of the rack rests on the floor. Install
front and side stabilizers on a single rack or front stabilizers for joined multiple racks
before working on the rack.
• Always load the rack from the bottom up, and load the heaviest item in the rack first.
• Make sure that the rack is level and stable before extending a component from the
rack.
5X860eb0.fm Page 1 Monday, October 21, 2002 11:49 AM

1-2 Rack Installation Guide
www.dell.com | support.dell.com
Installation Instructions
This installation guide provides instructions for trained service technicians installing one or
more systems in a rack cabinet or in an open-frame relay rack. The RapidRails™ rack kit can
be installed in all the system manufacturer’s rack cabinets without tools, and the
VersaRails™ rack kit can be installed in most industry-standard rack cabinets. The
procedures for installing both RapidRails and VersaRails rack kits are similar. One rack kit is
required for each system to be installed in the rack cabinet.
This guide includes procedures for the following rack kits:
• RapidRails kit in a four-post rack cabinet
• VersaRails kit in a four-post rack cabinet
• Two-post kit (installed in either center-mount or flush-mount configuration)
For ease in troubleshooting and the identification of system health, some rack kits include a
status-indicator cable assembly that extends the information from the two-color status
indicators on the front and back panels to the back of the cable-management arm. For more
information on these indicators, see the User’s Guide.
Before attempting this installation, you should read through this entire document carefully.
CAUTION: Do not install rack kit components designed for another system. Use
only the rack kit for your system. Using the rack kit for another system may
result in damage to the system and personal injury to yourself and to others.
• Use caution when pressing the component rail release latches and sliding a
component into or out of a rack; the slide rails can pinch your fingers.
• After a component is inserted into the rack, carefully extend the rail into a locking
position, and then slide the component into the rack.
• Do not overload the AC supply branch circuit that provides power to the rack. The
total rack load should not exceed 80 percent of the branch circuit rating.
• Ensure that proper airflow is provided to components in the rack.
• Do not step on or stand on any component when servicing other components in a
rack.
CAUTION: Safety Instructions (continued)
5X860eb0.fm Page 2 Monday, October 21, 2002 11:49 AM

Rack Installation Guide 1-3
Rack Requirements for VersaRails
NOTICE: The VersaRails rack kit is intended to be installed by trained service technicians in a
rack that meets the specifications of American National Standards Institute (ANSI)/Electronic
Industries Association (EIA) standard ANSI/EIA-310-D-92, International Electrotechnical
Commission (IEC) 297, and Deutsche Industrie Norm (DIN) 41494. One rack kit is required for
each system that is installed in a rack.
Four-Post Rack Installation
Before attempting this installation, you should read through this entire procedure carefully.
Before You Begin
Before you begin installing your system in the rack, carefully read "Safety Instructions" as
well as the safety instructions found in your system’s System Information document for
additional information.
CAUTION: When installing multiple systems in a rack, complete all of the
procedures for the current system before attempting to install the next system.
CAUTION: Rack cabinets can be extremely heavy and move easily on their
casters. They have no brakes. Use extreme caution while moving the rack
cabinet. Retract the leveling feet when relocating the rack cabinet. Avoid long
or steep inclines or ramps where loss of cabinet control may occur. Extend the
leveling feet for support and to prevent the cabinet from rolling.
NOTE: For instructions on installing the system itself, see "Installing the System in the Rack."
Important Safety Information
Observe the safety precautions in the following subsections when installing your system in
the rack.
CAUTION: You must strictly follow the procedures in this document to protect
yourself as well as others who may be involved. Your system may be very large
and heavy and proper preparation and planning are important to prevent injury
to yourself and to others. This becomes increasingly important when systems are
installed high up in the rack.
Recommended Tools and Supplies
You may need the following tools and supplies to install the system in a four-post rack:
• #2 Phillips screwdriver
• Masking tape or a felt-tip pen, for use in marking the mounting holes to be used
5X860eb0.fm Page 3 Monday, October 21, 2002 11:49 AM

1-4 Rack Installation Guide
www.dell.com | support.dell.com
RapidRails Rack Kit Contents
The RapidRails rack kit includes the following items (see Figure 1-1):
• One pair of RapidRails slide assemblies
• One cable-management arm
• Two stop blocks (left and right)
• One status-indicator cable assembly
• Releasable tie wraps (not shown in Figure 1-1)

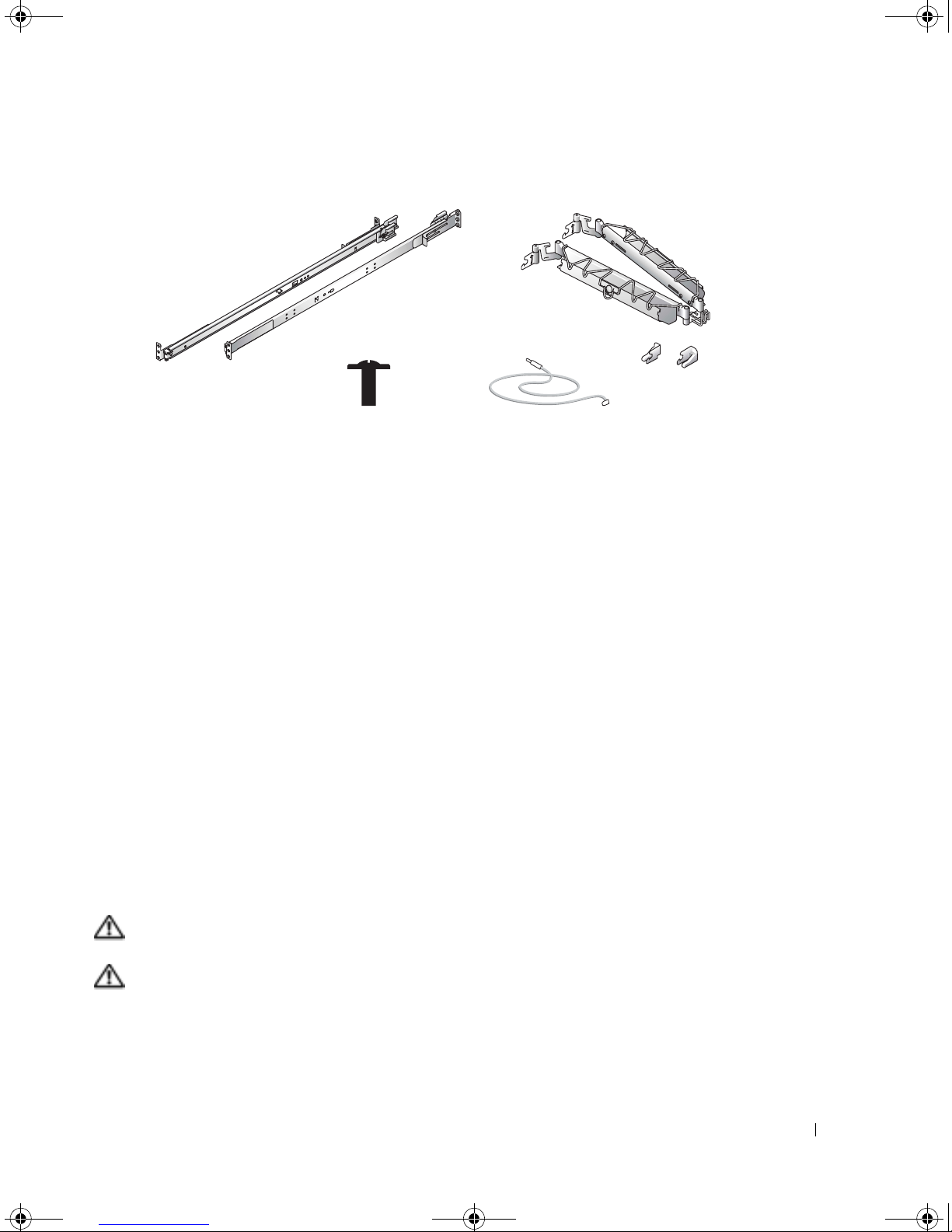

Figure 1-1. RapidRails Rack Kit Contents
VersaRails Rack Kit Contents
The VersaRails rack kit includes the following items (see Figure 1-2):
• One pair of VersaRails slide assemblies
• One cable-management arm
• Two stop blocks (left and right)
• One status-indicator cable assembly
• Ten 10-32 x 0.5-inch flange-head Phillips screws
• Releasable tie wraps (not shown in Figure 1-2)
NOTE: The nonmetric screws described in illustrations and in procedural steps are
identified by size and number of threads-per-inch. For example, a #10 Phillips-head
screw with 32 threads per inch is identified as a 10-32 screw.

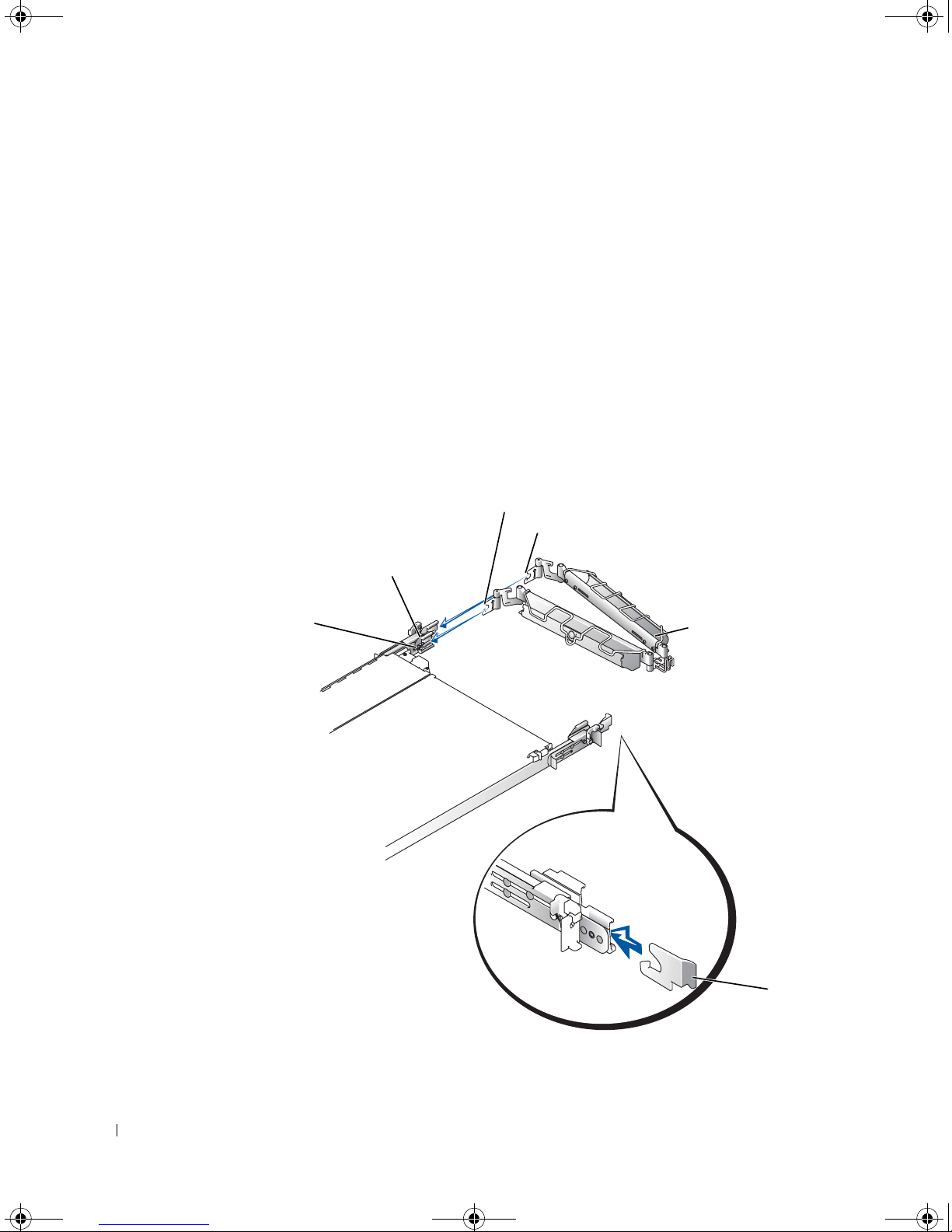

slide assemblies (2)
cable-management arm
stop blocks (2)
status-indicator cable
5X860eb0.fm Page 4 Monday, October 21, 2002 11:49 AM

Rack Installation Guide 1-5
Figure 1-2. VersaRails Rack Kit Contents
Installation Tasks
Installing a rack kit involves performing the following tasks in their numbered order:
1Removing the rack doors
2Marking the rack
3Installing the slide assemblies in the rack
• RapidRails slide assemblies
• VersaRails slide assemblies
4Installing the system in the rack
5Installing the cable-management arm
6Routing cables
7Replacing the rack doors
Removing the Rack Doors
See the procedures for removing doors in the documentation provided with your rack
cabinet.
CAUTION: Because of the size and weight of the rack cabinet doors, never
attempt to remove or install them by yourself.
CAUTION: Store the two doors where they will not injure someone if the doors
accidently fall over.
slide assemblies (2)
10-32 x 0.5-inch flange-head
Phillips screws (10)
cable-management arm
stop blocks (2)
status-indicator cable
5X860eb0.fm Page 5 Monday, October 21, 2002 11:49 AM

1-6 Rack Installation Guide
www.dell.com | support.dell.com
Marking the Rack
You must allow 1 U (44 mm, or 1.75 inches) of vertical space for each system you install in
the rack. Rack cabinets that meet EIA-310 standards have an alternating pattern of three
holes per rack unit with center-to-center hole spacing (beginning at the top hole of a 1-U
space) of 15.9 mm, 15.9 mm, and 12.7 mm (0.625 inch, 0.625 inch, and 0.5 inch) for the
front and rear vertical rails (see Figure 1-3). Rack cabinets may have round or square holes.
NOTE: The vertical rails may be marked by horizontal lines and numbers in 1-U
increments. If you wish, you can make a note of the number marking on the rack’s
vertical rail. It is not necessary to mark or place tape on the rack. If you choose this
method, skip ahead to the procedure "Installing the RapidRails Slide Assemblies."
Figure 1-3. One Rack Unit
CAUTION: If you are installing more than one system, install the slide assemblies
so that the first system is installed in the lowest available position in the rack.
To mark the rack, perform the following steps:
1Place a mark on the rack’s front vertical rails where you want to locate the bottom of
the system you are installing in the rack cabinet.
The bottom of each 1-U space is at the middle of the narrowest metal area between
holes (marked with a horizontal line on some rack cabinets—see Figure 1-3).
1 U (44 mm or 1.75 inches)
12.7 mm (0.5 inch)
15.9 mm (0.625 inch)
15.9 mm (0.625 inch)
12.7 mm (0.5 inch)
5X860eb0.fm Page 6 Monday, October 21, 2002 11:49 AM

Rack Installation Guide 1-7
2Place a mark 44 mm (1.75 inches) above the original mark you made (or count up
three holes in a rack that meets EIA-310 standards) and mark the rack’s front vertical
rails with a felt-tipped marker or masking tape (if you counted holes, place a mark just
above the top hole).
This mark or piece of tape indicates where the system’s upper edge will be located on
the vertical rails (see Figure 1-4).
Figure 1-4. Marking the Vertical Rails
Installing the RapidRails Slide Assemblies
1At the front of the rack cabinet, position one of the RapidRails slide assemblies so that
its mounting-bracket flange fits between the marks or tape you placed on the rack (see
Figure 1-5).
The mounting hook on the slide assembly’s front mounting bracket flange should
enter the top hole between the marks you made on the vertical rails.
2Push the slide assembly forward until the mounting hook enters its respective square
hole on the vertical rail, and then push down on the mounting-bracket flange until the
mounting hooks seat in the square holes and the push button pops out and clicks.
tape on
vertical rail
5X860eb0.fm Page 7 Monday, October 21, 2002 11:49 AM

1-8 Rack Installation Guide
www.dell.com | support.dell.com
3At the back of the cabinet, pull back on the mounting-bracket flange until the
mounting hooks are located in their respective square holes, and then push down on
the mounting-bracket flange until the mounting hooks seat in the square holes and
the push button pops out and clicks.
4Repeat steps 1 through 3 for the slide assembly on the other side of the rack.
5Ensure that the rails are mounted at the same position on the vertical rails on each
side of the rack.

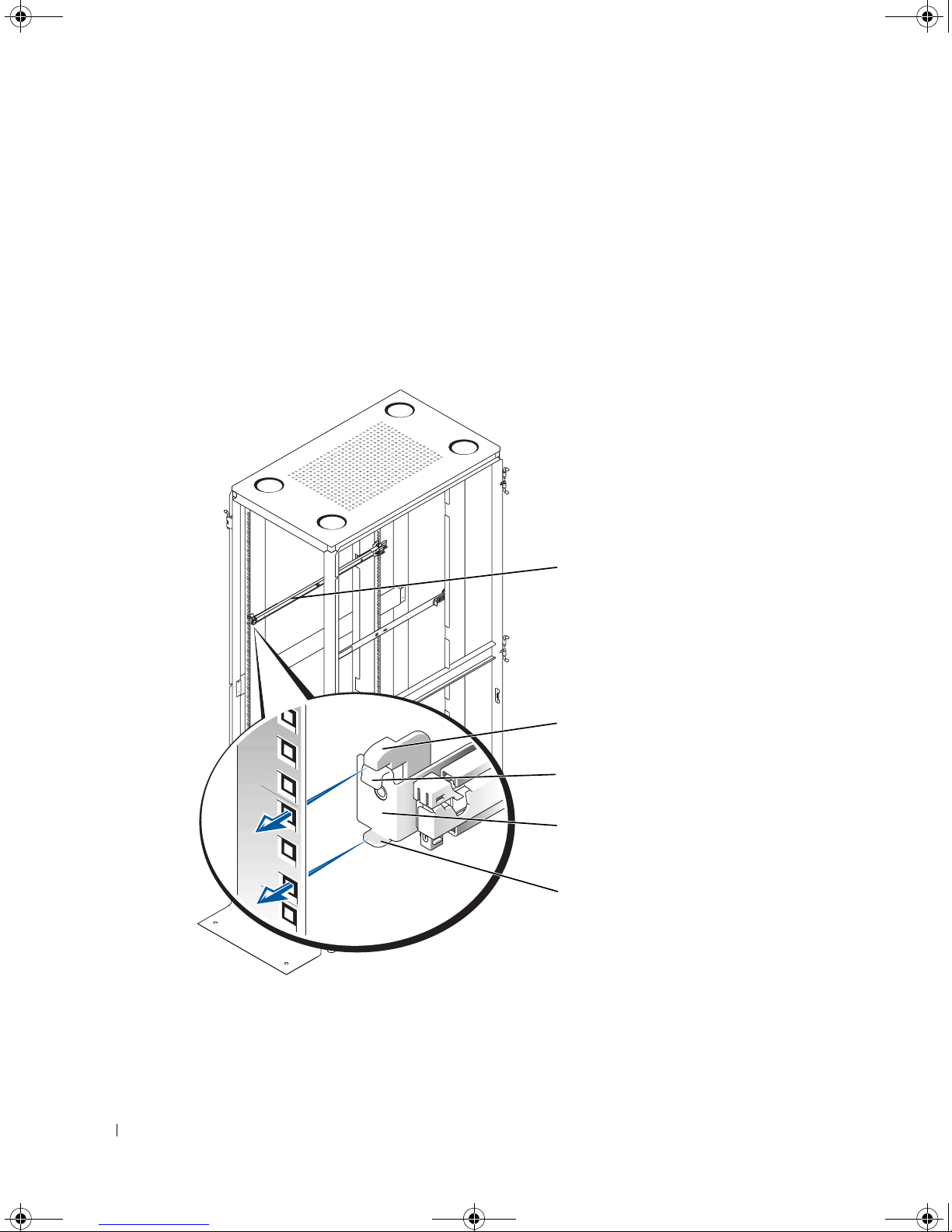

Figure 1-5. Installing the RapidRails Slide Assemblies
front of rack
slide assemblies (2)
mounting hook
push button
mounting-bracket
flange
support tab
5X860eb0.fm Page 8 Monday, October 21, 2002 11:49 AM

Rack Installation Guide 1-9
Installing the VersaRails Slide Assemblies
1At the front of the rack cabinet, position one of the VersaRails slide assemblies so that
its mounting-bracket flange fits between the marks or tape (or numbered location) on
the rack (see Figure 1-6).
The three holes on the front of the mounting bracket should align with three of the
holes between the marks you made on the front vertical rail.
2Install two 10-32 x 0.5-inch flange-head Phillips screws in the mounting flange’s top
and bottom holes to secure the slide assembly to the front vertical rail (see Figure 1-6).
3At the back of the cabinet, pull back on the mounting-bracket flange until the
mounting holes align with their respective holes on the back vertical rail.
4Install three 10-32 x 0.5-inch flange-head Phillips screws in the back mounting holes to
secure the slide assembly to the back vertical rail.
Figure 1-6. Installing the VersaRails Slide Assemblies
front of rack
slide assemblies (2)
10-32 x 0.5-inch
flange-head Phillips
screws (5 per slide
assembly)
mounting-bracket flange
5X860eb0.fm Page 9 Monday, October 21, 2002 11:49 AM

1-10 Rack Installation Guide
www.dell.com | support.dell.com
5Repeat step 1 through step 4 for the slide assembly on the other side of the rack.
6Ensure that the slide assemblies are mounted at the same position on the vertical rails
on each side of the rack.
Installing the System in the Rack
CAUTION: If you are installing more than one system, install the first system in
the lowest available position in the rack.
CAUTION: Never pull more than one component out of the rack at a time.
1Pull the two slide assemblies out of the rack until they lock in the fully extended
position.
CAUTION: Because of the size and weight of the system, never attempt to install
the system in the slide assemblies by yourself.
2Remove the system front bezel:
aUnlock the keylock.
bPress the right- and left-end tabs.
cPull the bezel away from the system.
3Lift the system into position in front of the extended slides.
4Place one hand on the front-bottom of the system and the other hand on the back-
bottom of the system.
5Tilt the back of the system down while aligning the back shoulder screws on the sides
of the system with the back slots on the slide assemblies.
6Engage the back shoulder screws into their slots.
7Lower the front of the system and engage the front shoulder screws in the front slot
behind the system release latch (see Figure 1-7).
The system release latch will move forward and then snap back as the shoulder screw
passes into the front slot.
Use this system release latch when you wish to remove the system from the slide
assemblies.
8Press the slide release latch at the side of each slide and push the system completely
into the rack (see Figure 1-7).
9Push in and turn the captive thumbscrews on each side of the front chassis panel to
secure the system to the rack.
5X860eb0.fm Page 10 Monday, October 21, 2002 11:49 AM

Rack Installation Guide 1-11

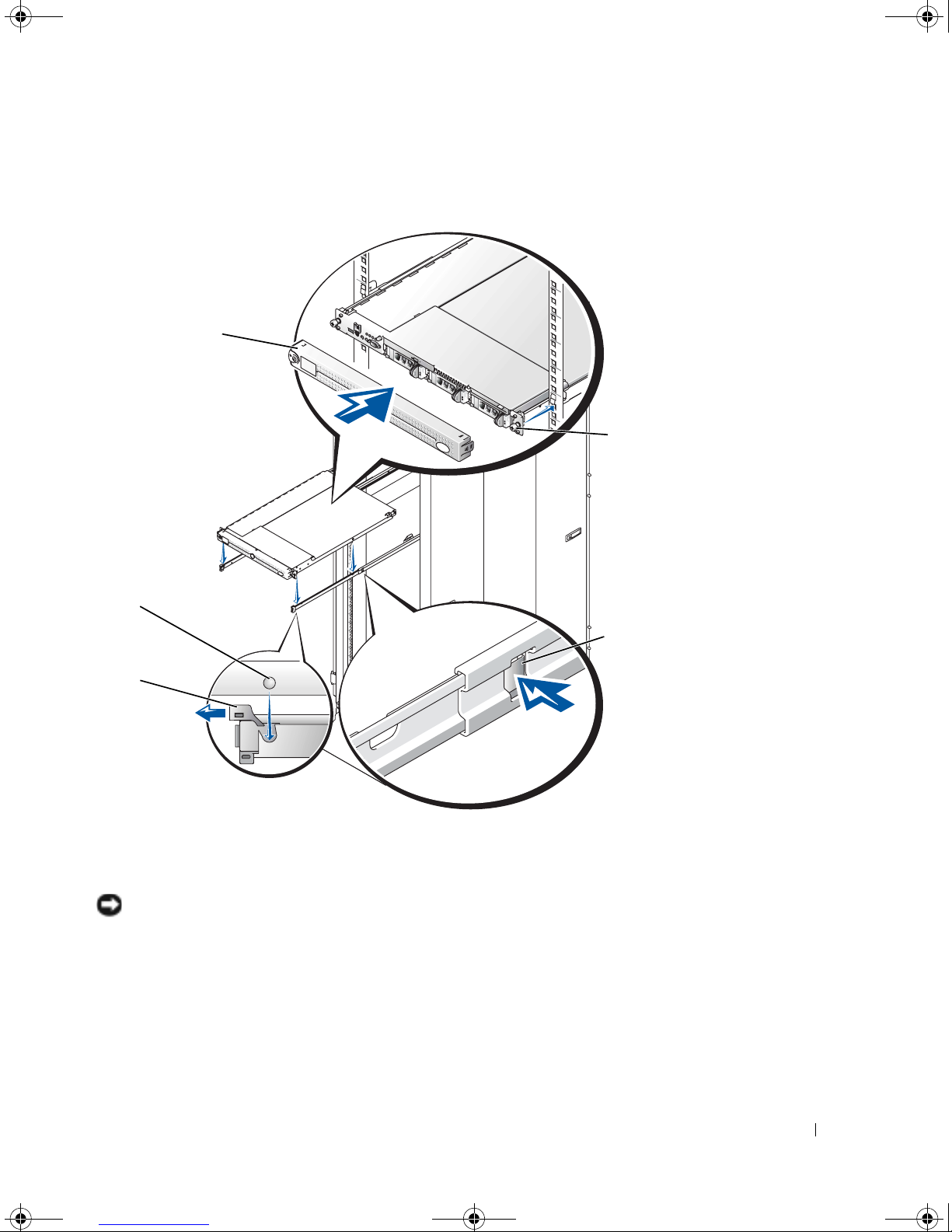

Figure 1-7. Installing the System in the Rack (RapidRails or
VersaRails)
Installing the Cable-Management Arm
NOTICE: The cable-management arm can be installed on the right- or left-side of the
rack cabinet. This procedure describes installing the cable-management arm in the
right side of the rack cabinet, as viewed from the back. If you are installing several
systems in the rack, consider installing the cable-management arms on alternating
sides of the rack for ease in cable routing.
shoulder screw on
system
system release
latch
slide release
latch
thumbscrews (2)
bezel
5X860eb0.fm Page 11 Monday, October 21, 2002 11:49 AM

1-12 Rack Installation Guide
www.dell.com | support.dell.com
To install the cable-management arm on the back of the system, perform the following
steps:
1Facing the back of the rack cabinet, locate the latch on the end of the right slide
assembly that you secured to the back vertical rail.
2Push the tab on the back end of the cable-management arm into the latch on the end
of the slide assembly (see Figure 1-8).
The latch clicks when locked.
3Push the tab on the front end of the cable-management arm into a mating latch on
the inner segment of the slide assembly (see Figure 1-8).
The latch clicks when locked.
Figure 1-8. Installing the Cable-Management Arm
latch on inner segment
of slide assembly
stop block
cable-management arm
latch on end of slide assembly
tab on front end
tab on back end
5X860eb0.fm Page 12 Monday, October 21, 2002 11:49 AM

Rack Installation Guide 1-13
4Install a stop block on the latch on the end of the opposite slide assembly (see
Figure 1-8).
The stop block prevents the cable-management arm from moving backward and
supports the weight of the arm with its load of installed cables.
The rack kit has two stop blocks: one for right-side mounting and one for left-side
mounting. You can only install the proper stop block.
5Install the status-indicator cable plug into its connector.
6Open the wire covers on the cable-management arm by lifting the center of the wire
over the top of the embossed round button on the front of the forward part of the arm,
and lifting the wire over the top of a similar round button on the back part of the arm.
The wire cover swings open to enable cables to be routed within the arm.
Figure 1-9. Opening the Wire Covers
status-indicator cable plug
wire covers in
open position
status indicator
5X860eb0.fm Page 13 Monday, October 21, 2002 11:49 AM

1-14 Rack Installation Guide
www.dell.com | support.dell.com
7Route the status-indicator end of the cable assembly through the cable-management
arm, and install the indicator in its slot at the back end of the cable-management arm
(see Figure 1-9).
8Connect the power cords to their receptacles on the back panel.
NOTICE: Although the strain-relief can accommodate power cords with a bend radius
of up to 19 mm (0.75 inch), the system manufacturer recommends that you only use
the power cords provided with the system.
9Install a tie-wrap through the slot on the strain-relief tab (see Figure 1-10).
10 Bend the power cords back beside the power receptacle housing, forming a tight loop,
and install the strain-relief tie-wrap loosely around the looped power cords (see
Figure 1-10).

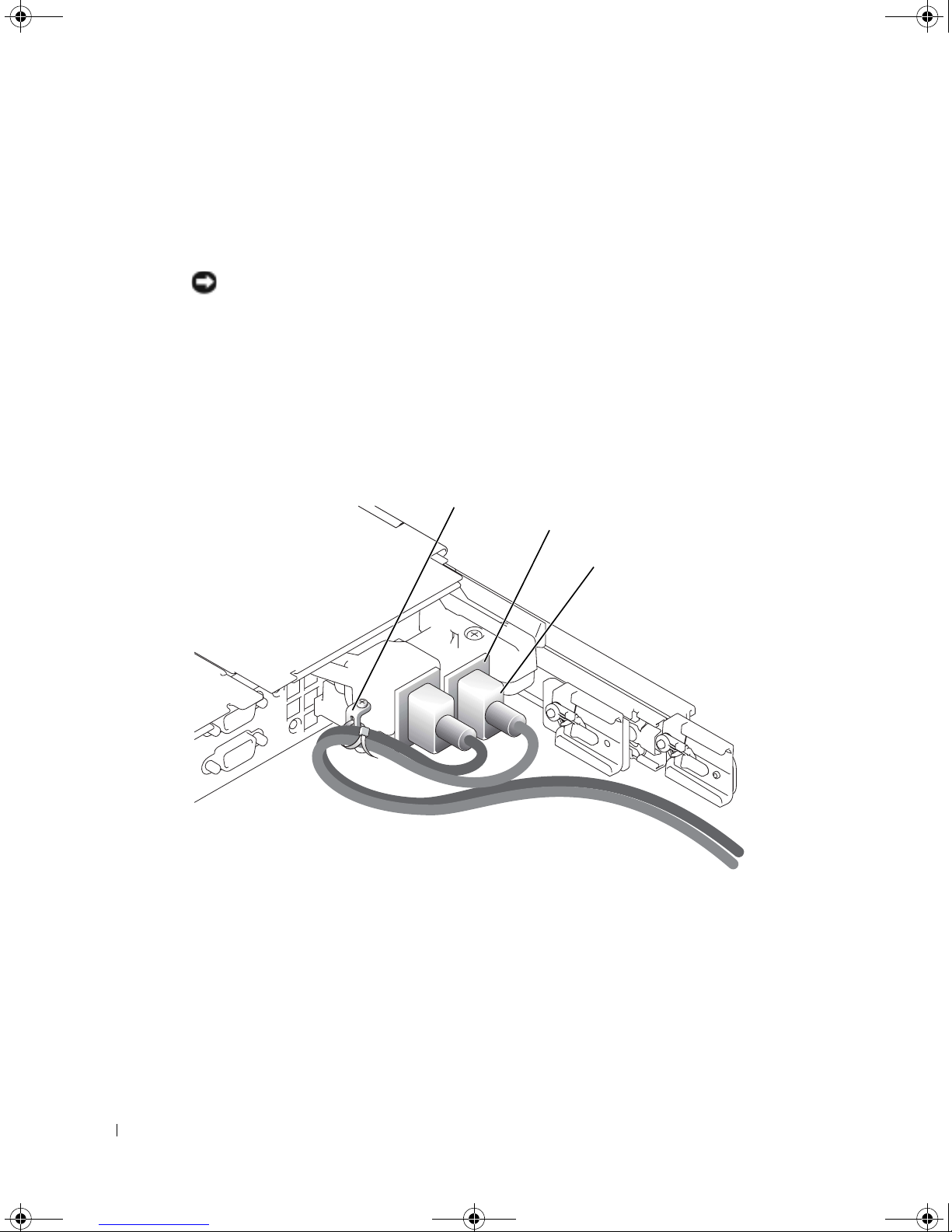

Figure 1-10. Installing the Power Cord Strain Relief
Routing Cables
1Attach the I/O cable connectors to their respective connectors on the system back.
For details on cable connections, see your system’s Installation and Troubleshooting
Guide and the User’s Guide.
power cord strain-relief tab and tie wrap
power cord plug
power receptacle housing
5X860eb0.fm Page 14 Monday, October 21, 2002 11:49 AM

Rack Installation Guide 1-15
2Route the power and I/O cables through the cable-management arm, using four
loosely secured releasable tie wraps (two in the middle and on each end of the cable-
management arm). Do not fully tighten the tie wraps at this time (see Figure 1-11).
Allow some cable slack in the cable-management arm to prevent damage to the cables.
3Secure the cables to the cable-management arm:
aAfter connecting the cables to the system, unscrew the thumbscrews that secure
the front of the system to the front vertical rail.
bSlide the system forward to the fully extended position.
cRoute the cables along the cable-management arm, make any adjustments to the
cable slack at the hinge positions, and secure the cables to the cable-management
arm with the releasable tie wraps and the wire covers over the cable-management
arm.
NOTE: As you pull the system out to its furthest extension, the slide assemblies lock in the
extended position. To push the system back into the rack, press the slide release latch on the
side of the slide, and then slide the system completely into the rack.
4Slide the system in and out of the rack to verify that the cables are routed correctly and
do not bind, stretch, or pinch with the movement of the cable-management arm.
5Make any necessary adjustments to ensure that the cable slack is neither too tight nor
too loose, yet keeps the cables in place as the system is moved in and out of the rack.
Figure 1-11. Routing Cables
tie-wrap
strain-relief tab and tie-wrap
tie-wrap
tie-wrap
tie-wrap
5X860eb0.fm Page 15 Monday, October 21, 2002 11:49 AM

1-16 Rack Installation Guide
www.dell.com | support.dell.com
Replacing the Rack Doors
Refer to the procedures for replacing doors in the documentation provided with your rack
cabinet.
CAUTION: Because of the size and weight of the rack cabinet doors, never
attempt to remove or install them by yourself.
This completes the rack installation of your system in a four-post rack cabinet.
Two-Post Rack Installation
The two-post rack kit is used to install a system in a two-post, open-frame relay rack, such as
those found in telecommunications equipment facilities. Both 3-inch and 6-inch wide two-
post racks with universal hole spacing or wide hole spacing are accommodated. You can
install this kit in a center-mount or a flush-mount configuration. The two-post kit
incorporates slide assemblies which enable the system to be pulled out for servicing.
You must properly secure the two-post, open frame relay rack to the floor, the ceiling or
upper wall, and where applicable, to adjacent racks, using floor and wall fasteners and
bracing specified or approved by the rack manufacturer or by industry standards. See the
two-post, open-frame relay rack manufacturer’s installation documentation for
precautionary warnings before attempting this installation.
CAUTION: Do not attempt to install the system into a two-post, open-frame relay
rack that has not been securely anchored in place. Damage to the system and
personal injury to yourself and to others may result.
See "Safety Instructions" at the front of this document for additional safety information
regarding rack installation.
Recommended Tools and Supplies
You need the following tools and supplies to install the system in a two-post relay rack:
• #2 Phillips screwdriver
• 11/32-inch wrench or nut driver (if changing bracket to flush-mount configuration)
• Masking tape or felt-tip pen to mark the mounting holes
5X860eb0.fm Page 16 Monday, October 21, 2002 11:49 AM
