Dell S6010-ON User manual

Dell Networking S6010-ON Getting
Started Guide
Regulatory Model: S6010–ON

Dell Networking S6010-ON Getting
Started Guide
Regulatory Model: S6010–ON

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better
use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss
of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
Copyright ©2016 Dell Inc. All rights reserved. This product is protected by U.S. and
international copyright and intellectual property laws. Dell™and the Dell logo are trademarks
of Dell Inc. in the United States and/or other jurisdictions. All other marks and names
mentioned herein may be trademarks of their respective companies.
2016 - 04
Rev. A00

About this Guide
This document is intended as a Getting Started Guide to get new systems up
and running and ready for configuration.
For more details about the S6010–ON system, see the following information,
available on the Dell Networking Support website (http://www.dell.com/
support).
• The Dell Networking S6010-ON Installation Guide describes installation
and replacement procedures.
• The Dell Networking Configuration Guide for the S6010-ON System
describes software configuration.
• The Dell Networking Command Line Reference Guide for the S6010-ON
System provides command line interface (CLI) information.
• The Dell Networking Release Notes for the S6010-ON System provide
information about upgrading the S6010-ON system.
3

4

Install the Hardware
This information describes installation of the S6010-Open Networking (ON)
system. Dell Networking recommends completing the installation procedures
in the order presented here.
Operation and Safety Considerations
Before installing the switch, review these operation and safety guidelines.
Review these guidelines for switch installation:
• You have enough clearance to the front of the switch so you can read the
light emitting diodes (LEDs).
• The AC power cord reaches from the power outlet to the power supply
unit (PSU) side connector.
• The switch is rack-mounted before you power it up.
• Cabling is away from sources of electrical noise, such as radios, power
lines, and fluorescent lighting. Ensure that the cabling is safely away from
other devices that might damage the cables. If needed, allow one rack unit
(RU) space between devices to provide room for cabling.
• Airflow around the switch and through the vents is unrestricted.
• Temperature around the unit does not exceed 113°F (45°C). If the switch is
in a closed or multi-rack assembly, the temperature might be higher than
normal room temperature.
• Humidity around the switch does not exceed 95 percent.
• Altitude at the installation site is below 10,000 feet.
• The switch is installed in an environment as free as possible from dust and
foreign conductive material (such as metal flakes from construction
activities). Cooling mechanisms, such as fans and blowers in the switch,
can draw dust and other particles causing contaminant buildup inside the
chassis, which can result in system malfunction.
Review these guidelines for rack mounting:
• Rack mounting — You may either place the switch on a rack shelf or
mount the switch directly into a 19" wide, EIA-310-E- compliant rack.
• Rack loading — Overloading or uneven loading of racks may result in shelf
or rack failure, causing damage to the equipment and possible personal
injury. Stabilize racks in a permanent location before loading begins.
Mount the components starting at the bottom of the rack, then work to
the top. Do not exceed your rack load rating.
5

• Power considerations — Connect only to the power source specified on
the unit. When you install multiple electrical components in a rack, ensure
that the total component power ratings do not exceed the circuit
capabilities. Overloaded power sources and extension cords present fire
and shock hazards.
• Elevated ambient temperature — If you install the equipment in a closed
rack assembly, the operating temperature of the rack environment may be
greater than the room ambient temperature. The acceptable ambient
temperature ranges are listed in Technical Specifications under
Environmental Parameters.
• Reduced air flow — Install the equipment in the rack so that you do not
compromise the amount of airflow required for safe operation of the
switch. For proper ventilation, position the chassis in an equipment rack
(or cabinet) with a minimum of 5 inches (12.7 cm) of clearance around
exhaust vents.
• Reverse air flow — To ensure cool air intake and to avoid hot air blow out
from the I/O side, ensure that you have the necessary clearance.
• Reliable earthing — Maintain reliable earthing of rack-mounted
equipment. Pay particular attention to the supply connections other than
the direct connections to the branch circuit; for example, use of power
strips.
• Do not mount the equipment with the PSU side facing in a downward
position.
NOTE: Always handle the system and its components with care. Avoid
dropping the chassis or their field replaceable units.
CAUTION: Always wear an electrostatic discharge (ESD)-preventive
wrist or heel ground strap when handling a system and its
components. As with all electrical devices of this type, take all
necessary safety precautions to prevent injury when installing this
system. ESD damage can occur if components are mishandled.
CAUTION: Only trained and qualified personnel should install this
equipment. Read this guide before installing and powering up the
system.
WARNING: This is a condensed reference. Read the safety instructions
in your Safety, Environmental, and Regulatory information booklet
before you begin.
6

Installing the Ground Lug and Bracket
Assembly
Install the ground (GND) lug and bracket assembly, with a ground wire
attached, before you install the S6010-ON switch in a rack.
Dell Networking supplies a kit with the following:
• One two-hole UL-certified GND lug
• L-bracket
• Two flat head screws (to attach lug to bracket)
• Two pan head screws (to attach assembly to chassis)
You must supply:
• A wire that complies with your local electrical codes in size and color
(typically the wire is 14 AWG, colored green or green with a yellow stripe).
• An anti-oxidant compound (Dell Networking recommends NOALOX 4 or
equivalent).
• A crimping tool.
• A thread-locker compound (Dell Networking recommends Threadlocker
Blue 242 or equivalent).
1. Attach the end of the ground wire to the GND lug:
a. Coat the bare end of the wire with an anti-oxidant compound.
b. Insert the end of the wire into the lug.
c. Crimp the lug end to secure the connection of wire to lug.
7

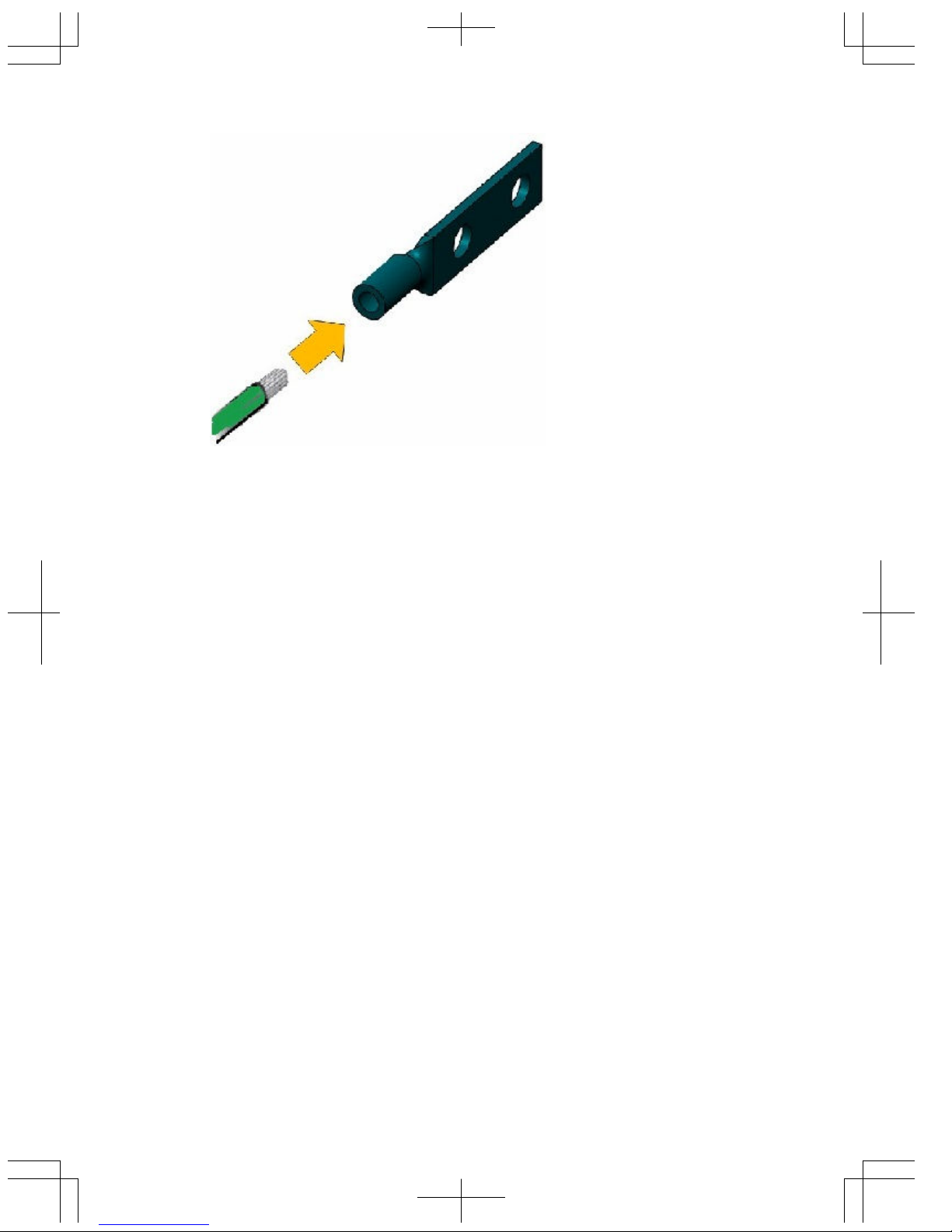

Figure 1. Ground Wire End and GND Lug Opening
2. Apply the thread-locker compound to the two flat head screws, then
attach the GND lug to the L-bracket.
8

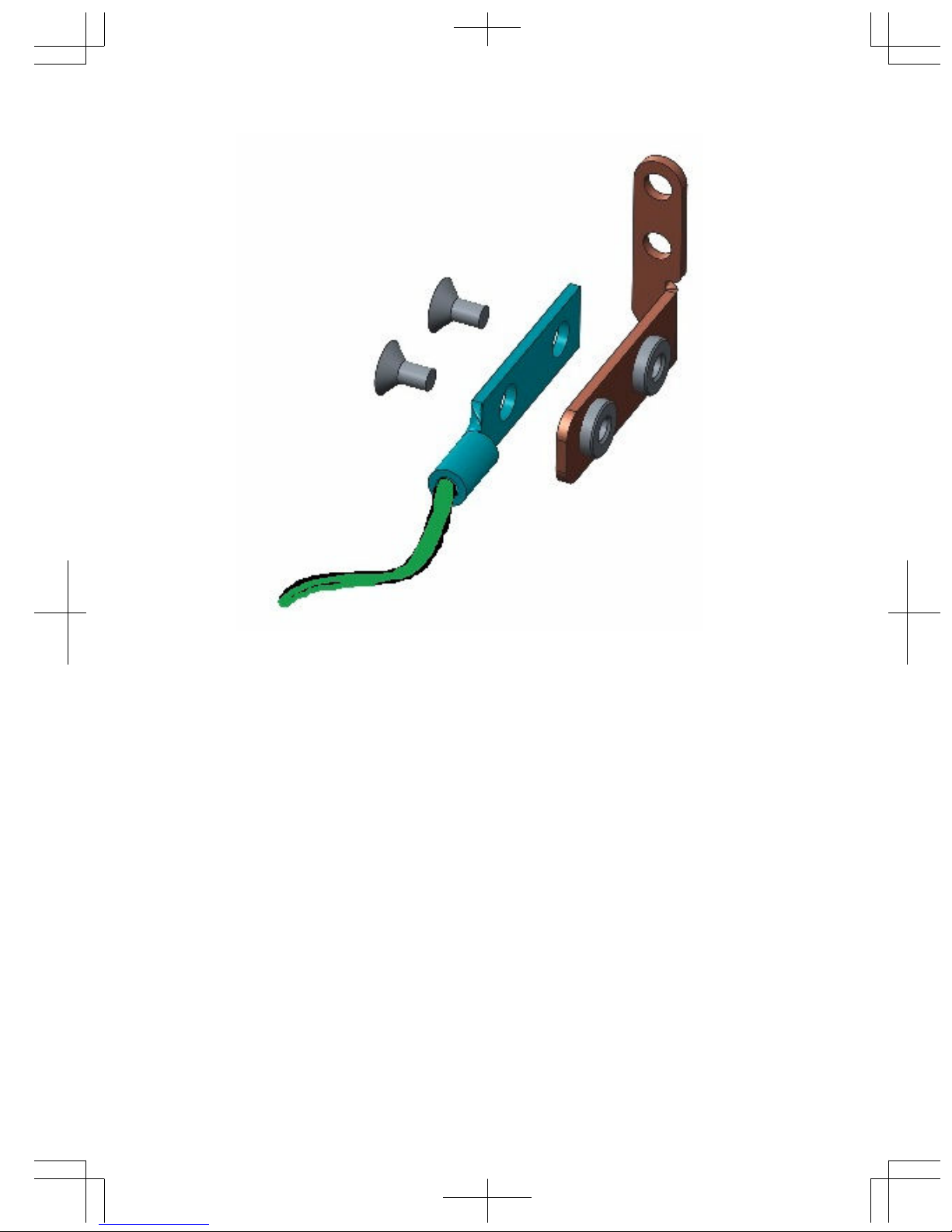

Figure 2. Screws, GND Lug, and L-Bracket
3. Attach the assembly to the S6010-ON chassis:
a. Apply the thread-locker compound to the two pan head screws.
b. Attach the GND lug and bracket assembly to the two-hole chassis
ground connector nuts on the S6010-ON PSU side, tightening the
screws to ensure torque between 3–5 inch/lbs.
9

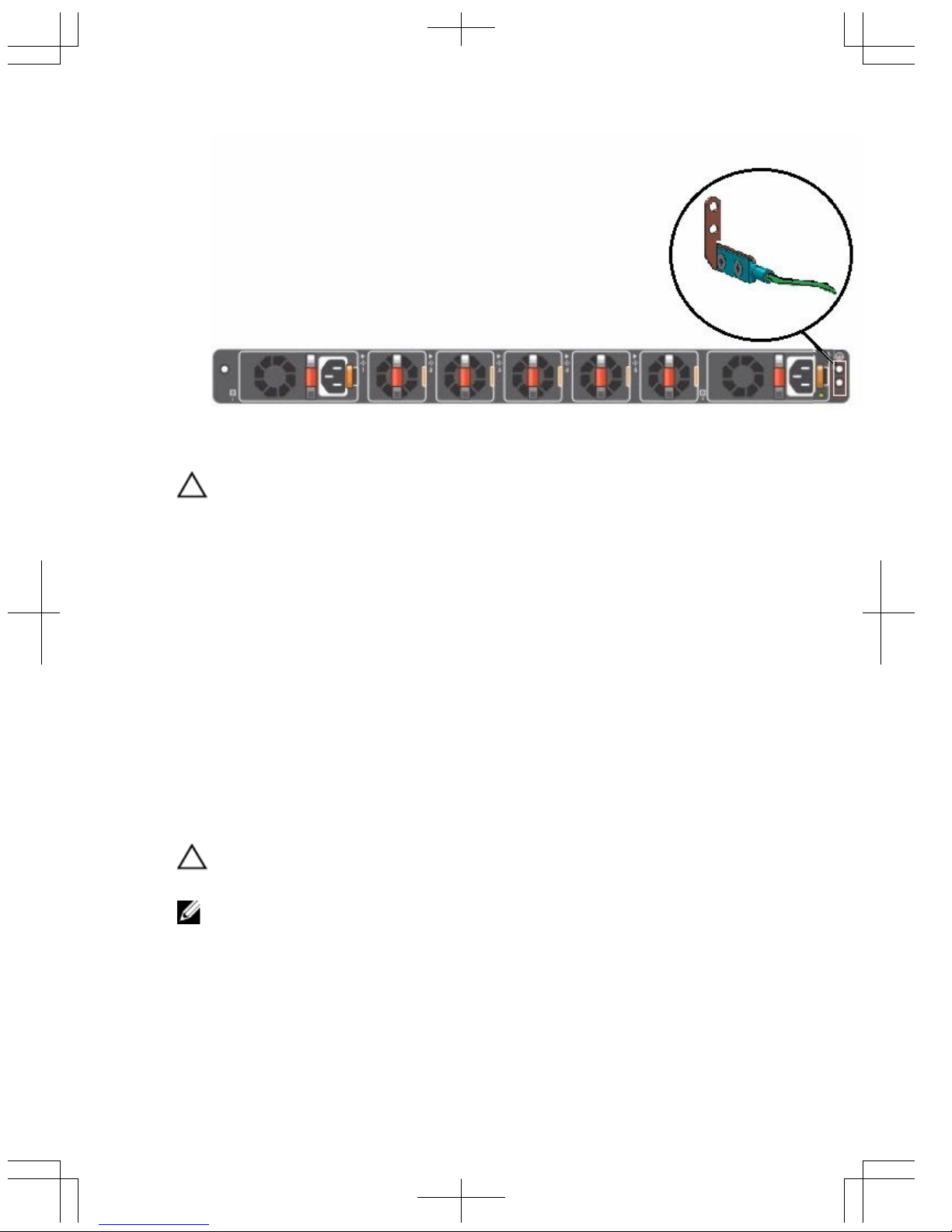

Figure 3. Attaching Assembly to S6010-ON PSU Side
CAUTION: Take care not to damage the attached ground wire as you
proceed to install the switch.
After the switch is installed in the rack, see Completing the Ground Wire
Installation.
Installing the Dell ReadyRails System
The ReadyRails rack mounting system is provided to easily configure your
rack so that you can install your switch.
The Dell ReadyRails™ system is provided for 1U front-rack and two-post
installations. The ReadyRails system includes two separately packaged rail
assemblies and two rails that are shipped attached to the sides of the switch.
Install the ReadyRails system using the 1U tool-less method or one of three
possible 1U tooled methods (two-post flush mount, two-post center mount,
or four-post threaded).
CAUTION: Do not use the mounted ReadyRails as a shelf or a
workplace.
NOTE: The illustrations in this document are not intended to represent a
specific switch.
10

1U Tool-less Configuration
To install the Dell ReadyRails system using the 1U tool-less configuration,
follow these steps.
1. With the ReadyRails flange ears facing outward, place one rail between
the left and right vertical posts. Align and seat the back flange rail pegs in
the back vertical post flange. To see how the pegs appear in both the
square and unthreaded round holes, see item 1 in the following figure.
2. Align and seat the front flange pegs in the holes on the front side of the
vertical post.
3. Repeat this procedure for the second rail.
4. To remove each rail, pull on the latch release button on each flange ear
and unseat each rail.

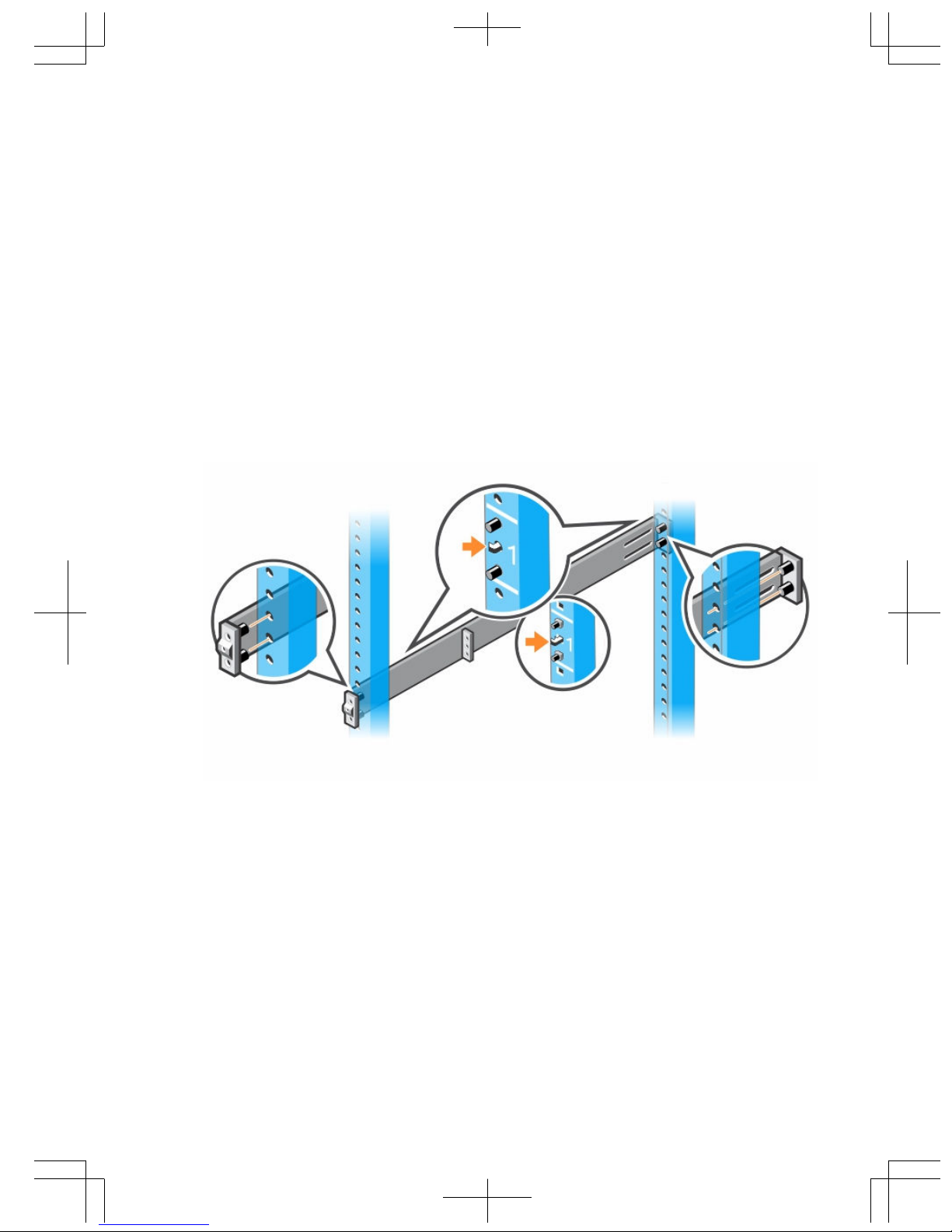

Figure 4. 1U Tool-less Configuration
Two-Post Flush-Mount Configuration
To install the Dell ReadyRails system using the two-post flush-mount
configuration, follow these steps.
1. For this configuration, remove the castings from the front side of each
ReadyRails assembly. See item 1 in the following figure. Use a Torx driver
to remove the two screws from each front flange ear (on the switch side
11

of the rail) and remove each casting. Retain the castings for future rack
requirements. It is not necessary to remove the rear flange castings.
2. Attach one rail to the front post flange with two user-supplied screws.
See item 2 in the following figure.
3. Slide the plunger bracket forward against the vertical post and secure the
plunger bracket to the post flange with two user-supplied screws. See
item 3 in the following figure.
4. Repeat this procedure for the second rail.
Figure 5. Two-Post Flush-Mount Configuration
12

Two-Post Center-Mount Configuration
To install the Dell ReadyRails system using the two-post center-mount
configuration, follow these steps.
1. Slide the plunger bracket rearward until it clicks into place and secure the
bracket to the front post flange with two user-supplied screws. See item
1 in the following figure.
2. Slide the back bracket towards the post and secure it to the post flange
with two user-supplied screws. See item 2 of the following figure.
3. Repeat this procedure for the second rail.
Figure 6. Two-Post Center-Mount Configuration
13

Four-Post Threaded Configuration
To install the Dell ReadyRails system using the four-post threaded
configuration, follow these steps.
1. For this configuration, remove the flange ear castings from each end of
the ReadyRails assemblies. Use a Torx driver to remove the two screws
from each flange ear and remove each casting. See item 1 of the
following figure. Retain the castings for future rack requirements.
2. For each rail, attach the front and rear flanges to the post flanges with
two user-supplied screws at each end. See item 2 of the following figure.
14

Figure 7. Four-Post Threaded Configuration
Install the System
You can mount the system in the 1U front-rack or 1U two-post (flush and
center) configurations. For the 1U two-post (flush and center) configurations,
slide the system into the rails in the same manner as the four-post
configurations.
The following is an example of a 1U front-rack configuration.
15

Installing a 1U Front-Rack
You must configure the rails that are attached to the system.
1. Attach the switch rails (inner chassis members) to the S6010–ON system
( items 1 and 2 in the following figure). Item 3 shows the detail for the
front standoff with the locking tab.
Figure 8. Attaching the Switch Rails
2. After you have installed both switch rails, line them up on the previously
mounted Ready-Rails and slide the switch in ( item 1 in the following
figure) until it is flush with front of rack. About 3 inches before you fully
insert your system, the rail locking feature (items 2 and 3) engages to
keep the switch from inadvertently sliding out of the rack and falling.
16

Figure 9. Installing the S6010–ON in a Front-Rack Configuration
1. Chassis. 2. Rail end.
3. Rail locking feature.
Completing the Ground Wire Installation
After you have installed the S6010-ON switch in a rack, complete the
installation of the ground wire.
You previously installed the GND lug and bracket assembly, with ground wire
attached, to the S6010-ON chassis (see Installing the Ground Lug and Bracket
Assembly).
You must supply:
17

• One two-hole UL-certified GND lug (to attach ground wire to rack).
• Two NEC (National Electric Code) compliant screws (to attach GND lug to
rack)
• Anti-oxidant compound.
• Crimping tool.
1. Measure and cut a length of wire sufficient to reach between the system-
installed GND lug and the rack-end GND lug.
2. Attach the end of the wire to the rack-end GND lug.
a. Coat the bare end of the wire with an anti-oxidant compound.
b. Insert the end of the wire into the lug.
c. Crimp the lug end to secure the connection.
Figure 10. Ground Wire End and GND Lug Opening
3. Install the second GND lug in compliance with NEC guidelines at the
desired location on your rack to be used for grounding the switch.
a. Ensure the rack mating surface is clean.
b. Bring any bare metal to a bright finish.
c. Apply the anti-oxidant compound to the mating surfaces prior to
mating.
Installing AC or DC Power Supplies
The S6010-ON is designed to support two hot-swappable power supplies
with integrated fans that provide cooling for the chassis. The system supports
18
