Dell Streak 7 Tablet Features 7
Dell Streak 7 Tablet Features
This section provides information about the features available on your
device.

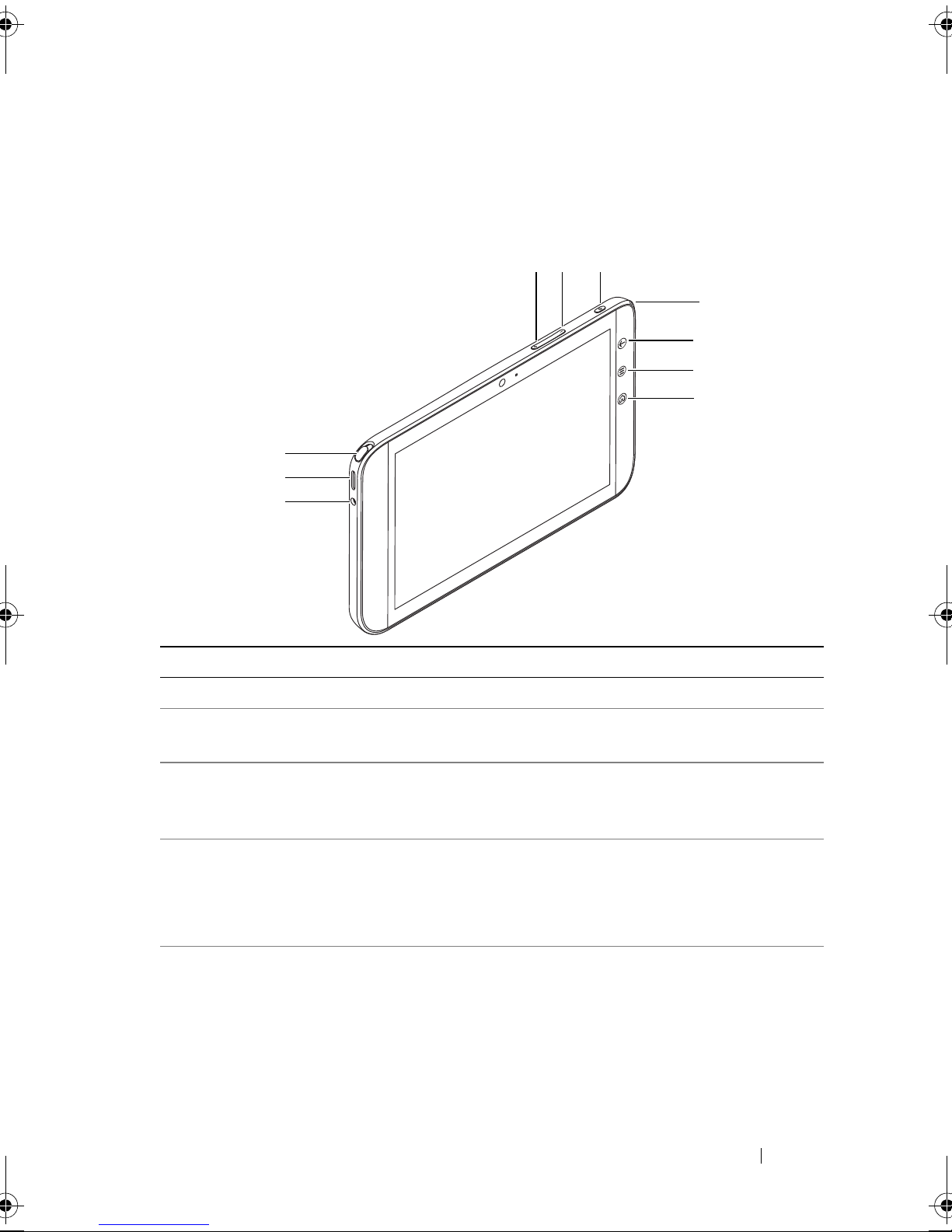

Buttons/Connectors/Parts Functionality
1Headphone connector Connects to headphones.
2Speaker Provides audio output for video and music
playback.
3TV antenna
(available on select models
only)
Used for improving the reception of
television signals.
4Volume up button • Press to increase the media volume by
one level.
• Press and hold to continuously increase
the media volume.
5Volume down button • Press to decrease the media volume by
one level.
• Press and hold to continuously
decrease the media volume.
65
3
2
1
4
9
10
8
7
LG7_bk0.book Page 7 Thursday, January 27, 2011 2:16 PM

8Dell Streak 7 Tablet Features
6Power and Sleep/Wake button • Press and hold to turn on the device.
• Press to turn the screen on or off.
• While the device is on, press and hold
to select one of these options:
–Silent mode: The device is set to
vibrate mode; all sounds are disabled
except for alarms.
–Airplane mode: Disable all wireless
connections.
–Power off: Turn off the device.
7Battery status light Indicates the battery charge status and
pending notifications. The different lights
indicate the following:
• Solid green — Battery is fully charged
when connected to power.
• Solid amber — Battery is charging.
• Solid red — Battery charge is low and
the battery is charging.
• Blinking red — Battery charge is low.
• Blinking green — Indicates pending
notifications.
8Back button Touch to return to the previous screen,
close a dialog box, menu, or pop-up
message, and to dismiss the keyboard.
9Menu button Touch to open or close options menus
that display available tools for the current
application or actions that you can
perform on the current screen.
10 Home button • Touch to open the central Home
screen.
• Touch and hold for quick access to the
most recently used applications.

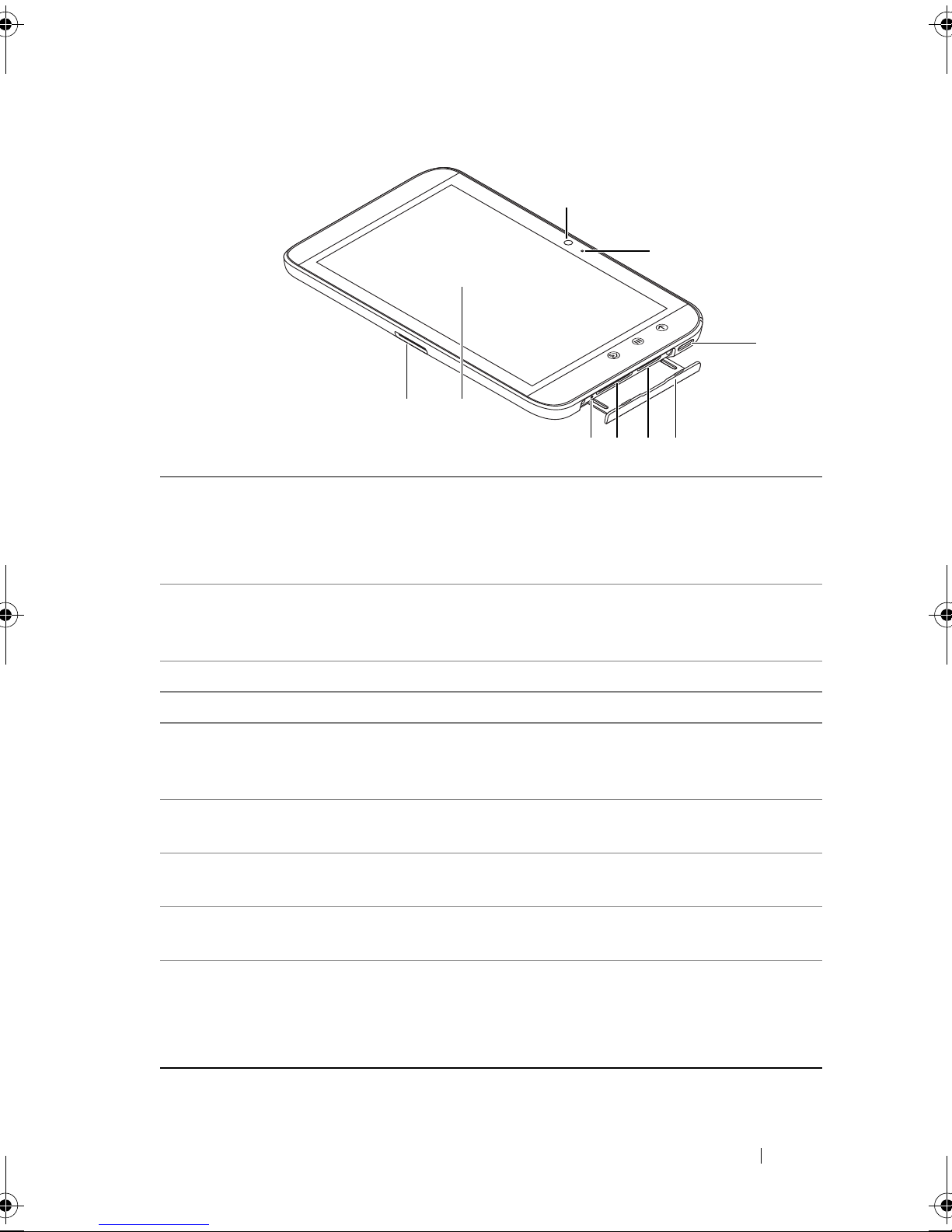

Buttons/Connectors/Parts Functionality
LG7_bk0.book Page 8 Thursday, January 27, 2011 2:16 PM

Dell Streak 7 Tablet Features 9
130-pin connector • Connects to the supplied USB cable for
transferring files to and from a computer.
• Connects to the supplied USB cable and USB
wall charger adapter to charge the device.
2Touch screen Touch the screen to use on-screen controls
including buttons, menu items, and the
keyboard.
3Force-power-off button Push the button to force power off the device.
4SD card slot Holds the SD card in place.
5SIM card slot
(available on select
models only)
Holds the SIM card in place.
6Slot door Provides access to the SIM card and SD card
slots.
7Speaker Provides audio output for video and music
playback.
8Microphone Used for making video calls with supportive
web applications, such as Skype.
9Front-facing camera • Used for capturing a front view picture, for
example, a self-portrait.
• Used for making video calls with supportive
web applications, such as Skype.
9
7
12
4 5 63
8
LG7_bk0.book Page 9 Thursday, January 27, 2011 2:16 PM

10 Dell Streak 7 Tablet Features

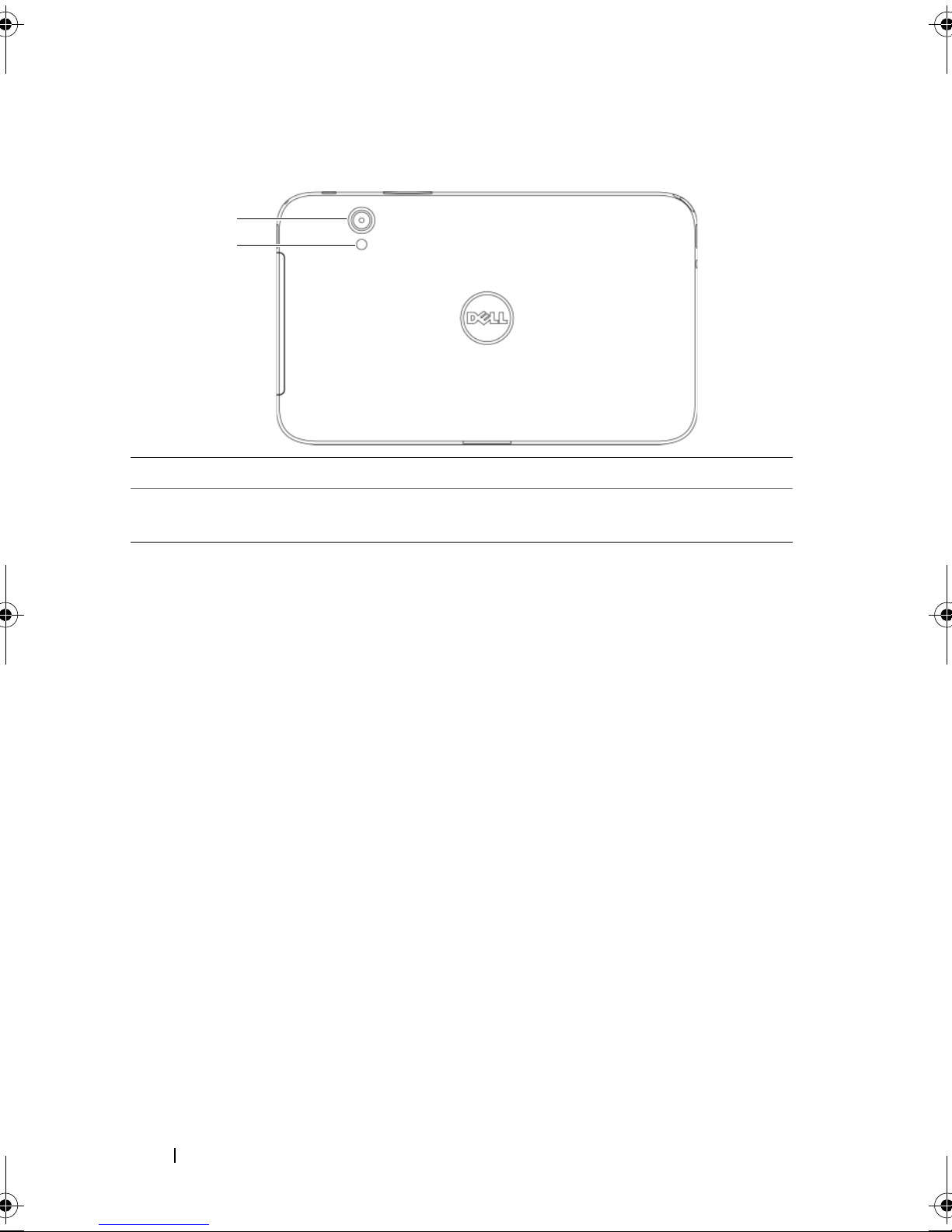

1Camera lens Captures pictures and videos.
2Camera flash Used for capturing pictures and
videos in dimly lit environments.
1
2
LG7_bk0.book Page 10 Thursday, January 27, 2011 2:16 PM

Setting Up Your Dell Streak 7 Tablet 11
Setting Up Your Dell Streak 7
Tablet
Getting Your Device Ready for Use

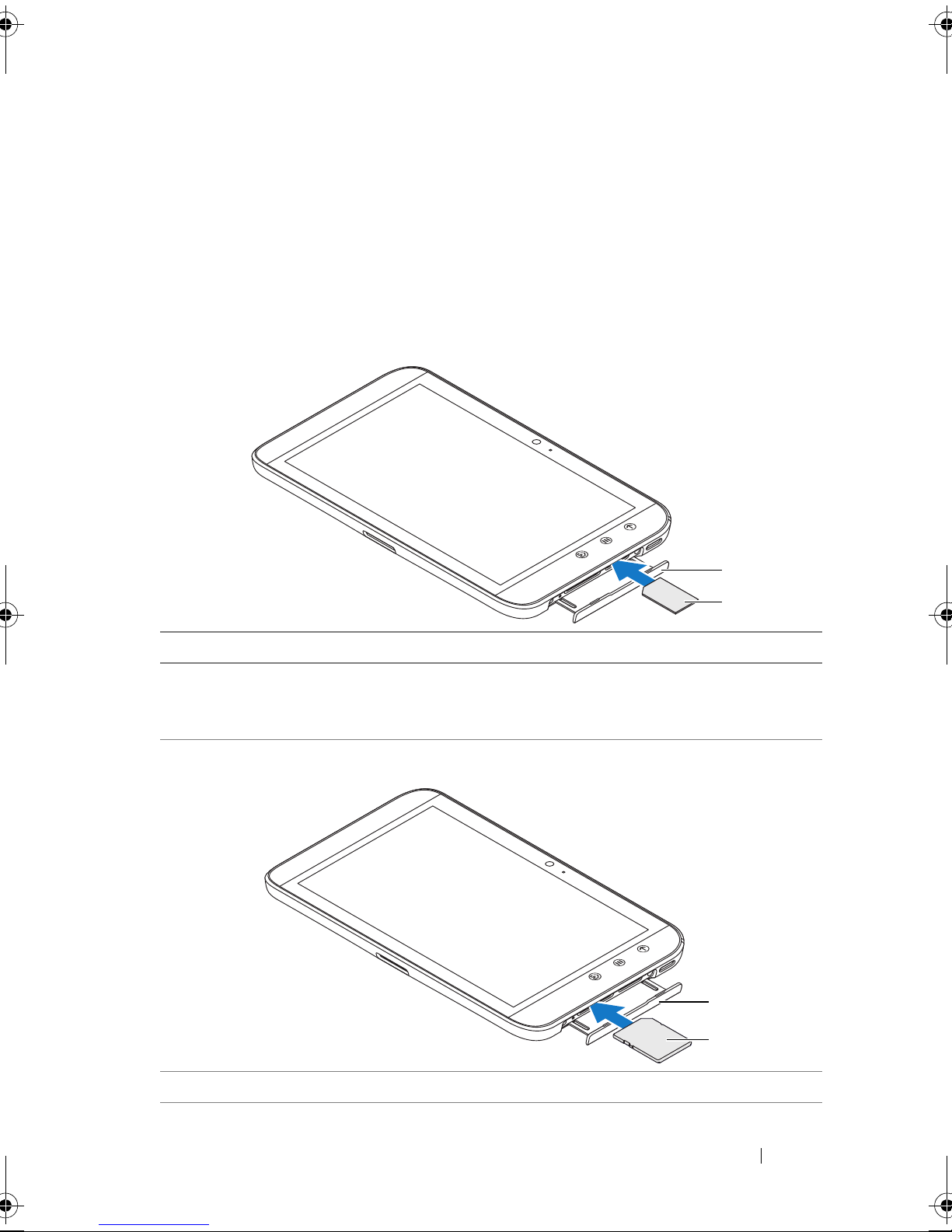

Insert the SIM card
Insert the SD card
1Pull out the slot door.
2Hold the SIM card with the metal contacts facing down, and follow the
SIM card illustration on the slot door label to insert the SIM card into the
SIM card slot.
1Pull out the slot door.
2
1
2
1
LG7_bk0.book Page 11 Thursday, January 27, 2011 2:16 PM

12 Setting Up Your Dell Streak 7 Tablet
Charge the battery
NOTE: Charge the battery in an environmental temperature between
0°C and 45°C.
NOTE: The battery is not fully charged when first unpacked.
1Connect the supplied USB cable's 30-pin connector into the 30-
pin connector on the device.
2Connect the cable's USB connector into the supplied USB wall
charger adapter.
3Connect the USB wall charger adapter into an electrical outlet
and charge the device until the battery is fully charged.
NOTE: When charging the battery by connecting the device to an
electrical outlet, the battery requires about 4 hours to be fully charged.
2Hold the SD card with the metal contacts facing down, and follow the
SD card illustration on the slot door label to insert the SD card into the
SD card slot.
LG7_bk0.book Page 12 Thursday, January 27, 2011 2:16 PM

Setting Up Your Dell Streak 7 Tablet 13
Turning On Your Device
NOTE: Use this device in an environmental temperature between -10°C
and 55°C.
1Press and hold the Power and Sleep/Wake button to turn on
your device. The operating system starts up.
2If the screen is locked automatically, flick the icon up to
unlock the screen.
3If your SIM card is locked by a Personal Identification Number
(PIN), type the PIN by touching the corresponding number keys
using the on-screen keypad. Touch the OK button to confirm
your input.
The device is ready for use when the Home screen is displayed.
Turning Off Your Device
1Press and hold the Power and Sleep/Wake button .
2Touch the Power off option on the screen.
Turning Off the Screen
If both the device and the screen are on, press the Power and
Sleep/Wake button once to turn off the screen.
NOTE: If the device is on, but the screen is off, press the Power and
Sleep/Wake button once to turn on the screen. For information on
unlocking the screen, see "The Screen Lock Wallpaper" on page 35.
LG7_bk0.book Page 13 Thursday, January 27, 2011 2:16 PM

14 Understanding Your Dell Streak 7 Tablet
Understanding Your Dell
Streak 7 Tablet
Out-Of-Box Wizard
To view the on-screen Out-Of-Box Wizard for basic controls of your
device, touch the Home button the Launcher button 
welcome, and follow the instructions to proceed.
You can play the wizard videos to get a quick overview of the device.
At any point during the video, you can touch CONTINUE and
PREVIOUS to go to the next or previous page.
After viewing the last page, touch DONE to return to the Home screen.
Touch Screen
Your device has a multi-touch sensitive screen. You can touch the
surface of the screen to operate the device.

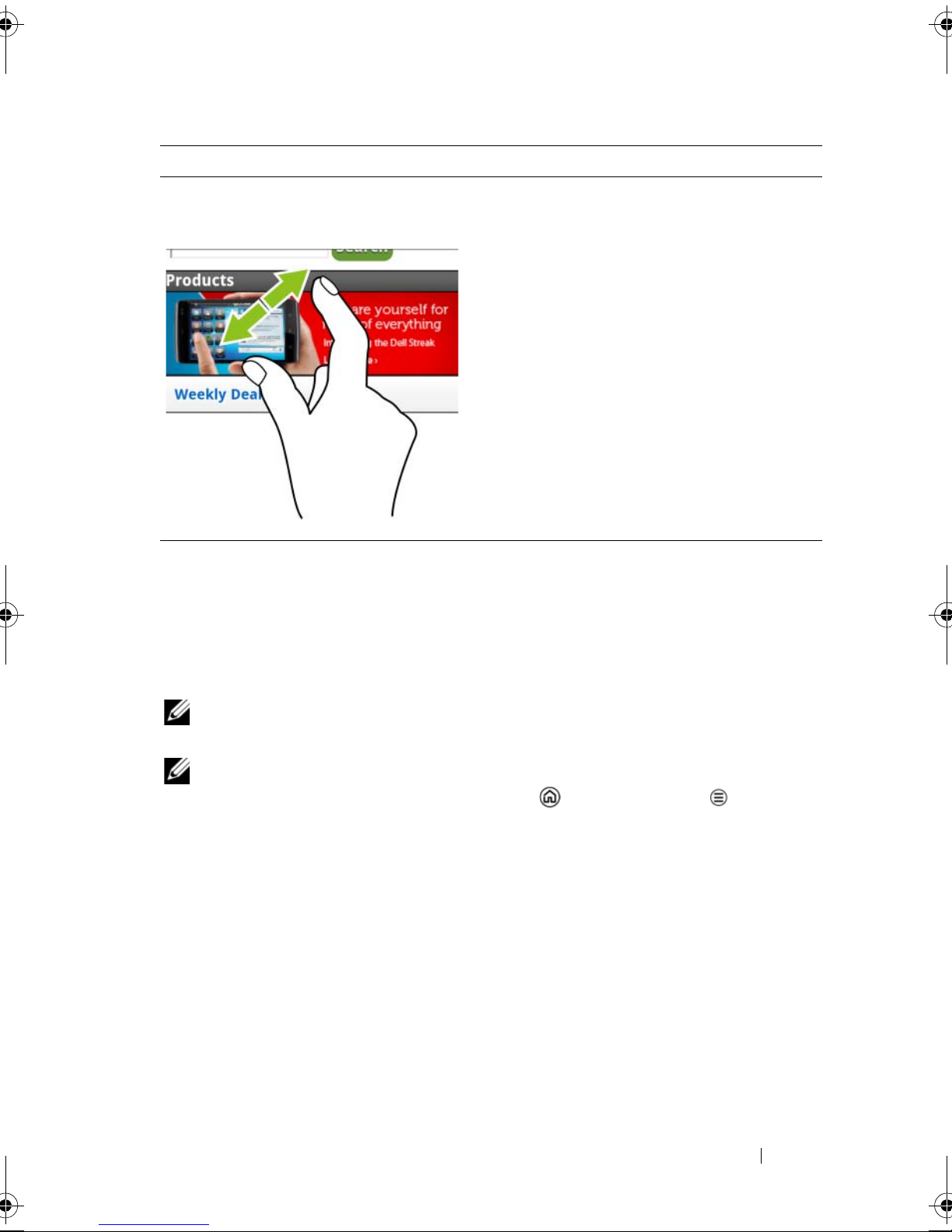

Finger Gestures Allows you to:
Touch
Tap gently on the screen with your
fingertip.
• Select the items on the screen
including options, entries, images,
and icons.
• Start applications.
• Press the buttons on the screen.
• Input text using the on-screen
keyboard.
LG7_bk0.book Page 14 Thursday, January 27, 2011 2:16 PM

Understanding Your Dell Streak 7 Tablet 15
Touch and hold
Touch and hold your finger on the
screen.
• Enable the moving mode of an
item on the Home screen.
• Open the context menu.
Drag
1Touch and hold your finger on an
item on the screen.
2Keeping your finger in contact with
the screen, move your fingertip to
the desired location.
3Take your finger off the screen to
drop the item in the desired
location.
• Move items such as images and
icons on the screen.
• Scroll through Home screens, web
pages, lists, entries, photo
thumbnails, contacts, and so on.
Finger Gestures Allows you to:
LG7_bk0.book Page 15 Thursday, January 27, 2011 2:16 PM

16 Understanding Your Dell Streak 7 Tablet
Flick or swipe
Move your finger in a vertical or
horizontal direction on the
screen.
Quickly scroll through Home screens,
web pages, lists, entries, photo
thumbnails, contacts, and so on.
Zoom out
Move two fingers close together on
the screen.
Reduce the view of an image or web
page
(zoom out).
Finger Gestures Allows you to:
LG7_bk0.book Page 16 Thursday, January 27, 2011 2:16 PM

Understanding Your Dell Streak 7 Tablet 17
Screen Orientation
For optimal viewing experience, the screen orientation changes
automatically to portrait or landscape format depending on how you
hold the device.
NOTE: Applications downloaded from the Android Market may not
support automatic screen rotation to portrait or landscape format.
NOTE: To modify the default rotating behavior, open the rotation
settings by touching the Home button Menu button 
SettingsDisplayAuto-rotate screen.
Applications, Widgets, and Shortcuts
Application — Software which allows you to perform a specific task.
Your device is preloaded with a variety of applications, and additional
applications can be downloaded from the Android Market.
Widget — A small application which resides on the Home screen and
provides quick and easy access to information. For example, the
Facebook widget allows you to read posts on your wall and update
your status.
Zoom in
Move two fingers apart on the screen. Enlarge the view of an image or web
page
(zoom in).
Finger Gestures Allows you to:
LG7_bk0.book Page 17 Thursday, January 27, 2011 2:16 PM

18 Understanding Your Dell Streak 7 Tablet
Shortcut — A link that you can create on your Home Screen to provide
quicker access to an application or a folder containing contacts or
bookmarks.

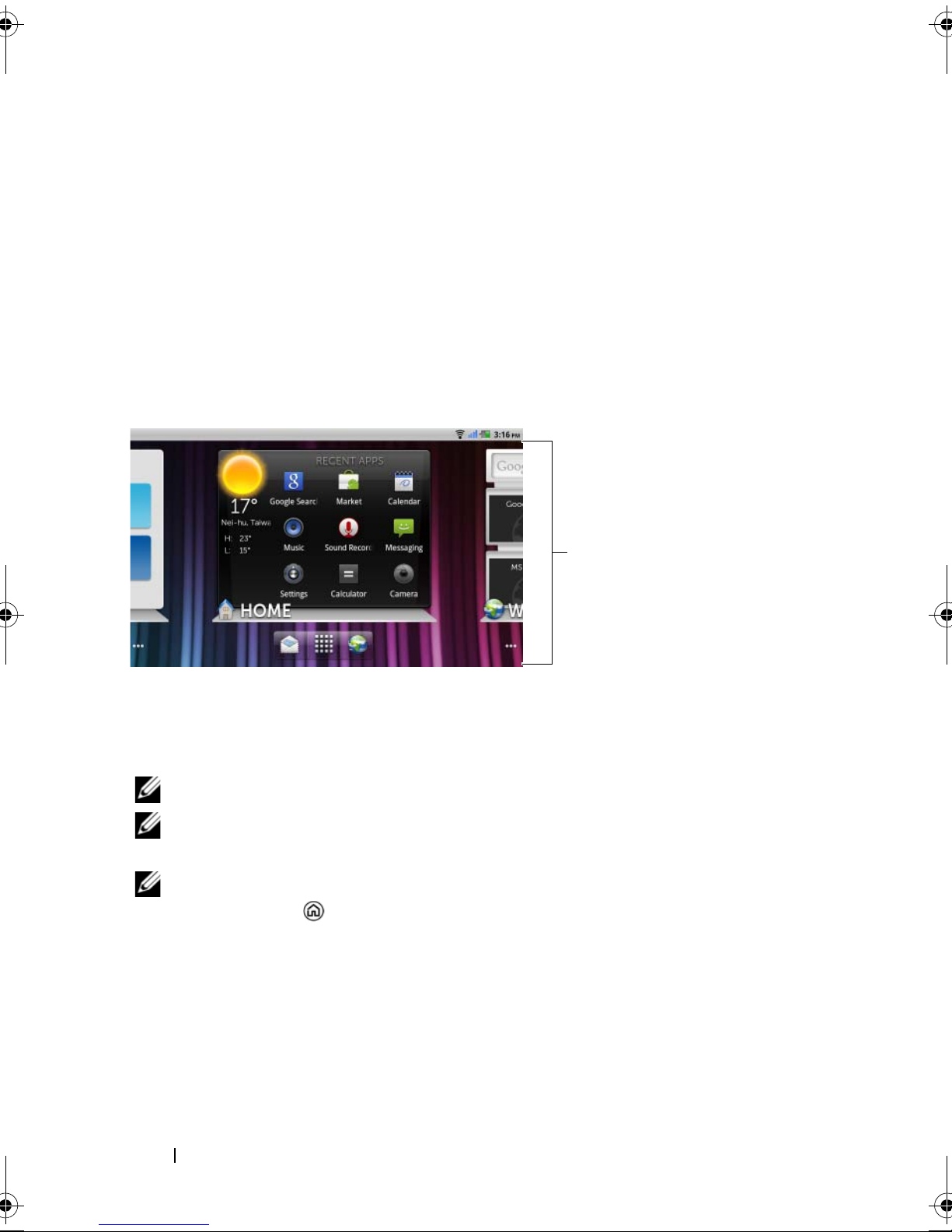

The Dell™ Stage Desktop
The Dell Stage desktop is composed of multiple screens including the
Home screen. The desktop displays predefined Stage widgets,
shortcuts, and widgets to give you quick and easy access to
frequently-used applications, Twitter or Facebook postings, music,
pictures, and more.
You can personalize the Stage desktop by adding your own shortcuts
or widgets, or by displaying your favorite picture as the desktop
wallpaper.
NOTE: The desktop screens are fixed, and cannot be added or deleted.
NOTE: For more information on using Dell Stage widgets, see "Dell™
Stage Widgets" on page 21.
NOTE: To return to the Home screen from anywhere, touch the Home
screen button .
Home screen
LG7_bk0.book Page 18 Thursday, January 27, 2011 2:16 PM

Understanding Your Dell Streak 7 Tablet 19

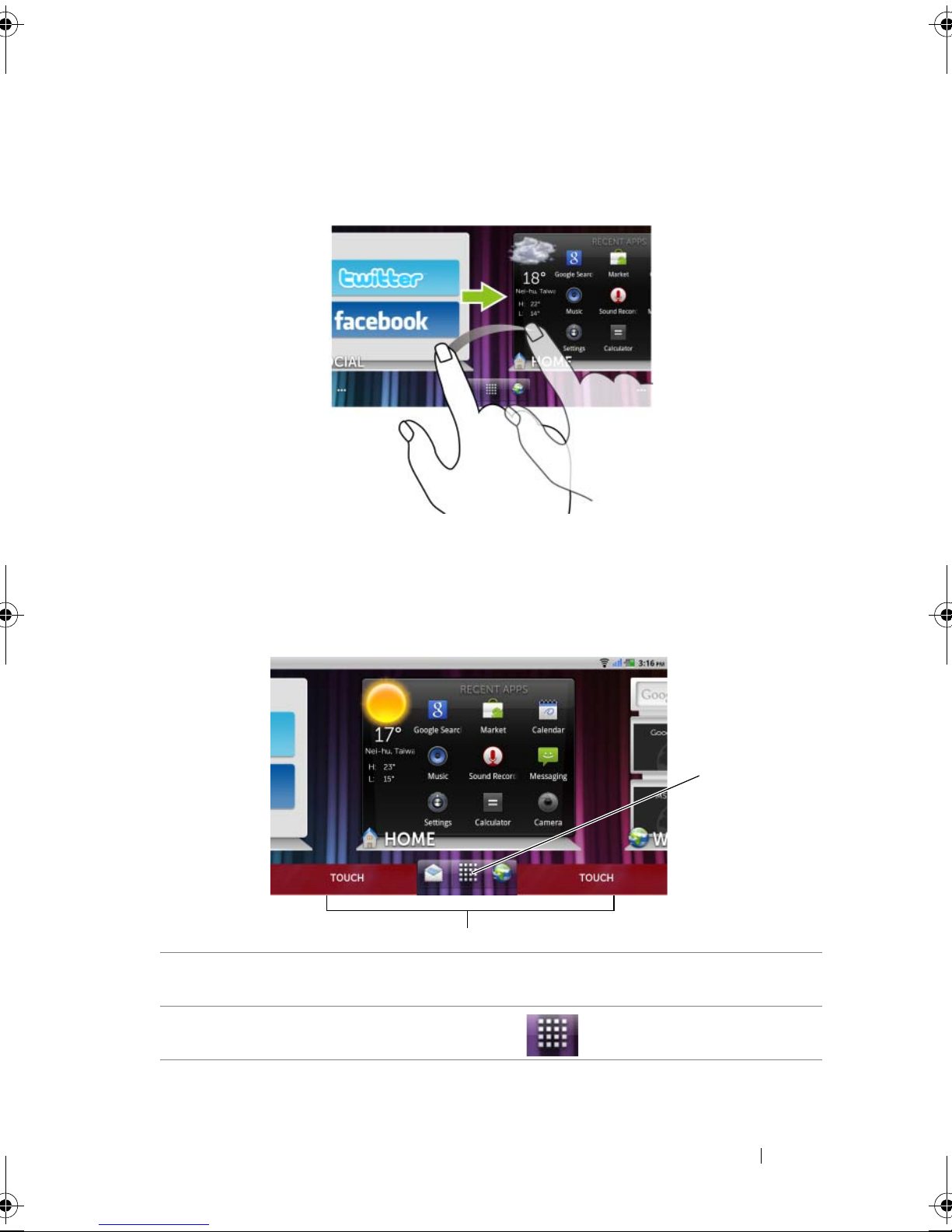

To navigate across the desktop
Flick the desktop horizontally until the desired Home screen is
displayed.
To navigate the Home screens using Home screen thumbnails
The Home screen thumbnails act as shortcuts to their individual Home
screens. The icon of the thumbnail represents the Stage widget.
• To view the Home screen thumbnails:
1Touch the bottom area on either side of the quick buttons, as illustrated
in red.
2Touch and hold the Launcher button to display the thumbnails.
1
2
LG7_bk0.book Page 19 Thursday, January 27, 2011 2:16 PM

20 Understanding Your Dell Streak 7 Tablet

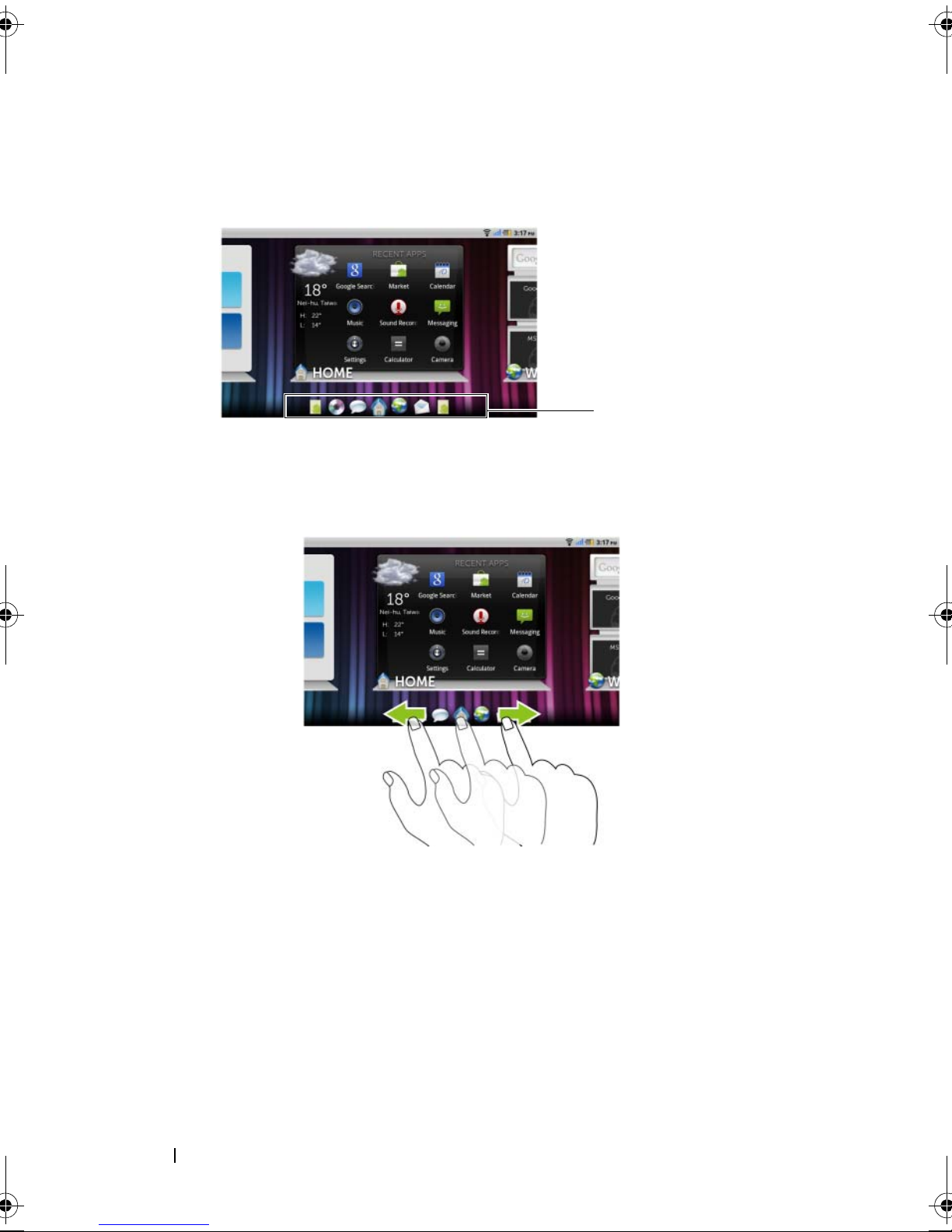

• To control the Home screens using the thumbnails, either:
– Touch the corresponding thumbnail to go to the desired
screen.
– To quickly pan through the Home screens, drag your finger
horizontally across the thumbnails, until the desired Home
screen appears.
Home screen
thumbnails
LG7_bk0.book Page 20 Thursday, January 27, 2011 2:16 PM
