dellonda DG22 User manual

www.dellonda.co.uk
Dellonda 3 Burner Gas Plancha Grill BBQ
with Piezo Ignition, Stainless Steel, 7.5kW
Model No. DG22
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used
according to these instructions, and properly maintained, give you years of trouble free performance.
DG22 Issue:3 28/07/21

2 www.dellonda.co.uk
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions.
Use the product correctly and with care for the purpose for which it is intended. Failure to do so
may cause damage and/or personal injury and will invalidate the warranty. Keep these instructions
safe for future use.
Contents
Refer to
instruction
manuals
Warning: Hot
Surface
Wear Gloves
Specications
No. of burners: 3
Cooking Area (W x D): 620 x 360mm
Product Dimensions (W x D x H): 650 x 470 x
240mm
Ignition: Piezo
Power: 7.5kW (2.5kW per burner)

www.dellonda.co.uk 3
About the Product
Gas plancha with three stainless steel burners.
Piezo ignition ensures a safe and easy start-up
every time. 3.5mm high quality steel cooking
plate with an enamel coating. Product Size
(W x D x H): 650 x 470 x 240mm. Supplied
with regulator and hose assembly for use with
propane patio gas bottles.
Safety Instructions
• WARNING! The warnings, cautions and
instructions in this manual cannot cover all
possible conditions and situations that may
occur. It must be understood by the operator
that common sense and caution are factors
which cannot be built into this product, but
must be applied by the operator.
• Use outdoors only.
• WARNING! Hazardous re or explosion may
result if instructions are ignored.
• WARNING! Never use a ame to do the leak
test and ensure no naked ames are nearby
when doing the leakage test.
• WARNING! Accessible parts may be very hot.
Keep young children and pets away.
• WARNING! If you smell gas: turn off the
gas supply at the cylinder, extinguish all
naked ames, DO NOT operate any electrical
appliances, check for leaks as detailed in this
manual. If odour persists, contact Dellonda.
• WARNING! Any modication to this appliance
may be dangerous and is absolutely not
permitted.
• WARNING! The hood must always be open
when lighting the burner.
• Read the instructions carefully before
assembly and retain this manual for future
reference.
• Use outdoors only, stand on a level surface,
remember hot fat may drip out of the drip tray.
• Handle the hot barbecue with the help of oven
gloves.
• The plancha should be cleaned on a regular
basis. Take care not to enlarge burner ports of
orice openings when cleaning the burner or
valves.
• Connect the regulator and hose onto the gas
cylinder, close all the valves by turning the
control knobs to the “OFF” (fully clockwise)
position.

4 www.dellonda.co.uk
• Always do the gas leak check before you use
the barbecue and after a cylinder change. Test
the leakage on all the connections where gas
passes by.
• GAS LEAK CHECK Put soapy water on all the
connections where the gas reaches. Open the
gas cylinder valve and regulator. If bubbles are
seen, tighten the connection. If bubbles are
still seen, close all valves, turn off the regulator
and contact Dellonda for help.
• Never use the plancha with a leak.
• The gas cylinder can only be changed by a
competent person.
• Use oven gloves and sturdy long handled
barbecue tools when cooking on the plancha.
• Be prepared if an accident or re should
occur. Know where your rst aid kit and
re extinguishers are and how to use them
correctly.
• Keep the gas supply hose away from any
heated surfaces.
• Ensure the appliance has completely cooled
before storing.
• Cylinders must be stored outdoors, upright
and out of reach of children. Protect cylinder
from high temperatures and replace the plastic
port cap.
• This gas plancha is designed for outside use
only.
• DO NOT use in high winds.
• DO NOT move the plancha during use.
• DO NOT operate if there is a gas leak.
• DO NOT attempt to disconnect any gas tting
if your plancha is being used, including the gas
hose and regulator.
• DO NOT leave unattended, from being lit to
fully cooled.
• DO NOT use this plancha in a garage or any
enclosed area. Keep the surrounding area
clear, at least 1.0m from any combustible
materials and 0.5m from a brick wall.
• DO NOT attempt any unauthorised interference
of the main controls on this barbecue, i.e. gas
taps, injectors, valve etc.
• DO NOT attempt to use charcoal in this
plancha.
• DO NOT position on a surface that may be
damaged by hot fat or heat.
• DO NOT store petrol or other ammable
vapours or liquids in the vicinity of this
plancha.
Assembly
• WARNING! Although we take every effort to
ensure that the assembly process is as easy
as possible, it is inherent with fabricated steel
parts that corners and edges can cause cuts if
improperly handled during assembly
procedures. Be careful while handling any
parts during assembly. It is strongly
recommended that you protect hands with a
pair of work gloves.

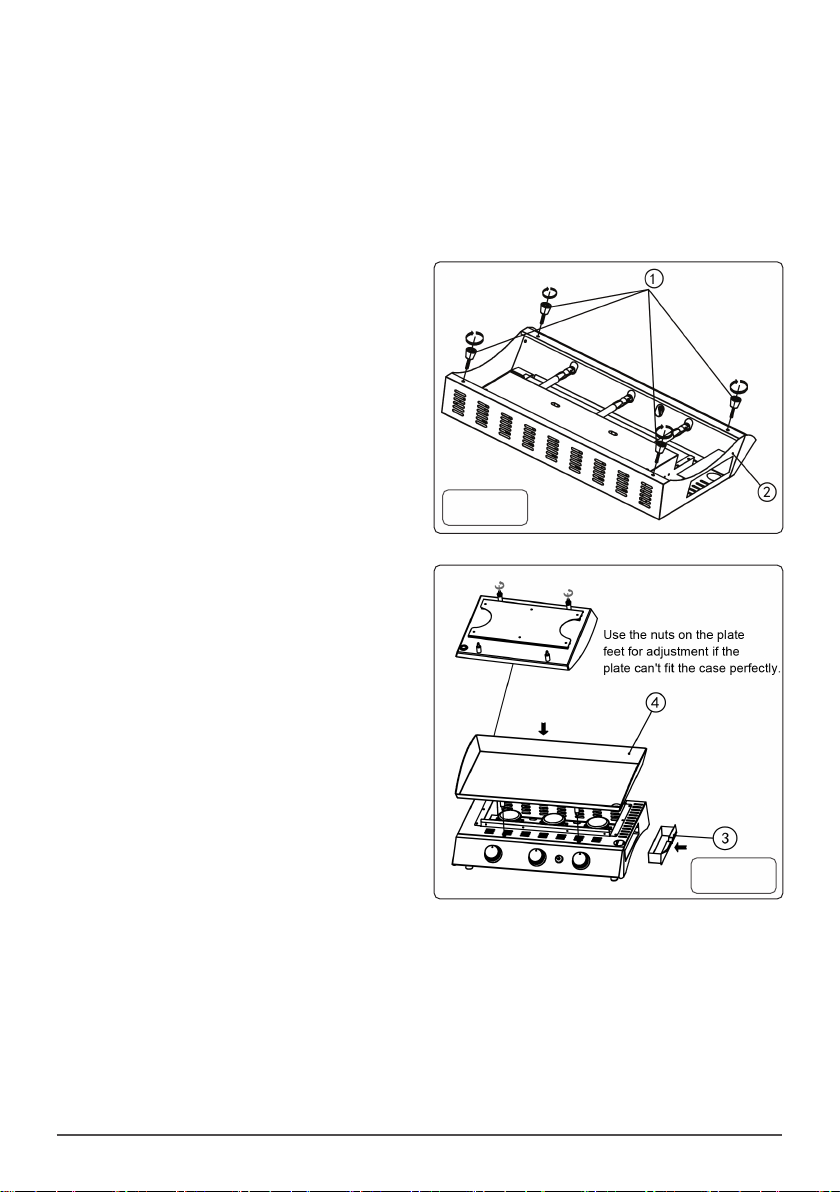

• Attach the feet to the burner unit (g.1).
• Attach the plancha to the burner unit (g.2.4).
• Insert the drip tray (g.2.3).
Positioning, Lighting, Usage &
Care Information
• Ensure the plancha is positioned on a
permanent, at, level, heat resistant non-
ammable surface that is capable of safely
carrying the weight of the plancha.
g.1
g.2

www.dellonda.co.uk 5
• Position the plancha away from ammable
items.
• Ensure the plancha has a minimum of 2m
overhead clearance and has a minimum 2m
clearance from other surrounding items.
• Follow these instructions carefully to avoid
seriously damaging your plancha and causing
injury to yourself and to property.
• 1. Assemble the plancha following the
assembly instructions carefully.
• 2. Connect the gas hose to the plancha using
the clips supplied. Connect the regulator to
the hose.
• 3. Connect the regulator to the cylinder valve
following the regulator instructions supplied
with the regulator.
• 4. Turn all of the control knobs to the ‘OFF’
position before turning on the gas supply to
the appliance.
• 5. Operate the regulator in accordance with the
instructions supplied with the regulator.
Lighting The Burners
• 1. Connect the gas cylinder to the plancha
following the instructions supplied with the
regulator.
• 2. Turn all the control knobs to the ‘OFF’
position.
• 3. Turn ‘ON’ the gas supply at the cylinder
or regulator switch following the regulator
connection and operating instructions. Check
with the use of soapy water for any gas
leakage between the bottle and the regulator
and the gas valve. Any leakage will show as
bubbles in the area of the leak. If leak is found
do not use the plancha. Consult your gas or
plancha supplier for advice.
• 4. To light the left hand burner, Push down
the left hand control knob and keep pressing
whilst turning anti-clockwise to the “Full rate”
position whilst press the ignition button sited
between the two knobs up to four times in
rapid succession. This will light the left hand
burner. If not please repeat this process.
• 5. If the burner has not lit after two attempts,
turn ‘OFF’ the gas tap and wait 5 minutes
before retrying the ignition sequence.
• 6. If the burner does not stay alight, please
repeat step 4.
• 7. When the burner is lit, adjust the heat by
turning the knob to the High/Low position.
• 8. To light the right hand burner, push down
the right hand control knob and keep pressing
whilst turning anti-clockwise to the “Full rate”
position whilst press the ignition button sited
between the two knobs up to four times in
rapid succession. This will light the right hand
burner. If not please repeat this process.
• 9. If the burner has not lit after two attempts,
turn ‘OFF’ the gas tap and wait 5 minutes
before retrying the ignition sequence.
• 10. If the burner does not stay alight, please
repeat step 8.
• 11. When the burner is lit. Adjust the heat by
turning the knob to the High/Low position.
• 12. To turn ‘OFF’ the plancha, turn the cylinder
valve or regulator switch to the ‘OFF’ position
by following the regulator instructions, turn
all of the control knobs on the appliance
clockwise to the “OFF” position when the
ame have extinguished.
• WARNING: If any burner fails to ignite, turn
the control knob off (clockwise) and also turn
the cylinder valve off. Wait ve minutes before
attempting to relight with ignition sequence.
• After use, close the gas supply by either
turning ‘OFF’ the switch on the regulator or
turning ‘OFF’ the cylinder valve.
• In the event of light back whilst the appliance
is in use. Turn all the controls, cylinder valve
and regulator switch to the ‘OFF’ position. Wait
5 minutes before attempting to relight the
appliance.
• If the problem persists after relighting, consult
Dellonda, or a qualied gas engineer for
assistance or repair. Never try to rectify the
problem yourself as this could result in serious
injury and/or property damage.
Using The Plancha
• Toss vegetables and rub meat with neutral
oil. Never add oil directly to the surface of the
plancha (it may ignite).
• When plancha is very hot (water dropped
on plancha will bead), use tongs to add
ingredients to plancha in a single layer.
To Check For Leaks
• Never check for leaks with a naked ame,
always use a soapy water solution
• Make 2-3 uid ounces of leak detecting
solution by mixing one part washing up liquid
with 3 parts water.
• Ensure the control valve is “OFF”.
• Connect the regulator to the cylinder and

6 www.dellonda.co.uk
connect regulator with hose and outdoor gas
grill, ensure the connections are secure then
turn ON the gas.
• Brush the soapy solution on to the hose and
all joints. If bubbles appear you have a leak,
which must be rectied before use. Turn off
the gas supply in the event of gas leak.
• Retest after xing the fault. Turn OFF the gas
at the cylinder after testing.
• If detected leakage can not be rectied, do not
attempt to cure leakage but consult Dellonda.

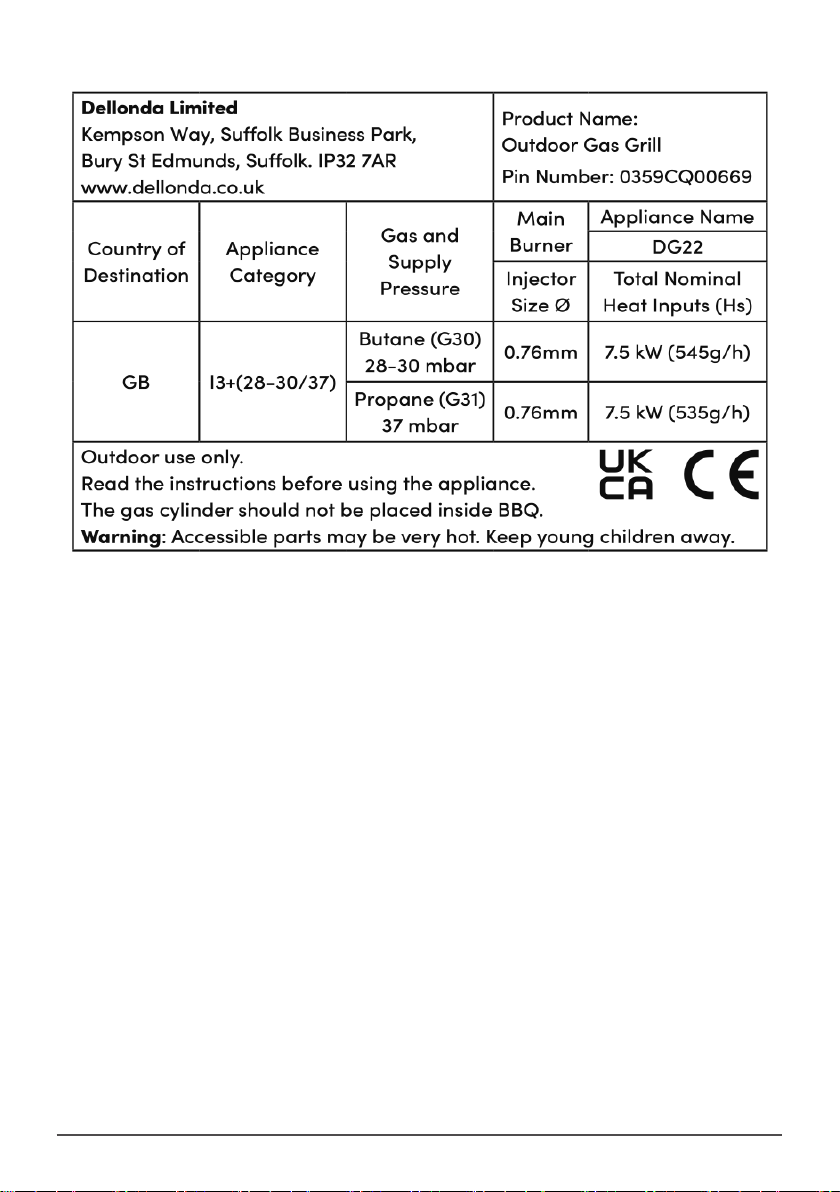

Regulator And Hose
• Only use regulators and hose approved
for LPG at the above pressures. The life
expectancy of the regulator is estimated as
10 years. It is recommended that the regulator
is changed within 10 years of the date of
manufacture.
• The use of the wrong regulator or hose is
unsafe; always check that you have the correct
items before operating the plancha.
• The hose used must conform to the relevant
standard for the country of use. The length
of the hose must be 1.5 meters (maximum).
Worn or damaged hose must be replaced.
Ensure that the hose is not obstructed, kinked,
or in contact with any part of the plancha
other than at its connection. Change the hose
when the national conditions require it and/or
depending on it validity.
• The hose should not be twisted or kinked
when attached to the regulator and outdoor
gas plancha.
• No part of the hose should touch any part
of the appliance. So site the cylinder out to
the left hand side of the appliance at the
maximum distant permitted by the hose
length.
Storage Of The Appliance
• Storage of an appliance indoors is only
permissible if the cylinder is disconnected
and removed from the appliance. When the
appliance is not to be used for a period of time
it should be stored in its original packaging in
a dry dust free environment.
• Clean the appliance of excess fat, before
storage, with a damp cloth using a mild
detergent solution as the cleaning agent.
• Store the appliance in a clean dry environment.
• DO NOT store your gas cylinder indoors.
• Store in a well ventilated area away from direct
sunlight.
Gas Cylinder
• The appliance can be used with any gas
cylinder of weights between 4.5KGS and
15KGS butane and 3.9KGS to 13KGS propane.
The gas cylinder should not be dropped or
handled roughly. If the appliance is not in use,
the cylinder must be disconnected. Replace
the protective cap on the cylinder after
disconnecting the cylinder from the appliance.
• Cylinders must be stored outdoors in an
upright position and out of the reach of
children. The cylinder must never be stored
where temperatures can reach over 50°C. Do
not store the cylinder near ames, pilot lights
or other sources of ignition. DO NOT SMOKE.
• The cylinder should be changed away from
any source of ignition.
Cleaning And Care
• DO NOT open the grease tray during use.
• CAUTION: All cleaning and maintenance
should be carried out when the barbecue is
cool and with the fuel supply turned OFF at
the gas cylinder. We would recommend that
this gas grill should be serviced by your local
gas retail outlet at least once a year by a
competent engineer. Do not attempt to service
this appliance yourself.
Cleaning
• COOKING SURFACE
• Clean the plancha while it is still hot. Soak
several paper towels with water, and roll them
up together like a cigar. Using a pair of tongs
to hold paper towels, rub surface of plancha
to remove residue. Let plancha and grill cool
before removing plancha.
• Use a mild soapy water solution. Non-abrasive
scouring powder can be used on stubborn
stains then rinse with water.
• OUTSIDE SURFACE
• Use mild detergent or baking soda and hot
water solution. Non-abrasive scouring powder
can be used on stubborn stains, then rinse
with water.
• NEVER USE OVEN CLEANER

www.dellonda.co.uk 7
• PLASTIC SURFACES
• Wash with a soft cloth and hot soapy
water solution. Rinse with water. DO NOT
use abrasive cleaners, degreasers or a
concentrated barbecue cleaner on plastic
parts.
• GREASE TRAY
• DO NOT open the grease tray during use.
• When clean the grease tray, take away the
grease cup rst then pull out the grease tray.
• Please check the grease cup regularly and
clear the grease when 1/3 full.
• To remove the grease tray carefully lift the tray
straight up before pulling it sideways out of
the plancha.
• Let the fat cool before attempting to clean the
grease tray.
• CLEANING THE BURNER ASSEMBLY
• Turn the gas OFF at the control knob and
disconnect the cylinder.
• Remove hot plate.
• Clean the burner with a soft brush or blow
clean with compressed air and wipe with a
cloth.
• Clean any clogged ports with a pipe cleaner or
stiff wire (such as an opened paper clip).
• Inspect burner for any damage (cracks or
holes). If damage is found, replace with a new
burner.
• Reinstall the burner, check to ensure that the
Gas valve orices are correctly positioned and
secured inside the burner inlet (venturi).
• In some cases your barbecue will light back
because of an insect crawling inside the
burner venturi or a spider spinning its web
inside the burner. This can be rectied by
using a bottle brush inserted through the
burner venturi and pushing it into the burner
over the burner length. If condition persists
consult Dellonda.
Servicing
• Your gas plancha should be serviced annually
by a competent registered person.

Environment Protection and Waste Protection and Electrical Equipment
Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has
reached the end of it’s useful life, please dispose of it in an environmentally friendly way. Drain any
fluids (if applicable) into approved containers, in accordance with local waste regulations. Under
the Waste Batteries and Accumulators Regulations 2009, Jack Sealey would like to inform the
user that this product contains one or more batteries. It is our policy to continually improve
products and we reserve the right to alter data, specifications and parts without prior notice.
No liability is accepted for incorrect use of this product. Guarantee is 12 months from purchase
date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Problem Possible cause Solution
Burners will not light using the
ignition system.
Gas cylinder empty.
Faulty regulator.
Obstructions in burner.
Obstructions in gas jet or gas
hose.
Wire is loose or disconnected on
electrode or ignition unit.
Electrode or wire is damaged or
faulty push button igniter.
The distance between the burner
and the electrode pin is too large
or too small
Replace with full cylinder.
Have regulator checked or
replace.
Cleans jets and gas hose.
Reconnect wire.
Change electrode wire or change
igniter. Check and ensure the
distance between
Low ame or ashback (ame
in burner tube, a hissing or
roaring noise may be heard).
Gas cylinder is too small.
Obstructions in burner.
Obstructions in gas jets or gas
hose.
Windy conditions.
Use larger cylinder.
Clean burner.
Clean jets and gas hose.
Use barbecue in a more sheltered
position.
Troubleshooting
