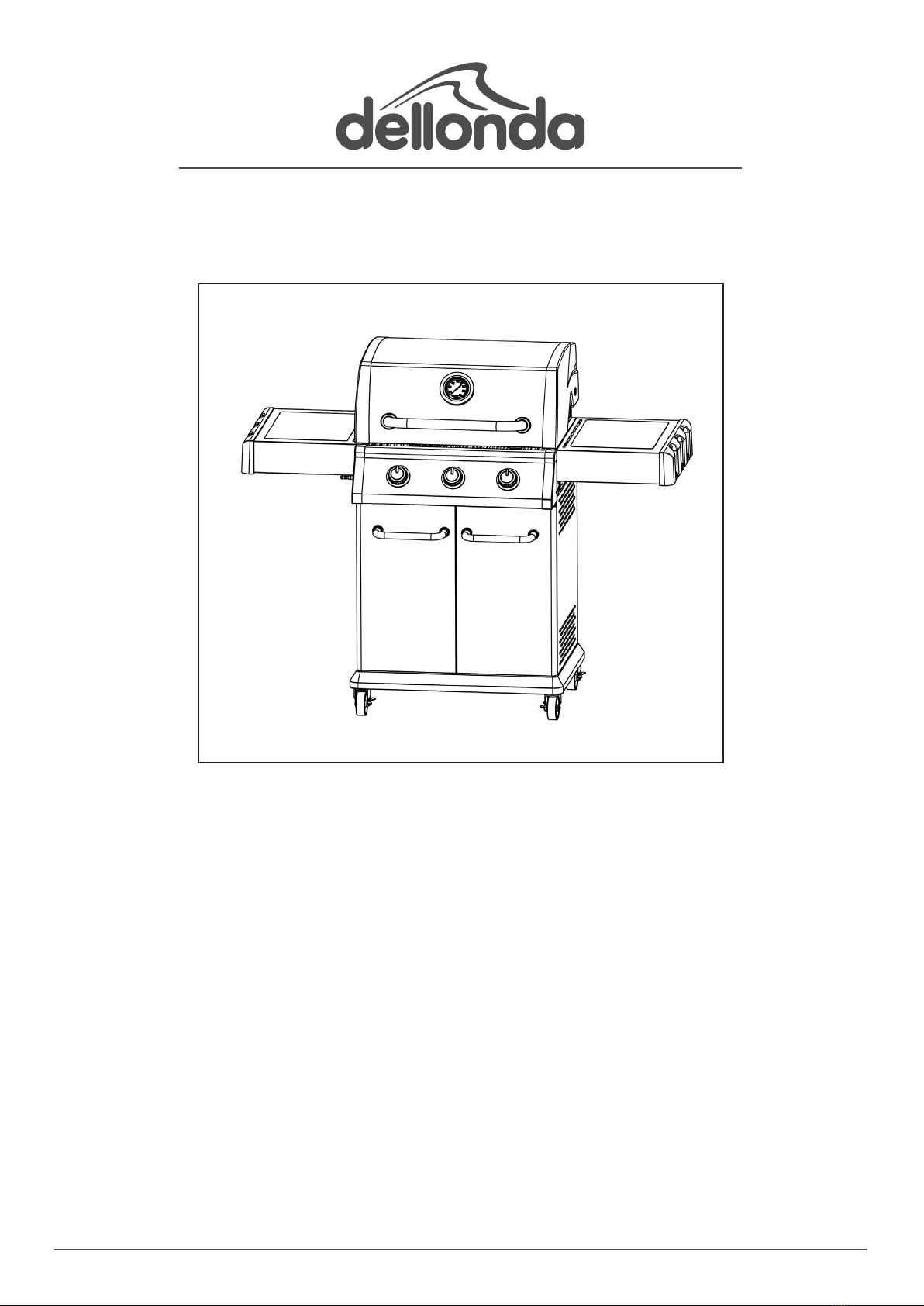

dellonda DG16 User manual

Model No. DG16
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DG16 Issue:3 14/09/20
www.dellonda.co.uk
Dellonda 3 Burner Gas BBQ, Piezo Ignition,
Thermometer, Shelves, Castor Wheels

Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.

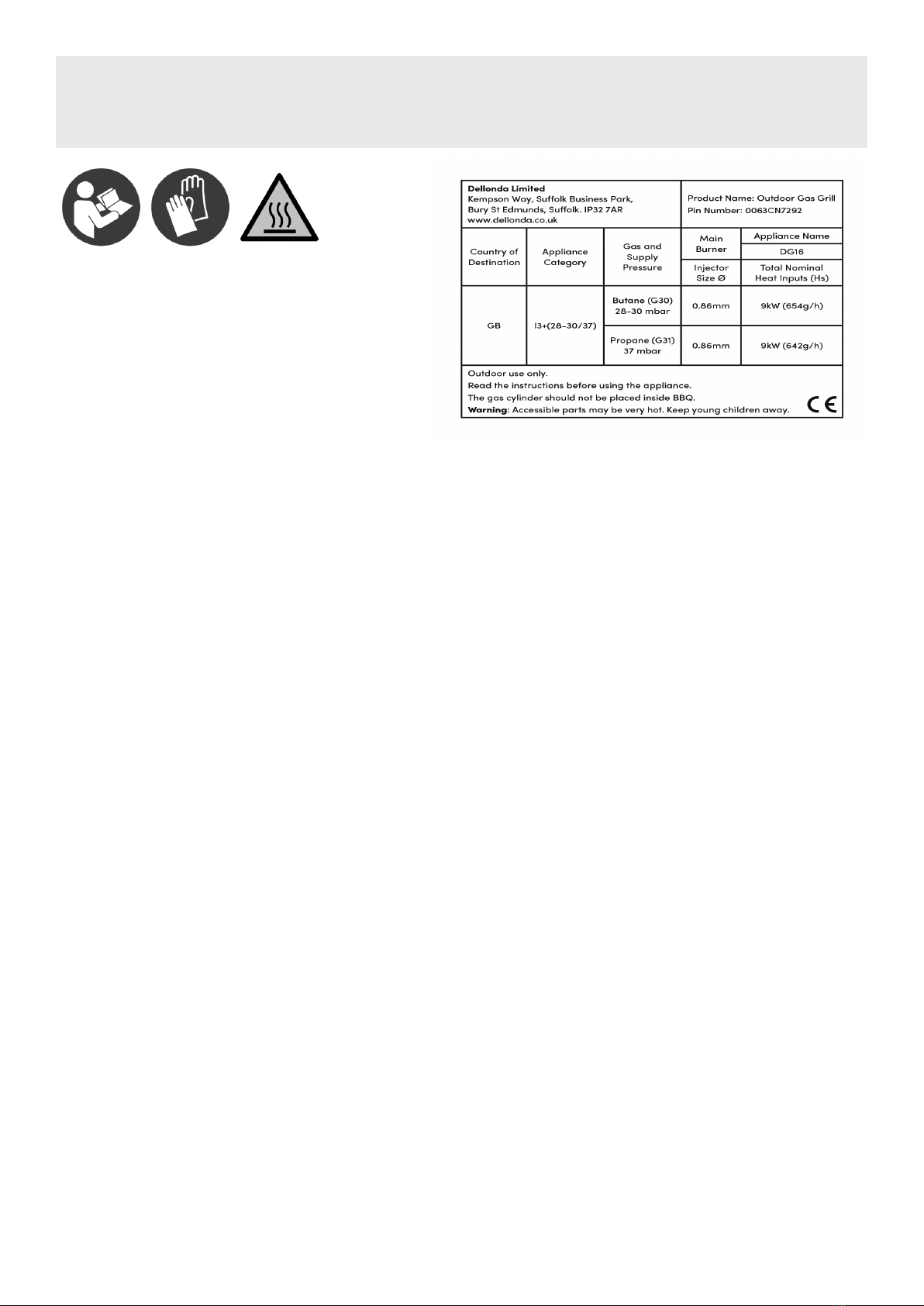

Refer to
instruction
manual
Wear
Gloves
Warning:
Hot
Surface
Specication
No. of burners: 3
Cooking area W x D: 600 x 420mm
Warming rack W x D: 600 x 120mm
Ignition: Piezo
Power: 9kW (3kW per burner)
About the Product
Gas barbecue with three stainless steel burners. Built-in thermometer enables you to easily keep track of your cooking temperature. Piezo ignition
ensures a safe and easy start-up every time. High quality cast iron cooking grates with a matt enamel coating. Features two side shelves giving
extra room for preparation. Warming rack frees up space on the grill whilst keeping your food warm after cooking. Supplied with regulator and hose
assembly for use with propane patio gas bottles. Features four universal castor wheels for easy manoeuvrability. Product Size (W x D x H): 1220 x
564 x 1130mm. Dellonda BBQ Cover Model No. DG24 (supplied separately) is a perfect t for this BBQ.
Safety Instructions
• GENERAL SAFETY
• WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that may occur. It must
be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be applied by the
operator.
• WARNING! Hazardous fire or explosion may result if instructions are ignored. Read instructions before use.
• WARNING! Never use a flame to do the leak test and ensure no naked flames are nearby when doing the leakage test.
• WARNING! Accessible parts may be very hot. Keep young children and pets away. Take special care when children and elderly are present.
• WARNING! If you smell gas: turn off the gas supply at the cylinder, extinguish all naked flames, DO NOT operate any electrical appliances,
check for leaks as detailed in this manual. If odour persists, contact your Dellonda stockist.
• WARNING! Any modification to this appliance may be dangerous and is absolutely not permitted.
• WARNING! The hood must always be open when lighting the burner.
• Read the instructions carefully before assembly and retain this manual for future reference.
• Turn off the gas supply at the gas bottle after use.
• Use outdoors only, stand on a level surface, remember hot fat may drip out of the drip tray.
• Handle the hot barbecue with the help of oven gloves.
• The barbecue should be cleaned on a regular basis. Take care not to enlarge burner ports of orifice openings when cleaning the
burner or valves.
• Connect the regulator and hose onto the gas cylinder, close all the valves by turning the control knobs to the “OFF” (fully clockwise)
position.
• Always do the gas leak check before you use the barbecue and after a cylinder change. Test the leakage on all the connections where gas passes
by.
• GAS LEAK CHECK Put soapy water on all the connections where the gas reaches. Open the gas cylinder valve and regulator. If bubbles are seen,
tighten the connection. If bubbles are still seen, close all valves, turn off the regulator and contact your Dellonda for help. Never use the barbecue
with a leak.
• The gas cylinder can only be changed by a competent person.
• Use oven gloves and sturdy long handled barbecue tools when cooking on the grill.
• Be prepared if an accident or fire should occur. Know where your first aid kit and fire extinguishers are and how to use them correctly.
• Keep the gas supply hose away from any heated surfaces.
• Ensure the appliance has completely cooled before storing.
• Cylinders must be stored outdoors, upright and out of reach of children. Protect cylinder from high temperatures and replace the plastic port
cap.
• This gas barbecue is designed for outside use only.
• DO NOT use in high winds.
• DO NOT move the barbecue whilst it is in operation.
• DO NOT operate if there is a gas leak.
• DO NOT attempt to disconnect any gas fitting if your barbecue is being used, including the gas hose and regulator.
• DO NOT leave unattended, from being lit to fully cooled.
• DO NOT use this barbecue in a garage or any enclosed area. Keep the surrounding area clear, at least 1.0m from any combustible materials and
0.5m from a brick wall.
• DO NOT attempt any unauthorised interference of the main controls on this barbecue, i.e. gas taps, injectors, valve etc.
• DO NOT attempt to use charcoal in this barbecue.
• DO NOT position on a surface that may be damaged by hot fat or heat.
• DO NOT store petrol or other flammable vapours or liquids in the vicinity of use.
• NEVER light a gas grill with petrol or comparable fluids.

• NEVER store a spare gas bottle or an empty/disconnected bottle near or under the barbecue or near any other ignition or heat source.
• Adequate ventilation is vital for combustion and efficiency of performance of the barbecue. This will ensure the safety of the user and other
people in the vicinity of the area where the appliance is being used.
• NEVER use in any enclosed covered area.
Contents

Assembly

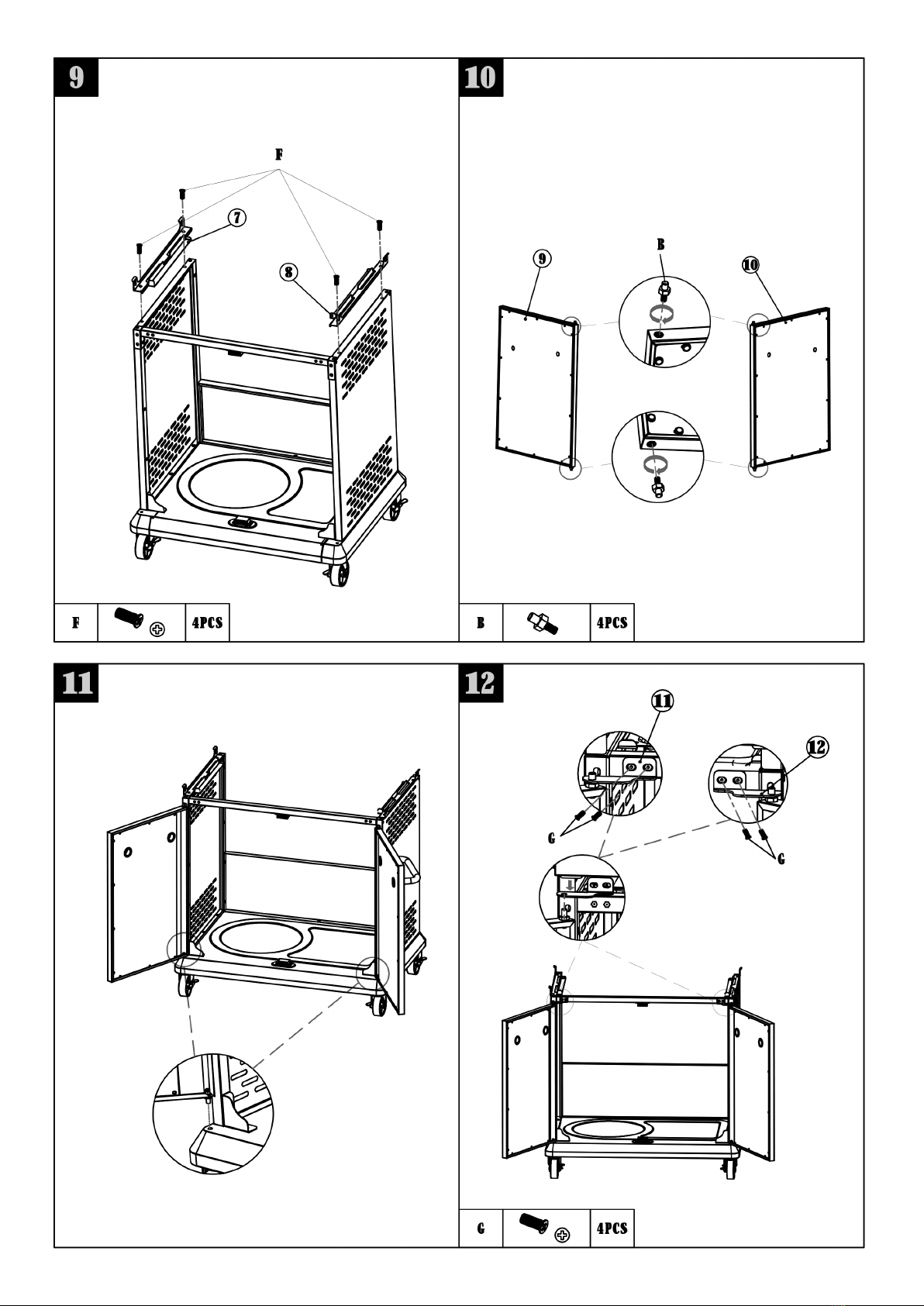

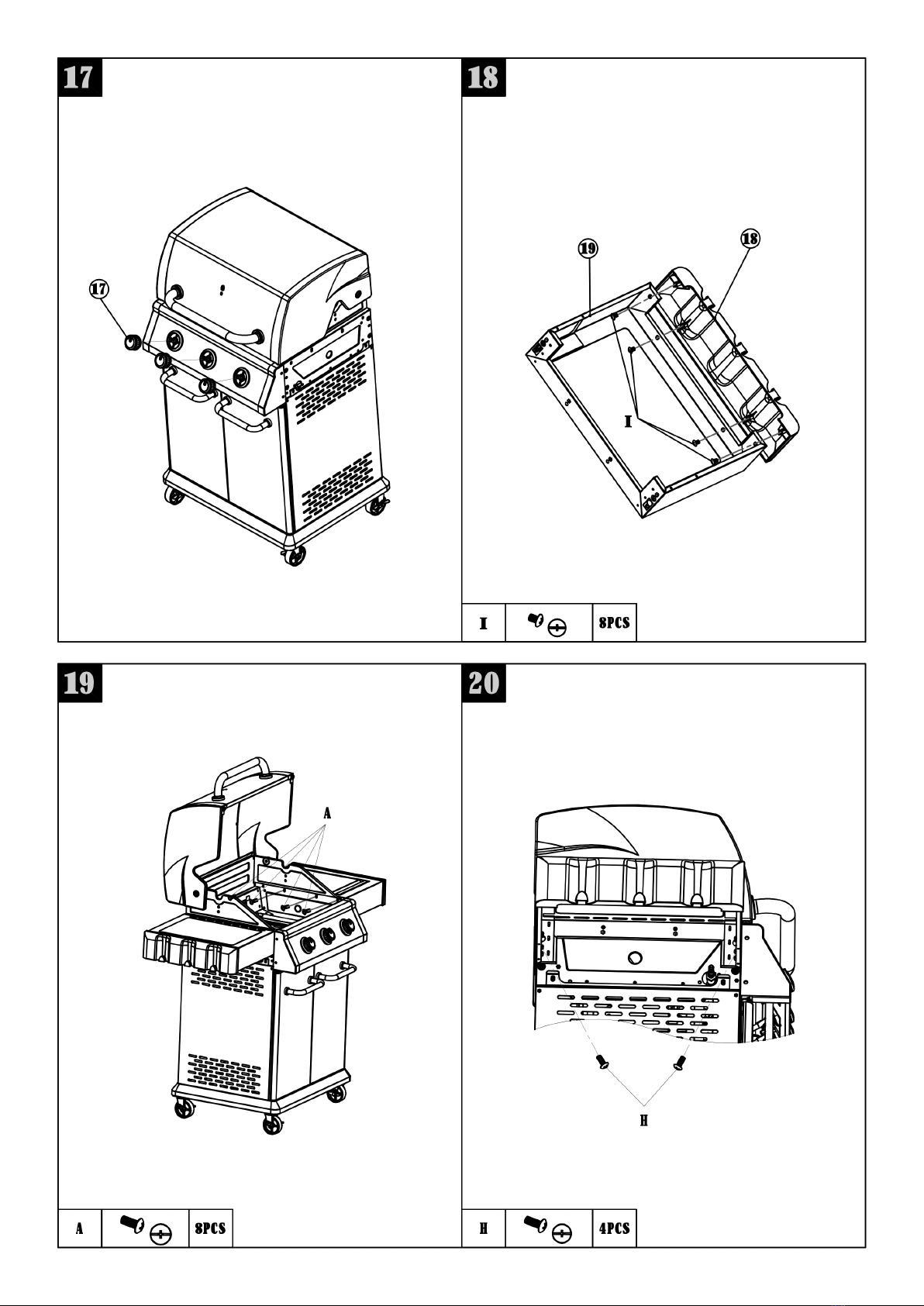

• Refer to diagrams 1-26.
• Ensure the barbecue is assembled properly.
• CAUTION It is inherent with fabricated steel parts that edges and corners can cause cuts if improperly handled during assembly. BE CAREFUL
and wear correct work gloves.
• Attach gas hose to regulator. Secure with worm drive clip. Attach hose/regulator assembly to burner supply pipe on side of barbecue, secure with
worm drive clip.
Preparation
• ATTACH THE GAS BOTTLE
• Changing of gas bottles should be carried out away from any source of ignition. Make sure the barbecue is turned off.
• Position your gas cylinder at the side of your barbecue, not underneath, remember the cylinder must be kept away from heat, and be in a safe
position.
• Attach the regulator to the gas cylinder.
• Perform the Gas Leak Test as described in Safety Precautions.
• Check that all areas under the front panel are free from any obstructions (insects etc.). This area must be kept clean as this may affect the flow of
combustion or of ventilation air.
• Check the hose before each and every use, looking for cracks, cuts or any abrasions.
• If the hose is found to be faulty in any way, DO NOT attempt to use your barbecue, replace the hose with one from Dellonda.
• Ensure the hose is free from any kinks or bends which will affect the gas flow, when using your barbecue. Also the hose must not have undue
tension and must not touch any part of the barbecue which may be hot. The hose must not be longer than 1.5 metres.
• The barbecue must be kept away from flammable materials.
• DO NOT move the barbecue whilst in use.
OperationH
• WARNING! In the event of a leak turn off the gas supply at the bottle. Extinguish any open ames, open lid and if leak continues, check for
damage, poor connections etc.
• Contact your local stockist if problem can not be solved.
• DO NOT move during use.
• DO NOT store any ammable liquids in the vicinity of use.
• Only use outdoors.
• DO NOT use a naked ame to check for gas leaks. DO NOT disconnect any gas tting part whilst in use.
• DO NOT leave unattended in use.
• Turn off at gas bottle after use. T
• WARNING! The lid must be open when lighting the barbecue.
• WARNING! DO NOT stand with your face directly over the barbecue when lighting it.
• Any modications of this appliance may be dangerous and is not permitted. DO NOT alter parts sealed by the manufacturer.

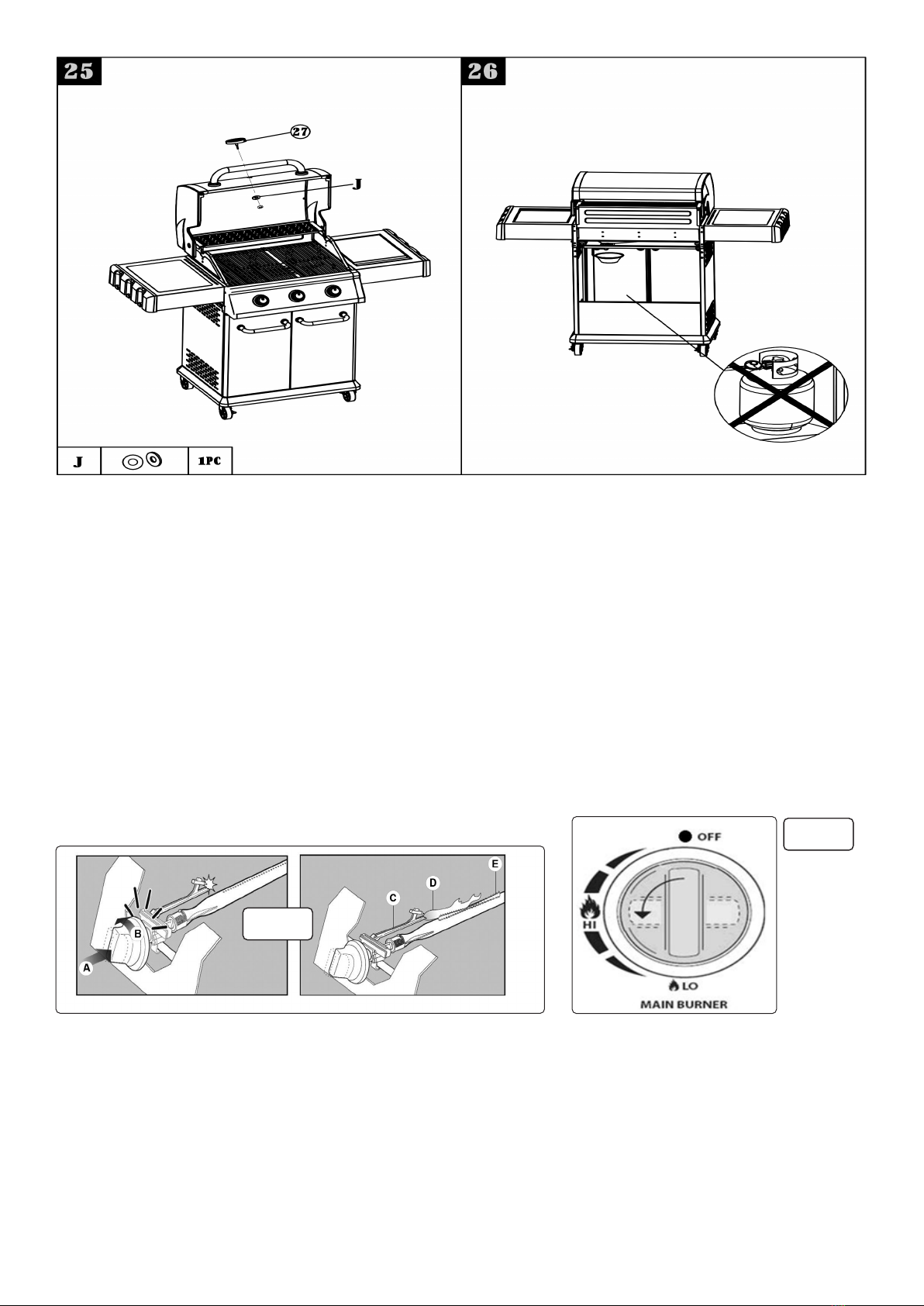

• 1. Open lid.
fig.1
fig.2

• 2. Make sure all gas controls on the barbecue are in the OFF position. (See g.2).
• 3. Connect regulator to the gas bottle. Turn the gas cylinder valve to the ON position at the regulator.
• 4. Push down the control knob (g.1A) and keep pressing while turning anticlockwise to the high position. This will cause the piezo electric
system to spark. and the gas in the lighting tube (g.1C) will ignite.
• 5. Continue holding the control knob for a further few seconds to allow gas ow to reach the end of the burner tube (g.1E) and be fully lit.
• 6. If the burner has not lit, turn knob off, wait 5 minutes and repeat above step.
• 7. Repeat step 4 to 5 for the other burners.
• TO TURN OFF: Turn burners to OFF positions. Wait until the burner has gone out.
• Turn off the tap on the gas bottle regulator.
• Clean after use.
• If using BBQ grill mats please ensure that the lid remains open throughout use to allow heat dispersal. Please leave at least 50mm gap between
the edge of the grill mat and the edge of the BBQ.
Maintenance
• Perform Maintenance at least once a year in order to extend the life of your barbecue.
• The hose should be renewed if damaged.
CLEANING
• To clean the barbecue, turn the burner on for 5 to 10 minutes. Grease will be burned off from the grill as well as the Flame Tamer Plate.
• Ensure the barbecue is cold before continuing. The grill should be cleaned periodically by soaking and washing in soapy water. Use a wire brush,
steel wool or a scouring pad to remove stubborn spots. Always rinse thoroughly with clean water.
• The interior surfaces of the grill housing cover should be washed with hot soapy water.
• Regularly clean the drip tray reservoir with hot soapy water. It is sited beneath the barbecue at the back and will be hot whilst the barbecue is in
use.
• Periodically check the burners to see that are free from insects and spiders which may block the gas system.
• Clean the venturi tube on the burner very carefully, checking to see that it is free of obstructions. We recommend the use of a pipe cleaner to
clean the venturi tube area.
STORAGE
• The gas bottle must be stored outdoors in a well ventilated area and must be disconnected from your barbecue when not being used.
• Ensure that you are outside and well away from any sources of ignition before disconnecting your bottle.
• When using your barbecue after a period of storage, check for gas leaks and for any obstructions in the burner before using. Also follow the
cleaning instructions to ensure the barbecue is safe. Check that areas under the lid and ame tamer are free from any obstruction, (insect,
ingress etc.). This area must be kept clean, as it may affect the ow of combustion or air.
• We recommend you use a barbecue cover to protect this item when not in use. Ensure it is cool before the cover is used. Covers must be
removed periodically to minimise moisture build up.
Troubleshooting
Problem Possible cause Solution
Gas leaking from
cut/cracked/
burned hose
Damaged hose Turn o󰀨 gas at LP bottle, if hose is cut or
cracked replace hose.
Gas leaking from
LP bottle
Mechanical failure due to
resting or manhandling
Turn o󰀨 LP bottle valve
Gas leaking from
LP bottle valve
Failure of LP bottle valve
from mishandling or
mechanical failure
Turn o󰀨 LP bottle valve. Return gas bottle to
Gas supplier
Gas leaking
between LP
bottle and
regulator
connection
Improper installation,
connection not tight, failure
of rubber seal
Turn o󰀨 LP bottle, remove regulator from bottle
and visually inspect rubber seal for damage.
Fire coming
through control
panel
Fire in burner tube section
of burner due to partial
blockage
Turn o󰀨 control knobs and LP bottle valve.
After re is out and grill is cold, remove burner
and inspect for spider nests or rust.
Grease re
or continuous
excessive ames
above the
cooking surface
Too much grease build up in
the burner area
Turn o󰀨 LP bottle. Leave lid open to allow
ames to die down. After cooling, clean food
particles and excess grease from inside the
rebox area, grease cup/pan tray and other
surfaces
Burner will not
ignite using
igniter
Gas issues
1. Trying to light wrong
burner
2. Burner not engaged with
control valve
3. Obstruction in burner
4. No gas ow
5. Vapour lock at coupling
nut to LP bottle
6. Coupling nut at LP bottle
valve not fully connected
1. See control panel section and Use and Care
2. Make sure valves are positioned inside
burner tubes
3. Ensure burner tubes are not obstructed with
spider webs or other material.
4. Make sure LP bottle is not empty
5. Turn o󰀨 knobs and disconnect coupling nut
from LP bottle. Reconnect and retry
6. Turn nut until properly connected

Sudden drop in
gas ow or low
ame
1. Grease build up
2. Excessive fat in meat
3. Excessive cooking
temperature
1. Clean burners and inside of grill/rebox
2. Trim fat from meat before grilling
3. Adjust as necessary
Flames blow out High or gusting winds.
Low on LP gas.
Turn front of grill to face wind or increase
ame height
Rell gas
See also ‘Sudden drop section’ above
Persistent
grease re
Grease trapped by food build
up around burner system
Turn knobs to OFF. Turn gas o󰀨 at LP bottle.
Leave lid in position and let re burn out. After
grill cools, remove and clean all parts
Flashback Burner and burner tubes are
blocked
Turn knobs to OFF. Turn gas o󰀨 at gas bottle.
See burner cleaning section of manual
Flare up 1. Grease build up 1. Clean burners and inside of grill/rebox
One burner does
not light from
other burner/s
Grease build up or food
particles in end of carry over
tube
Clean carry over tube with wire brush
If the issue is not resolved by carrying out the above procedures please contact Dellonda.
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations. Under the
Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the user that this product contains one or more batteries. It
is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Burner will not
light using igniter
Electrical issues:
1. Electrode cracked or
broken (sparks at crack)
2. Electrode tip not in proper
position
3. Wire and/or electrode
covered with a cooking
residue.
4. Wires are loose or
disconnected
5. Wires are sparking
(shorting) between igniter
and electrode
6. Push button sticks at
bottom causing sparking
between igniter and
electrode
7. Inspect wire insulation for
proper connection
1. Replace electrode
2. Tip of electrode should be pointing toward
port hole in burner. The distance should be
3.18mm (1/8”) to 4.77mm (3/16”). Adjust if
necessary
3. Clean wire and/or electrode with rubbing
alcohol and clean swab.
4. Reconnect wires or replace electrode/wire
assembly
5. Replace igniter wire
6. Replace igniter. test
7. Replace wires if insulation is broken
Burner will not
match light
1. See ‘Gas issues’ above
