dellonda Deluxe DG112 User manual

Model No. DG112
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DG112 Issue:1 24/03/21
www.dellonda.co.uk
Dellonda Deluxe 360° Chiminea/Fire Pit/
Outdoor Heater - Bronze Antique Finish

Specication: Diameter: Ø560MM, Height 1410mm, Thickness 1mm.
About the Product
55.5” Deluxe 360° re pit chiminea is perfect for socialising with family and friends providing
warmth on cool evenings. Rustic bronze antique nish. Manufactured from durable cast iron with
a high temperature nish. Features safety mesh screen to prevent embers and sparks ying out.
Suitable for use with untreated wood and logs. Supplied with re poker. Assembled Dimensions
(W x D x H): 560 x 560 x 1410mm. Some simple assembly required.
Safety Instructions
• WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that may occur. It must
be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be applied by the
operator.
• WARNING! For outdoor use only, never burn in vehicles, tents or indoors.
• Risk assess the area where the re pit is to be used.
• DO NOT use the chiminea/re pit to cook food, the re bowl is not designed for grilling food.
• This re bowl is intended to burn wood logs only. DO NOT use on wooden decks. DO NOT burn coal, leaves, or other combustible materials in the
bowl.
• Add fuel gradually, a bit at a time.
• DO NOT use ammable liquids to start res.
• Ensure there is a garden hose nearby, in case of emergency.
• Consider neighbours, ensure the smoke generated will not affect them.
• Keep away from combustible materials. Site away from fences, shrubs, trees, garden structures and buildings. A gusty day can make a re burn
more ercely, causing it to are up unexpectedly.
• Not for use by children. Keep children and pets away from the chiminea bowl.
• The chiminea bowl is hot. Use with caution. DO NOT touch the hot chiminea with bare hands.
• Never leave the burning chiminea/re pit unattended, and always extinguish the re completely.
• DO NOT use chiminea near ammable or combustible objects or materials.
• When the chiminea bowl is in use, the door and mesh screen can reach extreme temperatures that can cause serious injury to an unprotected
hand. Use a poker or an appropriate heat resistant glove or pad when handling.
• Always ensure the mesh door is closed when lit.
• The poker handle may become hot during and after use.
• Check local re regulations and municipal by-laws for safe use.
• Check tightness of xings periodically.
• Only use on level ground.
• DO NOT move whilst lit.
• WARNING Although we take every effort to ensure that the assembly process is as
easy as possible, it is inherent with fabricated steel parts that corners and edges can
cause cuts if improperly handled during assembly procedures. Be careful whilst
handling parts during assembly. It is strongly recommended that hands are protected
with a pair of work gloves.
• Keep children and pets away from the area.
Contents
Refer to
instruction
manual
Wear
Gloves
Warning:
Hot
Surface
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.

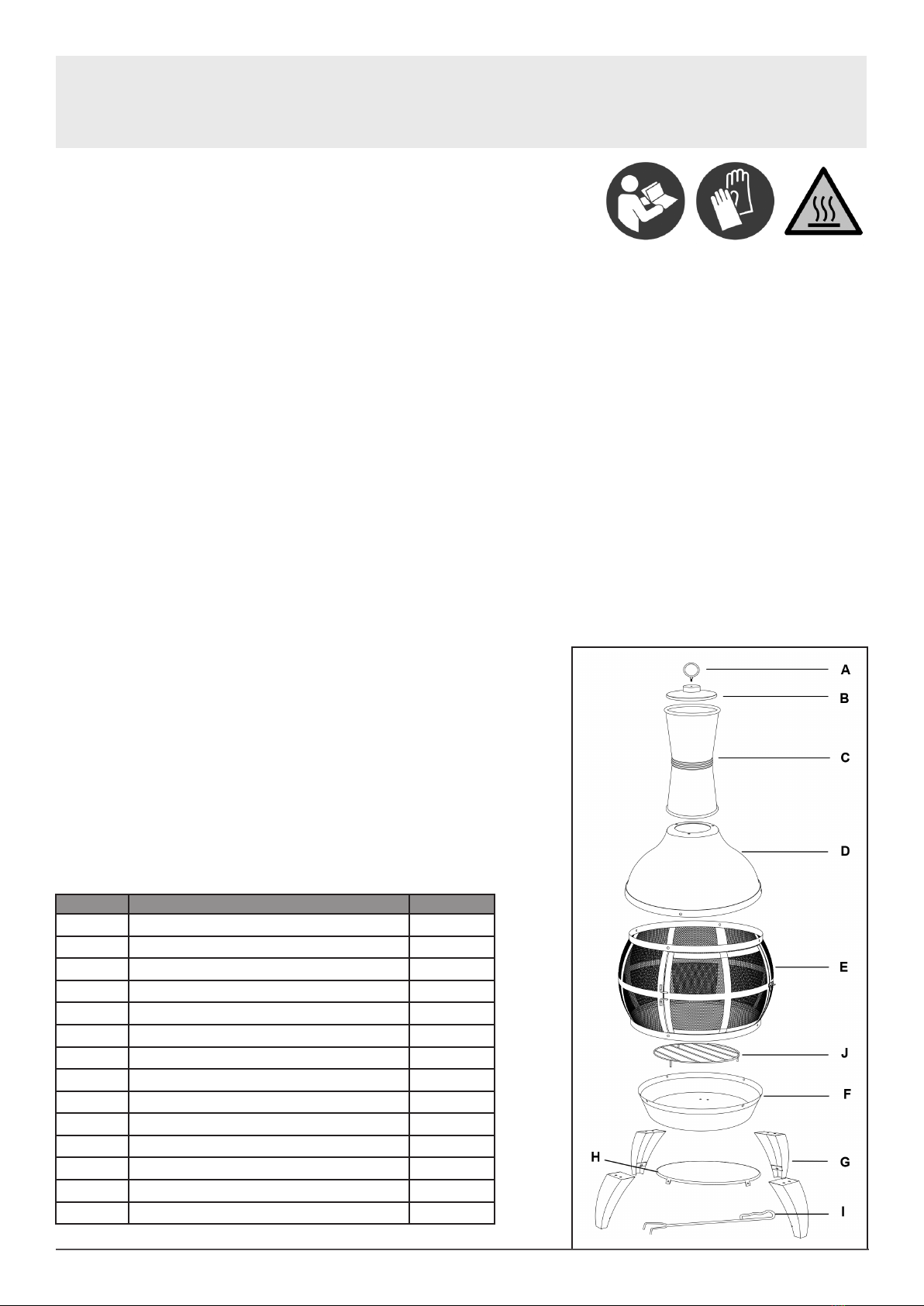

Part Description Quantity
AHandle 1
BChiminea Cover 1
CChiminea Flue 1
DChiminea Top 1
EMesh Screen 1
FChiminea Bottom 1
GStand 4
HTray 1
IPoker 1
JFire Wood Grate 1
AA M6 X 12mm Bolt 7
BB M6 x 14mm Bolt 8
CC M6 x 25mm Bolt 8
DD M6 Nut 17
www.dellonda.co.uk 2

Assembly
www.dellonda.co.uk 3
Step 2: Attach the legs (G) to the chiminea base (F) using M6x14mm bolts
(BB) and M6 nuts (DD), hand tighten at this stage (Tighten fully after step 3)
Step 1: Insert handle (A) through the cover (B) and secure with M6 nut (DD)
Step 3: Attach the tray (G) using M6x12mm bolts (AA) and tighten.
Step 4: Attach the mesh screen (E) to chiminea base with M6x25mm
bolts (CC) and M6 nuts (DD) and tighten.
Ensure you have space to assembly this Chiminea safely and try to assemble on a sheet card sheet to avoid damaging the unit.

www.dellonda.co.uk 4
Step 5: Attach the chiminea top (D) to the ue (C) using M6x12mm bolts
(AA). Securely tighten each bolt.
Step 6: Attach chiminea top (D) to the mesh screen (E) with M6x25mm
bolts (CC) and M6 Nuts (DD).
Tighten each bolt with a spanner and crosshead screwdriver.
Step 7: Place the poker (I) near the Chiminea
and the cover (B) on the top of the funnel (C).

Lighting Instructions
• Use a layer of dry seasoned wood.
• Always use a long match or lighter to light.
• Use the poker provided to operate the re and wear heat- resistant gloves.
Maintenance
• Clean with a non abrasive, non solvent based, mild detergent.
Storage
• Store in a dry place.
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations.
It is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
