User Manual
Electric Heang Element
Gebrauchsanweisung — Elektroheizpatrone | Manual de usuario — Elemento calefactor
eléctrico |Mode d’emploi — Kit résistance électrique | Upute za upotrebu — Električni
grijač | Manuale d'uso — Elemento Elerico Riscaldante | Инструкция по применению
— Электронагреватель | NAVODILA ZA UPORABO — Električni grelec | Uputstva za
upotrebu — Električni grejač
ELS

3
EN
User Manual
Our products have been designed and manufactured in
such a way to ensure that all quality, funconality and aes-
thec requirements are met. We would like to congratu-
late you on the purchase of this great product and wish
you a pleasant experience with it.
Electric radiator
Guide to safe installaon
and use.
1. Do not install the heater under an electrical socket
point.
2. Your electric heater should be lled with a carefully
measured amount of liquid. In the case of loss of heat-
ing medium, or in any other case which demands its
supplementaon, contact your supplier.

4
3. The device is not equipped with an external tempera-
ture controller.
Do not use the device in a small room if unsupervised
disabled or incapacitated individuals are inside it. Only
use the device if those individuals are under constant
supervision.
4. Electric heater is not a toy. Children under the age
of 3 should not be allowed within close proximity
of the device without the supervision of an adult.
Children aged 3 to 8 should only be allowed to oper-
ate the heater when it has been properly installed and
connected. The child must be under adult supervi-
sion or have been trained to safely operate the device
while understanding the risks.
5. Note: Some parts of the radiator can be very hot and
can cause burns. Pay special aenon to the presence
of children or people with disabilies.

5
EN
6. If the device is used as a clothes and towel dryer, ensure
that the fabrics drying on it have only been washed in
water, avoiding contact with any harsh chemicals.
7. To ensure the safety of very small children, install
the electric dryer so that the lowest tube is at least
600 mm above the oor.
8. The device should only be installed by a qualied in-
staller in accordance with the applicable regulaons
regarding safety and all other regulaons.
9. All installaons to which the device is connected
should comply with regulaons applicable in the coun-
try of installaon and use.
10. Extension leads or electric plug adapters should not
be used in order to supply power to the heater.
11. The electric installaon to which the heater is con-
nected should have the right current dierenal and
overcurrent relay (R.C.D.) of 30 mA.
An Omni-pole cut-out is required for disconnecng
the device on all poles, via joints posioned at least
3 mm apart.

6

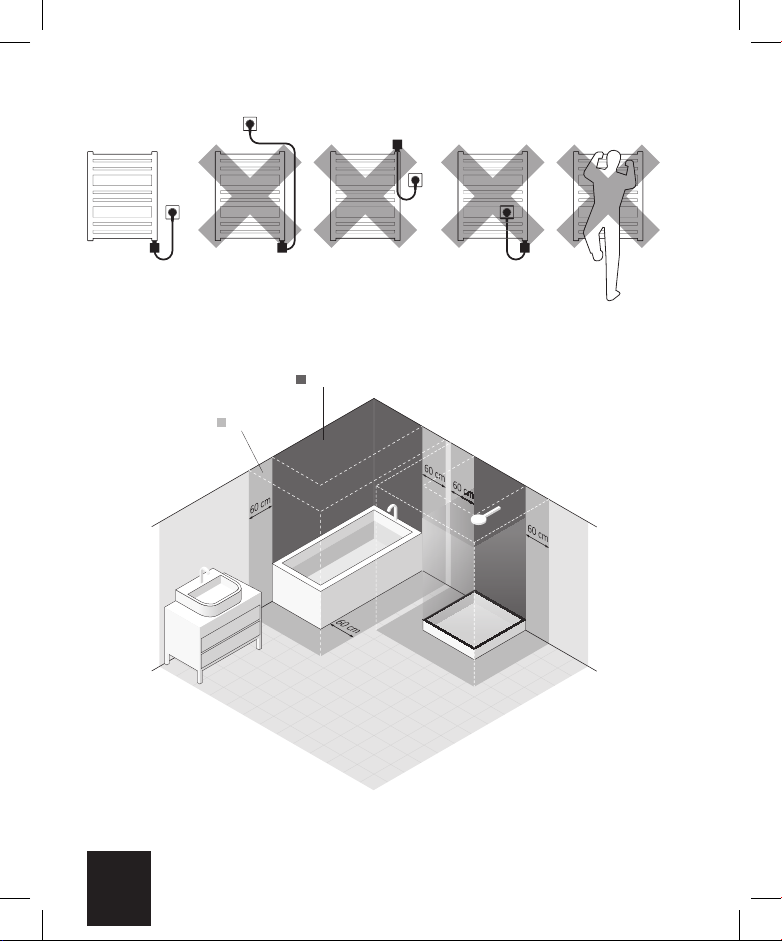

12. The device version labelled PB can be installed in bath-
rooms in zone 1, as dened by applicable law, subject
to any addional regulaons concerning electrical in-
stallaons in wet areas.
Other versions of the device can be installed in Zone 2
or beyond.
13. The device is recommended for use solely as de-
scribed in the manual.
14. Ensure that the heater has been installed on a wall in
accordance with its installaon manual.
15. Please forward this instrucon manual to the end
user.

7
EN
Zone 1
Zone 2

8
Electric Heang
Element
Safety requirements
— installaon
1. Fing and connecon of the heang element should
only be performed by a qualied installer.
2. Connect the unit to a sound electrical installaon (see
the rangs on the heater).
3. Switching on the heang element in the open air to test
the device is permied for a maximum of 3 seconds.
4. Never test a heang element that is already installed.
Do not turn the heang element on in an empty
radiator!
5. Ensure that the power cord does not touch the hot
parts of the heang element or radiator.

9
EN
6. Before installing or removing the device, make sure it
is disconnected from the power source.
7. Do not open the device — any interference with inter-
nal components will invalidate the warranty.
8. The heang element’s power output must not ex-
ceed the radiators power output for the parameters
75/65/20° C.
9. The pressure in the radiator should not exceed 10 atm.
Ensure that an air cushion is preserved in electric radi-
ators. In central heang systems, leave one valve open
to prevent pressure build up due to the thermal ex-
pansion of the liquid.
10. The device is intended for home use only.
11. Fing and Installaon of the device must be carried
out in accordance with all local regulaons for elec-
trical safety, including installaon within permissi-
ble locaons only. Observe bathroom electrical zone
regulaons.

10
Safety requirements — use
1. The heang element must be fully submerged in the
heang liquid during its operaon.
2. Regularly check the device for damage to ensure it is
safe to use.
3. If the power cord is damaged the device should not be
used. Unplug the device and contact the manufactur-
er or distributor.
4. Do not allow ooding into the heang element casing.
5. Do not use the heang element in heang systems
where the water temperature exceeds 82° C.
6. The heang element and radiator can heat up to high
temperatures. Please be cauous — avoid direct con-
tact with the hot parts of the equipment.
7. Do not open the heang element casing.
8. In the central heang system, always make sure that
one valve of the radiator remains open.

11
EN
9. Ensure that minors aged 8 and above or those with
a physical or mental disability are supervised if operat-
ing the device.
10. The device is not a toy. Keep it out of the reach of
children.
11. The device must be disconnected from the mains dur-
ing cleaning and maintenance.
12. Cleaning of the equipment by children under 8 years of
age is only permied under appropriate supervision.

12
Intended use of device
The heang element is an electric device
intended solely for installaon in radiators
(standalone or connected to the central
heang system) to serve as space heaters,
or clothes and towels dryer.
Heang element power output should be
matched with radiator output for parame-
ters of 75/65/20° C
Technical informaon
Model markings
(power cable type):
PB (Straight cable without plug) *
PW (Straight cable with plug)
SW (Spiral cable with plug)
Type of electrical connecon: Y
Heat outputs available: 120, 200, 300, 400, 600, 800, 1000 [W]
Power supply: 230 V / 50 Hz
Insulaon class: Class I
Towel rail connecon thread: G 1/2"
Casing protecon class [IP]: IPx5
Length of heang element: 120 200 300 400 600 800 1000 [W]
315 275 300 335 365 475 565 [mm]
* Device intended to be connected permanently to the system

13
EN
Installaon or removal
Detailed information demonstrating the
different ways of installing or removing
a radiator heating element is available
from the manufacturer or importer (see
footnotes at the end of the manual). Below
we list some basic requirements and princi-
ples which must be followed to ensure long
term, reliable operaon of the product.
Before installaon or rst use:
1. Read the chapter Safety requirements
—Installaon.
2. Fit the heang element using the cor-
rect spanner (size 22).
3. The heang element must be installed
at the boom of the radiator, perpen-
dicular to the radiator pipes, while pre-
serving space for the proper circulaon
of the heang medium.
4. Use a suitable heang medium for ll-
ing the electric radiator, i.e. (water, spe-
cial products based on water and glycol
for use in central heang systems, or oil
which complies with the requirements
of the manufacturer of the radiator and
heang element).
5. Do not switch the heang element on if
it is not fully immersed in radiator heat-
ing medium.
6. Make sure an adequate air cushion is
present to protect against excessive pres-
sure build up within the heater (always
leave one of the radiator valves open).
7. When lling the radiator with hot liquid
insure that the liquid temperature does
not exceed 65° C.

14
8. Follow the subsequent guidelines when
connecng the electrical installaon:
a. Brown wire — live connecon to the
circuit (L).
b. Blue wire — connect to neutral (N)
c. Yellow & green wire — earth con-
necon (PE).
9. Before lling the radiator with heang
medium, ensure that the heang ele-
ment is ed properly and that it is wa-
ter ght.
10. In central heang system radiator must
be ed with the valves enabling dis-
connecon of the radiator from the rest
of the system.
11. The temperature of the heang agent
in the central heang system must not
exceed 82° C!
Notes prior to removal:
1. Before dismantling permanently, dis-
connect the heang element from the
mains and ensure that the radiator is
not hot.
2. Be aware. A radiator lled with liquid
can be very heavy. When moving the
radiator, ensure that you take the nec-
essary safety precauons.
3. Before disassembly, close the appropri-
ate valves and drain the radiator com-
pletely to avoid causing any damage.
Product disposal
This product should not be disposed of
as general waste but should be brought
to the appropriate collecon point for re-
cycling of electric and electronic devices.
This informaon is provided by the sign on
the product, user manual and packaging.
Informaon on the appropriate point for
used devices can be provided by your local
authority, product distributor or the store
from where the product was purchased.
Thank you for your eort towards protect-
ing the environment.
Maintenance
• Before performing maintenance, always
unplug the unit from the mains system.
• Periodically check the uid level in the
radiator and ensure the heating ele-
ment is completely submerged.
• Clean the product with a dry or damp
cloth. If necessary, use a very small
amount of detergent, ensuring that it
contains no solvents or abrasives.

15
EN
ELS
Turning the device on with the buon
will result in the radiator heang up to the
set temperature. After reaching the set
temperature the device will turn o and
on regularly in order to maintain the set
temperature.
The construcon of the device as well as
the physical characteriscs of the heang
agent inside the radiator, inuence the way
in which the heat is distributed — the tem-
perature of the boom pipes on the ra-
diator (especially the two located at the
very boom of the radiator), may be low-
er than the temperature of the remain-
ing parts of the radiator — this is a normal
phenomenon.
Temperature increase
In order to increase the temperature of the
radiator, press once or several mes as
required; the correct number of diodes will
start blinking. The last blinking diode indi-
cates the set temperature, whilst the last
diode which shines constantly, indicates
the current temperature. The remaining di-
odes will start shining constantly on reach-
ing subsequent temperature levels.
Temperature decrease
In order to decrease the temperature of
the radiator, press once or several mes
as required; the correct number of diodes
will start blinking. The last diode, which
shines connuously, indicates the set tem-
perature whilst the last blinking diode in-
dicates the current temperature. The re-
maining diodes will start fading on reaching
subsequent temperature levels.
dryer funcon
turn on/o buon
temperature regulaon

16
An-freeze funcon
When the device is o and the temperature
surrounding the temperature sensor drops
to below 6° C, the device will switch on au-
tomacally. This is to prevent the heang
agent inside the radiator from freezing. The
acvaon of An-freeze mode is indicated
by the blinking of the middle diode.
Dryer funcon
The Dryer turns the device on for 2 hours,
e.g. in order to dry a towel. Aer this peri-
od of me the device automacally switch-
es to the mode to which it was set before
the dryer mode.
The dryer is turned on by pressing buon
(also when the device is o). The device
will start heang at the temperature which
was last set. This temperature can be mod-
ied as required while the device is running
(buons and ). If the device was o be-
fore the dryer mode was been acvated,
then it will turn o automacally when the
dryer mode is nished.
Press buon at any me to interrupt the
dryer mode.
Calibrang the temperature span
The standard temperature span of the
heang element is 30-60° C. It is possible
to increase or decrease that span by seng
a maximum temperature of between 45° C
and 65° C, (minimum temperature of 30° C
stays unchanged). This allows the user to
achieve a maximum temperature which is
higher than the standard or to eecvely
heat a space with the device during lower
surrounding temperatures.
Example: for the temperature regulaon
span of up to 45° C (30-45° C) modicaon
by one step (one diode), means increase/
decrease of temperature by 3.75° C, while
for the temperature regulaon span of up
to 65° C (30-65° C) modicaon by one step
means increase/decrease by 8.75° C.
In order to modify the temperature span,
unplug the device and plug it back in, while
pressing buon. A single diode will start
blinking on the display panel. Use and
buons to set one of the 5 possible maxi-
mum temperatures. The rst diode stands

17
EN
Problem solving
Problem Possible cause Soluon
The device is plugged in,
no diodes are on.
Problem with the
connecon.
Check the connecon of
the power wire, the plug
and the socket.
Heang element is not
heang, outside diodes are
blinking alternately.
Temperature sensor has
been damaged.
Disconnect the device
completely, wait unl the
radiator cools down and
re-connect it again.
Overheang of device.
Check that the radiator
has been lled with the
correct heang agent in
a proper manner, i.e. ac-
cording to the manufactur-
er’s instrucons.
The device is heang de-
spite turning it o with the
buon.
Damaged electronics.
Disconnect the device
completely, wait unl the
radiator cools down and
re-connect it.
If the problem connues please contact Your local Distributor.
for 45° C. The following diodes refer to the
following maximum temperatures: 50° C,
55° C, 60° C and 65° C.
Aer selecng the new temperature span
press on/off button to store the new
sengs.

18
Warranty terms & condions
1. The subject of this warranty is
a BIAL d.o.o. electric heang element
with control head. The product name
and characteriscs are specied on the
packaging.
2. By accepng the device on purchase,
the Client conrms that the product is
of full value. The Client should imme-
diately inform the Seller of any discov-
ered faults — otherwise it will be un-
derstood that the Product was faultless
at the me of purchase. This refers es-
pecially to any faults or damages of the
control panel case.
3. The Warranty for period for the Product
is 24 months from the date of purchase,
but no longer than 36 months from the
date of producon.
4. Any claims made will be processed on
production of the warranty card and
the evidence of purchase. The manu-
facturer has the right to reject any claim
on the grounds of failure to present any
of the above documents.
5. This warranty does not cover any faults
that are due to:
— incorrect (not in accordance with
the manual) installation, use or
disassembly,
— incorrect use of the heang element
(i.e. for any purpose that is not spec-
ied by the Manufacturer as intend-
ed for this type of product),
— Product being handled by unauthor-
ized persons,
— Fault’s or damages caused by the
Client aer having purchased and
accepted the Product.
6. The Central Heang system should be
ed with lock-shield valves, enabling
disassembly of the radiator or the heat-
ing element and its control head with-
out the necessity of emptying the
whole system of the heang agent. Any
problems or expenses arising from the
absence of lock-shield valves in your in-
stallaon cannot be used as grounds for
any claims against BIAL.
7. The aached Product Manual is an in-
tegral element of the Warranty. Please
read it carefully prior to the installaon
and use of the Product.
8. The Manufacturer is obliged to remove
any producon fault within 14 working
days of receipt of the faulty device at
the Manufacturer’s premises.
9. Should the repair be impossible, then
the manufacturer is obliged to replace
the faulty Product with a new, full-value
unit of idencal parameters.

19
DE
Gebrauchsanweisung
Unsere Produkte wurden mit dem Gedanken entworfen,
Ihre Bedürfnisse, laut den höchsten Qualitäts-, Funkona-
litäts- und Sicherheitsstandards zu erfüllen.
Wir gratulieren zum gelungenen Einkauf und wünschen
viel Zufriedenheit beim Gebrauch Ihres neuen Gerätes.
Elektroheizkörper
Sichere Montage
und Verwendung
1. Der Heizkörper darf nicht direkt unter der Steckdose
monert werden.
2. Der Elektroheizkörper sollte mit genau abgemessener
Flüssigkeit befüllt werden. Bei Verlust oder Fehlen des
sich im Heizkörper bendenden Heizmediums, setz-
ten Sie sich mit Ihrem Händler in Verbindung.

20
3. Dieses Gerät ist nicht mit einem Raumtemperaturreg-
ler ausgestaet. Demzufolge, wird der Betrieb in klei-
nen Räumen, in denen sich dazu unfähige Personen
benden könnten den Raum selbstständig zu verlas-
sen, untersagt (Ausnahmefall: Ständige Aufsicht von
Erwachsenen)
4. Der Elektroheizkörper ist kein Spielzeug. Kinder unter
3 Jahren sollten sich ohne Aufsicht nicht unmielbar
in der Nähe des Heizkörpers benden. Kinder im Al-
ter von 3 bis 8 Jahren dürfen den Heizkörper nur unter
Aufsicht von Erwachsenen selbständig bedienen oder
nach einer Schulung des sicheren Betriebs, sowie allen
damit verbundenen Gefahren, jedoch nur wenn das
Gerät zuvor fachgerecht installiert und angeschlossen
wurde.
5. Achtung: Einige Heizkörperelemente können relav
heiß werden und zu Verbrennungen führen. Beachten
Sie in diesem Fall besonders die Anwesenheit von Kin-
der oder Behinderten.
6. Wenn das Gerät als Wäsche — oder Handtuchtrock-
ner eingesetzt wird, verwenden Sie nur Stoe die zu-
vor ausschließlich in Wasser gereinigt wurden.
