dellonda DG62 User manual

Model No. DG62 & DG63
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
www.dellonda.co.uk

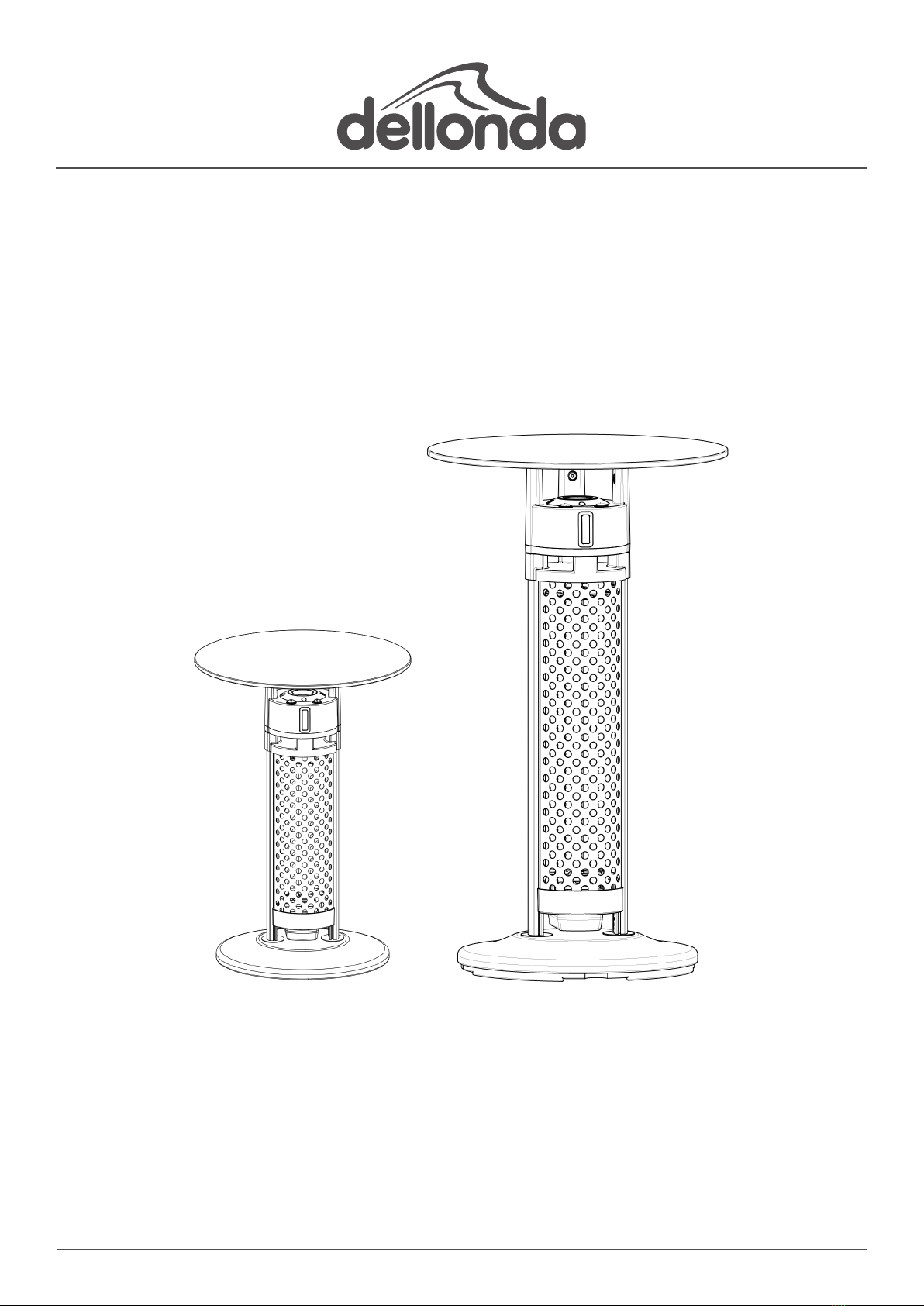

Bistro Table Heater, LED & Sensors, Glass Top; 95cm & 65cm
DG62 DG63 Issue:2 07/06/2021

2
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Do Not CoverWarning:
Hot
Surface
About the Product
IR Sensing table heater with three built-in sensors, automatically turns on and off when motion is detected. Motion sensors can be turned off and
heater used for a constant heat output. High efciency carbon bre heating element. Stylish and modern design with stainless steel/black body and
tempered glass table top. IP44 Rating offers splash resistance from all directions. Features LED light beneath glass table top. Built-in tip-over safety
switch.
Safety Instructions
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its
intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform
user maintenance.
• Children of less than 3 years should be kept away unless continuously supervised.
• CAUTION -- Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable
people are present.
• The heater must not be located immediately below a socket-outlet.
• DO NOT use this heater with a programmer, timer or any other device that switches the heater on automatically, since a re risk exists if the
heater is covered or positioned incorrectly.
• DO NOT use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• DO NOT place the unit close to curtain and/or other ammable objects. Otherwise there will be a danger of catching re.
• DO NOT cover the unit with anything during operation or a short time after it’s shut down.
• DO NOT wrap the power supply cord on the unit.
• DO NOT use this unit in place where causticity or volatile air exists, i.e. dust, steam, gas, etc.
• DO NOT use this unit as a cloth drier or towel drier.
• DO NOT use this unit as a sauna heater.
• DO NOT use this unit as a room heater of heat storing.
• DO NOT use this unit in place of animal propagating and raising.
• DO NOT use this unit in heating system of hot air centre.
• DO NOT immerse this unit into water for cleaning.
• The unit must be placed with the clearance of 150cm at least to the wall.
• The unit must be securely placed on a horizontal and at surface.
• The unit is at high temperature during operation. It keeps hot for a period after shut down. Potential danger would occur when touching it during
this period.
• The unit must be handled with care, and avoid of vibration or hitting.
• The unit must be securely grounded during operation.
• When damaged, the unit must be repaired by professional repairing team.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
• When assembling, keep clear from any board or ammable material.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• The unit is for outdoor use only. It’s not allowed to use in building site, greenhouses, barn or stable where there’s ammable dust.
• The head of the unit is at high temperature during operation. Unplug the unit and wait till it’s cool before cleaning.
• The unit should be plugged in a socket, which is easily visible and reachable.
• WARNING: This heater is not equipped with a device to control the room temperature. DO NOT use this heater in small rooms when they are
occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• WARNING: In order to avoid over heating, DO NOT cover the heater.

3
Specication
Assembly

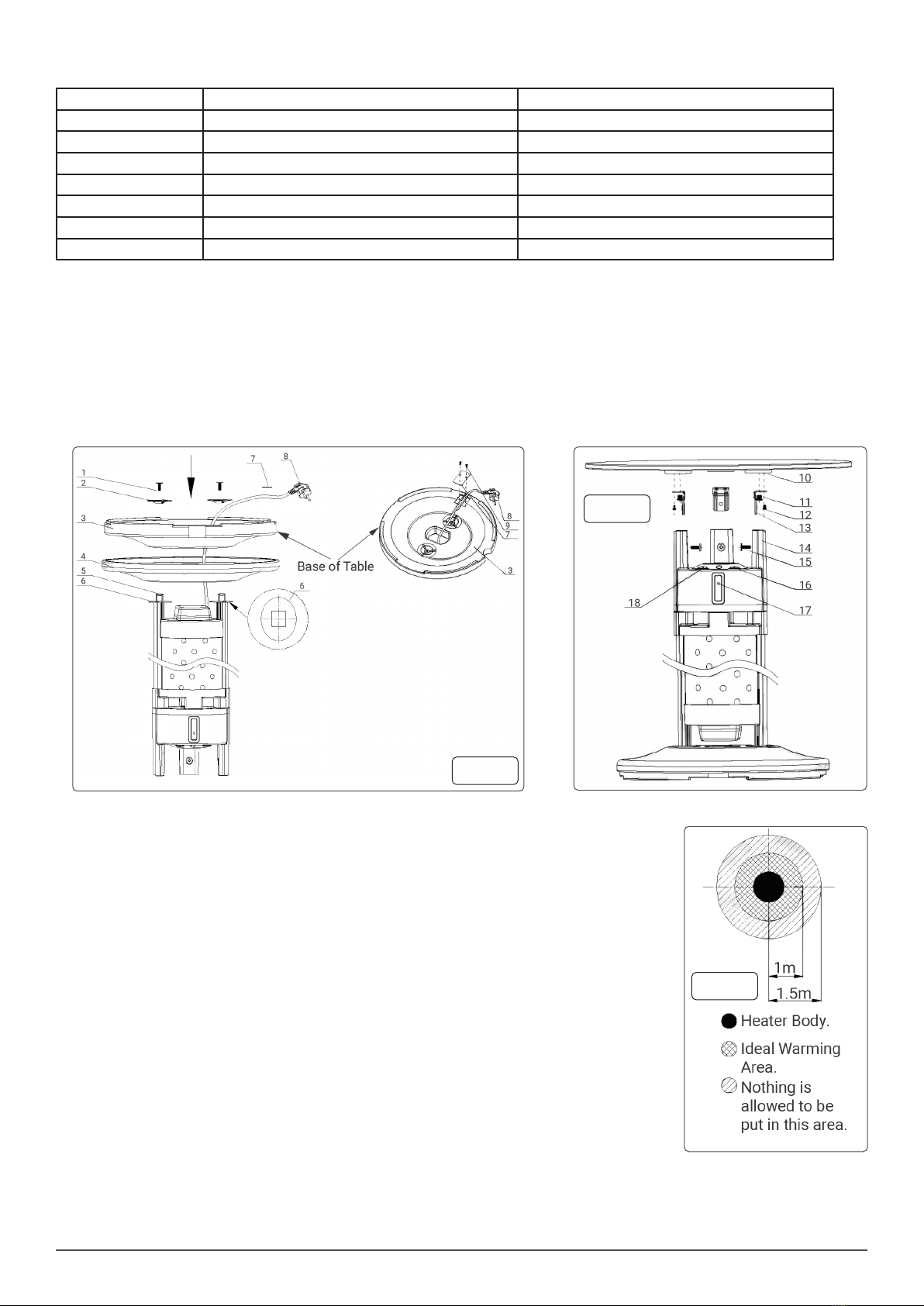

• Put the main body up-side-down (Fig.1). Slide Deco. Board (Fig.1.6) onto Base Bracket (Fig.1.5).
• Put the plug (Fig.1.8) and power supply cord through the holes on the centre of Base Cover (Fig.1.4) and Base (Fig.1.3).
• Then slide Base Cover (Fig.1.4) , Base (Fig.1.3) and Washer (Fig.1.2) onto Base Bracket (Fig.1.5) respectively.
• Fix Washer (Fig.1.2), Base (Fig.1.3), Base Cover (Fig.1.4) and Base Bracket (Fig.1.5) with Screw M6*20 (Fig.1.1).
• Clip the power supply cord with Cord Clip (Fig.1.7) and x it onto Base (Fig.1.3) with Screw (Fig.1.9).
• Stand the unit correctly (Fig.2). Fix L Bracket (Fig.2 .13) onto Aluminium Fixtures (Fig.2.10) with Screw M8*6 (Fig.2.12) & M4*6 (Fig.2.11)
respectively.
• Then slide L Bracket (Fig.2.13) into the holes of Control Box (Fig.2.14).
• Fix L Bracket (Fig.2.13) onto Control Box (Fig.2.14) with Screw M6*16 (Fig.2.15).
Operation
• Plug in the unit to a mains supply.
• Press LED Lighting Switch (Fig.2.18) to switch on or off the LED lighting.
• Press Heater Switch (Fig.2.16) to position “–” to switch on the heater directly.
• Press Heater Switch (Fig.2.16) to position “=”, IR sensors are activated. The Sub Heating Element will come on
immediately. IR Sensor indicator Light (Fig.2.17) starts to ash.
• When people or other objects are inside the sensing area (within about 0.6m around the heater body), IR Sensor
Indicator Light (Fig.2.17) lights up, and the main heating element is switched on automatically, while the sub
heating element turns off automatically. When people or other objects leave the sensing area, the main heating
element will switch off after 5 seconds, while the sub heating element is switched on again automatically. IR
Sensor LED starts to ash again.
• Note: IR sensing distance may differ from different material and colour. If there is some mirrored material
around the unit, i.e. glass mirror, stainless steel mirror, aluminium mirror, etc, the sensing distance may extend
to 3.5m.
• Fig.3, DO NOT leave items unattended in the indicated areas.
Maintenance
• WARNING: Allow to cool down before handling or moving.
• Cleaning: Unplug the unit before cleaning. It should be wiped with wet cloth. DO NOT use too much water.
• This heater cannot be serviced by the user. Contact Dellonda.
g.1
g.3
g.2
Model DG62 DG63
Power: 1200W 1600W
Supply: 230V 230V
Table Top Diameter: Ø50cm Ø50cm
Base Diameter: Ø40cm Ø40cm
Table Height: 65cm 95cm
Mains Cable Length: 1.8m 1.8m
IP Rating: IP44 IP44

Environment Protection and Waste Protection and Electrical Equipment
Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached
the end of it’s useful life, please dispose of it in an environmentally friendly way. Drain any fluids
(if applicable) into approved containers, in accordance with local waste regulations. It is our
policy to continually improve products and we reserve the right to alter data, specifications and
parts without prior notice. No liability is accepted for incorrect use of this product. Guarantee is
12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 suppor[email protected] www.dellonda.co.uk
