DeLonghi HFX85W15C User manual

HFX85W15C
AIR PURIFIER, HEATER AND FAN
Instructions for use. Keep these instructions
Visit www.delonghi.com for a list of service centers near you.
ELECTRIC CHARACTERISTICS
120 V~ 60 Hz1500 W
PURIFICADOR DE AIRE, CALENTADOR
Y VENTILADOR
Repase y guarde estas instrucciones.
Lea cuidadosamente este instructivo antes de usar su aparato.
Visit www.delonghi.com para ver la lista de centros de servicios cercanos a usted.
CARACTERISTICAS ELECTRICAS:
120 V~ 60 Hz1500 W

23
EN ES
page 4 page 13

3
A
A
M1
D
K1
G1
N
F1
H1
P
E
L1
O
FM
GL
H
I
S
Q
R
K
J
C
B

45
IMPORTANT
INSTRUCTIONS
When using any electrical appliance, some basic safety pre-
cautions should always be observed to reduce the risk of re,
electric shock, and/or injury to persons. Read all instructions
carefully before using the appliance. Specically:
Danger!
Failure to observe the warning may result in life threatening
injury by electric shock.
- Do not operate any heater with a
damaged cord or plug or after the
heater malfunctions, has been dropped
or damaged in any manner. Return
heater to authorized service facility for
examination, electrical or mechanical
adjustment, or repair.
- This heater is not intended for use in bath-
rooms, laundry areas and similar indoor lo-
cations. Never locate heater where it may fall
into a bath tub or other water container.
- Do not use this heater in the immediate sur-
roundings of a bath, a shower or a swimming
pool.
- When using the appliance, make sure that the
switch or other control devices are not within
reach of persons in the bath or shower.
- Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this
may cause an electric shock, re, or damage
the heater.
- CAUTION: to prevent electric shock
match wide blade of plug to wide slot,
then fully insert.
- CAUTION: In order to avoid a hazard due to
inadvertent resetting of thermal cutout, this
appliance must not be supplied through an
external switching device, such as a timer,
or connected to a circuit that is regulary
switched on and o by the utility.
- This heater may include an visual alarm to
warn that parts of the heater are getting
excessively hot. If the alarm ashes, imme-
diately turn the heater o and inspect for any
objects on or adjacent to the heater that may
cause high temperatures. DO NOT OPERATE
THE HEATER WITH THE ALARM FLASHING.
Important!
Failure to observe the warning could result in injury or
damage to the appliance.
- The appliance is not intended for use by
persons (including children) with reduced
physical, sensory ormental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or instruc-
tion concerning use of the appliance by a
person responsible for their safety. Children
should be supervised to ensure that they do
not play with the appliance.
- Extreme caution is necessary when any heat-
er is used by or near children or invalids and
whenever the heater is left operating and
unattended.
- Always unplug heater when not in use.
- Use this heater only as described in this
manual. Any other use not recommended
by the manufacturer may cause re, electric
shock, or injury to persons.
- The heater must not be located immediately
below a socket-outlet.
- To prevent overload and blown fuses, be
sure that no other appliance is plugged into
the same outlet (receptacle) or into another
outlet (receptacle) wired into the same cir-
cuit.
- Be sure that the plug is fully inserted into an
appropriate outlet. Please remember that
outlets also deteriorate due to aging and
continuous use: check periodically if signs of
overheating or deformations are evi-denced
by the plug. Do not use the outlet and CALL
your electrician.
Danger of burns!!
Failure to observe the warning could result in burns or scalds.
- This heater is hot when in use. To avoid
burns, do not let bare skin touch hot surfaces.
Use handle when moving this heater. Keep

5
combustible materials, such as furniture, pil-
lows, bedding, papers, clothes, and curtains
at least 3 feet (0,9 m) from the front and top
of the heater and keep them away from the
sides and rear.
- Do not run cord under carpeting. Do not
cover cord with throw rugs, runners, or the
like. Arrange cord away from trac area and
where it will not be tripped over. Do not route
cord under furniture or appliances.
- To prevent a possible re, do not block air in-
takes or exhaust in any manner. Do not use on
soft surfaces,like a bed, where openings may
become blocked.
- A heater has hot or arcing or sparking parts
inside. Do not use it in areas where gasoline,
paint, or ammable liquids are used or stored.
- It is normal for the heater’s plug and cord to
feel warm to the touch. A plug or cord which
becomes hot tothe touch or becomes distort-
ed in shape may be a result of a worn electri-
cal outlet. Worn outlets or receptacles should
be replaced prior to further use of the heater.
Plugging heater into a worn outlet / recep-
tacle/ may result in overheating of the power
cord or re.
- If the supply cord is damage, it must be re-
placed by the manufacturer, its service agent
or similarly qualied person in order to avoid
a hazard.
- WARNING: Do not cover the appliance while
it is functioning in order to avoid overheating
which may cause risk of re.
Please note:
This symbol indicates recommendations and important
information for the user.
- If your appliance is equipped with a poly-
thene tape used as carry handle, remove it
before connecting appliance to the outlet.
- Do not use outdoors.
- Always use the appliance stand alone on the
oor and in an upright position.
- To disconnect heater, turn controls to o, then
remove plug from outlet.
- Connect to properly polarized outlets only.
- This heater is not intended for use with an
extension cord or outlet strip. Plug the cord
directly into an appropriate wall receptable.
- Check that neither the appliance nor the
power cable have been damaged in any way
during transportation.
- Do not use the appliance in rooms with a oor
area of less than 43 square feet (4mq).
- Make sure that no pieces of polystyrene or
other packaging material have been left on
the appliance. It may be necessary to pass
over the appliance with a vacuum cleaner.
- When switching on the appliance for the rst
time, allow it to run at full power for at least
two hours to get rid of the unpleasant smell.
Make sure that the room in which the appli-
ance is located is well ventilated during this
operation. It is normal for the appliance to
emit small cracking sounds when you turn it
on.
SAVE THESE
INSTRUCTIONS
THIS PRODUCT IS FOR HOUSEHOLD USE
ONLY

67

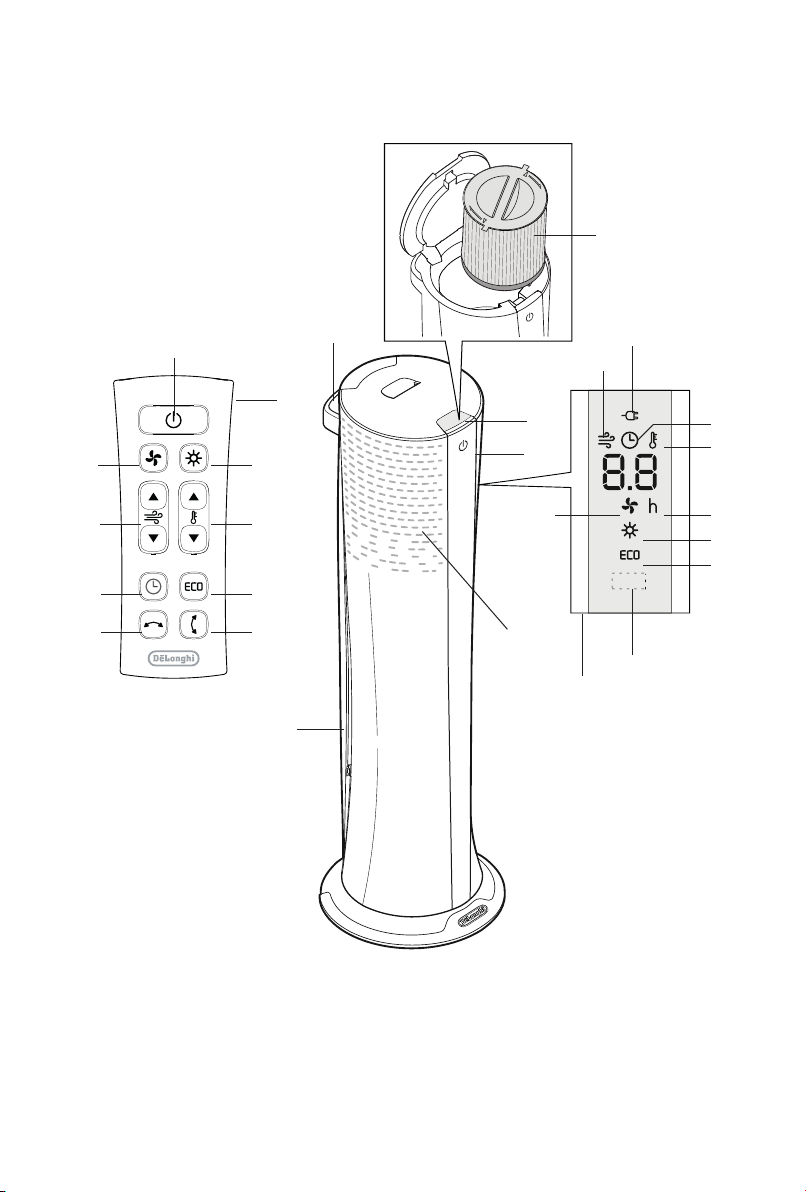

DESCRIPTION
A ON/STANDBY button
B Lid release button
C Air purication lter
D Remote control
E Control panel
F Heating button
F1 Heating mode
G Temperature buttons
G1 Temperature indicator (C° and F°)
H ECO button
H1 ECO function
I Airow direction button
JOscillation button
K Timer button
K1 Timer function
LFan speed buttons
L1 Fan speed indicator
M Fan button
M1 Fan mode
N Hours
O Power indicator light
P Receiver for remote control
Increase button
Decrease button
QHandle
R Air inlet
S Air outlet
OPERATION AND USE
Electrical connection
Before plugging the appliance into the outlet, check that
the power supply corresponds to the value indicated on the
rating plate and that the power supply is adequate for the
load.
Installation
The appliance can be used on any horizontal stable surface.
Do not overload the electrical circuit.
Avoid using the same socket for other appliances.
Please note: the appliance can be easily moved
carrying it by the handle. Before moving it remember to turn
it o.
Starting instructions
Please note: the lter is provided with a protective
wrapper around it that needs to be removed before rst use.
- Before turning on the appliance remove the lter from
its housing as explained in the lter maintenance
section.
- Remove the wrapper covering the lter (g.1).
g.1
- Replace the lter in its housing as explained in the lter
maintenance section.
- Connect the appliance to the power outlet.
- The appliance emits three beeps and the power
indicator light (O) also comes on and remains lit while
power to the appliance is on. The appliance goes into
STANDBY.
OPERATING MODES
Turn on the appliance
- Press/touch the ON/STANDBY button (A) to turn on the
appliance.
There are two buttons to select the operating modes of
the appliance: heating (F) and fan (M).
- To turn o the appliance press/touch button ON/
STANDBY (A). If unit has been in heat mode , expect
the display to count down for about 10 seconds before
the unit shuts o. After that, to completely turn o the
appliance, remove the plug from the socket.
Please note: never turn o the appliance by only
pulling the plug. Press/touch the ON/STANDBY button (A) and
wait a few minutes before pulling the plug. In this manner,
the appliance can perform operating status checks.
Air purication
The product is designed to oer constant air purication
from allergens and pollutants. In heating and fan modes.The
purication function is NOT working when in the STANDBY
mode. If air purication is desired regardless of the need for
heating or ventilation, it is advisable to set the product in fan
mode using ventilation levels 1 through 5.
Heating mode

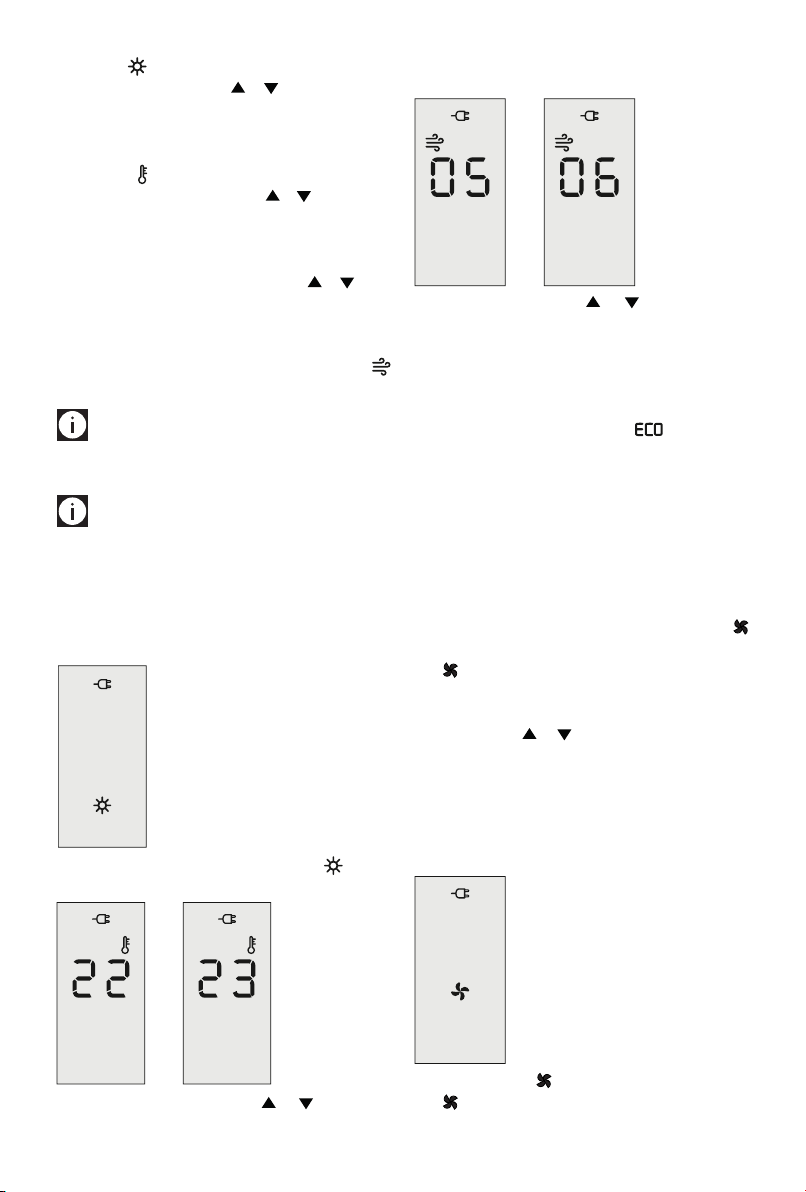

- To select this operating mode, press the heating button
(F) on the remote control. The display shows the

7
symbol (F1); the temperature can be set by pressing
the temperature buttons ( or ) (G) on the remote
control.
At rst pressing, the display will show the current set-
point for approximately 4-5 seconds together along
with the symbol; the temperature can be increased
or decreased by pressing button or respectively.
- The minimum setting is 50°F (10°C) and the maximum
is 82°F (28°C).
- In this mode it is possible to increase or decrease the
fan speed by pressing the speed button or (L) on
remote control; the minimum fan speed available in
heating mode is 1, the maximum is 6.
- At rst pressing, the display will show the current fan
speed for approximately 4-5 seconds along with the
symbol.
Please note: the appliance will operate for few
seconds with a reduced airow to allow the preheating in
order to guarantee the best comfort.
Please note: When the set temperature is reached,
the appliance will automatically stop heating but could
keep working for a preset time at reduced airow speed.The
appliance will restart heating again, at the previous settings,
as long as needed to maintain the desired set temperature.
Examples: heating mode
- Press heating button (F), the display shows .
- Press the temperature button or (G) to select
desired temperature.
- Press the speed button or (L) to increase or
decrease the fan speed.
ECO function
Thisfunction canbe activatedonly withthe heating operating
mode. To activate this function, press the ECO button (H) on
the remote control, the display shows . The appliance
will automatically set the power level to guarantee the best
comfort while reducing the energy consumption.
Fan mode
In this operating mode only the fan operates so the appliance
does not heat the room. This is ideal during summer days
because it moves air in a room, creating a pleasant breeze
instead of stale air.
- To select this operating mode, press the fan button
(M) on the remote control, the display shows the symbol
(M1).

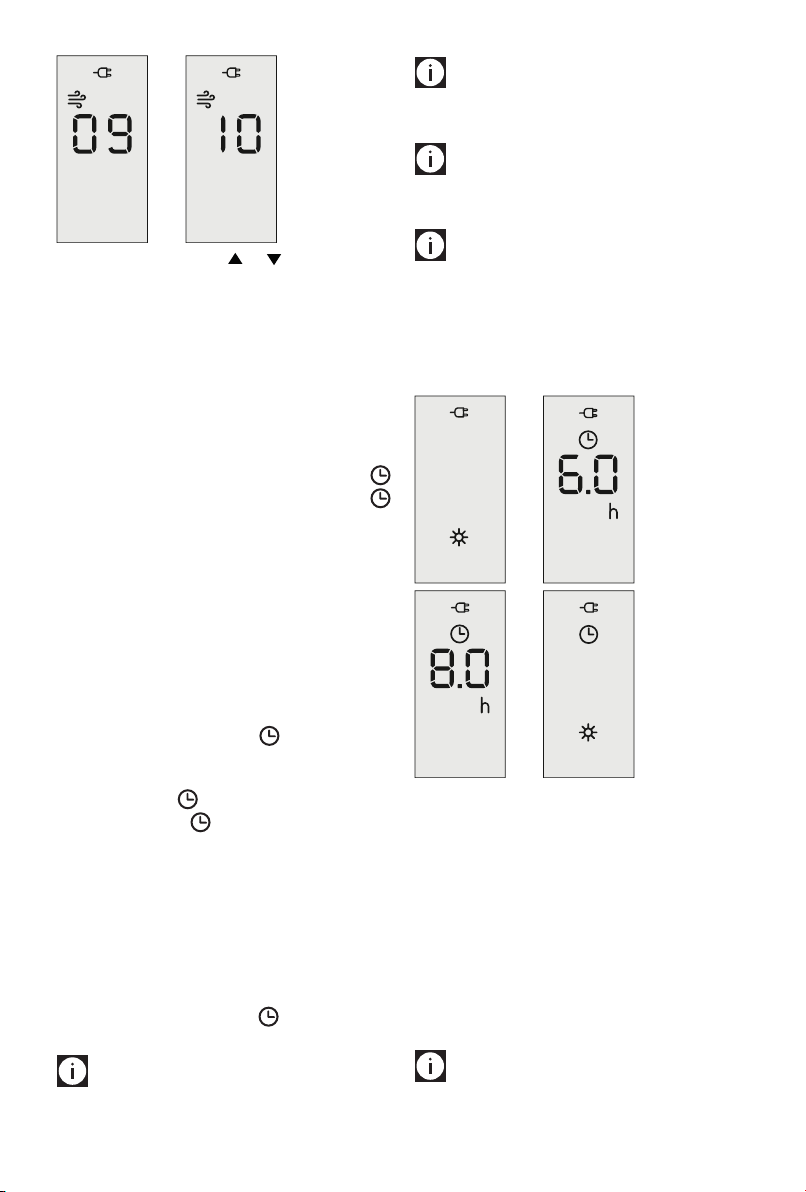

- In fan mode 10 speeds are available. It's possible to
increase or decrease the fan speed by pressing the
speed button or (L) on the remote control. The
value changes one fan speed at a time.
- At rst pressing, the display will show the current fan
speed.
Examples: fan mode
- Press fan button (M) , the display shows the symbol
.

89
- Press the speed button or (L) to increase or
decrease the fan speed. The display will show the fan
speed you have selected.
TIMER operation
The timer can be used to delay appliance start up or
shutdown. This avoids wasting electricity by not operating
the appliance when it is not needed.
This function can be activated from any operating mode.
- DELAYED SWITCH-ON: with the appliance in the
STANDBY mode position, press the timer button (K)
on the remote control, the display shows the symbol
(K1) together with "h" (N). The time can be set pressing
the timer button repeatedly to select from the following
choices: 0.5h, 1h, 2h, 4h, 6h, 8h and 12h.
Once having set the desired time, it will remain in the
display for 4-5 seconds and then disappear.
When the programmed time has been reached, the
appliance automatically turns on with the same settings
it had during the previous operation.
Once the function has been set, if you want to go back to
operation without the timer, press the timer button (K)
twice rapidly.The timer symbol disappears from the
display.
- DELAYED SHUT-OFF: With the appliance ON, press the
timer button (K) on the remote control. The display
shows the symbol (K1) together with "h" (N). The
time can be set pressing the timer button repeatedly
to select from the following choices: 0.5h, 1h, 2h, 4h,
6h, 8h and 12h. Once having set the desired time, it
will automatically disappear after 4-5 seconds. When
the programmed time has been reached, the appliance
shuts o automatically.
Once the function has been set, if you want to go back to
operation without the timer, press the timer button (K)
twice rapidly.The timer symbol disappears from the
display.
Please note: while the timer is active, the operating
settings of the unit can still be modied.
Please note: while this funtion is active, if the timer
button is pressed one time, the remaining time will be shown
on the display.
Please note: if a power failure or power interruption
occurs, the time function is reset and the appliance
automatically goes to STANDBY.
Please note: if the ON/STANDBY button is pressed
while the timer function is active, the unit changes its status
(for example it goes to ON from STANDBY or vice versa) and
timer function will be deactivated.
Examples: timer function
- In heating mode press timer button till 6h appears
on display, press again to the desired value of 8h. The
selected time will disappear after 4-5 seconds if timer
button is not pushed again.
Oscillation button
If you want the appliance to distribute the airow over a
larger area, press the oscillation button (J) on remote control.
The appliance will then oscillate right and left.
To stop the oscillation in the desired position, just press
oscillation button (J) again.
Please note: never try to rotate the appliance
manually as you may damage the unit.

9
Please note: when changing the settings, the
oscillation temporarily stops for approximately 10-15
seconds before resuming.
Airow
The airow moves around the surface of the appliance
spreading uniformly throughout the room, ensuring a perfect
comfort level.
Important! NEVER put your hands or any foreign
objects e.g. a knife or foil, into the air outlet (S).

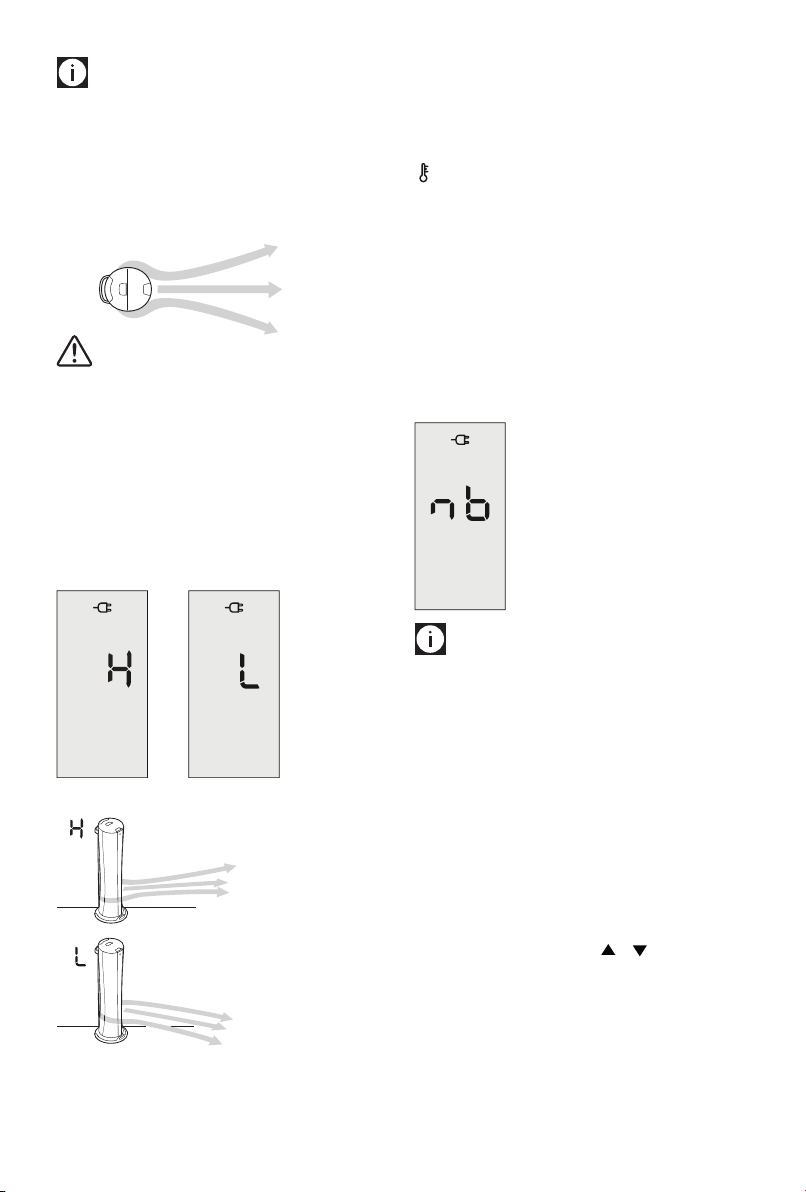

Airow direction
This function allows to orientate the airow in the best way.
There are two positions, "H" and "L" (high and low direction).
Once the button airow direction (I) is pressed, the buzzer
emits a sound and the display shows "H" or "L" for a few
seconds.
Examples of the display of airow direction:
Changing the temperature scale
To change the temperature scale, press the temperature
button (G) and speed button (L) on the remote at the same
time. An acoustic signal will sound and the display will show
for 3 seconds "F" (Fahrenheit) or"C" (Celsius) with the symbol
.
No beep function
This function allows to activate or deactivate the buzzer
placed on the control panel.
Press together airow direction button (I) and oscillation
button (J). The display shows the script "nb" for a few
seconds, then the normal display reappears. This function is
available in any operating mode, including standby.
Examples: no beep function
Please note: the buzzer shall generate the sounds
related to the commands "STANDBY" and "ON" regardless of
No Beep function.
Brightness of the display
The appliance allows two dierent brightness settings for the
display.The highest is active when any key button is pressed.
After a few seconds of keyboard inactivity, the brightness will
decrease to the operating brightness level.
To change the operating brightness level, press the ECO
button (H) and timer button (K) together. Three brightness
levels are available.
The display shows: "L1", "L2", "L3" for 4-5 seconds, and within
this time it is possible to increase or decrease the brightness
level using the speed buttons (L), or respectively. After
4-5 seconds, the last level of brightness selected will be
shown on the display and then disappear automatically.

10 11
Examples: brightness of the display:
Remote control: inserting or replacing the batteries
- The remote control
is provided with
a 3v lithium at
button battery type
CR2032. To activate
the remote control,
remove the battery
cover strip by pulling
to remove it.
- To replace the
batteries, remove the battery, remove the cover by
rotating the screw counterclockwise with a screwdriver
like those you would use to x eyeglasses. Replace
the battery paying attention to the correct polarity as
shown in gure above.
- Replace the cover rotating the screw clockwise.
- Old batteries must be removed and disposed o in
accordance with current legislation as they are harmful
to the environment.
WARNING: DO NOT DISPOSE OF BATTERIES IN FIRE.
BATTERIES MAY EXPLODE OR LEAK.
Operating from the control panel
To use the unit the remote control is needed. If the remote
control is not available, it's possibile to switch the operating
mode between fan and heating by using the ON/STANDBY
button (A) on the control panel. While the unit is in STANDBY
MODE, press the ON/STANDBY button for approximately 10
seconds. The appliance comes on with the opposite function
set before it was shut o with a pre-dened temperature set
in case of heating and a pre-dened speed in fan mode.
MAINTENANCE
General product maintenance
Before carrying out any maintenance, always unplug from
the wall socket.
Please note: during the season when the appliance is
in use, clean the air intake and outlet grilles regularly using a
vacuum cleaner.
Please note: never use abrasive powders or solvents
to clean the appliance.
Use only a soft damp cloth instead.
Air purication lter maintenance
It is good practice to clean the lter at regular intervals to
remove accumulation of dust on the surface of the lter.
To clean the lter, it is necessary to remove it from its housing
as explained below:
- Open the lid by pushing the lid release button (B).
- Rotate the lter cover counter clockwise until the
pointer on the cover matches the symbol (g.2).
g. 2
- Remove the lter .
- Use a vacuum cleaner to remove the dust collected.
- Then put the lter back in its housing by rotating the
cover clockwise until the pointer on the cover matches
the symbol (g.3).
Please note: never close lid forcibly as you may
damage the unit. Instead, check to make sure lter is set
properly.
g. 3
The unit is automatically programmed to remind you to
change the lter.
After a pre-dened number of working hours the unit will
display CF message cyclically, indicating that the lter must
be replaced. Always use original De’Longhi replacement lter.
To reset the CF alarm, in rapid succession insert the plug and

11
touch and hold the ON/STANDBY (A) button on the unit for at
least 10 seconds until you hear a long beep.
The lter is designed to last up to 9 months, based on 8 hours
usage a day, at medium working load.
Please note: the indicator is a guide and you may
need to replace the lter more frequently, depending on the
air quality conditions.

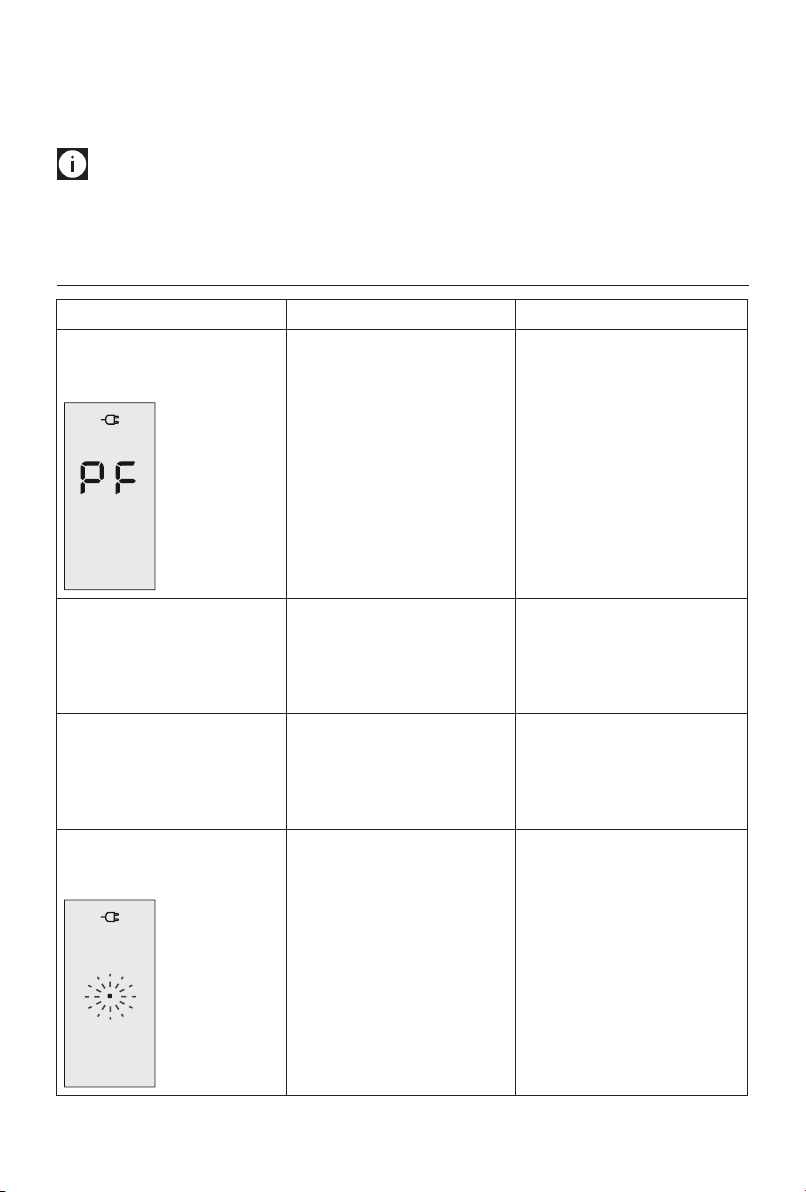

PROBLEM CAUSE SOLUTION
The display shows "pf" and emits
a beep
Temperature sensors are not working
properly
Please contact Customer Service
Product doesn’t turn on Check that the plug is connected to the
outlet
The set temperature has been reached
or the time set on the timer has elapsed
Plug in
Use the “+” button to increase the set
temperature
The appliance goes o unexpectedly Check that the plug is connected to the
outlet
The set temperature has been reached
or the time set on the timer has elapsed
Plug in
Use the “+” button to increase the set
temperature or turn o timer function.
A dot is ashing on display, emits a
beep and unit is o
The tip-over switch has been activated Use the “+” button to increase the set
temperature or turn o timer function.
Make sure the appliance is standing up-
right on a at surface. If the appliance
doesn’t work please contact Customer
Service
TROUBLESHOOTING

12 TM
The display shows "cf" The lter has reached the pre-dened
number of hours
Replace the lter and reset the alarm.
To reset the CF alarm, in rapid
succession insert the plug and touch
and hold the ON/STANDBY (A) button
on the unit for at least 10 seconds until
you hear a long beep.
The display shows "Ht" or "It" blinking
The internal temperature is too high.
The air intake or outlet grill is
obstructed
Check the appliance is correctly
positioned respecting the minimum
distances from the wall, or objects, as
indicated in the instruction manual, if
not, position the appliance correctly
Remove the obstruction
Disconnect the plug from the outlet
and let the appliance cool down. After
few minutes plug the appliance again.
If the appliance doesn't work
please
contact Customer Service
The display shows "Fi" The fan motor does not work Disconnect the plug from the outlet.
After few minutes plug the appliance
again. If the problem persists
please
contact Customer Service

57_00_1118 www.delonghi.com
Printed in China
