DeLonghi EMFPS 60 B Quick guide

INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
distributed by
DèLonghi
Pty Ltd
EMFPS 60 B
MULTI-FUNCTION
ELECTRONIC OVEN

2
Dear Customer,
Thank you for having purchased and given your
preference to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of
the features offered by your appliance.
Please keep this booklet in a safe place. It may be
useful in future, either to yourself or to others in the
event that doubts should arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking
foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
PRODUCT LABEL

3
CONTENTS
Precautions and recommendations....................................................” 4
Installation............................................................................................” 6
Use and care.......................................................................................” 12
Multifunction oven...............................................................................” 14
Using the oven - electronic programmer...........................................” 16
Using the oven - cooking functions ..................................................” 28
Cleaning and maintenance .................................................................” 36
This oven has been designed and constructed in accordance with the following codes
and specifications:
AS/NZS 3350-1 General Requirements for Domestic electrical appliances
AS/NSZ 3350-2-6 Particular Requirements for Domestic electrical cooking appliances
AS/NSZ 1044 Electromagnetic Compatibility Requirements.

4
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental
rules. In particular:
■Never touch the appliance with wet hands or feet;
■Do not operate the appliance barefooted;
■The appliance is not intended for use by young children or infirm persons
with supervision
■Young children should be supervised to ensure they do not play with the
appliance
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or illogical use of the appliance.

5
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified
technician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should
not be left around within easy reach of children, as these may cause serious injuries.
■Do not attempt to modify the technical characteristics of the appliance as this
may become dangerous to use.
■Do not carry out cleaning or maintenance operations on the appliance without
having previously disconnected it from the electric power supply.
■After use, ensure that the oven is in the off position.
■The appliance is not intended for use by young children or infirm persons
without supervision.
■Young children should be supervised to ensure that they do not play with the
appliance.
■Do not allow children or other incapable people to use the appliance without
supervision.
■During use the appliance becomes hot. Care should be taken to avoid
touching heating elements inside the oven.
■Keep children away from the oven when it is in use.
■Some appliances are supplied with a protective film on steel and aluminium
parts. This film must be removed before using the appliance.
■Fire risk! Do not store flammable material in the oven.
■Make sure that electrical cables connecting other appliances in the proximity
of the oven become entrapped in the oven door.
■Do not line the oven walls with aluminium foil. Do not place baking trays or
the drip tray on the base of the oven chamber.
■The manufacturer declines all liability for injury to persons or damage to
property caused by incorrect or improper use of the appliance.
■WARNING: Taking care NOT to lift the oven by the door handle.
■IMPORTANT NOTE: This appliance shall not be used as a space heater,
especially if installed in marine craft or caravans.

6
CAUTION:
■This appliance must be installed in accordance with these installation instruc-
tions.
■This appliance shall only be serviced by authorized personnel.
■This appliance is to be installed only by an authorised person.
■Incorrect installation, for which the manufacturer accepts no responsibility,
may cause personal injury of damage.
■Always disconnect the oven from mains power supply before carrying out
any maintenance operations or repairs.
N.B. • The connection of the appliance to earth is mandatory.
• For connection to the mains, do not use adapters, reducers or
branching devices as they can cause overheating and burning.
If the installation requires alterations to the domestic electrical system call a qualified
electrician. He should also check that the socket cable section is suitable for the power
drawn by the appliance.
ELECTRICAL REQUIREMENTS
■The oven is supplied without a power supply plug and therefore if you are not
connecting directly to the mains, a standardized plug suitable for the load
must be fitted.
■Connection to the mains must be carried out by qualified personnel in
accordance with current regulations.
■The appliance must be connected to the mains checking that the voltage
corresponds to the value given in the rating plate and that the electrical cable
sections can withstand the load specified on the plate.
■The plug must be connected to an earthed socket in compliance with safety
standards.
■The appliance must be connected directly to the mains placing a two pole
switch with minimum opening between the contacts of 3 mm between the
appliance and the mains.
■The power supply cable must not touch the hot parts and must be positioned
so that it does not exceed 75°C at any point.
■Once the appliance has been installed, the switch or socket must always be
accessible.
■ If the supply cord is damaged it must be replaced by the manufacturer or
its Service Agent or a similarly qualified person in order to avoid a hazard.
INSTALLATION
11

7
REPAIRS

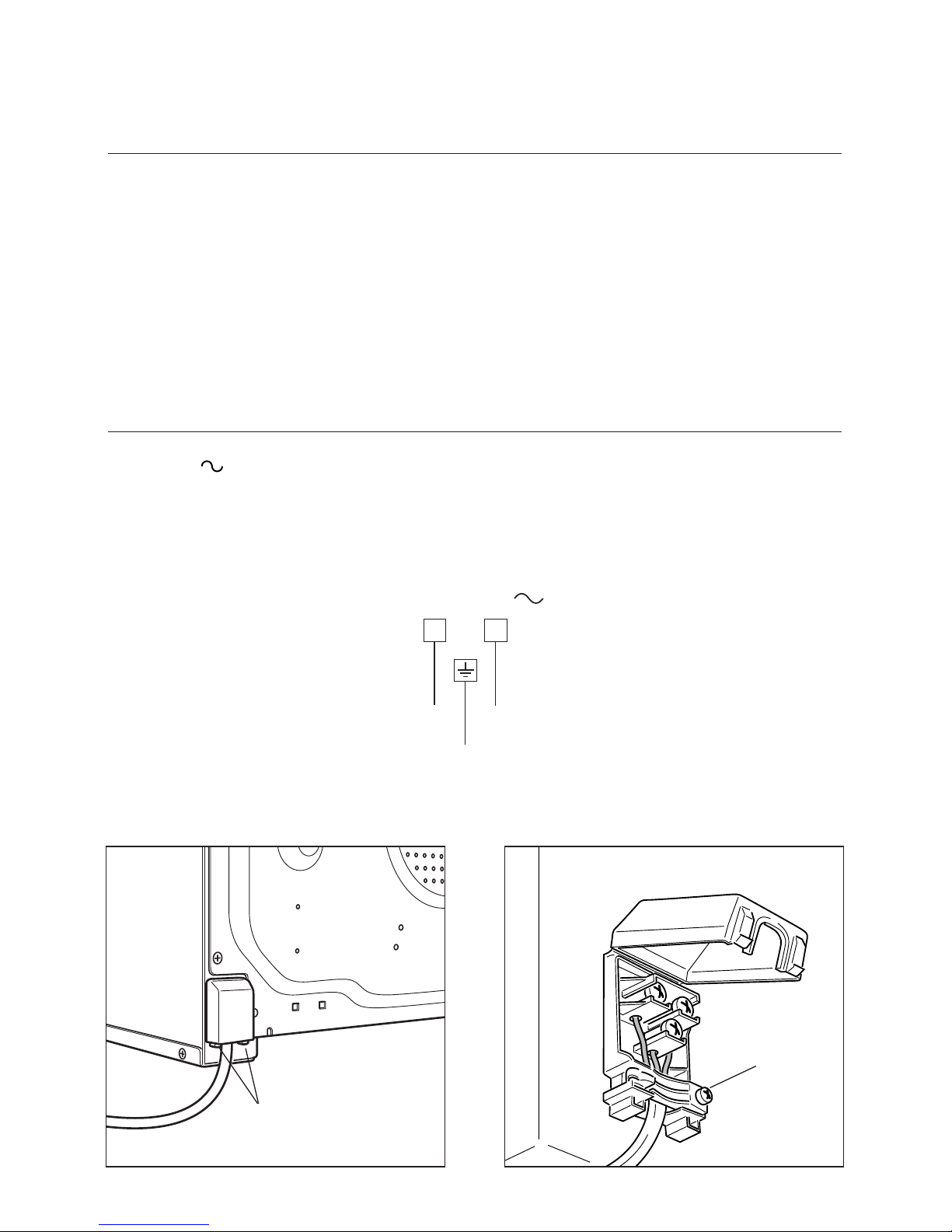

REPLACING THE POWER SUPPLY CABLE
■Unhook the terminal board cover by inserting a screwdriver into the two
hooks “A” (fig. 1.2).
■Open the cable gland by unscrewing screw “F” (fig. 1.3), unscrew the
terminal screws and remove the cable.
■The new supply cable, of suitable type and section, is connected to the
terminal board following the diagram fig. 1.1.
FEEDER CABLE SECTION TYPE HO5RR-F
230-240 V 3 x 1,5 mm2
A
F
230 - 240 V
E
N
L1(L )
2
Fig. 1.3Fig. 1.2
Fig. 1.1

8
Top element
Grill element
Bottom element
Circular element
M
N
L
Filter
Lf2
Lf1
Thermal overload
/
/
Cod. 1131594
ELECTRIC DIAGRAM
Fig. 1.4

9
FITTING THE OVEN INTO A
BASE
The space available should be of the
dimensions shown in the figure 1.5.
Arrangements should be made for an
adequate supply of the air to the oven
to avoid overheating (fig. 1.6).
560
550 min
591
594
594
540
20
536 min
600
The walls surrounding
the oven must be
made of heat-resistant
material. Both the
veneered plastic and
the adhesive used
must be resistant to
temperatures of 120°C
in order to prevent
unsticking and defor-
mation.
FITTING REQUIREMENTS
WARNING: Taking care NOT to lift the oven by the door handle.
The oven must be built-in in a standard module of furniture of 60 cm width and depth.
It is to be fit up in a module having the clearance as shown in the pictures.
On the lower side, the oven must lay on supports standing the oven weight.
The ovens are secured by four screws that pass through the surround. They must locate
firmly and squarely in the edges of the cabinet or add panels to achieve a secure loca-
tion.
Fig. 1.5
Fig. 1.6

10
560
50
585
FITTING THE OVEN INTO A
COLUM N
The cabinet should have the dimensions
as per fig. 1.7.
Furthermore it is necessary that the
oven is provided with a chimney as per
fig. 1.8.
If the column unit reaches the ceiling an
outlet must be provided through which
air can flow to the outside
; ;
50 mm
50 550
Fig. 1.7
WARNING
When correctly installed, your
product meets all safety
requirements laid down for
this type of product category.
However special care should
be taken around the rear or
the underneath of the appli-
ance as these areas are not
designed or intended to be
touched and may contain
sharp or rough edges, that
may cause injury.

11
OVEN DOOR
LOWER TRIM
AIR FLOW
IMPORTANT:
Please take extra care not to damage the lower trim of the oven.
Ensure the oven sits on wooden blocks or similar supports when it is removed from
the carton as shown in above diagram. This will prevent any damage to the lower
trim.
Should the lower trim become damaged, straighten the trim and ensure the oven
door opens fully without obstruction from the lower trim.
After installation check the lower trim is still undamaged.
The space between the bottom of the door & the lower trim is important to allow
proper air circulation into the oven.
The oven door should be opened slowly to it’s fully open position ensuring there is
adequate clearance between the bottom of the door and the lower trim.
The manufacturer does not accept responsibility for any damage to the oven
resulting from incorrect installation.
Fig. 1.9
Fig. 1.8

12
CAUTION:
■This appliance must be used only for the task it has explicitly been designed
for, that is for domestic cooking of foodstuffs. Any other form of usage is to
be considered as inappropriate and therefore dangerous.
■Do NOT place combustible materials or products on this appliance at any
time.
USE and CARE
12
Fig. 2.2
AB
Fig. 2.1
SLIDING SHELVES
■They facilitate the insertion and removal of shelves during cooking. These
shelves support all accessory trays and are dishwasher safe.
■The shelves stop when pulled out to the maximum position.
■The sliding shelves and the catalytic panels can be removed easily by
unscrewing the fixing screws and detaching them from the oven walls.
■Removing the sliding shelves improves access to the oven ceiling for clean-
ing (after the grill heating element has been lowered).

13
USING THE OVEN FOR THE FIRST TIME
■Slide off the sliding shelves and the catalytic panels to the oven walls as in
Fig. 2.1. The grill is secured to the rear wall of the oven on a hinge system that
allows it to be lowered to allow proper access when cleaning the oven ceiling
(fig. 2.2).
■Clean the inside of the oven with a cloth soaked in water and neutral detergent
and dry thoroughly.
■Assemble the sliding shelves on the oven walls using the 2 screws and inter-
posing the catalytic panels Aand Bwith the arrow up (fig. 2.1). The catalytic
panel Awith the hole for the side oven lamp must be positioned on the left
oven wall. DO NOT INTERPOSE THE CATALYTIC PANEL BON THE LEFT OVEN
WALL.
■Slide in the grease filter on the back of the oven as in Fig. 2.4.
■Position the shelf and tray on the sliding shelves (fig. 2.3).
■To eliminate traces of grease in manufacture it is necessary to pre-heat the oven
at the maximum temperature:
• For 60 minutes in the position, for 30 minutes in the position and for
another 15 minutes in the position.
GREASE FILTER
■A special screen is provided at the back of the oven to catch grease particles,
mainly when meat is being roasted.
■Clean the filter after any cooking! The grease filter can be removed for cleaning
and should be washed regularly in hot soapy water (fig. 2.4).
■Always dry the filter properly before fitting it back into the oven.
CAUTION: When baking pastry etc. this filter should be removed.
Fig. 2.3 Fig. 2.4

14
MULTIFUNCTION OVEN
13
Temperature
operating zone
Cooking functions
operating zone
Electronic programmer
operating zone
On/OFF and "Children Care"
operating zone
Temperature display
Programmer display
Functions display
Fig. 3.1
GENERAL FEATURES
This oven has special operating features.
9 different functions can be used to satisfy all cooking needs.
The 9 positions, controlled by the electronic programmer and a temperature probe, are
obtained by 4 heating elements which are:
■Lower heating element 1300 W
■Upper heating element 1000 W
■Grill heating element 2000 W
■Circular heating element 2200 W

15
Attention: the oven door becomes very hot during operation.
Keep children away.
During use the appliance becomes hot. Care should be taken to avoid touching
heating elements inside the oven.
OPERATING PRINCIPLES
Heating and cooking in the FULL ELECTRONIC MULTIFUNCTION oven are obtained in
the following ways:
■by normal convection
The heat is produced by the upper and lower heating elements.
■by semi-forced convection from the bottom
The heat produced by the lower heating element is distributed throughout the
oven by the fan.
■by forced convection
A fan sucks in the air contained in the oven, which is circulated through the cir-
cular heating element and then forced back into the oven by the fan.
Before the hot air is sucked back again by the fan to repeat the described cycle,
it envelops the food in the oven, provoking a complete and rapid cooking. It is
possible to cook several dishes simultaneously.
■by semi-forced convection from the bottom and back
The heat produced by the lower and circular heating elements is distributed
throughout the oven by the fan.
■by semi-forced convection
The heat produced by the upper and lower heating elements is distributed
throughout the oven by the fan.
■by double radiation
The heat is radiated by the infra red grill and the top heating elements.
■by radiation
The heat is radiated by the infra red grill element.
■by radiation and ventilation
The radiated heat from the infra red grill element is distributed throughout the
oven by the fan.
■by ventilation
The food is defrosted by using the fan and the bottom heating element
(“dEF” mode). By setting the temperature to higher values(from 40 to 100°C
max) it is possible to use this mode as a food warmer.

16
SYMBOL
Lit = semi-automatic or automatic
cooking programmed
Flashing = semi-automatic or
automatic cooking completed
SYMBOL
Lit = operation of heating
elements (cooking functions)
Flashing = semi-automatic or
automatic cooking completed
DIGITS
Normally time of the day
SYMBOL
Lit = minute minder in operation
Flashing = countdown completed
by the minute minder
SYMBOL
ON/OFF or
"Children Care" selection
SYMBOL
Minute minder selection
SYMBOL
Cooking time selection
SYMBOL
End cooking time selection
SYMBOL
To decrease the numbers
on the programmer display
SYMBOL
To increase the numbers
on the programmer display
Fig. 4.1
USING THE OVEN - ELECTRONIC PROGRAMMER
14

17
OR
SETTING TIME OF DAY
The programmer is provided with an electronic clock with luminous figures showing
the hour and minutes.
To set the time, press the two buttons “ ” simultaneously and with “ : ” symbol
flashing on the programmer display, press the button “ ” or “ ” to increase or
decrease the digits.
VERY IMPORTANT NOTE: Setting the clock wil l zero any programmes in progress
and the setted cooking function starts to operate immediately.
ELECTRONIC PROGRAMMER
FEATURES
The electronic programmer performs the following
functions:
•24 hours clock with illuminated display.
•Timer (up to 23 hours and 59 minutes).
•Program for semi-automatic oven cooking.
•Program for automatic oven cooking.
•Automatic switch off (after 10 hours when using
the oven in manual operation).
• "Children Care" safety selection (deactivation of
the programmer selection).
•Confirmation by three acoustic signals of last
setting performed (excluding oven programmer
activation).
IMPORTANT NOTE:
The first time the oven is used or after a black-
out three zeroes “0:00” will appear on the pro-
grammer display.
Before using the oven set the time of the day.
WARNING:
After any programmer setting, wait for the three acoustic signals of confirmation
before proceeding with a new selection.

18

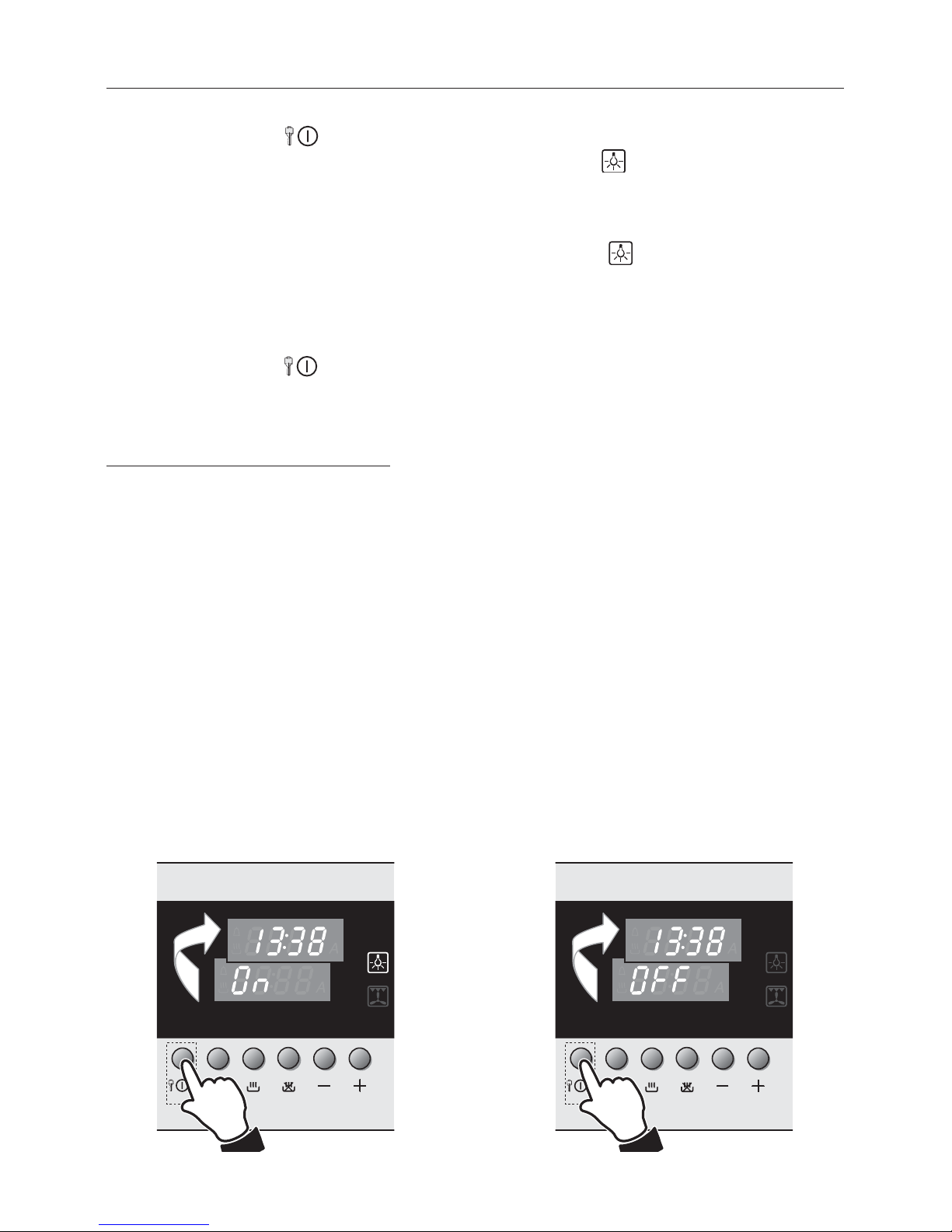

OVEN PROGRAMMER ACTIVATION / DEACTIVATION (ON / OFF)
To activate the oven programmer:
•Press the button “ ”; 0n appears for 2 seconds on the programmer display and
the oven lamp lights (symbol “ ” illuminated on the func-
tions display). Then the time of the day appears.
•The oven is ready to be operated.
•If the oven is not operated within 3 minutes the oven programmer is automatically
deactivated ("stand-by" condition); the oven light and “ ” symbol switch off and
“OFF” appears, for some seconds, on the programmer display.
Then the time of the day appears.
To deactivate the oven programmer:
•Press the button “ ”; OFF appears, for some seconds, on the display. The oven
is turned off (“stand-by” condition) and appears the time of the day on the program-
mer display.
WARNING - IMPORTANT NOTE
Do not deactivate the oven programmer with an automatic or semi-automatic
cooking programmed: this operation will cancel the programmed cooking.
Only the minute minder operates in the “stand-by” condition.

19
"CHILDREN CARE" SAFETY SELECTION
By pressing the button “ ” for about 5 seconds it is possible to activate the
“Children Care” option.
The display shows “n--0”, 0n and then the time appears again.
When the “Children Care” option has been selected it is possible only to turn off the
oven (stand-by mode), operate the minute minder and check the cooking time or the
end of the cooking time.
In this setting it is not possible to change the oven cooking program (cooking function,
temperature) and the time selected for a semi-automatic or automatic cooking: if press-
ing the relative button “n--0” appears on central or left temperature display.
To deactivate the “Children Care” option press the button “ ” for about 5 seconds.
The display shows “n--0”, OFF and then the time of the day appears again.
IMPORTANT: If the oven has been switched off (stand-by mode) with the “Children
Care” option selected it is possible to turn on the oven only after having deacti-
vated the “Children Care”.
5 seconds
5 seconds

20
MINUTE MINDER
The minute minder consists simply of an acoustic signal which can be set for a max-
imum of 23 hours an 59 minutes.
The minute counter, at the end of countdown, does not stop the operation of the oven
(heating elements stay on). Remember to turn off the oven manually.
•Press button “ ”. The “ ” symbol lights and ":" symbol flashes on the program-
mer display.
•Press button “ ” or “ ” to set the time required.
•The countdown starts immediately and after about 5 seconds the time of the day
appears again on the display.
•To check the countdown press button “ ”; the time is indicated (for some seconds)
in hours and minutes.
•At the end of the countdown an intermittent acoustic signal sounds and the “ ”
symbol flashes on the programmer display. Press any pushbutton of the programmer
(not “ ” ON/OF) to stop the intermittent acoustic signal.
NOTE:
The minute minder operates also if the oven, after selection, is turned OFF (stand-
by). The minute minder can also be set in the "stand-by" condition (OFF).
UP TO
OR
