DeLonghi DE608M Installation guide

DE’LONGHI
COOKING
INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
DE608M
DE608ARTB
MULTIFUNCTION BUILT-IN OVENS
distributed by
DeLonghi Australia Pty Ltd
DeLonghi New Zealand Ltd

2
Dear Customer,
Thank you for having purchased and given your preferen-
ce to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They will
also provide a means by which to make full use of the fea-
tures offered by your appliance.
Please keep this booklet in a safe place. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking fo-
odstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or illo-
gical use of the appliance or be faulty installation.
PRODUCT LABEL
This appliance has been designed and constructed in accordance with the following codes
and specications:
AS/NZS 60335.1 General Requirements for Domestic electrical appliances
AS/NZS 60335.2.6 Particular Requirements for Domestic electrical cooking appliances
AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements.

3
Important:
This appliance is designed and manufactured solely for the coo-
king of domestic (household) food and is not suitable for any non
domestic application and therefore should not be used in a com-
mercial environment.
The appliance guarantee will be void if the appliance is used within
a non domestic environment i.e. a semi commercial, commercial
or communal environment.
FIRST USE OF THE OVEN
It is advised to follow these instructions:
■Furnish the interior of the oven as described at chapters “USE
AND CARE” and “CLEANING AND MAINTENANCE”.
■Switch on the empty oven on max to eliminate grease from the
heating elements.
■Let the oven cool down and clean the interior of the oven with a
cloth soaked in water and neutral detergent, then dry carefully.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a se-
ries of fundamental rules. In particular:
■Never touch the appliance with wet hands or feet.
■Do not operate the appliance barefooted.
■ The appliance is not intended for use by young children or inrm
persons without supervision.
■Young children should be supervised to ensure they do not play
with the appliance.
The manufacturer cannot be held responsible for any damages cau-
sed by improper, incorrect or illogical use of the appliance.

4
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not
damaged and that the oven door closes correctly. In case of doubt,
do not use it and consult your supplier or a professionally qualied
technician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing
straps, etc.) should not be left around within easy reach of children,
as these may cause serious injuries.
■ Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the ap-
pliance.
■Do not attempt to modify the technical characteristics of the ap-
pliance as this may become dangerous to use.
■Do not carry out cleaning or maintenance operations on the ap-
pliance without having previously disconnected it from the elec-
tric power supply.
■After use, ensure that the knobs are in the off position.
■Keep children away from the appliance when it is in use.
■WARNING: Accessible parts will become hot when in use. To
avoid burns and scalds, young children should be kept away.
■Young children should be supervised to ensure that they do not
play with the appliance.
■Children, or persons with a disability which limits their ability to
use the appliance, should have a responsible person to instruct
them in its use. The instructor should be satised that they can
use the appliance without danger to themselves or their surroun-
dings.
■During and after use of the appliance, certain parts will become
very hot. Do not touch hot parts. Care should be taken to avoid
touching heating elements inside the oven.
■Make sure that electrical cables connecting other appliances in
the proximity of the oven cannot become entrapped in the oven
door.
■WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.

5
However special care should be taken around the rear or the
underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges,
that may cause injury.
■Do not line the oven walls with aluminium foil. Do not place ba-
king trays or the drip tray on the base of the oven chamber.
■Fire risk! Do not store ammable material in the oven.
■Always use oven gloves when removing the shelves and food
trays from the oven whilst hot.
■Do not hang towels, dishcloths or other items on the appliance or
its handle – as this could be a re hazard.
■Clean the oven regularly and do not allow fat or oils to build up in
the oven base or tray. Remove spillages as soon as they occur.
■Do not stand on the open oven door.
■Always stand back from the appliance when opening the oven
door to allow steam and hot air to escape before removing the
food.
■Safe food handling: Leave food in the oven for as short a time
as possible before and after cooking. This is to avoid contamina-
tion by organisms which may cause food poisoning. Take parti-
cular care during warmer weather.
■The manufacturer declines all liability for injury to persons or da-
mage to property caused by incorrect or improper use of the ap-
pliance.
■WARNING: Taking care NOT to lift the oven by the door
handle.
■IMPORTANT NOTE: This appliance shall not be used as a
space heater, especially if installed in marine craft or cara-
vans.
■Do not operate your appliance by means of an external timer
or separate remote-control system.
■This appliance is for domestic use only.

6
INSTALLATION
CAUTION:
■This appliance must be installed in accordance with these installation instructions.
■This appliance shall only be serviced by authorised personnel.
■This appliance is to be installed only by an authorised person in compliance
with the current electrical regulations and in observation of the instructions
supplied by the manufacturer.
Failure to comply with this condition will render the guarantee invalid.
■Incorrect installation, for which the manufacturer accepts no responsibility, may
cause personal injury of damage.
■Always disconnect the appliance from mains power supply before carrying out
any maintenance operations or repairs.

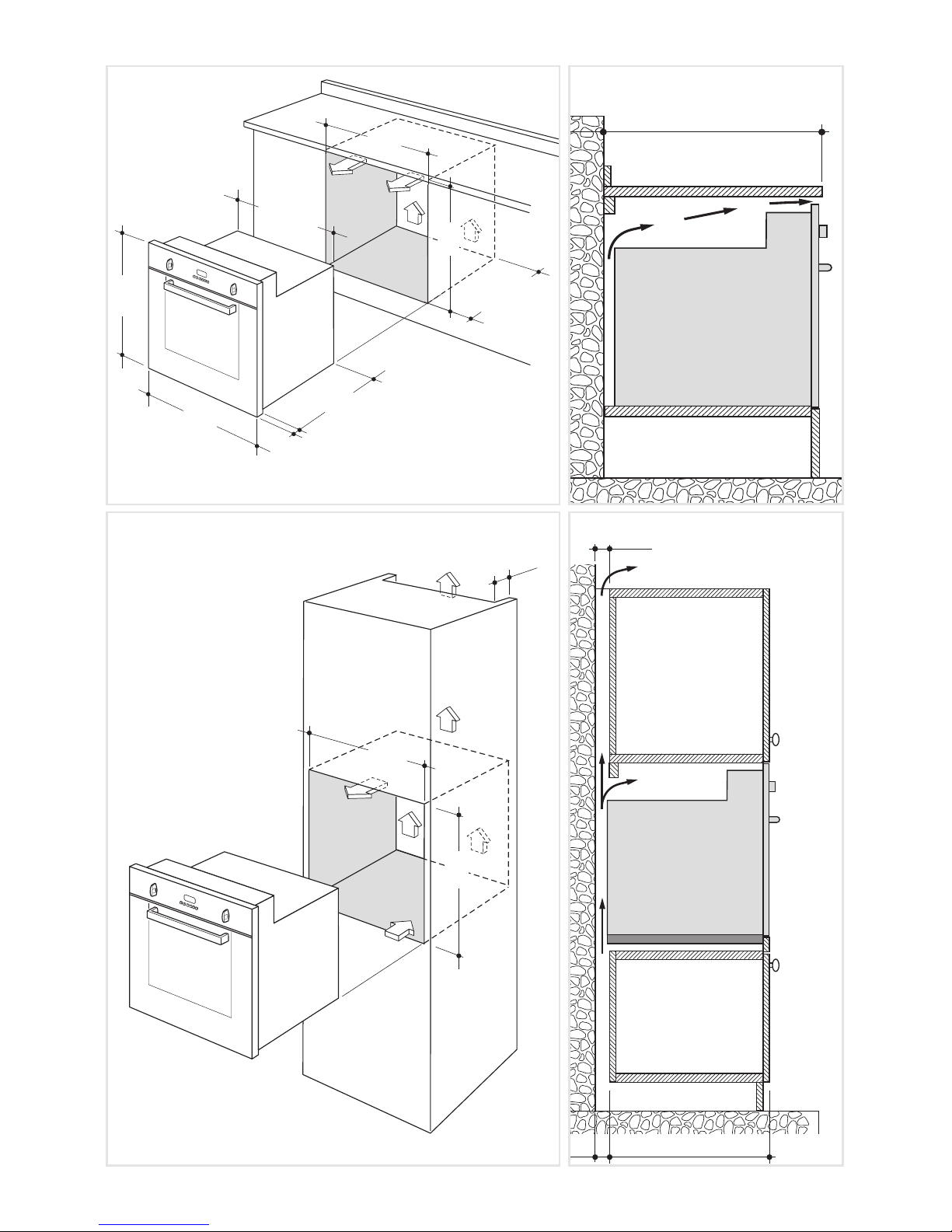

FITTING REQUIREMENTS
■ The oven can be tted in standard units, 60 cm width and depth.
■ Installation requires a compartment as illustrated in gures 1a and 2a.
■Fitting the oven into a base: Arrangements should be made for an adequate supply
of the air to the oven to avoid overheating (g. 1b).
■Fitting the oven into a column : It is necessary that the oven is provided with a chim-
ney as per g. 2b. If the column unit reaches the ceiling an outlet must be provided
through which air can ow to the outside
■On the lower side, the oven must lay on supports standing the oven weight.
■Remember the housing should not be free standing but be secured to the wall and/or
adjacent ttings.
■We would point out that the adhesive which bonds the plastic laminate to the fur-
niture must withstand temperatures not less than 150° C to avoid delamination.
■The walls of the units must be capable of resisting temperatures of 75 °C above
room temperature.
■Do not seal the oven into the cabinetry with silicone or glue; this makes future
servicing difcult. Delonghi will not cover the costs of removing the oven, or of
damage caused by this removal.
■The walls surrounding the oven must be made of heat-resistant material.
■WARNING: Taking care NOT to lift the oven by the door handle.
WARNING
When correctly installed, your product meets all safety requirements laid down for
this type of product category.
However special care should be taken around the rear or the underneath of the ap-
pliance as these areas are not designed or intended to be touched and may contain
sharp or rough edges, that may cause injury.
IMPORTANT
Some environmental factors and cooking habits can cause condensation in and
around the oven during use. To protect surrounding cabinetry from possible dama-
ge caused by frequent or excessive condensation, we recommend moisture-proo-
ng the oven cavity.

7
560
550 min
195
594
495
540
20
536 min
600
560
50
585
50 mm
55050
Figure 2a Figure 2b
Figure 1a Figure 1b

8
FIXING THE OVEN
Introduce the oven into the furniture opening and x it with 4 screws (not supplied) as gure
3. It is essential that the oven rests on a surface which will support its weight, as the screw
xing is only complementary.
Note
It is essential that when installing your oven adequate air circulation is allowed for within the
installation. See gures 1a, 1b, 2a, 2b.
Inadequate air circulation may greatly impair the performance of your oven and may effect
adjacent cabinets due to an increase in temperature.
Caution!
Do not lift this oven by the door handle.
Adjust the hinges of furniture doors adjacent to the oven to allow a 4-5 mm gap between
the furniture door and the oven frame.
Figure 3

9
OVEN DOOR
LOWER TRIM
AIR FLOW
Air Flow
Oven Door
Lower Trim
IMPORTANT:
Please take extra care not to damage the lower trim of the oven.
Ensure the oven sits on wooden blocks or similar supports when it is removed from the
carton as shown in above diagram. This will prevent any damage to the lower trim.
Should the lower trim become damaged, straighten the trim and ensure the oven door
opens fully without obstruction from the lower trim.
After installation check the lower trim is still undamaged.
The space between the bottom of the door & the lower trim is important to allow proper air
circulation into the oven.
The oven door should be opened slowly to it’s fully open position ensuring there is adequa-
te clearance between the bottom of the door and the lower trim.
The manufacturer does not accept responsibility for any damage to the oven resul-
ting from incorrect installation.
Figure 4

10
ELECTRICAL REQUIREMENTS
■The appliance must be connected to the mains checking that the voltage correspon-
ds to the value given in the rating plate and that the electrical cable sections can
withstand the load specied on the plate.
■A suitable isolating switch providing full disconnection from the mains power supply
shall be incorporated in the permanent wiring, mounted and positioned to comply with
the local wiring rules and regulations. The isolating switch must be of an approved
type and provide a 3 mm air gap contact separation in all poles (or in all active [phase]
conductors if the local wiring rules allow for this variation of the requirements).
■The isolating switch shall be easily accessible to the customer with the oven installed.
■The power supply cable must not touch the hot parts and must be positioned so that it
does not exceed 75°C above ambient.
■The oven is supplied without a power supply plug and therefore if you are not con-
necting directly to the mains, a standardized plug suitable for the load must be tted.
■The plug must be connected to an earthed socket in compliance with safety standards.
■To connect the appliance to the mains electricity supply, do not use adapters, reducers
or branching devices as they can cause overheating and burning.
■Once the appliance has been installed, the switch or socket must always be accessible.
■If the supply cord is damaged it must be replaced by the manufacturer or it’s Service
Agent or a similarly qualied person in order to avoid a hazard.
N.B. The connection of the appliance to earth is mandatory.
If the installation requires alterations to the domestic electrical system call a qualied elec-
trician. He should also check that the domestic electrical system is suitable for the power
drawn by the appliance.
Replacing the power cord must be done by a qualied electrician in accordance with
the instructions supplied by the manufacturer and in compliance with established
electrical regulations.

11
REPLACING THE POWER SUPPLY CABLE
Important! This appliance must be connected to the electricity supply only by an
authorised person.
To connect the supply cable:
■Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (g. 5).
■Open the cable gland by unscrewing screw “F” (g. 6), unscrew the terminal screws
and remove the cable.
■The new supply cable, of suitable type and section, is connected to the terminal board
following the diagram g. 7.
■Close and hook again the terminal board cover.
N.B. The earth conductor must be left about 3 cm longer than the others.
VOLTAGE AND POWER CONSUMPTION
220-240 V ac 2350 W (10.21 A)
FEEDER CABLE SECTION
TYPE H05RR-F
3 x 1,5 mm2(*) (**)
(*) Connection possible with plug and outlet
(**) Connection with wall box connection.
F
A
E
N (L2)
L1
Figure 6
Figure 5
Figure 7
220 - 240 V

12

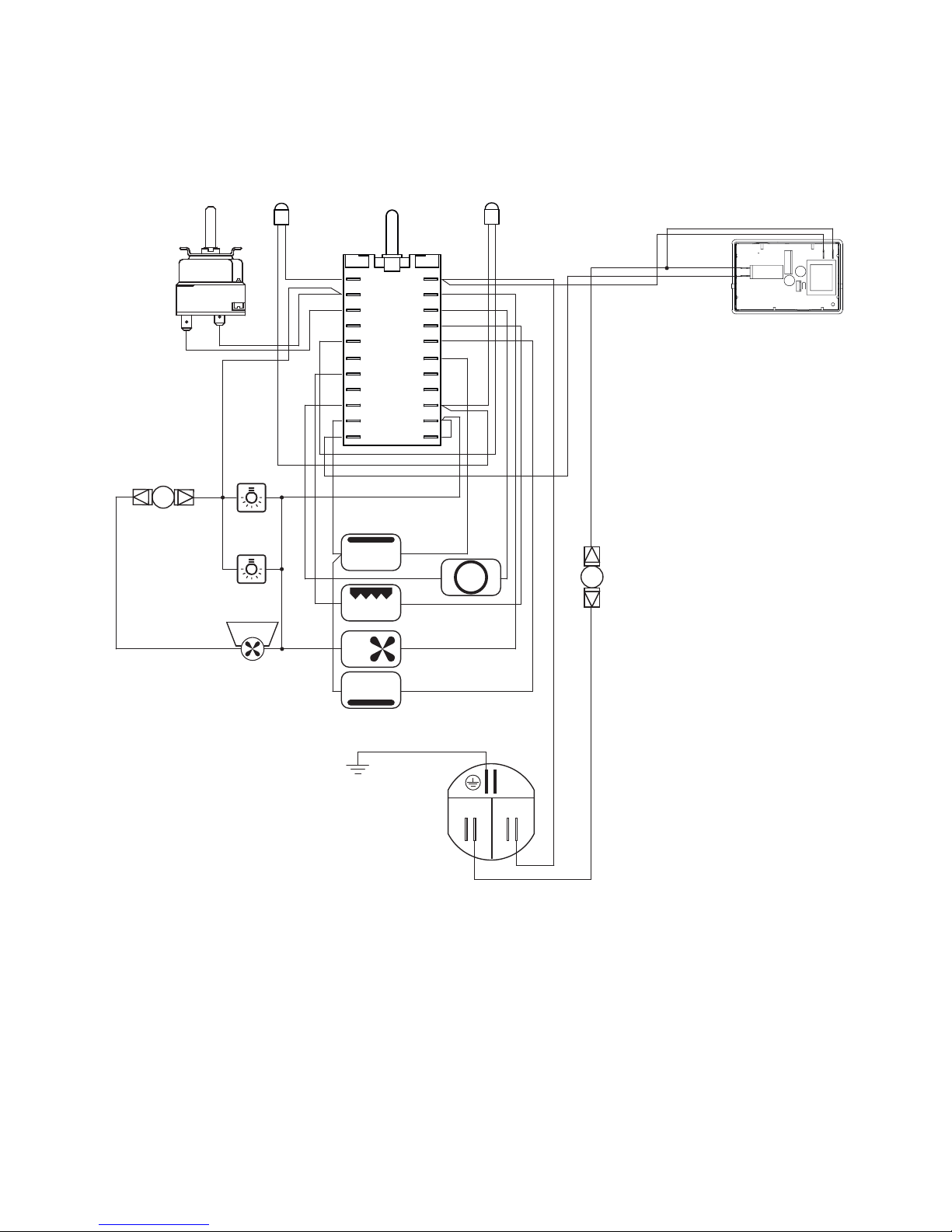

ELECTRIC DIAGRAM
Figure 8
S1S2 F1
PR
1
6
1a
6a
4
9
4a
9a
3
8
3a
8a
2
7
2a
7a
5
10
11
5a
10a
11a
C
G
S
V
CIR
TM
CF
LF
LF1
TL
T
NL
M
TL1
N/7 L/8
1
1a

13
ELECTRIC DIAGRAM KEY
F1 Oven switch
TM Oven thermostat
LF/LF1 Oven lamps
PR Oven programmer
CF Cooling fan motor
V Oven fan motor
C Oven top element
G Oven grill element
S Oven bottom element
CIR Oven circular element
TL Thermal overload
TL1 Cooling fan motor thermal overload
S1 Thermostat pilot lamp
S2 Line pilot lamp
M Terminal block
T Earth connection

14
USE AND CARE

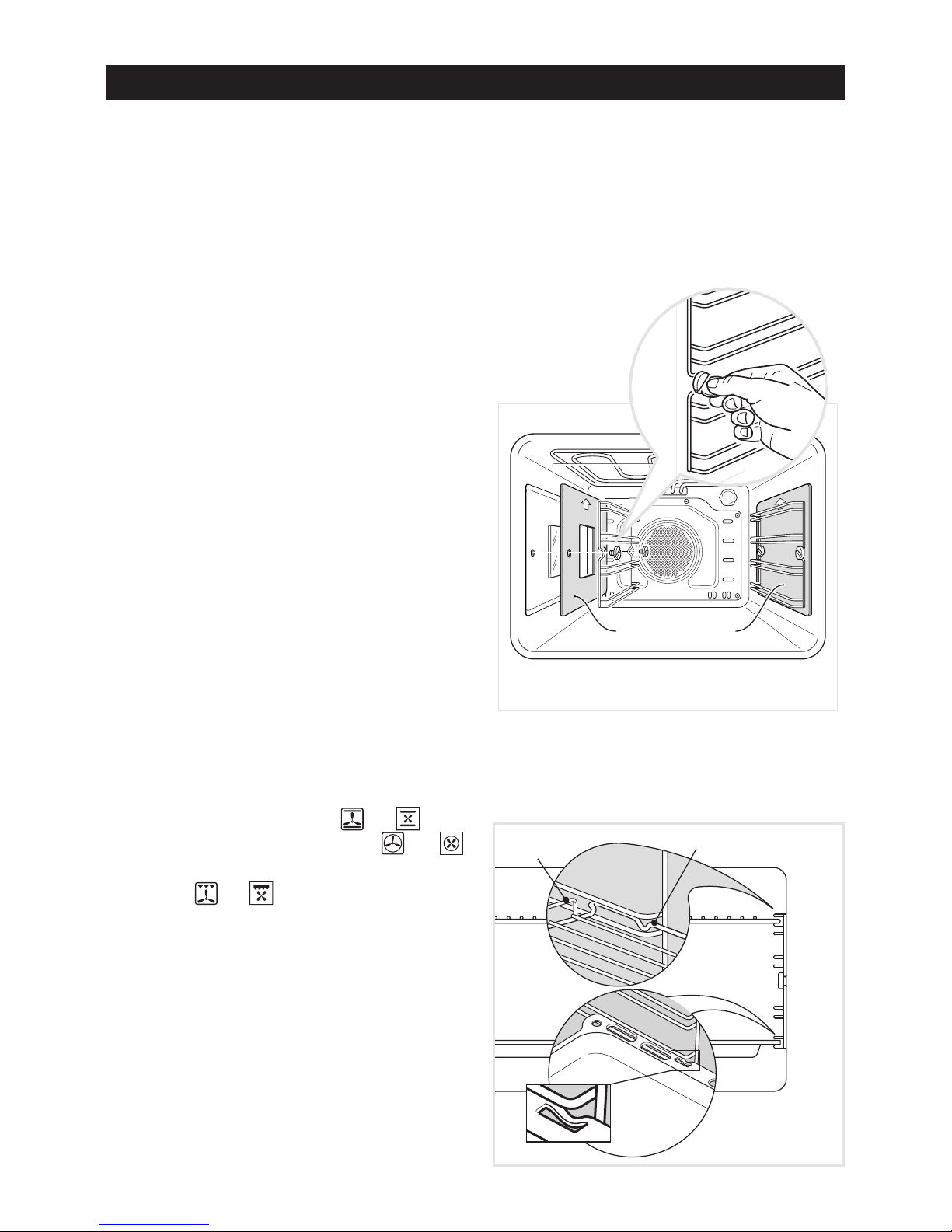

USING THE OVEN FOR THE FIRST TIME
Operate as follows:
■Assemble the wire racks on the oven
walls using the 2 screws interposing
the catalytic panels “A” with the arrow
up (g. 9a). The catalytic panel with the
hole for the side oven lamp must be po-
sitioned on the left oven wall. DO NOT
INTERPOSE THE CATALYTIC PANEL
WITHOUT THE HOLE ON THE LEFT
OVEN WALL.
■ Slide in the grease lter on the back of
the oven as in g. 10.
■Slide into the guides, the shelf and the
tray (g. 9b).
 The rack must be tted so that the safe-
ty notch, which stops it sliding out, faces
the inside of the oven; the guard rail shall
be at the back.
 The tray must be tted so that the safe-
ty notch, which stops it sliding out, faces
the inside of the oven.
■To eliminate traces of grease in manu-
facture it is necessary to preheat the
oven at the maximum temperature:
• For 60 minutes in the (or ) posi-
tion, for 30 minutes in the (or )
position and for another 15 minutes in
the (or ) position.
■ Unscrew the xing screws and slide off
the wire racks and the catalytic liners to
the oven wall as in g. 9a.
The grill is secured to the rear wall of the
oven on a hinge system that allows it to
be lowered to allow proper access when
cleaning the oven ceiling (see next chap-
ter TILTING GRILL).
■Let the oven cool down, switch off the
electrical supply, then clean the inside of
the oven with a cloth soaked in water and
neutral detergent and dry thoroughly.
CAUTION:
■This appliance must be used only for the task it has explicitly been designed for, that
is for domestic cooking of foodstuffs. Any other form of usage is to be considered as
inappropriate and therefore dangerous.
■Do NOT place combustible materials or products on this appliance at any time.
AA
Figure 9a
Figure 9b
Stop notch
Stop notch
Guard rail

15
TILTING GRILL
■The grill is secured to the rear wall of the oven on a hinge system that allows it to be
lowered to allow proper access when cleaning the oven ceiling (g. 12).
■ To lower the grill element: use a at-head screwdriver or a small coin to loosen the
element xing screw (g. 11).
■ When you have nished cleaning the oven ceiling, raise the grill element and screw
the element xing screw back onto the stud. Make sure that the xing screw is tighte-
ned and the element is held securely in place.
■The grill element itself is self-cleaning.
Fixing screw
Stud
Figure 11 Figure 12
Figure 10
GREASE FILTER
■A special screen is provided at the
back of the oven to catch grease par-
ticles, mainly when meat is being roa-
sted (g. 10).
■ Clean the lter after any cooking!
 The grease lter can be removed for
cleaning and should be washed regu-
larly in hot soapy water (g. 10).
■ Always dry the lter properly before t-
ting it back into the oven.
CAUTION: When baking pastry etc. this
lter should be removed.

16
50
75
175
200
225
1 2 3
4 5
1 2 3
4 5
Figure 13a
Mod. DE608M
Figure 13a
Mod. DE608ARTB
Please note:
Your appliance has been tted with a cooling fan to achieve optimum efciency of the con-
trols and to ensure lower surface temperatures are maintained.
The cooling fan motor switches ON/OFF depending on temperature.
Depending on cooking temperatures and times, the cooling fan may run on even after the
appliance oven has been switched off.
The duration of this time is dependent on previous cooking temperature and duration.
Controls description
1. Oven temperature control knob
2. Digital electronic programmer
3. Function selector control knob
Pilot lamps
4. Oven temperature indicator light
5. Power on indicator light
CONTROL PANEL

17
USING THE PRESS-AND-TURN CONTROL KNOBS (only for model DE608M)
The control knobs are ush-mounted in the control panel.
Use them as follows:
a. Press lightly on the knob (gure 14-A);
b. The knob will extend outwards as illustrated in gure 14-B.
c. Turn the knob to the required position (gure 14-C).
d. When you have nished cooking, turn the knob back to the “0” (off) position and press
it (gure 14-D) so that it stays ush with the control panel again (gure 14-F).
IMPORTANT:
Never press down the knob when it is not in the “0” (off) position (gure 14-E).
Figure 14
Fig. A Fig. B Fig. C
Fig. D Fig. E Fig. F

18
COOKING WITH MULTIFUNCTION OVEN
Attention: The oven door becomes
very hot during operation.
Keep children away.
GENERAL FEATURES
As its name indicates, this is an oven that
presents particular features from an opera-
tional point of view.
In fact, it is possible to insert 7 different pro-
grams to satisfy every cooking need.
The 7 positions, thermostatically control-
led, are obtained by 4 heating elements
which are:
■ Bottom element 1300 W (@230V)
■ Top element 1000 W (@230V)
■ Grill element 2000 W (@230V)
■ Circular element 2200 W (@230V)
OPERATING PRINCIPLES
Heating and cooking in the MULTIFUN-
CTION oven are obtained in the following
ways:
a. by normal convection
The heat is produced by the upper and
lower heating elements.
b. by forced convection
A fan sucks in the air contained in the
oven mufe, which sends it through the
circular heating element and then sen-
ds it back through the mufe.
 Before the hot air is sucked back again
by the fan to repeat the described cycle,
it envelops the food in the oven, provo-
king a complete and rapid cooking. It is
possible to cook several dishes simul-
taneously.
c. by semi-forced convection
The heat produced by the upper and
lower heating elements is distributed
throughout the oven by the fan.
d. by radiation
The heat is irradiated by the infra red
grill element.
e. by radiation and ventilation
The irradiated heat from the infra red
grill element is distributed throughout
the oven by the fan.
f. by ventilation
The food is defrosted by using the fan
only function without heat.
WARNING:
The door is hot, use the handle.
During use the appliance becomes
hot. Care should be taken to avoid
touching heating elements inside the
oven.

19
Figure 16
Mod.
DE608M
Mod.
DE608ARTB
Figure 15
TEMPERATURE
Mod.
DE608M
Mod.
DE608ARTB
THERMOSTAT KNOB
To turn on the heating elements of the oven, set function selector knob to the required po-
sition and the thermostat knob to the desired temperature.
To set the temperature, turn the thermostat control knob indicator mark to the required
temperature.
The elements will turn on or off automatically which is determined by the thermostat.
The operation of the heating elements is signalled by a light placed close to the knob.
FUNCTION SELECTOR KNOB
Rotate the knob clockwise to set the oven for one of the following functions.
(or ) OVEN LIGHT
By turning the knob onto this setting we light the oven cavity.
The oven remains alight while any of the functions is on.
(or ) TRADITIONAL CONVECTION COOKING
The upper and lower heating elements are switched on. The heat is diffused by natural con-
vection and the temperature must be regulated between 50°C and the maximum position
with the thermostat knob.
It is necessary to preheat the oven before introducing the foods to be cooked.
Recommended for:
For foods which require the same cooking temperature both internally and externally, i. e.
roasts, spare ribs, meringue, etc.

20
(or ) GRILLING
The infra-red heating element is switched on. The heat is diffused by radiation.
Use with the oven door closed and the thermostat knob must be regulated between 50°C
and 225°C maximum.
For correct use see chapter “USE OF THE GRILL”.
Always grill with the oven door closed.
Recommended for:
Intense grilling, browning, cooking au gratin and toasting etc.
(or ) DEFROSTING FROZEN FOODS
Only the oven fan is on.
To be used with the thermostat knob on “0” because the other positions have no effect.
The defrosting is done by simple ventilation without heat.
Recommended for:
To rapidly defrost frozen foods; 1 kilogram requires about one hour.
The defrosting times vary according to the quantity and type of foods to be defrosted.
(or ) HOT AIR COOKING
The circular element and the fan are on.
The heat is diffused by forced convection and the temperature must be regulated between
50°C and the maximum position with the thermostat knob.
It is not necessary to preheat the oven.
Recommended for:
For foods that must be well done on the outside and tender or rare on the inside, i.e. lasa-
gna, lamb, roast beef, whole sh, etc.
(or ) VENTILATED GRILL COOKING
The infra-red grill and the fan are on. The heat is mainly diffused by radiation and the fan
then distributes it throughout the oven.
Use with the oven door closed and the thermostat knob must be regulated between 50°C
and 220°C maximum.
It is necessary to preheat the oven for about 5 minutes.
For correct use see chapter “GRILLING AND COOKING AU GRATIN”.
Always grill with the oven door closed.
Recommended for:
For grill cooking when a fast outside browning is necessary to keep the juices in, i. e. veal
steak, steak, hamburger, etc.
