DELTA DORE Tywatt 5450 User manual

Tywa 5450
EN Smart modular power
consumption sensor

2 3
EN
1 - Recommendations
- Device intended for single-phase installations.
- Mounted on a DIN rail in the electrical cabinet.
- 16A max. circuit breaker required.
- Position this product as far away as possible
from other units that generate strong electrical
interference.
Prerequisites
- A smart home hub connected to the router
- The Tydom application
(available in Play Store
and Apple Store).
16A
max.
If you do not have access to Internet, you can set
up your Tywatt with the Tydom application using
a Wi-Fi router.
2 - Connection
Switch off the installation power supply
2.1 Connection instructions
for the terminals
- Strip the wires while respecting
the strip length specied
on the product.
- Push the wire fully
into the terminal.
8 mm
0,75 - 1,5 mm
Ø
2
Removal
recommendations
- Switch off the power
supply.
- Use a screwdriver to press
the button of the terminal
before removing the wire.
1
2

4 5
EN
2.2 Connection
LED alert:
- Solid green: power supply OK.
35270-Bonnemain-FR
TYWATT 5450
N
N
N
L
ON
1
2
1
2
2
L
1 3
N L Ti
230V~
2 VA
Ti
6
Up to 3 TI (1)
in parallel.
Heating
Hot water
Outlets
Cooling
LED
Conguration
button
(1) Ability to connect 3 TI in parallel at inputs 3
and 6 with a view to facilitating the running of
various measurement cables (single display of the
accumulation of the 3 TIs available in the Tydom
application).
Connection of the open loop current transformer (Ti)
Connection of the secondary:
- Connect the blue wire of the Ti to terminal 3
and the white wire to the terminal 6 of the
Tywatt.
Connection of the primary:
- Open the
current
transformer casing.
- Insert the substation’s
phase conductor/s
in keeping with the
direction of circulation
of the current from
source to load.
- Close the Ti casing and
make sure that it is
suitably locked.
ON
ON
ON
ON KL
KL
ON
KL
click
Source
Load
ON
KL

6 7
EN
Switch the system on again.
3 - Pairing
3.1 Pairing with the Tydom app
From the Tydom application, select:
Settings > My home > My devices > Add a device
> Consumption > Tywatt 5450 > then follow the
on-screen instructions.
After pairing, select the Tywatt to congure the
substation measured by the TI (heating, hot water,
electrical outlets, cooling).
Remember to specify the type of substation
measured on the plate of the electrical
cabinet.
For installations equipped with an EM.IC (Consumption
information transmitter), pair the EM.IC with the Tywatt
from the Tydom application.
With the Tydom application, select:
Settings > My home > My devices > Consumption > Then
select your previously paired Tywatt with which you wish to
pair the EM.IC and follow the instructions.
3.2 Removing the pairing
with the Tydom application
In the Tydom application, select:
- Settings > My home > My devices >
Consumption > Select the Consumption device
corresponding to the Tywatt 5450>
- Press "Remove".
3.3 Removing the pairing of a paired EM.IC
In the Tydom application, select:
- Settings > My home > My devices >
Consumption > then select the Tywatt to which
the EM.IC is paired.
- In the EM.IC window, press "Unpair".

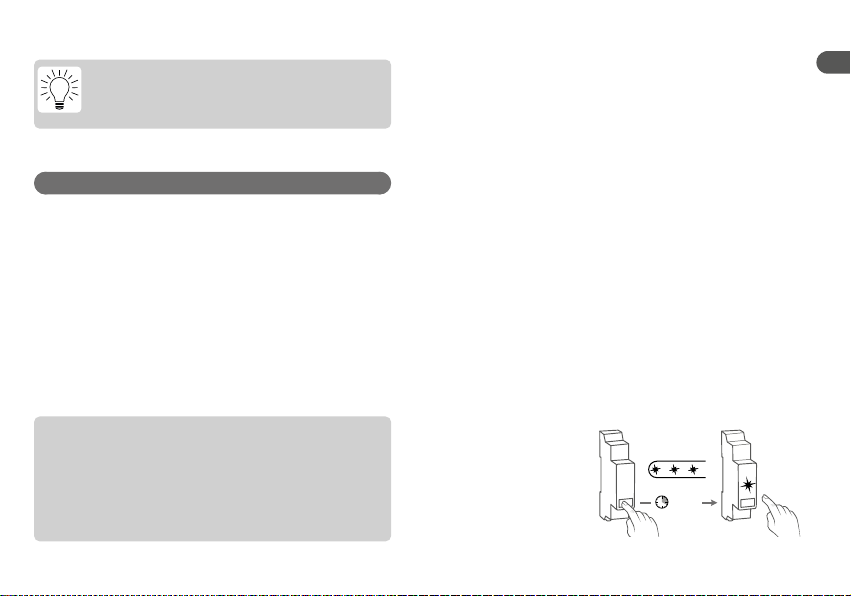

3.4 Reset to factory settings
- Hold the button pressed down for 20 seconds.
The red LED ashes, then remains on.
- Release.
... ... ...
>20s
Red

8 9
EN
Technical specications
Modular unit
- Power supply: 230 V~ 2 VA
- Class II insulation
- Type 1 action
- Rated impulse withstand voltage: 4000 V
- Ball test temperature:
Housing : 75°C
Terminal block: 100°C
- Storage temperature: -10°C / +70°C
- Operating temperature: 0°C / +55°C
- IP 30
- Dimensions: 1 module - 18 x 90 x 71 mm
- X3D wireless remote control device:
868.7 MHz to 869.2 MHz.
- Maximum wireless power < 10 mW
- Category 2 receiver
Open loop current transformer:
- Dimensions: 30 x 46 x 29 mm
- Internal diameter: 16 mm
- Primary current: 70 A max.
- Secondary current: 140 mA max.

04/23
www.deltadore.com
