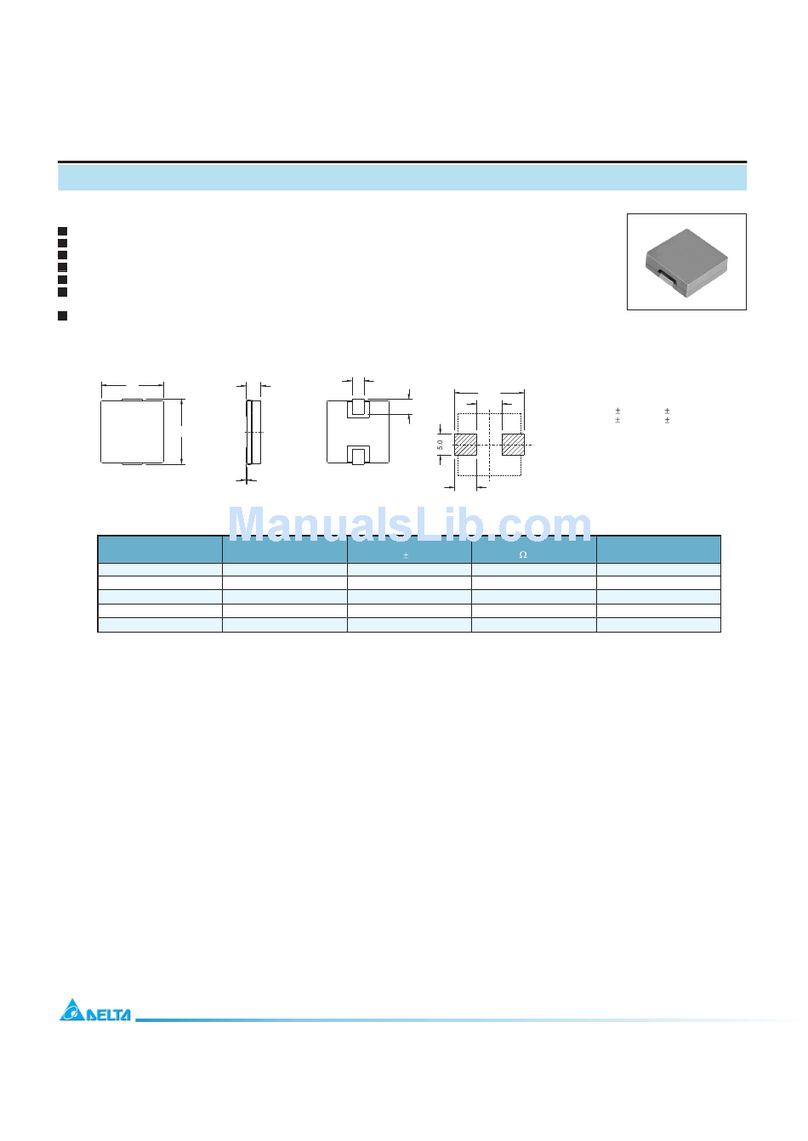

SMT Power Inductor
SILM8040 Type
59
Features
RoHS compliant.
Low profile (4.0mm max. Height), SMD type.
Self-leads, suitable for high density mounting.
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Ideal for power source circuits, DC-DC converter, DC-AC inverters
inductor applications.
In addition to the standard versions shown here, customized inductors
are available to meet your exact requirements.
Electrical Characteristics:
Mechanical Dimension:
UNIT:mm/inch
A =8.4 / 0.331Max.
B = 4.2/ 0.165 Max.
C = 8.4 / 0.331Max.
D = 6.3 0.5 / 0.248 0.020
E = 3.0 0.5/ 0.118 0.020
F = 9.5 0.5 / 0.374 0.020
5.3
C
F
D
A
E
3.7
B
10.5
RECOMMENDED PAD PATTERNS
25 : 100KHz, 0.1V
OC
2
PART NO.
DCR
(m ) MAX
1
L
(uH)
1. Tolerance of inductance : 1.5~100uH 30%.
2. Irated is the DC current which cause the inductance drop 35% of its nominal inductance without current
o
and the surface temperature of the part increase less than 45 C.
oo
3. Operating temperature: -20 C to 105 C (including self-temperature rise).
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG) 252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: [phone]; FAX: [phone]
http://www.deltaww.com
2
Isat
(Adc)
3
Irated
(Adc)
SILM8040 - 1R5 1.5 13.8 7.00 9.00
SILM8040 - 2R2 2.2 18.3 6.50 7.50
SILM8040 - 3R3 3.3 20.6 5.00 6.00
SILM8040 - 4R4 4.4 25.7 4.60 6.00
SILM8040 - 5R2 5.2 30.0 4.20 4.50
SILM8040 - 100 10.0 47.0 3.00 4.00
SILM8040 - 150 15.0 71.3 2.75 3.50
SILM8040 - 220 22.0 102.0 2.30 3.00
SILM8040 - 330 33.0 143.0 1.75 2.50
SILM8040 - 470 47.0 189.0 1.52 2.00
SILM8040 - 680 68.0 260.0 1.30 2.00
SILM8040 - 101 100.0 361.0 1.05 1.30
0
1
10
100
0110 100
DC BAIS (A)
INDUCTANCE(uH)
