Delta Electronics J5P Micro User manual

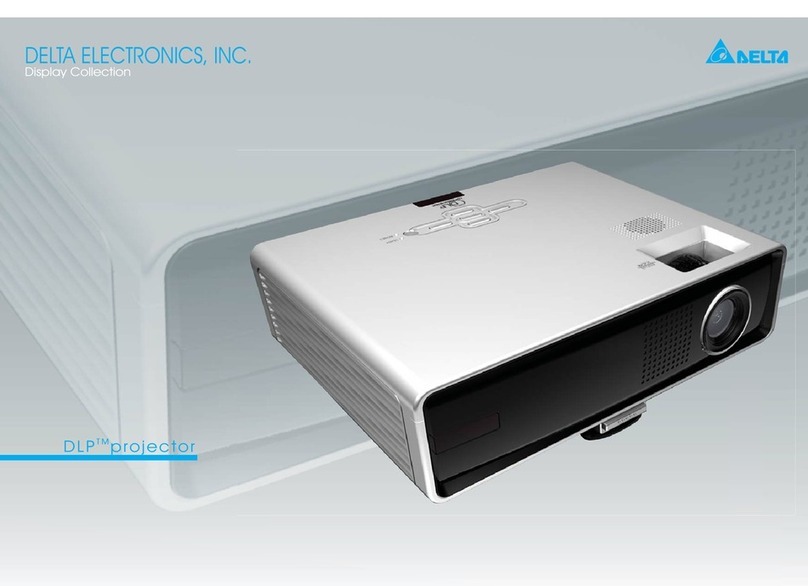

DELTA ELECTRONICS, INC.
Display Collection
DLPTMprojector
J5P Micro

www.deltaww.com
TAIWAN
DELTA ELECTRONICS, INC.
Display Business
186, Ruey Kuang Road, Neihu,Taipei 11491,
Taiwan, R. O. C.
TEL:[phone]
FAX:[phone]
CHINA
Delta Electronics (Jiang Su) Ltd.
Visual Display Plant
1688 Jiangxing East Road,
Wujiang Economy Development Zone,
Wujiang City, Jiang Su Province,People's
Republic of China Post code: 215200
TEL: [phone]
FAX: [phone]
JAPAN
DELTA ELECTRONICS (JAPAN) INC.
Delta Shibadaimon Building
2-1-14 Shibadaimon,
Minato-Ku, Tokyo, 105-0012,
Japan
TEL :[phone]
FAX: [phone]
U.S.A.
Delta Products Corporation
15125 SW Koll Parkway, Suite K,
Beaverton, OR 97006, U.S.A.
TEL : [phone]
FAX : [phone]
EUROPE
DELTA ELECTRONICS (EUROPE), LTD.
Wegalaan 16
2132 JC Hoofddorp
The Netherlands
TEL: [phone]
FAX: [phone]
434A0612
Model J5P Micro
Reference Model DP-2520 DP-3520 DP-6620 DP-7620
Projection System Texas Instruments DLPTM Technology
Panel 0.55" x 1, Type X 0.55" x 1, Type X 0.62" 720p, Type A 0.65" WXGA, Type A
Data Processor 2xLVDS DLPTM with DDP2230
Native Resolution SVGA 800x600 XGA 1024x768 720p WXGA 1280x768
Brightness (Typical) Standard mode (200W) 2000 ANSI Lumens 2000 ANSI Lumens 2000 ANSI Lumens 2000 ANSI Lumens
Eco mode (160W) 1500 ANSI Lumens 1500 ANSI Lumens 1500 ANSI Lumens 1500 ANSI Lumens
Contrast Ratio 1800:1 1800:1 1800:1 1800:1
Brightness Uniformity (Typical) 80% 80% 80% 80%
Color Reproduction Graphic: 24 bit 16.7M true color <UXGA, video: 27 bit 134million true color, 1080p/UXGA/WSXGA+ @ 60Hz: 16 bit 64k True Color
Projection Lens Manual Zoom, Manual Focus
Digital Zoom 16x
Zoom Ratio 1.15:1
Focal Length 21.3 ~ 24.5mm; 2m@52" 21.3 ~ 24.5mm; 2m@59" 21.3 ~ 24.5mm; 2m@60"
Projection Distance 1.5~10m (over drive 11.5m)
Projection Screen Size 34" ~ 260" (overrive to 300") 38.5" ~ 300" 39" ~ 295"
Throw Ratio (D/W) 1.9 ~ 2.2 1.5 ~ 1.8
Optical Offset 128% 128% 136% 128%
Aspect Ratio 4:3 & 16:9
Keystone Correction Vertical +/- 15°
Frequency H-Sync 15, 21.87~91.4 KHz
V-Sync 43 ~ 87Hz
Data Compatibility VGA, SVGA, XGA, SXGA, Macintosh
Video Compatibility NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM, 480i/480p/720p/1080i
Lamp Mode (Standard/Eco) 200W / 160W
Lamp Life (Standard/Eco) 2000 hr / 3000 hr
Acoustic Noise (Standard/Eco) Typical: 36 / 31 dB
Power Supply AC input 110~240 Voltage (auto ranging)
Power Consumption (Standard/Eco) 280W/220W
Dimensions (WxDxH) 280x205x80 mm
Weight (typical) 5.6 lbs
Safety & Regulatory Compliance FCC-B, UL/Cul, TUV, CB, CE, CCC
Led Indicator Power, Lamp Standby, Over Temp
Build-in Speaker 2W mono speaker
IO Panel
Input Terminals
VGA x 2, S-Video x 1,
Composite Video x 1,
Audio (RCA R&L) x 1
VGA x 2, S-Video x 1,
Composite Video x 1,
Audio (RCA R&L) x 1
DVI-I x 1, S-Video x 1,
Composite x 1, YPbPr x 1,
HDMI x 1
VGA x 2, S-Video x 1,
Composite Video x 1,
Audio (RCA R&L) x 1
Output Terminals VGA x1; Audio (mini jack) x 1 NA VGA x1; Audio (mini jack) x 1
Control Terminals USB (type B) x 1; RS232 x 1
1. All Features, specications, model numbers are subject to change without notice.
2. Digital Light Processing and DLP are registered trademarks of Texas Instruments.
